ENTERTAINMENT

09–20–5

09–20

End Of Sie

Terminal

Signals

24-pin connector

2A

2B

2C

2D

2E

2F

2G

2H

2I

2J

2K

2L

2M

2N

Monitor serial input

2O

Shield GND

2P

Monitor serial output

2Q

Shield GND

2R

Video (composit sync)

2S

2T

Video (B)

2U

Video GND

2V

Video (G)

2W

2X

Video (R)

Terminal

Signals

6-pin connector

3A

Mic (+)

3B

Mic (-)

3C

Mic power

3D

GND

3E

Mic sense

3F

Terminal

Signal

1-pin connector

4A

GPS antenna input

4B

GND

2A

2C

2E

2G

2I

2K

2M

2O

2B

2D

2F

2H

2J

2L

2N

2P

2Q

2S

2U

2W

2R

2T

2V

2X

3A

3B

3C

3D

3E

3F

4A

4B

ENTERTAINMENT

09–20–6

NAVIGATION FUNCTION

EHU092066000106

Outline

A vehicle's position is measured by a hybrid method of autonomous navigation (using yaw-rate signals from the
gyro sensor and vehicle speed signals from BCM) and GPS navigation (using signals from GPS satellites).
Accurate detection of the vehicle's position is possible based on the adoption of a map-matching function which
specifies the vehicle's position as compared with the map data read from the DVD-ROM and the vehicle’s
position measured from autonomous navigation and GPS navigation.

Guidance to destination is provided via display of the recommended route on the map screen, as well as voice
messaging guidance at intersections and points of divergence.

Based on inputted signals and information on the DVD-ROM, the following features are available:

Destination can be selected based on address, POI (Point of Interest), emergency, and memory point,
home, preset destination, intersection, free way on/off ramp, coordinates, map or previous destination.

Route information is available in map, turn list, turn arrow, enlarged junction diagram, and freeway
information mode.

Voice guidance and menus are available in three languages.

A map screen that displays maps in thirteen steps with scales from 50 m to 256 km {1/32 mile to 128mile}.

A map screen that displays routes according to Search condition and route preferences.
Search condition
Quick: The route with the quickest time will be used.
Altern.: The alternative route will be used.
Short: The route with the shortest distance.
Route preferences
Allow Major roads
Allow toll road
Allow time restricted road
Allow ferry

Map Screen Selection

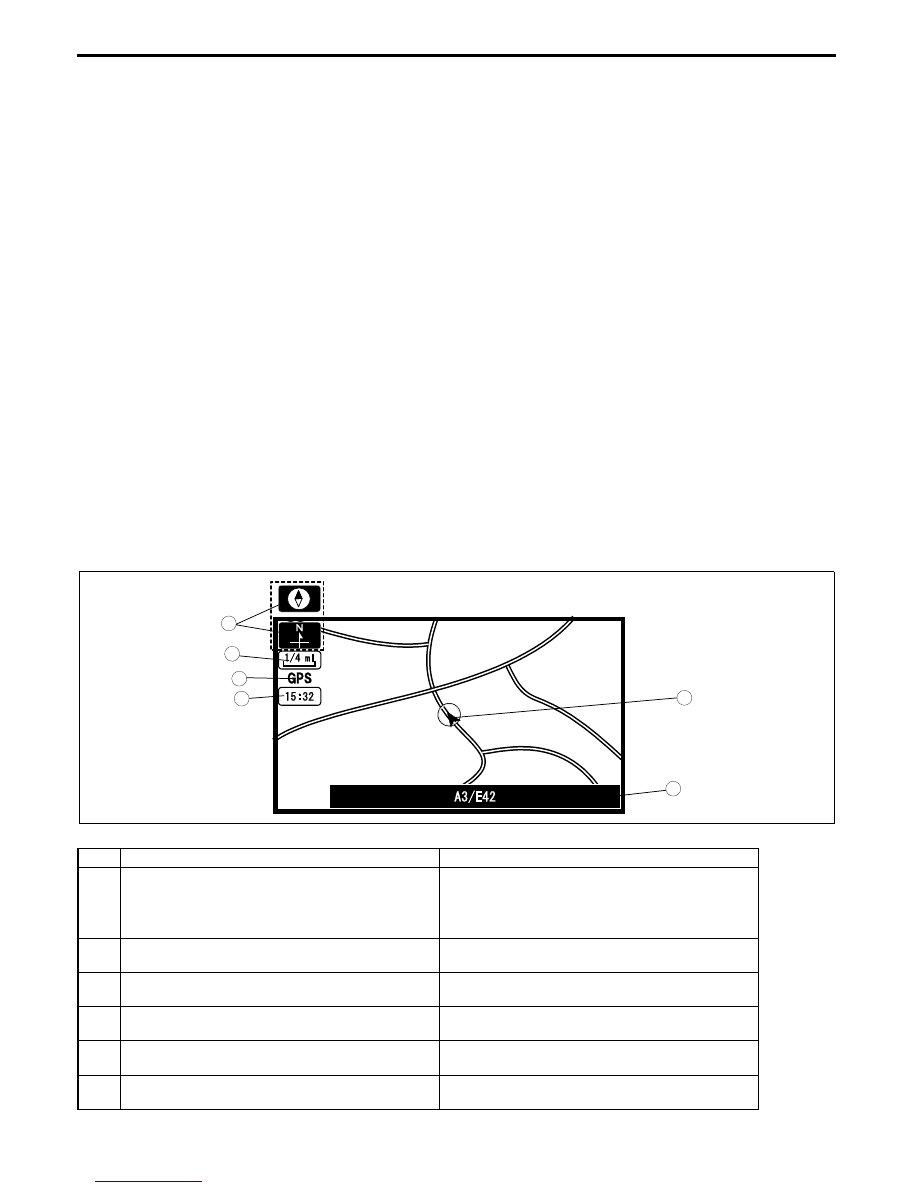

Current position map

The location of the vehicle and surrounding area are shown.

.

4

3

1

2

6

5

EPU920ZS2016

No.

Contents

Description

1

Map orientation

North up

Geographic north is up.

Head up

The direction you are heading is up.

2

Map scale

The map can be displayed in 13 steps with scale
from 50 m to 256 km {1/32 mile to 128 mile}

3

GPS reception indicator

Illuminates when receiving signals from 3 or more
satellites.

4

Clock

Clock will be displayed when you set up clock on
navigation set up on.

5

Vehicle position

Shows the current position and direction of the
vehicle.

6

Road name

Shows the name of the road you are currently
driving on.

ENTERTAINMENT

09–20–7

09–20

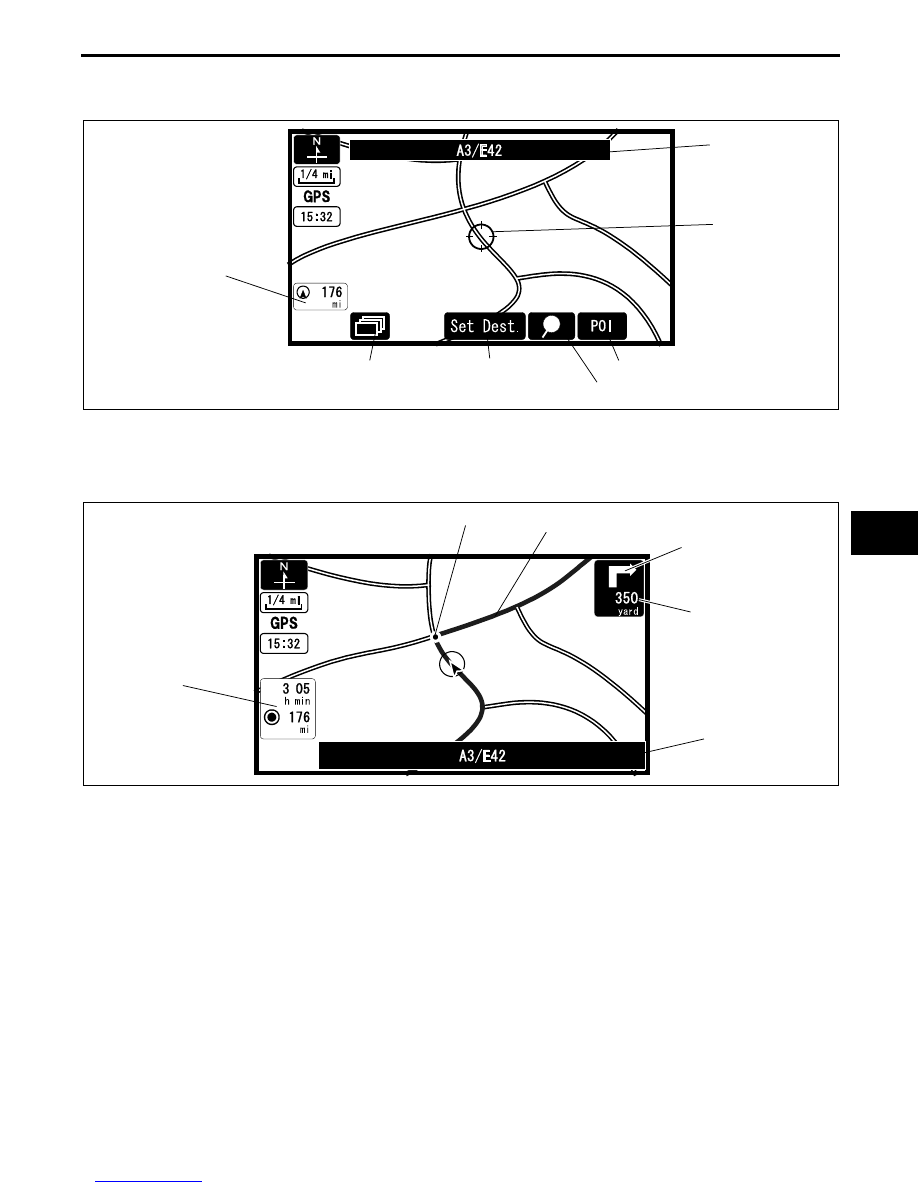

Scroll map mode

The scroll map is displayed when operating the joystick on the current position map.

This map can be scrolled with the crosshair cursor.

Guide mode

Displays an arrow guidance to indicate destination, and also displays route and destination guidance
information. (While in route guidance.)

ROAD NAME

CROSSHAIR
CURSOR

DISTANCE TO THE
CURRENT POSITION

DISPLAY MODE
BUTTON

DESTINATION/VIA POINT
BUTTON

MARK POINT BUTTON

POI BUTTON

EPU920ZS2017

ESTIMATED TRAVEL
(ARRIVAL) TIME/
DESTINATION
DISTANCE

ARROW GUIDANCE
FOR THE NEXT TURN

DISTANCE TO THE
NEXT TURN

ROAD NAME

GUIDANCE POINT ROUTE DISPLAY

E6U920ZS5305

ENTERTAINMENT

09–20–8

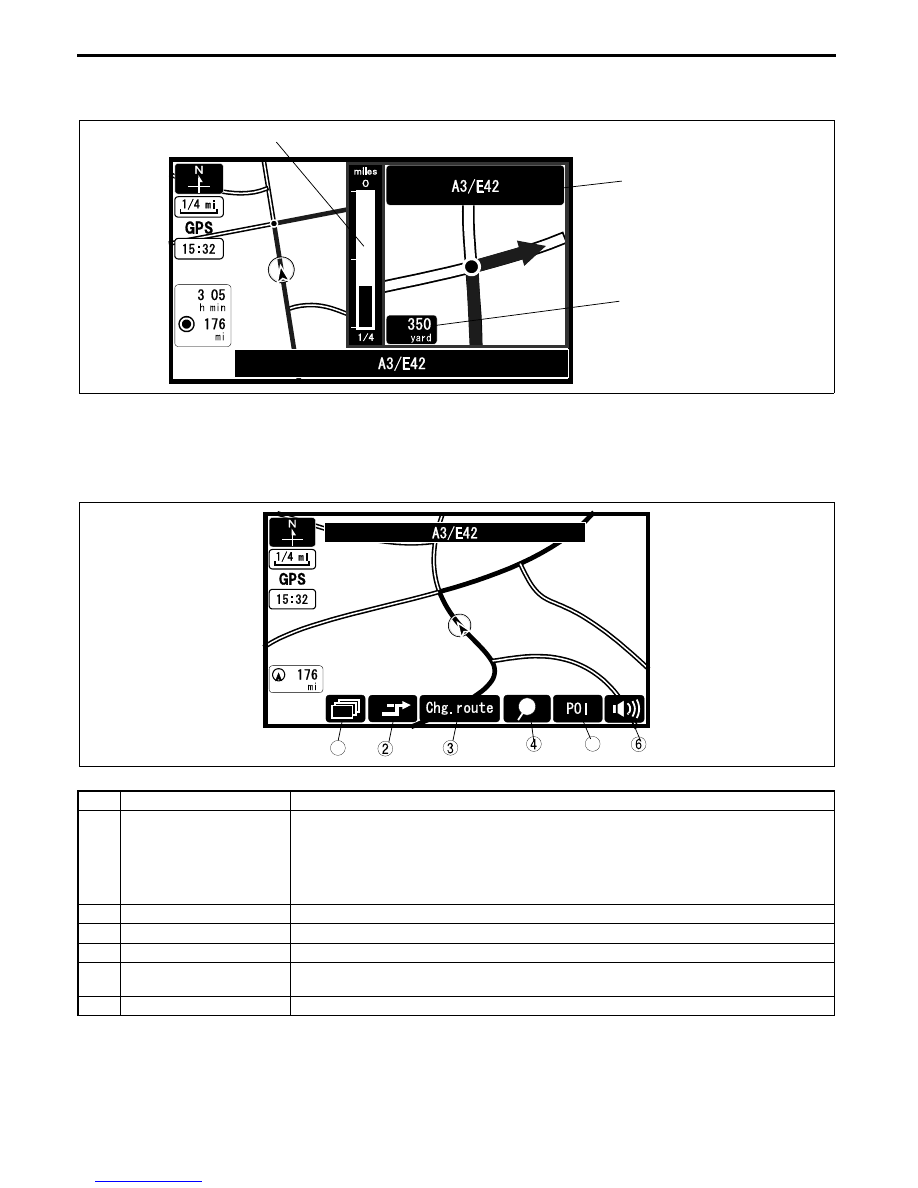

Intersection zoom map

An enlarged map is displayed when approaching an intersection. (While in route guidance.) Activated by
selecting Guidance Screen (On) in setup mode.

Pop Up Menu

Pop up menu appears when pressing the [ENTER] button.

The following items are displayed on the pop up menu. The actual displayed items vary according to whether
the destination has been set or not.

.

DISTANCE TO THE NEXT TURN

NEXT ROAD NAME

DISTANCE TO THE
NEXT TURN

EPU920ZS2019

5

1

EPU920ZS2020

No.

Contents

Description

1

Display configuration

The following items can be selected.

single or dual map

Turn list

Turn arrow

Enlarged junction diagram

Free way information

2

Detour

Searches for detour.

3

Change route

Changes route search settings.

4

Store memory point

Stores markers on the map.

5

POI (Point of Interest)
display

Displays POI on the map.

6

Volume

Adjusts volume of voice guidance.
