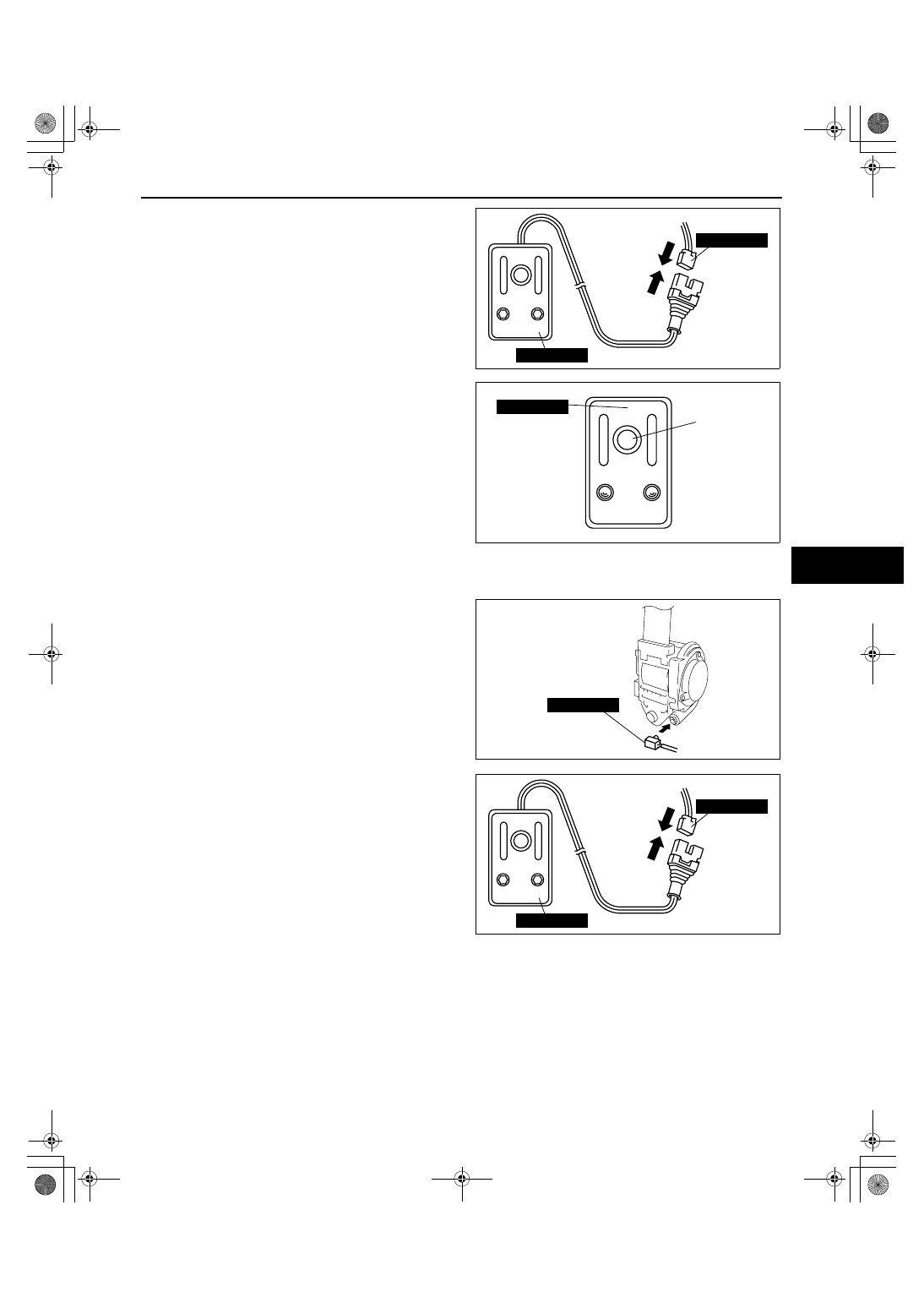

5. Connect the SST (Deployment tool) to the SST

(Adapter harness).

6. Connect the SST (Deployment tool) to the

battery. Connect the power supply red clip to the
positive battery terminal, and the black clip to the
negative battery terminal.

7. Verify that the red lamp on the SST (Deployment

tool) is illuminated.

8. Verify that all persons are standing at least 6 m

{20 ft} away from the vehicle.

9. Press the activation switch on the SST

(Deployment tool) to operate (deploy) the curtain
air bag module.

10. Disconnect the SSTs (Deployment tool) from the

SSTs (Adapter harness).

Pre-tensioner Seat Belt

1. Remove the B-pillar lower trim.

(See 09-17-16 B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

2. Remove the pre-tensioner seat belt and connect

the SST (Adapter harness) as shown in the
figure. (See 08-11-2 FRONT SEAT BELT
REMOVAL/INSTALLATION.)

3. Install the pre-tensioner seat belt.

4. Connect the SST (Deployment tool) to the SST

(Adapter harness).

5. Connect the SST (Deployment tool) to the

battery. Connect the power supply red clip to the
positive battery terminal, and the black clip to the
negative battery terminal.

6. Verify that the red lamp on the SST (Deployment

tool) is illuminated.

7. Verify that all persons are standing at least 6 m

{20 ft} away from the vehicle.

49 L066 002

49 H066 002

acxuuw00001272

49 H066 002

ACTIVATION
SWITCH

acxuuw00001267

49 L066 002

acxuuw00001273

49 L066 002

49 H066 002

acxuuw00001272

1871-1U-06B(08-10).fm 21 ページ２００６年３月１５日　水曜日　午前１１時３６分

AIR BAG SYSTEM

08-10–22

8. Press the activation switch on the SST

(Deployment tool) to operate (deploy) the pre-
tensioner seat belt.

9. Disconnect the SSTs (Deployment tool) from the

SSTs (Adapter harness).

Deployment Procedure for Outside of Vehicle

1. Inspect the SST (Deployment tool).

(See 08-10-31 INSPECTION OF SST (DEPLOYMENT TOOL).)

2. Turn the ignition switch to the LOCK position.
3. Disconnect the negative battery cable and wait for 1 min or more.
4. Follow the procedure below for operating (deploying) the applicable air bag module or pre-tensioner seat belt.

Driver-side Air Bag Module

Warning

• The driver-side air bag module is a dual inflator type. If one inflator is forced to operate (deploy),

the other may operate (deploy) accidentally. To prevent injury while disposing of the air bag
module, make sure to operate (deploy) both driver-side air bag module inflators simultaneously,
following the procedure below.

1. Remove the driver-side air bag module.

(See 08-10-6 DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

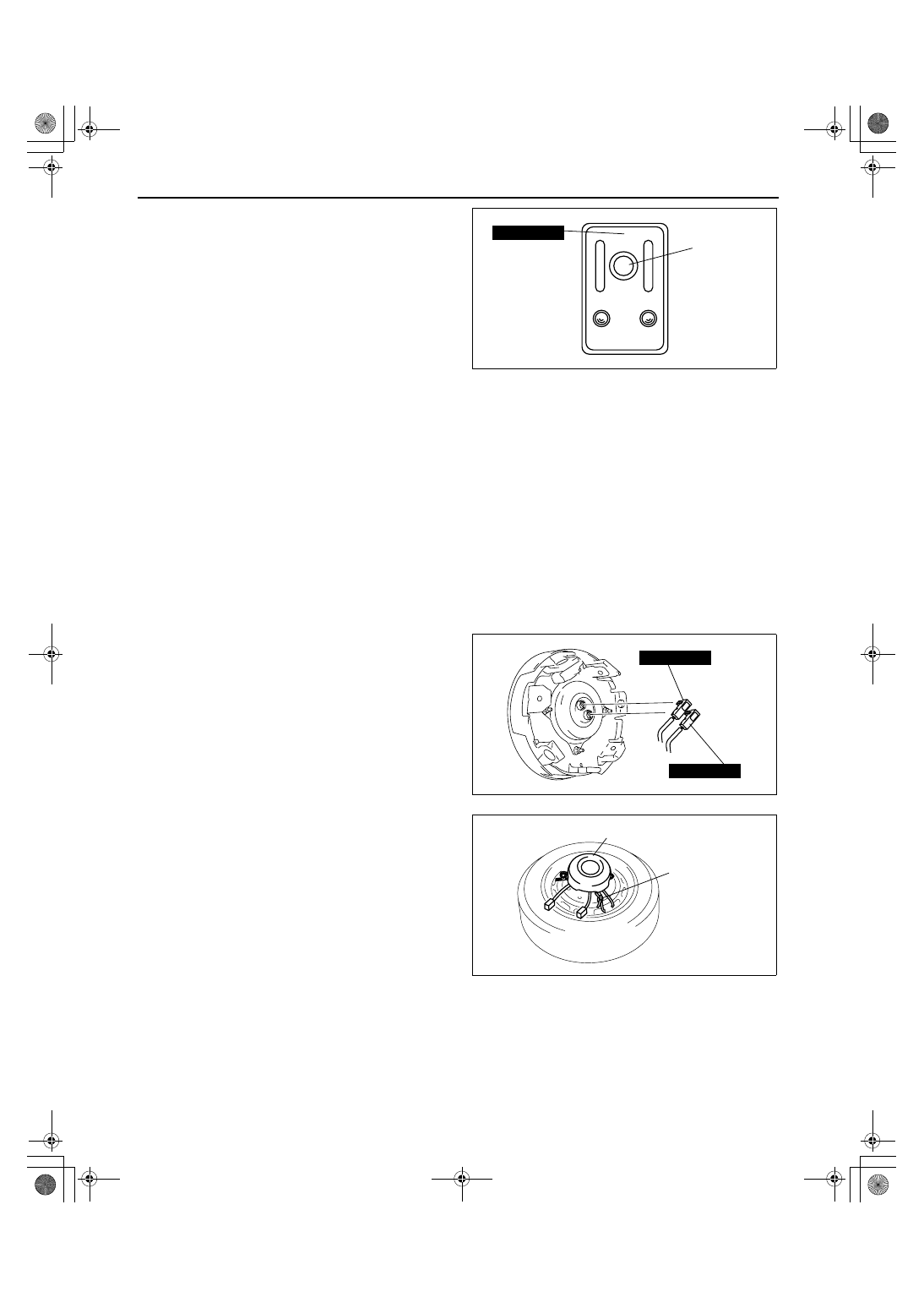

2. Connect the SSTs (Adapter harness) to the

driver-side air bag module as shown in the figure.

3. Place the driver-side air bag module on the center

of the tire wheel with the padded surface facing
up. To secure the air bag module to the tire wheel,
wrap a wire (cross section 1.25 mm

{0.002 in

}

or more) through the wheel and the bolt
installation holes of the air bag module at least 4
times.

Warning

• If the air bag module is not properly

installed to the tire wheel, serious injury
may occur when the module is operated
(deployed). When installing the air bag
module to the tire wheel, make sure the
padded surface is facing up.

49 H066 002

ACTIVATION
SWITCH

acxuuw00001267

49 L066 002

49 G066 003

acxuuw00001396

WIRE

DRIVER-SIDE AIR BAG MODULE

acxuuw00001274

1871-1U-06B(08-10).fm 22 ページ２００６年３月１５日　水曜日　午前１１時３６分

AIR BAG SYSTEM

08-10–23

08-10

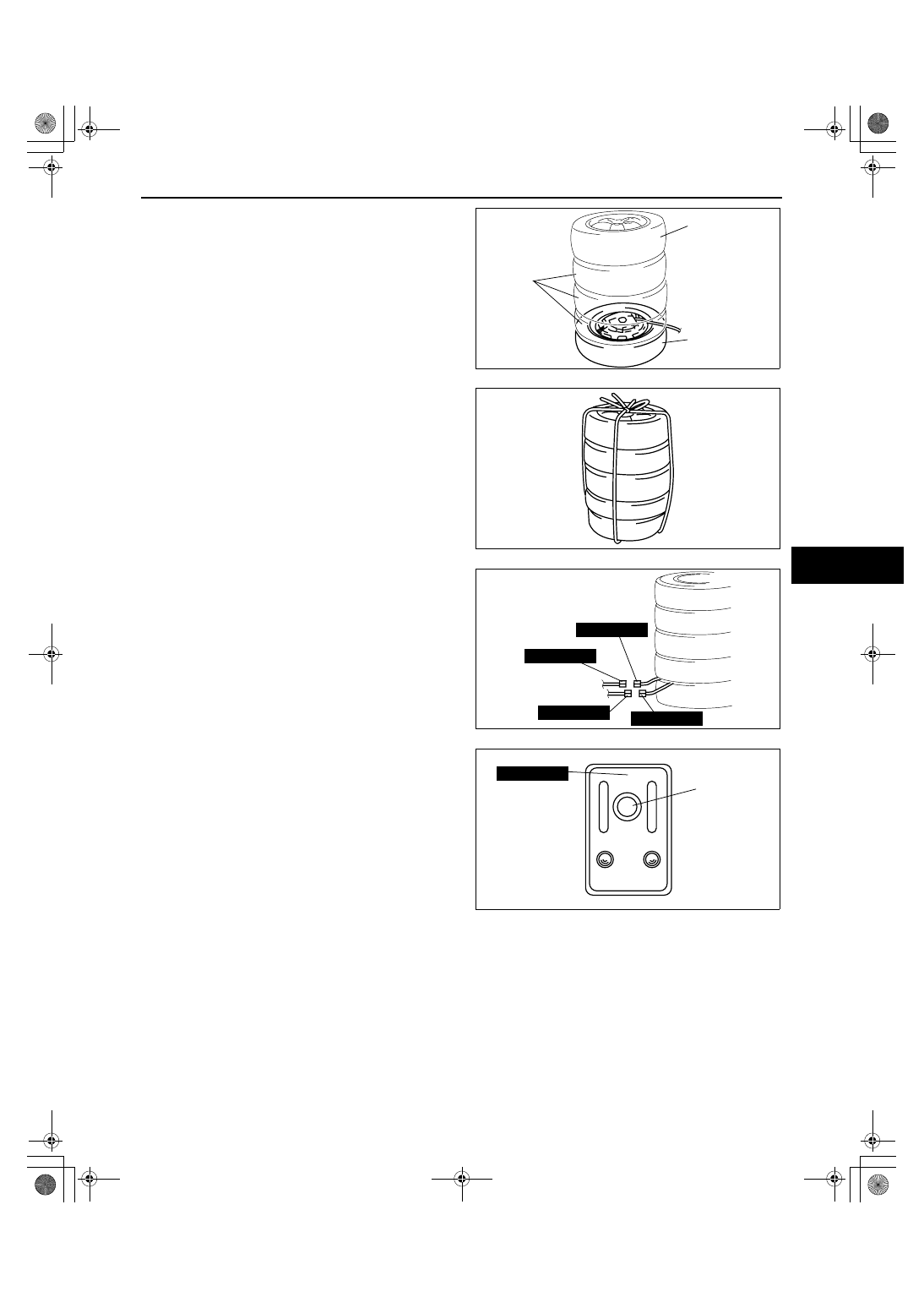

4. Stack three tires without wheels on top of the tire

with the driver-side air bag module, and then
stack another tire with a wheel on the very top.

5. Secure the tires with wire.

6. Connect the SSTs (Deployment tool) to the

SSTs (Adapter harness).

7. Connect both SSTs (Deployment tool) to the

battery. Connect the power supply red clip to the
positive battery terminal, and the black clip to the
negative battery terminal.

8. Verify that the red lamp on both SSTs

(Deployment tool) is illuminated.

9. Verify that all persons are standing at least 6 m

{20 ft} away from the vehicle.

10. Press the activation switch on the SST

(Deployment tool) connected with 49 L066 002
(a yellow connector) of the SST (Adapter
harness), and after 3 s, press the activation
switch on other SST (Deployment tool) to
operate (deploy) the air bag module (both
inflators).

Warning

• Verify that air bag module operation

(explosive) sound occurs twice. If no
operation (explosive) sound was heard or
a single operation (explosive) sound was
heard, both inflators would not have
operated (deployed) properly. This may cause serious injury if the air bag module operates
(deploy) unexpectedly. If the two operation (explosive) sounds are not heard, perform Step 8 again.
If a total of two operation (explosive) sounds cannot be verified even though Step 8 is performed
again, leave the air bag module alone for 30 min or more before approaching it again.

• The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do

not touch the air bag module for at least 15 min after deployment.

11. Disconnect the SSTs (Deployment tool) from the SSTs (Adapter harness).

TIRE WITH
DRIVER-SIDE
AIR BAG
MODULE

TIRE
WITHOUT
WHEEL

TIRE WITH
WHEEL

acxuuw00001275

acxuuw00001276

49 H066 002

49 L066 002

49 G066 003

49 H066 002

acxuuw00001277

49 H066 002

ACTIVATION
SWITCH

acxuuw00001267

1871-1U-06B(08-10).fm 23 ページ２００６年３月１５日　水曜日　午前１１時３６分

AIR BAG SYSTEM

08-10–24

Passenger-side Air Bag Module

Warning

• The passenger-side air bag module is a dual inflator type. If one inflator is forced to operate

(deploy), the other may operate (deploy) accidentally. To prevent injury while disposing of the air
bag module, make sure to operate (deploy) both passenger-side air bag module inflators
simultaneously, following the procedure below.

1. Remove the passenger-side air bag module.

(See 08-10-7 PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

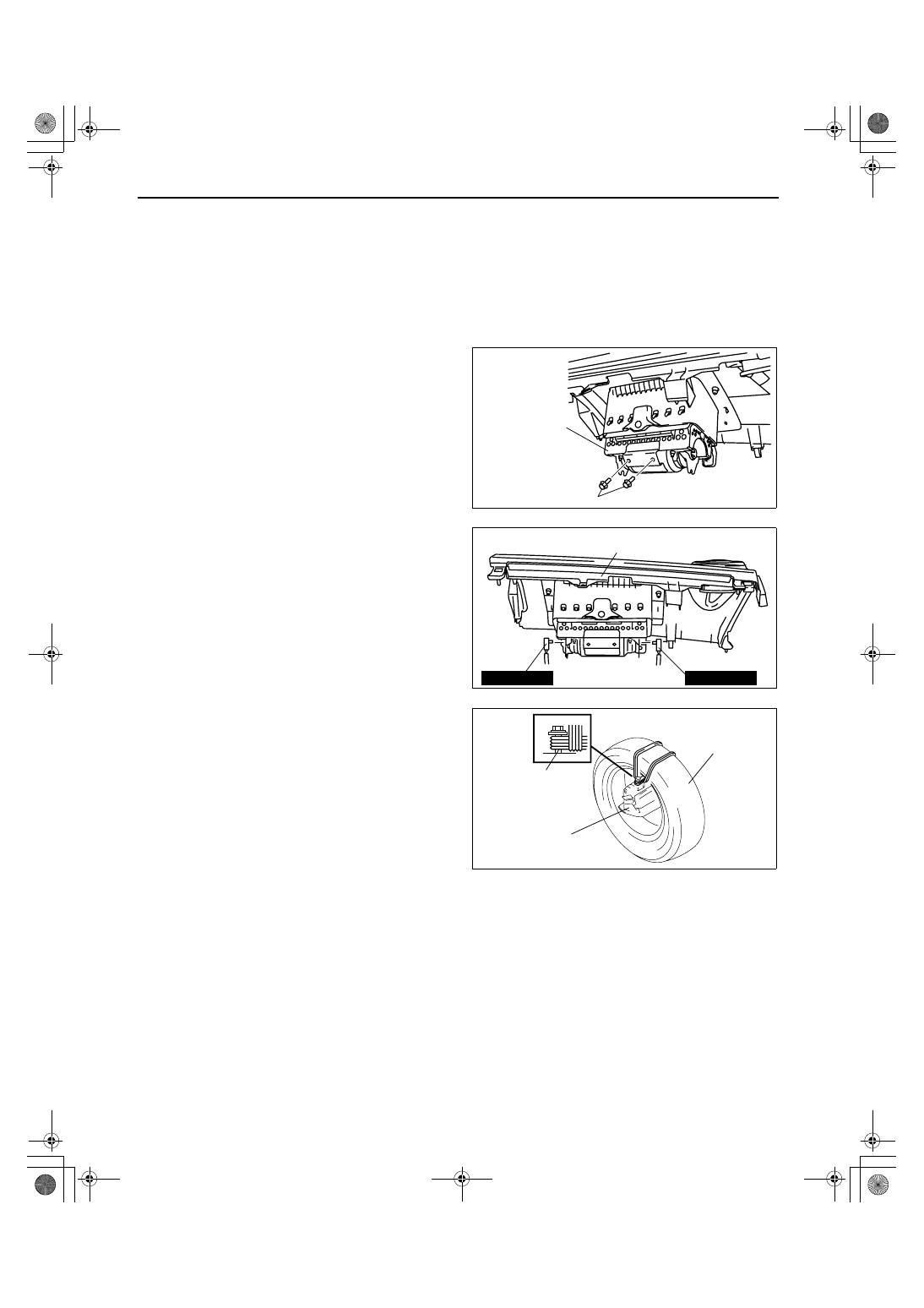

2. Install the bolts to the passenger-side air bag

module.

3. Connect the SSTs (Adapter harness) to the

passenger-side air bag module as shown in the
figure.

4. Place the padded surface of the passenger-side

air bag module facing the center of the tire as
shown in the figure. To secure the air bag module
to the tire wheel, wrap a wire (cross section 1.25
mm

{0.002 in

} or more) through the tire and

around the bolts at least 4 times as shown in the
figure.

Warning

• If the air bag module is not properly

secured to the tire, the tires may fall over
by the impact of operation (deployment)
and cause serious injury. To prevent this,
secure the air bag module properly with
the padded surface facing the center of the tire.

PASSENGER-SIDE
AIR BAG MODULE

BOLT

acxuuw00001710

PASSENGER-SIDE
AIR BAG MODULE

49 G066 003

49 L066 002

acxuuw00001711

TIRE

WIRE

PASSENGER-SIDE
AIR BAG MODULE

acxuuw00001712
