AIR BAG SYSTEM

08-10–25

08-10

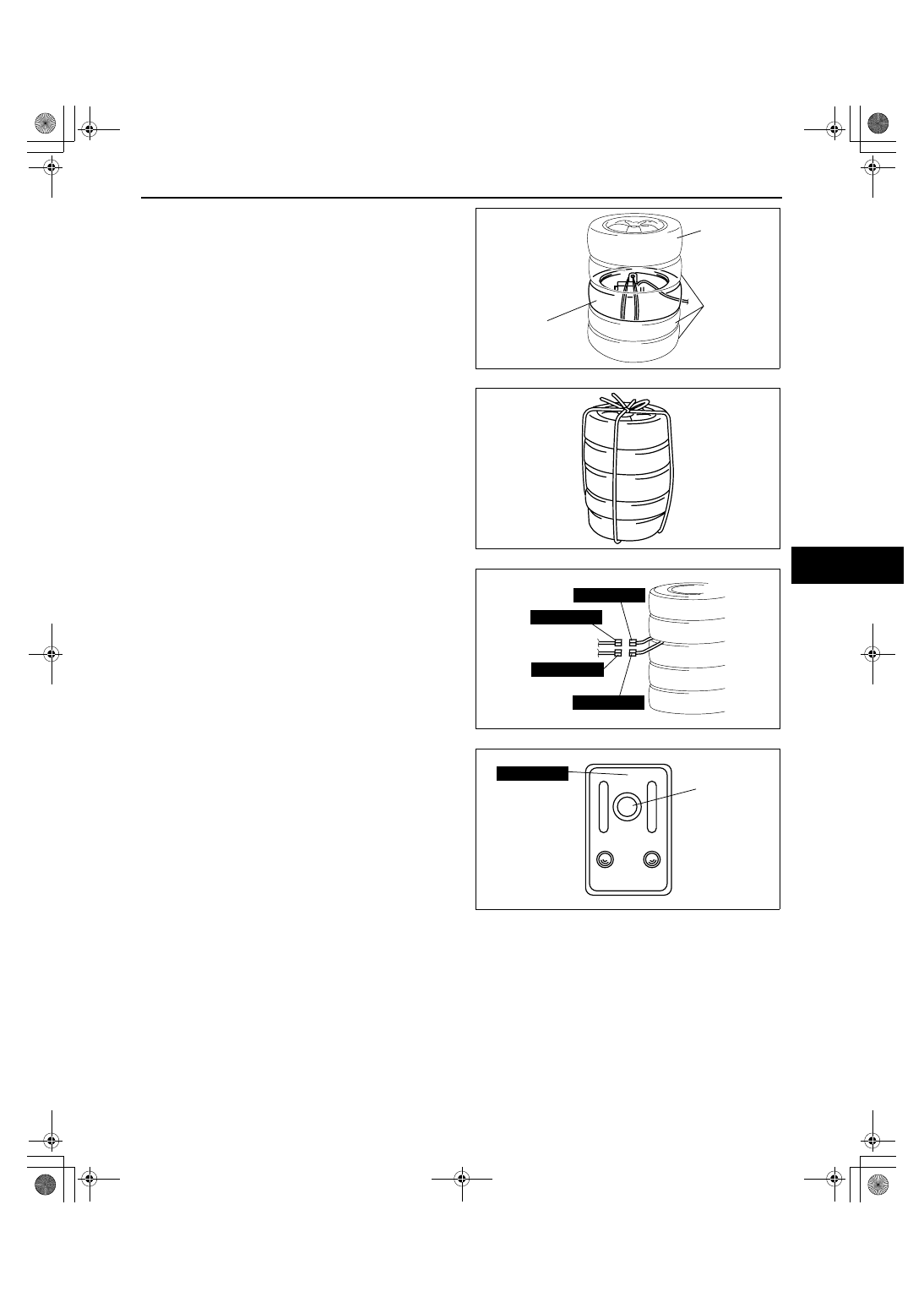

5. Stack the tire with the passenger-side air bag

module on top of two tires without wheels. Stack a
tire without a wheel on top of the tire with the
passenger-side air bag module, and then stack
another tire with a wheel on the very top.

6. Secure the tires with wire.

7. Connect the SSTs (Deployment tool) to the

SSTs (Adapter harness).

8. Connect both SSTs (Deployment tool) to the

battery. Connect the power supply red clip to the
positive battery terminal, and the black clip to the
negative battery terminal.

9. Verify that the red lamp on both SSTs

(Deployment tool) is illuminated.

10. Verify that all persons are standing at least 6 m

{20 ft} away from the vehicle.

11. Press the activation switch on the SST

(Deployment tool) connected with 46 L066 002
(a yellow connector) of the SST (Adapter
harness), and after 3 s, press the activation
switch on the other SST (Deployment tool) to
operate (deploy) the air bag module (both
inflators).

Warning

• Verify that air bag module operation

(explosive) sound occurs twice. If no
operation (explosive) sound was heard or
a single operation (explosive) sound was
heard, both inflators would not have
operated (deployed) properly. This may cause serious injury if the air bag module operates
(deploy) unexpectedly. If the two operation (explosive) sounds are not heard, perform Step 8 again.
If a total of two operation (explosive) sounds cannot be verified even though Step 8 is performed
again, leave the air bag module alone for 30 min or more before approaching it again.

• The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do

not touch the air bag module for at least 15 min after deployment.

12. Disconnect the SSTs (Deployment tool) from the SSTs (Adapter harness).

TIRE WITH
WHEEL

TIRE
WITHOUT
WHEEL

TIRE WITH
PASSENGER-SIDE
AIR BAG MODULE

acxuuw00001280

acxuuw00001276

49 H066 002

49 L066 002

49 G066 003

49 H066 002

acxuuw00001281

49 H066 002

ACTIVATION
SWITCH

acxuuw00001267

1871-1U-06B(08-10).fm 25 ページ２００６年３月１５日　水曜日　午前１１時３６分

AIR BAG SYSTEM

08-10–26

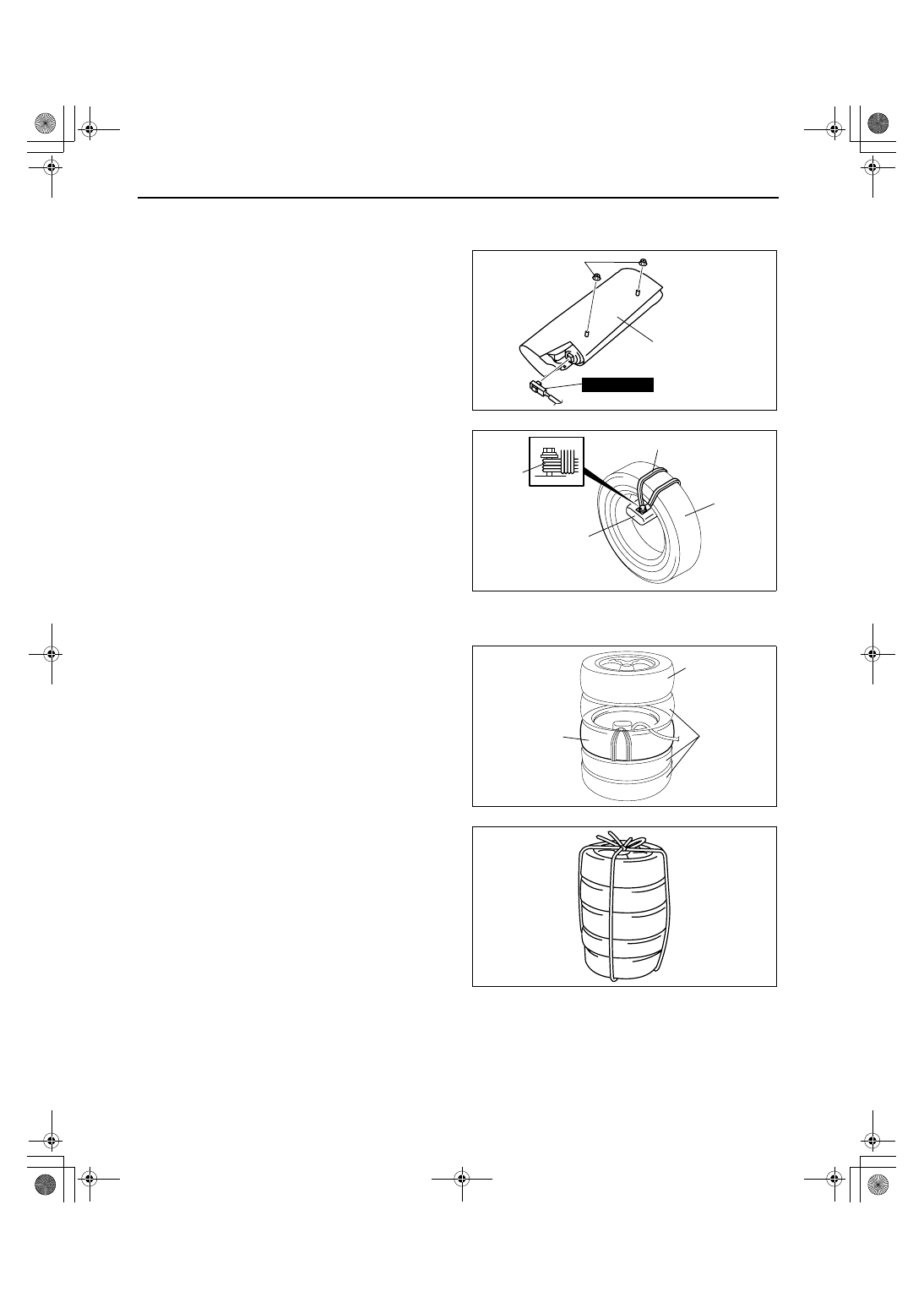

Side Air Bag Module

1. Remove the side air bag module.

(See 08-10-8 SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

2. Install the nuts to the side air bag module as

shown in the figure, and connect the SST
(Adapter harness).

3. Place the padded surface of the side air bag

module facing the center of the tire as shown in
the figure. To secure the air bag module to the tire
wheel, wrap a wire (cross section 1.25 mm

{0.002 in

} or more) through the tire and around

the bolts at least 4 times.

Warning

• If the air bag module is not properly

secured to the tire, the tires may fall over
by the impact of operation (deployment)
and cause serious injury. To prevent this,
secure the air bag module properly with
the padded surface facing the center of the tire.

4. Stack the tire with the side air bag module on top

of two tires without wheels. Stack a tire without a
wheel on top of the tire with the side air bag
module, and then stack another tire with a wheel
on the very top.

5. Secure the tires with wire.

49 L066 002

SIDE AIR BAG
MODULE

NUT

acxuuw00001282

SIDE AIR BAG
MODULE

WIRE

TIRE

WIRE

acxuuw00001283

TIRE WITH
WHEEL

TIRE
WITHOUT
WHEEL

TIRE WITH
SIDE AIR BAG
MODULE

acxuuw00001284

acxuuw00001276

1871-1U-06B(08-10).fm 26 ページ２００６年３月１５日　水曜日　午前１１時３６分

AIR BAG SYSTEM

08-10–27

08-10

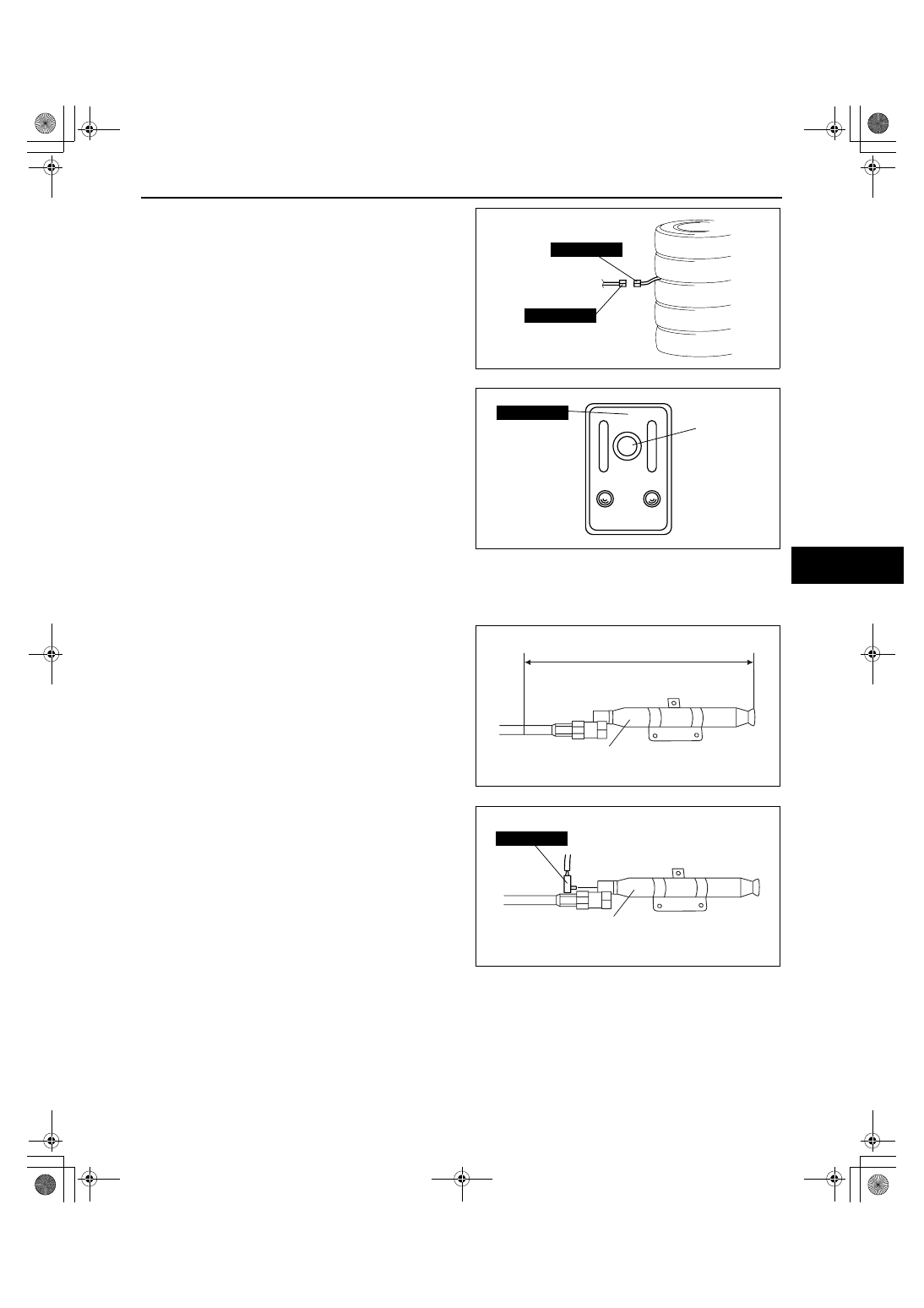

6. Connect the SST (Deployment tool) to the SST

(Adapter harness).

7. Connect the SST (Deployment tool) to the

battery. Connect the power supply red clip to the
positive battery terminal, and the black clip to the
negative battery terminal.

8. Verify that the red lamp on the SST (Deployment

tool) is illuminated.

9. Verify that all persons are standing at least 6 m

{20 ft} away from the vehicle.

10. Press the activation switch on the SST

(Deployment tool) to operate (deploy) the side
air bag module.

11. Disconnect the SSTs (Deployment tool) from the

SSTs (Adapter harness).

Curtain Air Bag Module

1. Remove the curtain air bag module.

(See 08-10-8 CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION.)

2. Secure the curtain air bag module in a vise, and

cut off the deployment section, as shown in the
figure.

Warning

• Be sure not to crush the pipe on the side

where it is cut. If it is crushed completely,
the interior pressure of the pipe will build
up and can cause it to explode during air
bag module operation (deployment).

3. Connect the SST (Adapter harness) to the

curtain air bag module as shown in the figure.

49 H066 002

49 L066 002

acxuuw00001285

49 H066 002

ACTIVATION
SWITCH

acxuuw00001267

CUT

400 mm {15.7 in} OR MORE

CURTAIN AIR BAG
MODULE

acxuuw00001713

CURTAIN AIR BAG
MODULE

49 L066 002

acxuuw00001714

1871-1U-06B(08-10).fm 27 ページ２００６年３月１５日　水曜日　午前１１時３６分

AIR BAG SYSTEM

08-10–28

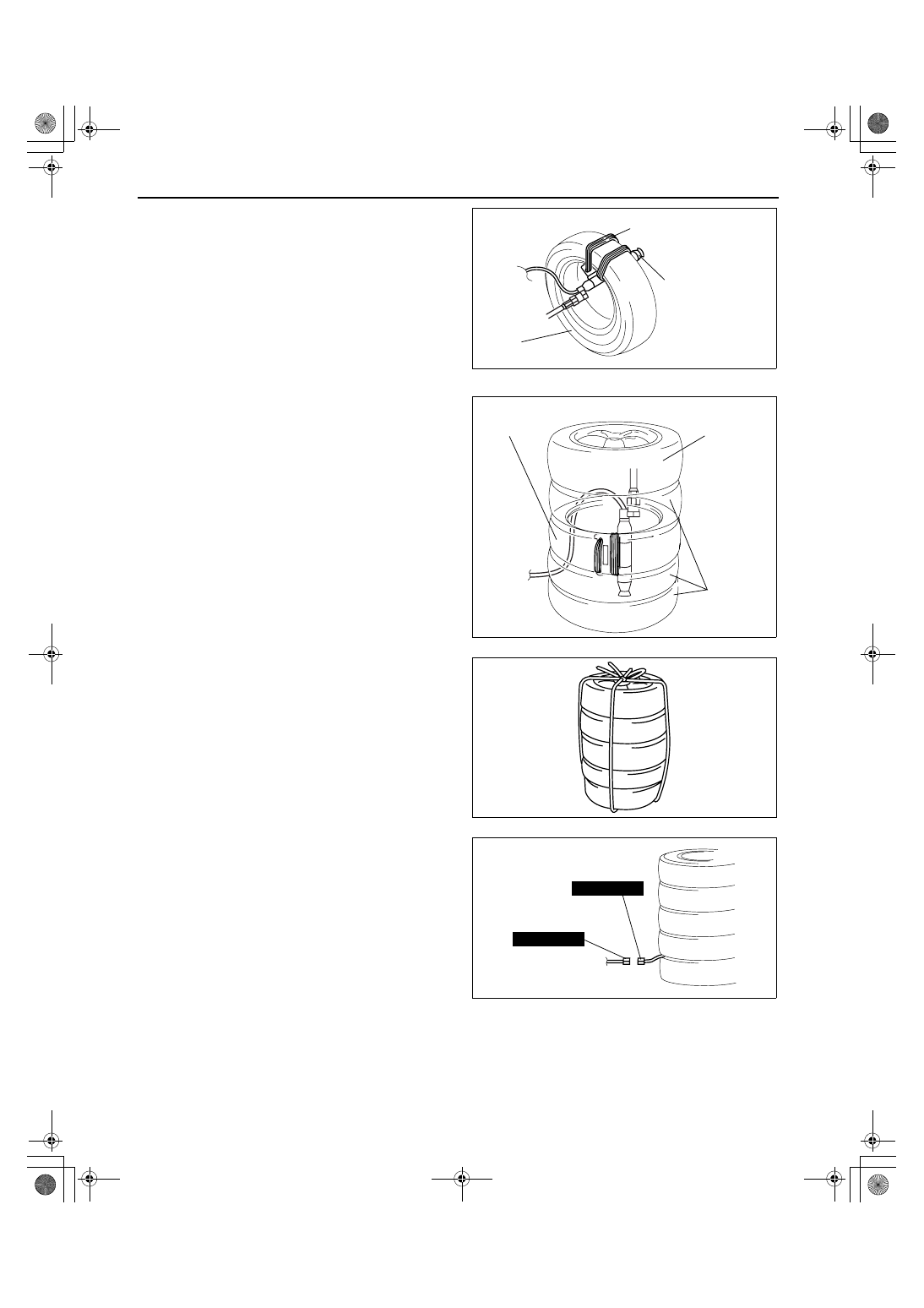

4. Secure the curtain air bag module to the tire, by

wrapping a wire (cross section 1.25 mm

{0.002

} or more) through the tire and the bolt

installation holes at least 4 times as shown in the
figure.

Warning

• If the air bag module is not properly

installed to the tire, serious injury may
occur when the module is operated
(deployed). Make sure to install the air
bag module securely.

5. Stack the tire with the curtain air bag module on

top of two tires without wheels. Stack a tire
without a wheel on top of the tire with the curtain
air bag module, and then stack another tire with a
wheel on the very top.

6. Secure the tires with wire.

7. Connect the SST (Deployment tool) to the SST

(Adapter harness).

8. Connect the SST (Deployment tool) to the

battery. Connect the power supply red clip to the
positive battery terminal, and the black clip to the
negative battery terminal.

9. Verify that the red lamp on the SST (Deployment

tool) is illuminated.

10. Verify that all persons are standing at least 6 m

{20 ft} away from the vehicle.

CURTAIN AIR BAG
MODULE

WIRE

TIRE

acxuuw00001288

TIRE WITH
WHEEL

TIRE
WITHOUT
WHEEL

TIRE WITH
CURTAIN AIR BAG
MODULE

acxuuw00001289

acxuuw00001276

49 H066 002

49 L066 002

acxuuw00001290

1871-1U-06B(08-10).fm 28 ページ２００６年３月１５日　水曜日　午前１１時３６分
