SERVICE TOOLS

05-60–1

05-60

05-60

SERVICE TOOLS

TRANSMISSION/TRANSAXLE SST. . . .  05-60–1

End of Toc

AT: TRANSMISSION/TRANSAXLE

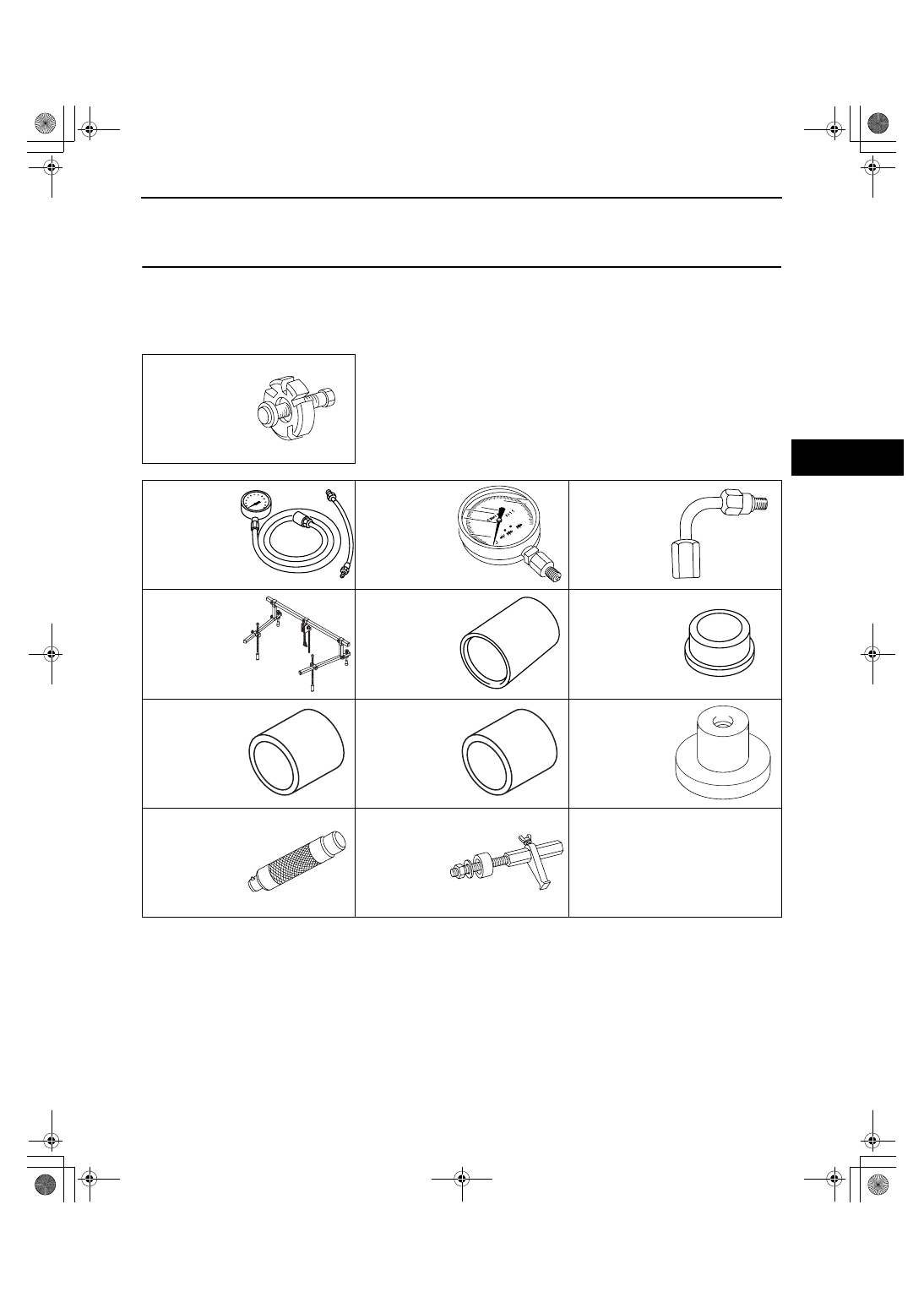

TRANSMISSION/TRANSAXLE SST

id056000500100

1: Mazda SST number
2: Global SST number
Example

*

: The SST (49 E017 5A0) can be used in place of the SST (49 C017 5A0).

End Of Sie

1:49 UN30 3009
2:303-009

Crankshaft
damper
remover

1:49 0378 400C
2: –

Oil pressure
gauge set

1:49 B019 901B
2: –

Oil pressure
gauge

1:49 HD64
406A
2: –

Adapter

1:49 C017 5A0*
2: –

Engine support

1:49 H028 202
2: –

Block L

1:49 F027 009
2: –

Attachment for
68&77 (Part of
49 F027 0A1)

1:49 L033 101
2: –

Oil seal installer

1:49 U027 003
2: –

Oil seal installer

1:49 F026 102
2: –

Bearing
replacer

1:49 G030 797
2: –

Handle

1:49 E011 1A0
2: –

Ring gear brake
set

1871-1U-06B(05-60).fm  1 ページ  2006年3月15日 水曜日 午前11時24分

06-10–1

06

STEERING

SECTION

06-10

Toc of SCT

GENERAL PROCEDURES . . . . 06-10
POWER STEERING  . . . . . . . . . 06-14

TECHNICAL DATA . . . . . . . . . .  06-50
SERVICE TOOLS . . . . . . . . . . .  06-60

Toc of SCT

06-10

GENERAL PROCEDURES

GENERAL PROCEDURES

 (STEERING)  . . . . . . . . . . . . . . . . . . . . . 06-10–1

Wheel and Tire Installation . . . . . . . . . . 06-10–1
Power Steering Components

 Removal/Installation . . . . . . . . . . . . . . 06-10–1

Connector Disconnection . . . . . . . . . . .  06-10–1
Suspension Arm

Removal/Installation . . . . . . . . . . . . . .  06-10–1

End of Toc

WM: STEERING

GENERAL PROCEDURES (STEERING)

id061000800100

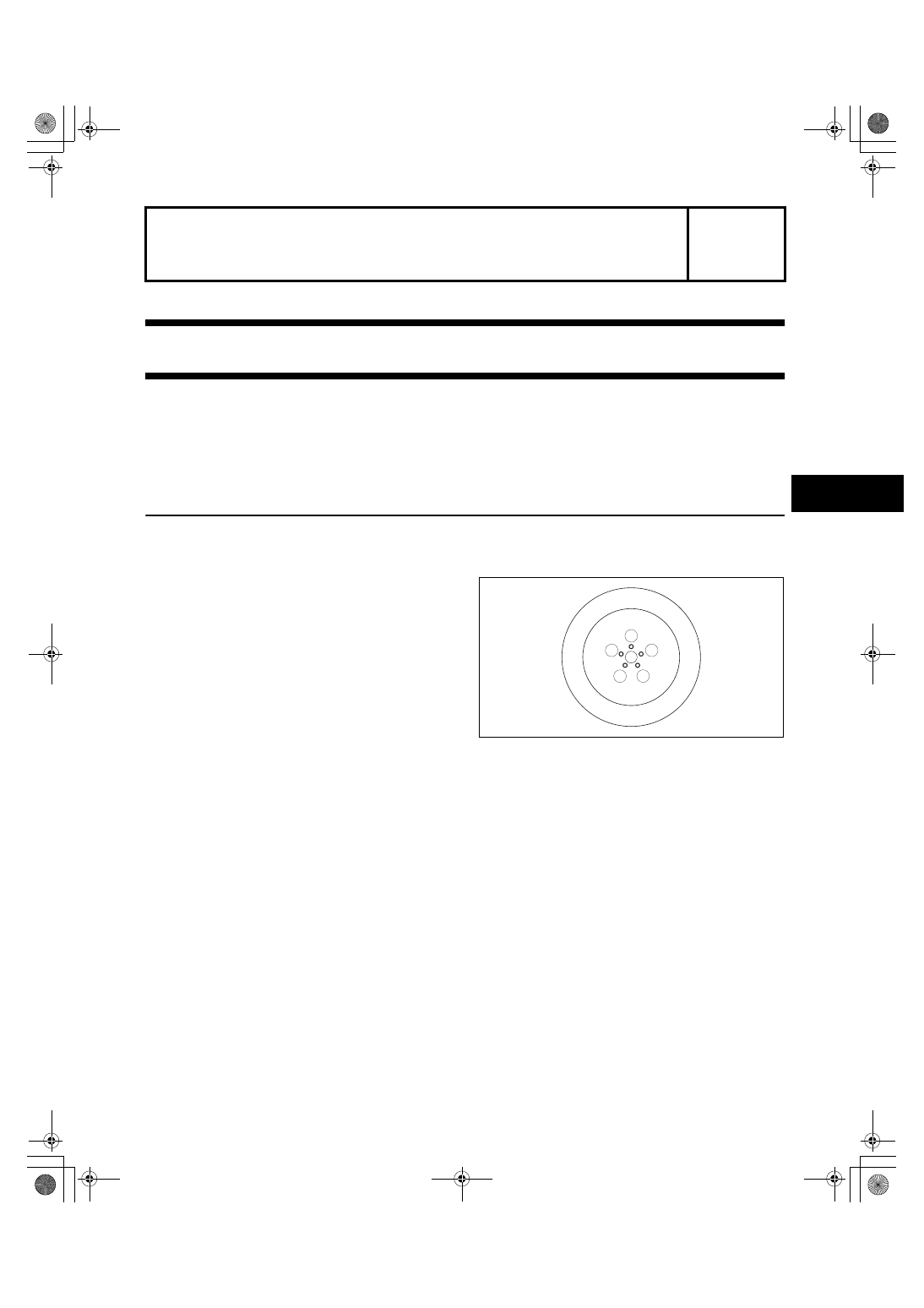

Wheel and Tire Installation

1. When installing the wheels and tires, tighten the

wheel nuts in a criss-cross pattern to the following
tightening torque.

Tightening torque

88.2— 117.6 N·m {9.00— 11.99 kgf·m,

65.06— 86.73 ft·lbf}

Power Steering Components Removal/Installation

1. If any power steering fluid line has been disconnected anytime during the procedure, add ATF M-III, M-V or

equivalent (e.g. Dexron

®

II), bleed the fluid lines, and inspect for leakage after the procedure has been

completed.

Connector Disconnection

1. Disconnect the negative battery cable before performing any work that requires handling of connectors. (See

01-17-2 BATTERY REMOVAL/INSTALLATION[L3 WITH TC])

Suspension Arm Removal/Installation

1. Tighten any part of the suspension that uses rubber bushings only after vehicle has been lowered to the ground

and unloaded.

Note

• Unloaded: Fuel tank is full. Engine coolant and engine oil are at specified level. Spare tire, jack, and tools

are in designated position.

End Of Sie

1

2

3

4

5

acxuuw00001552

1871-1U-06B(06-10).fm  1 ページ  2006年3月15日 水曜日 午前11時25分
