AUTOMATIC TRANSAXLE SHIFT MECHANISM

05-18–7

05-18

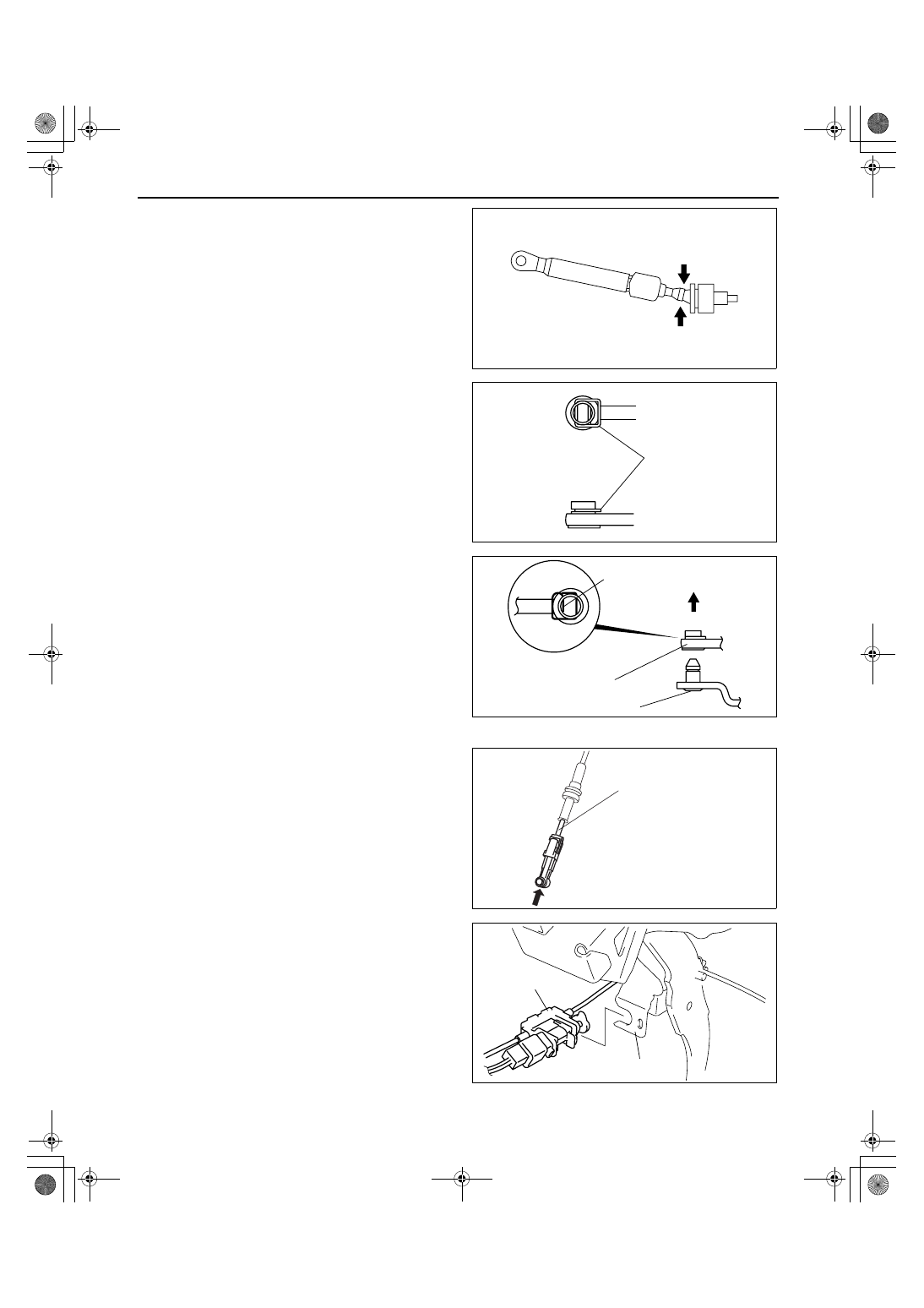

SELECTOR CABLE ADJUSTMENT

id051800800700

1. Remove the center console.
2. Shift the selector lever to P position.
3. Unlock the lock piece of the selector cable

(selector lever side) in the order shown in the
figure.

4. Verify that the manual shaft is in P position.

5. Lock the lock piece of the selector cable (selector

lever side) in the order shown in the figure.

6. Install the center console.
7. Shift the selector lever from P position to M range,

and make sure that there are no other
components in that area to interfere with the lever.

End Of Sie

SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION

id051800800800

1. Disconnect the negative battery cable.
2. Remove the following parts.

(1) Battery and battery tray
(2) Air cleaner component (See 01-13-5 INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 WITH TC].)
(3) Selector lever knob
(4) Center console
(5) Driver side under panel
(6) Accelerator pedal (See 01-13-17 ACCELERATOR PEDAL REMOVAL/INSTALLATION[L3 WITH TC].)

3. Remove in the order shown in the figure.

1

2

acxuuw00000413

1

2

acxuuw00000414

1871-1U-06B(05-18).fm  7 ページ  2006年3月15日 水曜日 午前11時23分

AUTOMATIC TRANSAXLE SHIFT MECHANISM

05-18–8

4. Install in the reverse order of removal.

.

A

A

9

8

7

5

4

3

6

1

2

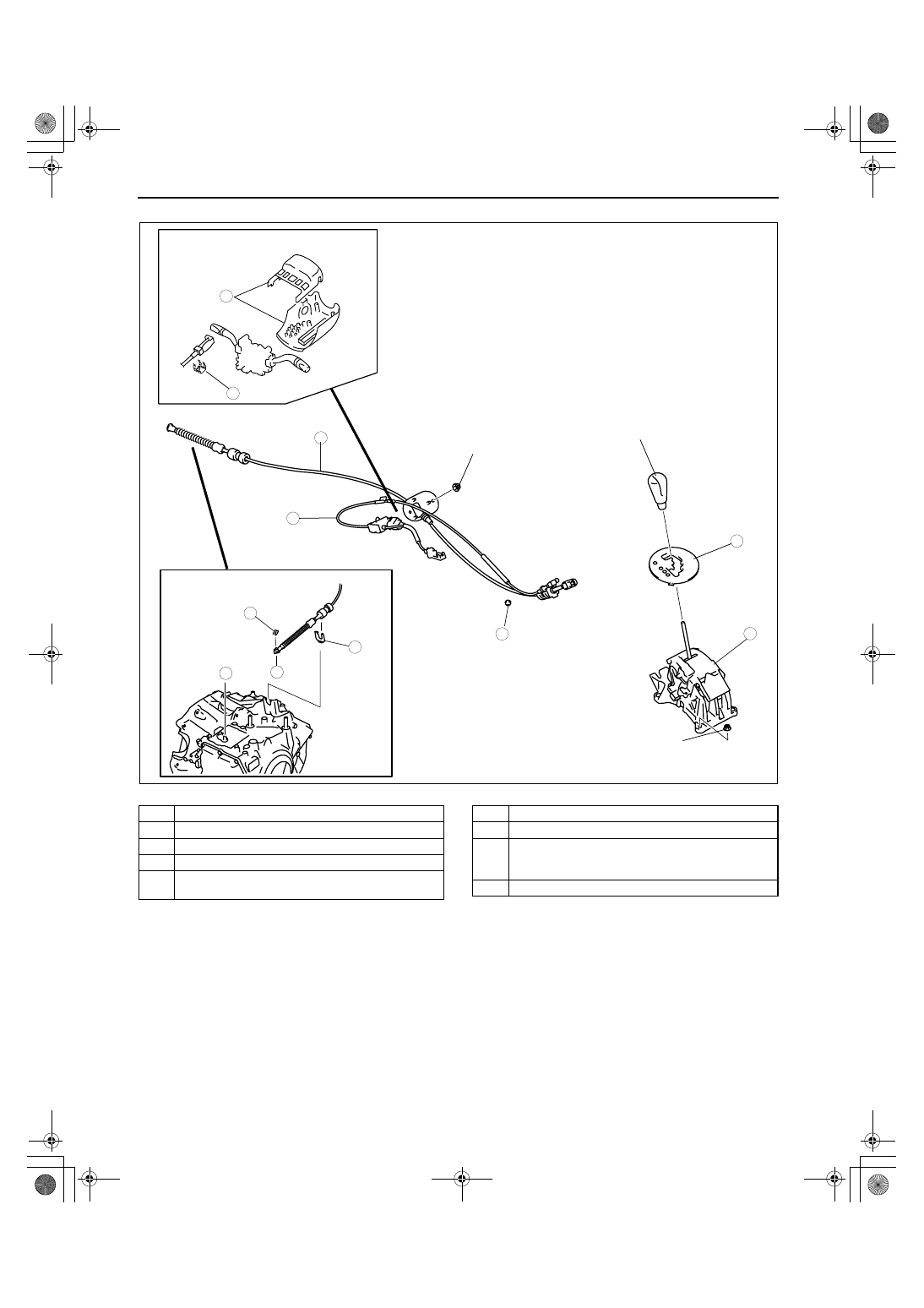

SELECTOR LEVER KNOB

6.9—9.8 N·m
{71—99 kgf·cm, 62—86 in·lbf}

16—22 {1.7—2.2, 12—16}

N·m {kgf·m, ft·lbf}

acxuuw00000415

1

Column cover

2

Clip

3

Indicator panel

4

Clip

5

Interlock cable
 (See05-18-10 Interlock Cable Installation Note.)

6

Clip

7

Clip

8

Selector cable
 (See05-18-9 Selector Cable Removal Note.)
 (See05-18-9 Selector Cable Installation Note.)

9

Selector lever component

1871-1U-06B(05-18).fm  8 ページ  2006年3月15日 水曜日 午前11時23分

AUTOMATIC TRANSAXLE SHIFT MECHANISM

05-18–9

05-18

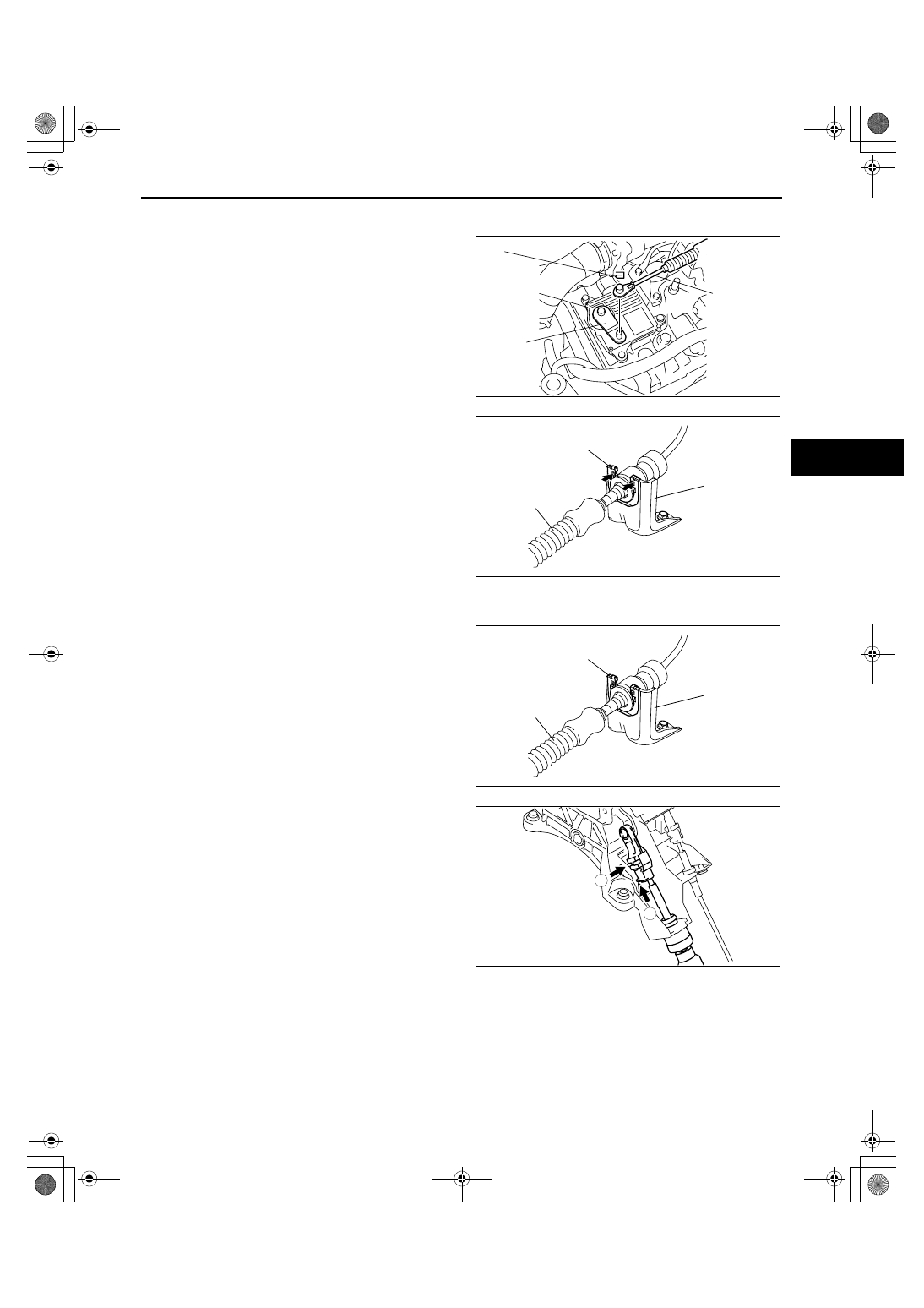

Selector Cable Removal Note

1. Remove the clip.
2. Remove the selector cable.

3. Remove the selector cable from the cable

bracket.

Selector Cable Installation Note

1. Install the selector cable and clip to the bracket as

shown in the figure.

Note

• Steps 2 and 3 are for the selector cable

replacement only.

2. Verify that the selector lever is in the P position.

3. Lock the lock piece of the selector cable (selector

lever side) in the order shown in the figure.

TCM

CLIP

MANUAL
SHAFT
LEVER

SELECTOR
CABLE

acxuuw00000416

CLIP

SELECTOR
CABLE

CABLE
BRACKET

acxuuw00002399

CLIP

SELECTOR
CABLE

CABLE
BRACKET

acxuuw00002400

1

2

acxuuw00000419

1871-1U-06B(05-18).fm  9 ページ  2006年3月15日 水曜日 午前11時23分

AUTOMATIC TRANSAXLE SHIFT MECHANISM

05-18–10

4. Verify that the manual shaft is in the P position.

Caution

• Bending the selector cable in the manner

shown in the figure will damage the cable
and it may become loose when shifted.
When installing the selector cable, hold it
straight.

5. Install the clip as shown in the figure.

Note

• Install the selector lever to the manual shaft

lever with the clip side of the selector cable
end facing up.

6. Install the selector lever to the manual shaft lever

so that no load acts on the selector cable.

7. Confirm that the tip of the manual shaft lever

projects out of the end of the selector cable.

8. Securely install the selector cable to the selector

cable bracket.

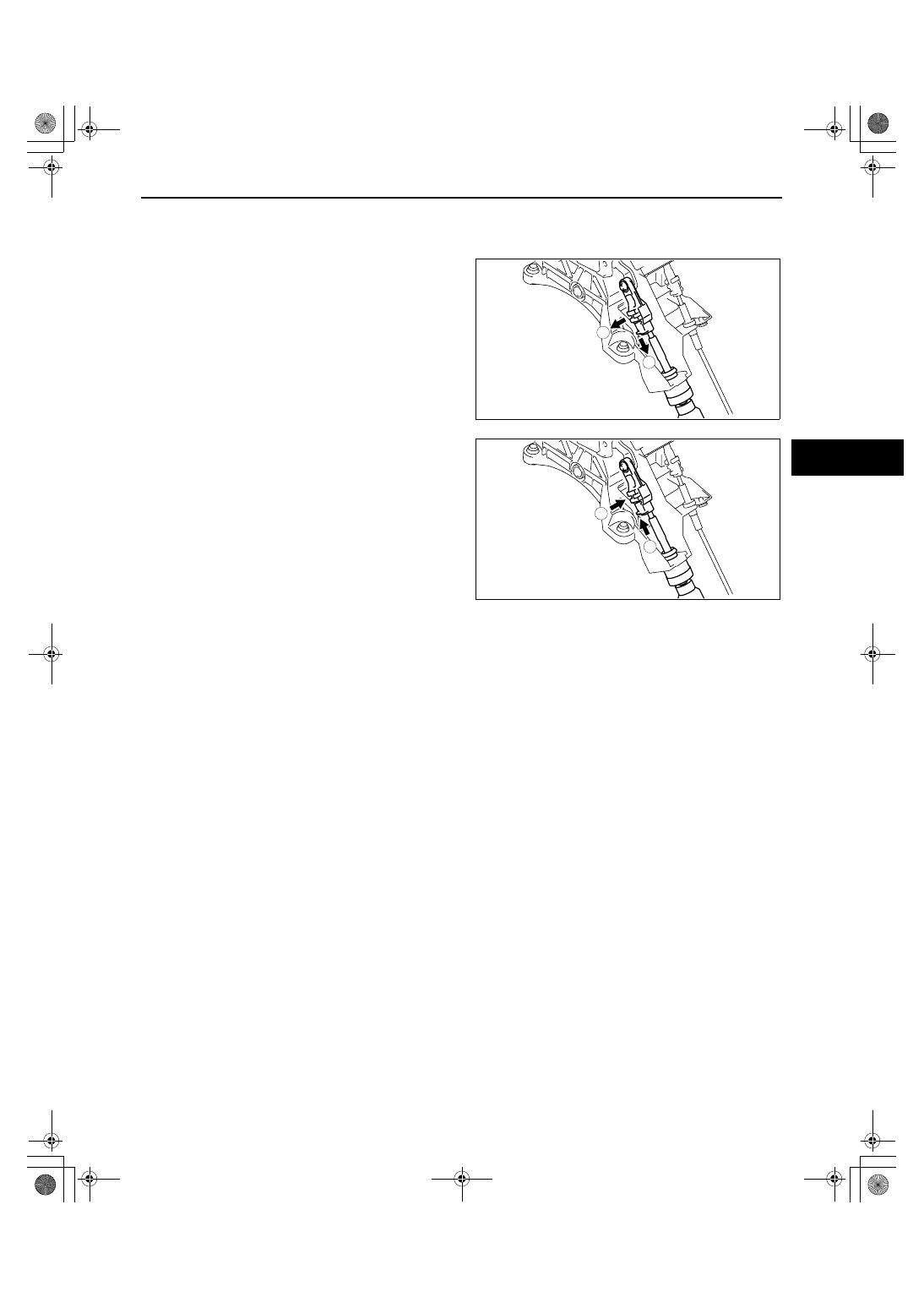

Interlock Cable Installation Note

1. Push the interlock cable.

2. Verify that the marking on the slider pin is

positioned as shown in the figure.

DO NOT BEND

acxuuw00000432

CLIP

acxuuw00000433

SELECTOR CABLE

MANUAL SHAFT LEVER

CLIP

UPWARD

acxuuw00000422

INTERLOCK CABLE

acxuuw00000423

BRACKET

LOCK UNIT

acxuuw00000424

1871-1U-06B(05-18).fm  10 ページ  2006年3月15日 水曜日 午前11時23分
