AUTOMATIC TRANSAXLE SHIFT MECHANISM

05–18–2

SELECTOR LEVER INSPECTION

A3U051846102W01

1. Turn the ignition switch to the ON position (engine off).

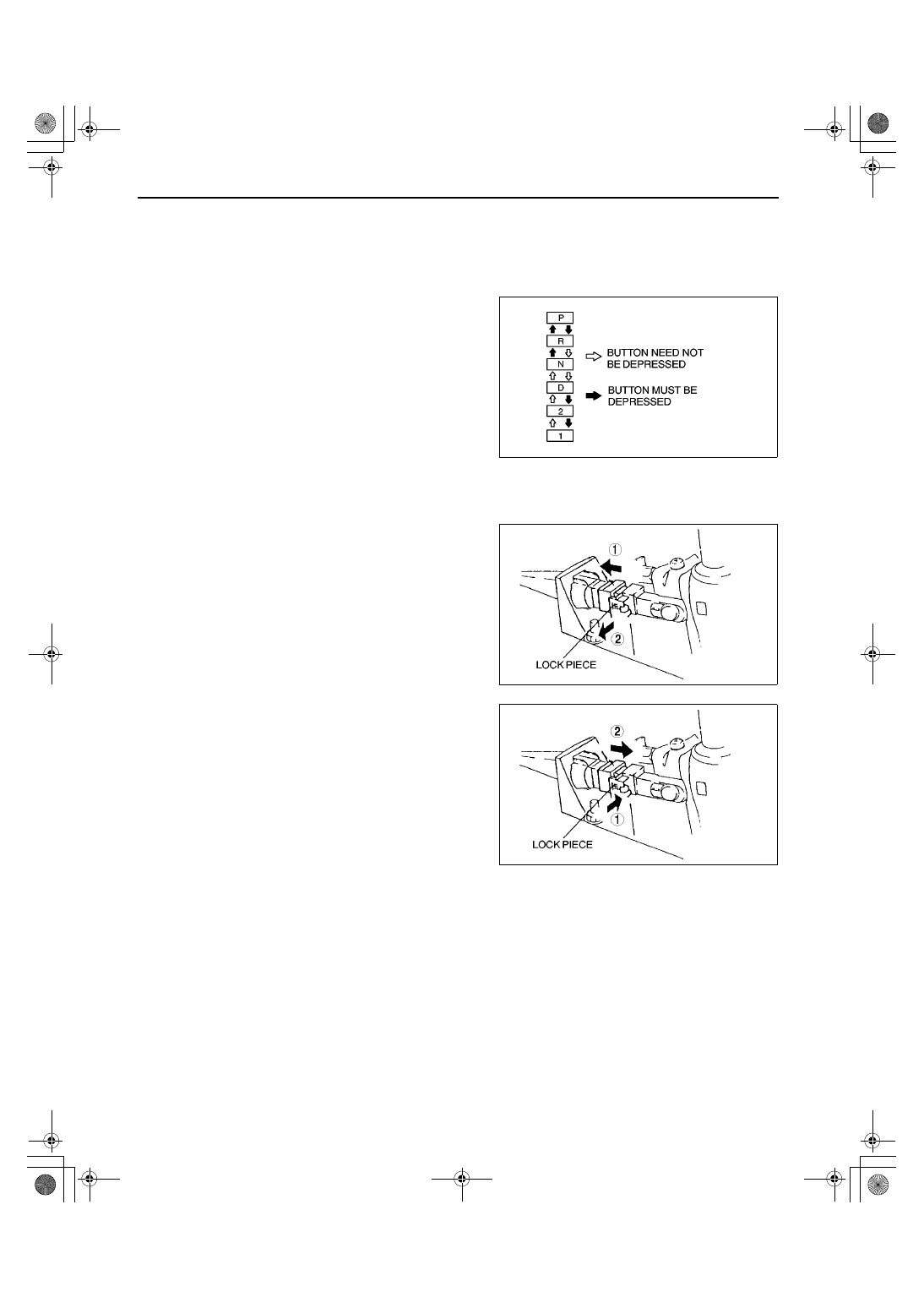

2. With the brake pedal depressed, verify that a “click” sound is heard at each range when shifted in the pattern

shown.

3. Verify that the selector lever can only be shifted as shown.
4. Verify that a “click” sound is heard at each position when shifted from P position to 1 range.
5. Verify that the positions of the selector lever and the

indicator are aligned.

6. Verify that the position of the selector lever and the

selector illumination light correspond.

•

If not as specified, adjust the TR switch. (See 05–
17–23 TRANSAXLE RANGE (TR) SWITCH
ADJUSTMENT.)

7. Verify that the vehicle operates in each selected

range.

End Of Sie

SELECTOR LEVER ADJUSTMENT

A3U051846102W02

1. Remove the center console.
2. Shift the selector lever to the P position.
3. Unlock the lock piece of the selector cable (selector

lever side) in the order shown in the figure.

4. Verify that the manual shaft is at the P position.

5. Lock the lock piece of the selector cable (selector lever

side) in the order shown in the figure.

6. Install the center console.
7. Shift the selector lever from P position to 1 range, and

make sure that there are no other components in that
area to interfere with the lever.

End Of Sie

X3U518WA1

X3U518WA2

X3U518WA3

1712-1U-01G(05-18).fm  2 ページ  ２００１年６月２９日 金曜日 午前１０時１４分

AUTOMATIC TRANSAXLE SHIFT MECHANISM

05–18–3

05–18

SELECTOR LEVER REMOVAL/INSTALLATION

A3U051846102W03

1. Disconnect the negative battery cable.
2. Remove the center console.
3. Disconnect the brake switch connector.
4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.

.

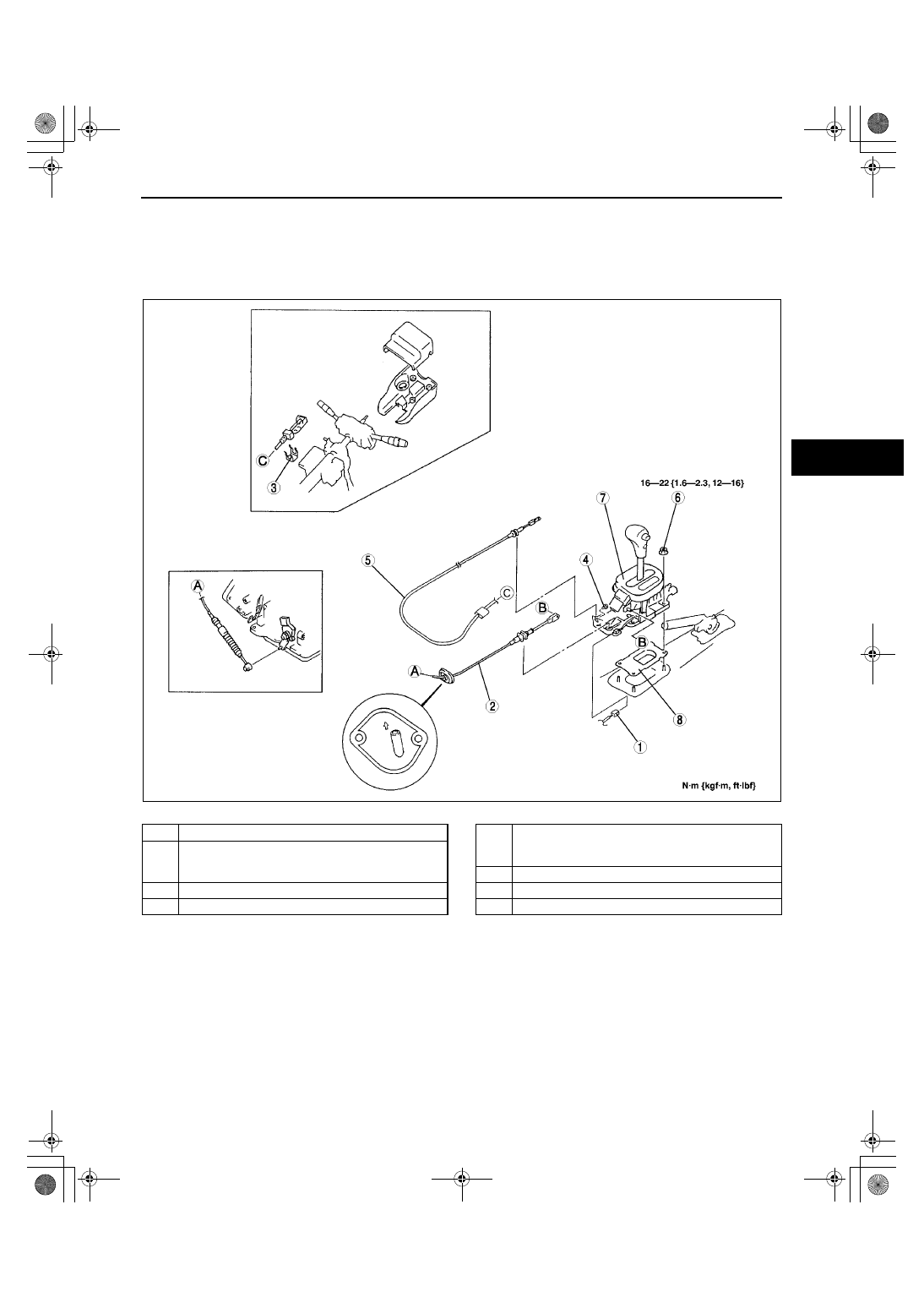

X3U518WA4

1

Connector

2

Selector cable
(See 05–18–4 Selector Cable Removal Note.)
(See 05–18–6 Selector Cable Installation Note.)

3

Clip

4

Clip

5

Interlock cable and lock unit
(See 05–18–4 Interlock Cable and Lock Unit
Installation Note.)

6

Nut

7

Selector  lever

8

Seal rubber

1712-1U-01G(05-18).fm  3 ページ  ２００１年６月２９日 金曜日 午前１０時１４分

AUTOMATIC TRANSAXLE SHIFT MECHANISM

05–18–4

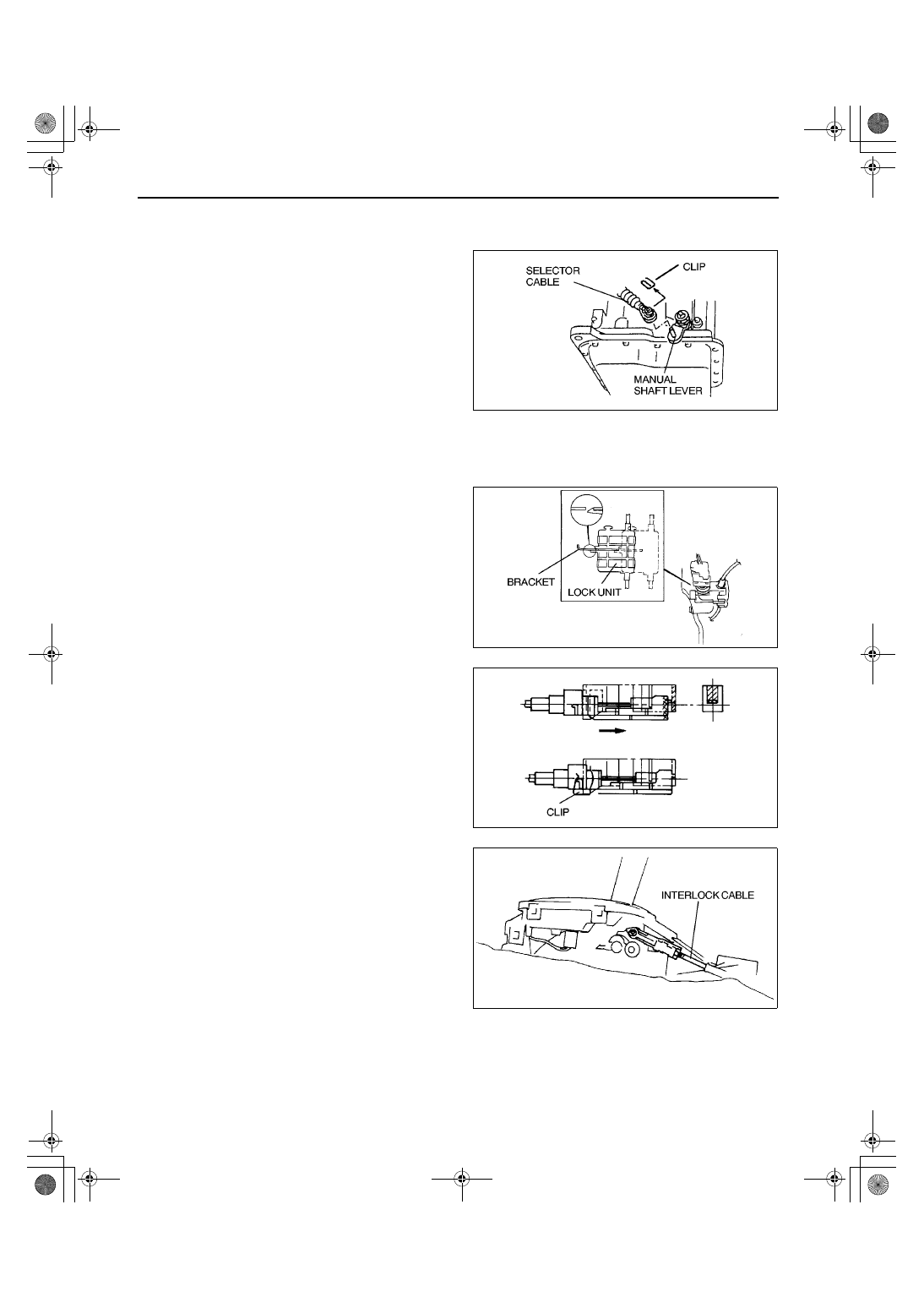

Selector Cable Removal Note

Note

•

Remove the clip shown in the figure before
removing the selector cable from manual
shaft lever.

Interlock Cable and Lock Unit Installation Note

1. Verify that the ignition switch is at ACC position, and shift the selector lever to P position.
2. Press the lock unit onto the brake pedal stopper bracket.
3. From this position, slide the lock unit to fix the

lock unit hook into the bracket hole securely as
shown in the figure.

4. Install the interlock cable to the key cylinder.
5. Slide the outer casing to the key cylinder. Verify

that the outer casing hook is secured in the
cylinder hole.

6. Insert the clip over the convex part of the outer

casing.

Caution

••••

Allowing the interlock cable to become
bent or twisted during installation can
affect the lock unit operation.

7. Install the interlock cable end onto the cam pin on

the selector lever.

X3U518WAP

X3U518WA5

X3U518WA6

X3U518WA7

1712-1U-01G(05-18).fm  4 ページ  ２００１年６月２９日 金曜日 午前１０時１４分

AUTOMATIC TRANSAXLE SHIFT MECHANISM

05–18–5

05–18

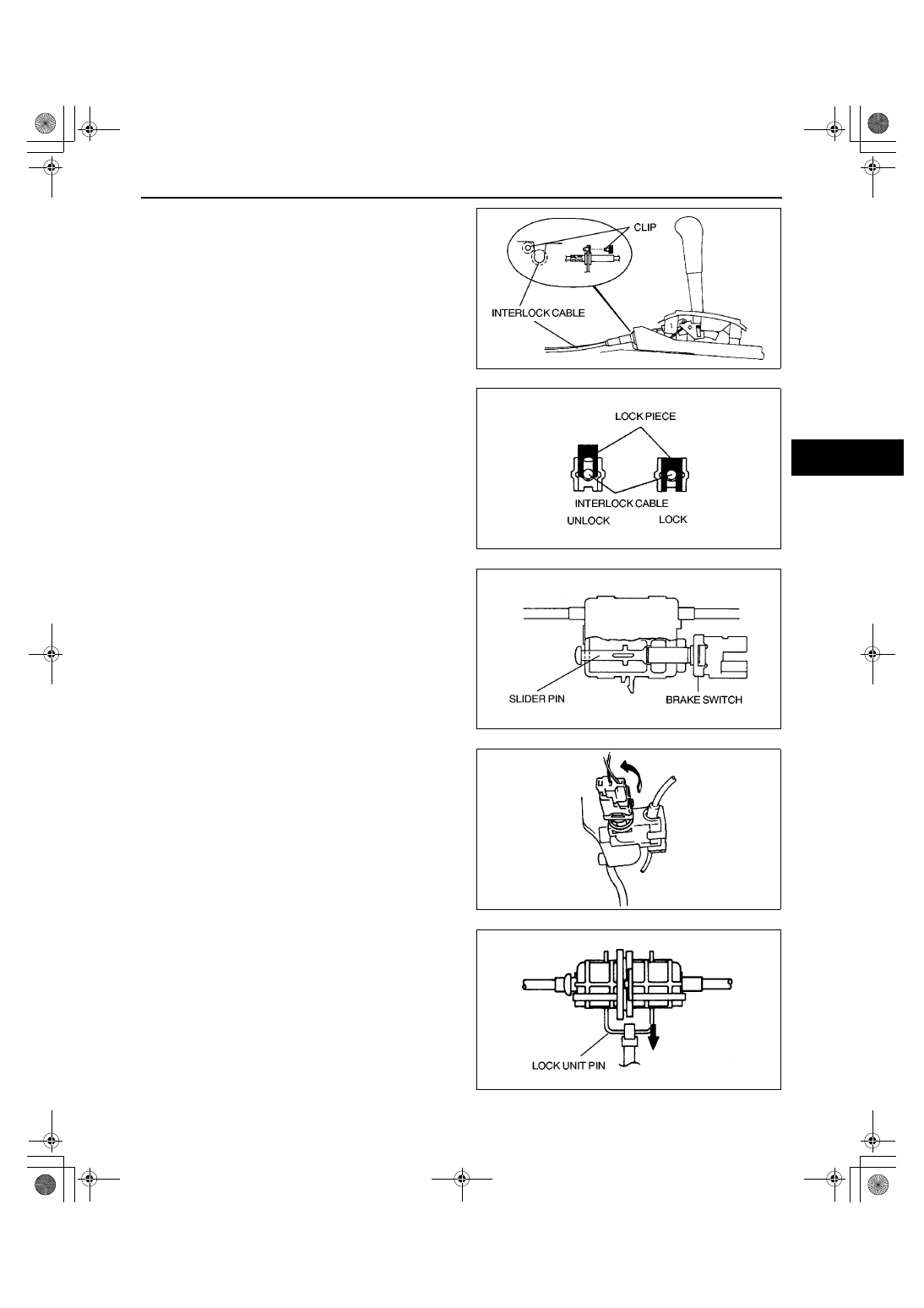

8. Fit the interlock cable in the U-groove in the

selector lever base plate, and install the clip.

Note

•

Steps 9—12 are for the interlock cable
replacement only.

Caution

••••

Applying load to the interlock cable while
pressing the lock piece in can affect the
lock unit operation.

9. Press the interlock cable lock piece in until it is

locked.

10. Screw the brake switch into the slider pin of the

lock unit as far as possible.

11. From this position, turn the brake switch

counterclockwise about 90 degrees, then tighten
the lock nut.

Tightening torque

13.8—17.6 N·m {140—180 kgf·cm, 122—156

in·lbf}

12. Remove the lock unit pin in the order shown in the

figure.

X3U518WA8

X3U518WA9

X3U518WAA

X3U518WAB

X3U518WAC
