DRIVE SHAFT

03–13–4

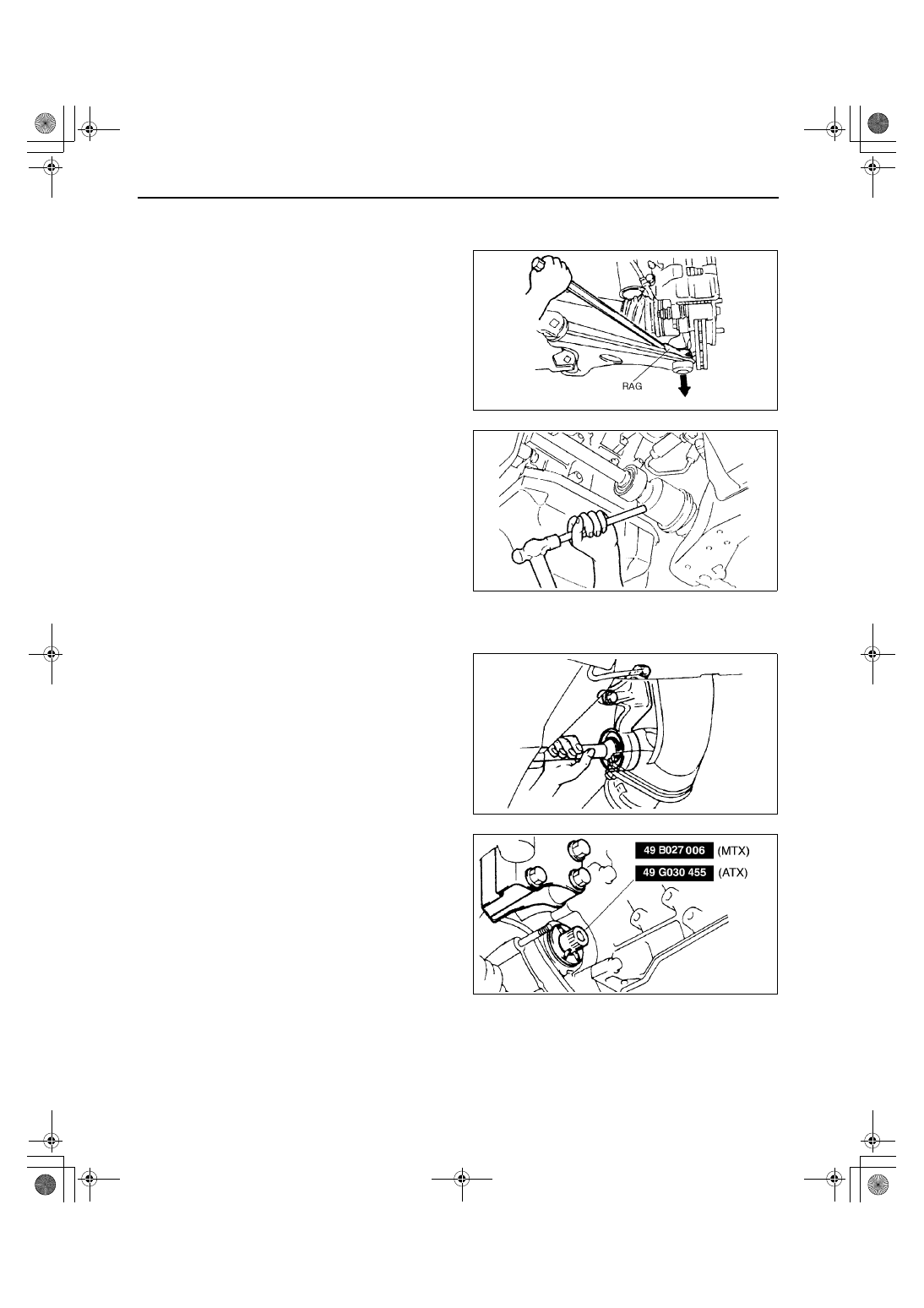

Right Drive Shaft and Axle Removal Note

1. Remove the clinch bolt and nut.
2. Wrap a rag around the ball joint dust boot.
3. Pry the lower arm out of the knuckle.

4. As shown in the figure, insert a pry bar between

the right drive shaft and the joint shaft and tap on
the bar to uncouple them.

Joint Shaft Removal Note

1. Secure the joint shaft bracket cylinder block.
2. Pull the joint shaft straight out.

Caution

••••

The sharp edges of the joint shaft can
slice or puncture the oil seal. Be careful
when installing the joint shaft to the
transaxle.

3. Insert the SST into the transaxle to hold the side

gears after joint shaft removed.

Z3U0312W003

Y3E6316W007

Y3E6316W008

Y3E6316W009

1712-1U-01G(03-13).fm  4 ページ  2001年6月29日 金曜日 午前9時59分

DRIVE SHAFT

03–13–5

03–13

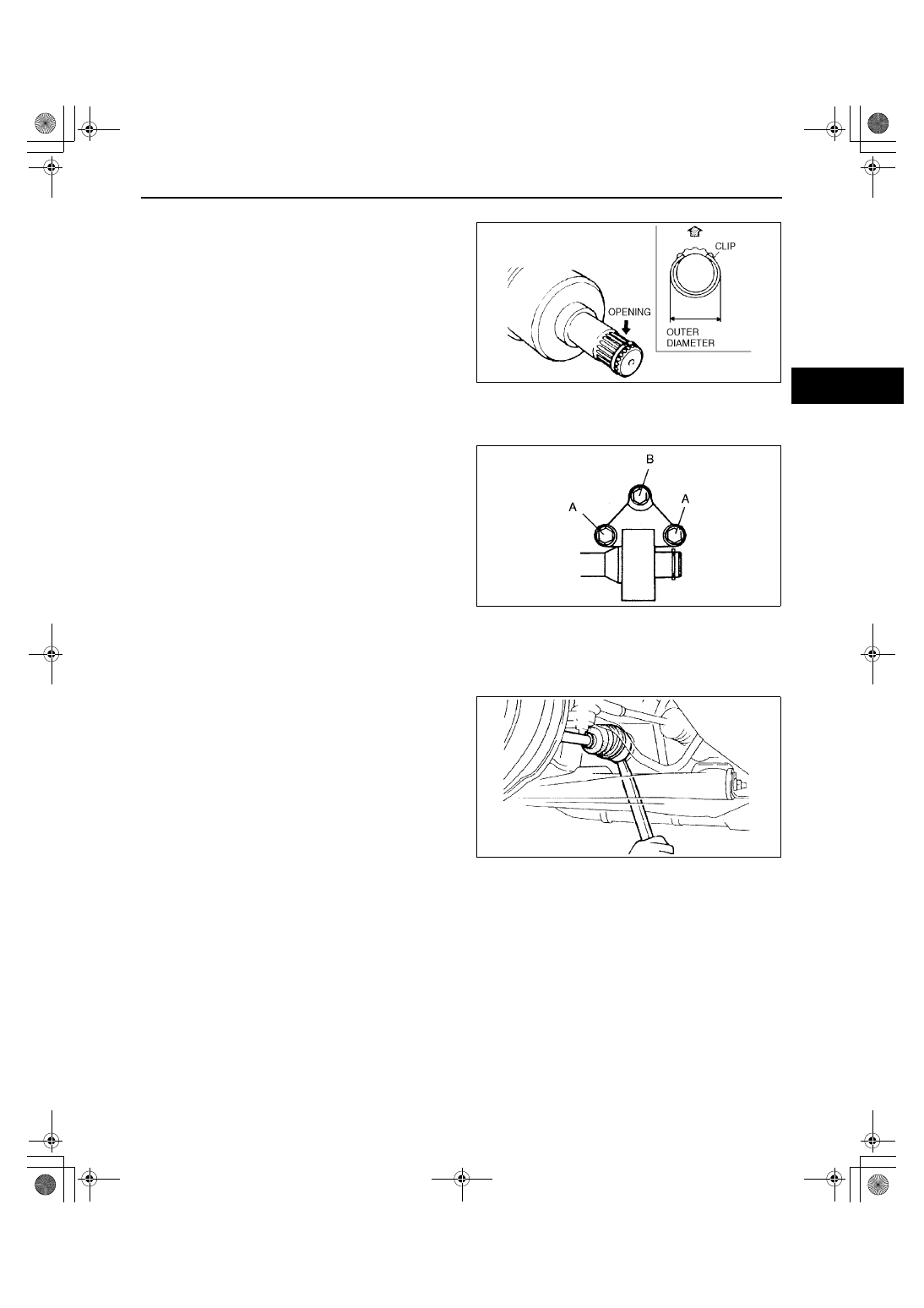

Clip Installation Note

1. Install a new clip onto the joint shaft with the

opening facing upward. Ensure that the diameter
of the clip does not exceed the specification on
installation.

2. After installation, measure the outer diameter. If it

exceeds the specification, repeat steps 1—2
using a new clip.

Outer diameter specification

30.0 mm {1.18 in}

Joint Shaft Installation Note

1. Install the joint shaft with the end gap of the new clip facing upward.
2. For FS engine, tighten the bolt A, then tighten the

bolt B.

Right Drive Shaft and Axle Installation Note

1. Push the drive shaft into the joint shaft.
2. After installation, pull the transaxle side outer ring forward to verify that the drive shaft is securely held by the

clip.

3. Set the lower arm with steering knuckle, then

tighten the bolt and nut.

End Of Sie

Z3U0312W004

Y3E6316W011

Y3E6316W021

1712-1U-01G(03-13).fm  5 ページ  2001年6月29日 金曜日 午前9時59分

DRIVE SHAFT

03–13–6

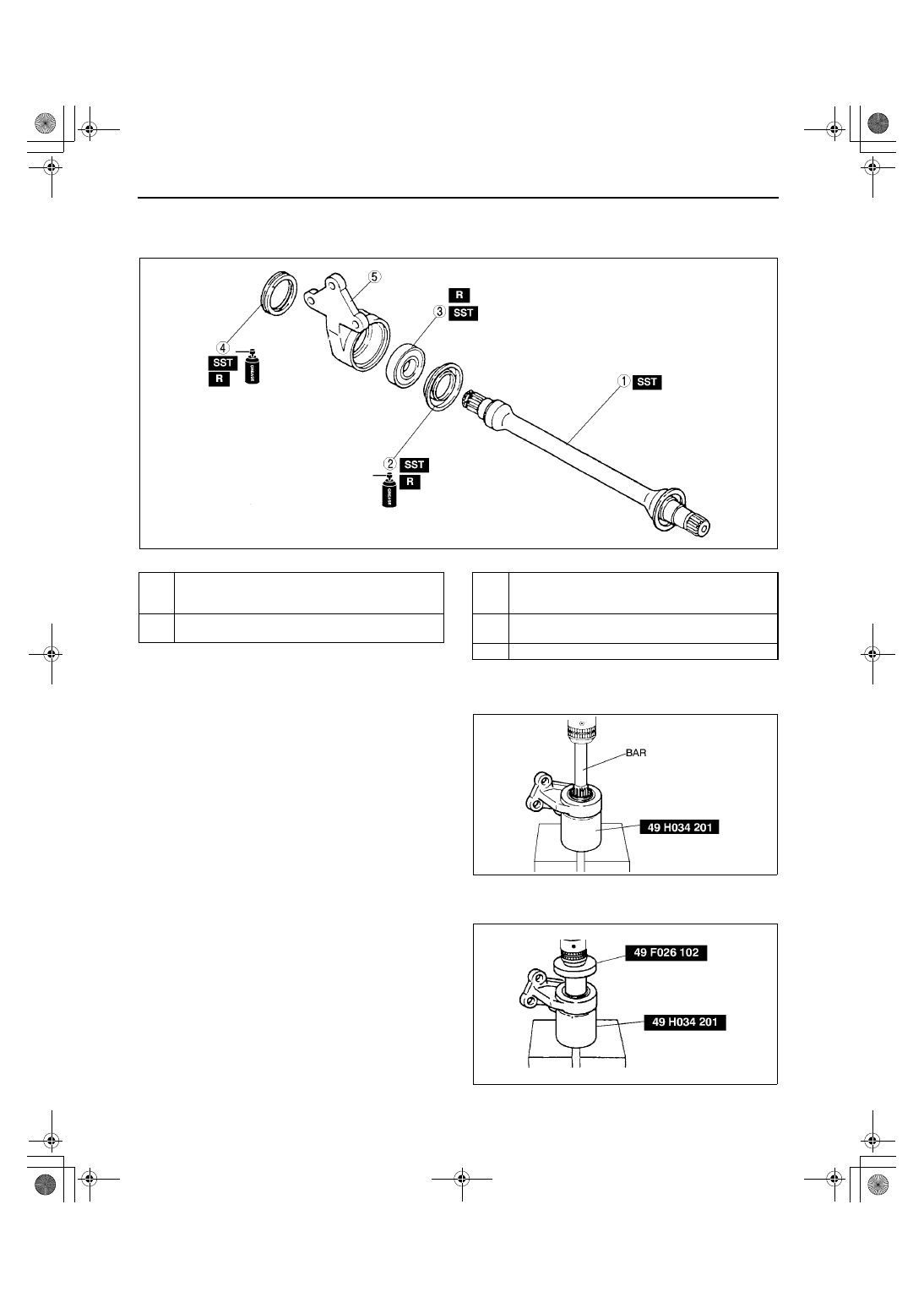

JOINT SHAFT DISASSEMBLY/ASSEMBLY

A3U031325700W03

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of removal.

.

Joint Shaft Disassembly Note

1. Disassemble the joint shaft using the SST.

Bearing Disassembly Note
(If the bearing remains on the bracket)

1. Remove the bearing using the SST.

Y3E6316W002

1

Joint shaft
(See 03–13–6 Joint Shaft Disassembly Note)
(See 03–13–8 Joint Shaft Assembly Note)

2

Dust Seal (left)
(See 03–13–7 Dust Seal (left) Assembly Note)

3

Bearing
(See 03–13–6 Bearing Disassembly Note)
(See 03–13–7 Bearing Assembly Note)

4

Dust Seal (right)
(See 03–13–7 Dust Seal (right) Assembly Note)

5

Bracket

A3U0313W002

Y3E6316W014

1712-1U-01G(03-13).fm  6 ページ  2001年6月29日 金曜日 午前9時59分

DRIVE SHAFT

03–13–7

03–13

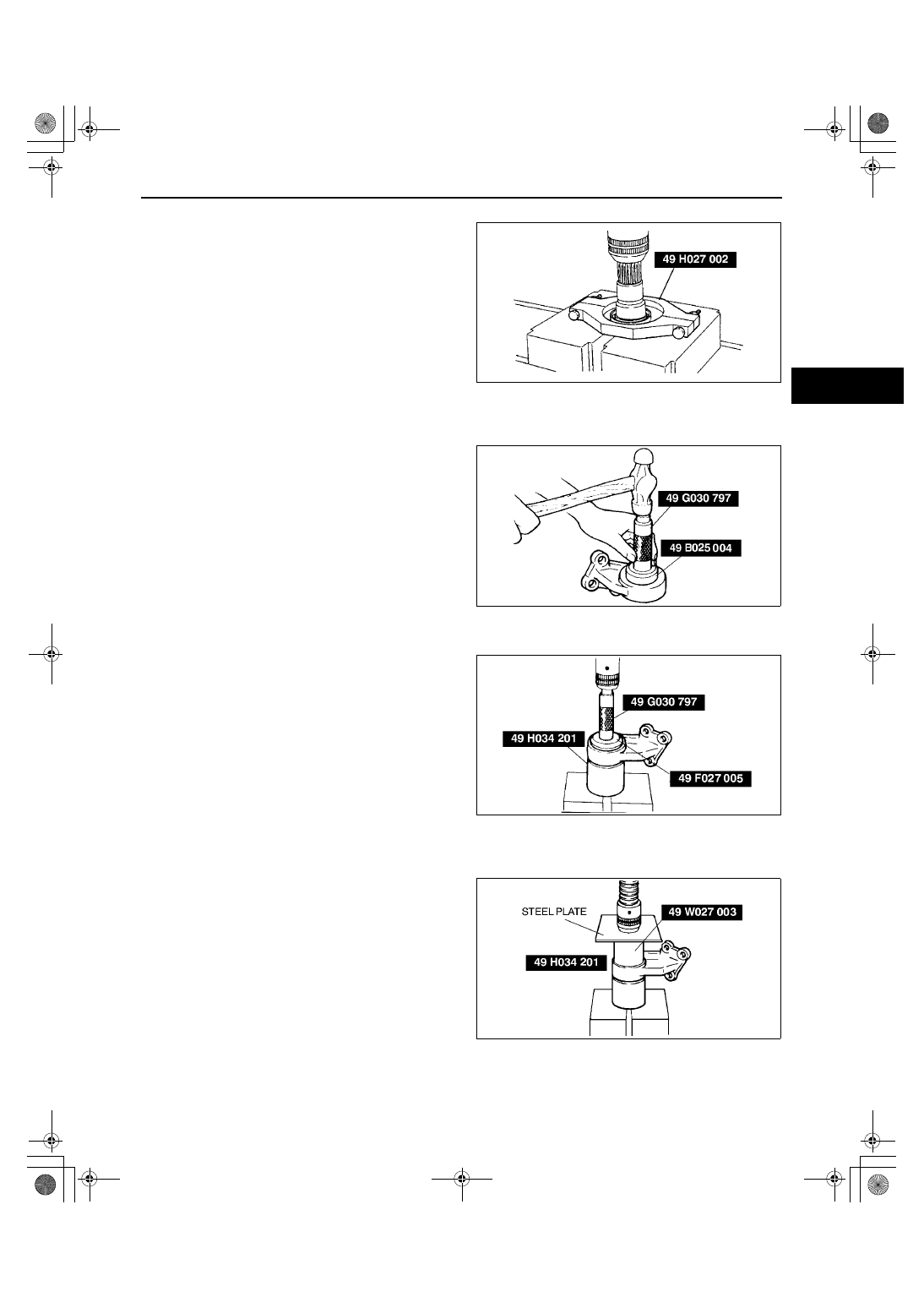

(If the bearing remains on the joint shaft)

1. While holding the joint shaft, press out the

bearing using the SST.

Dust Seal (right) Assembly Note

1. Apply grease to a new dust seal lip.
2. Install the new right side dust seal using the

SSTs.

Bearing Assembly Note

1. Install the new bearing using the SSTs.

Dust Seal (left) Assembly Note

1. Apply grease to a new dust seal lip.
2. Install the new left side dust seal using a steel

plate and the SSTs.

Y3E6316W015

Y3E6316W016

Y3E6316W017

A3U0313W003

1712-1U-01G(03-13).fm  7 ページ  2001年6月29日 金曜日 午前9時59分
