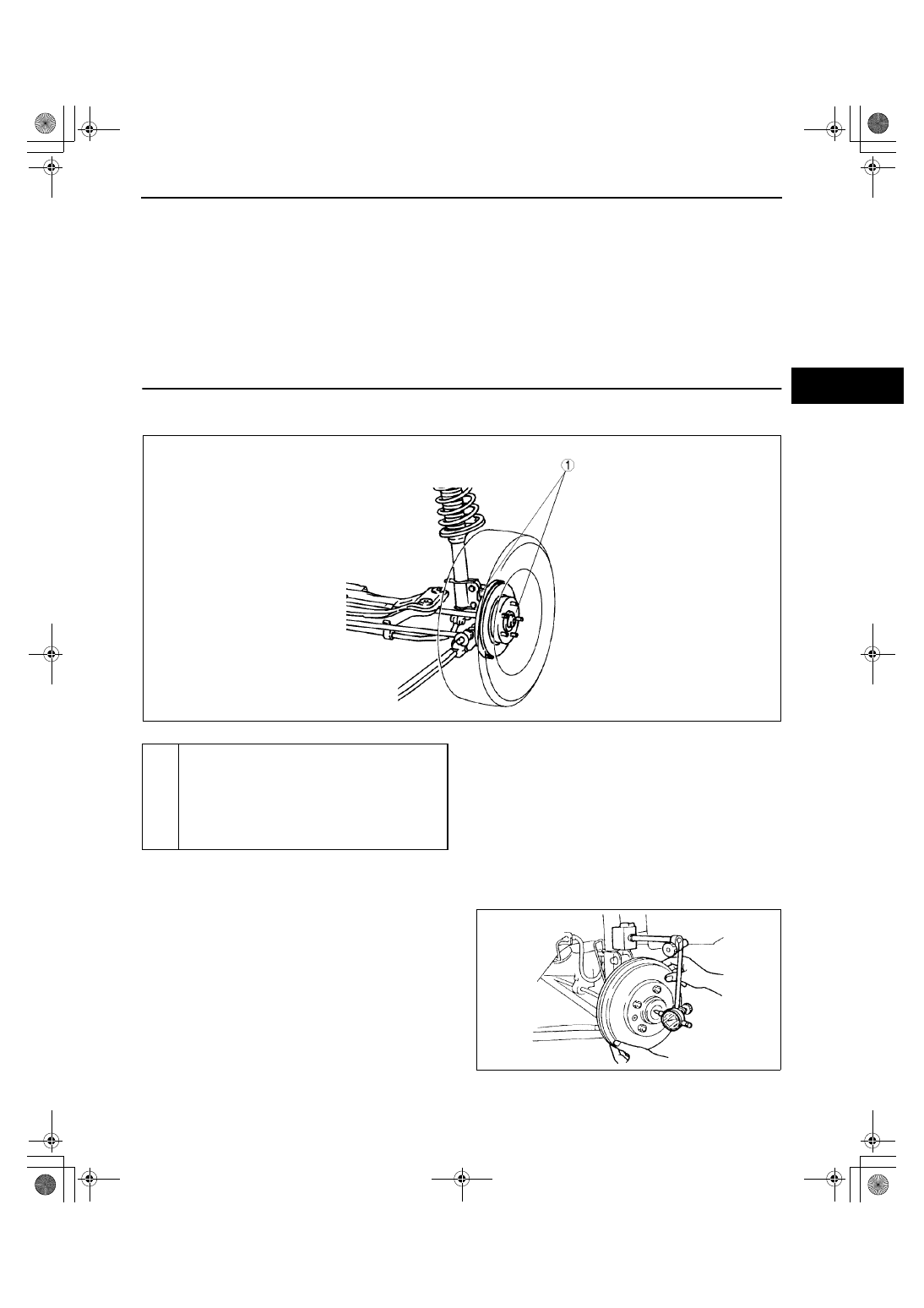

REAR AXLE LOCATION INDEX

A3U031205000W01

.

End Of Sie

WHEEL HUB, HUB SPINDLE PRE-INSPECTION

A3U031205000W02

Wheel Bearing Play Inspection

1. Position a dial indicator against the brake drum

(brake drum type), or wheel hub (disc brake type).

2. Push and pull the rear brake component by hand

in the axial direction and measure the wheel
bearing play.

•

If the bearing play exceeds the specification,
replace the wheel hub component as
necessary and tighten the locknut to the
specified torque and retest.

Wheel bearing play

0.05 mm {0.002 in}

End Of Sie

Z3U0312W005

1

Wheel hub, hub spindle
(See 03–12–1 WHEEL HUB, HUB SPINDLE
PRE-INSPECTION)
(See 03–12–4 WHEEL HUB, HUB SPINDLE (DISC
BRAKE TYPE) REMOVAL/INSTALLATION)
(See 03–12–2 WHEEL HUB, HUB SPINDLE
(DRUM BRAKE TYPE) REMOVAL/
INSTALLATION)

X3U312WA0

1712-1U-01G(03-12).fm  1 ページ  ２００１年６月２９日 金曜日 午前９時５８分

REAR AXLE

03–12–2

WHEEL HUB, HUB SPINDLE (DRUM BRAKE TYPE) REMOVAL/INSTALLATION

A3U031205000W03

Caution

••••

Performing the following procedures without first removing the ABS wheel-speed sensor may
possibly cause an open circuit in the harness if it is pulled by mistake. Before performing the
following procedures, remove the ABS wheel-speed sensor (axle side) and fix it to an appropriate
place where the sensor will not be pulled by mistake while servicing the vehicle.

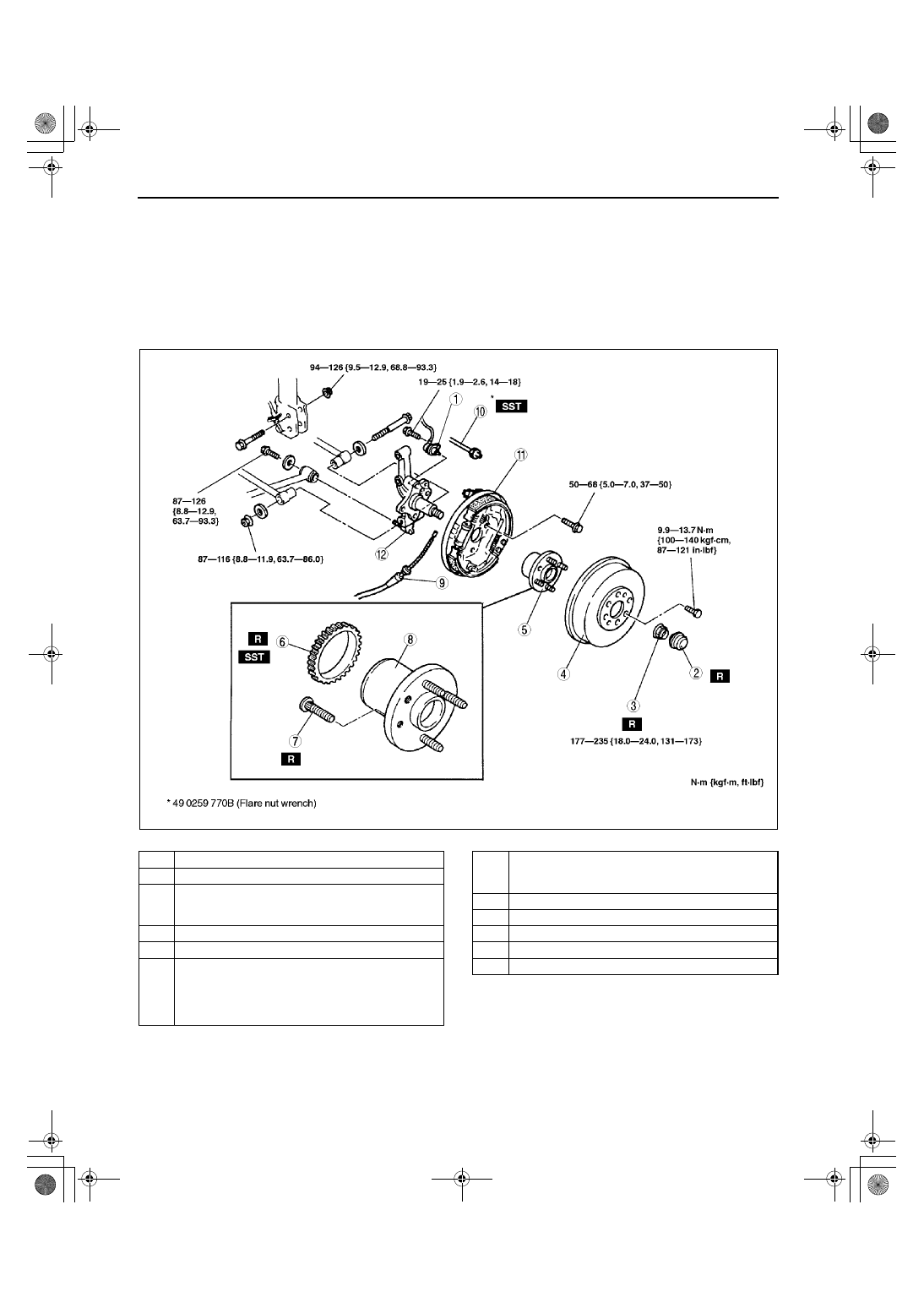

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

.

Z3U0312W001

1

ABS-wheel speed sensor

2

Hub  cap

3

Locknut
(See 03–12–3 Locknut Removal Note)
(See 03–12–4 Locknut Installation Note)

4

Brake  drum

5

Wheel hub and ABS sensor rotor (with ABS)

6

ABS sensor rotor (with ABS)
(See 03–12–3 ABS Sensor Rotor (With ABS)
Removal Note)
(See 03–12–3 ABS Sensor Rotor (With ABS)
Installation Note)

7

Hub bolt
(See 03–11–5 Hub Bolt Removal Note)
(See 03–11–5 Hub Bolt Installation Note)

8

Wheel hub

9

Parking brake cable

10

Brake pipe

11

Rear brake component

12

Hub spindle

1712-1U-01G(03-12).fm  2 ページ  ２００１年６月２９日 金曜日 午前９時５８分

REAR AXLE

03–12–3

03–12

Locknut Removal Note

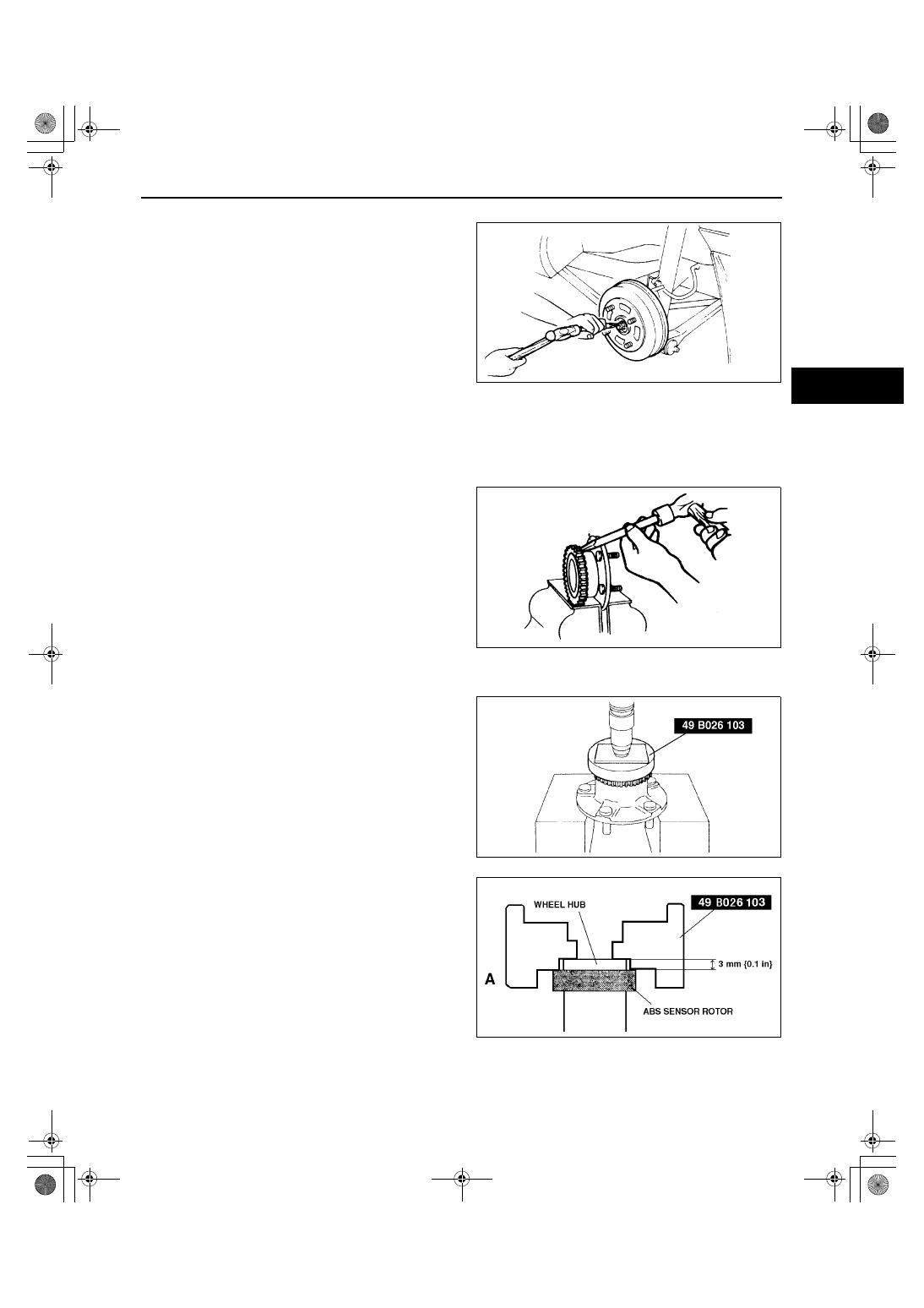

1. Raise the staked portion of the locknut using a

small cape chisel and a hammer.

2. Lock the hub by applying the brakes.
3. Remove the locknut.

ABS Sensor Rotor (With ABS) Removal Note

Note

•

The sensor rotor does not need to be removed unless it is being replaced.

1. Remove the sensor rotor using a chisel.

ABS Sensor Rotor (With ABS) Installation Note

1. Set the SST as shown in the figure.

Caution

••••

Position the SST so that marking A faces
the bottom.

2. Press on the new sensor rotor using the SST and

a press.

X3U312WA2

X3U312WA3

X3U312WA4

A3U0312W003

1712-1U-01G(03-12).fm  3 ページ  ２００１年６月２９日 金曜日 午前９時５８分

REAR AXLE

03–12–4

Locknut Installation Note

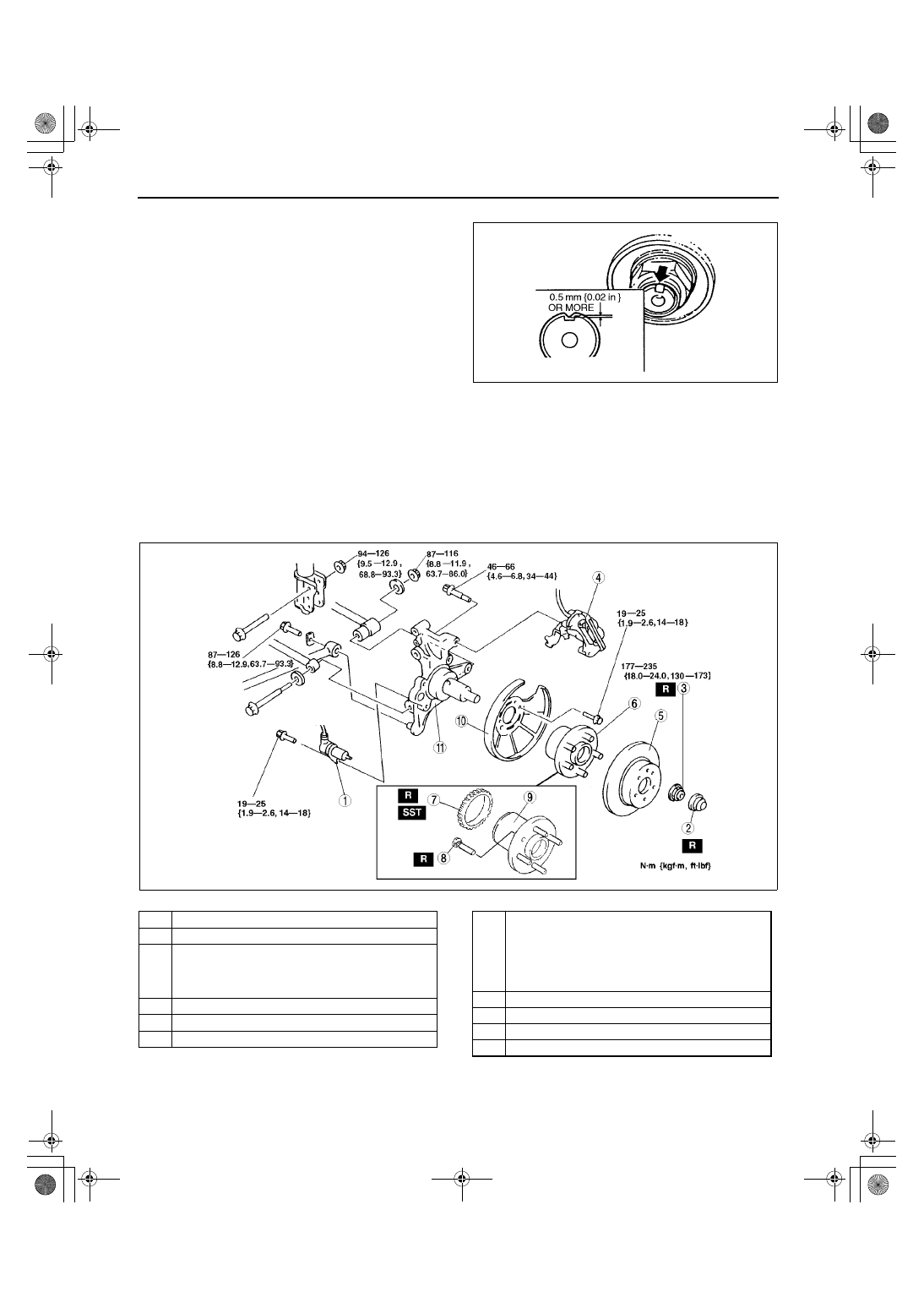

1. Install a new locknut and stake it as shown.

End Of Sie

WHEEL HUB, HUB SPINDLE (DISC BRAKE TYPE) REMOVAL/INSTALLATION

A3U031205000W04

Caution

••••

Performing the following procedures without first removing the ABS wheel-speed sensor may
possibly cause an open circuit in the harness if it is pulled by mistake. Before performing the
following procedures, remove the ABS wheel-speed sensor (axle side) and set it to an appropriate
place where the sensor will not be pulled by mistake while servicing the vehicle.

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

.

X3U312WA5

A3U0312W001

1

ABS wheel-speed sensor

2

Hub cap

3

Locknut
(See 03–12–2 WHEEL HUB, HUB SPINDLE
(DRUM BRAKE TYPE) REMOVAL/
INSTALLATION)

4

Brake caliper component

5

Disc plate

6

Wheel hub and ABS sensor rotor

7

ABS sensor rotor
(See 03–12–2 WHEEL HUB, HUB SPINDLE
(DRUM BRAKE TYPE) REMOVAL/
INSTALLATION)
(See 03–12–5 ABS Sensor Rotor (With ABS)
Installation Note)

8

Hub bolt

9

Wheel hub component

10

Dust cover

11

Hub spindle

1712-1U-01G(03-12).fm  4 ページ  ２００１年６月２９日 金曜日 午前９時５８分
