MECHANICAL [FS]

01–10B–23

01–10B

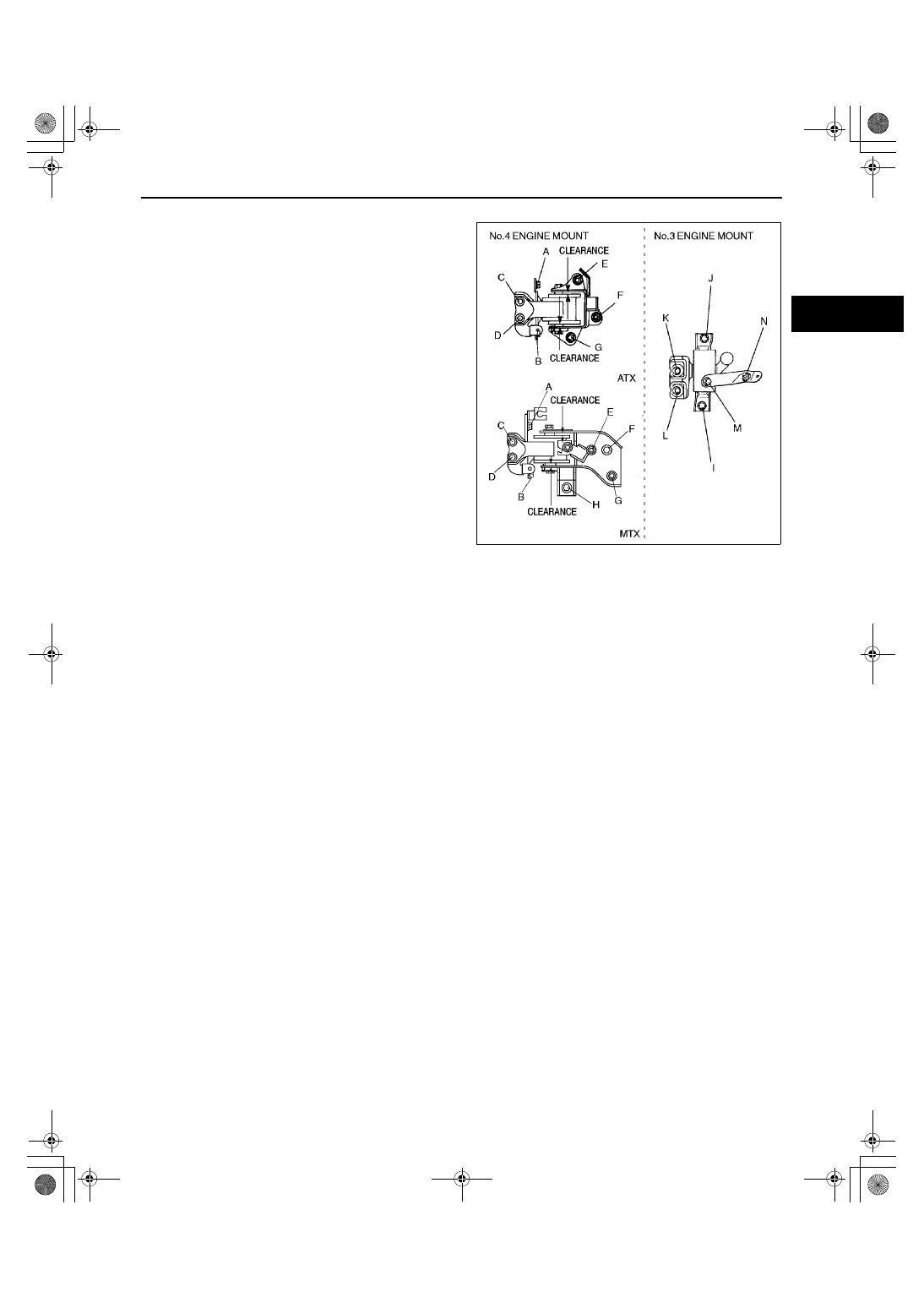

No.3, No.4 Engine Mount Installation Note

1. Hand tighten the No.3 and No.4 engine mount

rubber bolts and nuts (A—M).

2. Tighten the No.4 engine mount rubber bolts and

nuts (A—H).

3. Tighten the No.3 engine mount rubber bolts and

nuts (I—N)

4. Measure the No.4 engine mount rubber

clearance.

•

If not within the specification, repeat from step
1.

Standard clearance

 3.0—4.0 mm {0.12—0.15 in}

End Of Sie

Z3U0110W996

1712-1U-01G(01-10B).fm  23 ページ  ２００１年６月２９日 金曜日 午前９時３９分

MECHANICAL [FS]

01–10B–24

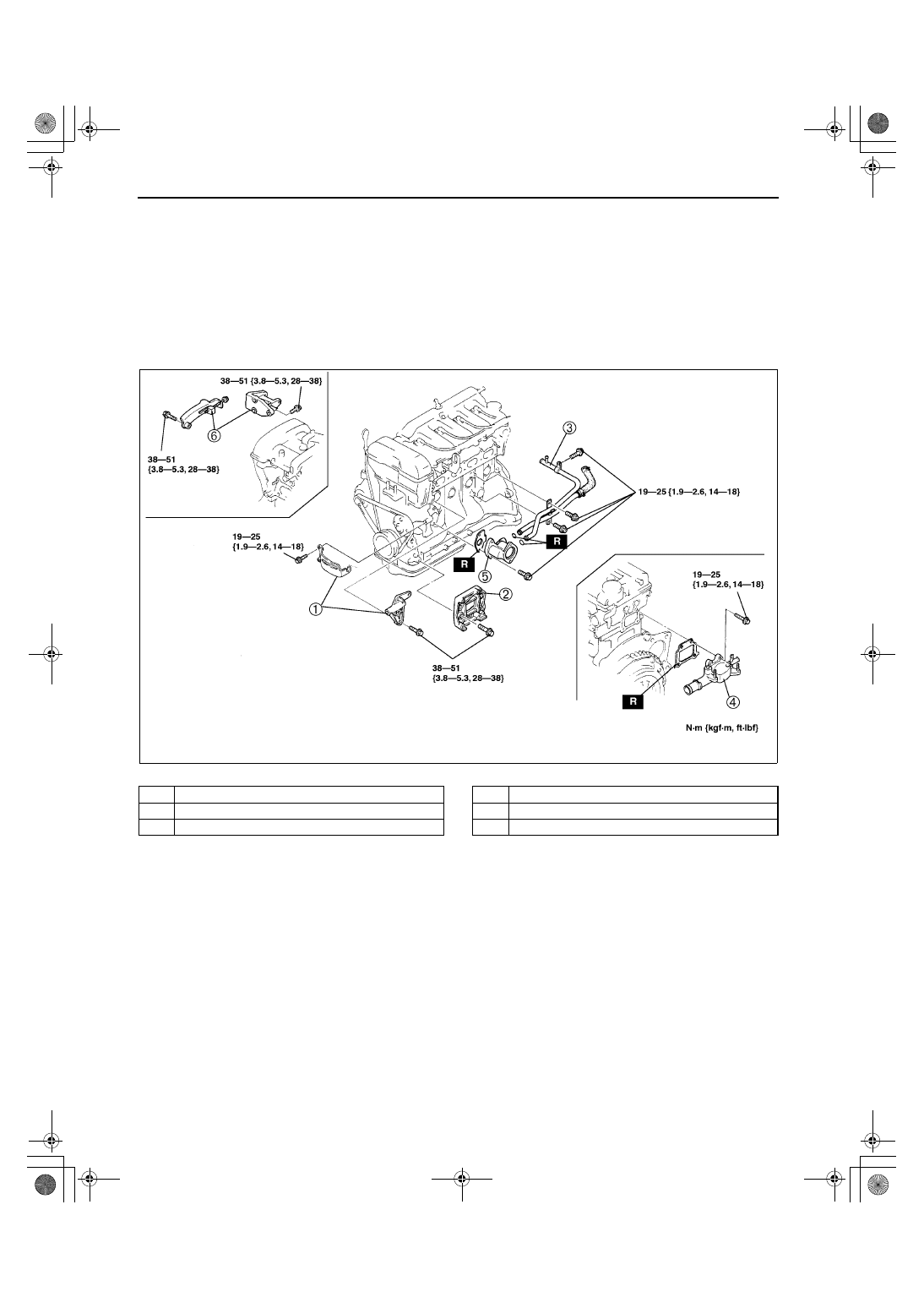

ENGINE DISASSEMBLY/ASSEMBLY [FS]

A3U011002000W03

1. Disconnect the engine and transaxle. (See 05–15B–4 MANUAL TRANSAXLE (MTX) REMOVAL/

INSTALLATION [G15M-R].) (See 05–17–31 AUTOMATIC TRANSAXLE (ATX) REMOVAL/INSTALLATION.)

2. Remove the intake-air system. (See 01–13B–6 INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [FS].)
3. Remove the exhaust system. (See 01–15–1 EXHAUST SYSTEM REMOVAL/INSTALLATION.)
4. Remove the oil filter. (See 01–11–3 OIL FILTER REPLACEMENT.)
5. Remove the thermostat. (See 01–12–5 THERMOSTAT REMOVAL/INSTALLATION.)
6. Remove the ignition coil.
7. Remove the generator.
8. Disassemble in the order indicated in the table.
9. Assemble in the reverse order of disassembly.

.

End Of Sie

X3U110WGK

1

P/S oil pump bracket

2

A/C compressor bracket

3

Water bypass pipe

4

Water outlet

5

Thermostat housing

6

Generator bracket

1712-1U-01G(01-10B).fm  24 ページ  ２００１年６月２９日 金曜日 午前９時３９分

MECHANICAL [FS]

01–10B–25

01–10B

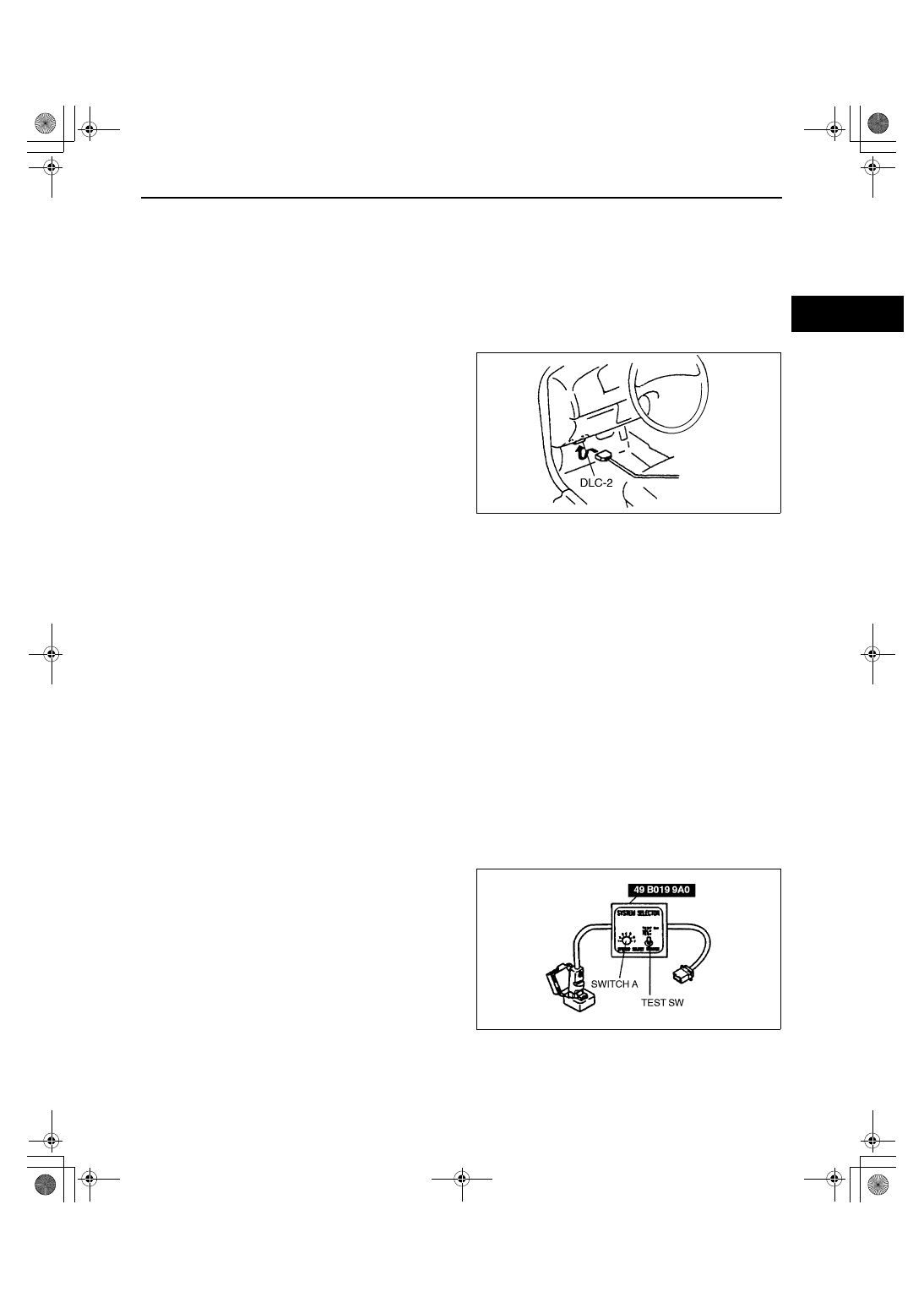

ENGINE TUNE-UP [FS]

A3U011002000W04

Engine Tune-up Preparation

1. Warm up the engine to normal operating temperature.
2. Shift the transaxle into neutral.
3. Turn off all electrical loads.

•

Headlight switch

•

Fan switch

•

Rear window defroster switch

•

A/C switch

4. Verify that the steering wheel is at straight ahead position.
5. Connect the SSTs (WDS or equivalent) to the

DLC-2.

6. Access RPM PID.
7. Wait until the electrical fan stops.

Ignition Timing Inspection

1. Perform “Engine Tune-up Preparation”.
2. Verify that the RPM PID is within the specification.

•

If not as specified, adjust the idle speed. (See 01–10B–26 Idle Speed Adjustment.)

Specification

650—750 (700

±±±±

50) rpm

3. Connect the timing light to the high-tension lead of the No.1 cylinder.
4. Verify that the timing mark (yellow) on the crankshaft pulley is within the specification.

•

If not as specified, inspect following.
— CMP sensor
— CKP sensor
— TP sensor
— ECT sensor
— Neutral switch (MTX)
— Clutch switch (MTX)
— TR switch (ATX)

•

If the devices are normal, replace the PCM. (See 01–40B–7 PCM REMOVAL/INSTALLATION [FS].)

Ignition timing

BTDC 9

°°°°

—11

°°°°

 (10

°±

°±

°±

°±

1

°°°°

) (TIMING MARK [YELLOW])

5. Connect the SST (System selector) to the DLC.
6. Set switch A to position 1.
7. Set the test switch to SELF TEST.

Z3U110WA5

X3U110WGQ

1712-1U-01G(01-10B).fm  25 ページ  ２００１年６月２９日 金曜日 午前９時３９分

MECHANICAL [FS]

01–10B–26

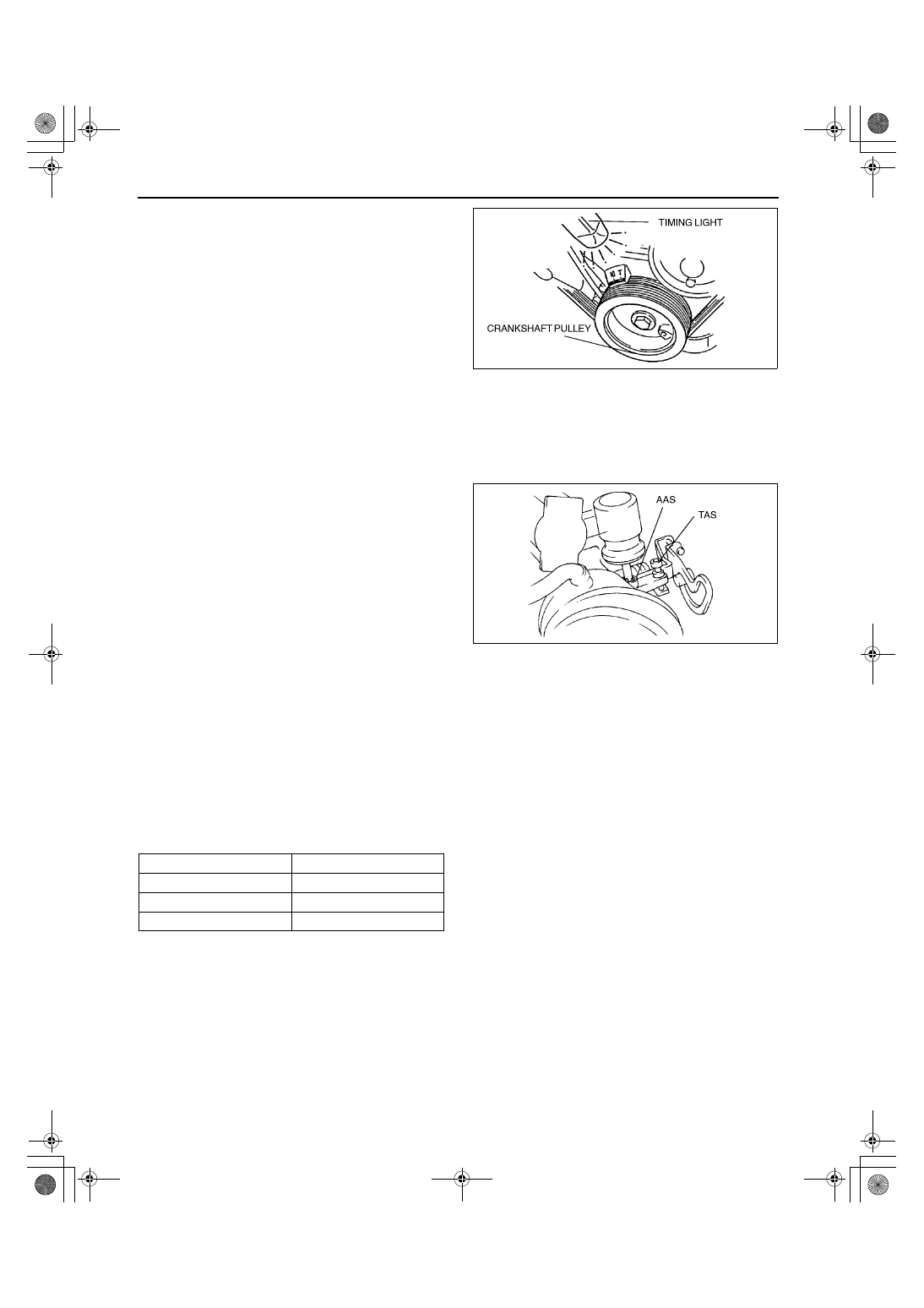

8. Verify that the timing mark (yellow) on the

crankshaft pulley is within the specification.

•

If not as specified, inspect the following.
— CMP sensor
— CKP sensor
— TP sensor
— ECT sensor
— Neutral switch (MTX)
— Clutch switch (MTX)
— TR switch (ATX)

•

If the devices are normal, replace the PCM.
(See 01–40B–7 PCM REMOVAL/
INSTALLATION [FS].)

Specification

BTDC 6

°°°°

—18

°°°°

Idle Speed Adjustment

1. Perform “Engine Tune-up Preparation”.
2. Verify that the RPM PID is within the specification.

•

If not as specified, adjust the idle speed by
turning the AAS.

Specification

650—750 (700

±±±±

50) rpm

Caution

••••

The TAS is set at the factory and must
not be adjusted. Any adjustment will
negatively effect the engine performance.

3. Connect the SST (System selector) to the DLC.
4. Set switch A to position 1.
5. Set the test switch to SELF TEST.
6. Press CLEAR to clear previously selected items.
7. Disconnect the SSTs.

Idle-up Speed Inspection

1. Perform “Engine Tune-up Preparation”.
2. Connect the SST (System selector) to the DLC.
3. Set switch A to position 1.
4. Set the test switch to SELF TEST.
5. Verify that the idle speed is normal. (See 01–10B–26 Idle Speed Adjustment.)
6. Verify that the RPM PID is within the specification.

•

If not as specified with all load conditions, inspect the IAC valve.

•

If not as specified with some load condition, inspect the related input switches, harnesses, and connectors.

Specification

*

1

: Excludes temporary idle speed drop just after the electrical loads (E/L) are turned on.

*

2

: Headlight is on, Fan switch is above 1st, Cooling fan is operating, Rear window defroster is on.

*

3

: Steering wheel is fully turned.

*

4

: A/C switch and fan switch are on.

Idle Mixture Inspection

1. Perform “Engine Tune-up Preparation”.
2. Verify that the idle speed and ignition timing are within the specification. (See 01–10B–25 Ignition Timing

Inspection.) (See 01–10B–26 Idle Speed Adjustment.)

3. Turn the test mode off.
4. Warm up the engine by holding the engine speed at 2,500—3,000 rpm for approx. 3 min.
5. Insert an exhaust gas analyzer to the tailpipe.

X3U110WGN

X3U110WGP

Load condition

Idle-up speed (rpm)*

1

E/L ON*

2

650—750

P/S operating*

3

700—800

A/C ON*

4

700—800
