MECHANICAL [FS]

01–10B–15

01–10B

.

Camshaft Pulley Removal Note

1. Hold the camshaft using a wrench on the cast

hexagon as shown.

Y3U110WA6

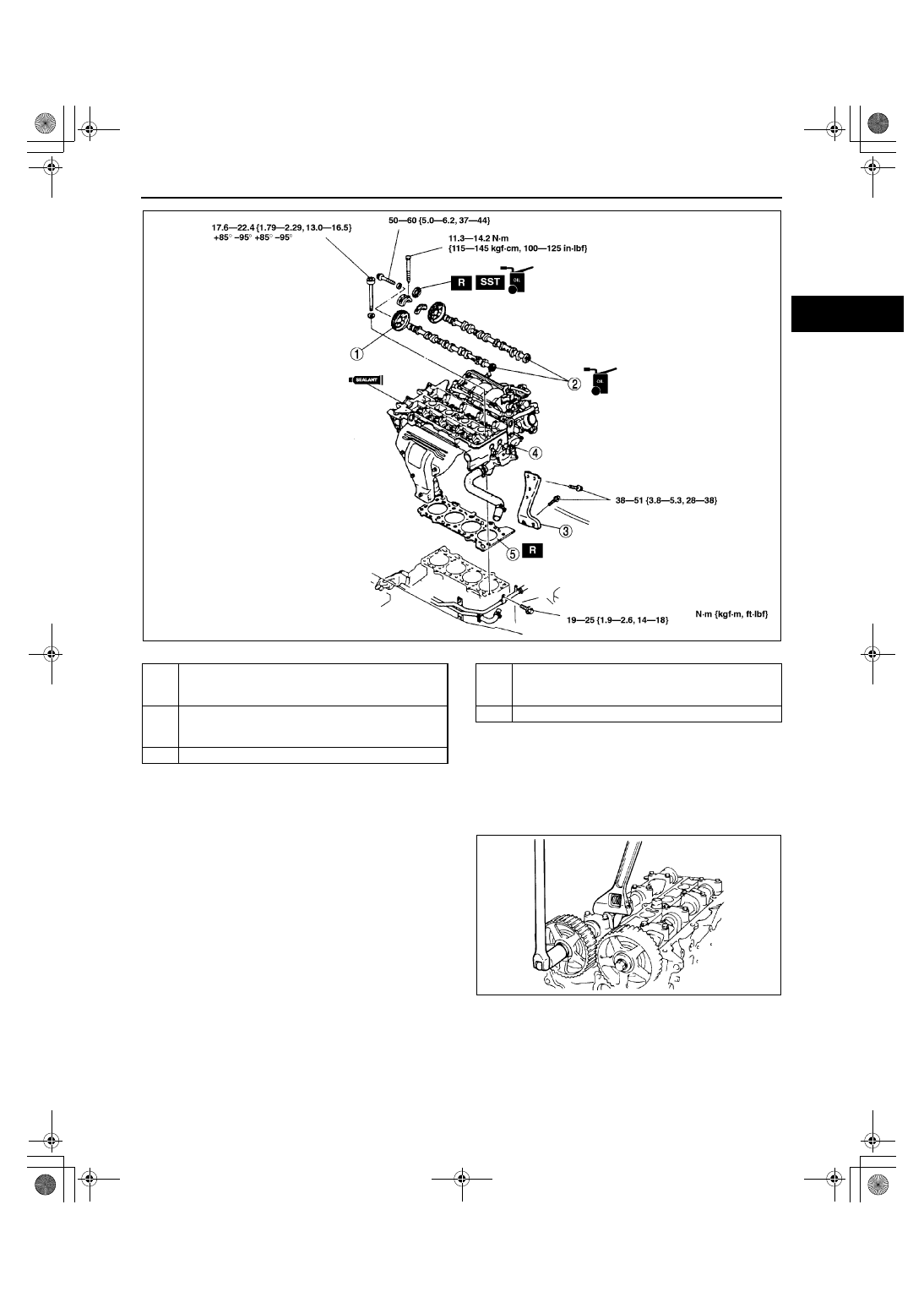

1

Camshaft pulley
(See 01–10B–15 Camshaft Pulley Removal Note)
(See 01–10B–18 Camshaft Pulley Installation Note)

2

Camshaft
(See 01–10B–16 Camshaft Removal Note)
(See 01–10B–17 Camshaft Installation Note)

3

Intake manifold bracket

4

Cylinder head
(See 01–10B–16 Cylinder Head Removal Note)
(See 01–10B–16 Cylinder Head Installation Note)

5

Cylinder head gasket

X3U110WG0

1712-1U-01G(01-10B).fm  15 ページ  2001年6月29日 金曜日 午前9時39分

MECHANICAL [FS]

01–10B–16

Camshaft Removal Note

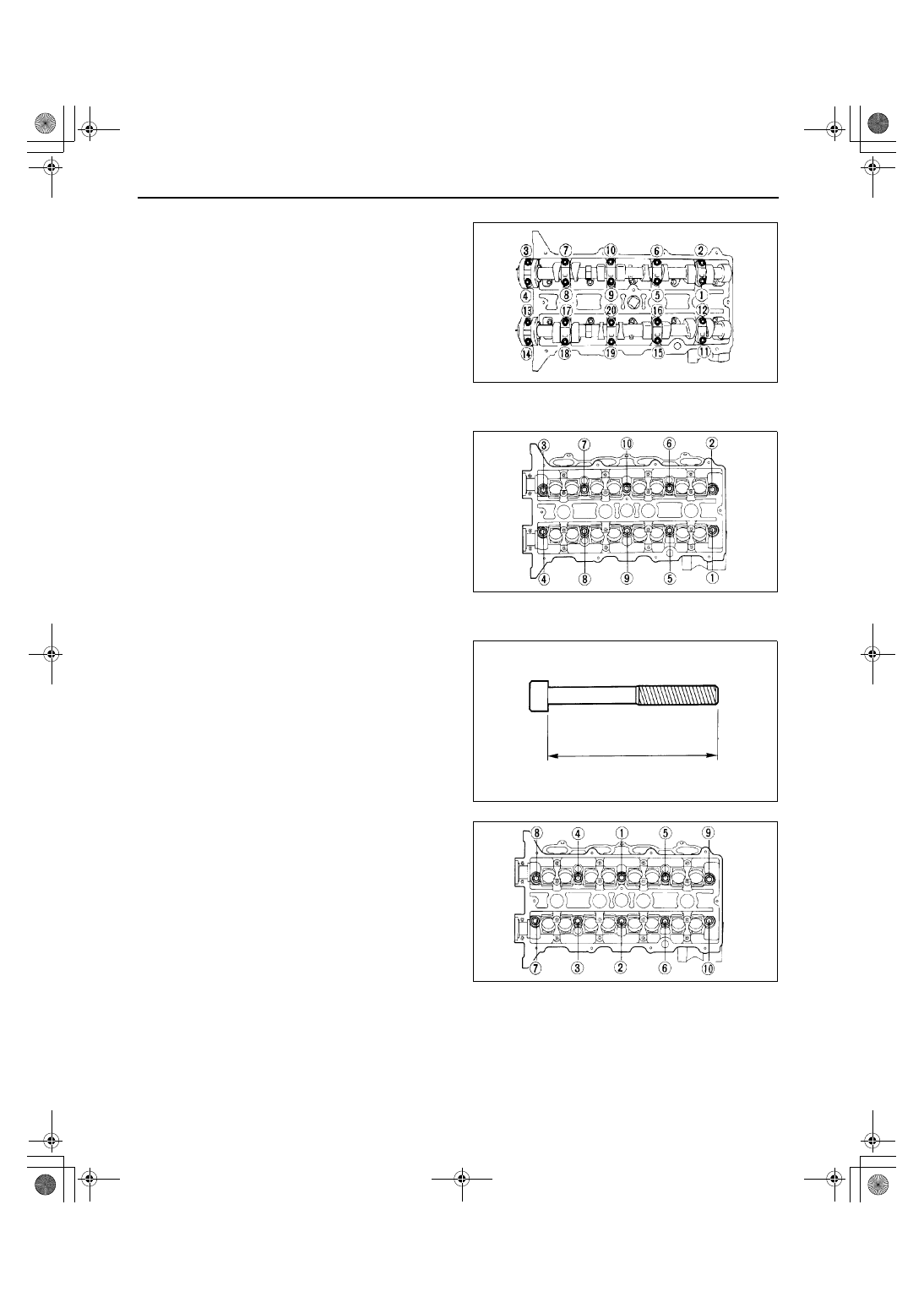

1. Loosen the camshaft cap bolts a few turns in the

order shown.

Cylinder Head Removal Note

1. Loosen the cylinder head bolts a few turns in the

order shown.

Cylinder Head Installation Note

1. Measure the length of each bolt. Replace any that

exceed the maximum length.

Standard length

104.2—104.8 mm {4.103—4.125 in}

Maximum length

105.5 mm {4.153 in}

2. Tighten the cylinder head bolts a few turns in the

order shown.

Tightening torque

17.5—22.5 N·m {1.79—2.29 kgf·m, 13.0—16.5

ft·lbf}

Z3U110WG1

X3U110WG2

X3U110WG3

X3U110WG4

1712-1U-01G(01-10B).fm  16 ページ  2001年6月29日 金曜日 午前9時39分

MECHANICAL [FS]

01–10B–17

01–10B

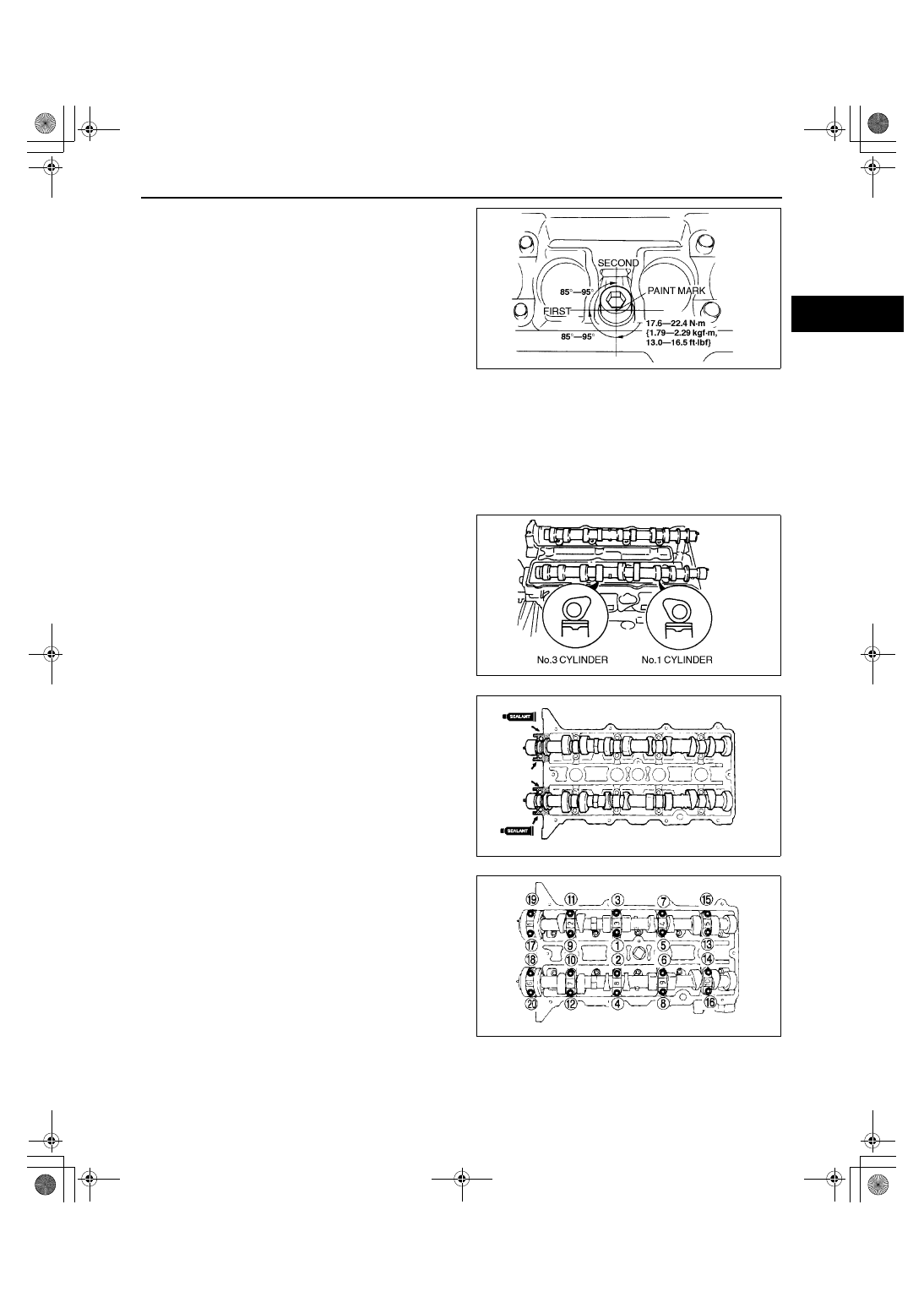

3. Put a paint mark on each bolt head.
4. Using the marks as a reference, tighten the bolts

by turning each 85

°°°°

—95

°°°°

 in the sequence shown.

5. Further tighten each bolt by turning another 85

°°°°

95

°°°°

 in the sequence shown.

Camshaft Installation Note

Caution

••••

Because there is little camshaft thrust clearance, the camshaft must be held horizontally while it is
installed. Otherwise, excessive force will be applied to the thrust area, causing burr on the thrust
receiving area of the cylinder head journal. To avoid this, the following procedure must be
observed.

1. Assemble camshaft onto the cylinder head, facing

the cam noses at No.1 and No.3 cylinders as
shown.

2. Apply silicone sealant to the areas shown.

Note

Keep the camshaft sliding surface free of
sealant to prevent engine damage.

3. Apply engine oil to the camshaft and the cylinder

head journals.

4. Install the camshaft caps to the positions from

which they were removed.

5. Hand tighten the camshaft cap bolts marked 5, 7,

2, and 4.

6. Tighten the camshaft cap bolts a few turns in the

order shown.

7. Verify that the camshaft settles horizontally when

2 bearing cap bolts at No.3 journal are tightened.

8. Apply clean engine oil to the camshaft oil seal.
9. Push the oil seal slightly in by hand.

Y3U110WA7

X3U110WG6

Z3U110WG7

Z3U110WG8

1712-1U-01G(01-10B).fm  17 ページ  2001年6月29日 金曜日 午前9時39分

MECHANICAL [FS]

01–10B–18

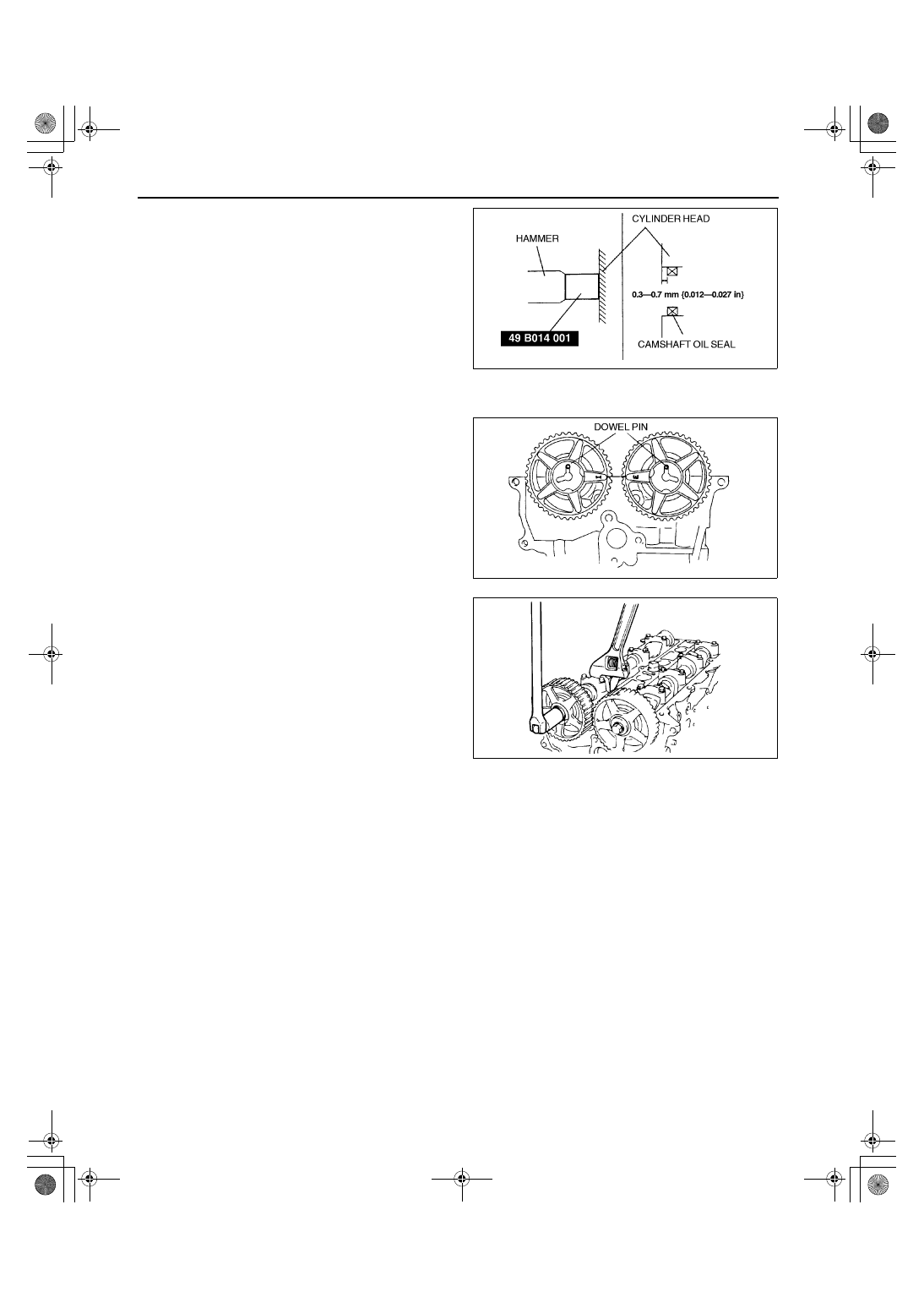

10. Tap the oil seals in evenly using the SST and a

hammer.

Camshaft Pulley Installation Note

1. Install the camshaft pulleys, positioning the dowel

pins as shown.

2. Hold the camshaft using a wrench on the cast

hexagon as shown.

End Of Sie

X3U110WG9

X3U110WGA

X3U110WG0
