MECHANICAL [FS]

01–10B–11

01–10B

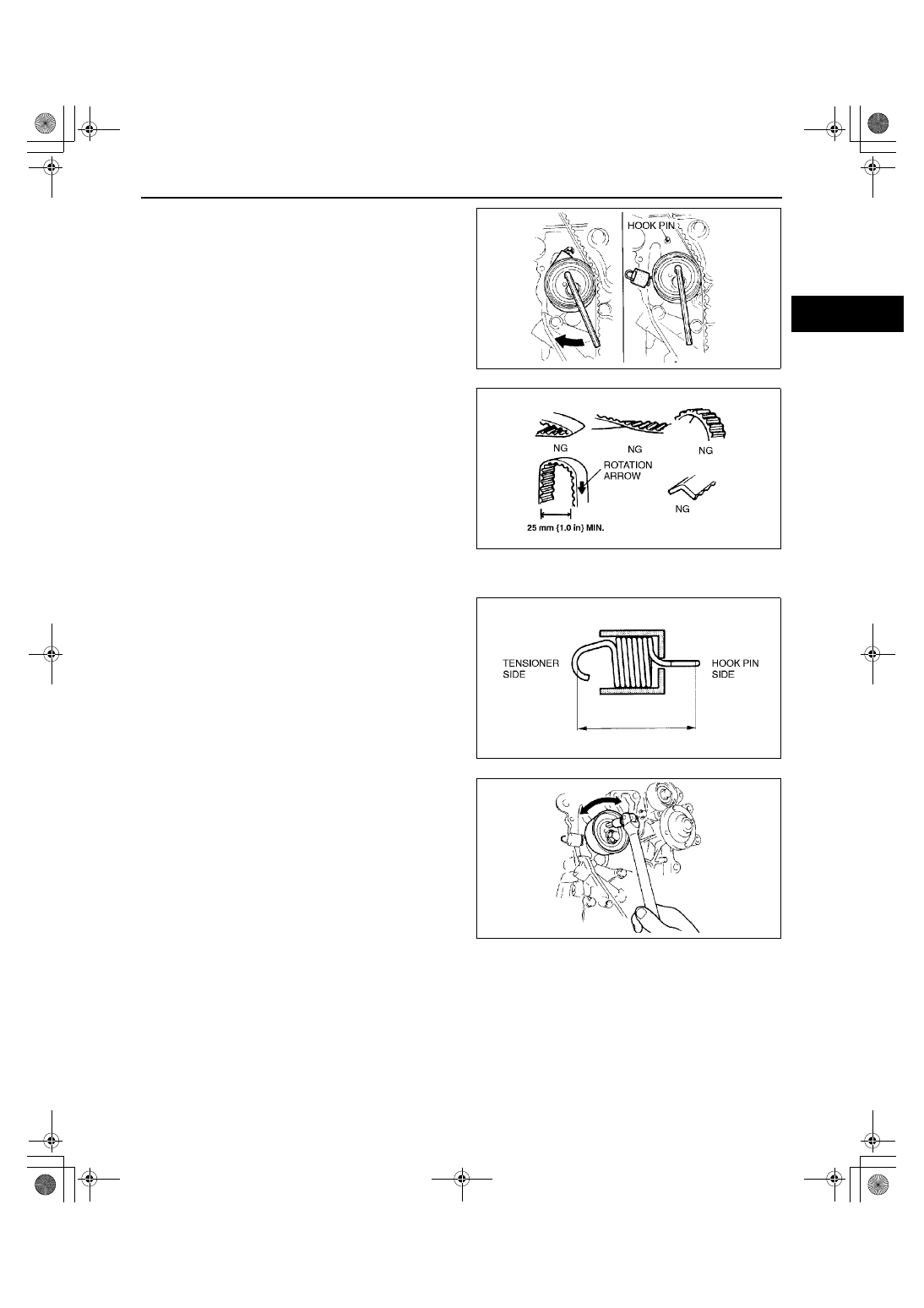

3. Turn the tensioner clockwise using an Allen

wrench.

4. Disconnect the tensioner spring from the hook

pin.

Caution

••••

Forcefully twisting the timing belt turning
it inside out, or allowing oil or grease on
it will damage the belt and shorten its life.

Note

Mark the timing belt rotation on the belt for
proper reinstallation.

Tensioner, Tensioner Spring Installation Note

1. Measure the tensioner spring free length.

If not within the specification, replace the
tensioner spring.

Free length

36.6 mm {1.44 in}

2. Install the tensioner.

3. Rotate the tensioner.

If tensioner rotates with no resistance or does
not rotate, replace the tensioner.

X3U110WFM

X3U110WFN

X3U110WFP

X3U110WFQ

1712-1U-01G(01-10B).fm  11 ページ  2001年6月29日 金曜日 午前9時39分

MECHANICAL [FS]

01–10B–12

Timing Belt Installation Note

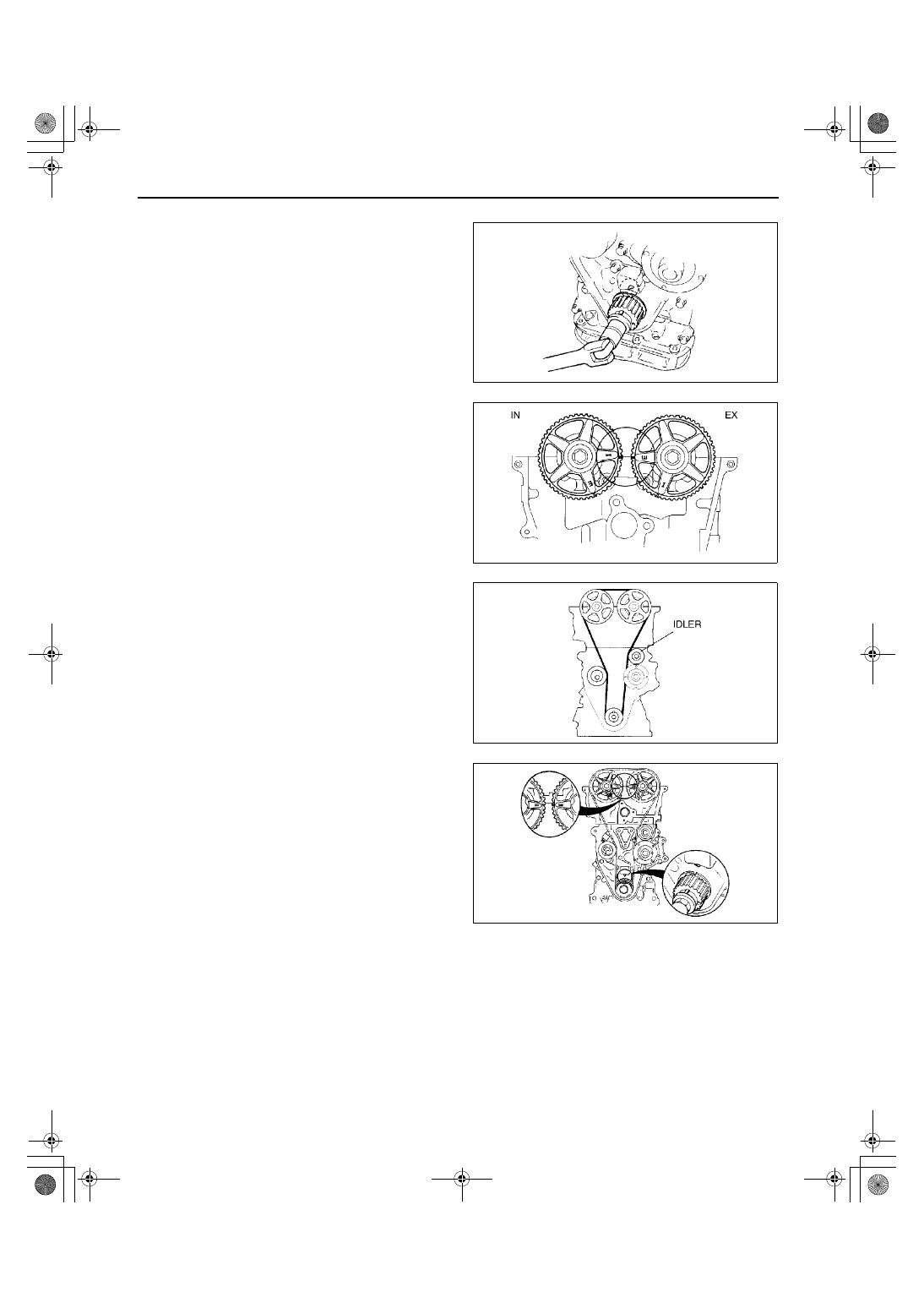

1. Verify that the timing belt pulley mark and

camshaft pulley marks are aligned with the timing
marks as shown.

2. Install the timing belt so that there is no looseness

at the idler side.

3. Turn the crankshaft clockwise twice, and align the

timing marks.

4. Verify that all timing marks are correctly aligned.

If not aligned, remove the timing belt and
repeat from Step 1.

Caution

••••

Be sure not to apply tension other than
that of the tensioner spring.

5. Turn the tensioner clockwise using an Allen

wrench.

X3U110WFR

X3U110WFS

X3U110WFT

X3U110WFU

1712-1U-01G(01-10B).fm  12 ページ  2001年6月29日 金曜日 午前9時39分

MECHANICAL [FS]

01–10B–13

01–10B

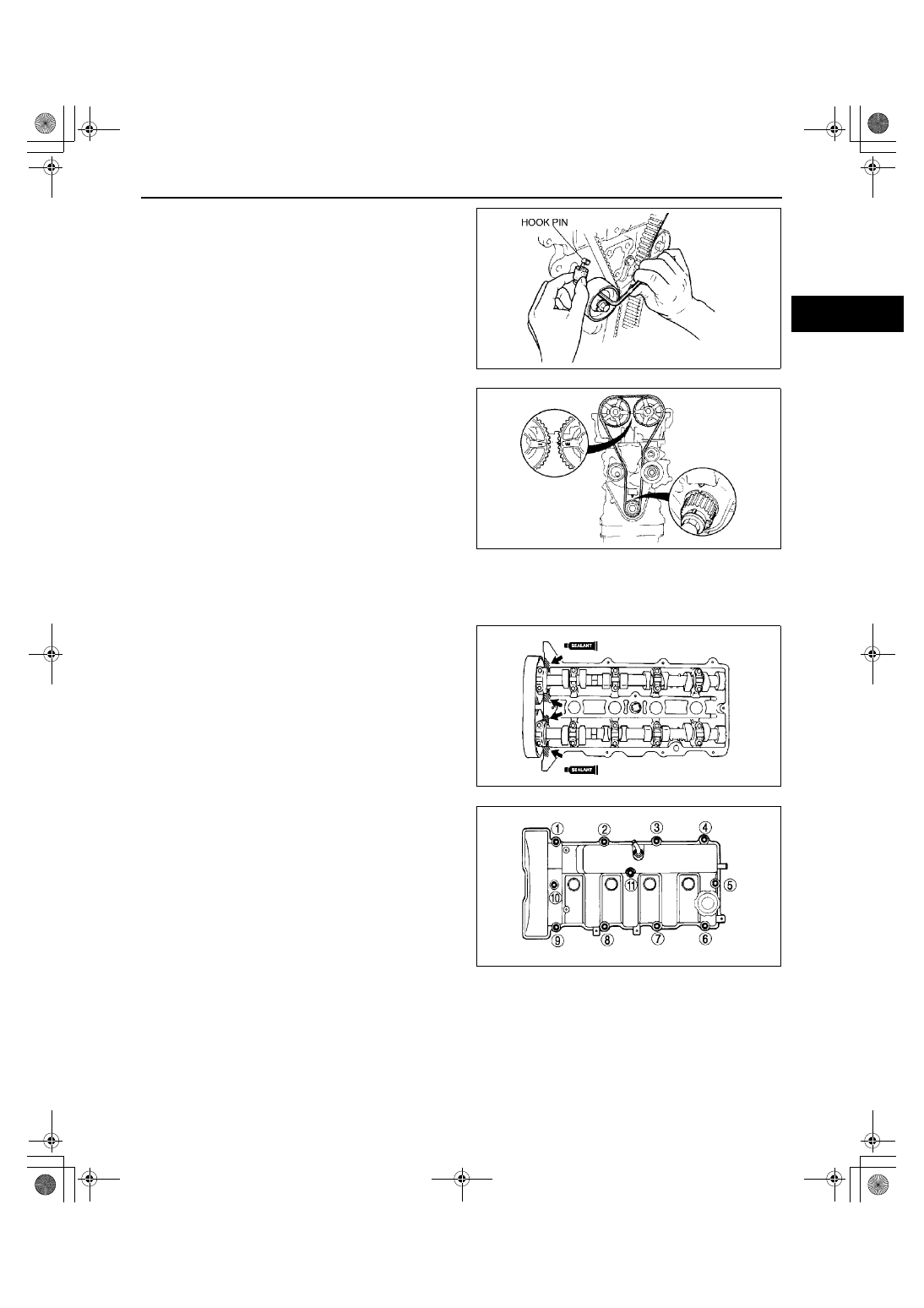

6. Connect the tensioner to the hook pin.

7. Turn the crankshaft clockwise twice, and verify

that all timing marks are aligned.

If not aligned, repeat from Step 1.

Cylinder Head Cover Installation Note

1. Verify that the grooves on the cylinder head cover are free of oil, water and other foreign material.
2. Install the cylinder head cover gasket into the cylinder head cover.
3. Apply silicone sealant to the cylinder head as

shown.

4. Tighten the cylinder head cover bolts a few turns

in the order shown.

X3U110WFV

X3U110WFL

Z3U110WFW

X3U110WFX

1712-1U-01G(01-10B).fm  13 ページ  2001年6月29日 金曜日 午前9時39分

MECHANICAL [FS]

01–10B–14

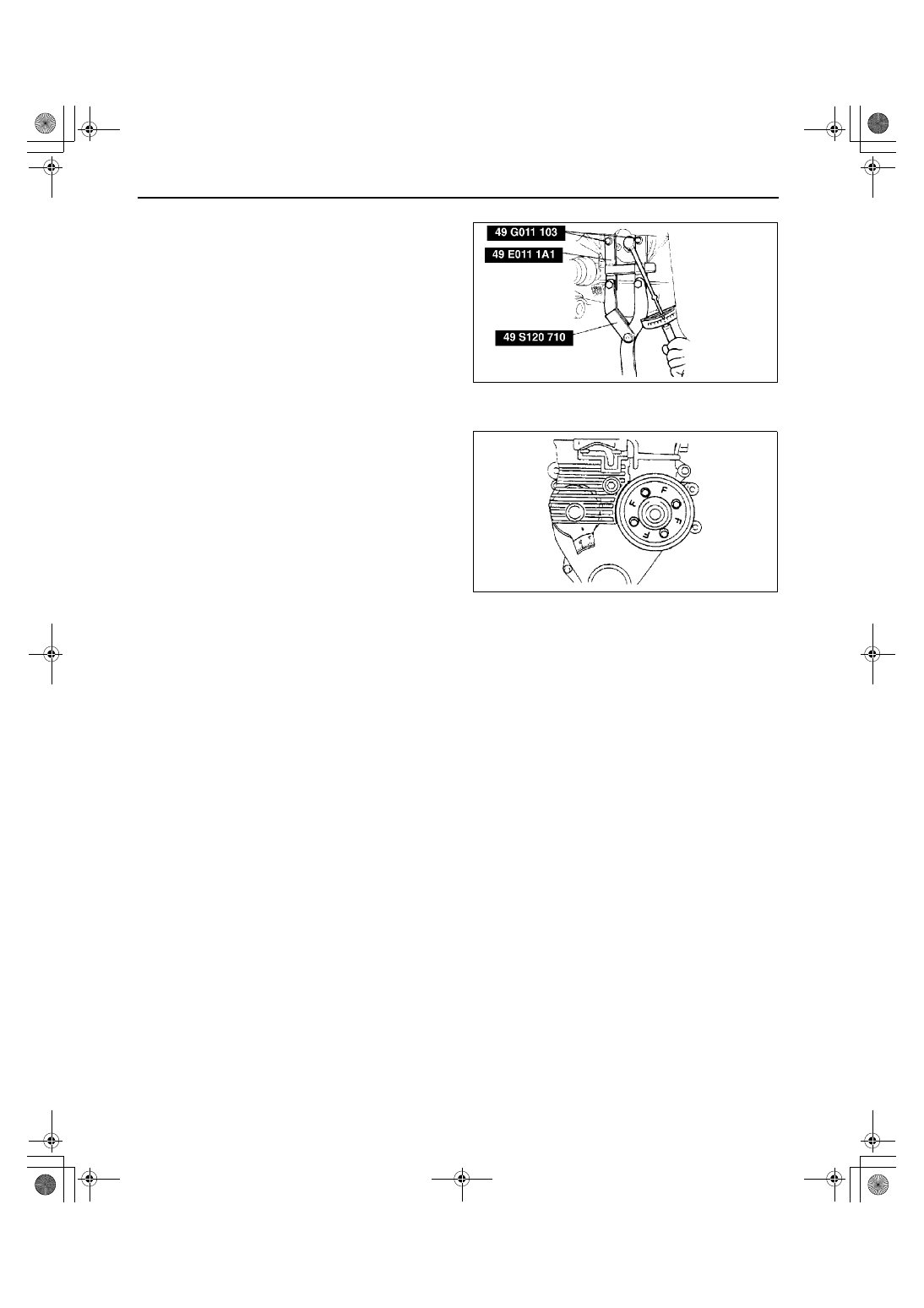

Crankshaft Pulley Installation Note

1. Install the crankshaft using the SST.

Water Pump Pulley Installation Note

1. Install the water pump pulley by facing the “F”

marks outward.

End Of Sie

CYLINDER HEAD GASKET REPLACEMENT [FS]

A3U011010271W01

Warning

••••

Fuel vapor is hazardous. It can very easily ignite, causing serious injury and damage. Always keep
sparks and flames away from fuel.

••••

Fuel line spills and leakage are dangerous. Fuel can ignite and cause serious injuries or death and
damage. Fuel can also irritate skin and eyes. To prevent this, always complete the “Fuel Line
Safety Procedures”. (See 01–14–4 BEFORE REPAIR PROCEDURE.)

1. Disconnect the negative battery cable.
2. Drain the engine coolant. (See 01–12–2 COOLING SYSTEM SERVICE WARNINGS.) (See 01–12–3 ENGINE

COOLANT REPLACEMENT.)

3. Remove the timing belt. (See 01–10B–8 TIMING BELT REMOVAL/INSTALLATION [FS].)
4. Remove the front pipe. (See 01–15–1 EXHAUST SYSTEM REMOVAL/INSTALLATION.)
5. Remove the air cleaner.
6. Remove the P/S oil pump and bracket with the oil hose still connected.
7. Remove the accelerator cable. (See 01–13B–17 ACCELERATOR CABLE ADJUSTMENT [FS].)
8. Disconnect the fuel hose. (See 01–14–4 BEFORE REPAIR PROCEDURE.) (See 01–14–4 BEFORE REPAIR

PROCEDURE.)

9. Remove in the order indicated in table.

10. Install in the reverse order of removal.
11. Inspect the engine oil level. (See 01–11–2 ENGINE OIL INSPECTION.)
12. Inspect for the engine oil, engine coolant, and fuel leakage.
13. Inspect the compression. (See 01–10B–8 COMPRESSION INSPECTION [FS].)
14. Start the engine and:

(1) Inspect the pulleys and the drive belt for runout and contact.
(2) Inspect the ignition timing. (See 01–10B–25 Ignition Timing Inspection.)
(3) Inspect the idle speed. (See 01–10B–26 Idle Speed Adjustment.)

X3U110WFY

X3U110WGL
