Mazda Protege 5. Manual - part 84





ON-BOARD DIAGNOSTIC [CRUISE CONTROL SYSTEM]

01–02C–1

01–02C

01–02C ON-BOARD DIAGNOSTIC [CRUISE CONTROL
SYSTEM]

CRUISE CONTROL SYSTEM

WIRING DIAGRAM . . . . . . . . . . . . . . . .  01–02C–1

FOREWORD . . . . . . . . . . . . . . . . . . . . . .  01–02C–2

Outline . . . . . . . . . . . . . . . . . . . . . . . . .  01–02C–2
Inspection Order  . . . . . . . . . . . . . . . . .  01–02C–2

INSPECTION OF DTCS FOR OPERATION

MODE  . . . . . . . . . . . . . . . . . . . . . . . . . .  01–02C–2

Using The Cruise Set Indicator Light . .  01–02C–2
Using The SST (WDS or equivalent) . .  01–02C–3
Operation Code List . . . . . . . . . . . . . . .  01–02C–3

DTC 21. . . . . . . . . . . . . . . . . . . . . . . . . . .  01–02C–4
DTC 22. . . . . . . . . . . . . . . . . . . . . . . . . . .  01–02C–4
DTC 31. . . . . . . . . . . . . . . . . . . . . . . . . . .  01–02C–4
DTC 35. . . . . . . . . . . . . . . . . . . . . . . . . . .  01–02C–6

DTC 37  . . . . . . . . . . . . . . . . . . . . . . . . . . . 01–02C–7
INSPECTION OF DTCS FOR CONDITION

DETECTION MODE . . . . . . . . . . . . . . . . 01–02C–8

Using The Cruise Set Indicator Light  . . 01–02C–8
Using The SST (WDS or equivalent)  . . 01–02C–8
Condition Code List. . . . . . . . . . . . . . . . 01–02C–8

DTC 01  . . . . . . . . . . . . . . . . . . . . . . . . . . . 01–02C–9
DTC 05  . . . . . . . . . . . . . . . . . . . . . . . . . . . 01–02C–10
DTC 07  . . . . . . . . . . . . . . . . . . . . . . . . . . . 01–02C–10
DTC 11  . . . . . . . . . . . . . . . . . . . . . . . . . . . 01–02C–11
DTC 12  . . . . . . . . . . . . . . . . . . . . . . . . . . . 01–02C–11
DTC 13  . . . . . . . . . . . . . . . . . . . . . . . . . . . 01–02C–12
DTC 15  . . . . . . . . . . . . . . . . . . . . . . . . . . . 01–02C–12

End of Toc

CRUISE CONTROL SYSTEM WIRING DIAGRAM

A3U010266350W01

End Of Sie

A3U102WY01

1712-1U-01G(01-02C).fm  1 ページ  2001年6月29日 金曜日 午前9時26分

ON-BOARD DIAGNOSTIC [CRUISE CONTROL SYSTEM]

01–02C–2

FOREWORD

A3U010266350W02

Outline

There are two on-board diagnostic functions: Operation Mode, which inspects for and indicates correct
operation of the input signals to the control module, and Condition Detection Mode, which indicates troubles in
the system.

The two functions can be done by using either of the following methods:

1. Verifying the flashing pattern of the cruise set indicator light in the instrument cluster.
2. Verifying the output of the data link connector using the SST (WDS or equivalent).

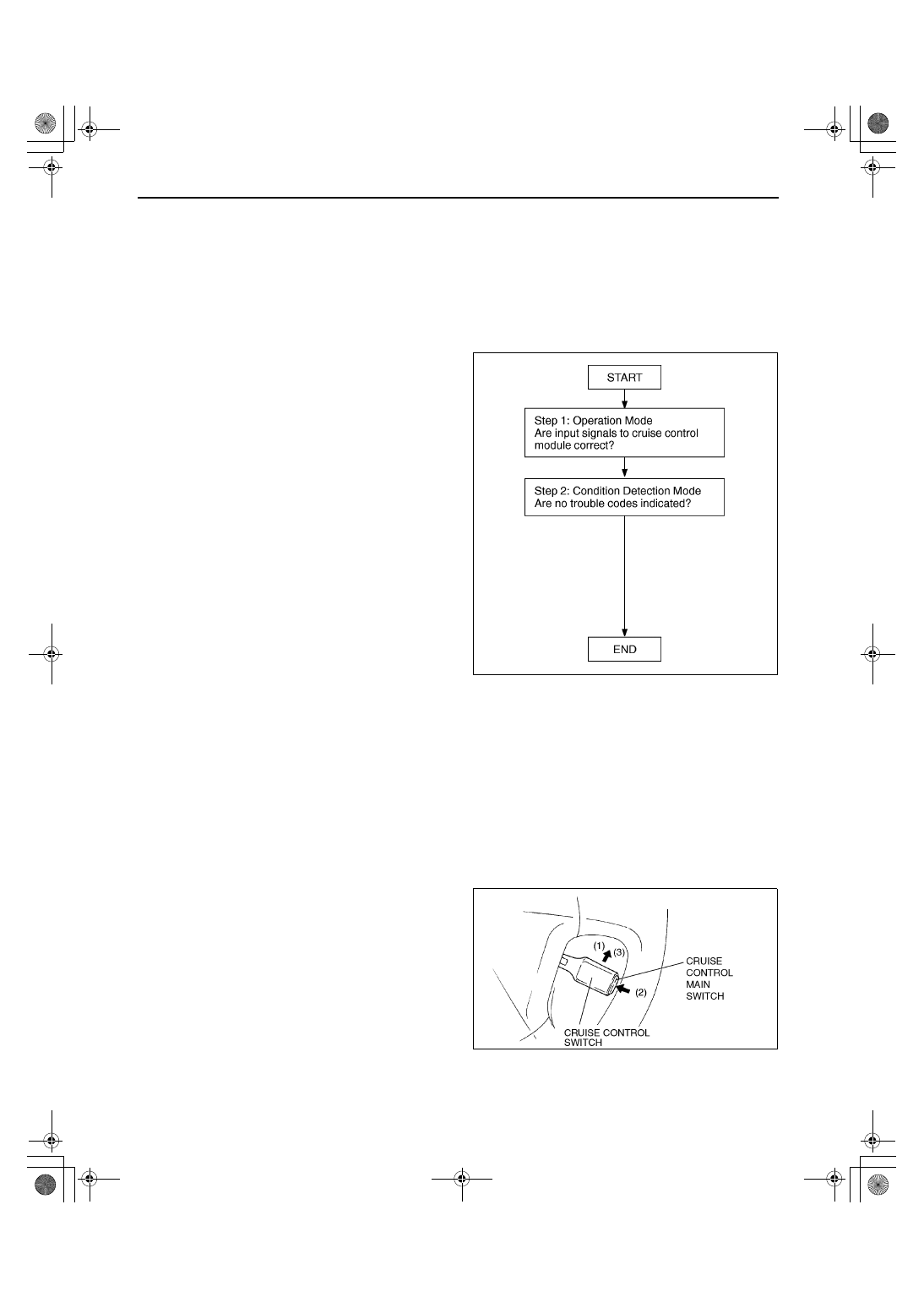

Inspection Order

End Of Sie

INSPECTION OF DTCS FOR OPERATION MODE

A3U010266350W03

Note

If an Operation Mode is not indicated, the following may be the cause of the malfunction.

1. Cruise control switch (RESUME/ACCEL switch)
2. Cruise control main switch
3. Cruise control module
4. Open or short circuit in wiring harness

Using The Cruise Set Indicator Light

1. Turn the ignition switch to the ON position.
2. Verify that the cruise control main switch is off.
3. Perform the following steps to activate the operation mode.

(1) Push up the cruise control switch and hold it

in the RESUME/ACCEL position.

(2) Turn on the cruise control main switch.
(3) Hold the cruise control switch in the

RESUME/ACCEL position for at least 3
seconds
. (The cruise set indicator light will
illuminate for 3 seconds.)

4. Operate each switch as described in the

operation code list and note the operation code
list pattern.

If the cruise set indicator light does not flash,
inspect the corresponding system area.

5. The operation mode is canceled by turning the

ignition switch to LOCK position or turning off the
cruise control main switch.

X3U101WP0

Y3U102WYA

1712-1U-01G(01-02C).fm  2 ページ  2001年6月29日 金曜日 午前9時26分

ON-BOARD DIAGNOSTIC [CRUISE CONTROL SYSTEM]

01–02C–3

01–02C

Using The SST (WDS or equivalent)
DTCs retrieving procedure

1. Hook-up the SST to the vehicle. Make sure that

ignition key is at LOCK and all accessories are
OFF.

2. Turn the ignition key to ON (engine OFF).
3. Retrieve any DTCs by WDS or equivalent.

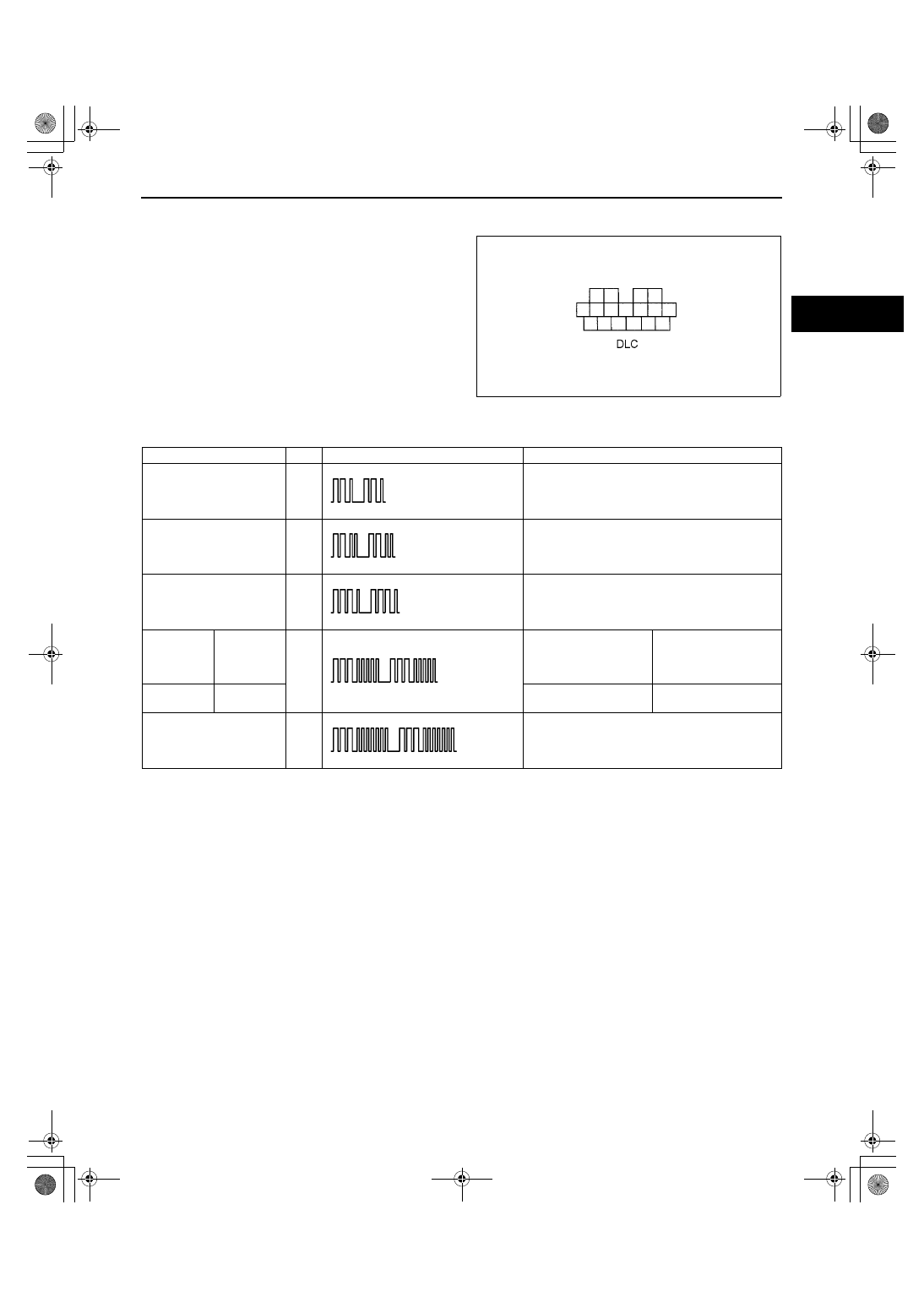

Operation Code List

End Of Sie

Z3U0102W401

Operation

DTC

Output pattern

Diagnosed circuit

Turn SET/COAST switch
on

21

Cruise control switch (SET/COAST switch)

Turn RESUME/ACCEL
switch on

22

Cruise control switch (RESUME/ACCEL switch)

Depress brake pedal

31

Brake switch

ATX

Shift
selector
lever to P or
N range

35

ATX

Transaxle range switch

MTX

Depress
clutch pedal

MTX

Clutch switch

Drive vehicle above 40 km/
h {25 mph}

37

Vehicle speed sensor

1712-1U-01G(01-02C).fm  3 ページ  2001年6月29日 金曜日 午前9時26分

ON-BOARD DIAGNOSTIC [CRUISE CONTROL SYSTEM]

01–02C–4

DTC 21

A3U010266350W04

Diagnostic procedure

End Of Sie

DTC 22

A3U010266350W05

Diagnostic procedure

End Of Sie

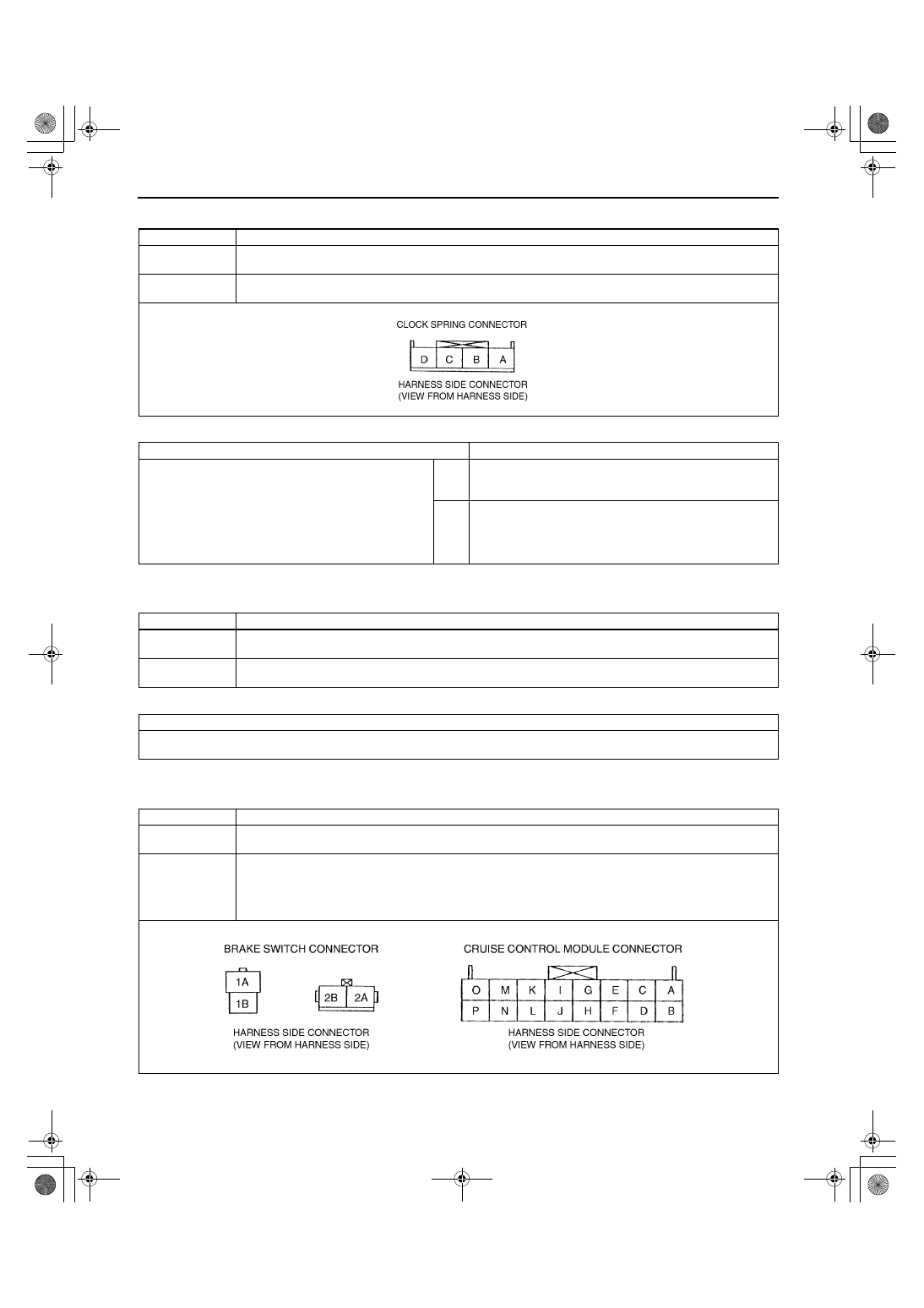

DTC 31

A3U010266350W06

DTC 21

Cruise control switch (set/coast switch)

DETECTION

CONDITION

Resistance detected between terminal L and ground is other than approximately 198 ohms.

POSSIBLE

CAUSE

Cruise control module malfunction

Cruise control switch malfunction

INSPECTION

ACTION

INSPECT SIGNAL LINE OF CRUISE CONTROL
SWITCH POSITION

Remove column cover.

Turn ignition switch to ON position.

Turn cruise control main switch on.

Turn SET/COAST switch on.

Is voltage at terminal C of clock spring connector
approximately 2 V?

Yes

Replace cruise control module.
(See 01–20–2 CRUISE CONTROL MODULE REMOVAL/
INSTALLATION)

No

Replace cruise control switch.
(See 01–20–7 CRUISE CONTROL SWITCH REMOVAL/
INSTALLATION)

DTC 22

Cruise control switch (resume/accel switch)

DETECTION

CONDITION

Resistance detected between terminal L and ground is other than 68 ohms.

POSSIBLE

CAUSE

Cruise control module malfunction

ACTION

Replace cruise control module.
(See 01–20–2 CRUISE CONTROL MODULE REMOVAL/INSTALLATION)

DTC 31

Brake switch

DETECTION

CONDITION

Voltage detected at terminal K is not approximately 12 V or voltage detected at terminal M is not
approximately 0 V.

POSSIBLE

CAUSE

Burnt STOP 15 A fuse

Cruise control module malfunction

Brake switch malfunction

Open circuit in wiring harness between STOP 15 A fuse and brake switch

Open circuit in wiring harness between brake switch and cruise control module

1712-1U-01G(01-02C).fm  4 ページ  2001年6月29日 金曜日 午前9時26分
