ON-BOARD DIAGNOSTIC [ENGINE CONTROL SYSTEM (FS)]

01–02B–152

DTC P1632 [FS]

A3U010201083W14

Diagnostic procedure

End Of Sie

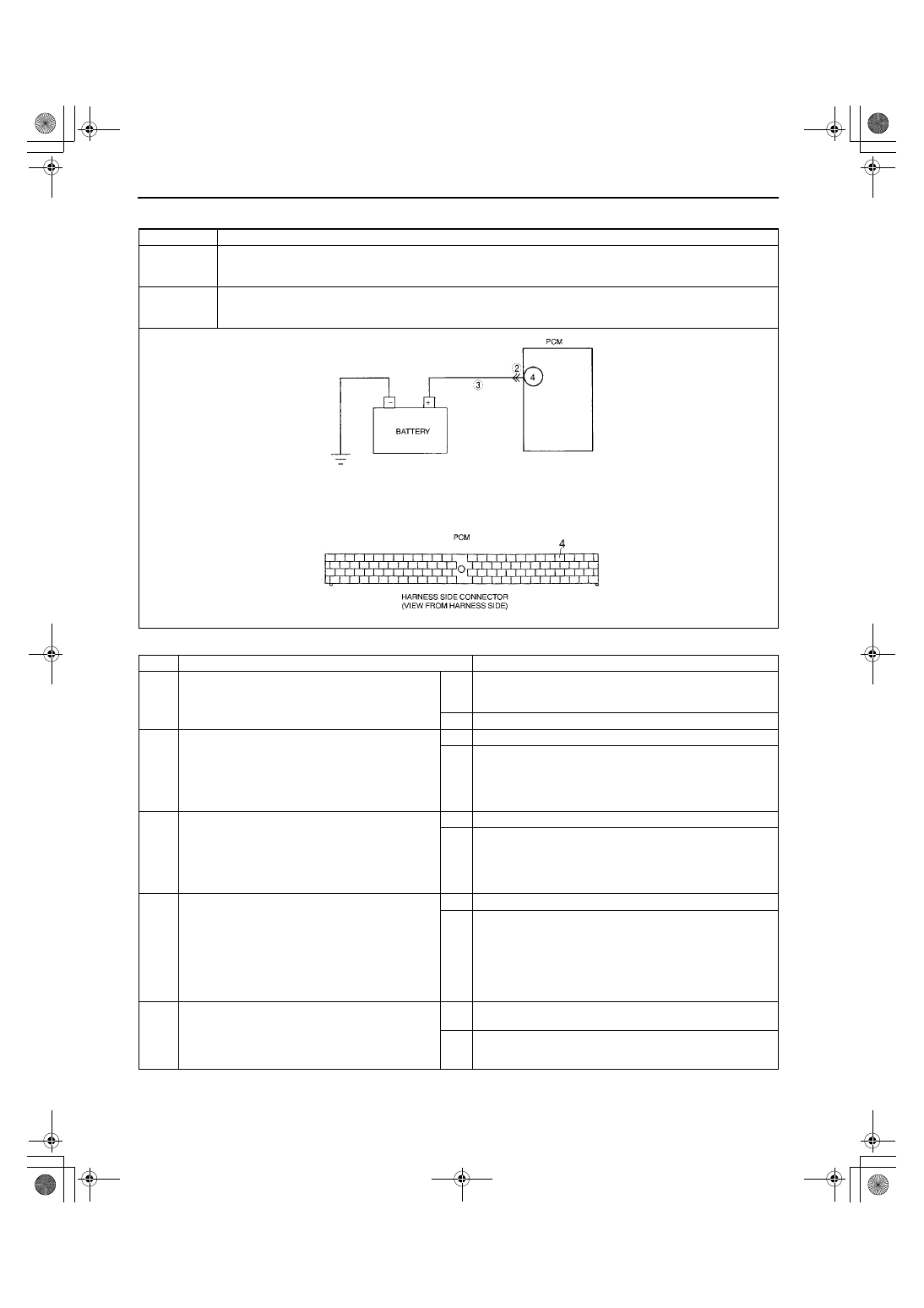

DTC P1632

Battery voltage monitor signal circuit malfunction

DETECTION

CONDITION

•

PCM monitors voltage of battery positive terminal at PCM terminal 4. If PCM detects battery positive
terminal voltage below 7.97 V for 5 seconds, PCM determines that battery positive voltage circuit has
malfunction.

POSSIBLE

CAUSE

•

Open circuit in wiring between battery positive terminal and PCM terminal 4

•

Poor connection of PCM connector

•

PCM malfunction

STEP

INSPECTION

ACTION

1

VERIFY RELATED REPAIR INFORMATION
AVAILABILITY

•

Check for related Service Bulletins availability.

•

Is any related repair information available?

Yes Perform repair or diagnosis according to available repair

information.

•

If vehicle is not repaired, go to next step.

No

Go to next step.

2

INSPECT PCM CONNECTOR FOR POOR
CONNECTION

•

Disconnect PCM connector.

•

Check for poor connection (damaged/pulled-
out terminals, corrosion, etc.).

•

Is there malfunction?

Yes Repair terminals, then go to Step 5.

No

Go to next step.

3

INSPECT MONITOR CIRCUIT FOR OPEN
CIRCUIT

•

Disconnect battery cables.

•

Check for continuity between Battery positive
terminal and PCM terminal 4.

•

Is there continuity?

Yes Go to next step.

No

Repair or replace harness, then go to next step.

4

VERIFY TROUBLESHOOTING OF DTC P1632
COMPLETED

•

Make sure to reconnect all disconnected
connectors.

•

Clear DTC from memory using WDS or
equivalent.

•

Turn ignition key to OFF, then start engine.

•

Is same DTC present?

Yes Replace PCM, then go to next step.

No

No concern is detected. Go to next step.

5

VERIFY AFTER REPAIR PROCEDURE

•

Perform “After Repair Procedure”.
(See 01–02B–9 AFTER REPAIR
PROCEDURE [FS].)

•

Is there any DTC present?

Yes Go to applicable DTC inspection.

(See 01–02B–15 DTC TABLE [FS].)

No

Troubleshooting completed.

1712-1U-01G(01-02B).fm  152 ページ  ２００１年６月２９日 金曜日 午後３時２４分

ON-BOARD DIAGNOSTIC [ENGINE CONTROL SYSTEM (FS)]

01–02B–153

01–02B

DTC P1633 [FS]

A3U010201083W15

Diagnostic procedure

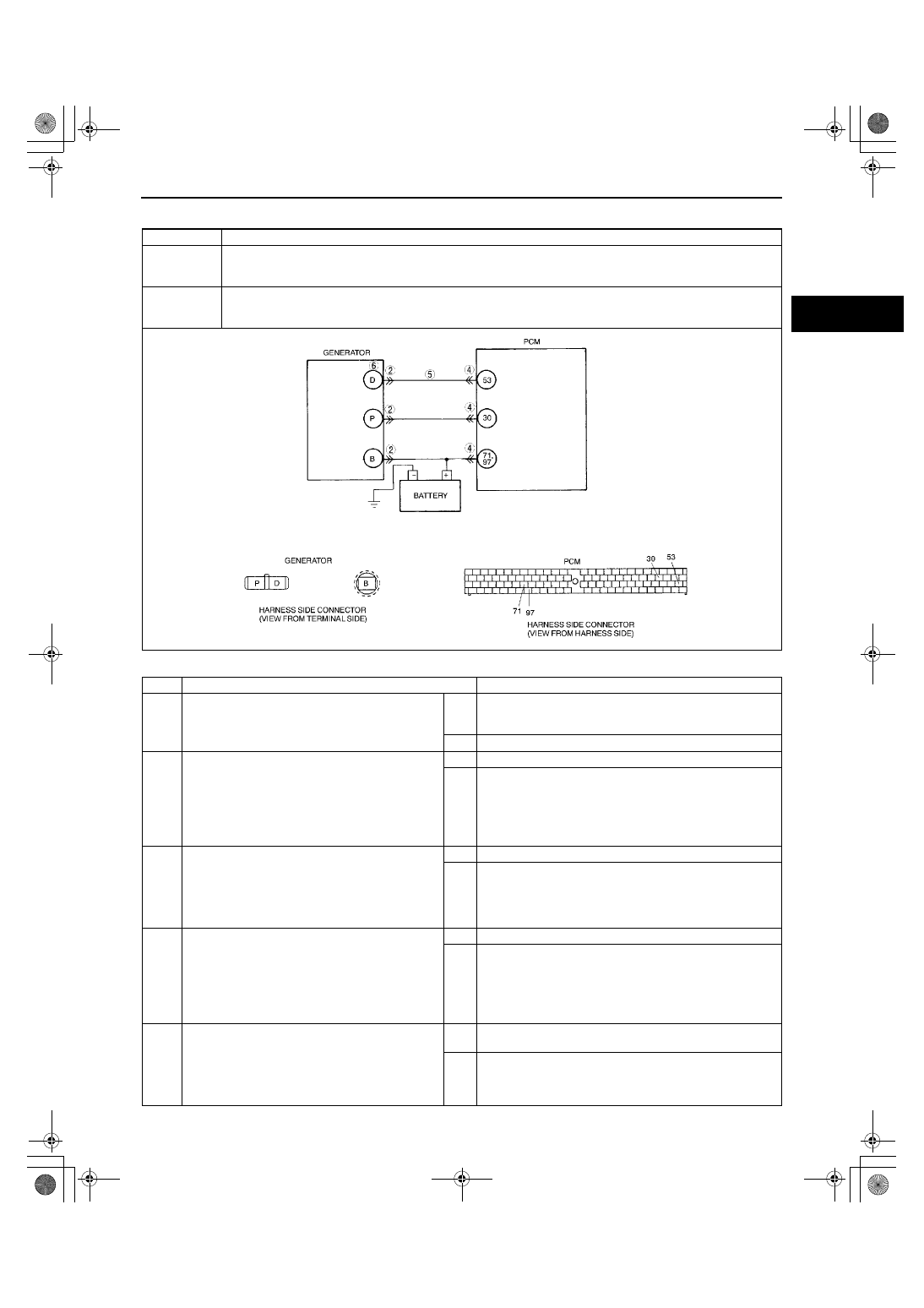

DTC P1633

Battery overcharge

DETECTION

CONDITION

•

PCM monitors input voltage from generator and battery positive terminal. If PCM detects generator output
voltage above 18.47 V or battery voltage above 15.94 V for 5 seconds while engine running, PCM
determines that charging system has malfunction.

POSSIBLE

CAUSE

•

Short to power circuit between generator connector terminal D and PCM connector terminal 53

•

Generator malfunction

•

PCM malfunction

STEP

INSPECTION

ACTION

1

VERIFY RELATED REPAIR INFORMATION
AVAILABILITY

•

Check for related Service Bulletins availability.

•

Is any related repair information available?

Yes Perform repair or diagnosis according to available repair

information.

•

If vehicle is not repaired, go to next step.

No

Go to next step.

2

INSPECT GENERATOR CONNECTOR FOR
POOR CONNECTION

•

Turn ignition key to OFF.

•

Disconnect generator connector.

•

Check for poor connection (damaged/pulled-
out terminals, corrosion, etc.).

•

Is there malfunction?

Yes Repair or replace terminals, then go to Step 7.

No

Go to next step.

3

CLASSIFY GENERATOR MALFUNCTION OR
OTHER MALFUNCTION

•

Turn ignition key to ON (Engine OFF).

•

Measure voltage between generator terminal D
(harness-side) and body ground.

•

Is voltage B+?

Yes Go to next step.

No

Malfunction at generator.
Go to Step 6.

4

INSPECT PCM CONNECTOR FOR POOR
CONNECTION

•

Turn ignition key to OFF.

•

Disconnect PCM connector.

•

Check for poor connection (damaged/pulled-
out terminals, corrosion, etc.).

•

Is there malfunction?

Yes Repair or replace pins, then go to Step 7.

No

Go to next step.

5

INSPECT GENERATOR CONTROL CIRCUIT
FOR SHORT TO POWER

•

Turn ignition key to ON (Engine OFF).

•

Measure voltage between generator terminal D
(harness-side) and body ground.

•

Is voltage B+?

Yes Repair or replace harness for short to power, then go to

Step 7.

No

Go to Step 7.

1712-1U-01G(01-02B).fm  153 ページ  ２００１年６月２９日 金曜日 午後３時２４分

ON-BOARD DIAGNOSTIC [ENGINE CONTROL SYSTEM (FS)]

01–02B–154

End Of Sie

DTC P1634 [FS]

A3U010201083W16

6

INSPECT GENERATOR CONTROL TERMINAL
FOR SHORT TO POWER

•

Measure resistance between generator
terminal D (part-side) and body ground.

•

Is voltage B+?

Yes Repair or replace generator, then go to Step 7.

No

Go to next step.

7

VERIFY TROUBLESHOOTING OF DTC P1633
COMPLETED

•

Make sure to reconnect all disconnected
connectors.

•

Clear DTC from PCM memory using WDS or
equivalent.

•

Turn ignition key to OFF, then start engine.

•

Is same DTC present?

Yes Replace PCM, then go to next step.

No

No concern is detected. Go to next step.

8

VERIFY AFTER REPAIR PROCEDURE

•

Perform “After Repair Procedure”.
(See 01–02B–9 AFTER REPAIR
PROCEDURE [FS].)

•

Is there any DTC present?

Yes Go to applicable DTC inspection.

(See 01–02B–15 DTC TABLE [FS].)

No

Troubleshooting completed.

STEP

INSPECTION

ACTION

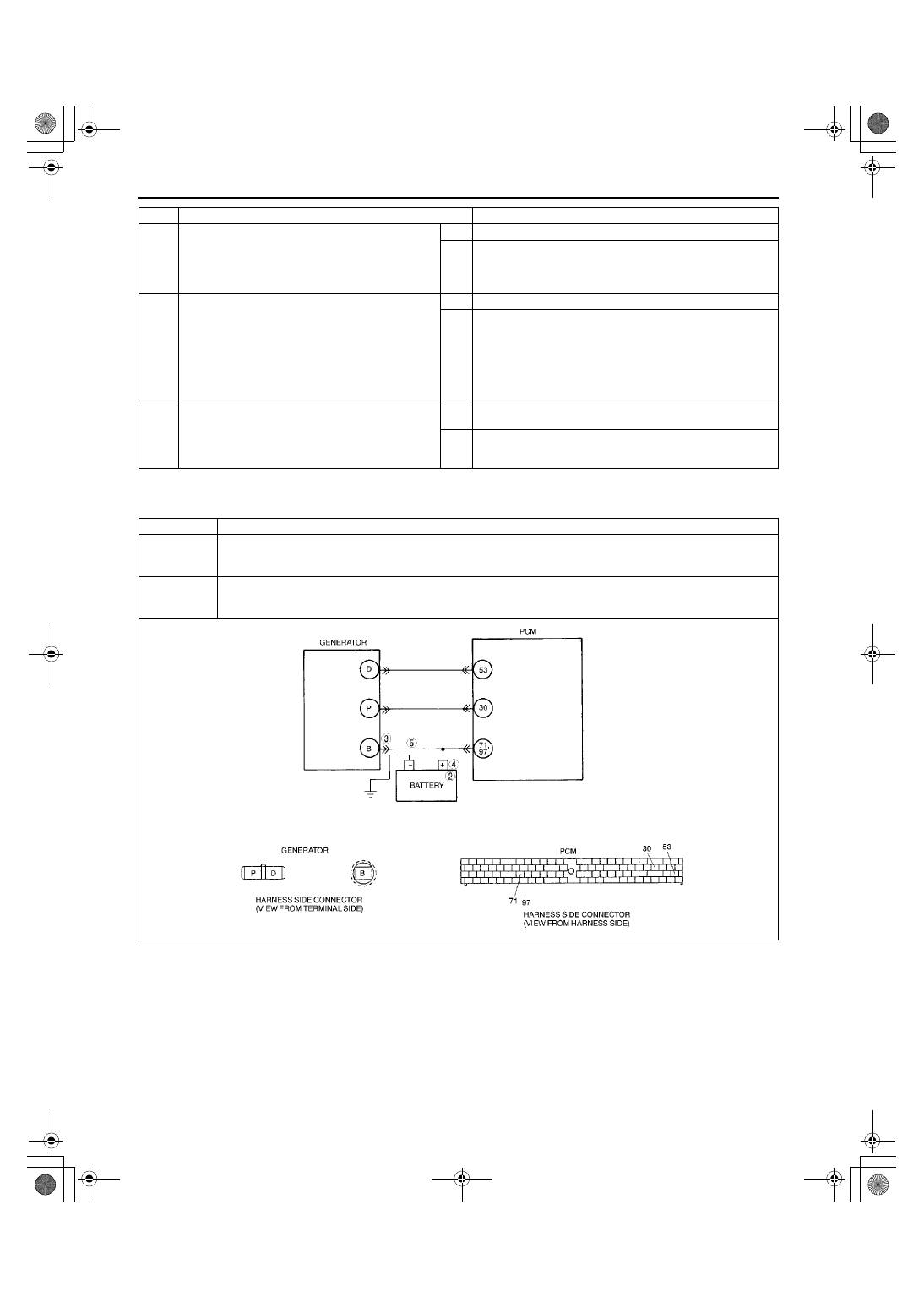

DTC P1634

Generator terminal B circuit open

DETECTION

CONDITION

•

PCM monitors input voltage from generator and battery positive terminal. If PCM detects generator output
voltage above 16.97 V and battery voltage below 10.94 V for 5 seconds while engine running, PCM
determines that charging system has malfunction.

POSSIBLE

CAUSE

•

Open circuit between generator terminal B and battery positive terminal

•

Battery malfunction

•

PCM malfunction

1712-1U-01G(01-02B).fm  154 ページ  ２００１年６月２９日 金曜日 午後３時２４分

ON-BOARD DIAGNOSTIC [ENGINE CONTROL SYSTEM (FS)]

01–02B–155

01–02B

Diagnostic procedure

End Of Sie

STEP

INSPECTION

ACTION

1

VERIFY RELATED REPAIR INFORMATION
AVAILABILITY

•

Check for related Service Bulletins availability.

•

Is any related repair information available?

Yes Perform repair or diagnosis according to available repair

information.

•

If vehicle is not repaired, go to next step.

No

Go to next step.

2

INSPECT BATTERY

•

Turn ignition key to OFF.

•

Inspect battery.
(See 01–17–1 BATTERY INSPECTION.)

•

Is battery okay?

Yes Replace battery, then go to Step 6.

No

Go to next step.

3

INSPECT GENERATOR TERMINAL FOR POOR
INSTALLATION

•

Turn ignition key to OFF.

•

Check for looseness of generator terminal B
installation nut.

•

Is nut loose?

Yes Tighten generator terminal B installation nut, then go to

Step 6.

No

Go to next step.

4

INSPECT BATTERY POSITIVE TERMINAL FOR
POOR INSTALLATION

•

Check for looseness of battery positive
terminal.

•

Is terminal loose?

Yes Connect battery positive terminal correctly, then go to Step

6.

No

Go to next step.

5

INSPECT BATTERY CHARGING CIRCUIT

•

Start engine.

•

Disconnect battery positive terminal.

•

Does engine stall?

Yes Repair or replace harness between generator terminal B

and battery positive terminal, then go to next step.

No

Go to next step.

6

VERIFY TROUBLESHOOTING OF DTC P1634
COMPLETED

•

Make sure to reconnect all disconnected
connectors.

•

Clear DTC from PCM memory using WDS or
equivalent.

•

Turn ignition key to OFF, then start engine.

•

Is same DTC present?

Yes Replace PCM, then go to next step.

No

No concern is detected. Go to next step.

7

VERIFY AFTER REPAIR PROCEDURE

•

Perform “After Repair Procedure”.
(See 01–02B–9 AFTER REPAIR
PROCEDURE [FS].)

•

Is there any DTC present?

Yes Go to applicable DTC inspection.

(See 01–02B–15 DTC TABLE [FS].)

No

Troubleshooting completed.
