Mazda 5. Manual - part 71





BODY STRUCTURE [PANEL REPLACEMENT]

09–80B–47

09

End Of Sie

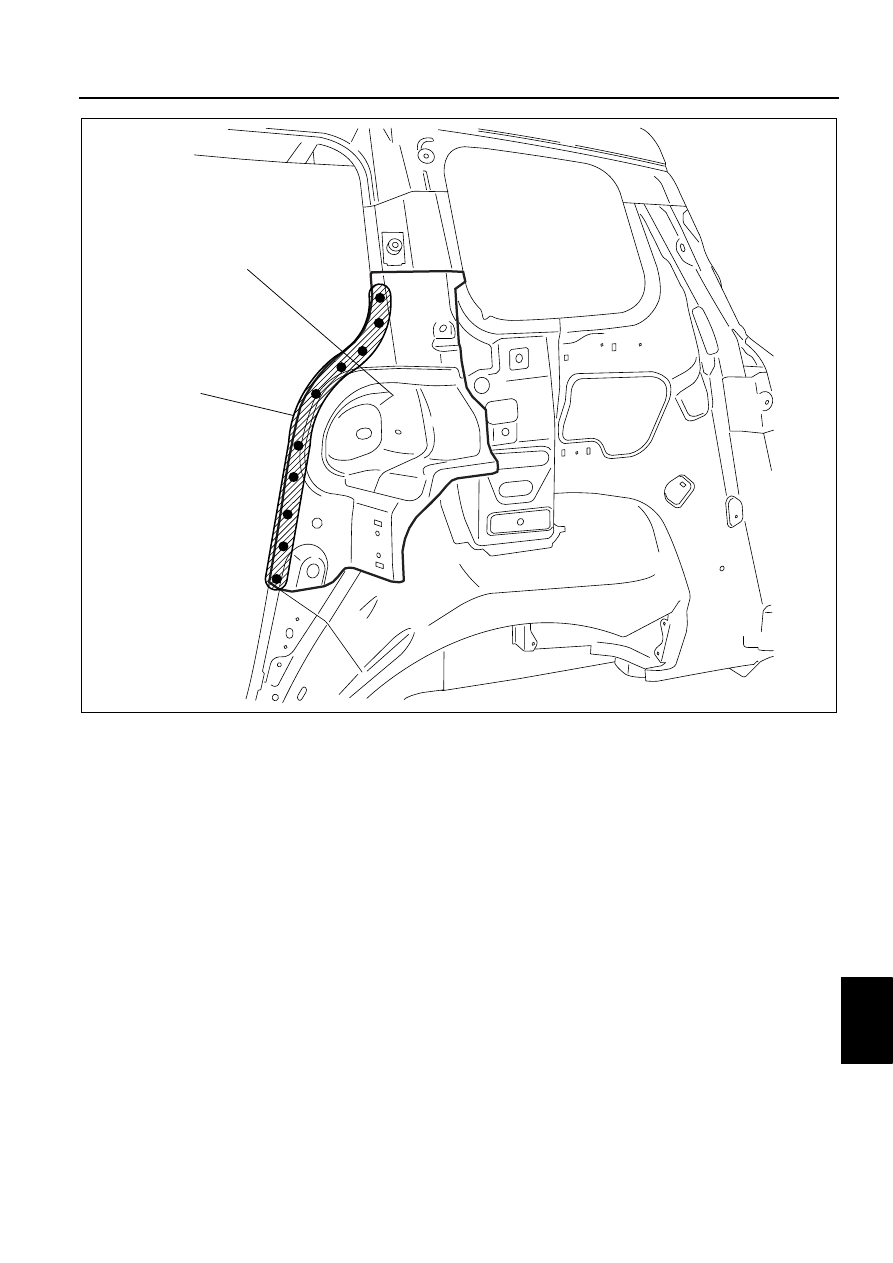

C-PILLAR REINFORCEMENT INSTALLATION

DPE098074100B04

1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. Drill holes for plug welds before installing new parts.
3. After temporarily installing new parts, make sure the related parts fit properly.

10

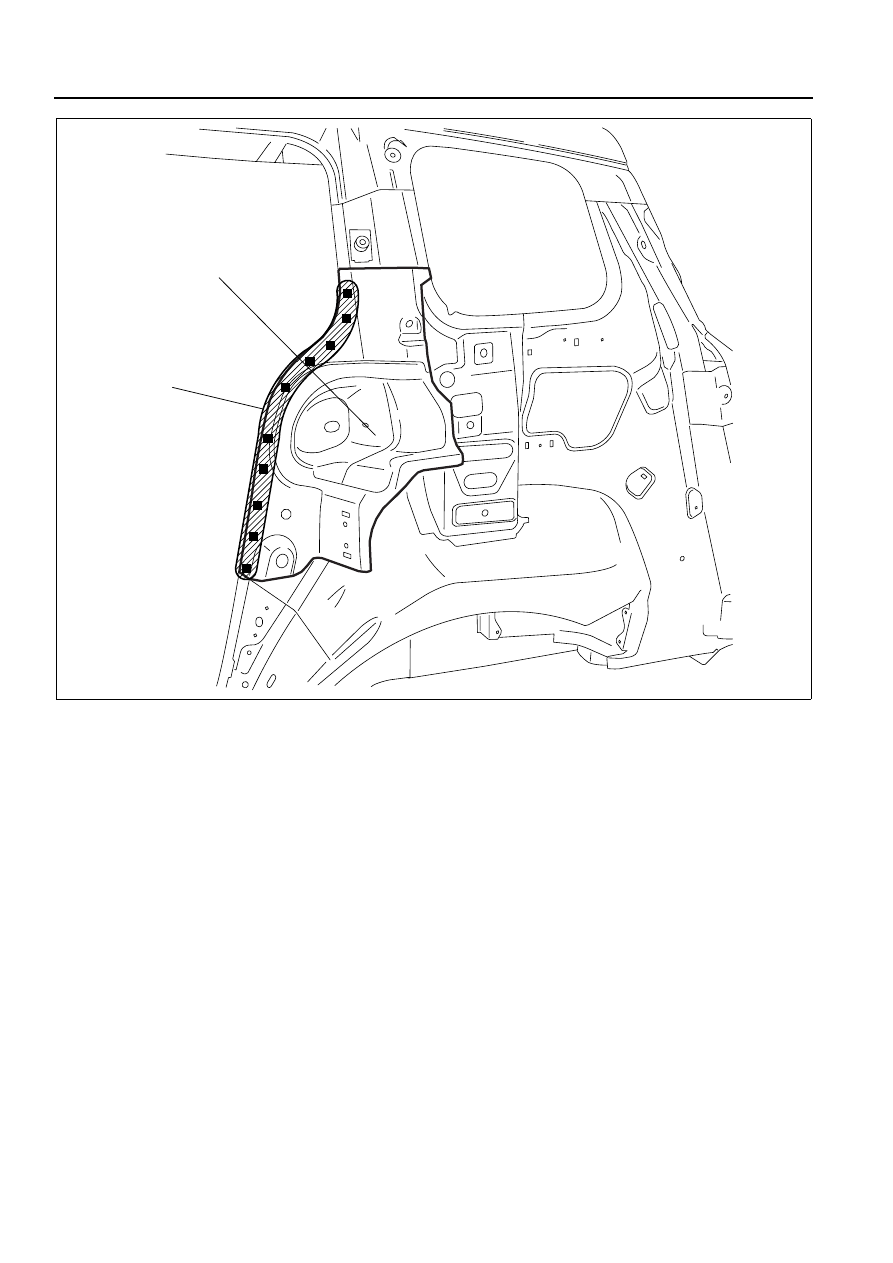

 C-PILLAR REINFORCEMENT

DPE0980B097

09–80B–48

BODY STRUCTURE [PANEL REPLACEMENT]

End Of Sie

REAR END PANEL REMOVAL

DPE098070750B01

1. Drill the 2 locations indicated by (A) from the interior.
2. Remove the rear end panel.

10

 C-PILLAR REINFORCEMENT

DPE0980B098

BODY STRUCTURE [PANEL REPLACEMENT]

09–80B–49

09

End Of Sie

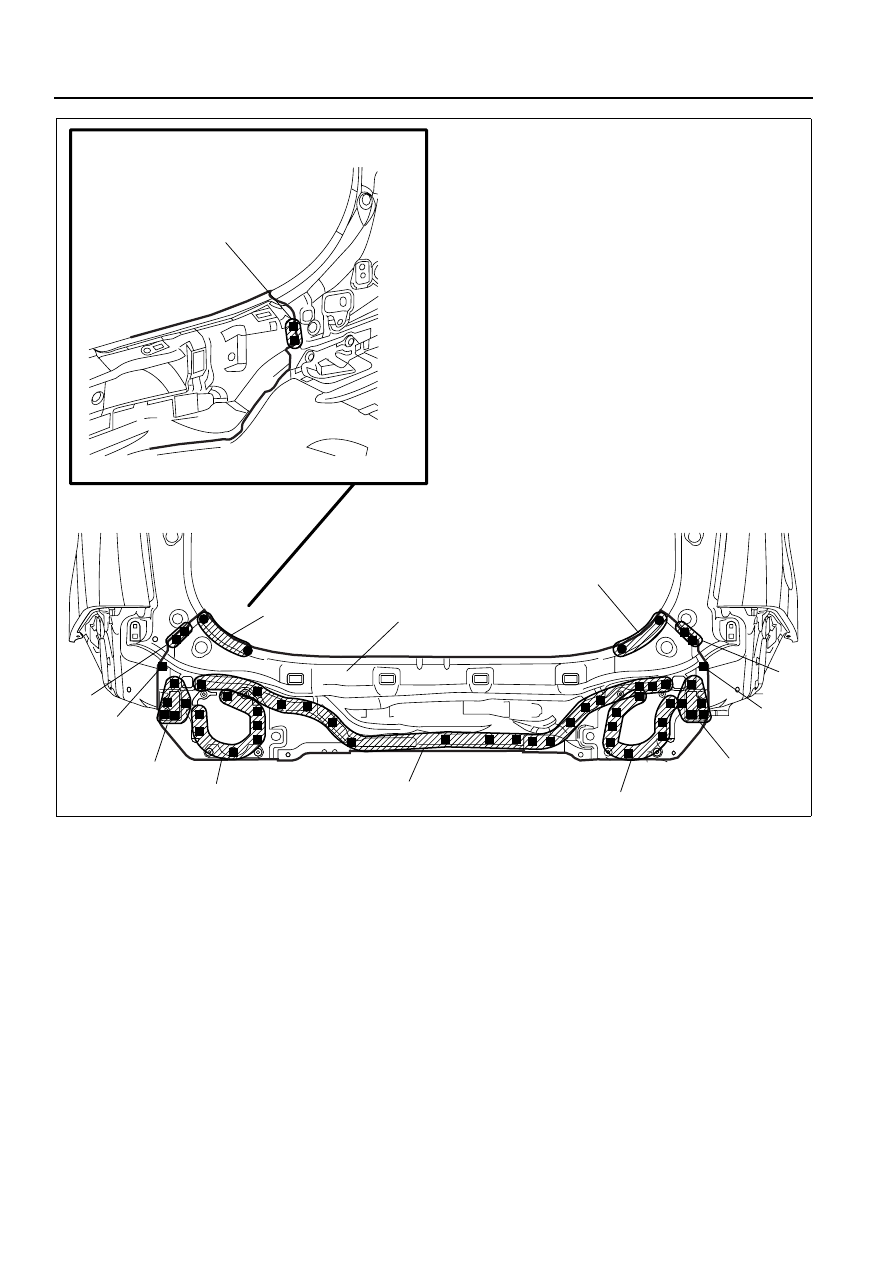

REAR END PANEL INSTALLATION

DPE098070750B02

1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. Drill holes for plug welds before installing new parts.
3. After temporarily installing new parts, make sure the related parts fit properly.

REAR END PANEL

4

2

1

6

8

21

7

6

1

2

4

(A)2

DPE0980B095

09–80B–50

BODY STRUCTURE [PANEL REPLACEMENT]

End Of Sie

REAR PILLAR (OUTER) REMOVAL

DPE098070442B01

1. Remove the rear pillar (outer).

Note

• When removing the rear pillar (outer) and the corner plate separately, drill the 4 locations indicated by (A).

5

2

1

6

8

21

7

6

1

2

5

2

REAR END PANEL

DPE0980B096
