POWER STEERING
06–14–3
06–14
ENERGY ABSORBING SYSTEM CONSTRUCTION / OPERATION
E5U061432010N01
Construction
• Due to impact absorbing mechanisms at two points on the steering shaft, when a collision occurs, the steering
shaft effectively absorbs the impact energy that would be transmitted to the driver, thereby reducing injury.
Operation

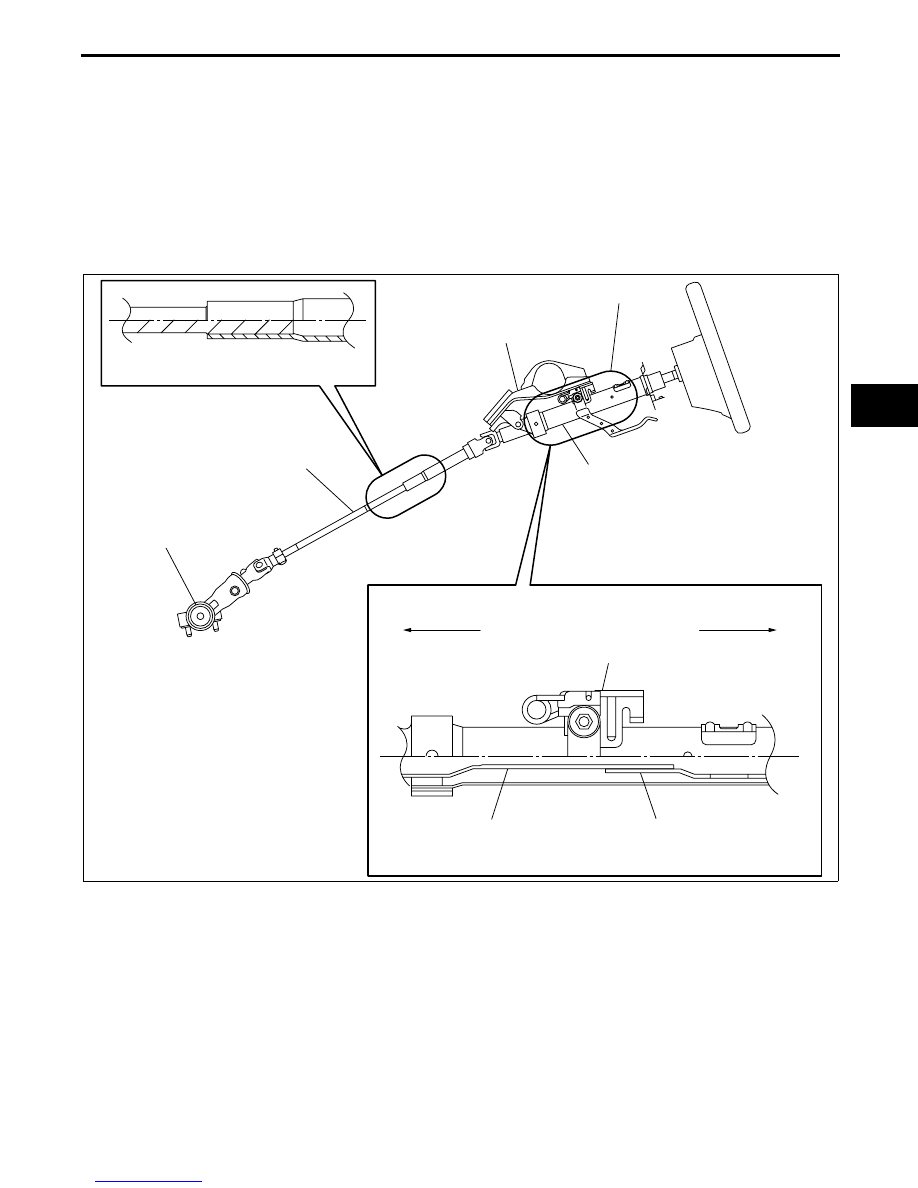

• At the moment of a collision, the rearward collapse of the steering gear and linkage (first stage impact) takes in
the impact energy from the front, causing the intermediate shaft connecting the steering gear and linkage with
the steering shaft to contract, thereby absorbing the impact energy. (Section X in the figure)
• Then, as the steering wheel contacts the body of the driver (second stage impact), the fixing bracket of the
steering shaft comes off the dashboard member causing inner shafts A and B to contract, thereby absorbing
the impact energy. (Section Y in the figure)
End Of Sie
INSTRUMENT PANEL
MEMBER
INTERMEDIATE
SHAFT
STEERING GEAR
STEERING SHAFT
SECTION X
CROSS-SECTION X
SECTION Y
CROSS-SECTION Y
STEERING GEAR SIDE
STEERING WHEEL SIDE
FIXING BRACKET
INNER SHAFT B
INNER SHAFT A
E5U614ZS5004
