Section II  System Layout

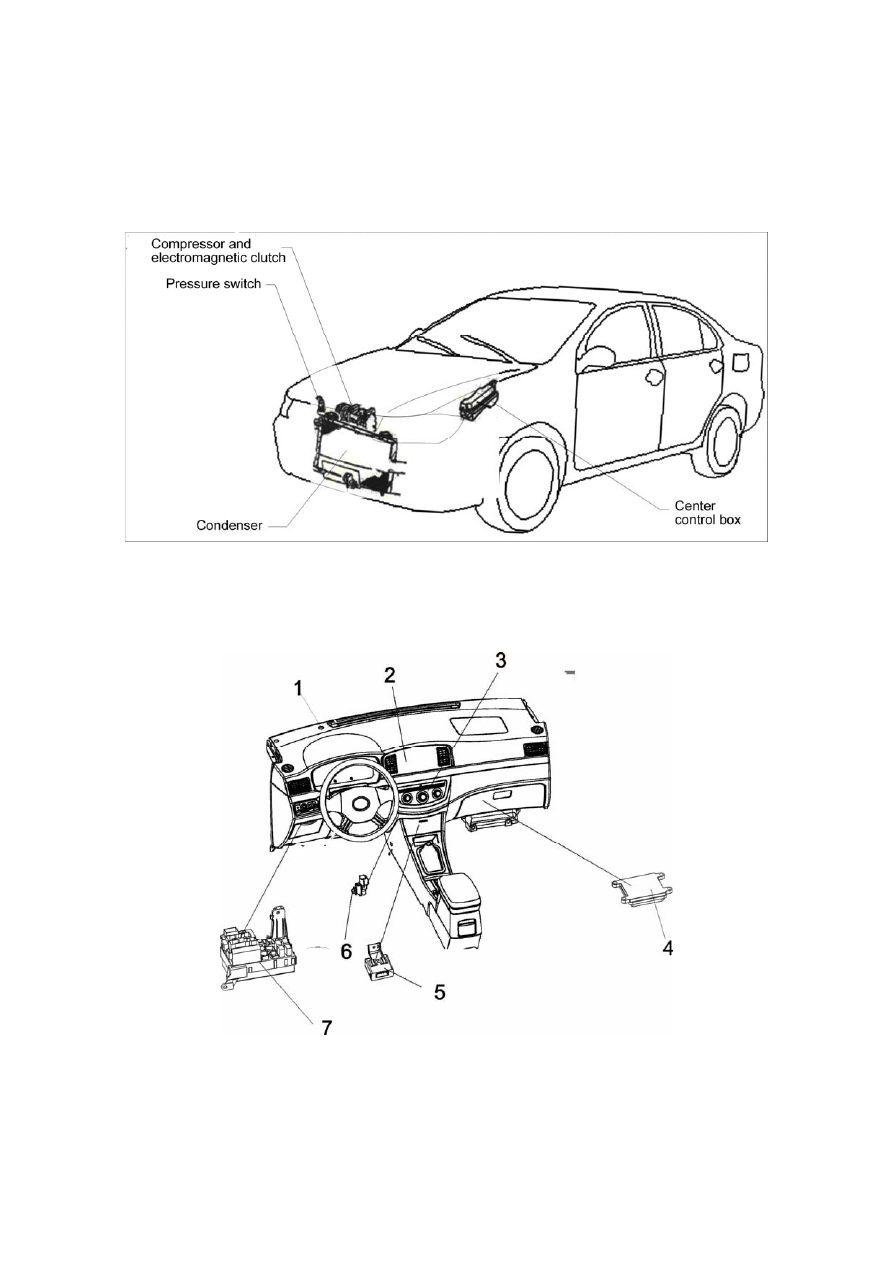

Heating and air conditioning electronic control system layout 1 (Figure 6-5)






Figure 6-6

 Sunlight sensor

 Instrument cluster

①

②



 Air conditioning control module

③



 Engine ECU

 Air conditioning controller

④

⑤

     Room temperature sensor

⑥



 Junction box assembly

⑦





293

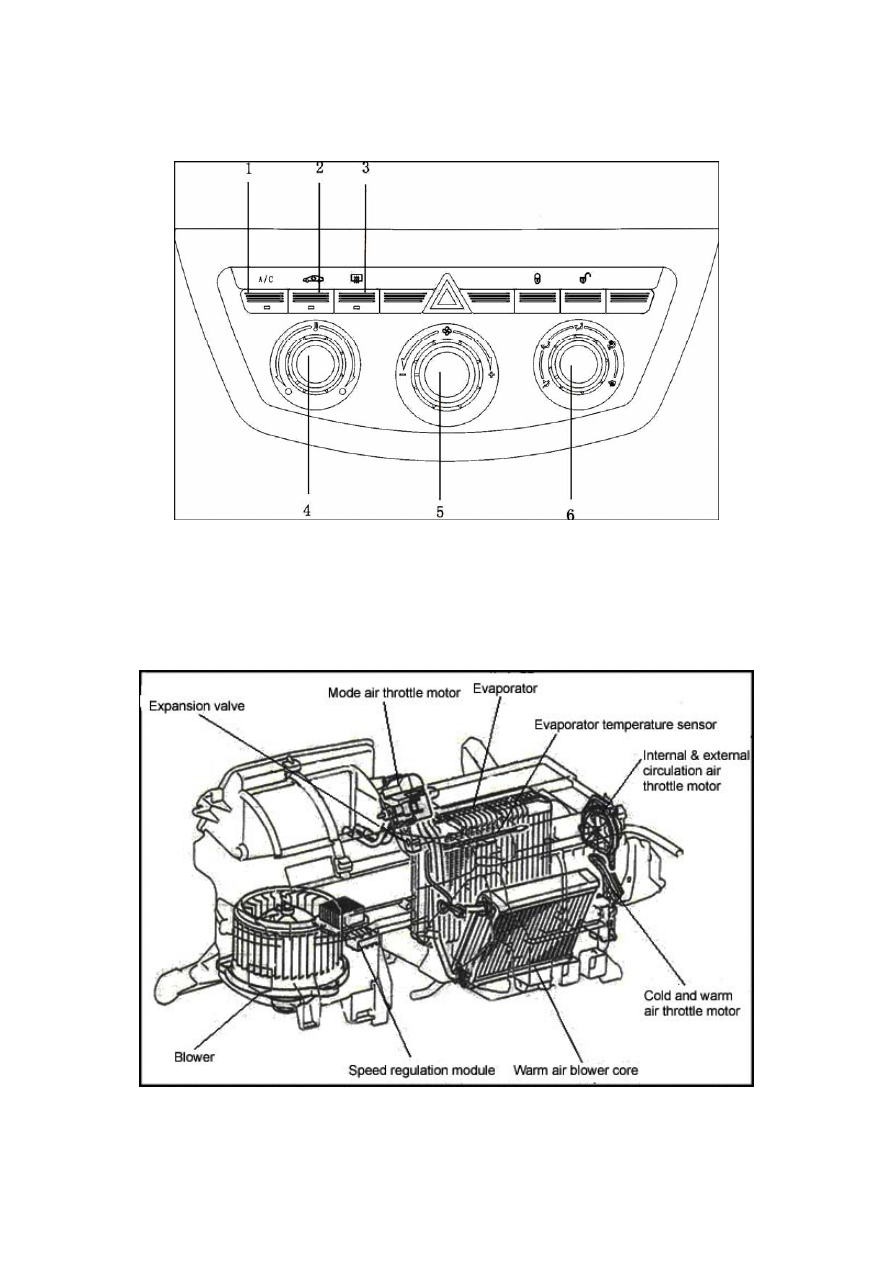

Electrical air conditioning controller, as shown in Figure 6-7.




Figure 6-8



294

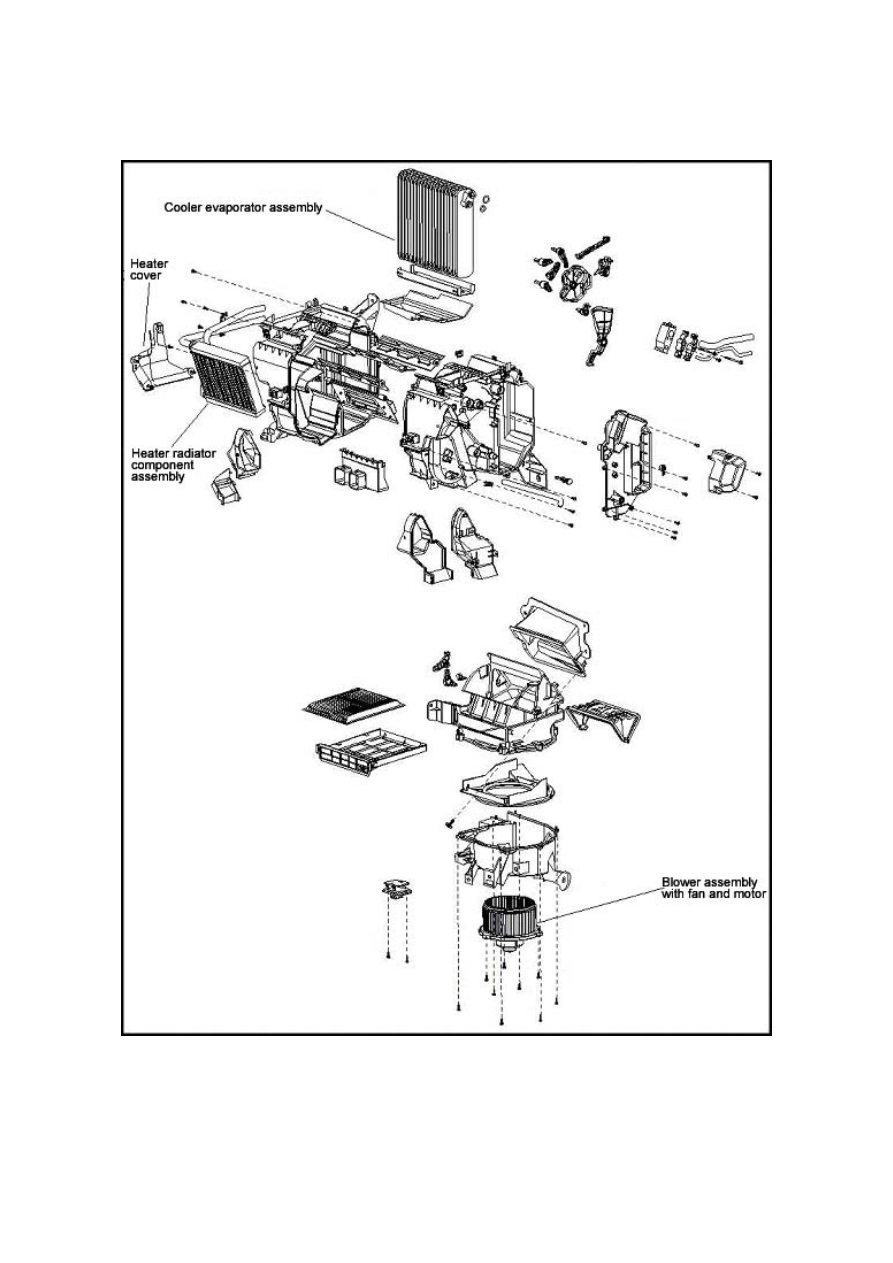

Exploded view of air conditioner parts as shown in Figure 6-9.




Figure 6-9





295

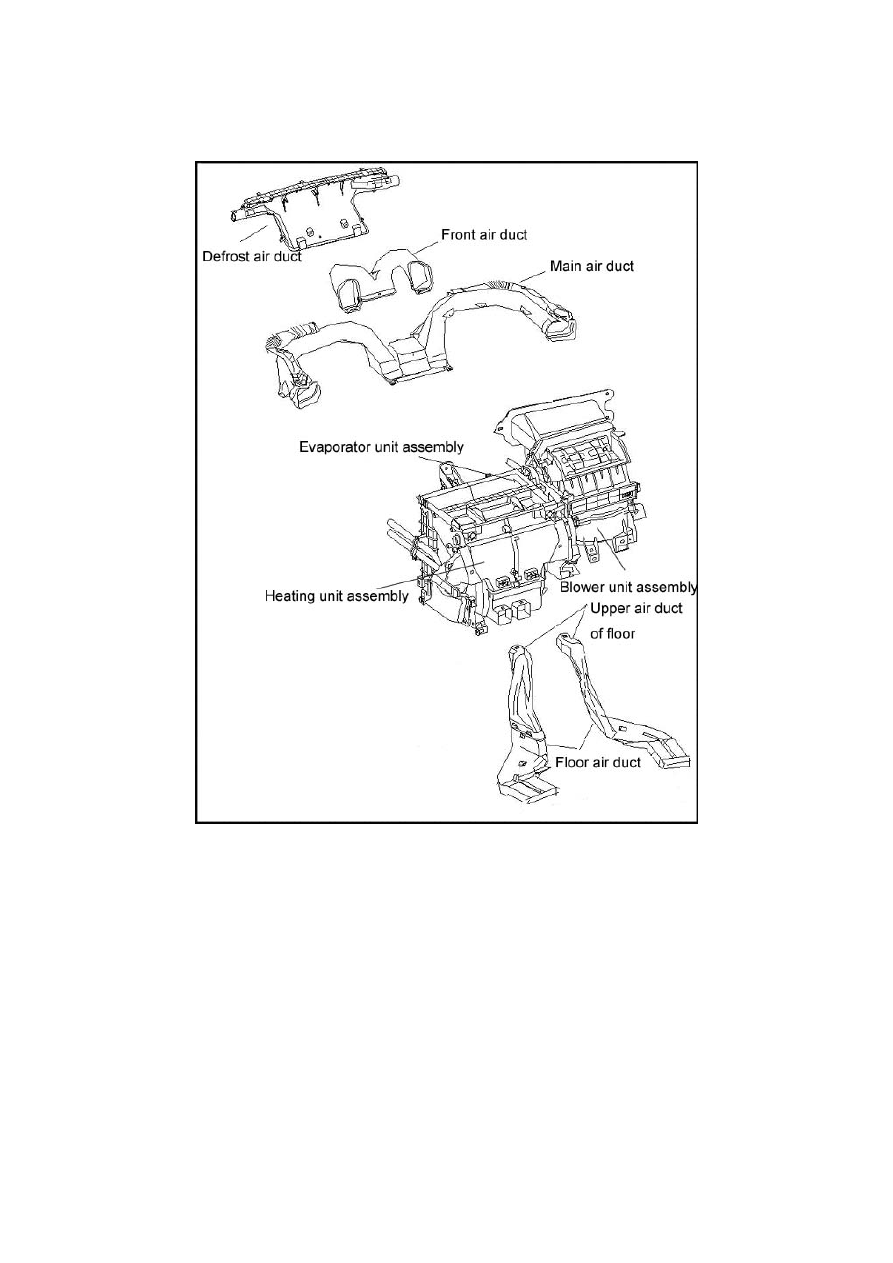

Exploded view of air conditioner parts as shown in Figure 6-10.
