Section IV    Removal and Installation


During the process of repair for LF7162 air bag system, removal and installation of driver air bag
module, front passenger air bag module, air bag clock spring, air bag ECU and air bag harness
may be involved. Some removal processes and notes are introduced as follows.



Note:

Make the following preparations before removal and installation:



Note:

 The black spring plate should be picked up with a minitype flat tip screwdriver.

(5) Disconnect the interface of horn wire, and take out the air bag module. Removal is finished.

Note:

 Take care not to haul the air bag harness when removing the driver air bag module and

keep the ornamental cap upwards when storing the module. Disassembling the driver air bag
module is not allowed. Do not knock the air bag module. If knocked, install a new one. Forbid
exposing the module under the temperature over 90°C, and contact with lubricants, lubricant

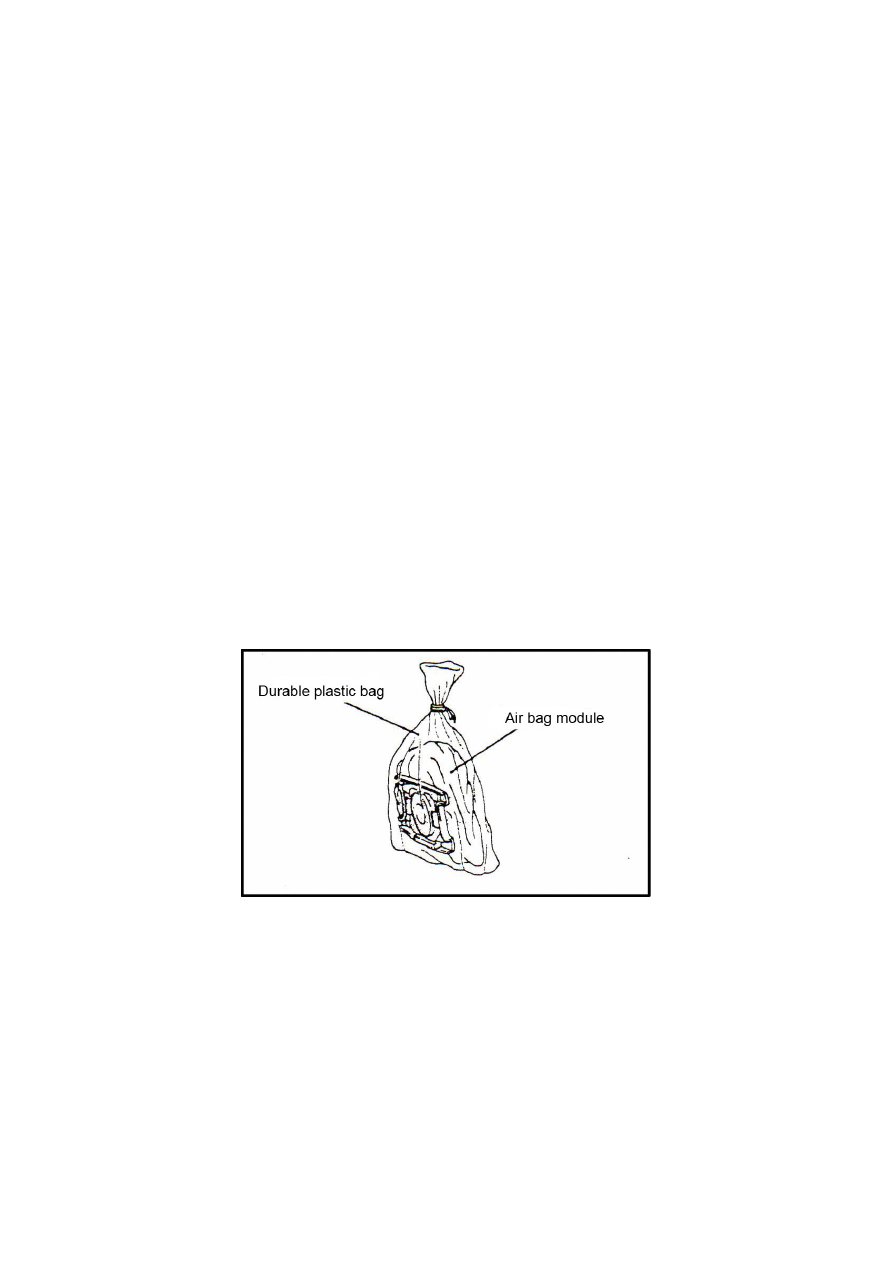

grease as well as water. Seal the old module removed in a sealing bag, and return it to Lifan
Passenger Car Co., Ltd.

285

2. Installation process and notes
(1) Install a new driver air bag module, and plug the interface between the clock spring and gas
generator.

Note:

 Engage the black interface buckle in the gas generator. Then plug the horn wire interface.

286

(7) After installation, watch the surface of dash board for its levelness. Check the clearance also.
Reinstall and adjust if unqualified.

Note:

 The installation and adjustment of the module must be operated by professionals to avoid

danger!
3. Notes for maintenance
For the driver air bag module of this model, there is no need of maintenance for front passenger air
bag module. Install a new one when trouble occurs.

Note:

 Make sure that new component is installed by the professionals at the designated service

center!


Note:

 Callback for the lock piece of clock spring is needed!

(6) Connect the battery negative pole and turn the ignition switch to the position ON.
3. Notes for maintenance
For the air bag clock spring of LF7162, no maintenance and calibration is needed!




287

Section V    Scrapping Tips for Air Bag Module



9. After operation, do not forget to wash hands.

Note:

 Environmental protection treatment for the scrapped air bag module is needed.
