Chapter VI    A/C System

Section I  Introduction


This series of sedan has a full air conditioning system with functions of refrigeration, heating and
ventilation. The air conditioner can be used to reduce the temperature of the vehicle in summer,
heating and defrost the windscreen in winter. The air conditioning system is fully functional and
easy to operate with the compact conformation.


289

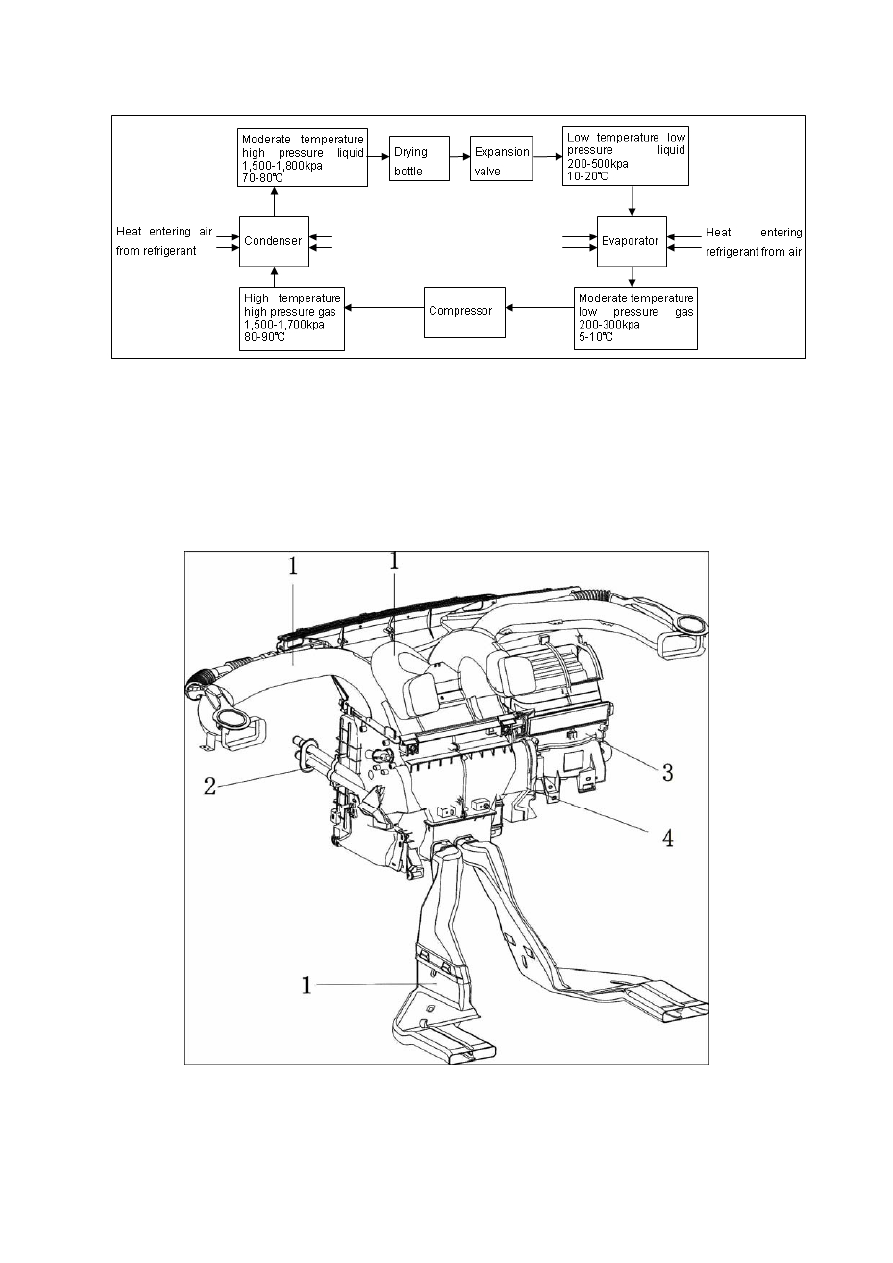

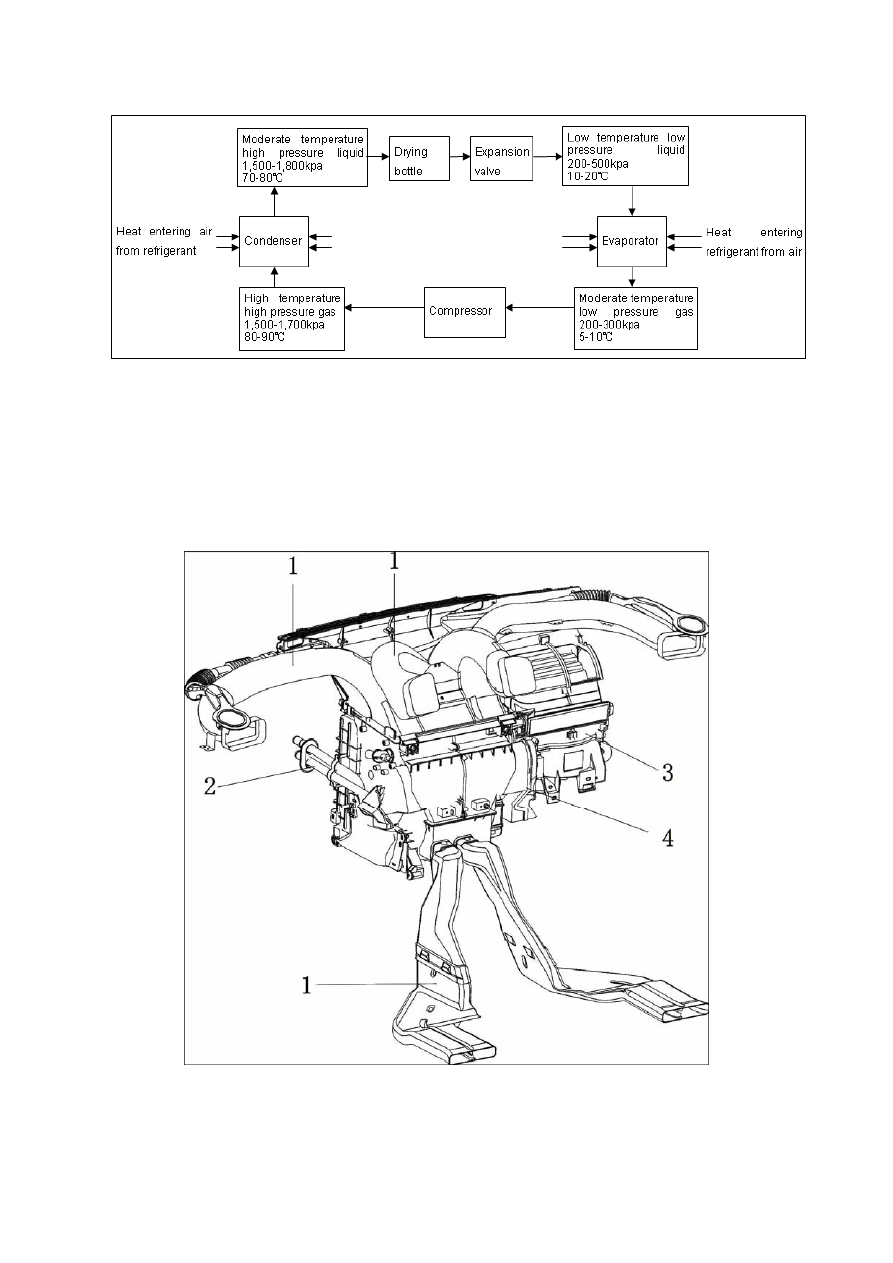

Figure 6-3

1. Air duct   2. Coolant pipeline   3. Blower   4. Heat exchanger

290

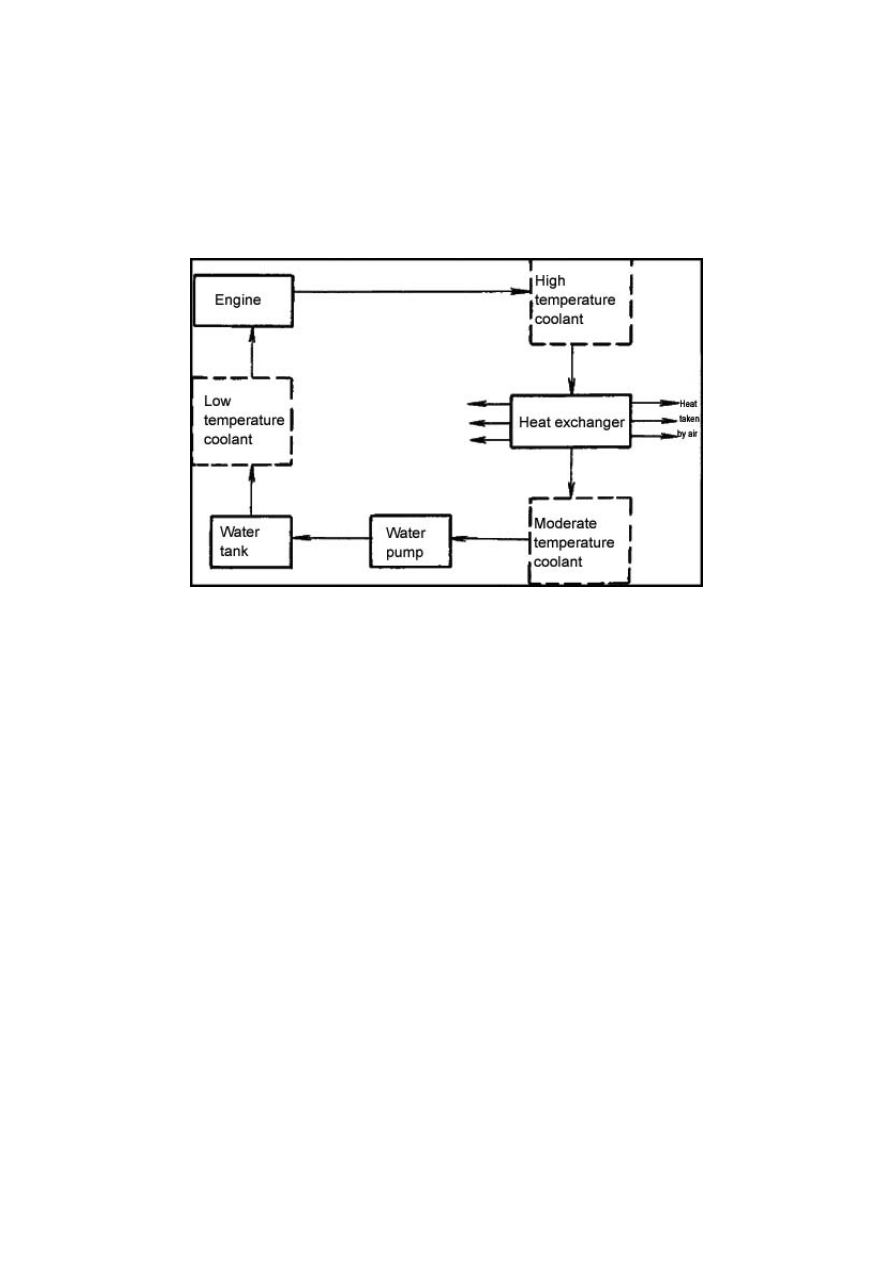

When engine works, heated by the high temperature of the engine cylinder, the coolant is pumped
into the heat exchanger through water pipe by the water pump of the cooling system. Air from
blower can take the heat given off by the coolant into the vehicle or the windscreen to raise the
temperature in the vehicle or defrost. After the cooling process in the heat exchanger, coolant is
pumped back by water pump. Repeating the circulation can make warm air heating. See Figure
6-4:
