Lifan 620. Manual - part 32

(2) Discharge the air and turn the steering wheel for several times to raise the fluid temperature to
50-60 .

℃

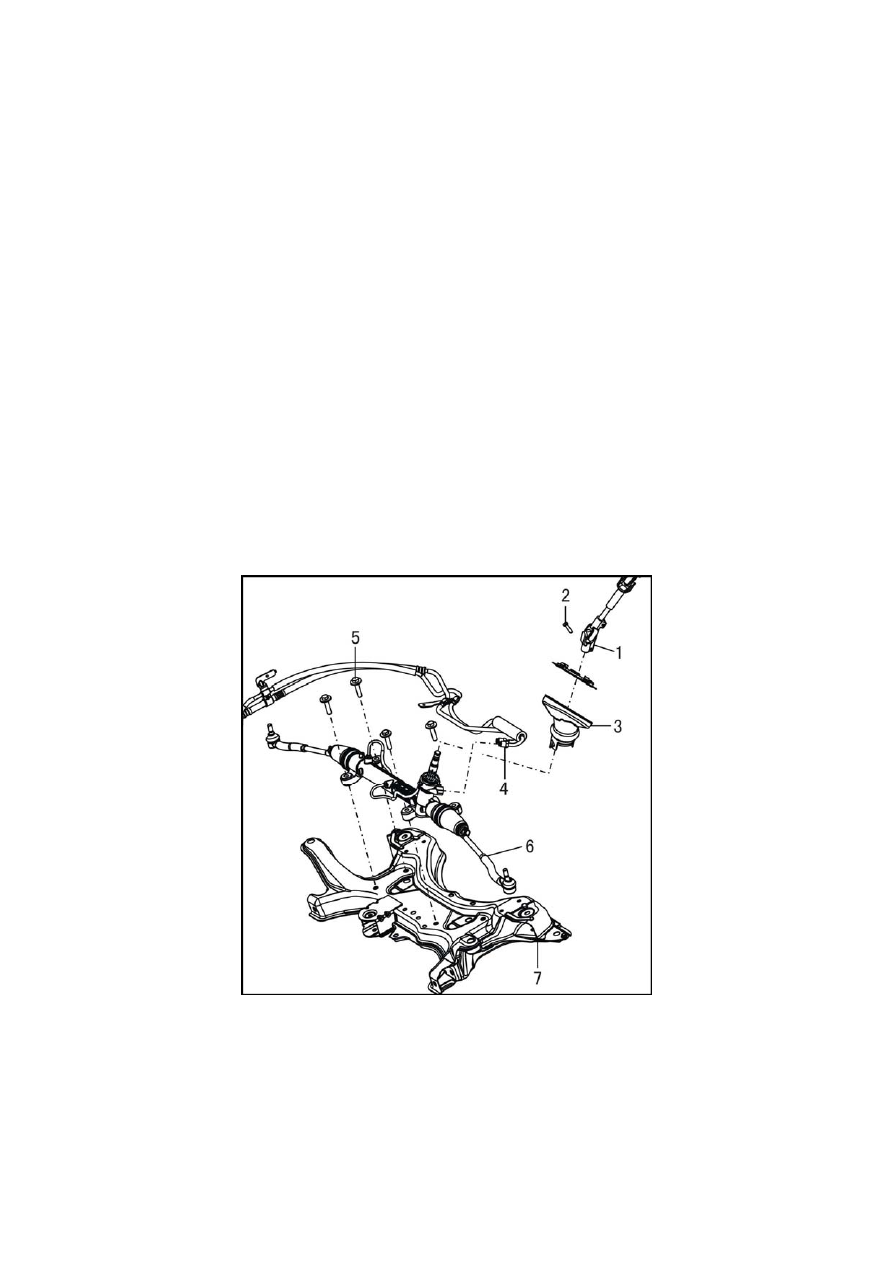

Fig. 2-38

1. Lower steering shaft                                                                              2. Bolt

3. Acoustic hood on the steering gear                          4. Oil pipeline connector of steering gear

5. Bolt                                                      6. Steering gear assembly

7. Sub-frame

(1) Removal

129

 Discharge steering fluid.

①



②

 Dismantle the high pressure oil outlet pipe connected to the steering oil pump, screw off the

hollow bolt, and remove the hose bracket connected to the engine.

 Disconnect the steering gear from the steering lower shaft.

③



④

 Dismantle the connectors between steering gear and the return oil pipeline, and remove the

front sub-frame and steering assembly from the vehicle body.
⑤

 Dismantle the steering gear assembly from the front sub-frame.

(2) Inspection of the power steering gear

Note:

 The internal components of the steering gear can not be disassembled, but replaced or

②

③



④



①



②



















130

Section III  Brake System



With air in system

Discharge the air in system.

Braking master pump

Check the braking master pump.

Brake disc

Check and install a new component if necessary.

Rapidly sunken

pedal

Brake pad

Check and install a new component if necessary.

Brake caliper

Check and install a new component if necessary.

Slowly sunken pedal

Brake master pump

Check the brake master pump.



131

Table 2-4

Fault Possible

Cause

Actions

With air in system

Discharge the air in system.

Brake pad

Check and install a new component if necessary.

Low-position or soft pedal

Brake booster

Check the booster components.

Brake pad

Check and install a new component if necessary.

Brake disc

Check and install a new component if necessary.

Locked pedal when gently

stepping down the pedal

Brake booster

Check the booster components.

travel







Fig. 2-39

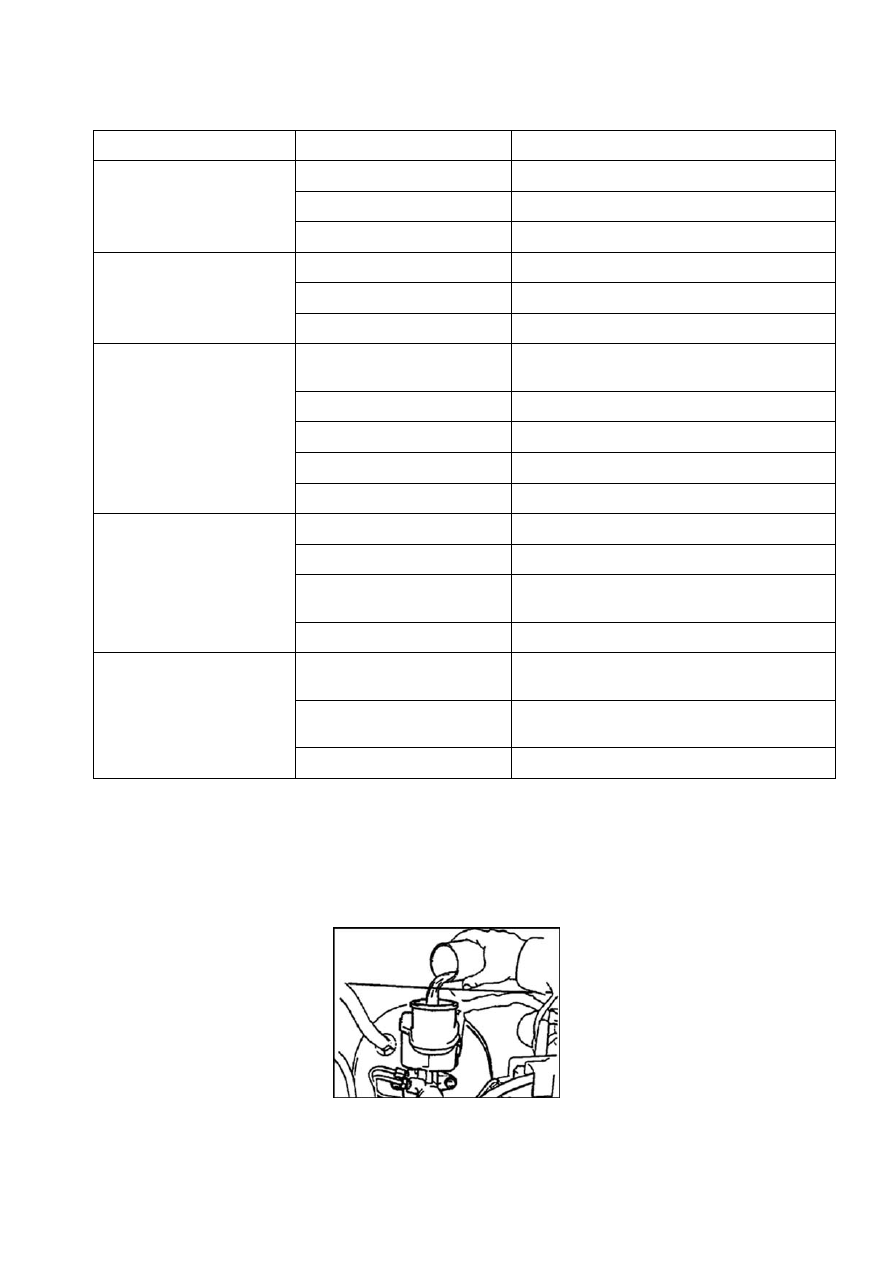

1. Refill brake fluid into the reservoir (as shown in Fig. 2-39)

132
