Lifan 620. Manual - part 30

Table 2-3 (Continued 4)

Fault Possible

Cause

Actions

Steering knuckle (worn).

Replace it if necessary.

Suspension arm ball joint (worn).

Replace it if necessary.

Intermediate shaft, and slip

joint/yoke (worn).

Replace it if necessary.

Front wheel bearing (worn).

Replace it if necessary.

Over large clearance

Steering gear (malfunction).

Replace it if necessary.







Fig. 2-24




121

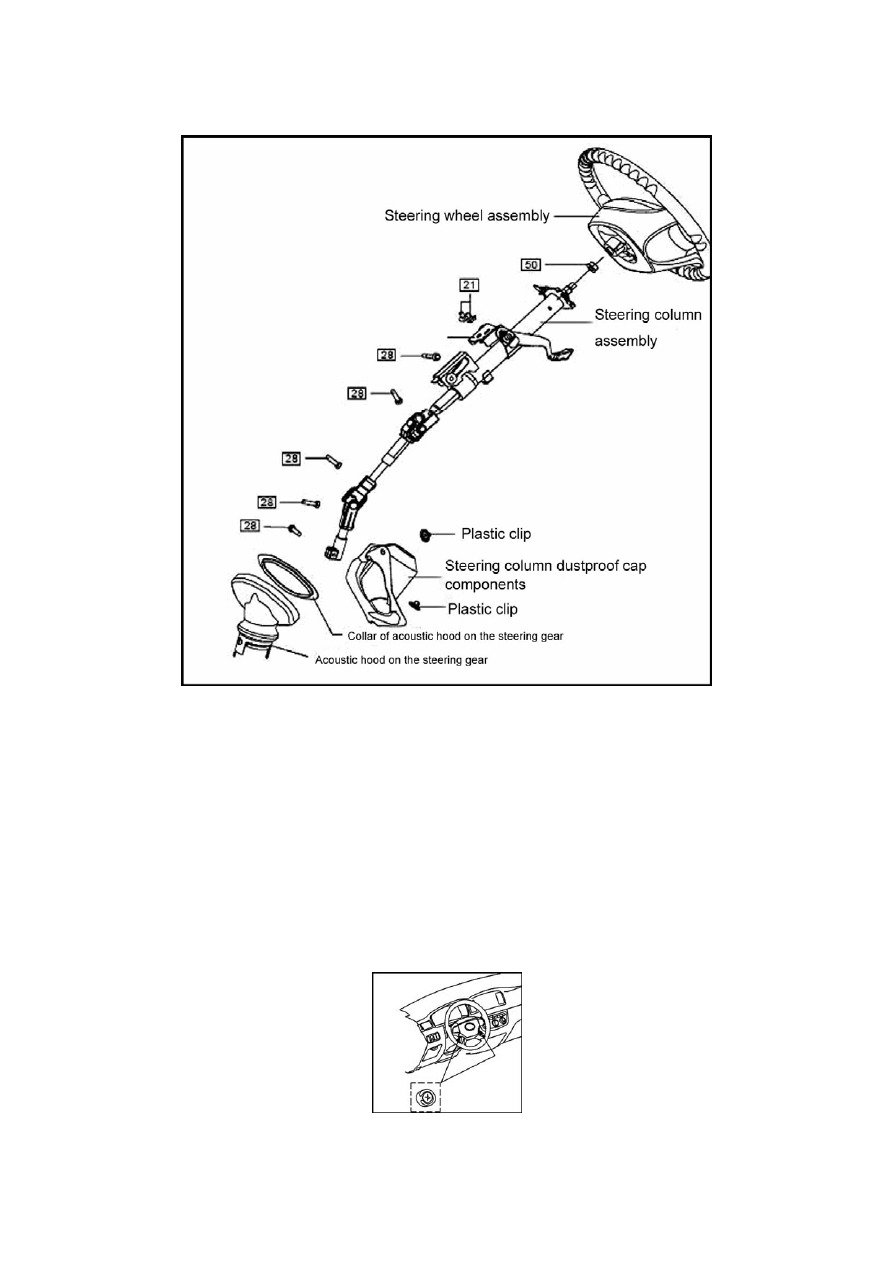

2. Steering wheel and column as shown in Fig. 2-25.

②

③

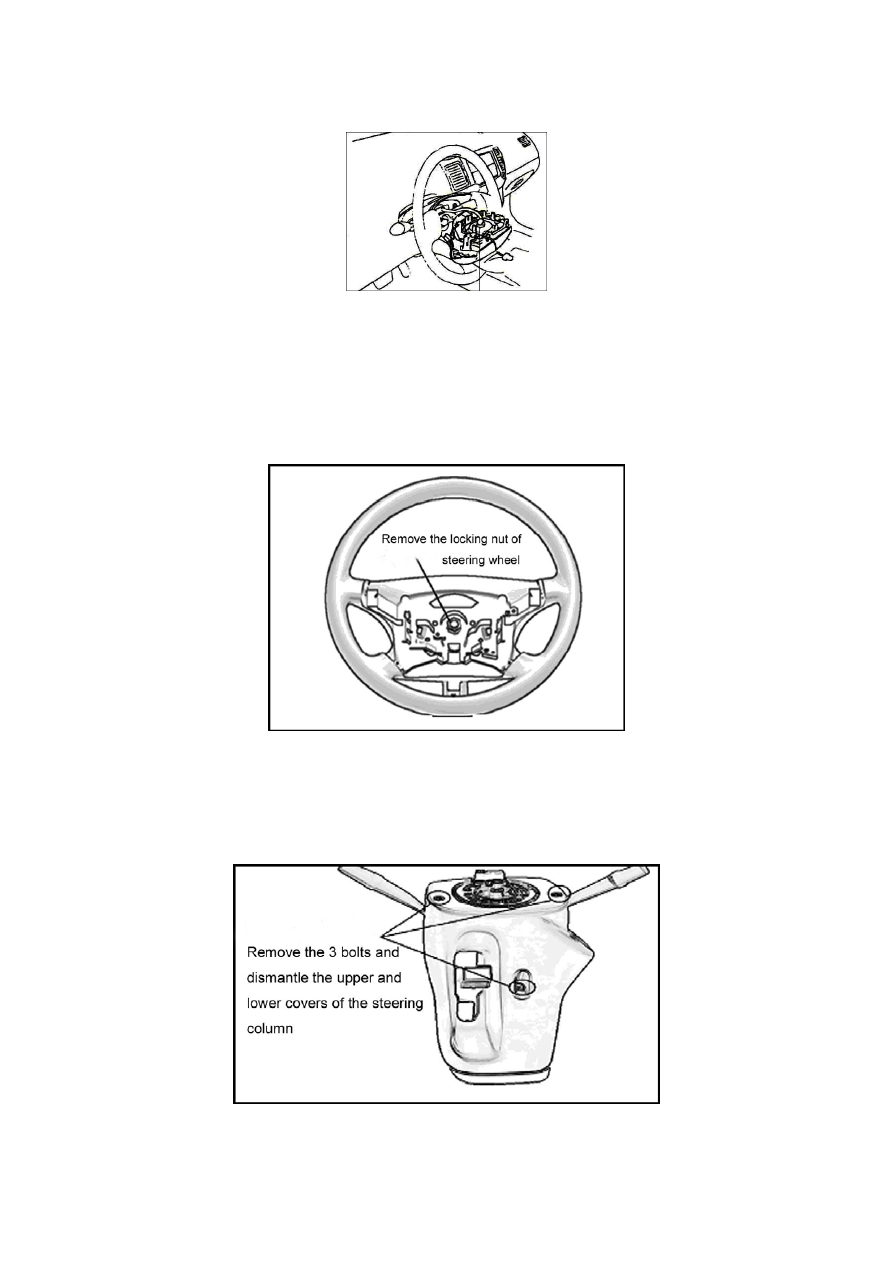

2) Loosen the two bolts with socket wrench or screwdriver until the bolt head is locked into the bolt
housing, as shown in Fig. 2-26.



Fig. 2-26

122

3) Push out the horn button assembly from the steering wheel, as shown in Fig. 2-27.



Fig. 2-27



Fig. 2-29

123

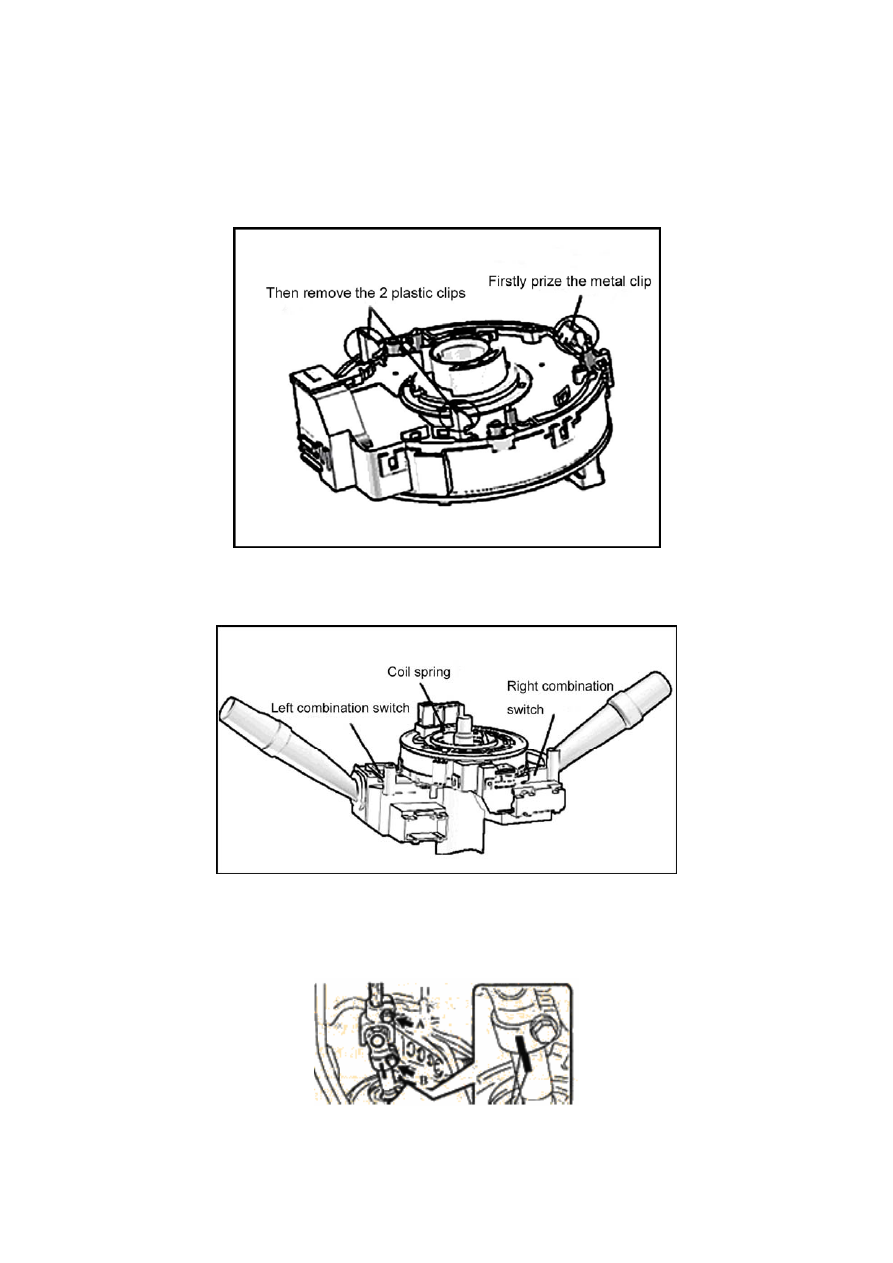

10) Locate the ignition switch at position ACC, and dismantle the coil spring assembly. Note: The
combination switch is connected to the installation plate by a metal clip and 2 plastic clips. Firstly
prize the metal clip from the installation hole by a screwdriver and then remove the 2 plastic clips.
See structure drawing in Fig. 2-30.




Fig. 2-32

124
