 Mark the matching place on the slip yoke and intermediate shaft.

①



 Loosen the bolt A and B, and then disconnect the intermediate shaft.

②



15) Remove the steering column assembly, as shown in Fig. 2-33.

①



②

①





②



Fig. 2-35





①

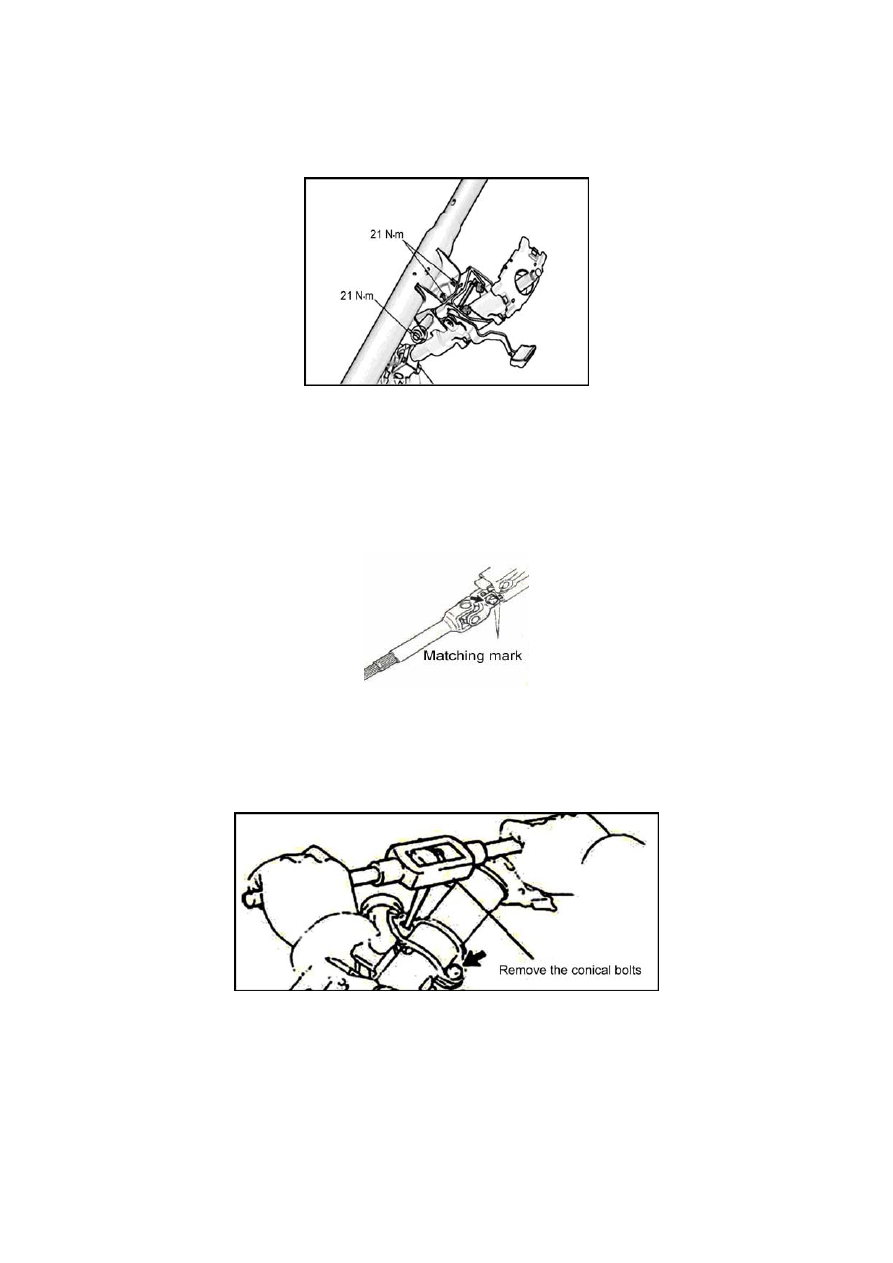

Use a center punch to make center marks on the two conical bolts.



②

Drill the two bolts by a 3-4mm drill.

 Remove 2 bolts and switch support assembly on the steering column by a screwdriver.

③



18) Remove the steering column upper clip board.

125

19) Remove the ignition switch lock core assembly as shown in Fig. 2-36.



Fig. 2-36

 Turn the ignition switch to position ACC.

①

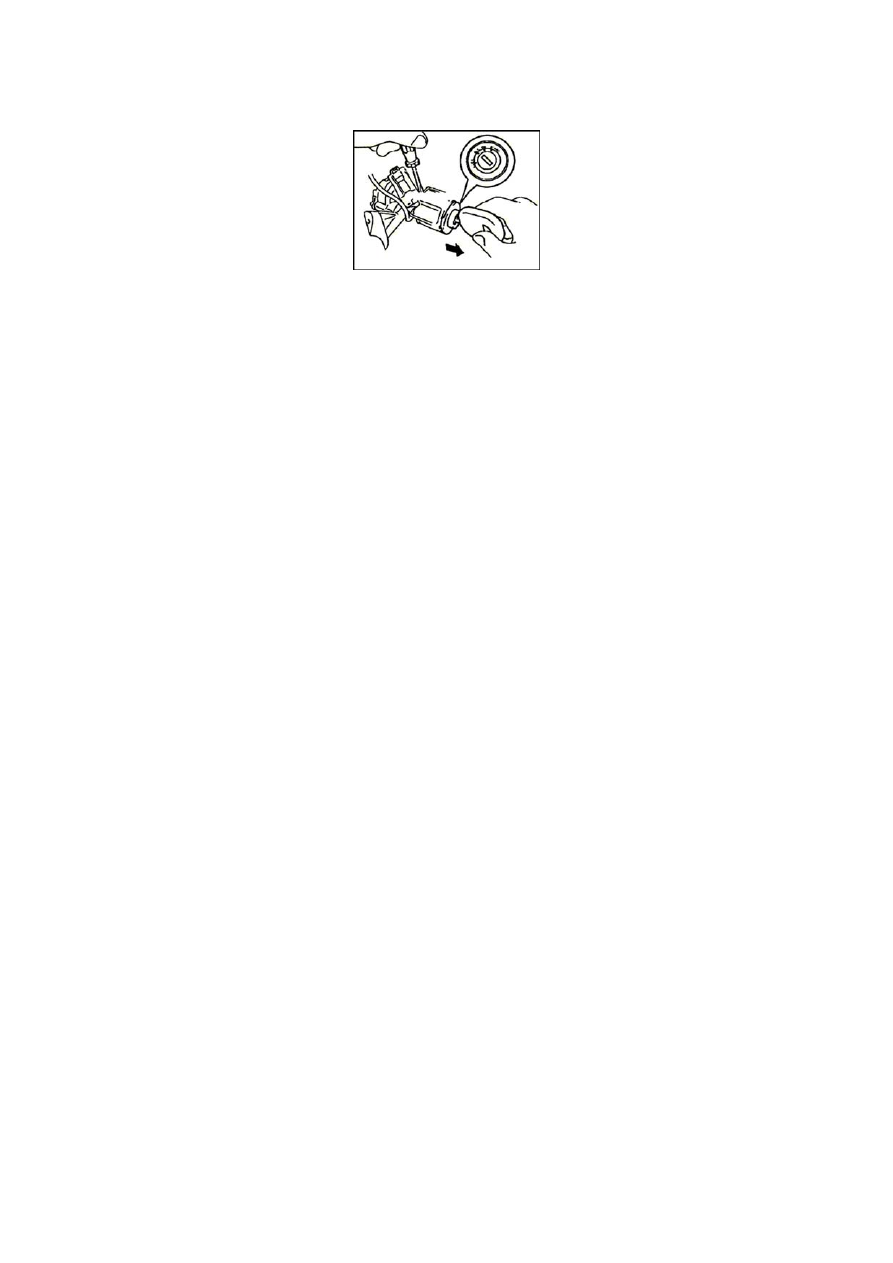

 Press down the lock by a screwdriver and pull out the lock core.

②



①

②

①

②

①

②

①

②

①

②

 Align the matching mark on the intermediate shaft and slip yoke.

①



 Install the bolt B and screw down bolt A.

②

Tightening torque: 28N·m.

8) Install the cover board of the steering column hole.
9) Install wiper switch. Install the wiper switch assembly and connector.
10) Install the headlamp dimmer switch assembly. Install the headlamp dimmer switch assembly
and connector.
11) Make the front wheel in the straight ahead position.
12) Install the clock spring when the key is at position ACC.
13) Check the inter-locking of the key.

126

14) Install the upper cap of the steering column. Install the upper & lower caps of the steering
column with three bolts.
15) Align the clock spring.

 Make sure the ignition switch

①

at position OFF.

 Make sure the negative terminal of the battery is disconnected. Note: Operate 90s later.

②



 Rotate the cable disc counterclockwise with hand till it can not be rotated any more.

③



 Rotate the cable disc cl

④

ockwise about 2.5 circles, and align the mark.

Note:

 The cable disc can be turned around the center about 2.5 circles.

16) Install the steering wheel assembly.

 Align the matching mark on the steering wheel assembly and steering main shaft assembly.

①



②

③

③

④

②

③

④

127

④



Fig.2-37

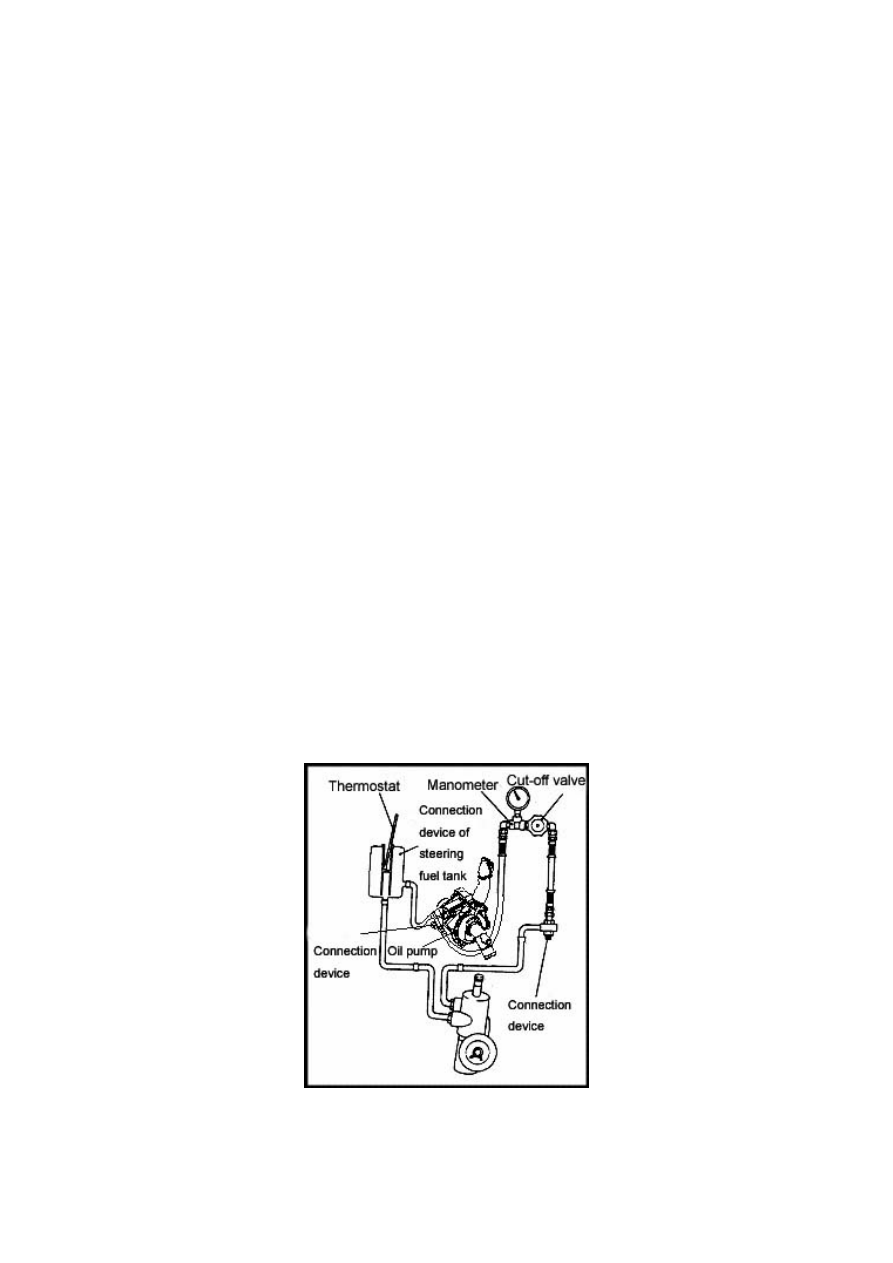

(1) Disconnect the oil pump from the high pressure hose, and install the special tool.
