LEXUS LC 500H (2019 year). Instruction - part 23

362

7-2. Steps to take in an emergency

Type B

: Use a 12-volt battery that the

case size is same as the previous one

(LN3), 20 hour rate capacity (20HR) is

equivalent (70Ah) or greater, and perfor-

mance rating (CCA) is equivalent

(600A) or greater.

• If the sizes differ, the 12-volt battery can-

not be properly secured.

• If the 20 hour rate capacity is low, even if

the time period where the vehicle is not

used is a short time, the 12-volt battery

may discharge and engine <hybrid sys-

tem> may not be able to start.

●

Use a 12-volt battery with a handle. If a

12-volt battery without a handle is used,

removal is more difficult.

●

After exchanging, firmly attach the fol-

lowing items to the exhaust hole of the 12-

volt battery.

• Use the exhaust hose that was attached

to the 12-volt battery before exchanging.

• Use the exhaust hole plug included with

the 12-volt battery exchanged or the one

installed on the battery prior to the

exchange. (Depending on the 12-volt

battery to be exchanged, the exhaust

hole may be plugged.)

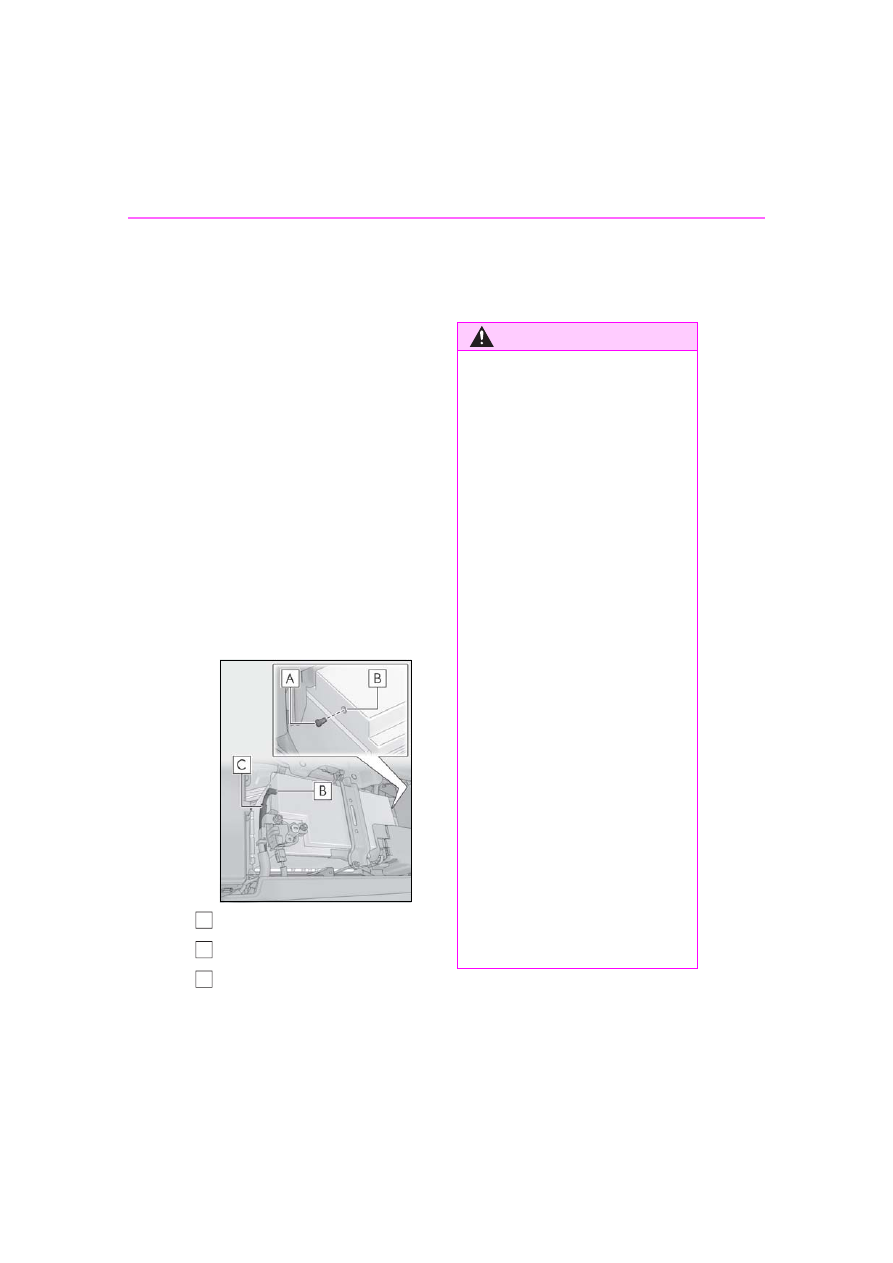

Exhaust hole plug

Exhaust hole

Exhaust hose

For details, consult your Lexus dealer.

: LC500 for Canada or LC500 with

heated steering wheel

: LC500 except for Canada, LC500

without heated steering wheel or
LC500h

WARNING

■

When removing the 12-volt battery

terminals

Always remove the negative (-) terminal

first. If the positive (+) terminal contacts

any metal in the surrounding area when

the positive (+) terminal is removed, a

spark may occur, leading to a fire in addi-

tion to electrical shocks and death or

serious injury.

■

Avoiding 12-volt battery fires or

explosions

Observe the following precautions to

prevent accidentally igniting the flamma-

ble gas that may be emitted from the 12-

volt battery:

●

Make sure each jumper cable is con-

nected to the correct terminal and that

it is not unintentionally in contact with

any other than the intended terminal.

●

Do not allow the other end of the

jumper cable connected to the “+” ter-

minal to come into contact with any

other parts or metal surfaces in the

area, such as brackets or unpainted

metal.

●

Do not allow the + and - clamps of the

jumper cables to come into contact

with each other.

●

Do not smoke, use matches, cigarette

lighters or allow open flame near the

12-volt battery.

●

If the 12-volt battery fluid level is exces-

sively low (

P.301), do not use the 12-

volt battery.

363

7-2. Steps to take in an emergency

When trouble

ari

ses

WARNING

■

12-volt battery precautions

The 12-volt battery contains poisonous

and corrosive acidic electrolyte, while

related parts contain lead and lead com-

pounds. Observe the following precau-

tions when handling the 12-volt battery:

●

When working with the 12-volt battery,

always wear safety glasses and take

care not to allow any 12-volt battery

fluids (acid) to come into contact with

skin, clothing or the vehicle body.

●

Do not lean over the 12-volt battery.

●

In the event that 12-volt battery fluid

comes into contact with the skin or

eyes, immediately wash the affected

area with water and seek medical

attention.

Place a wet sponge or cloth over the

affected area until medical attention

can be received.

●

Always wash your hands after handling

the 12-volt battery support, terminals,

and other battery-related parts.

●

Do not allow children near the 12-volt

battery.

■

After recharging the 12-volt battery

Have the 12-volt battery inspected at

your Lexus dealer as soon as possible. If

the 12-volt battery is deteriorating, con-

tinued use may cause the 12-volt battery

to emit a malodorous gas, which may be

detrimental to the health of passengers.

■

When exchanging the 12-volt battery

After exchanging, securely attach the

exhaust hose and exhaust hole plug to

the exhaust hole of the exchanged 12-

volt battery. If not properly installed,

gases (hydrogen) may leak into the vehi-

cle interior, and there is the possible dan-

ger of the gas igniting and exploding.

NOTICE

■

When handling jumper cables

When connecting the jumper cables,

ensure that they do not become entan-

gled in the cooling fan or engine drive

belt.

■

To prevent damaging the vehicle

The exclusive jump starting terminal is to

be used when charging the 12-volt bat-

tery from another vehicle in an emer-

gency. It cannot be used to jump start

another vehicle.

364

7-2. Steps to take in an emergency

Stop the vehicle in a safe place and
turn off the air conditioning system,
and then stop the engine.

If you see steam:
Carefully lift the hood after the
steam subsides.
If you do not see steam:
Carefully lift the hood.

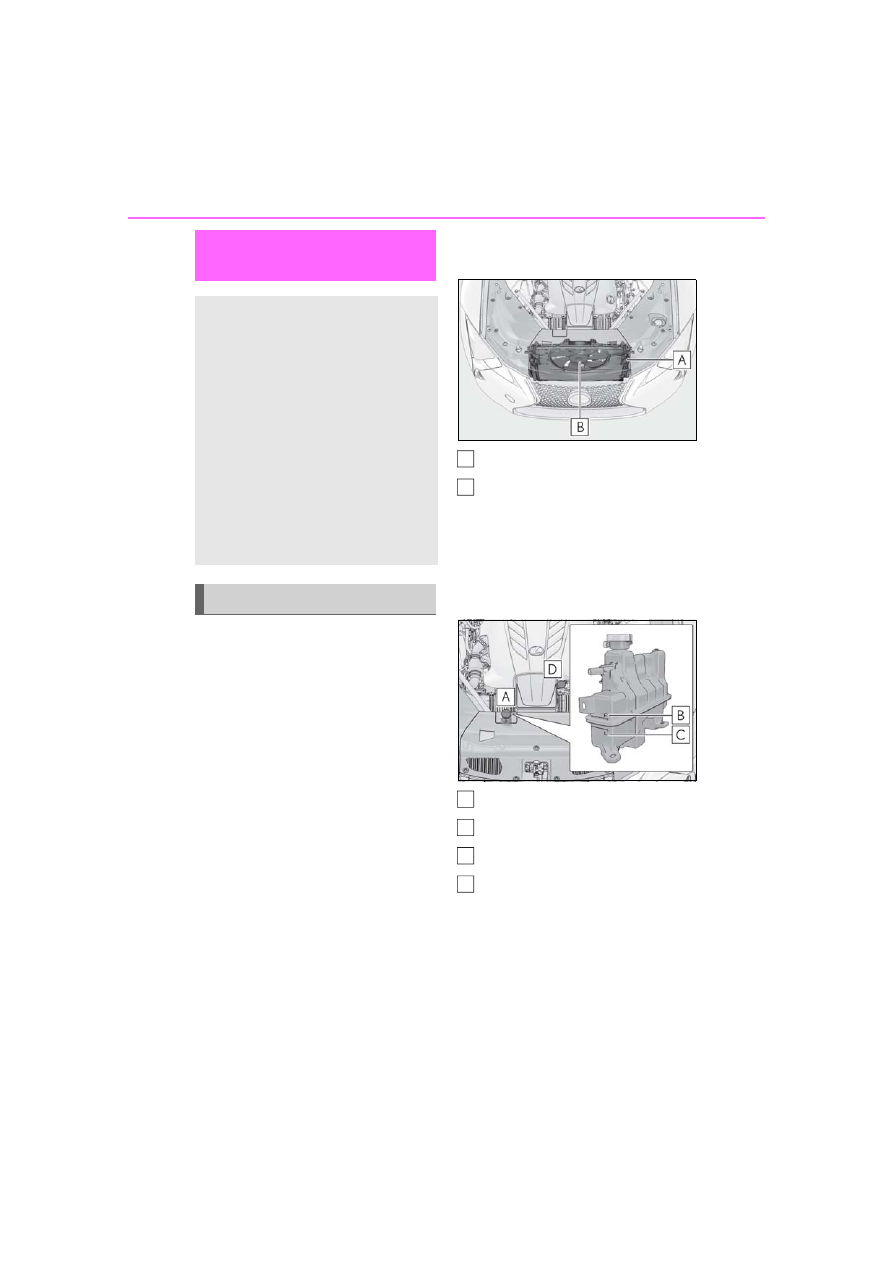

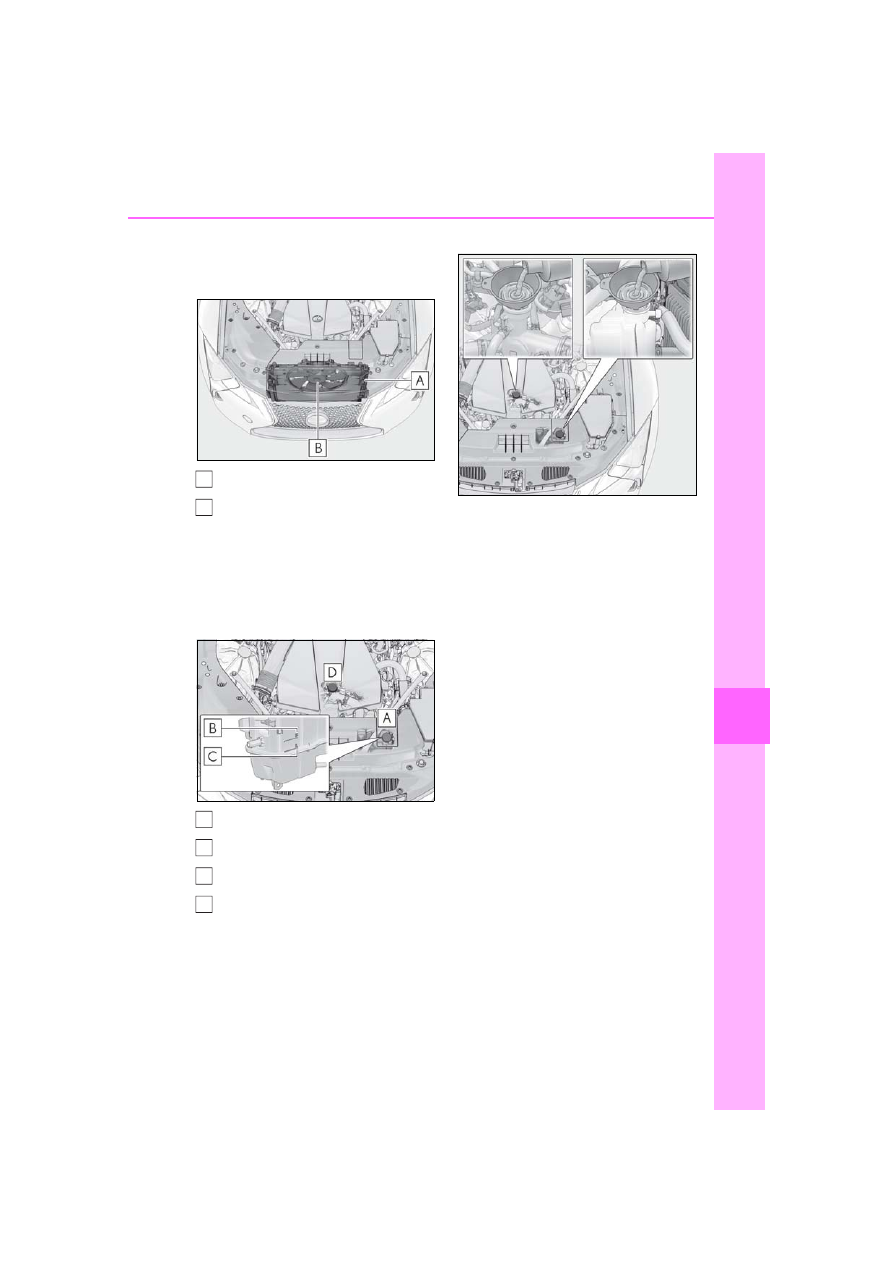

After the engine has cooled down
sufficiently, inspect the hoses and

radiator core (radiator) for any
leaks.

Radiator

Cooling fan

If a large amount of coolant leaks, immedi-
ately contact your Lexus dealer.

The coolant level is satisfactory if it
is between the “F” and “L” lines on
the reservoir.

Reservoir

“F” line

“L” line

Coolant inlet cap

Add coolant if necessary.

Water can be used in an emergency if

If your vehicle overheats
(LC500)

The following may indicate that
your vehicle is overheating.
 The engine coolant temperature

gauge (

P.80) is in the red zone

or a loss of engine power is expe-
rienced. (For example, the vehicle
speed does not increase.)

 “Engine Coolant Temp High” is

shown on the multi-information
display.

 Steam comes out from under the

hood.

Correction procedures

A
B

A
B
C
D

365

7-2. Steps to take in an emergency

When trouble

ari

ses

coolant is unavailable.

Start the engine and turn the air
conditioning system on to check
that the radiator cooling fan oper-
ates and to check for coolant leaks
from the radiator or hoses.

The fan operates when the air conditioning

system is turned on immediately after a

cold start. Confirm that the fan is operating

by checking the fan sound and air flow. If it

is difficult to check these, turn the air con-

ditioning system on and off repeatedly.

(The fan may not operate in freezing tem-

peratures.)

If the fan is not operating:
Stop the engine immediately and
contact your Lexus dealer.
If the fan is operating:
Have the vehicle inspected at the
nearest Lexus dealer.

■

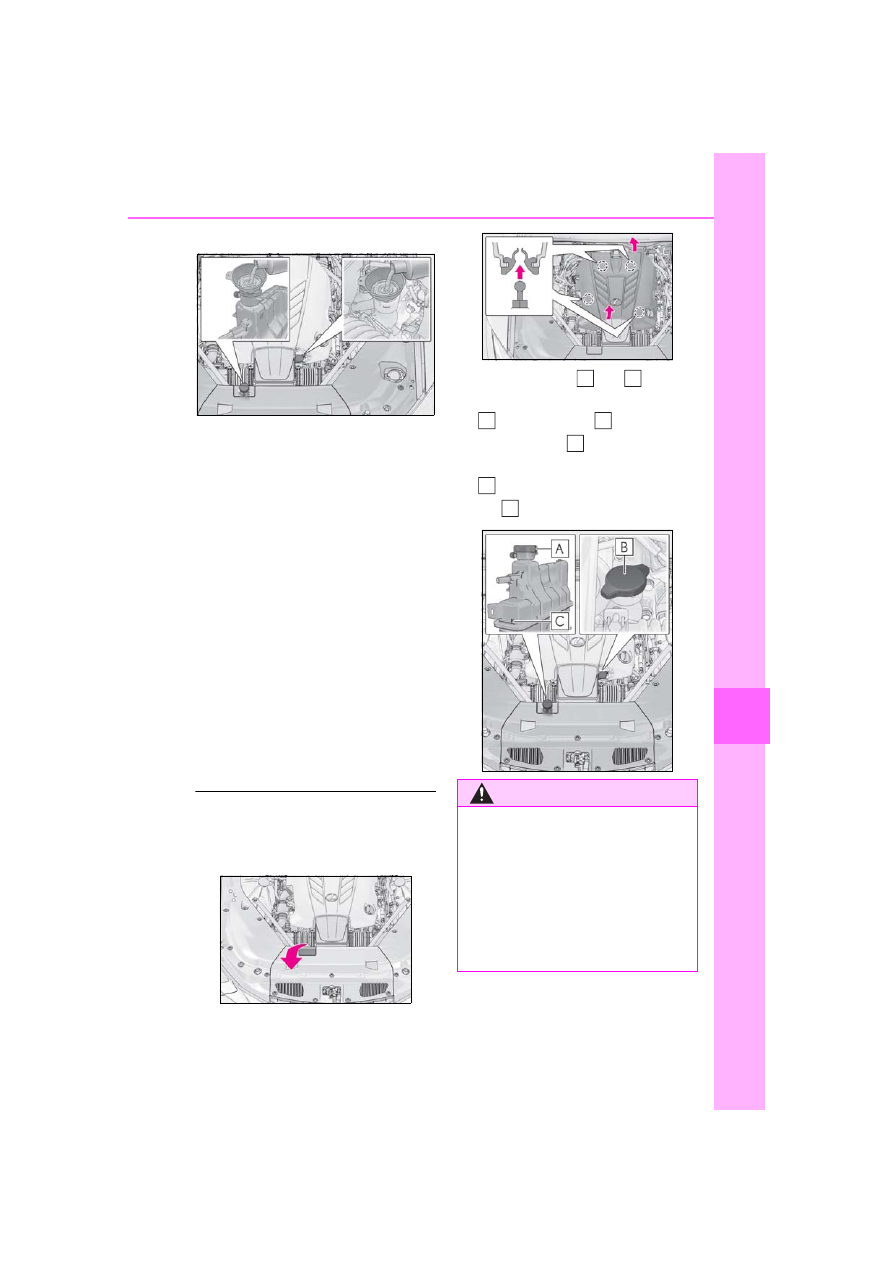

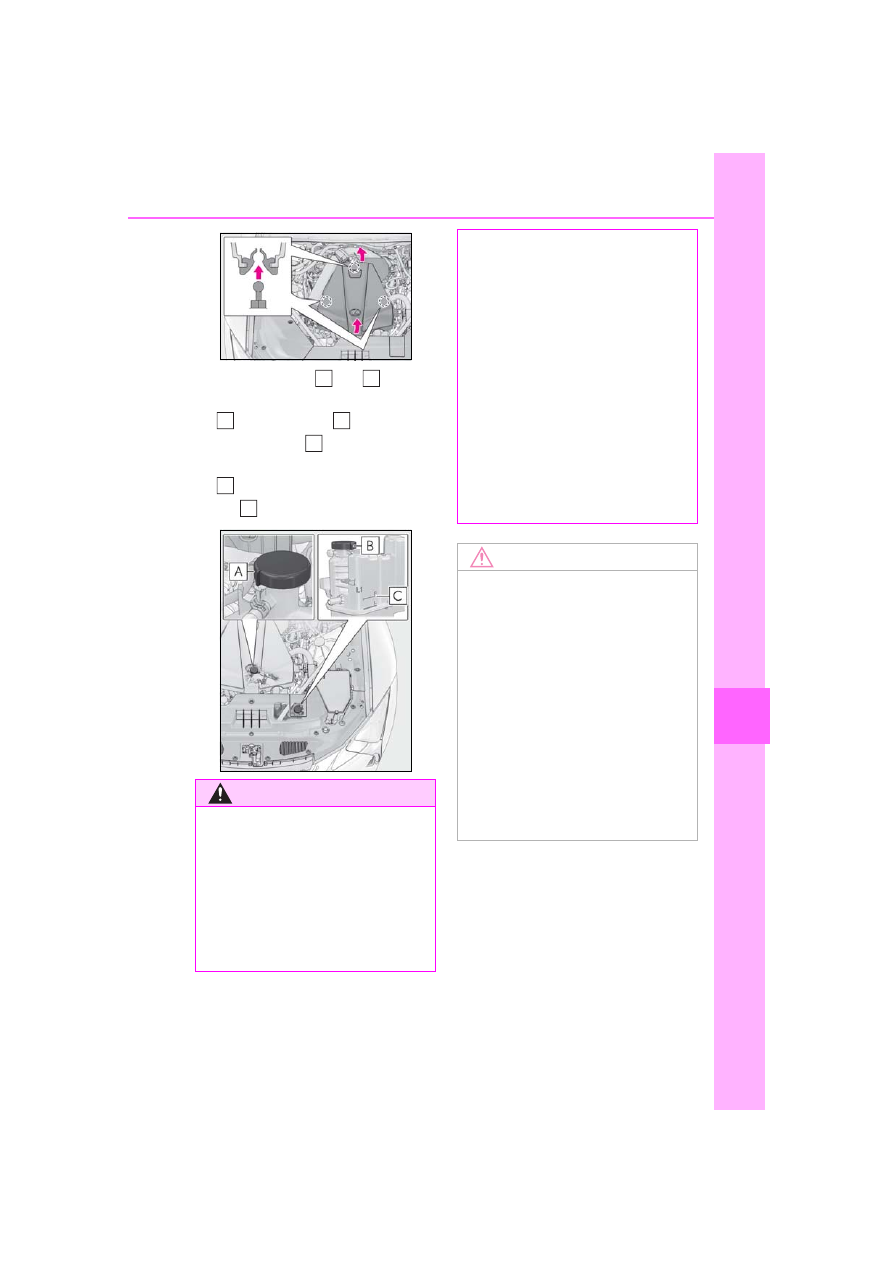

When adding coolant

Add coolant in accordance with the follow-

ing procedure.

Remove the service cover.

Remove the engine cover.

Remove the caps

and

Add coolant through the inlet of the cap

up to the “F” line

, and then

replace the cap

Add coolant through the inlet of the cap

until it is full, and then replace the

cap .

WARNING

■

When inspecting under the hood of

your vehicle

Observe the following precautions.

Failure to do so may result in serious

injury such as burns.

●

If steam is seen coming from under the

hood, do not open the hood until the

steam has subsided. The engine com-

partment may be very hot.

366

7-2. Steps to take in an emergency



If the engine coolant temperature
gauge enters the red zone or
“Engine Coolant Temp High Stop in
a Safe Place See Owner’s Manual”
is shown on the multi-information
display

Stop the vehicle in a safe place and
turn off the air conditioning system,
and then stop the hybrid system.

If you see steam:
Carefully lift the hood after the
steam subsides.
If you do not see steam:
Carefully lift the hood.

WARNING

●

Keep hands and clothing (especially a

tie, a scarf or a muffler) away from the

fan and belts. Failure to do so may

cause the hands or clothing to be

caught, resulting in serious injury.

●

While the engine and radiator are hot,

do not loosen or remove the coolant

inlet cap or coolant reservoir cap.

High temperature steam or coolant

could spray out.

NOTICE

■

When adding engine coolant

Add coolant slowly after the engine has

cooled down sufficiently. Adding cool

coolant to a hot engine too quickly can

cause damage to the engine.

■

To prevent damage to the cooling sys-

tem

Observe the following precautions:

●

Avoid contaminating the coolant with

foreign matter (such as sand or dust

etc.).

●

Do not use any coolant additive.

If your vehicle overheats
(LC500h)

The following may indicate that
your vehicle is overheating.
 The engine coolant temperature

gauge (

P.80) is in the red zone

or a loss of hybrid system power is
experienced. (For example, the
vehicle speed does not increase.)

 “Engine Coolant Temp High Stop

in a Safe Place See Owner’s
Manual” or “Hybrid System
Overheated Reduced Output
Power” is shown on the multi-
information display.

 Steam comes out from under the

hood.

Correction procedures

367

7-2. Steps to take in an emergency

When trouble

ari

ses

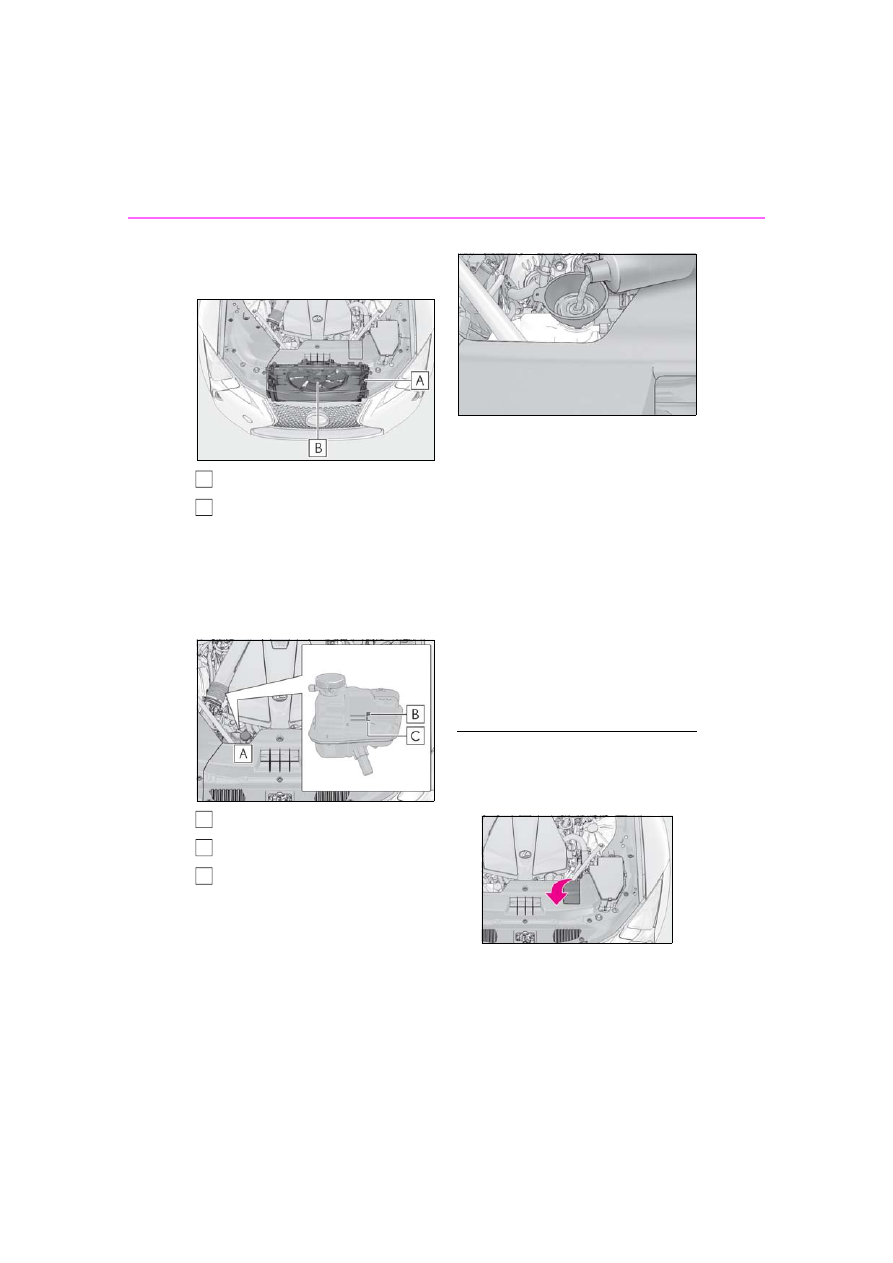

After the hybrid system has cooled
down sufficiently, inspect the hoses
and cooling system for leaks.

Radiator

Cooling fan

If a large amount of coolant leaks, immedi-
ately contact your Lexus dealer.

The coolant level is satisfactory if it
is between the “F” and “L” lines on
the reservoir.

Reservoir

“F” line

“L” line

Coolant inlet cap

Add coolant if necessary.

Water can be used in an emergency if

engine coolant is unavailable.

Start the hybrid system and turn the
air conditioning system on to check
that the radiator cooling fan oper-
ates and to check for coolant leaks
from the radiator or hoses.

The fan operates when the air conditioning

system is turned on immediately after a

cold start. Confirm that the fan is operating

by checking the fan sound and air flow. If it

is difficult to check these, turn the air con-

ditioning system on and off repeatedly.

(The fan may not operate in freezing tem-

peratures.)

If the fan is not operating:
Stop the hybrid system immediately
and contact your Lexus dealer.
If the fan is operating:
Have the vehicle inspected at the
nearest Lexus dealer.



If “Hybrid System Overheated
Reduced Output Power” is shown
on the multi-information display

Stop the vehicle in a safe place.

Stop the hybrid system and care-
fully lift the hood.

A
B

A
B
C
D

368

7-2. Steps to take in an emergency

After the hybrid system has cooled
down, inspect the hoses and radia-
tor core (radiator) for any leaks.

Radiator

Cooling fan

If a large amount of coolant leaks, immedi-
ately contact your Lexus dealer.

The coolant level is satisfactory if it
is between the “F”/“FULL” and
“L”/“LOW” lines on the reservoir.

Reservoir

“F”/“FULL” line

“L”/“LOW” line

Add coolant if necessary.

Water can be used in an emergency if

power control unit coolant is unavailable.

After stopping the hybrid system
and waiting for 5 minutes or more,
start the hybrid system again and
check if “Hybrid System Over-
heated Reduced Output Power” is
shown on the multi-information dis-
play.

If the message does not disappear:

Stop the hybrid system and contact your

Lexus dealer.
If the message is not displayed:

The hybrid system temperature has

dropped and the vehicle may be driven

normally.
However, if the message appears again fre-

quently, contact your Lexus dealer.

■

When adding engine coolant

Add coolant in accordance with the follow-

ing procedure.

Remove the service cover.

Remove the engine cover.

A
B

A
B
C

369

7-2. Steps to take in an emergency

When trouble

ari

ses

Remove the caps

and

Add coolant through the inlet of the cap

up to the “F” line

, and then

replace the cap

Add coolant through the inlet of the cap

until it is full, and then replace the

cap .

WARNING

■

When inspecting under the hood of

your vehicle

Observe the following precautions.

Failure to do so may result in serious

injury such as burns.

●

If steam is seen coming from under the

hood, do not open the hood until the

steam has subsided. The engine com-

partment may be very hot.

●

After the hybrid system has been

turned off, check that the indicator on

the power switch and the “READY”

indicator are off.

When the hybrid system is operating,

the gasoline engine may automatically

start, or the cooling fan may suddenly

operate even if the gasoline engine

stops. Do not touch or approach rotat-

ing parts such as the fan, which may

lead to fingers or clothing (especially a

tie, a scarf or a muffler) getting caught,

resulting in serious injury.

●

Do not loosen the coolant inlet cap or

coolant reservoir caps while the hybrid

system and radiator are hot.

High temperature steam or coolant

could spray out.

NOTICE

■

When adding engine/power control

unit coolant

Add coolant slowly after the hybrid sys-

tem has cooled down sufficiently. Adding

cool coolant to a hot hybrid system too

quickly can cause damage to the hybrid

system.

■

To prevent damage to the cooling sys-

tem

Observe the following precautions:

●

Avoid contaminating the coolant with

foreign matter (such as sand or dust

etc.).

●

Do not use any coolant additive.

370

7-2. Steps to take in an emergency

Stop the engine <hybrid system>.
Set the parking brake and shift the
shift position to P.

Remove the mud, snow or sand
from around the rear wheels.

Place wood, stones or some other
material under the rear wheels to
help provide traction.

Restart the engine <hybrid system>.

Shift the shift position to D or R and
release the parking brake. Then,
while exercising caution, depress
the accelerator pedal.

■

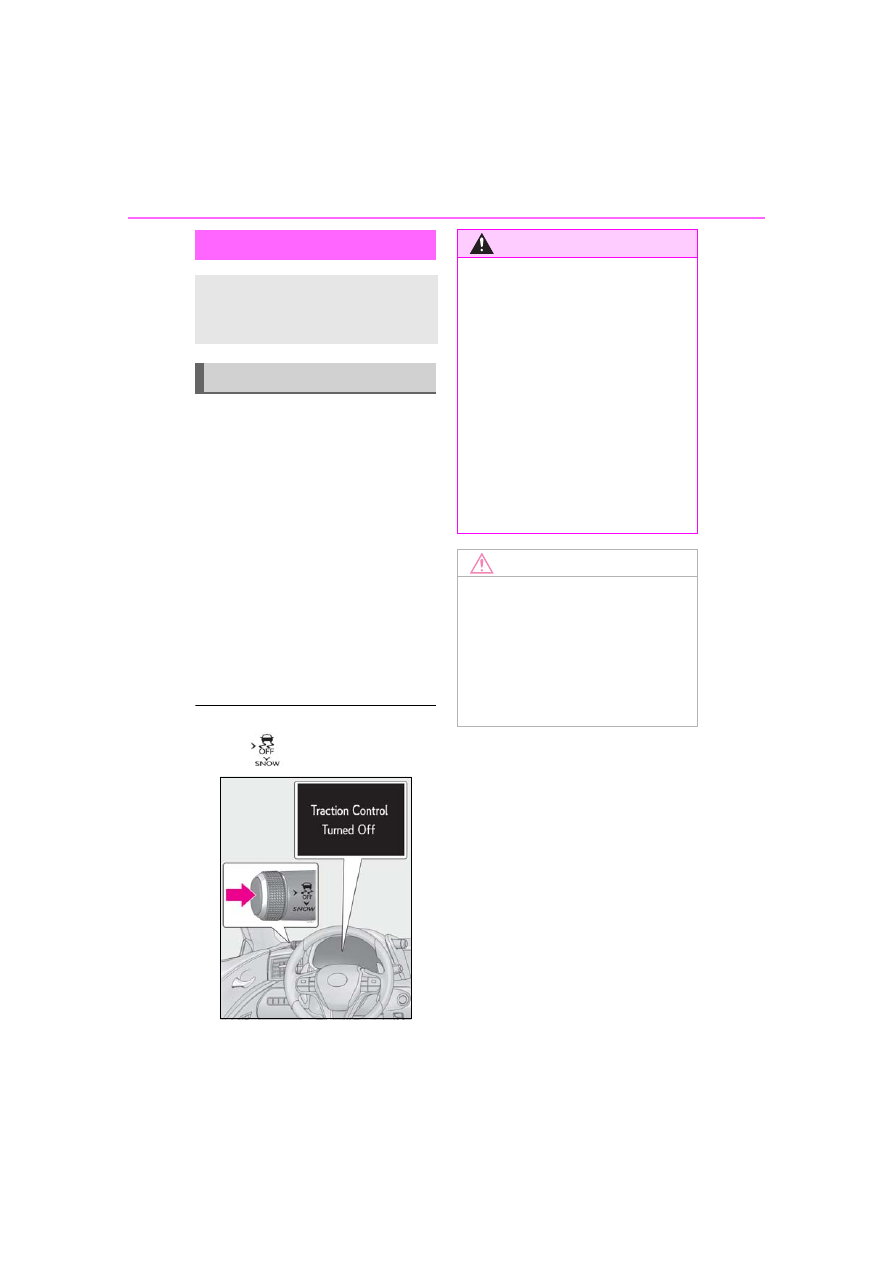

When it is difficult to free the vehicle

Press the

switch to turn off TRAC.

If the vehicle becomes stuck

Carry out the following proce-
dures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:

Recovering procedure

WARNING

■

When attempting to free a stuck vehi-

cle

If you choose to push the vehicle back

and forth to free it, make sure the sur-

rounding area is clear to avoid striking

other vehicles, objects or people. The

vehicle may also lunge forward or lunge

back suddenly as it becomes free. Use

extreme caution.

■

When shifting the shift position

Be careful not to shift the shift position

with the accelerator pedal depressed.

This may lead to unexpected rapid accel-

eration of the vehicle that may cause an

accident resulting in death or serious

injury.

NOTICE

■

To avoid damaging the transmission

and other components

●

Avoid spinning the rear wheels and

depressing the accelerator pedal

more than necessary.

●

If the vehicle remains stuck even after

these procedures are performed, the

vehicle may require towing to be freed.

371

Vehi

cle

spec

ifi

tions

Vehicle specifications

8-1. Specifications

Maintenance data (fuel, oil level,

etc.) ..............................................

372

Fuel information..........................

381

Tire information..........................

383

8-2. Customization

Customizable features.............

391

8-3. Items to initialize

Items to initialize ........................

403

372

8-1. Specifications

8-1.Specifications

: Unladen vehicle

■

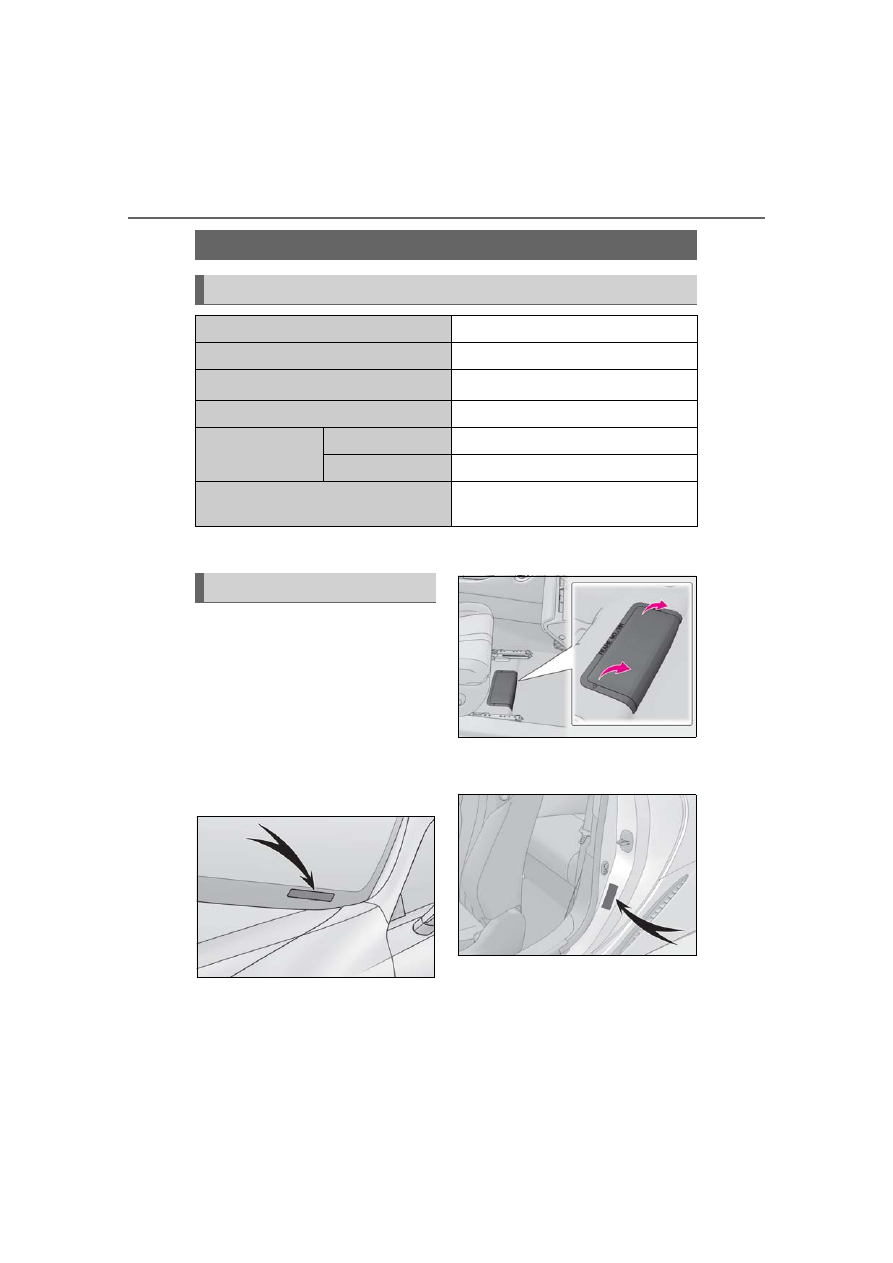

Vehicle identification number

The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifica-
tion number for your Lexus. It is used in
registering the ownership of your vehi-
cle.
This number is stamped on the top left
of the instrument panel.

This number is also stamped under the
right-hand front seat.

This number is also on the Certification
Label.

■

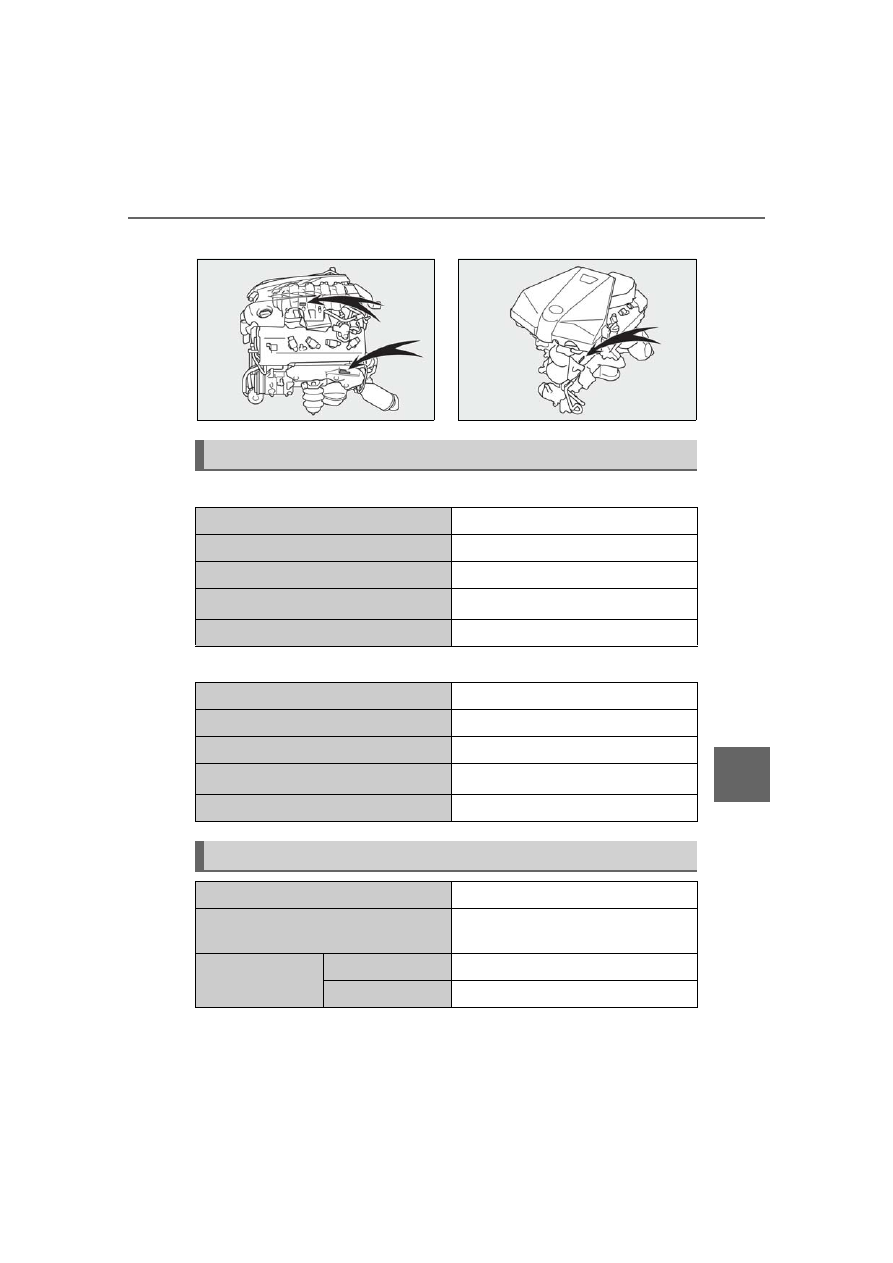

Engine number

The engine number is located as
shown.

Maintenance data (fuel, oil level, etc.)

Dimensions and weight

Overall length

187.4 in. (4760 mm)

Overall width

75.6 in. (1920 mm)

Overall height

53.0 in. (1345 mm)

Wheelbase

113.0 in. (2870 mm)

Tread

Front

64.2 in. (1630 mm)

Rear

64.4 in. (1635 mm)

Vehicle capacity weight
(Occupants + luggage)

720 lb. (325 kg)

Vehicle identification

373

8-1. Specifications

Vehi

cle

spec

ifi

tions



LC500



LC500h



LC500



LC500h

Engine

Model

5.0 L 8-cylinder (2UR-GSE) engine

Type

8-cylinder V type, 4-cycle, gasoline

Bore and stroke

3.70

 3.52 in. (94.0  89.5 mm)

Displacement

303.2 cu.in. (4969 cm

)

Drive belt tension

Automatic adjustment

Model

3.5 L 6-cylinder (8GR-FXS) engine

Type

6-cylinder V type, 4-cycle, gasoline

Bore and stroke

3.70

 3.27 in. (94.0  83.0 mm)

Displacement

210.9 cu.in. (3456 cm

)

Drive belt tension

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

Octane Rating

91 (Research Octane Number 96) or
higher

Fuel tank capacity
(Reference)

LC500

21.7 gal. (82.0 L, 18.0 Imp.gal.)

LC500h

22.2 gal. (84.0 L, 18.5 Imp.gal.)

374

8-1. Specifications



LC500

■

Oil capacity (Drain and refill [Ref-
erence

])

: The engine oil capacity is a reference

quantity to be used when changing the
engine oil. Warm up and turn off the
engine, wait more than 5 minutes, and
check the oil level on the dipstick.

■

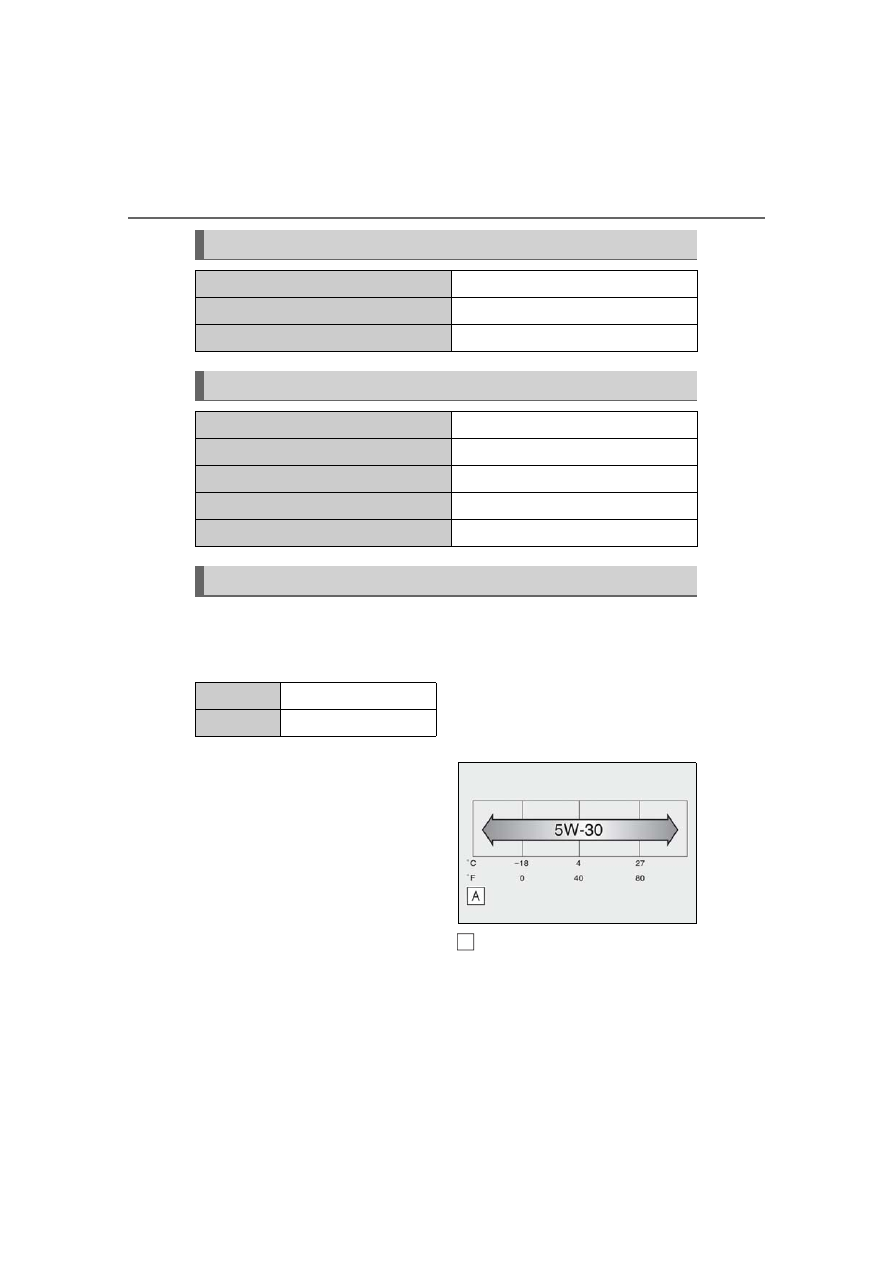

Engine oil selection

SAE 5W-30 is the best choice for
good fuel economy and good starting
in cold weather.
If SAE 5W-30 is not available, SAE
10W-30 oil may be used. However, it
should be replaced with SAE 5W-30
at the next oil change.

Outside temperature

Oil viscosity (5W-30 is explained here
as an example):
• The 5W in 5W-30 indicates the

characteristic of the oil which allows

Electric motor (traction motor) (LC500h)

Type

Permanent magnet synchronous motor

Maximum output

131.9 kW

Maximum torque

221.3 ft•lbf (300 N•m, 30.6 kgf•m)

Hybrid battery (traction battery) (LC500h)

Type

Lithium-ion battery

Voltage

3.7 V/cell

Capacity

3.6 Ah

Quantity

84 cells

Overall voltage

310.8 V

Lubrication system

With filter

9.1 qt. (8.6 L, 7.6 Imp.qt.)

Without filter 8.4 qt. (7.9 L, 7.0 Imp.qt.)

375

8-1. Specifications

Vehi

cle

spec

ifi

tions

cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.

• The 30 in 5W-30 indicates the vis-

cosity characteristic of the oil when
the oil is at high temperature. An oil
with a higher viscosity (one with a
higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-
ditions.

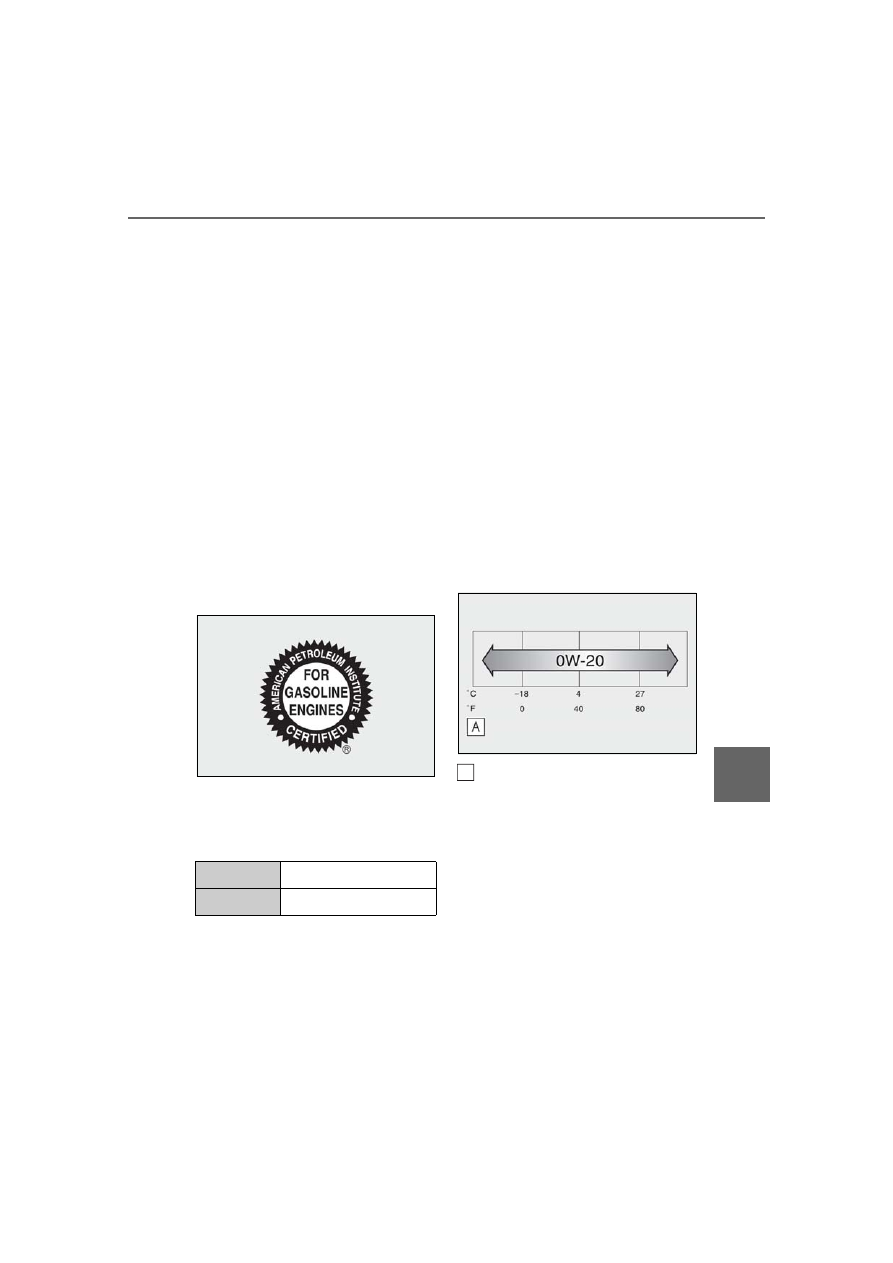

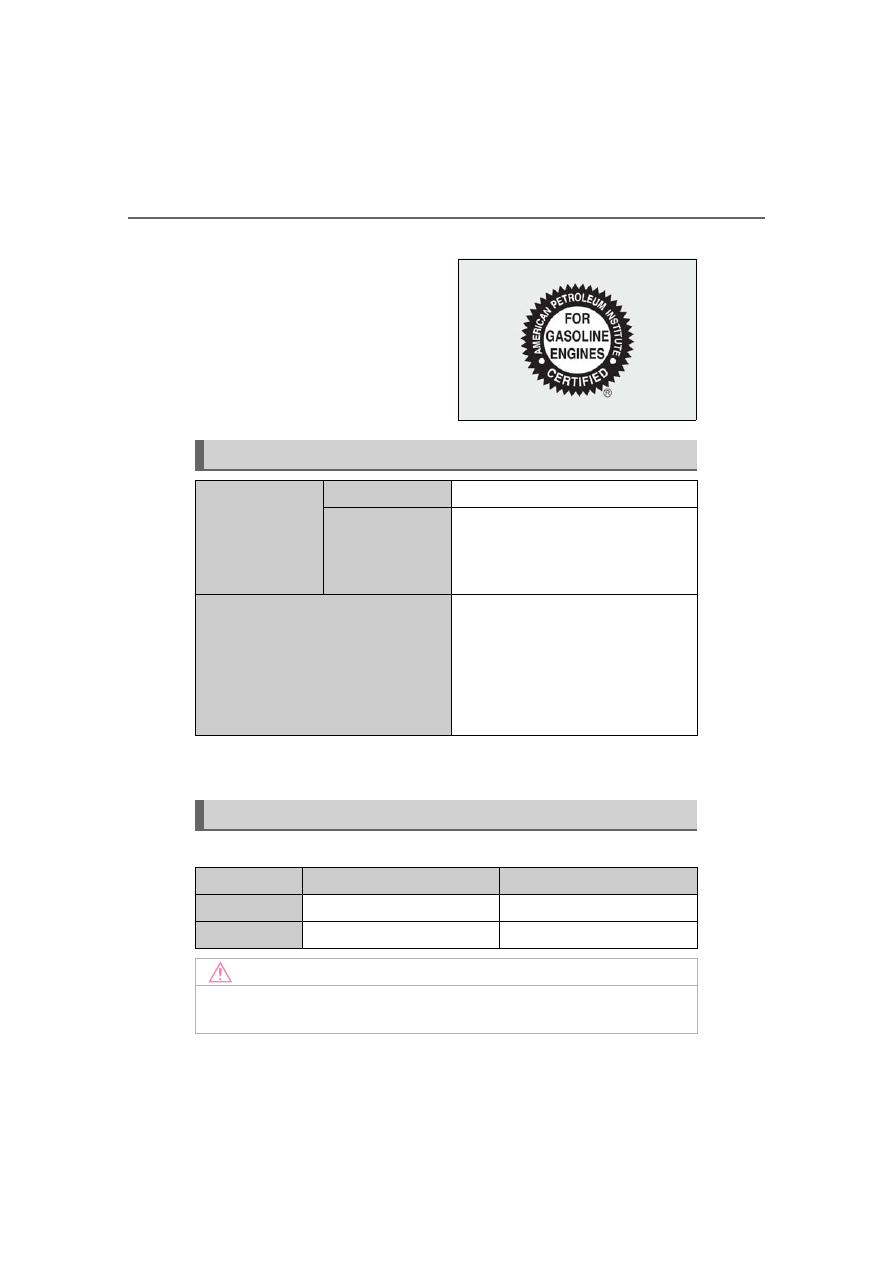

How to read oil container label:
The International Lubricant Specifica-
tion Advisory Committee (ILSAC)
Certification Mark is added to some oil
containers to help you select the oil you
should use.



LC500h

■

Oil capacity (Drain and refill [Ref-
erence

])

: The engine oil capacity is a reference

quantity to be used when changing the
engine oil. Warm up the engine and turn
off the hybrid system, wait more than 5
minutes, and check the oil level on the
dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil”
or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade
engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good starting
in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20 at
the next oil change.

Outside temperature

Oil viscosity (0W-20 is explained here
as an example):
• The 0W in 0W-20 indicates the

characteristic of the oil which allows
cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.

• The 20 in 0W-20 indicates the vis-

cosity characteristic of the oil when
the oil is at high temperature. An oil
with a higher viscosity (one with a

With filter

6.0 qt. (5.7 L, 5.0 Imp.qt.)

Without filter 5.8 qt. (5.5 L, 4.8 Imp.qt.)

376

8-1. Specifications

higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-
ditions.

How to read oil container label:
The International Lubricant Specifica-
tion Advisory Committee (ILSAC)
Certification Mark is added to some oil
containers to help you select the oil you

should use.

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Lexus dealer.

■

Spark plug

Cooling system

Capacity

LC500

12.8 qt. (12.1 L, 10.6 Imp.qt.)

LC500h



Gasoline engine

11.5 qt. (10.9L, 9.6 Imp.qt.)



Power control unit

2.4 qt. (2.3L, 2.0 Imp.qt.)

Coolant type

Use either of the following:
 “Toyota Super Long Life Coolant”

 Similar high-quality ethylene glycol-

based non-silicate, non-amine, non-
nitrite, and non-borate coolant with long-
life hybrid organic acid technology

Do not use plain water alone.

Ignition system

LC500

LC500h

Make

DENSO FK20HBR-J8

DENSO FK20HBR8

Gap

0.031 in. (0.8 mm)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

377

8-1. Specifications

Vehi

cle

spec

ifi

tions

■

12-volt battery



LC500



LC500h

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Lexus dealer.

Electrical system

Open voltage at 68°F (20°C):

12.3 V or higher
(Turn the engine switch off and turn on the headlights
for 20 to 30 seconds.)

Charging rates
Quick charge
Slow charge

15 A max.
5 A max.

Open voltage at 68°F (20°C):

12.0 V or higher
(Turn the power switch off and turn on the high beam
headlights for 30 seconds.)

Charging rates
Quick charge
Slow charge

15 A max.
5 A max.

Automatic transmission (LC500)

Fluid capacity

9.3 qt. (8.8 L, 7.7 Imp.qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Automatic transmission fluid type

Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration in

shift quality, locking up of your transmission accompanied by vibration, and ultimately

damage the transmission of your vehicle.

Hybrid transmission (LC500h)

Fluid capacity

7.2 qt. (6.8 L, 6.0 Imp.qt.)

Fluid type

Toyota Genuine ATF WS

Content .. 21 22 23 24 ..
