In the following situations, it is not pos-
sible to be towed by another vehicle
using cables or chains, as the rear
wheels may be locked due to the park-
ing lock. Contact your Lexus dealer or
commercial towing service.
 There is a malfunction in the shift

control system. (

P.149, 1 53, 347)

 There is a malfunction in the engine

immobilizer system <immobilizer
system>. (

P.69)

 There is a malfunction in the smart

access system with push-button
start. (

P.355)

 The 12-volt battery is discharged.

(

P.357)

The following may indicate a problem
with your transmission. Contact your
Lexus dealer or commercial towing
service before towing.
 LC500: The engine is running but

the vehicle does not move.

 LC500h: The hybrid system warn-

ing message is shown on the multi-
information display and the vehicle
does not move.

 The vehicle makes an abnormal

sound.

Do not tow with a sling-type truck to
prevent body damage.

WARNING

■

Installing towing eyelets to the vehi-

cle

Make sure that towing eyelets are

installed securely.

If not securely installed, towing eyelets

may come loose during towing.

NOTICE

■

To prevent damage to the vehicle

when towing using a wheel-lift type

truck

●

Do not tow the vehicle from the rear

when the engine switch <power

switch> is off. The steering lock mecha-

nism is not strong enough to hold the

front wheels straight.

●

When raising the vehicle, ensure ade-

quate ground clearance for towing at

the opposite end of the raised vehicle.

Without adequate clearance, the vehi-

cle could be damaged while being

towed.

■

To prevent damage to the vehicle

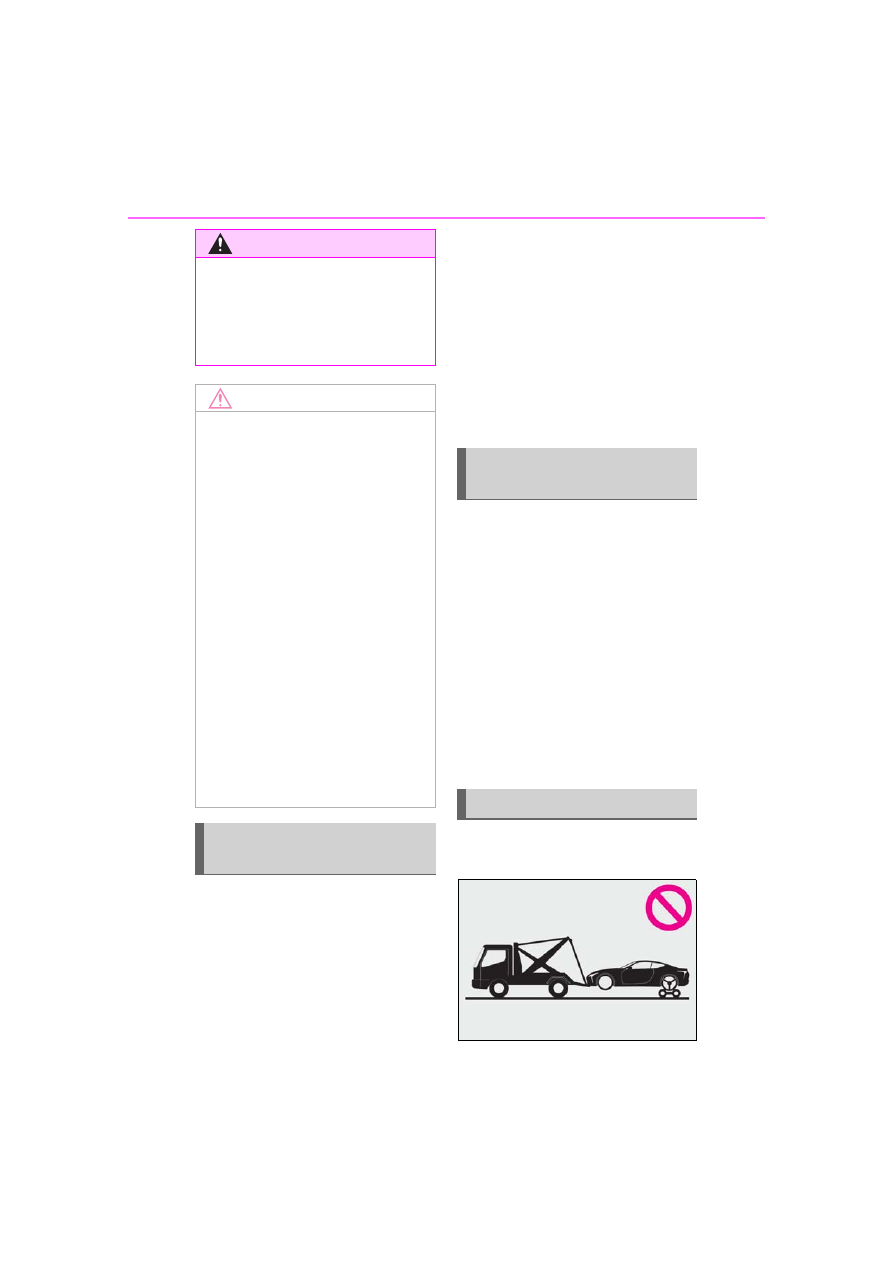

when towing with a sling-type truck

Do not tow with a sling-type truck, either

from the front or rear.

■

To prevent damage to the vehicle

during emergency towing

Do not secure cables or chains to the

suspension components.

Situations when it is not possible
to be towed by another vehicle

Situations when it is necessary to
contact dealers before towing

Towing with a sling-type truck

331

7-2. Steps to take in an emergency

When trouble

ari

ses



From the front

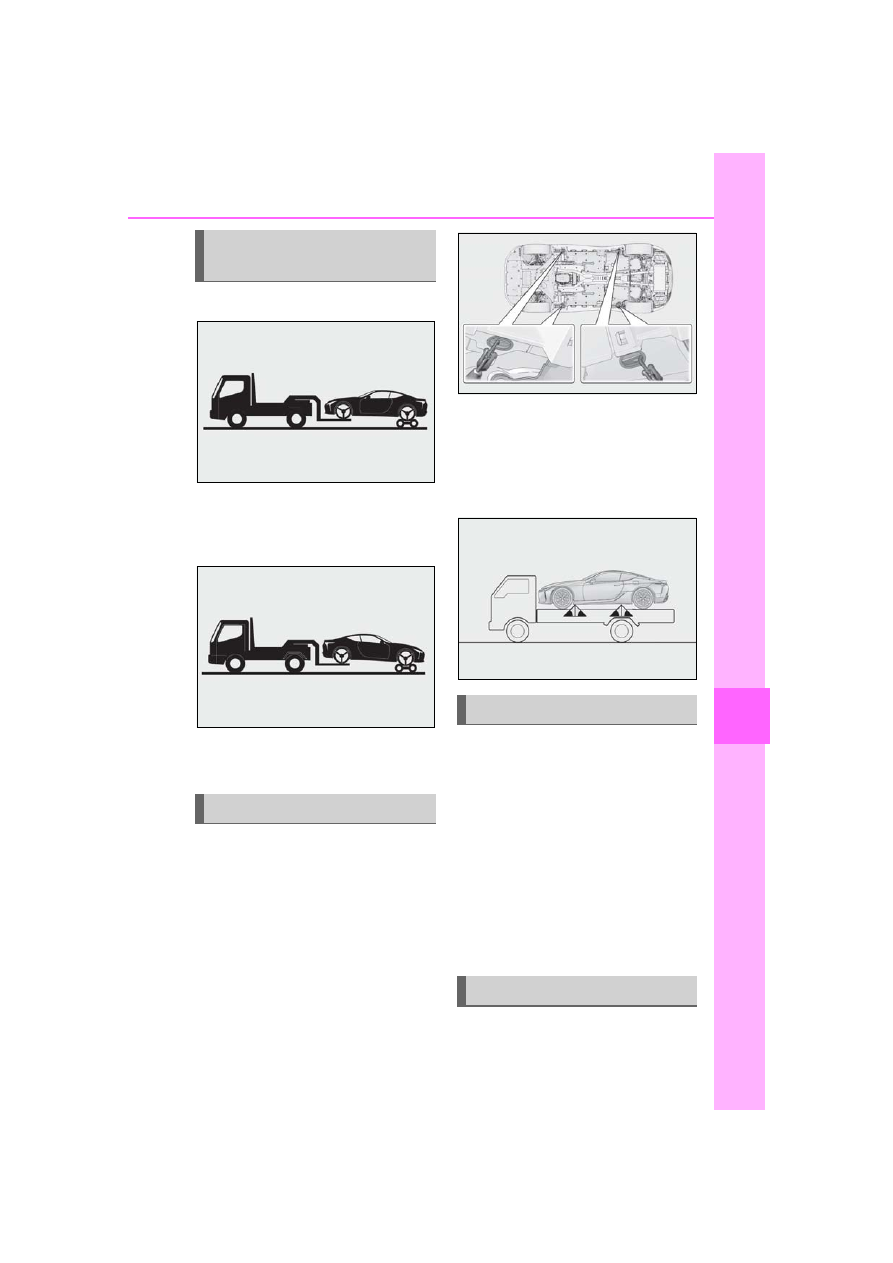

Use a towing dolly under the rear
wheels.



From the rear

Use a towing dolly under the front
wheels.

If your vehicle is transported by a flat-
bed truck, it should be tied down at the
locations shown in the illustration.

If you use chains or cables to tie down
your vehicle, the angles shaded in
black must be 45°.
Do not overly tighten the tie downs or
the vehicle may be damaged.

If a tow truck is not available in an
emergency, your vehicle may be tem-
porarily towed using cables or chains
secured to the emergency towing eye-
lets. This should only be attempted on
hard surfaced roads for short distances
at under 18 mph (30 km/h).
A driver must be in the vehicle to steer
and operate the brakes. The vehicle’s
wheels, drive train, axles, steering and
brakes must be in good condition.

To have your vehicle towed by another

Towing with a wheel-lift type
truck

Using a flatbed truck

Emergency towing

Emergency towing procedure

332

7-2. Steps to take in an emergency

vehicle, the towing eyelet must be
installed to your vehicle. Install the tow-
ing eyelet using the following proce-
dure.

Take out the screwdriver and the
towing eyelet. (

P.310)

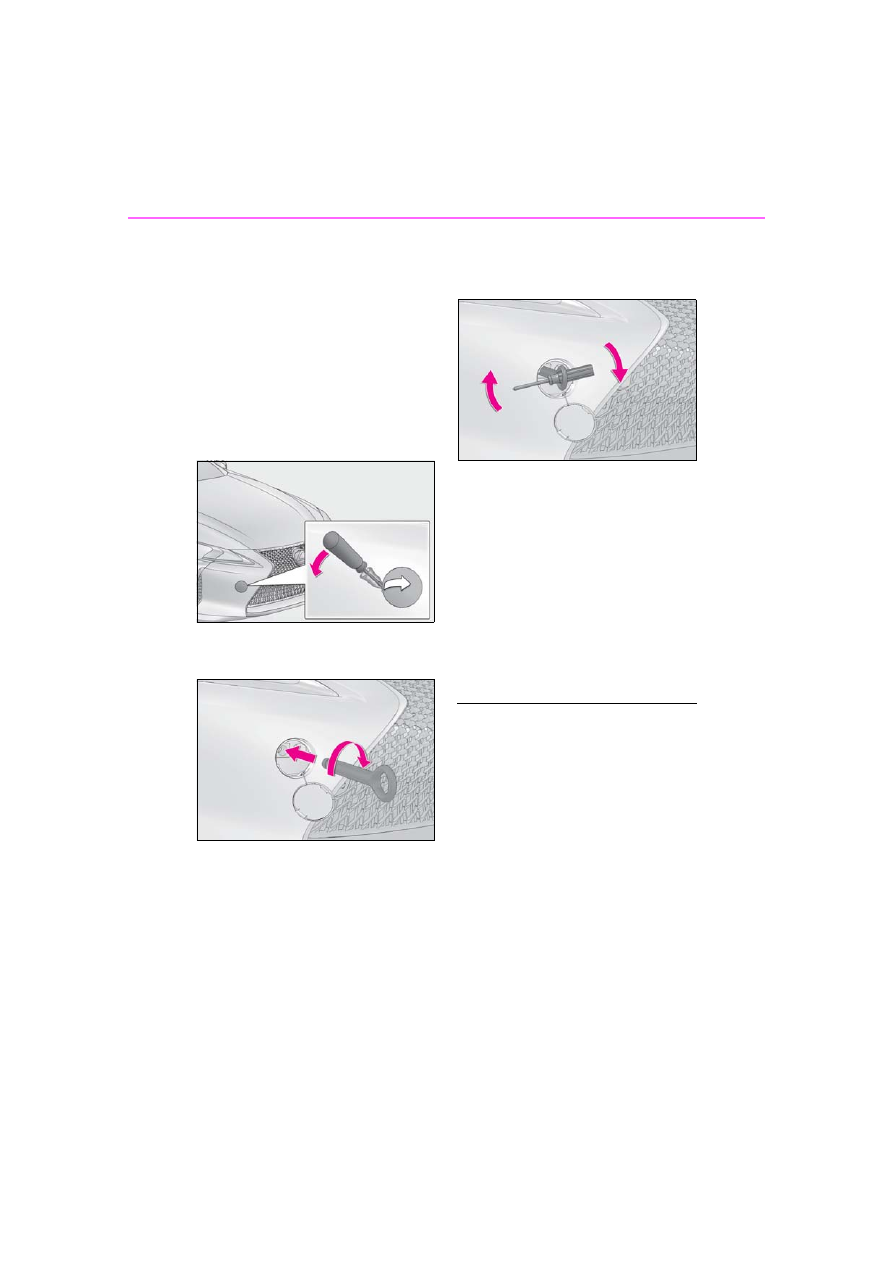

Remove the eyelet cover using a
flathead screwdriver.

To protect the bodywork, place a rag

between the screwdriver and the vehicle

body as shown in the illustration.

Insert the towing eyelet into the
hole and tighten partially by hand.

Tighten down the towing eyelet
securely using the screwdriver or
hard metal bar.

Securely attach cables or chains to
the towing eyelet.

Take care not to damage the vehicle body.

Enter the vehicle being towed and
start the engine <hybrid system>.

If the engine <hybrid system> does not

start, turn the engine switch <power

switch> to IGNITION ON mode <ON

mode>.

Shift the shift position to N and
release the parking brake.

■

While towing

If the engine is not running <hybrid system is

off>, the power assist for the brakes and

steering will not function, making steering

and braking more difficult.

333

7-2. Steps to take in an emergency

When trouble

ari

ses

 Fluid leaks under the vehicle. (Water

dripping from the air conditioning
after use is normal.)

 Flat-looking tires or uneven tire

wear

 Engine coolant temperature gauge

continually points higher than nor-
mal.

 Changes in exhaust sound
 Excessive tire squeal when corner-

ing

 Strange noises related to the sus-

pension system

 Pinging or other noises related to

the engine <hybrid system>

 Engine missing, stumbling or run-

ning roughly

 Appreciable loss of power
 Vehicle pulls heavily to one side

when braking

 Vehicle pulls heavily to one side

when driving on a level road

 Loss of brake effectiveness, spongy

feeling, pedal almost touches the
floor

If you think something is
wrong

If you notice any of the following
symptoms, your vehicle probably
needs adjustment or repair. Con-
tact your Lexus dealer as soon as
possible.

Visible symptoms

Audible symptoms

Operational symptoms

334

7-2. Steps to take in an emergency

Follow the procedure below to restart
the engine after the system is activated.

Turn the engine switch to ACCES-
SORY mode or turn it off.

Restart the engine.

Fuel pump shut off system
(LC500)

To minimize the risk of fuel leakage
when the engine stalls or when an
airbag inflates upon collision, the
fuel pump shut off system stops the
supply of fuel to the engine.

Restarting the engine

NOTICE

■

Before starting the engine

Inspect the ground under the vehicle.

If you find that fuel has leaked onto the

ground, the fuel system has been dam-

aged and is in need of repair. Do not

restart the engine.

335

7-2. Steps to take in an emergency

When trouble

ari

ses

■

Brake system warning light (warning buzzer)

■

Charging system warning light

: This light illuminates on the multi-information display.

■

Low engine oil pressure warning light (warning buzzer)

: This light illuminates on the multi-information display.

If a warning light turns on or a warning buzzer sounds

Calmly perform the following actions if any of the warning lights comes on or
flashes. If a light comes on or flashes, but then goes off, this does not necessar-
ily indicate a malfunction in the system. However, if this continues to occur,
have the vehicle inspected by your Lexus dealer.

Actions to the warning lights or warning buzzers

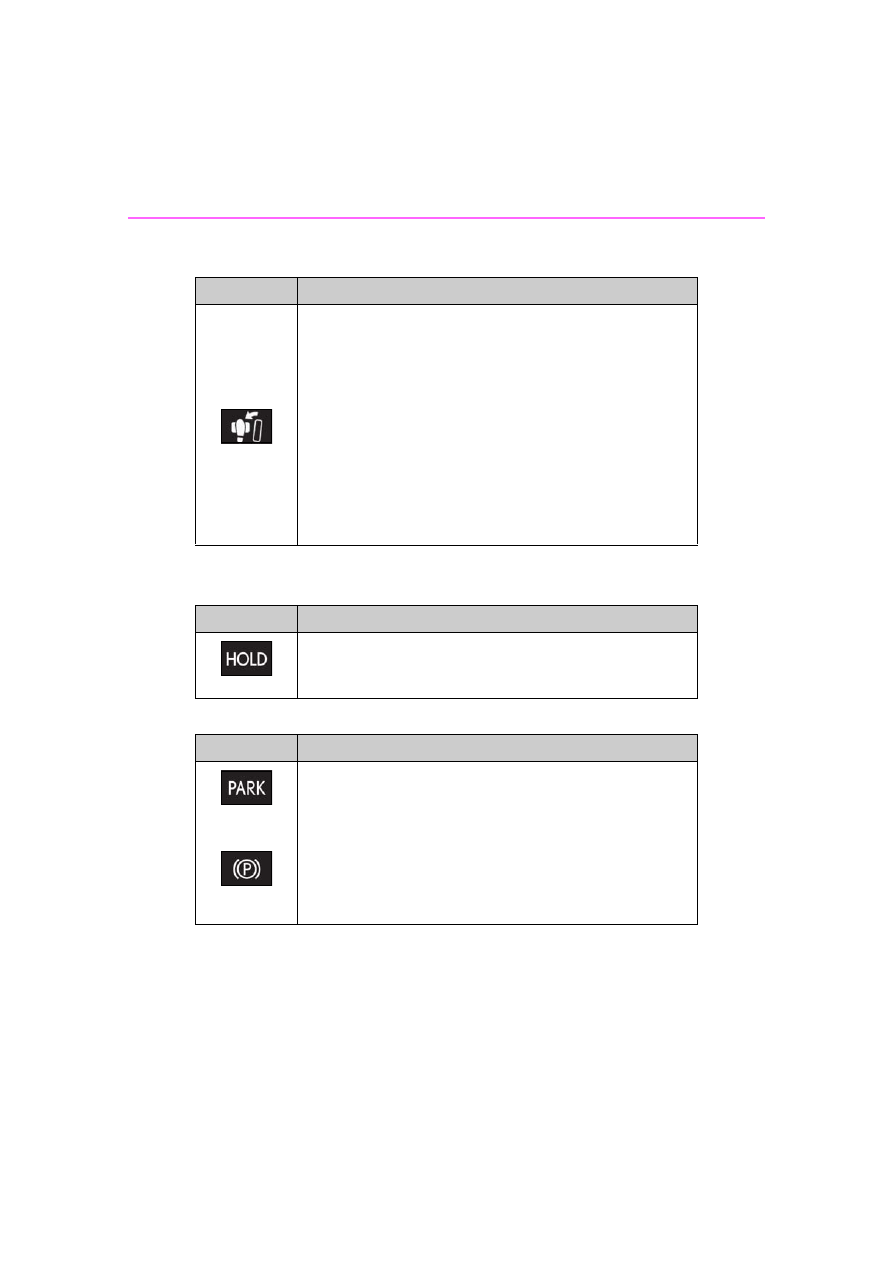

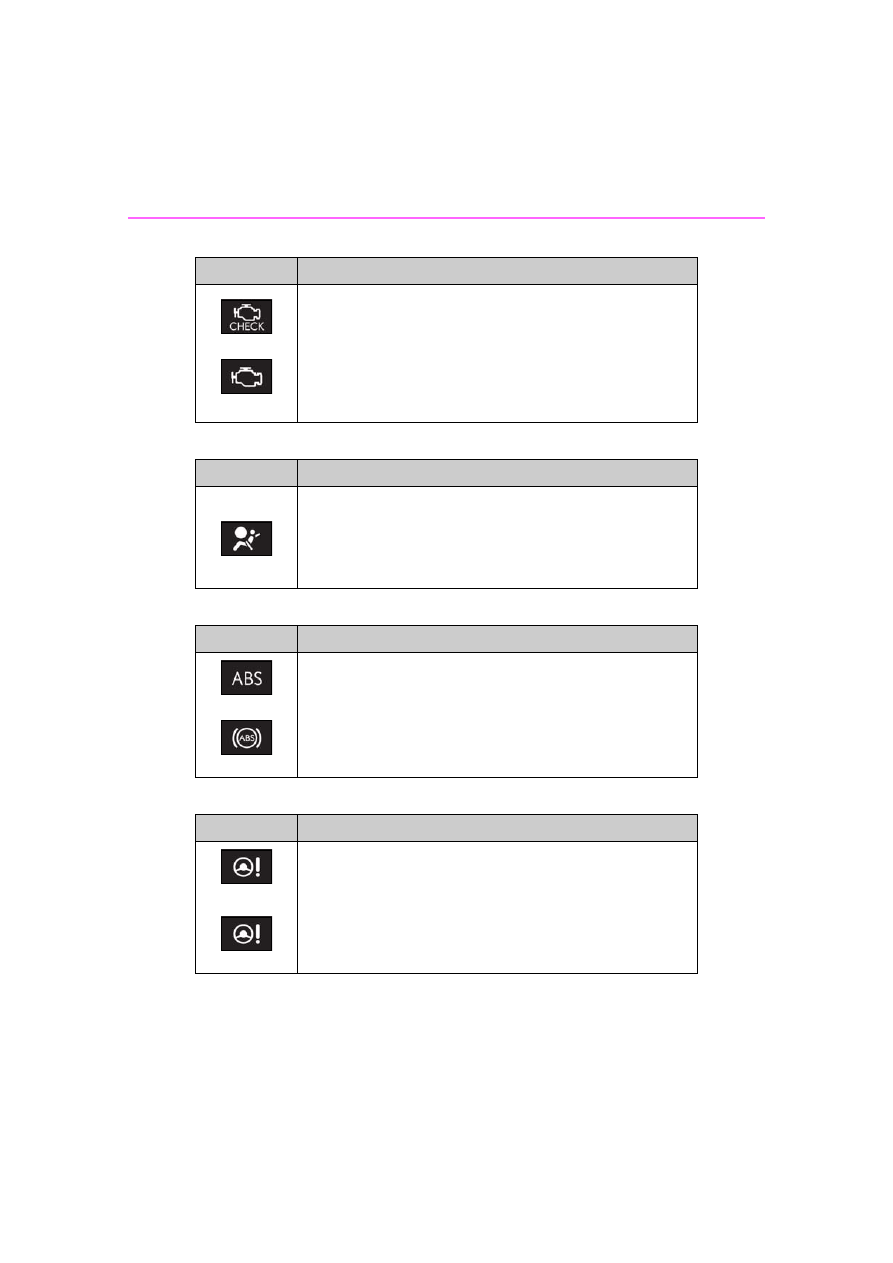

Warning light

Warning light/Details/Actions

(U.S.A.)

(red)

(Canada)

Indicates that:
The brake fluid level is low; or
The brake system is malfunctioning
This light also comes on when the parking brake is not released. If the
light turns off after the parking brake is fully released the system is oper-
ating normally.
 Immediately stop the vehicle in a safe place and contact your Lexus

dealer. Continuing to drive the vehicle may be dangerous.

Indicates that the brake pads are worn out (only the right-side pads

can be detected)

 Have the vehicle inspected by your Lexus dealer.

Warning light

Warning light/Details/Actions

Indicates a malfunction in the vehicle’s charging system
 Immediately stop the vehicle in a safe place and contact your Lexus

dealer.

Warning light

Warning light/Details/Actions

Indicates that the engine oil pressure is too low
 Immediately stop the vehicle in a safe place and contact your Lexus

dealer.

336

7-2. Steps to take in an emergency

■

Malfunction indicator lamp (warning buzzer)

■

SRS warning light

■

ABS warning light (warning buzzer)

■

Electric power steering system warning light (warning buzzer)

Warning light

Warning light/Details/Actions

(U.S.A.)

(Canada)

Indicates a malfunction in:
The electronic engine control system;
The hybrid system (LC500h);
The electronic throttle control system;
The electronic automatic transmission control system (LC500); or
The electronic hybrid transmission control system (LC500h)
 Have the vehicle inspected by your Lexus dealer immediately.

Warning light

Warning light/Details/Actions

Indicates a malfunction in:
The SRS airbag system;
The front passenger occupant classification system; or
The seat belt pretensioner system
 Have the vehicle inspected by your Lexus dealer immediately.

Warning light

Warning light/Details/Actions

(U.S.A.)

(Canada)

Indicates a malfunction in:
The ABS; or
The brake assist system
 Have the vehicle inspected by your Lexus dealer immediately.

Warning light

Warning light/Details/Actions

(red)

(yellow)

Indicates a malfunction in the EPS (Electric Power Steering) system
 Have the vehicle inspected by your Lexus dealer immediately.

337

7-2. Steps to take in an emergency

When trouble

ari

ses

■

PCS warning light (warning buzzer)

■

LKA (Lane-Keeping Assist) indicator

: This light illuminates on the multi-information display.

■

Slip indicator

Warning light

Warning light/Details/Actions

(Flashes or illumi-

nates)

Indicates a malfunction in the PCS (Pre-Collision System) or that the
system is temporarily unavailable due to the vehicle being extremely
hot/cold, or dirt around a front sensor, etc. (

 P.195, 344)

 Follow the instructions displayed on the multi-information display.

(

P.195, 344)

If the PCS (Pre-Collision System) or VSC (Vehicle Stability Control)
system is disabled, the PCS warning light will illuminate.
 P.233

Warning light

Warning light/Details/Actions

(orange)

Indicates a malfunction in the LKA (Lane-Keeping Assist)
 When “Lane Keeping Assist Unavailable” is displayed on the multi-

information display, turn the LKA (Lane-Keeping Assist) system
off, drive the vehicle for a short time, and then turn the LKA (Lane-
Keeping Assist) system back on. (

P.198)

When a message other than above is displayed, follow the instruc-
tions displayed in the message.

Warning light

Warning light/Details/Actions

Indicates a malfunction in:
The VSC (Vehicle Stability Control) system;
The TRAC (Traction Control) system; or
The hill-start assist control system
The light will flash when the VSC, TRAC or ABS system is operating.
 Have the vehicle inspected by your Lexus dealer immediately.

338

7-2. Steps to take in an emergency

■

Brake Override System warning light/Drive-Start Control warning light
(warning buzzer)

: This light illuminates on the multi-information display.

■

Brake hold operated indicator

■

Parking brake indicator

Warning light

Warning light/Details/Actions

When the warning light flashes (and a buzzer sounds):
Indicates a malfunction in the Brake Override System or Drive-Start
Control
 Have the vehicle inspected by your Lexus dealer immediately.
Indicates that the shift position was changed while depressing the accel-
erator pedal and Drive-Start Control was operated
 Momentarily release the accelerator pedal.
When the warning light flashes (and a buzzer does not sound):
Indicates that the accelerator and brake pedals are being depressed
simultaneously
 Release the accelerator pedal and depress the brake pedal.

Warning light

Warning light/Details/Actions

(flashes)

Indicates a malfunction in the brake hold system
 Have the vehicle inspected by your Lexus dealer.

Warning light

Warning light/Details/Actions

(flashes)

(U.S.A.)

(flashes)

(Canada)

Indicates a malfunction in the parking brake system
 Have the vehicle inspected by your Lexus dealer immediately.

339

7-2. Steps to take in an emergency

When trouble

ari

ses

■

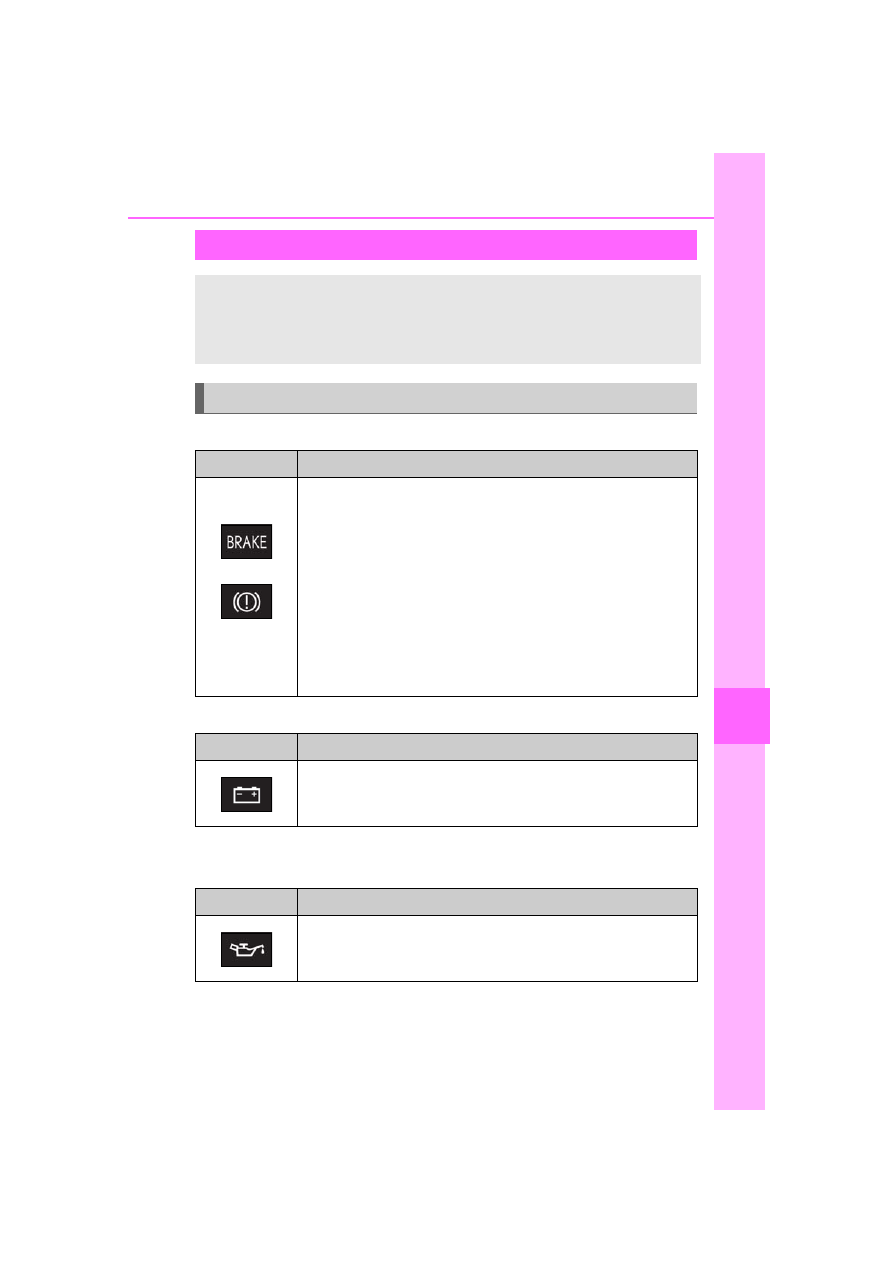

Brake system warning light

■

Low fuel level warning light

■

Driver’s and front passenger’s seat belt reminder light (warning buzzer)

: Driver’s seat belt buzzer:

The driver’s seat belt buzzer sounds to alert the driver that his or her seat belt is not fas-
tened. Once the engine switch <power switch> is turned to IGNITION ON mode <ON
mode>, the buzzer sounds for 6 seconds. If the vehicle reaches a speed of 12 mph (20
km/h), the buzzer sounds once. If the seat belt is still unfastened after 24 seconds, the
buzzer will sound intermittently for 6 seconds. Then, if the seat belt is still unfastened, the
buzzer will sound in a different tone for 90 more seconds.
Front passenger’s seat belt buzzer:
The front passenger’s seat belt buzzer sounds to alert the front passenger that his or her
seat belt is not fastened. The buzzer sounds once if the vehicle reaches a speed of 12 mph
(20 km/h). If the seat belt is still unfastened after 24 seconds, the buzzer will sound inter-
mittently for 6 seconds. Then, if the seat belt is still unfastened, the buzzer will sound in a dif-
ferent tone for 90 more seconds.

Warning light

Warning light/Details/Actions

(yellow)

Indicates a malfunction in:
The electronically controlled brake system
The regenerated braking system (LC500h)
The parking brake system
 Have the vehicle inspected by your Lexus dealer immediately.

Warning light

Warning light/Details/Actions

Indicates that remaining fuel is approximately 3.3 gal. [12.6 L, 2.8
Imp.gal.] or less
 Refuel the vehicle.

Warning light

Warning light/Details/Actions

Warns the driver and/or front passenger to fasten their seat belts
 Fasten the seat belt.

If the front passenger’s seat is occupied, the front passenger’s seat
belt also needs to be fastened to make the warning light (warning
buzzer) turn off.

340

7-2. Steps to take in an emergency

■

Rear passengers’ seat belt reminder lights (warning buzzer

)

: Rear passenger’s seat belt buzzer:

The rear passenger’s seat belt buzzer sounds to alert the rear passenger that his or her seat
belt is not fastened. The buzzer sounds for 6 seconds if the vehicle reaches a speed of 12
mph (20 km/h). Then, if the seat belt is still unfastened, the buzzer will sound in a different
tone for 24 more seconds.

: This light illuminates on the center panel.

■

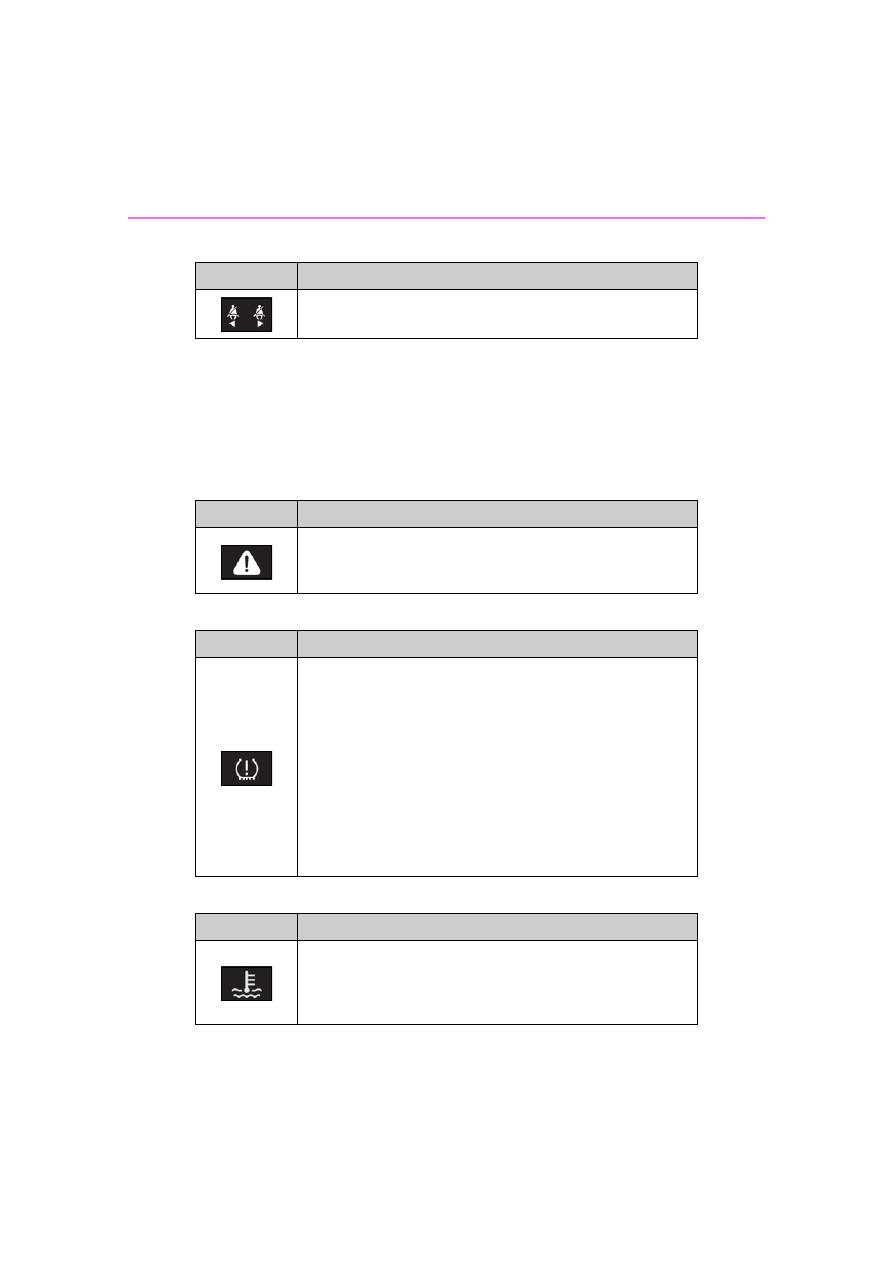

Master warning light (warning buzzer)

■

Tire pressure warning light

■

High coolant temperature warning light (warning buzzer)

Warning light

Warning light/Details/Actions

Warns the rear passengers to fasten their seat belts
 Fasten the seat belt.

Warning light

Warning light/Details/Actions

A buzzer sounds and the warning light comes on and flashes to indicate
that the master warning system has detected a malfunction.
 P.344

Warning light

Warning light/Details/Actions

When the light comes on:
Low tire inflation pressure such as
Natural causes (

P.342)

Flat tire (

P.350)

 Adjust the tire inflation pressure to the specified level.

The light will turn off after a few minutes. In case the light does not
turn off even if the tire inflation pressure is adjusted, have the sys-
tem checked by your Lexus dealer.

When the light comes on after blinking for 1 minute:
Malfunction in the tire pressure warning system
 Have the system checked by your Lexus dealer.

Warning light

Warning light/Details/Actions

Changes from a flashing to a solid light when the engine coolant tem-
perature increases
 Immediately stop the vehicle in a safe place.

Handling method. (

P.364, 366)

341

7-2. Steps to take in an emergency

When trouble

ari

ses

: This light illuminates on the multi-information display.

■

Hybrid system overheat warning light (warning buzzer)

(LC500h)

: This light illuminates on the multi-information display.

■

SRS warning light

This warning light system monitors the airbag sensor assembly, front impact sensors, side

impact sensors (door), side impact sensors (front), side impact sensors (rear), driver’s seat

position sensor, driver’s seat belt buckle switch, front passenger occupant classification sys-

tem (ECU and sensors), “AIR BAG ON” indicator light, “AIR BAG OFF” indicator light,

front passenger’s seat belt buckle switch, seat belt pretensioners, airbags, interconnecting

wiring and power sources. (

P.29)

■

Front passenger detection sensor, seat belt reminder and warning buzzer

If luggage is placed on the front passenger seat, the front passenger detection sensor may

cause the warning light to flash and the warning buzzer to sound even if a passenger is not

sitting in the seat.

■

If the malfunction indicator lamp comes on while driving

First check the following:

●

Is the fuel tank empty?

If it is, fill the fuel tank immediately.

●

Is the fuel tank cap loose?

If it is, tighten it securely.

The light will go off after several driving trips.
If the light does not go off even after several trips, contact your Lexus dealer as soon as pos-

sible.

■

Electric power steering system warning light (warning buzzer)

When the 12-volt battery charge becomes insufficient or the voltage temporarily drops, the

electric power steering system warning light may come on and the warning buzzer may

sound.

■

Tire pressure warning light

When a malfunction occurs in the tire pressure warning system, the tire pressure warning

light blinks to warn the driver. However, if the warning light blinks for 1 minute, and then

remains illuminated, making it difficult to determine whether the warning light is blinking,

turn the engine switch <power switch> from off to IGNITION ON mode <ON mode> and

check if the warning light blinks.

■

When the tire pressure warning light comes on

Check the tire inflation pressure and adjust to the appropriate level. Pushing the tire pres-

sure warning reset switch will not turn off the tire pressure warning light.

Warning light

Warning light/Details/Actions

Indicates that the hybrid system has overheated
This light may be displayed when driving under severe operating condi-
tions. (For example, when driving up a long steep hill.)
 Stop the vehicle in a safe place and the hybrid system. (P.366)

342

7-2. Steps to take in an emergency

■

The tire pressure warning light may come on due to natural causes

The tire pressure warning light may come on due to natural causes such as natural air leaks

and tire inflation pressure changes caused by temperature. In this case, adjusting the tire

inflation pressure will turn off the warning light (after a few minutes).

■

Conditions that the tire pressure warning system may not function properly

P.304

■

If the tire pressure warning light frequently comes on after blinking for 1 minute

If the tire pressure warning light frequently comes on after blinking for 1 minute when the

engine switch <power switch> is turned to IGNITION ON mode <ON mode>, have it

checked by your Lexus dealer.

■

Warning buzzer

In some cases, the buzzer may not be heard due to being in a noisy location or audio sound.

■

Customization

The vehicle speed linked seat belt reminder buzzer can be disabled.

(Customizable features:

P.391)

WARNING

■

If both the ABS and the brake system warning lights remain on

Stop your vehicle in a safe place immediately and contact your Lexus dealer. The vehicle

will become extremely unstable during braking, and the ABS system may fail, which could

cause an accident resulting in death or serious injury.

■

When the electric power steering system warning light comes on

When the light comes on in yellow, the assist to the power steering is restricted. When the

light comes on red, the assist to the power steering is lost and handling operations of the

steering wheel become extremely heavy. When steering wheel operations are heavier

than usual, grip the steering wheel firmly and operate it using more force than usual.

■

If the tire pressure warning light comes on

Be sure to observe the following precautions. Failure to do so could cause a loss of vehi-

cle control and result in death or serious injury.

●

Decelerate to the lowest appropriate speed as soon as possible. Do not drive over 50

mph (80 km/h).

●

Check and adjust the tire inflation pressure immediately.

●

If the tire pressure warning light comes on even after tire inflation pressure adjustment,

it is probable that you have a flat tire. Have the flat tire replaced by the nearest Lexus

dealer.

●

Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could lose

control of the steering wheel or the brakes.

■

If a blowout or sudden air leakage should occur

The tire pressure warning system may not activate immediately.

343

7-2. Steps to take in an emergency

When trouble

ari

ses

WARNING

■

Maintenance of the tires

Each tire, including the spare (if provided), should be checked monthly when cold and

inflated to the inflation pressure recommended by the vehicle manufacturer on the vehi-

cle placard or tire inflation pressure label (tire and load information label). (If your vehicle

has tires of a different size than the size indicated on the vehicle placard or tire inflation

pressure label [tire and load information label], you should determine the proper tire

inflation pressure for those tires.)

As an added safety feature, your vehicle has been equipped with a tire pressure monitor-

ing system (TPMS-tire pressure warning system) that illuminates a low tire pressure tell-

tale (tire pressure warning light) when one or more of your tires is significantly under-

inflated. Accordingly, when the low tire pressure telltale (tire pressure warning light) illu-

minates, you should stop and check your tires as soon as possible, and inflate them to the

proper pressure. Driving on a significantly under-inflated tire causes the tire to overheat

and can lead to tire failure. Under-inflation also reduces fuel efficiency and tire tread life,

and may affect the vehicle’s handling and stopping ability.

Please note that the TPMS (tire pressure warning system) is not a substitute for proper

tire maintenance, and it is the driver’s responsibility to maintain correct tire pressure, even

if under-inflation has not reached the level to trigger illumination of the TPMS low tire

pressure telltale (tire pressure warning light).

Your vehicle has also been equipped with a TPMS (tire pressure warning system) mal-

function indicator to indicate when the system is not operating properly. The TPMS (tire

pressure warning system) malfunction indicator is combined with the low tire pressure

telltale (tire pressure warning light). When the system detects a malfunction, the telltale

will flash for approximately one minute and then remain continuously illuminated. This

sequence will continue upon subsequent vehicle start-ups as long as the malfunction

exists. When the malfunction indicator is illuminated, the system may not be able to

detect or signal low tire pressure as intended.

TPMS (tire pressure warning system) malfunctions may occur for a variety of reasons,

including the installation of replacement or alternate tires or wheels on the vehicle that

prevent the TPMS (tire pressure warning system) from functioning properly. Always

check the TPMS (tire pressure warning system) malfunction telltale after replacing one or

more tires or wheels on your vehicle to ensure that the replacement or alternate tires and

wheels allow the TPMS (tire pressure warning system) to continue to function properly.

NOTICE

■

To ensure the tire pressure warning system operates properly

Do not install tires with different specifications or makers, as the tire pressure warning

system may not operate properly.

344

7-2. Steps to take in an emergency

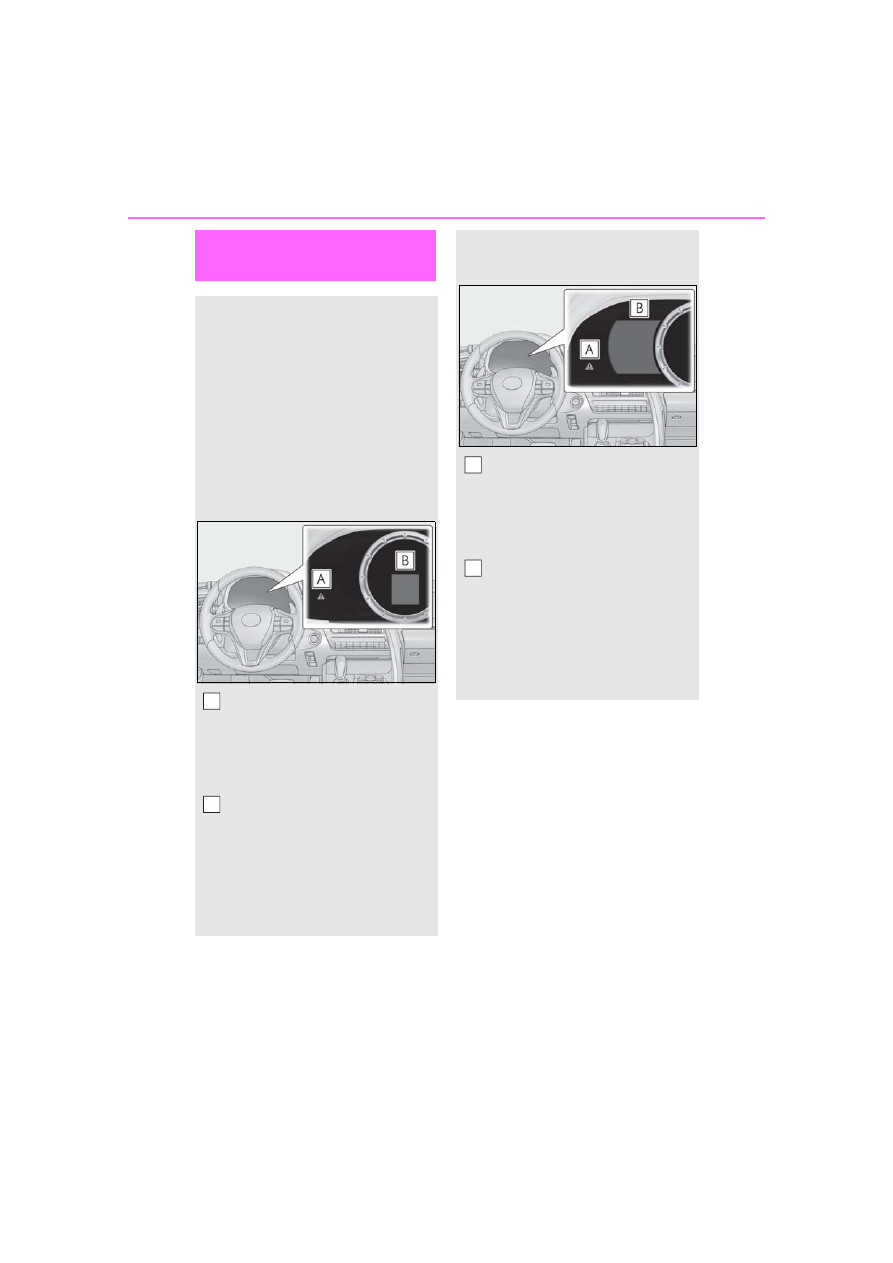

If a warning message is dis-
played

The multi-information display
shows warnings of system malfunc-
tions, incorrectly performed opera-
tions, and messages that indicate a
need for maintenance. When a
message is shown, perform the cor-
rection procedure appropriate to
the message.

When the main meter is in the center
position:

Master warning light

The master warning light also comes on
or flashes in order to indicate that a mes-
sage is currently being displayed on the
multi-information display.

Multi-information display

Follow the instructions of the message
on the multi-information display.
If any of the warning message is shown
again after the following actions have
been performed, contact your Lexus
dealer.

When the main meter is in the side
position:

Master warning light

The master warning light also comes on
or flashes in order to indicate that a mes-
sage is currently being displayed on the
multi-information display.

Multi-information display

Follow the instructions of the message
on the multi-information display.
If any of the warning message is shown
again after the following actions have
been performed, contact your Lexus
dealer.

345

7-2. Steps to take in an emergency

When trouble

ari

ses

The warning lights and warning buzzers operate as follows depending on the con-
tent of the message. If a message indicates the need for inspection by a dealer, have
the vehicle inspected by your Lexus dealer immediately.

: A buzzer sounds the first time a message is shown on the multi-information display.

■

Warning messages

The warning messages explained below may differ from the actual messages according to

operation conditions and vehicle specifications.

■

System warning lights

The master warning light does not come on or flash in the following cases. Instead, a sepa-

rate system warning light will come on along with a message or image shown on the multi-

information display.

●

Malfunction in the ABS

The ABS warning light comes on. (

P.336)

●

Malfunction in the charging system

The charging system warning light comes on. (

P.335)

●

Malfunction in the brake system

The brake system warning light comes on. (

P.335)

Messages and warnings

System warn-

ing light

Warning

buzzer

Warning

Comes on

Sounds

Indicates an important situation, such as
when a system related to driving is malfunc-
tioning or that danger may result if the cor-
rection procedure is not performed

Comes on



Sounds



Comes on or

flashes

Sounds

Indicates an important situation, such as
when the systems shown on the multi-infor-
mation display may be malfunctioning

Flashes



Sounds

Indicates a situation, such as when damage
to the vehicle or danger may result

Comes on



Does not

sound

Indicates a condition, such as malfunction of
electrical components, their condition, or
indicates the need for maintenance

Flashes



Does not

sound

Indicates a situation, such as when an oper-
ation has been performed incorrectly, or
indicates how to perform an operation cor-
rectly

LEXUS LC 500H (2019 year). Instruction - part 21
