LEXUS LC 500H (2019 year). Instruction - part 19

298

6-3. Do-it-yourself maintenance



LC500



LC500h

■

Adding fluid

Make sure to check the fluid type and
prepare the necessary items.
 Fluid type

SAE J1703 or FMVSS No.116 DOT 3
brake fluid

 Item

Clean funnel

■

Brake fluid can absorb moisture from

the air

Excess moisture in the brake fluid can cause

a dangerous loss of braking efficiency. Use

only newly opened brake fluid.

If any washer does not work or “Wind-
shield Washer Fluid Low” is shown on
the multi-information display, the
washer tank may be empty. Add
washer fluid.



LC500

WARNING

■

When filling the reservoir

Take care as brake fluid can harm your

hands and eyes and damage painted sur-

faces.

If fluid gets on your hands or in your eyes,

flush the affected area with clean water

immediately.
If you still experience discomfort, see a

doctor.

NOTICE

■

If the fluid level is low or high

It is normal for the brake fluid level to go

down slightly as the brake pads wear out

or when the fluid level in the accumulator

is high.

If the reservoir needs frequent refilling,

there may be a serious problem.

Checking and adding the washer
fluid

299

6-3. Do-it-yourself maintenance

Mai
nte

e a

are



LC500h

The 12-volt battery is located in the
trunk.

■

Before recharging

When recharging, the 12-volt battery pro-

duces hydrogen gas which is flammable

and explosive. Therefore, observe the fol-

lowing precautions before recharging:

●

If recharging with the 12-volt battery

installed on the vehicle, be sure to discon-

nect the ground cable.

●

Make sure the power switch on the char-

ger is off when connecting and discon-

necting the charger cables to the 12-volt

battery.

■

After recharging/reconnecting the 12-

volt battery

●

Unlocking the doors using the smart

access system with push-button start may

not be possible immediately after recon-

necting the 12-volt battery. If this hap-

pens, use the wireless remote control or

the mechanical key to lock/unlock the

doors.

●

Start the engine <hybrid system> with the

engine switch <power switch> in ACCES-

SORY mode. The engine <hybrid sys-

tem> may not start with the engine switch

<power switch> turned off. However, the

engine <hybrid system> will operate nor-

mally from the second attempt.

●

The engine switch <power switch> mode

is recorded by the vehicle. If the 12-volt

WARNING

■

When adding washer fluid

Do not add washer fluid when the engine

<hybrid system> is hot or running <oper-

ating> as washer fluid contains alcohol

and may catch fire if spilled on the engine

etc.

NOTICE

■

Do not use any fluid other than

washer fluid

Do not use soapy water or engine anti-

freeze instead of washer fluid.

Doing so may cause streaking on the

vehicle’s painted surfaces, as well as

damaging the pump leading to problems

of the washer fluid not spraying.

■

Diluting washer fluid

Dilute washer fluid with water as neces-

sary.

Refer to the freezing temperatures listed

on the label of the washer fluid bottle.

12-volt battery

Location

300

6-3. Do-it-yourself maintenance

battery is reconnected, the vehicle will

return the engine switch <power switch>

mode to the status it was in before the 12-

volt battery was disconnected. Make sure

to turn off the engine switch <power

switch> before disconnect the 12-volt bat-

tery. Take extra care when connecting the

12-volt battery if the engine switch

<power switch> mode prior to discharge

is unknown.

If the engine <hybrid system> will not start

even after multiple attempts at all methods

above, contact your Lexus dealer.

Pull the strap upwards to lift up the lug-
gage mat.

WARNING

■

Chemicals in the 12-volt battery

The 12-volt battery contains poisonous

and corrosive sulfuric acid and may pro-

duce hydrogen gas which is flammable

and explosive. To reduce the risk of death

or serious injury, take the following pre-

cautions while working on or near the 12-

volt battery:

●

Do not cause sparks by touching the

12-volt battery terminals with tools.

●

Do not smoke or light a match near the

12-volt battery.

●

Avoid contact with eyes, skin and

clothes.

●

Never inhale or swallow electrolyte.

●

Wear protective safety glasses when

working near the 12-volt battery.

●

Keep children away from the 12-volt

battery.

■

Where to safely charge the 12-volt

battery

Always charge the 12-volt battery in an

open area. Do not charge the 12-volt bat-

tery in a garage or closed room where

there is insufficient ventilation.

■

How to recharge the 12-volt battery

Recharge at a current of 5 A or less and

make sure that the recharging period

does not exceed a total of 12 hours.

■

Emergency measures regarding

electrolyte

●

If electrolyte gets in your eyes

Flush your eyes with clean water for at

least 15 minutes and get immediate

medical attention. If possible, continue

to apply water with a sponge or cloth

while traveling to the nearest medical

facility.

●

If electrolyte gets on your skin

Wash the affected area thoroughly. If

you feel pain or burning, get medical

attention immediately.

●

If electrolyte gets on your clothes

It can soak through clothing on to your

skin. Immediately take off the clothing

and follow the procedure above if nec-

essary.

●

If you accidentally swallow electrolyte

Drink a large quantity of water or milk.

Get emergency medical attention

immediately.

NOTICE

■

When recharging the 12-volt battery

Never recharge the 12-volt battery while

the engine is running <hybrid system is

operating>. Also, be sure all accessories

are turned off.

Removing the 12-volt battery
cover

301

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

Make sure that the 12-volt battery ter-
minals are not corroded and that there
are no loose connections, cracks, or
loose clamps.

Terminals

Hold-down clamp

Check that the level is upper than the
center between the bottom of the bat-
tery lid and “LOWER LEVEL” line.

Bottom of the battery lid

“LOWER LEVEL” line

Center of

and

If the fluid level is below

, replace the

12-volt battery.

Check if the treadwear indicators are
showing on the tires. Also check the
tires for uneven wear, such as excessive
wear on one side of the tread.

New tread

Worn tread

Treadwear indicator

The location of treadwear indicators is
shown by a “TWI” or “

” mark, etc.,

molded into the sidewall of each tire.
Replace the tires if the treadwear indica-
tors are showing on a tire.

Exterior

Checking 12-volt battery fluid

A
B

A
B
C

Tires

Replace or rotate tires in accor-
dance with maintenance schedules
and treadwear.

Checking tires

A
B
C

302

6-3. Do-it-yourself maintenance

■

When to replace your vehicle’s tires

Tires should be replaced if:

●

The treadwear indicators are showing on

a tire.

●

You have tire damage such as cuts, splits,

cracks deep enough to expose the fabric,

and bulges indicating internal damage

●

A tire goes flat repeatedly or cannot be

properly repaired due to the size or loca-

tion of a cut or other damage

If you are not sure, consult your Lexus

dealer.

■

Tire life

Any tire over 6 years old must be checked

by a qualified technician even if it has sel-

dom or never been used or damage is not

obvious.

■

Low profile tires (21-inch tires)

Generally, low profile tires will wear more

rapidly and tire grip performance will be

reduced on snowy and/or icy roads when

compared to standard tires. Be sure to use

snow tires on snowy and/or icy roads and

drive carefully at a speed appropriate for

road and weather conditions.

■

Maximum load of tire

Check that the maximum load of the

replacement tire is greater than 1/2 of the

Gross Axle Weight Ratings (GAWR) of

either the front axle or the rear axle, which-

ever is greater.
For the GAWR, see the Certification Label.

For the maximum load of the tire, see the

load limit at maximum cold tire inflation

pressure mentioned on the sidewall of the

tire. (

P.383)

■

Tire types

●

Summer tires

Summer tires are high-speed perfor-

mance tires best suited to highway driv-

ing under dry conditions. Since summer

tires do not have the same traction per-

formance as snow tires, summer tires are

inadequate for driving on snow-covered

or icy roads. For driving on snow-covered

roads or icy roads, the use of snow tires is

recommended. When installing snow

tires, be sure to replace all four tires.

●

All season tires

All season tires are designed to provide

better traction in snow and to be ade-

quate for driving in most winter condi-

tions as well as for use year-round. All

season tires, however, do not have ade-

quate traction performance compared

with snow tires in heavy or loose snow.

Also, all season tires fall short in accelera-

tion and handling performance com-

pared with summer tires in highway

driving.

●

Snow tires

For driving on snow-covered roads or icy

roads, we recommend using snow tires. If

you need snow tires, select tires of the

same size, construction and load capacity

as the originally installed tires. Since your

vehicle has radial tires as original equip-

ment, make sure your snow tires also

have radial construction. Do not install

studded tires without first checking local

regulations for possible restrictions.

Snow tires should be installed on all

wheels. (

P.238)

■

If the tread on snow tires wears down

below 0.16 in. (4 mm)

The effectiveness of the tires as snow tires is

lost.

WARNING

■

When inspecting or replacing tires

Observe the following precautions to

prevent accidents.

Failure to do so may cause damage to

parts of the drivetrain as well as danger-

ous handling characteristics, which may

lead to an accident resulting in death or

serious injury.

303

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

Tires cannot be rotated.

When run-flat tires are installed, the
vehicle can be driven for a maximum of
100 miles (160 km) at a speed below
50 mph (80 km/h) after any tire goes
flat. (However, the vehicle speed may
not increase to near 50 mph [80
km/h] depending on weather or driv-
ing conditions.)

A run-flat tire has a

mark on

the sidewall.

Make sure to replace the flat tire before the
vehicle has been driven for near 100 miles
(160 km). Also, do not use a repaired tire.

■

Run-flat tires

●

The run-flat tires are for only this vehicle.

Do not use the tires on other vehicles.

●

Do not mix run-flat tires and normal tires.

●

If non-genuine Lexus wheels are used, it

may be impossible to sufficiently demon-

strate the performance of run-flat tires.

Your vehicle is equipped with a tire
pressure warning system that uses tire
pressure warning valves and transmit-
ters to detect low tire inflation pressure
before serious problems arise.
 If the tire pressure drops below a

predetermined level, the driver is
warned by a screen display and a
warning light. (

P.340)

 The tire pressure detected by the

WARNING

●

Do not mix tires of different makes,

models or tread patterns.

Also, do not mix tires of remarkably

different treadwear.

●

Do not use tire sizes other than those

recommended by Lexus.

●

Do not mix differently constructed

tires (radial, bias-belted or bias-ply

tires).

●

Do not mix summer, all season and

snow tires.

●

Do not use tires that have been used

on another vehicle.

Do not use tires if you do not know

how they were used previously.

NOTICE

■

Driving on rough roads

Take particular care when driving on

roads with loose surfaces or potholes.

These conditions may cause losses in tire

inflation pressure, reducing the cushion-

ing ability of the tires. In addition, driving

on rough roads may cause damage to

the tires themselves, as well as the vehi-

cle’s wheels and body.

■

Low profile tires (21-inch tires)

Low profile tires may cause greater dam-

age than usual to the tire wheel when

sustaining impact from the road surface.

Therefore, pay attention to the following:

●

Be sure to use proper tire inflation

pressure. If tires are under-inflated,

they may be damaged more severely.

●

Avoid potholes, uneven pavement,

curbs and other road hazards. Failure

to do so may lead to severe tire and

wheel damage.

■

If tire inflation pressure of each tire

becomes low while driving

Do not continue driving, or your tires

and/or wheels may be ruined.

Tire rotation

Run-flat tires

Tire pressure warning system

304

6-3. Do-it-yourself maintenance

tire pressure warning system can be
displayed on the multi-information
display. (

P.84)

The illustration used is intended as an
example, and may differ from the image
that is actually displayed on the multi-infor-
mation display.

■

Routine tire inflation pressure checks

The tire pressure warning system does not

replace routine tire inflation pressure

checks. Make sure to check tire inflation

pressure as part of your routine of daily

vehicle checks.

■

Situations in which the tire pressure

warning system may not operate prop-

erly

●

In the following cases, the tire pressure

warning system may not operate prop-

erly.

• If non-genuine Lexus wheels are used.

• A tire has been replaced with a tire that is

not an OE (Original Equipment) tire.

• A tire has been replaced with a tire that is

not of the specified size.

• Tire chains etc. are equipped.

• An auxiliary-supported run-flat tire is

equipped.

• If a window tint that affects the radio wave

signals is installed.

• If there is a lot of snow or ice on the vehi-

cle, particularly around the wheels or

wheel housings.

• If the tire inflation pressure is extremely

higher than the specified level.

• If wheel without tire pressure warning

valves and transmitters are used.

• If the ID code on the tire pressure warn-

ing valves and transmitters is not regis-

tered in the tire pressure warning

computer.

●

Performance may be affected in the fol-

lowing situations.

• Near a TV tower, electric power plant,

gas station, radio station, large display,

airport or other facility that generates

strong radio waves or electrical noise

• When carrying a portable radio, cellular

phone, cordless phone or other wireless

communication device

If tire position information is not correctly
displayed due to the radio wave conditions,
the display may be corrected by driving and
changing the radio wave conditions.

●

When the vehicle is parked, the time

taken for the warning to start or go off

could be extended.

●

When tire inflation pressure declines rap-

idly for example when a tire has burst, the

warning may not function.

305

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

■

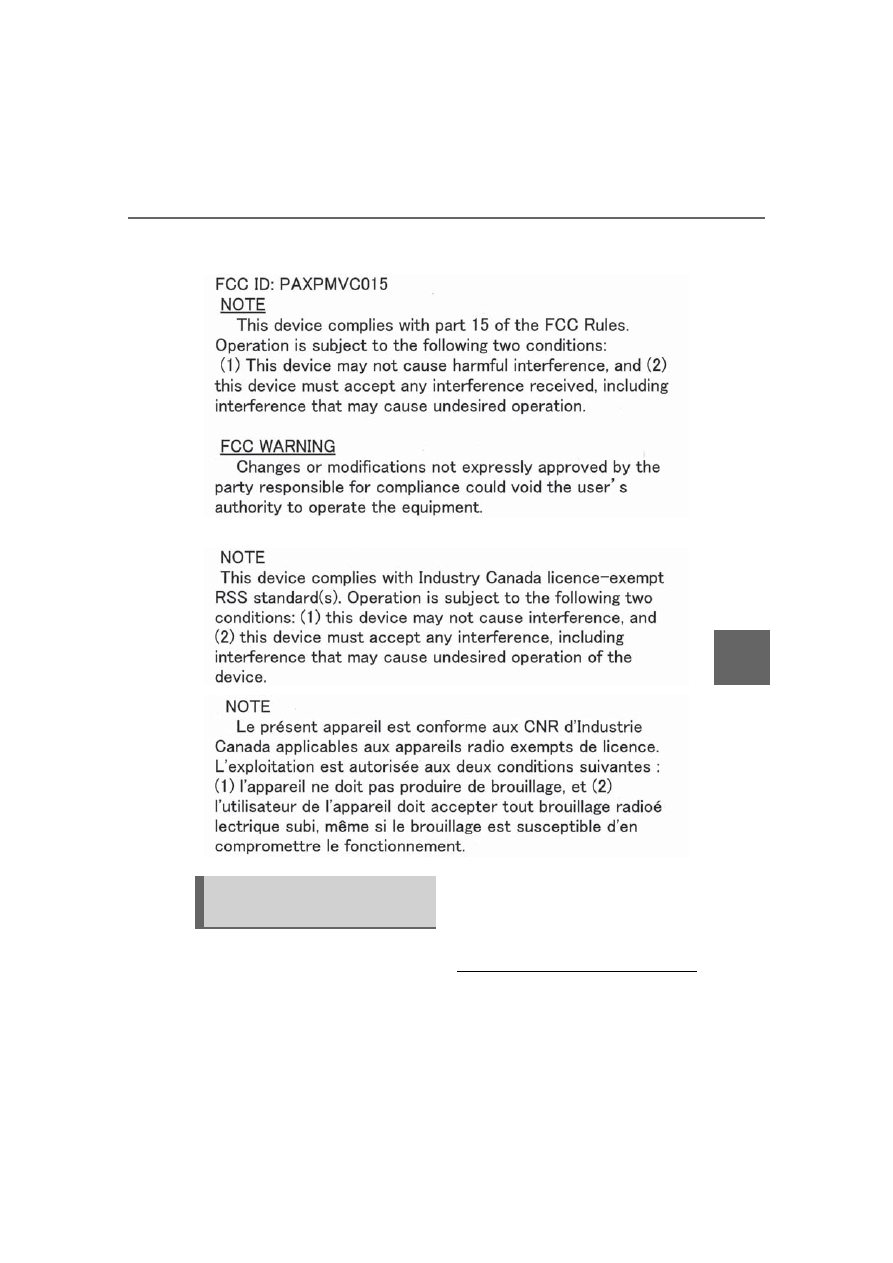

Tire pressure warning system certification



For vehicles sold in the U.S.A., Hawaii and Puerto Rico



For vehicles sold in Canada

When replacing tires or wheels, tire
pressure warning valves and transmit-
ters must also be installed.
When new tire pressure warning
valves and transmitters are installed,

new ID codes must be registered in the
tire pressure warning computer and
the tire pressure warning system must
be initialized. (

P.308)

■

When replacing the tires and wheels

If the ID code of the tire pressure warning

valve and transmitter is not registered, the

tire pressure warning system will not work

Installing tire pressure warning
valves and transmitters

306

6-3. Do-it-yourself maintenance

properly. After driving for about 20 min-

utes, the tire pressure warning light blinks

for 1 minute and stays on to indicate a sys-

tem malfunction.

■

The tire pressure warning system
must be initialized in the following
circumstances:

 When rotating the tires.
 When the tire inflation pressure is

changed when changing traveling
speed.

 When the tire inflation pressure is

changed such as when changing tire
size. (When there are multiple spec-
ified pressures)

 After registering the ID codes.

(

P.308)

When the tire pressure warning system
is initialized, the current tire inflation

pressure is set as the benchmark pres-
sure.

■

How to initialize the tire pressure
warning system

Park the vehicle in a safe place and
turn the engine switch <power
switch> off.

Initialization cannot be performed while

the vehicle is moving.

Adjust the tire inflation pressure to
the specified cold tire inflation pres-
sure level.

Make sure to adjust the tire pressure to the

specified cold tire inflation pressure level.

The tire pressure warning system will oper-

ate based on this pressure level.

Turn the engine switch <power
switch> to IGNITION ON mode
<ON mode>.

Press

of the meter con-

trol switches and select

Press

of the meter con-

trol switches and select “Vehicle
Settings”, then press “OK”.

Press

of the meter con-

trol switches and select “TPWS
SET”, then press “OK”.

Press

of the meter con-

trol switches and select “Set tire
pressure”. Then press and hold
“OK” until the tire pressure warning
light starts blinking.

A message is displayed on the multi-infor-

mation display. Also, “--” is displayed for

inflation pressure of each tire on the multi-

information display while the tire pressure

NOTICE

■

Repairing or replacing tires, wheels,

tire pressure warning valves, trans-

mitters and tire valve caps

●

When removing or fitting the wheels,

tires or the tire pressure warning

valves and transmitters, contact your

Lexus dealer as the tire pressure warn-

ing valves and transmitters may be

damaged if not handled correctly.

●

Make sure to install the tire valve caps.

If the tire valve caps are not installed,

water could enter the tire pressure

warning valves and the tire pressure

warning valves could be bound.

●

When replacing tire valve caps, do not

use tire valve caps other than those

specified. The cap may become stuck.

Initializing the tire pressure
warning system

307

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

warning system determines the position.

Drive the vehicle at approximately
25mph (40 km/h) or more for
approximately 10 to 30 minutes.

When initialization is complete, the infla-

tion pressure of each tire will be displayed

on the multi-information display.
Depending on the vehicle and driving con-

ditions, initialization may take up to

approximately 1 hour to complete.

■

The initialization operation

●

Make sure to carry out initialization after

adjusting the tire inflation pressure.

Also, make sure the tires are cold before

carrying out initialization or tire inflation

pressure adjustment.

●

If you have accidentally turned the engine

switch <power switch> off during initial-

ization, it is not necessary to manually

restart the initialization again, as initializa-

tion will restart automatically the next

time the engine switch <power switch> is

turned to IGNITION ON mode <ON

mode>.

●

If you accidentally perform initialization

when initialization is not necessary, adjust

the tire inflation pressure to the specified

level when the tires are cold, and conduct

initialization again.

●

While the position of each tire is being

determined and the inflation pressures

are not being displayed on the multi-

information display, if the inflation pres-

sure of a tire drops, the tire pressure

warning light will come on.

■

When initialization of the tire pressure

warning system has failed

Initialization may take longer to complete if

the vehicle is driven on an unpaved road.

When performing initialization, drive on a

paved road if possible. Depending on the

driving environment and condition of the

tires, initialization will be completed in

approximately 10 to 30 minutes. If initializa-

tion is not complete after driving approxi-

mately 10 to 30 minutes, continue driving

for a while. If the inflation of each tire is not

displayed after driving for approximately 1

hour, perform the following procedure.

●

Park the vehicle in a safe place for

approximately 20 minutes. Then drive

straight (with occasional left and right

turns) at approximately 25 mph (40

km/h) or more for approximately 10 to

30 minutes.

However, in the following situations, the tire
inflation pressure will not be recorded and
the system will not operate properly. Per-
form initialization again.

●

When performing initialization, the tire

pressure warning light does not blink 3

times. (Initialization will not occur while

driving)

●

After performing initialization, the tire

pressure warning light blinks for 1 minute

then stays on after driving for about 20

minutes.

If the inflation pressure of each tire is still not
displayed, have the vehicle inspected by
your Lexus dealer.

■

When registering ID codes

●

Initialize the tire pressure warning system

after ID code registration. Initialization is

disabled if the system was initialized

before registration.

●

After ID code registration, the tires are

hot by driving. Initialize the tire pressure

warning system after the tires become

cold.

308

6-3. Do-it-yourself maintenance

The tire pressure warning valve and
transmitter is equipped with a unique
ID code. When replacing a tire pres-
sure warning valve and transmitter, it is
necessary to register the ID code.
When registering the ID codes, per-
form the following procedure.

Turn the engine switch <power
switch> to IGNITION ON mode
<ON mode>.

Press

of the meter con-

trol switches and select

Press

of the meter con-

trol switches and select “Vehicle
Settings”, then press “OK”.

Press

of the meter con-

trol switches and select “TPWS
SET”, then press “OK”.

Press

of the meter con-

trol switches and select “Change
wheel set”. Then press and hold
“OK” until the tire pressure warning
light starts blinking.

The change wheel set mode is activated

and registration is started.

A message is displayed on the multi-infor-

mation display, and “--” is displayed for

inflation pressure of each tire. Then, the tire

pressure warning light blinks rapidly for

approximately 1 minute and stays on.

Drive the vehicle at 25mph (40
km/h) or more for approximately
10 to 30 minutes.

When registration is completed, the tire

pressure warning light will go off and the

inflation pressure of each tire will be dis-

played on the multi-information display.
The time elapsed before registration is

completed differs according to the driving

condition and environment.

■

Canceling the change wheel set mode

●

If turning the engine switch <power

switch> off when in the change wheel set

mode before driving, the change wheel

set mode is canceled.

●

After driving when in the change wheel

set mode, the change wheel set mode

cannot be canceled. To cancel the mode,

perform the procedure for ID code regis-

tration again and turn the engine switch

<power switch> off before driving.

●

If the change wheel set mode is canceled,

the ID codes that have already been reg-

istered are communicated. When com-

munication is finished, the tire pressure

warning light will turn off.

■

When ID code registration may not

operate properly

●

Do not move the vehicle backward

during registration. Registration is started

again from the beginning and it may take

longer than usual.

WARNING

■

When initializing the tire pressure

warning system

Do not initialize tire inflation pressure

without first adjusting the tire inflation

pressure to the specified level. Other-

wise, the tire pressure warning light may

not come on even if the tire inflation pres-

sure is low, or it may come on when the

tire inflation pressure is actually normal.

Registering ID codes

309

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

●

When another vehicle is running the side

of the vehicle such as in heavy traffic, it

may take longer to detect the vehicle’s

tire pressure warning valves and trans-

mitters.

●

If tire pressure warning valves and trans-

mitters are in the vehicle, the ID codes

may not be registered.

If registration takes long time, perform the
procedure for ID code registration again
after parking the vehicle for 20 minutes.
If the ID codes cannot be registered even
when performing the above procedure,
contact your Lexus dealer.

 Stop the vehicle in a safe place on a

hard, flat surface.

 Set the parking brake.
 Shift the shift position to P.
 Stop the engine <hybrid system>.

■

Tools

As your vehicle is equipped with run-flat

tires, the following tools for replacing a tire

are not included with your vehicle. They can

be purchased at your Lexus dealer.

●

Wheel nut wrench

●

Jack

●

Jack handle

Replacing the tire

When raising your vehicle with a
jack, position the jack correctly.
Improper placement may damage
your vehicle or cause injury.
If necessary tire replacement
seems difficult to perform, contact
your Lexus dealer.

Before jacking up the vehicle

310

6-3. Do-it-yourself maintenance

Screwdriver

Wheel nut wrench

Jack

Jack handle

Towing eyelet

: They can be purchased at your Lexus dealer.

Location of the tools

A
B
C
D

WARNING

■

Using the tire jack

Observe the following precautions.

Improper use of the tire jack may cause

the vehicle to suddenly fall off the jack,

leading to death or serious injury.

●

Do not use the tire jack for any pur-

pose other than replacing tires.

●

Do not use other tire jacks for replac-

ing tires on this vehicle.

●

Put the jack properly in its jack point.

●

Do not put any part of your body under

the vehicle while it is supported by the

jack.

●

Do not start the engine <hybrid sys-

tem> or drive the vehicle while the

vehicle is supported by the jack.

●

Do not raise the vehicle while some-

one is inside.

●

When raising the vehicle, do not put an

object on or under the jack.

●

Do not raise the vehicle to a height

greater than that required to replace

the tire.

311

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

Chock the tires.

Slightly loosen the wheel nuts (one
turn).

Turn the tire jack portion

hand until the notch of the jack is in
contact with the jack point.

The jack point guides are located under

the rocker panel. They indicate the jack

point positions.

Raise the vehicle until the tire is
slightly raised off the ground.

Remove all the wheel nuts and the
tire.

When resting the tire on the ground, place

the tire so that the wheel design faces up to

WARNING

●

Use a jack stand if it is necessary to get

under the vehicle.

●

When lowering the vehicle, make sure

that there is no-one near the vehicle. If

there are people nearby, warn them

vocally before lowering.

Removing a tire

Tire

Wheel chock posi-

tions

Front left-hand side

Behind the rear
right-hand side tire

Front right-hand
side

Behind the rear left-
hand side tire

Rear left-hand side

In front of the front
right-hand side tire

Rear right-hand side

In front of the front
left-hand side tire

312

6-3. Do-it-yourself maintenance

avoid scratching the wheel surface.

Remove any dirt or foreign matter
from the wheel contact surface.

If foreign matter is on the wheel contact

surface, the wheel nuts may loosen while

the vehicle is in motion, causing the tire to

come off.

Install the tire and loosely tighten
each wheel nut by hand by approxi-
mately the same amount.

Turn the wheel nuts until the washers come

into contact with the disc wheel.

Disc wheel

Washer

Lower the vehicle.

Firmly tighten each wheel nut two
or three times in the order shown in
the illustration.

Tightening torque:

103.3 ft•lbf (140 N•m, 14.3 kgf•m)

Stow all the tools.

WARNING

■

Replacing a tire

Do not touch the disc wheels or the area

around the brakes immediately after the

vehicle has been driven.

After the vehicle has been driven the disc

wheels and the area around the brakes

will be extremely hot. Touching these

areas with hands, feet or other body

parts while changing a tire, etc. may

result in burns.

Installing the tire

A
B

313

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

The recommended cold tire inflation
pressure and tire size are displayed on
the tire and loading information label.
(

P.379)

Tire valve

WARNING

■

When installing the tire

Failure to follow these precautions could

cause the wheel nuts to loosen and the

tire to fall off, resulting in death or serious

injury.

●

Never use oil or grease on the wheel

bolts or wheel nuts.

Oil and grease may cause the wheel

nuts to be excessively tightened, lead-

ing to bolt or disc wheel damage. In

addition, the oil or grease can cause

the wheel nuts to loosen and the wheel

may fall off, causing a serious accident.

Remove any oil or grease from the

wheel bolts or wheel nuts.

●

Have the wheel nuts tightened with a

torque wrench to 103.3 ft•lbf (140

N•m, 14.3 kgf•m) soon as possible

after changing wheels.

●

Do not attach a heavily damaged

wheel ornament, as it may fly off the

wheel while the vehicle is moving.

●

When installing a tire, only use wheel

nuts that have been specifically

designed for that wheel.

●

If there are any cracks or deformations

in the bolt screws, nut threads or bolt

holes of the wheel, have the vehicle

inspected by your Lexus dealer.

■

After using the tools

Before driving, make sure all the tools are

stored securely in place. Failure to do so

may cause injury in case of a collision or

sudden braking.

NOTICE

■

Repairing or replacing tires, wheels,

tire pressure warning valves, trans-

mitters and tire valve caps

P.306

Tire inflation pressure

Checking the specified tire infla-
tion pressure

Inspection and adjustment pro-
cedure

Content .. 17 18 19 20 ..
