7-2. Steps to take in an emergency

●

Malfunction in the EPS (Electric Power Steering) system

The electric power steering system warning light comes on. (

P.336)

●

Malfunction in the tire pressure warning system

The tire pressure warning light comes on. (

P.340)

●

Remaining fuel level is low

The low fuel level warning light comes on. (

P.339)

■

If “Hybrid System Overheated Reduced Output Power” is shown (LC500h)

This message may be displayed when driving under severe operating conditions. (For exam-

ple, when driving up a long steep hill.) Stop and check. (

P.366)

■

If “Traction Battery Needs to be Protected Refrain from the Use of N Position” is shown

(LC500h)

This message may be displayed when the shift position is in N.
As the hybrid battery (traction battery) cannot be charged when the shift position is in N,

shift the shift position to P when the vehicle is stopped.

■

If “Traction Battery needs to be Protected Shift into P to Restart” is shown (LC500h)

This message is displayed when the hybrid battery (traction battery) charge has become

extremely low because the vehicle has been left with the N shift position selected for a cer-

tain amount of time.
When operating the vehicle, shift to P and restart the hybrid system.

■

If “Shift to P Before Exiting Vehicle” is shown

The driver’s door is opened without turning the engine switch <power switch> to off with the

shift lever in any position other than P. Shift the shift position to P.

■

If “Shift Is in N Release Accelerator Before Shifting” is shown

The accelerator pedal has been depressed when the shift position is in N. Release the accel-

erator pedal and shift the shift position to D or R.

■

If “Depress Brake when Vehicle Is Stopped Hybrid System May Overheat” is shown

(LC500h)

The message may be displayed when the accelerator pedal is depressed to hold the vehicle

while the vehicle is stopped on an uphill etc. The hybrid system may overheat. Release the

accelerator pedal and depress the brake pedal.

■

If “Shift system malfunction Driving unavailable” is shown

There is a malfunction in the shift control system. Have the vehicle inspected by your Lexus

dealer immediately.

■

If “Auto Power Off to Conserve Battery” is shown

LC500:

Power was turned off due to the automatic power off function. Next time when starting the

engine, increase the engine speed slightly and maintain that level for approximately 5 min-

utes to recharge the battery.
LC500h:

Power was turned off due to the automatic power off function. Next time when starting the

hybrid system, operate the hybrid system for approximately 5 minutes to recharge the 12-

volt battery.

347

7-2. Steps to take in an emergency

When trouble

ari

ses

■

If a message that indicates the need for the shift lever operation is shown

To prevent the shift lever from being operated incorrectly or the vehicle from moving unex-

pectedly, a message that requires shifting the shift lever may be shown on the multi-informa-

tion display. In that case, follow the instruction of the message and shift the shift lever.

■

If “Front Camera Unavailable” or “Front Camera Unavailable Remove Debris On

Windshield” is shown

The following systems may be suspended until the problem shown in the message is

resolved.(

P.195, 344)

●

PCS (Pre-Collision system)

●

LKA (Lane-Keeping Assist)

●

Dynamic radar cruise control with full-speed range

●

Automatic High Beam

■

If “Engine Stopped Steering Power Low” (LC500) or “Hybrid System Stopped Steer-

ing Power Low” (LC500h) is shown

The steering wheel may become extremely heavy. If the steering wheel becomes heavier

than usual when operating, hold firmly and operate using more force than usual.

■

If “Warming Up Maximum Vehicle Speed: 65MPH” is shown (LC500h)

The transmission is being warmed up and the vehicle is unable to be driven over 65 mph

(110 km/h). Wait until the transmission warms up.

■

If “Stop the vehicle in a safe place Shift to P position” is shown (LC500h)

There may be a malfunction in the hybrid system or the shift position may be shifted to N for

a long time. Immediately stop the vehicle and contact your Lexus dealer.

■

If “Oil Maintenance Required Soon” is shown (LC500h)

The engine oil is scheduled to be changed. Check the engine oil, and change if necessary.

After changing the engine oil, the message should be reset. (

P.283)

■

If “Maintenance Required Soon” is shown

Indicates that all maintenance according to the driven distance on the maintenance sched-
ule

should be performed soon. The message is shown approximately 4500 miles (7200

km) after the message has been reset. If necessary, perform maintenance.

: Refer to the separate “Scheduled Maintenance” or “Owner’s Manual Supplement” for the

maintenance interval applicable to your vehicle.

■

If “Engine Oil Level Low Add or Replace” is shown

The engine oil level is low. Check the level of engine oil, and add if necessary. This message

may appear if the vehicle is stopped on a slope. Move the vehicle to a level surface and

check to see if the message disappears.

■

If a message that indicates the need for referring to Owner’s Manual is shown

●

If any of the following messages is shown on the multi-information display, follow the

instructions.

• “Engine Coolant Temp High” (

P.364, 366)

• “Battery low” (

P.357)

• “Transmission Fluid Temp High” (

P.156, 162)

●

If any of the following messages is shown on the multi-information display, it may indicate

a malfunction. Have the vehicle inspected by your Lexus dealer immediately.

348

7-2. Steps to take in an emergency

• “Access System with Elec. Key Malfunction”

• “Shift system malfunction”

• “P switch malfunction”

• “Shift system unavailable”

●

If any of the following messages is shown on the multi-information display, it may indicate

a malfunction in a system or part. Immediately have the vehicle inspected by your Lexus

dealer.

• “Hybrid System Malfunction” (LC500h)

• “Check Engine”

• “Hybrid Battery System Malfunction” (LC500h)

• “Accelerator System Malfunction”

• “Hybrid system stopped” (LC500h)

• “Engine stopped”(LC500h)

●

If any of the following messages is shown on the multi-information display, it may indicate

a malfunction. Immediately stop the vehicle and contact your Lexus dealer.

• “Braking Power Low”

• “Charging System Malfunction”

• “Oil Pressure Low”

●

If “Aux Battery Low” is shown, observe the following. (LC500h)

• If the message disappears in a few minutes

Keep the hybrid system operating for more than approximately 15 minutes to charge the

12-volt battery.

• If the message does not disappear

Refer to “If the 12-volt battery is discharged” (

P.357) to start the hybrid system

: It is displayed for approximately 6 seconds.

●

If “Battery low” is shown, the 12-volt battery charge is insufficient. Recharge or replace the

12-volt battery.

●

If “Maintenance Required for Traction battery Cooling Parts” is shown, the filters may be

clogged, the air intake vents may be blocked, or there may be a gap in the duct. There-

fore, perform the following correction procedure. (LC500h)

• If the air intake vents and filters of the hybrid battery (traction battery) are dirty, perform

the procedure on P.279 to clean them.

• If the warning message is shown when the air intake vents and filters of the hybrid battery

(traction battery) are not dirty, have the vehicle inspected by your Lexus dealer.

■

If a message that indicates the need for visiting your Lexus dealer is shown

The system or part shown on the multi-information display is malfunctioning. Have the vehi-

cle inspected by your Lexus dealer immediately.

■

Warning buzzer

In some cases, the buzzer may not be heard due to being in a noisy location or audio sound.

NOTICE

■

While the engine oil level warning message is displayed

Continued engine operation with low engine oil will damage the engine.

349

7-2. Steps to take in an emergency

When trouble

ari

ses

NOTICE

■

If “High Power Consumption Partial Limit On AC/Heater Operation” is shown fre-

quently

Air conditioning, heater and other operations are temporarily limited due to high power

consumption. Turn off unnecessary electronic equipment to reduce power consumption,

and wait until the power supply returns to normal. If this message is frequently displayed,

have the vehicle inspected at your Lexus dealer.

■

If “Aux Battery Low See Owner’s Manual” is shown frequently (LC500h)

The 12-volt battery may deteriorate. As it may cause the 12-volt battery discharge, have

the 12-volt battery inspected by your Lexus dealer.

350

7-2. Steps to take in an emergency

Take your vehicle to the nearest Lexus
dealer or authorized tire dealer as
soon as possible if any tire goes flat.

The vehicle can be driven for a maximum
of 100 miles (160 km) at a speed below 50
mph (80 km/h) after the tire pressure
warning light comes on. (

P.340)

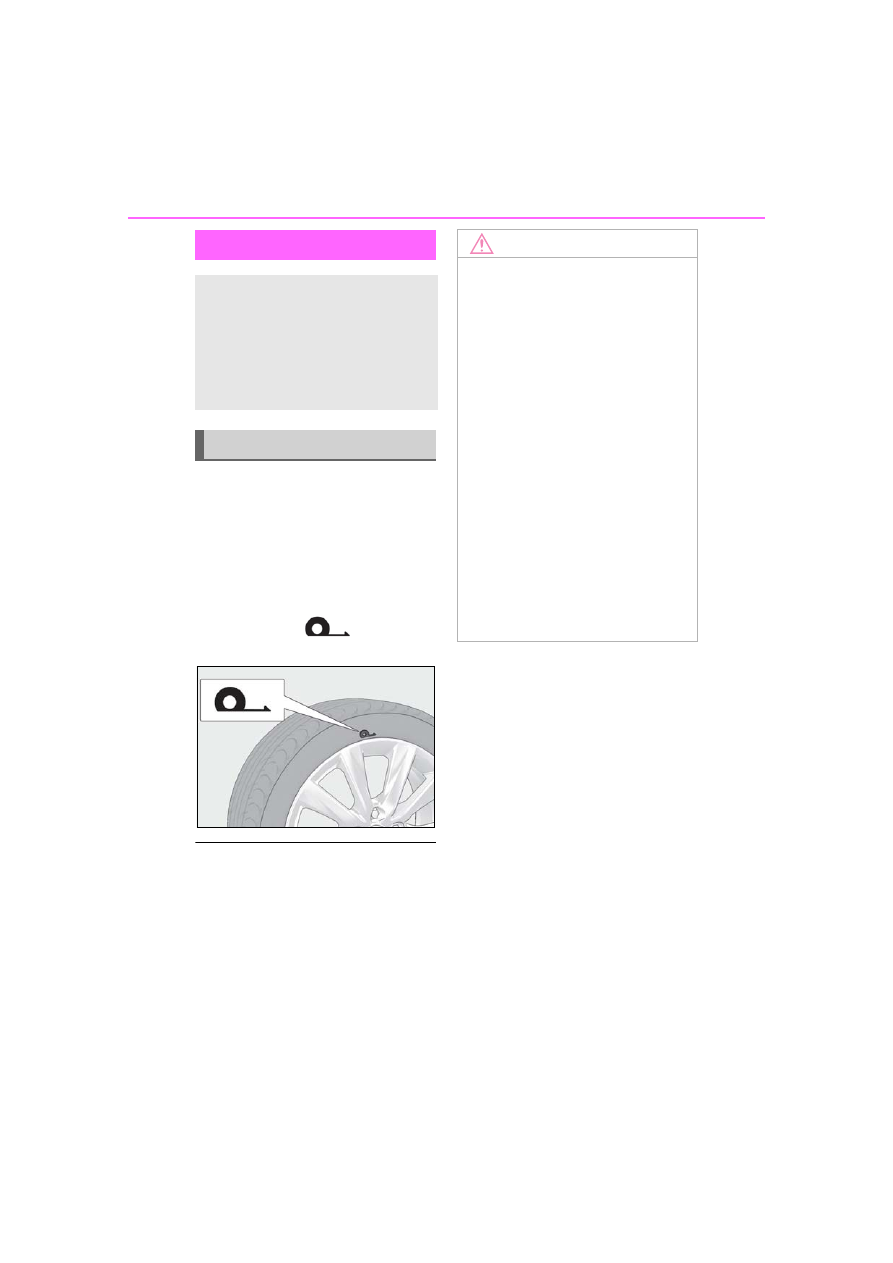

A run-flat tire has a

mark on the

sidewall.

■

In some condition (such as at high tem-

peratures)

You cannot continue driving for up to 100

miles (160 km).

■

For the detailed information on run-flat

tires

See the tire warranty booklet.

If you have a flat tire

Your vehicle is not equipped with a
spare tire, but instead you can con-
tinue driving the vehicle with run-
flat tires even if any tire goes flat.
In this case, slow down and drive
with extra caution.

Run-flat tires

NOTICE

■

When replacing the tires

When removing or fitting the wheels,

tires or the tire pressure warning valve

and transmitter, contact your Lexus

dealer as the tire pressure warning valve

and transmitter may be damaged if not

handled correctly.

■

When driving over bumps

If a vehicle has a flat tire, the vehicle

height will be lower than usual. Ensure

that nothing strikes the bottom of the

vehicle.

■

To avoid damaging the tire pressure

warning valves and transmitters

When a tire is repaired with liquid seal-

ants, the tire pressure warning valve and

transmitter may not operate properly. If a

liquid sealant is used, contact your Lexus

dealer or other qualified service shop as

soon as possible. Make sure to replace

the tire pressure warning valve and trans-

mitter when replacing the tire. (

P.305)

351

7-2. Steps to take in an emergency

When trouble

ari

ses

One of the following may be the cause
of the problem:
 The electronic key may not be func-

tioning properly. (

P.356)

 There may not be sufficient fuel in

the vehicle’s tank.
Refuel the vehicle. (

P.182)

 The engine may be flooded.

Try to restart the engine again fol-
lowing correct starting procedures.
(

P.146)

 There may be a malfunction in the

engine immobilizer system.
(

P.69)

 There may be a malfunction in the

shift control system.

(

P.149)

 There may be a malfunction in the

steering lock system.

: It may not be possible to shift the shift

position other than P.

One of the following may be the cause
of the problem:
 The 12-volt battery may be dis-

charged. (

P.357)

 The 12-volt battery terminal con-

nections may be loose or corroded.
(

P.301)

The engine starting system may be
malfunctioning due to an electrical
problem such as electronic key battery
depletion or a blown fuse. However, an
interim measure is available to start the
engine.

One of the following may be the cause
of the problem:
 One or both of the 12-volt battery

terminals may be disconnected.
(

P.301)

 The 12-volt battery may be dis-

charged. (

P.357)

 There may be a malfunction in the

steering lock system.

If the engine will not start
(LC500)

If the engine will not start even
though correct starting procedures
are being followed (

P.146), con-

sider each of the following points:

The engine will not start even
though the starter motor oper-
ates normally.

The starter motor turns over
slowly, the interior lights and
headlights are dim, or the horn
does not sound or sounds at a low
volume.

The starter motor does not turn
over

The starter motor does not turn
over, the interior lights and head-
lights do not turn on, or the horn
does not sound.

352

7-2. Steps to take in an emergency

Contact your Lexus dealer if the problem
cannot be repaired, or if repair procedures
are unknown.

When the engine does not start, the
following steps can be used as an
interim measure to start the engine if
the engine switch is functioning nor-
mally:

Press the parking brake switch to
check that the parking brake is set.
(

P.168)

Parking brake indicator will come on.

Turn the engine switch to ACCES-
SORY mode.

Press and hold the engine switch
for about 15 seconds while
depressing the brake pedal firmly.

Even if the engine can be started using
the above steps, the system may be
malfunctioning. Have the vehicle
inspected by your Lexus dealer.

One of the following may be the cause
of the problem:
 The electronic key may not be func-

tioning properly. (

P.356)

 There may not be sufficient fuel in

the vehicle’s tank.
Refuel the vehicle. (

P.182)

 There may be a malfunction in the

immobilizer system. (

P.69)

 There may be a malfunction in the

shift control system.

(

P.153)

 There may be a malfunction in the

steering lock system.

 The hybrid system may be malfunc-

tioning due to an electrical problem
such as electronic key battery
depletion or a blown fuse. However,
depending on the type of malfunc-
tion, an interim measure is available
to start the hybrid system.

: It may not be possible to shift the shift

position other than P.

Starting the engine in an emer-
gency

If the hybrid system will not
start (LC500h)

Reasons for the hybrid system not
starting vary depending on the situ-
ation. Check the following and per-
form the appropriate procedure:

The hybrid system will not start
even though the correct starting
procedure is being followed.
(

P.149)

353

7-2. Steps to take in an emergency

When trouble

ari

ses

One of the following may be the cause
of the problem:
 The 12-volt battery may be dis-

charged. (

P.357)

 The 12-volt battery terminal con-

nections may be loose or corroded.
(

P.301)

One of the following may be the cause
of the problem:
 The 12-volt battery may be dis-

charged. (

P.357)

 One or both of the 12-volt battery

terminals may be disconnected.
(

P.301)

Contact your Lexus dealer if the problem
cannot be repaired, or if repair procedures
are unknown.

When the hybrid system does not start,
the following steps can be used as an
interim measure to start the hybrid sys-
tem if the power switch is functioning
normally.
Do not use this starting procedure
except in cases of emergency.

Press the parking brake switch to
check that the parking brake is set.
(

P.168)

Parking brake indicator will come on.

Turn the power switch to ACCES-
SORY mode.

Press and hold the power switch for
about 15 seconds while depressing
the brake pedal firmly.

Even if the hybrid system can be
started using the above steps, the sys-
tem may be malfunctioning. Have the
vehicle inspected by your Lexus dealer.

The interior lights and head-
lights are dim, or the horn does
not sound or sounds at a low vol-
ume.

The interior lights and head-
lights do not turn on, or the horn
does not sound.

Starting the hybrid system in an
emergency

354

7-2. Steps to take in an emergency

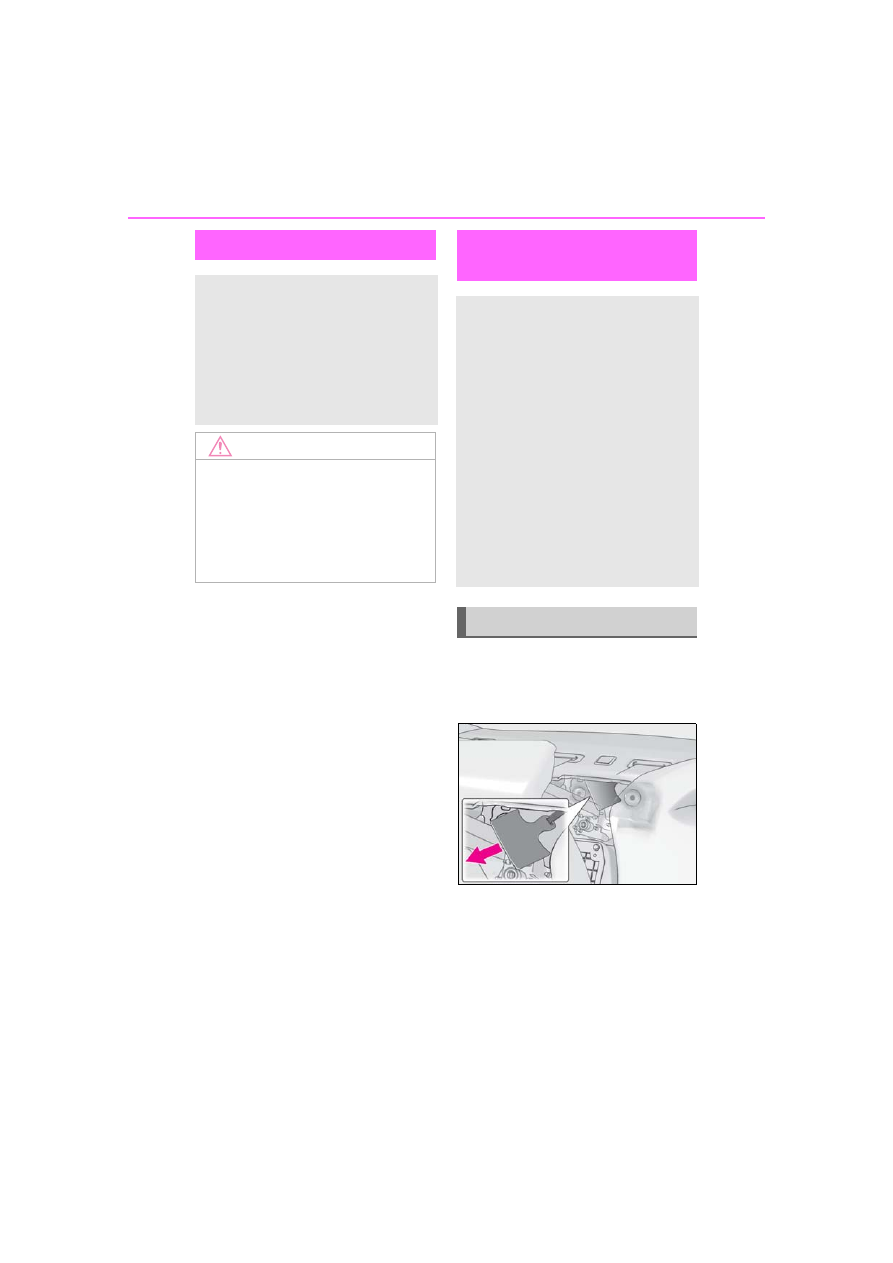

Remove the cover in the center of
the rear seat. (

P.357)

Pull the tab.

LC500h: Using the tab to open the
fuel filler door may not allow for an
adequate reduction in fuel tank pres-
sure before refueling. To prevent fuel
from spilling out, turn the cap slowly
when removing it.
During refueling, fuel may spill out from

If you lose your keys

New genuine mechanical keys can
be made by your Lexus dealer using
another mechanical key and the
key number stamped on your key
number plate. Keep the plate in a
safe place such as your wallet, not in
the vehicle.

NOTICE

■

When an electronic key is lost

If the electronic key remains lost, the risk

of vehicle theft increases significantly.

Visit your Lexus dealer immediately with

all remaining electronic keys and the

card key that were provided with your

vehicle.

If the fuel filler door cannot
be opened

LC500:
If the fuel filler door opener switch
cannot be operated, the following
procedure can be used to open the
fuel filler door.

LC500h:
If the fuel filler door opener switch
cannot be operated, contact your
Lexus dealer to service the vehicle.
In case where refueling is urgently
necessary, the following procedure
can be used to open the fuel filler
door.

Opening the fuel filler door

355

7-2. Steps to take in an emergency

When trouble

ari

ses

the filler opening due to air being dis-
charged from inside the fuel tank.
Therefore, fill the fuel tank carefully and
slowly.

■

When the electronic key does not work

properly

●

Make sure that the smart access system

with push-button start has not been deac-

tivated using the Remote Touch or at your

Lexus dealer. If it is off, turn the function

on.

●

Check if battery-saving mode is set. If it is

set, cancel the function. (

P.115)

Use the mechanical key (

P.104) in

order to perform the following opera-
tions:

WARNING

■

After opening the fuel filler door

Make sure to put back the cover to the

center of the rear seat. Failure to do so

may cause an accident.

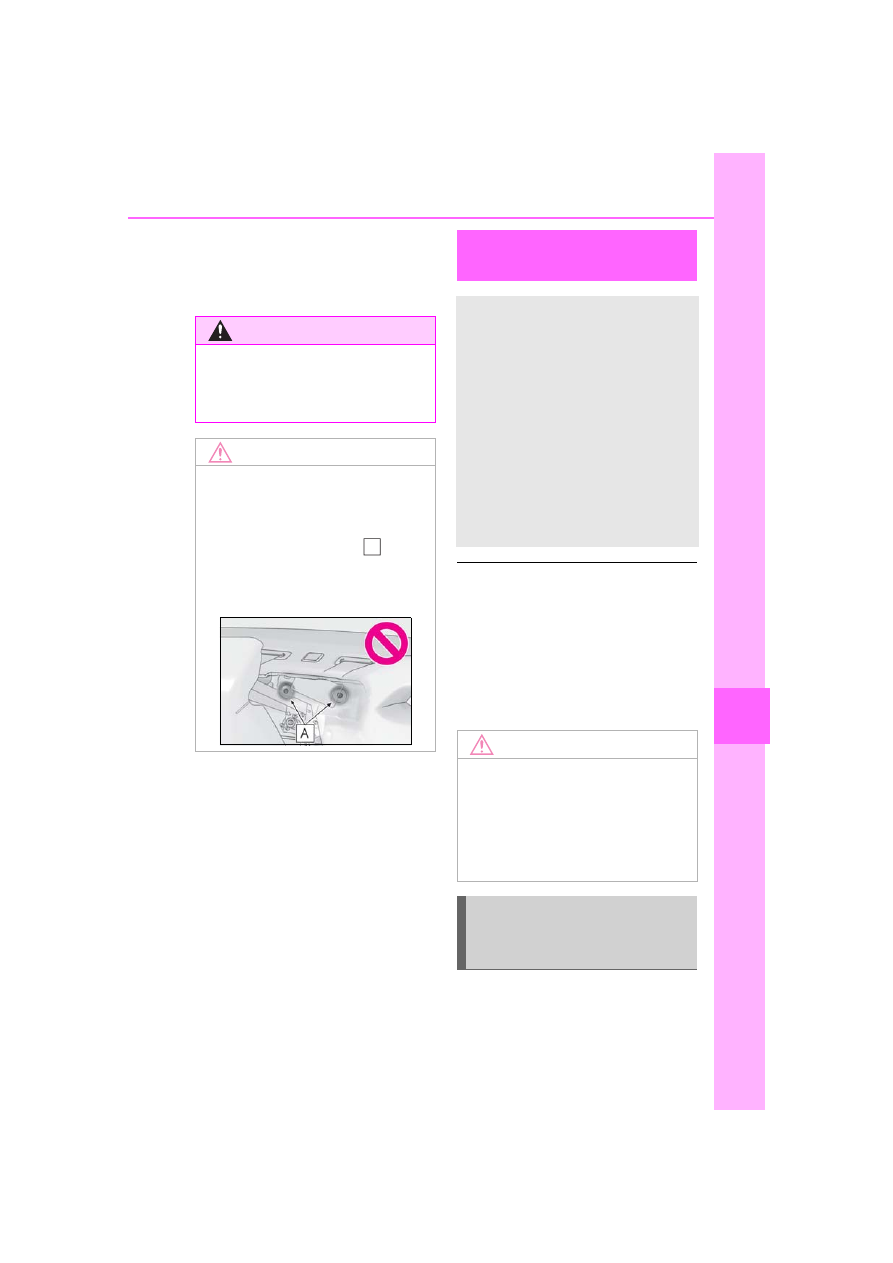

NOTICE

■

After opening the fuel filler door

●

Secure the tab in its original position.

●

Install the tab so that it does not cover
the clip installation position

. Fail-

ure to do so may cause damage to the

clip and make it impossible to install

the cover.

If the electronic key does not
operate properly

If communication between the
electronic key and vehicle is inter-
rupted (

P.115) or the electronic

key cannot be used because the
battery is depleted, the smart
access system with push-button
start and wireless remote control
cannot be used. In such cases, the
doors and trunk can be opened and
the engine <hybrid system> can be
started by following the procedure
below.

NOTICE

■

In case of a smart access system with

push-button start malfunction or

other key-related problems

Take your vehicle with all the electronic

keys (including the card key) provided

with your vehicle to your Lexus dealer as

soon as possible.

Locking and unlocking the
doors, opening the trunk and
using the key linked functions

356

7-2. Steps to take in an emergency

■

Locking and unlocking the door

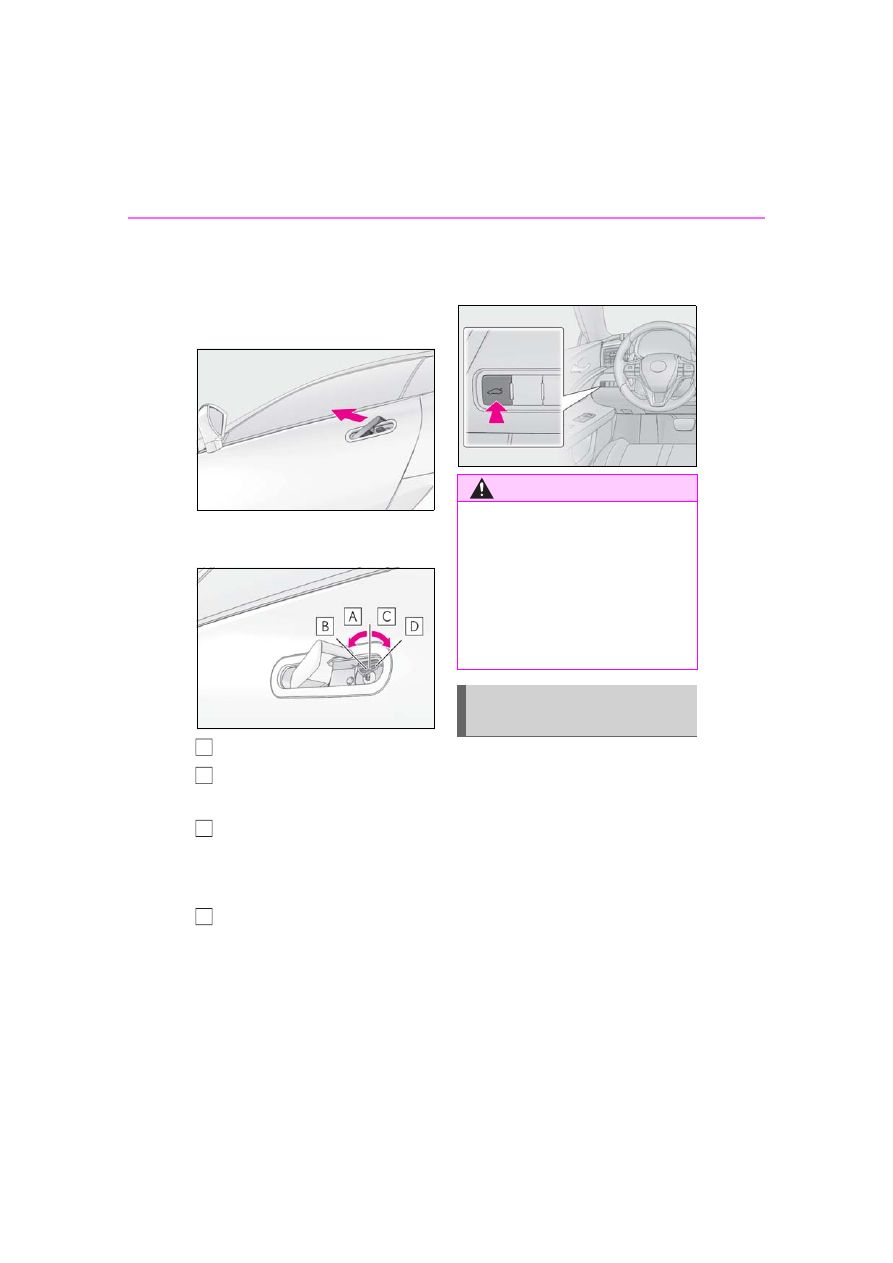

Push in the depression on the front
edge of the driver’s door handle.

Insert the mechanical key while
pulling on the driver’s door handle.

Turn the key in order to perform the
following operations.

Locks both side doors

Closes the windows (turn and
hold)

Unlocks the door

Turning the key rearward unlocks the
driver’s door. Turning the key once again
within 5 seconds unlocks the other door.

Opens the windows (turn and
hold)

: These settings must be customized at

your Lexus dealer.

■

Opening the trunk

Unlock the doors, and press the trunk
opener switch.

Depress the brake pedal.

Touch the Lexus emblem side of the
electronic key to the engine switch
<power switch>.

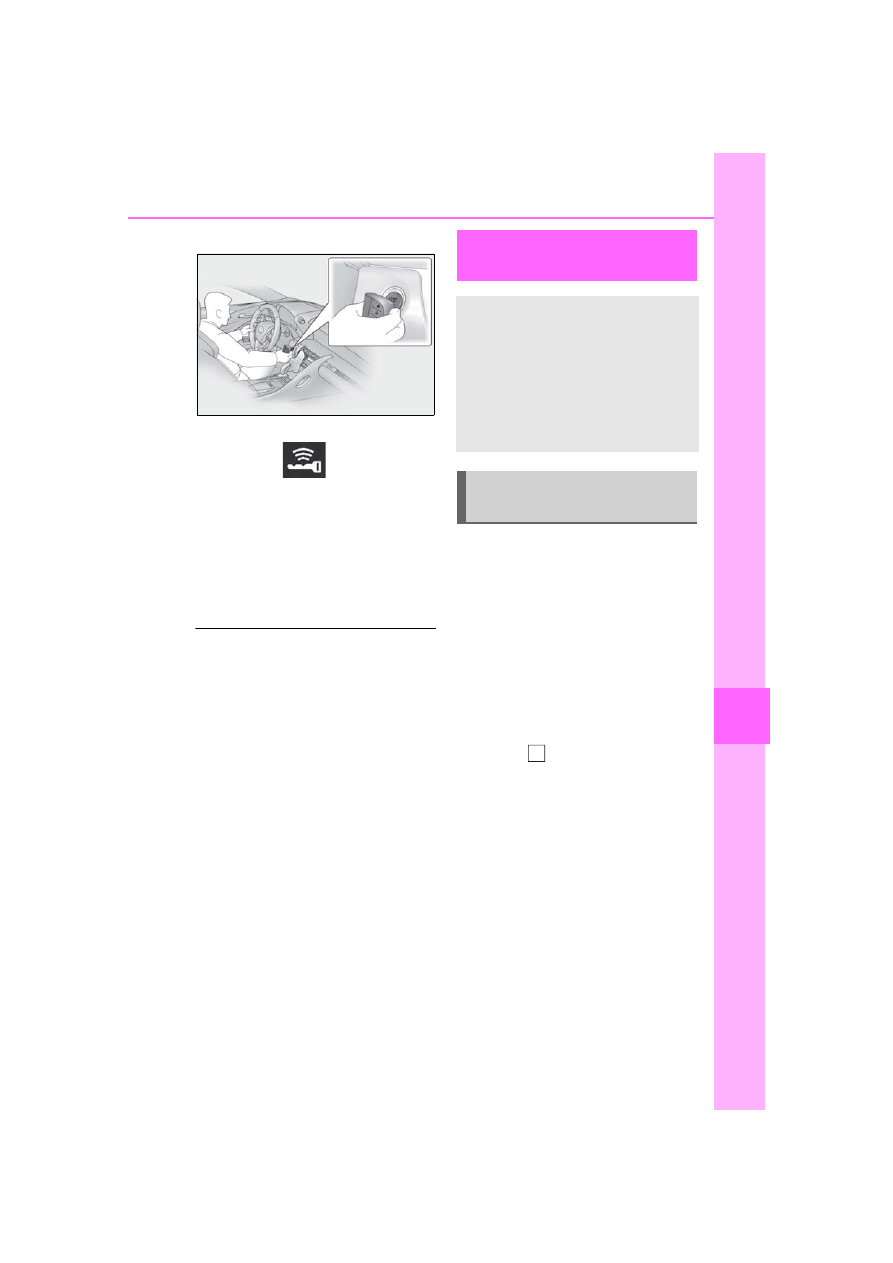

When the electronic key is detected, a

buzzer sounds and the engine switch

<power switch> will turn to IGNITION ON

mode <ON mode>.
When the smart access system with push-

button start is deactivated in customization

setting, the engine switch <power switch>

A
B

WARNING

■

When using the mechanical key and

operating the power windows

Operate the power window after check-

ing to make sure that there is no possibil-

ity of any passenger having any of their

body parts caught in the window.

Also, do not allow children to operate the

mechanical key. It is possible for children

and other passengers to get caught in

the power window.

Starting the engine <hybrid sys-
tem>

357

7-2. Steps to take in an emergency

When trouble

ari

ses

will turn to ACCESSORY mode.

Firmly depress the brake pedal and

check that

is shown on the

multi-information display.

Press the engine switch <power
switch>.

In the event that the engine <hybrid sys-
tem> still cannot be started, contact
your Lexus dealer.

■

Stopping the engine <hybrid system>

Set the parking brake, shift the shift position

to P and press the engine switch <power

switch> as you normally do when stopping

the engine <hybrid system>.

■

Electronic key battery

As the above procedure is a temporary

measure, it is recommended that the elec-

tronic key battery be replaced immediately

when the battery is depleted. (

P.318)

■

Changing engine switch <power switch>

modes

Release the brake pedal and press the

engine switch <power switch> in step

above.
The engine <hybrid system> does not start

and modes will be changed each time the

switch is pressed. (

P.148, 15 2)

Use the mechanical key (

P.104) in

order to perform the following opera-
tions:

■

Locking and unlocking the doors

P.355

■

Opening the trunk

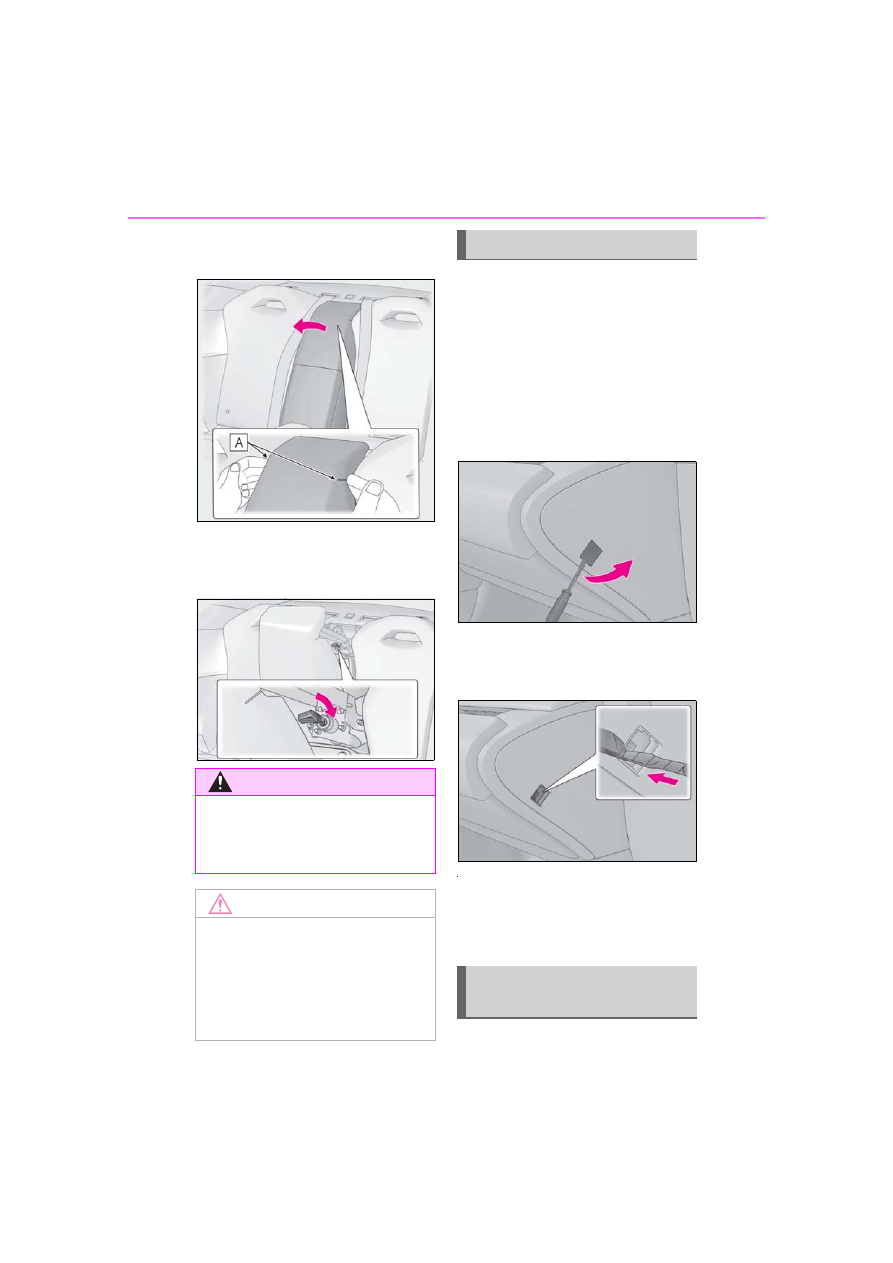

Slide the rear passengers’ seat
belts towards the outside.

Insert your fingers at the positions
marked

and pull towards you to

If the 12-volt battery is dis-
charged

The following procedures may be
used to start the engine <hybrid sys-
tem> or opening the doors, trunk or
glove box if the 12-volt battery is
discharged.
You can also call your Lexus dealer
or a qualified repair shop.

Locking and unlocking the doors
and opening the trunk

358

7-2. Steps to take in an emergency

remove the cover in the center of
the rear seat.

Insert the mechanical key into the
cylinder and turn it clockwise to
open.

The glove box can be opened by per-
forming the following operations after
unlocking the doors.

If the glove box is locked, unlock it with the
mechanical key. (

P.260)

Remove the cover using a flathead
screwdriver.

To prevent damage to the cover, cover the

tip of the screwdriver with a rag.

Push the flathead screwdriver into
the part shown in the illustration to
open the glove box.

■

After opening the glove box

The glove box can be opened normally by

closing the glove box after restarting the

engine <hybrid system>.

If you have a set of jumper (or booster)

WARNING

■

After unlocking the trunk

Make sure to put back the cover to the

center of the rear seat. Failure to do so

may cause an accident.

NOTICE

■

When installing the cover in the cen-

ter of the rear seat

Make sure that the seat belts are not

caught in the cover. Failure to do so may

cause damage to the cover installation

clip and make it impossible to install the

cover.

Opening the glove box

Restarting the engine <hybrid
system>

359

7-2. Steps to take in an emergency

When trouble

ari

ses

cables and a second vehicle with a 12-
volt battery, you can jump start your
vehicle using the following procedure.

Confirm that the electronic key
(including the card key) is being
carried.

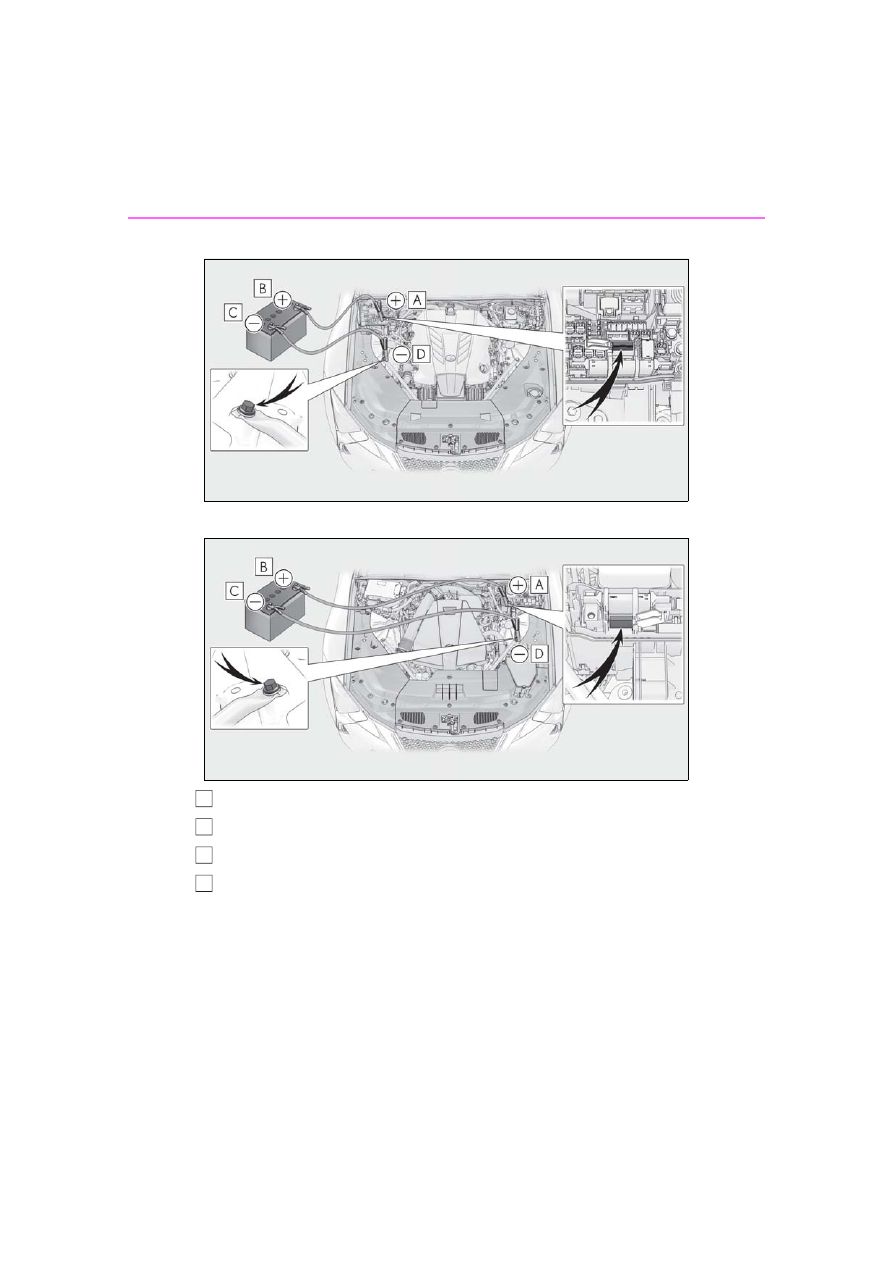

When connecting the jumper (or booster)

cables, depending on the situation, the

alarm may activate and doors locked.

(

P.72)

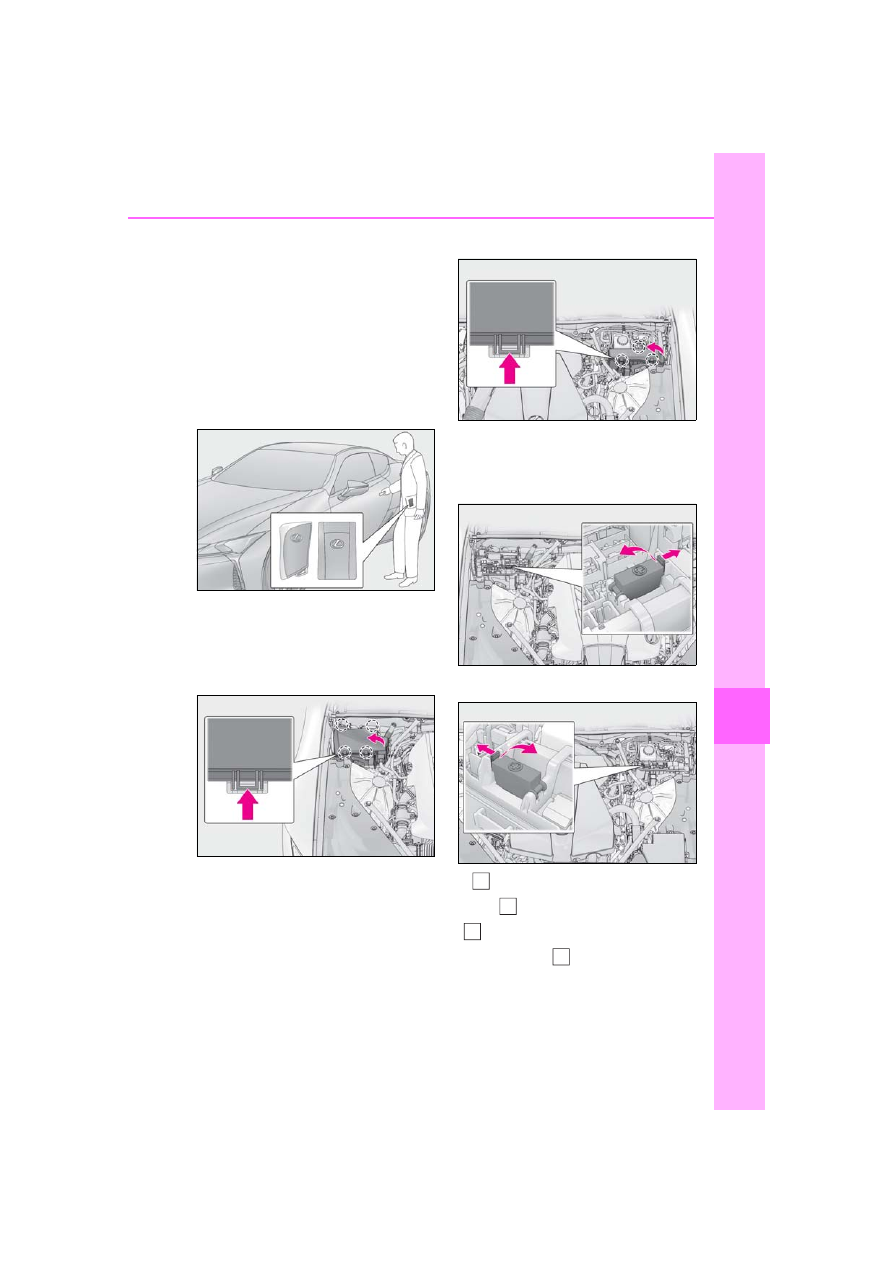

Open the hood (

P.290) and

open the fuse box cover.

Push the tab in and lift the lid off.



LC500



LC500h

Open the exclusive jump starting
terminal cover.



LC500



LC500h

Connect a positive jumper cable clamp to

on your vehicle and connect the

clamp on the other end of the positive cable to

on the second vehicle.

Then, connect a negative cable clamp to

on the second vehicle and con-

nect the clamp at the other end of the negative cable to

360

7-2. Steps to take in an emergency



LC500



LC500h

Exclusive jump starting terminal (your vehicle)

Positive (+) battery terminal (second vehicle)

Negative (-) battery terminal (second vehicle)

Solid, stationary, unpainted metallic point away from the exclusive jump starting
terminal and any moving parts as shown in the illustration

Start the engine of the second vehi-
cle. Increase the engine speed
slightly and maintain at that level for
approximately 5 minutes to
recharge the 12-volt battery of your
vehicle.

Open and close any of the door of
your vehicle with the engine switch
<power switch> off.

Maintain the engine speed of the
second vehicle and start the engine

A
B
C
D

361

7-2. Steps to take in an emergency

When trouble

ari

ses

<hybrid system> of your vehicle by
turning the engine switch <power
switch> to IGNITION ON mode
<ON mode>.

Once the vehicle’s engine <hybrid
system> has started, remove the
jumper cables in the exact reverse
order from which they were con-
nected.

Close the exclusive jump starting
terminal cover, and reinstall the fuse
box cover to tits original position.

Once the engine <hybrid system> starts,

have the vehicle inspected at your Lexus

dealer as soon as possible.

■

Starting the engine <hybrid system>

when the 12-volt battery is discharged

The engine <hybrid system> cannot be

started by push-starting.

■

To prevent 12-volt battery discharge

●

Turn off the headlights and the audio sys-

tem while the engine <hybrid system> is

stopped.

●

Turn off any unnecessary electrical com-

ponents when the vehicle is running at a

low speed for an extended period, such

as in heavy traffic.

■

When the 12-volt battery is removed or

discharged

●

Information stored in the ECU is cleared.

When the 12-volt battery is depleted,

have the vehicle inspected at your Lexus

dealer.

●

Some systems may require initialization.

(

P.403)

■

When removing the 12-volt battery ter-

minals

When the 12-volt battery terminals are

removed, the information stored in the

ECU is cleared. Before removing the 12-

volt battery terminals, contact your Lexus

dealer.

■

Charging the 12-volt battery

The electricity stored in the 12-volt battery

will discharge gradually even when the

vehicle is not in use, due to natural dis-

charge and the draining effects of certain

electrical appliances. If the vehicle is left for

a long time, the 12-volt battery may dis-

charge, and the engine <hybrid system>

may be unable to start. (The 12-volt battery

recharges automatically during driving.)

■

When recharging or replacing the 12-

volt battery

●

In some cases, it may not be possible to

unlock the doors using the smart access

system with push-button start when the

12-volt battery is discharged. Use the

wireless remote control or the mechani-

cal key to lock or unlock the doors.

●

The engine <hybrid system> may not start

on the first attempt after the 12-volt bat-

tery has recharged but will start normally

after the second attempt. This is not a

malfunction.

●

The engine switch <power switch> mode

is memorized by the vehicle. When the

12-volt battery is reconnected, the system

will return to the mode it was in before

the 12-volt battery was discharged.

Before disconnecting the 12-volt battery,

turn the engine switch <power switch> off.

If you are unsure what mode the engine

switch <power switch> was in before the

12-volt battery discharged, be especially

careful when reconnecting the 12-volt

battery.

●

If the 12-volt battery discharges, it may

not be possible to shift the shift position to

other positions. In this case, the vehicle

cannot be towed without lifting both rear

wheels because the rear wheels will be

locked. (

P.330)

■

When replacing the 12-volt battery

●

Use a Central Degassing type 12-volt

battery (European Regulations).

●

Type A

: Use a 12-volt battery that the

case size is same as the previous one

(LN4), 20 hour rate capacity (20HR) is

equivalent (80Ah) or greater, and per-

formance rating (CCA) is equivalent

(685A) or greater.

Content .. 20 21 22 23 ..
