Power windows

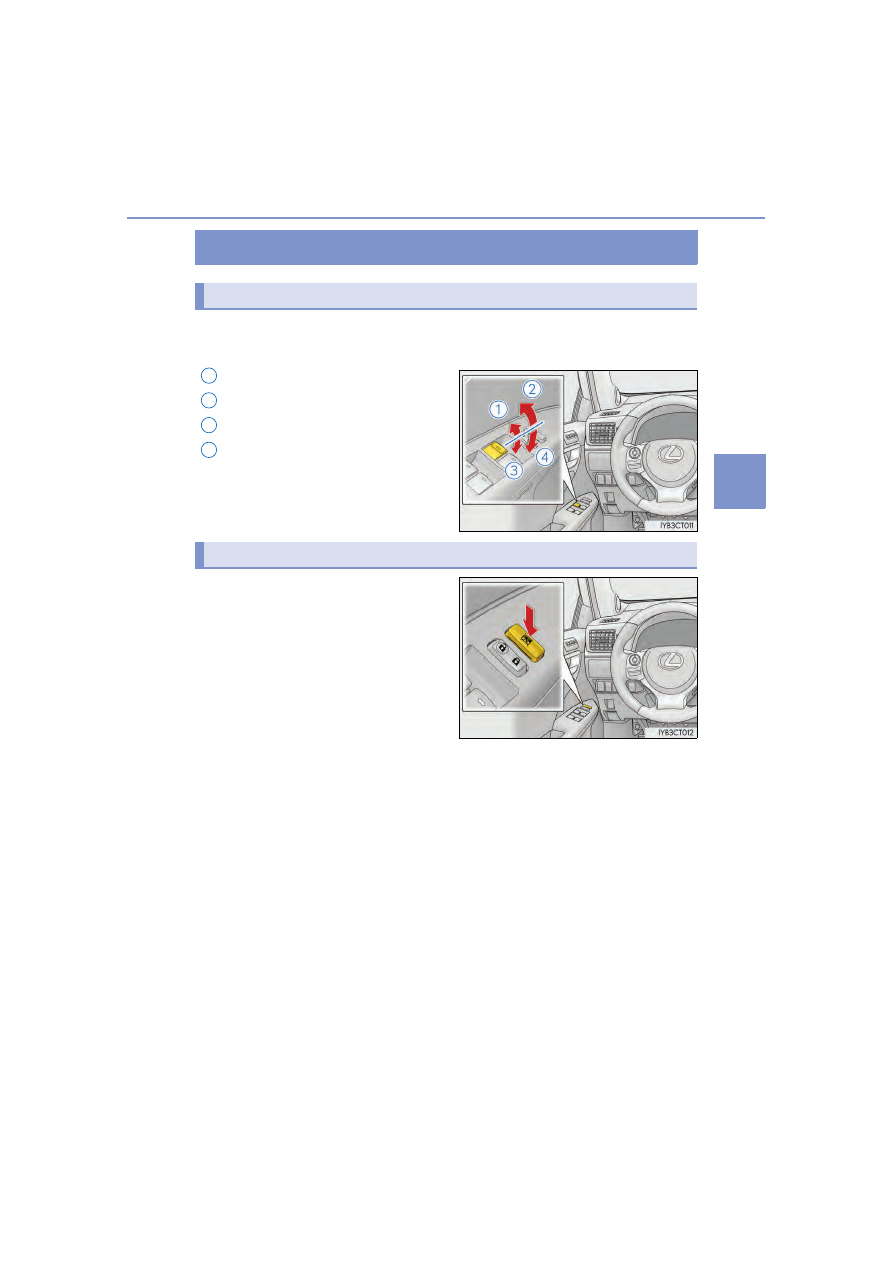

The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:

Closing
One-touch closing

Opening
One-touch opening

: To stop the window partway, operate the

switch in the opposite direction.

Press the switch down to lock the pas-
senger window.

Use this switch to prevent children from

accidentally opening or closing a pas-

senger window.

Opening and closing procedures

2
3
4

Window lock switch

140

■

The power windows can be operated when
The power switch is in ON mode.

■

Operating the power windows after turning the hybrid system off
The power windows can be operated for approximately 45 seconds even after the

power switch is turned to ACCESSORY mode or turned off. They cannot, however, be

operated once either front door is opened.

■

Jam protection function
If an object becomes jammed between the window and the window frame while the win-

dow is closing, window movement is stopped and the window is opened slightly.

■

Catch protection function
If an object becomes caught between the door and window while the window is opening,

window movement is stopped.

■

When the window cannot be opened or closed
When the jam protection function or catch protection function operates unusually and

the door window cannot be opened or closed, perform the following operations with the

power window switch of that door.

●

Stop the vehicle. With the power switch in ON mode, within 4 seconds of the jam pro-

tection function or catch protection function activating, continuously operate the

power window switch in the one-touch closing direction or one-touch opening direc-

tion so that the door window can be opened and closed.

●

If the door window cannot be opened and closed even when performing the above

operations, perform the following procedure for function initialization.
Turn the power switch to ON mode.
Pull and hold the power window switch in the one-touch closing direction and com-

pletely close the door window.
Release the power window switch for a moment, resume pulling the switch in the one-

touch closing direction, and hold it there for approximately 6 seconds or more.
Press and hold the power window switch in the one-touch opening direction. After the

door window is completely opened, continue holding the switch for an additional 1 sec-

ond or more.
Release the power window switch for a moment, resume pushing the switch in the

one-touch opening direction, and hold it there for approximately 4 seconds or more.
Pull and hold the power window switch in the one-touch closing direction again. After

the door window is completely closed, continue holding the switch for a further 1 sec-

ond or more.

If you release the switch while the window is moving, start again from the beginning.

If the window reverses and cannot be fully closed or opened, have the vehicle inspected

by your Lexus dealer.

■

Door lock linked window operation

●

The power windows can be opened and closed using the mechanical key.

(

P. 566)

●

The power windows can be opened using the wireless remote control.

(



P. 107)

: These settings must be customized at your Lexus dealer.

■

Customization
Setting (e.g. linked door lock operation) can be changed.

(Customizable features:



P. 598)

141

Op
era
tio

n of
ea

WARNING

Observe the following precautions.

Failing to do so may result in death or serious injury.

■

Closing the windows

●

The driver is responsible for all the power window operations, including the operation

for the passengers. In order to prevent accidental operation, especially by a child, do

not let a child operate the power windows. It is possible for children and other passen-

gers to have body parts caught in the power window. Also, when riding with a child, it

is recommended to use the window lock switch. (

P. 139)

●

Check to make sure that all passengers do not have any part of their body in a posi-

tion where it could be caught when a window is being operated.

●

When using the wireless remote control or mechanical key and operating the power

windows, operate the power window after checking to make sure that there is no pos-

sibility of any passenger having any of their body parts caught in the window. Also do

not let a child operate window by the wireless remote control or mechanical key. It is

possible for children and other passengers to get caught in the power window.

●

When exiting the vehicle, turn the power switch off, and take the key with you. Do not

leave children unattended in the vehicle. There may be accidental operation, due to

mischief, etc., that may possibly lead to an accident.

■

Jam protection function

●

Never use any part of your body to intentionally activate the jam protection function.

●

The jam protection function may not work if something gets jammed just before the

window is fully closed. Be careful not to get any part of your body jammed in the win-

dow.

■

Catch protection function

●

Never use any part of your body or clothing to intentionally activate the catch protec-

tion function.

●

The catch protection function may not work if something gets caught just before the

window is fully opened. Be careful not to get any part of your body or clothing caught

in the window.

142

Moon roof



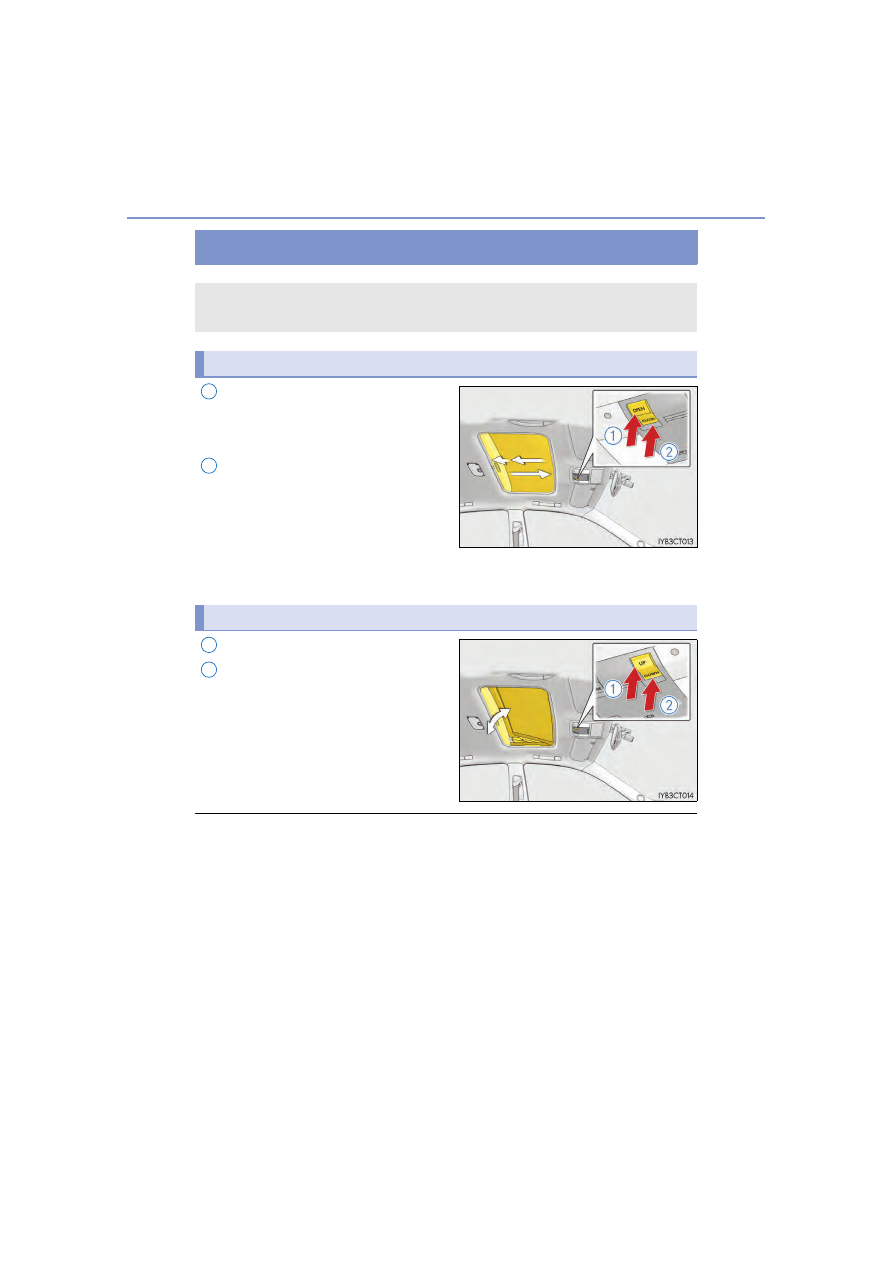

Opens the moon roof

Push and hold “OPEN” for more than 1

second. The moon roof tilts up and then

opens automatically.

Closes the moon roof

Push and hold “CLOSE” for more than 1

second. The moon roof closes automati-

cally and stops slightly before the tilt up

position.

Push and hold “CLOSE” again to fully

close the moon roof.

: Lightly press either end of the moon roof switch to stop the moon roof partway.

Tilts the moon roof up

Tilts the moon roof down

: Lightly press either end of the moon roof

switch to stop the moon roof partway.

■

The moon roof can be operated when
The power switch is in ON mode.

■

Operating the moon roof after turning the hybrid system off
The moon roof can be operated for approximately 45 seconds even after the power

switch is turned to ACCESSORY mode or turned off. It cannot, however, be operated

once either front door is opened.



: If equipped

Use the overhead switches to open and close the moon roof and tilt it up and
down.

Opening and closing

Tilting up and down

143

Op
era
tio

n of
ea

■

Jam protection function
If an object is detected between the moon roof and the frame while the moon roof is clos-

ing or tilting down, travel is stopped and the moon roof opens slightly.

■

Sunshade
The sunshade can be opened and closed manually. However, the sunshade will open

automatically to slightly before the fully open position when the moon roof is opened.

■

When the moon roof does not close normally
Perform the following procedure:

●

If the moon roof closes but then re-opens slightly

Stop the vehicle.
Press and hold the “CLOSE” switch.

The moon roof will close, reopen and pause for approximately 10 seconds.

Then it

will close again and tilt down. Finally it will be adjusted slightly and then stop.
Check to make sure that the moon roof completely stops and then release the

switch.

●

If the moon roof tilts down but then tilts back up

Stop the vehicle.
Press and hold the “DOWN” switch.

The moon roof will close, reopen and pause for approximately 10 seconds in the tilt
up position.

Then it will close again and tilt down. Finally it will be adjusted slightly

and then stop.
Check to make sure that the moon roof has completely stopped and then release

the switch.

: If the switch is released at the incorrect time, the procedure will have to be per-

formed again from the beginning.

: If the switch is released after the above mentioned 10 second pause, automatic

operation will be disabled. In that case, press and hold the “CLOSE” or “DOWN”
switch, and the moon roof will close, be adjusted slightly and then stop. Check to
make sure that the moon roof has completely stopped and then release the switch.

If the moon roof does not fully close even after performing the above procedure cor-

rectly, have the vehicle inspected by your Lexus dealer.

■

Moon roof open warning buzzer
The buzzer sounds and a message is shown on the multi-information display in the instru-

ment cluster when the power switch is turned off and the driver’s door is opened with the

moon roof open.

144

WARNING

Observe the following precautions.

Failing to do so may cause death or serious injury.

■

Opening the moon roof

●

Do not allow any passengers to put their hands or heads outside the vehicle while it is

moving.

●

Do not sit on top of the moon roof.

■

Closing the moon roof

●

The driver is responsible for moon roof opening and closing operations. In order to

prevent accidental operation, especially by a child, do not let a child operate the

moon roof. It is possible for children and other passengers to have body parts caught

in the moon roof.

●

Check to make sure that all passengers do not have any part of their body in a posi-

tion where it could be caught when the moon roof is being operated.

●

When exiting the vehicle, turn the power switch off, carry the key and exit the vehicle

along with the child. There may be accidental operation, due to mischief, etc., that

may possibly lead to an accident.

■

Jam protection function

●

Never use any part of your body to intentionally activate the jam protection function.

●

The jam protection function may not work if something gets caught just before the

moon roof fully closes.
