WARNING

■

Things that must not be carried in the luggage compartment
The following things may cause a fire if loaded in the luggage compartment:

●

Receptacles containing gasoline

●

Aerosol cans

■

Storage precautions
Observe the following precautions.

Failure to do so may prevent the pedals from being depressed properly, may block the

driver’s vision, or may result in items hitting the driver or passengers, possibly causing

an accident.

●

Stow cargo and luggage in the luggage compartment whenever possible.

●

Do not stack cargo and luggage in the luggage compartment higher than the seat-

backs.

●

When you fold down the rear seats, long items should not be placed directly behind

the front seats.

●

Never allow anyone to ride in the luggage compartment. It is not designed for pas-

sengers. They should ride in their seats with their seat belts properly fastened.

●

Do not place cargo or luggage in or on the following locations.
• At the feet of the driver

• On the front passenger or rear seats (when stacking items)

• On the luggage cover

• On the instrument panel

• On the dashboard

●

Secure all items in the occupant compartment.

■

Capacity and distribution

●

Do not exceed the maximum axle weight rating or the total vehicle weight rating.

●

Even if the total load of occupant’s weight and the cargo load is less than the total load

capacity, do not apply the load unevenly. Improper loading may cause deterioration

of steering or braking control which may cause death or serious injury.

156

4-1. Before driving

Vehicle load limits

◆

Total load capacity (vehicle capacity weight):

P. 578

Total load capacity means the combined weight of occupants, cargo and lug-
gage.

◆

Seating capacity: 5 occupants (Front 2, Rear 3)

Seating capacity means the maximum number of occupants whose estimated
average weight is 150 lb. (68 kg) per person.

◆

Towing capacity

Lexus does not recommend towing a trailer with your vehicle.

◆

Cargo capacity

Cargo capacity may increase or decrease depending on the weight and the
number of occupants.

■

Total load capacity and seating capacity
These details are also described on the tire and loading information label. (

P. 502)

Vehicle load limits include total load capacity, seating capacity, towing capac-
ity and cargo capacity.

WARNING

■

Overloading the vehicle
Do not overload the vehicle.

It may not only cause damage to the tires, but also degrade steering and braking ability,

resulting in an accident.

157

4-1. Before driving

iving

Trailer towing

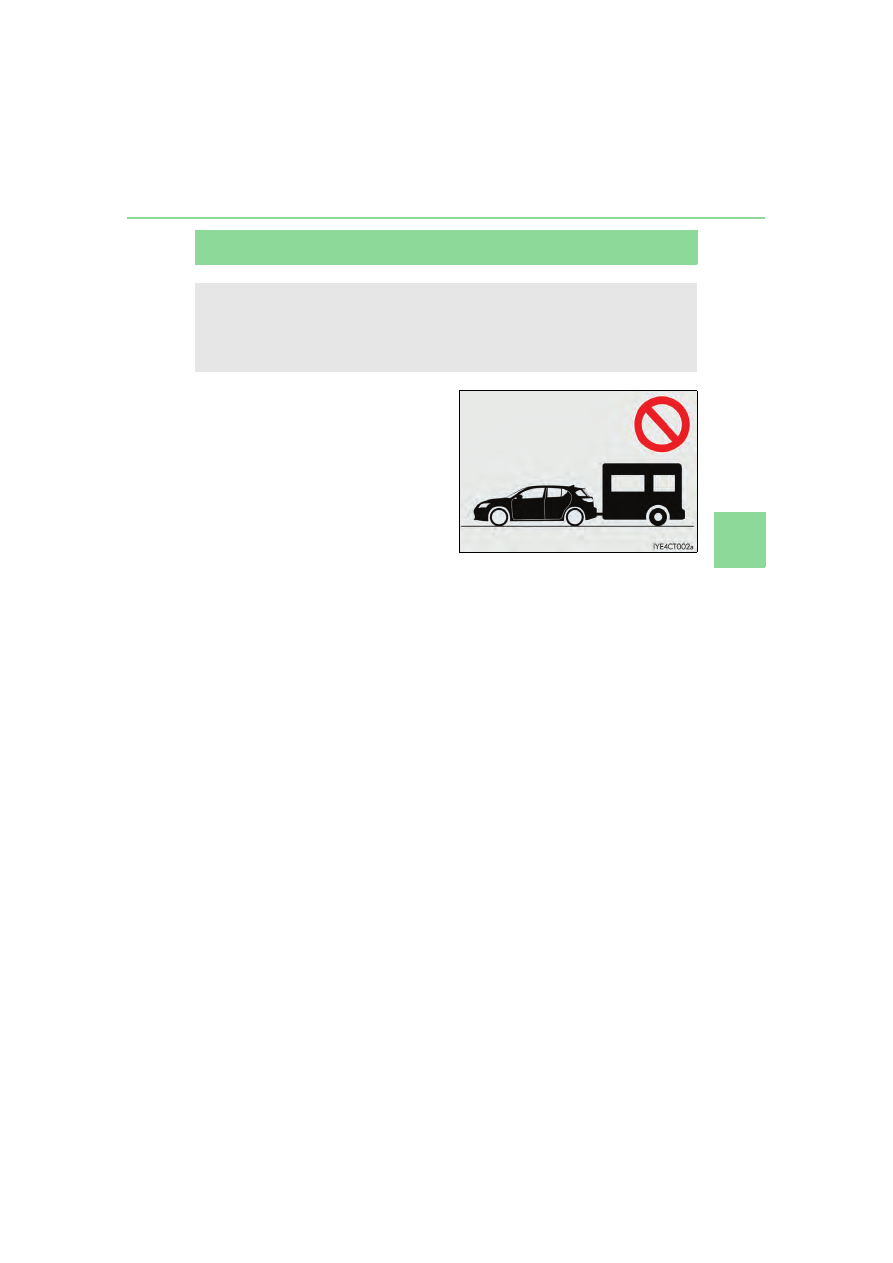

Lexus does not recommend towing a trailer with your vehicle. Lexus also does
not recommend the installation of a tow hitch or the use of a tow hitch carrier
for a wheelchair, scooter, bicycle, etc. Your vehicle is not designed for trailer
towing or for the use of tow hitch mounted carriers.

158

4-1. Before driving

Dinghy towing

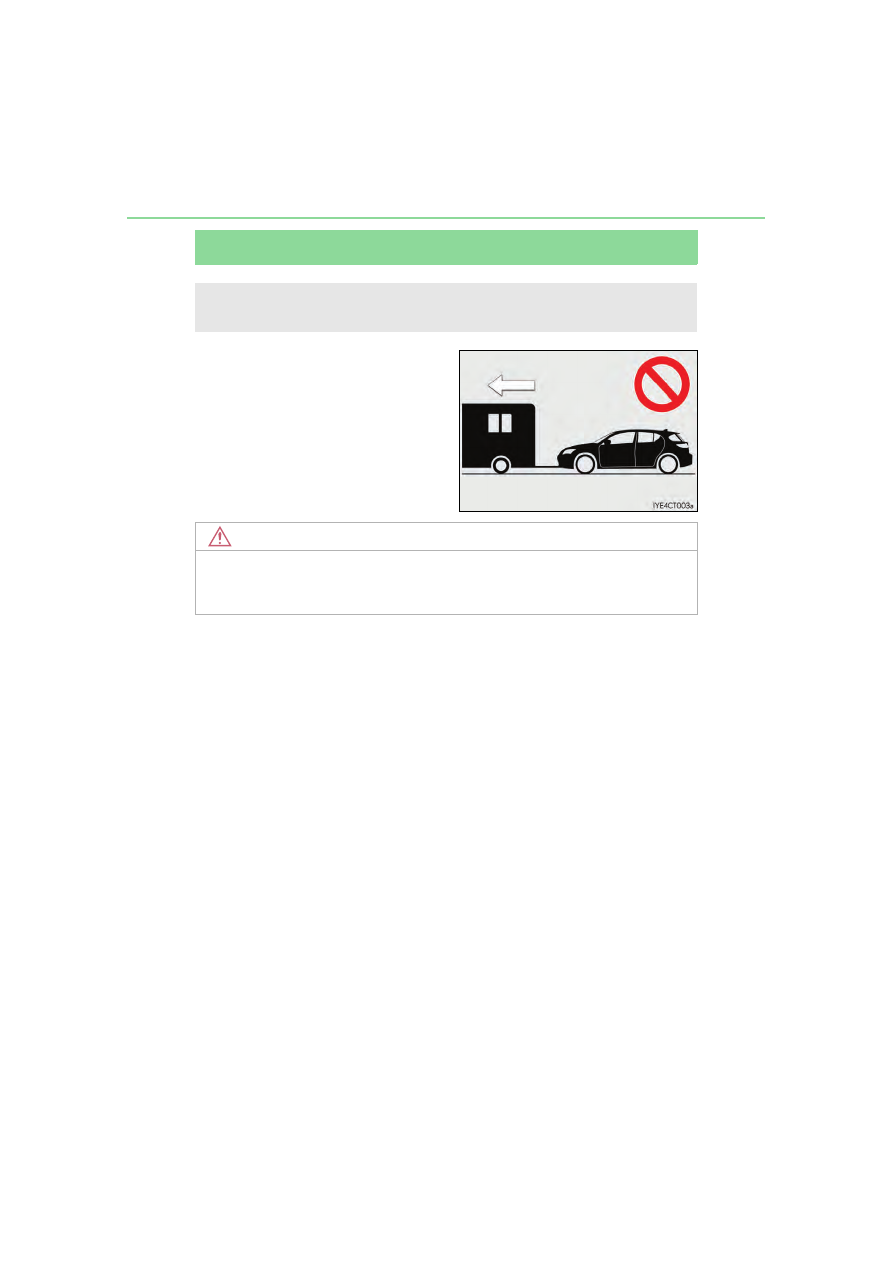

Your vehicle is not designed to be dinghy towed (with 4 wheels on the ground)
behind a motor home.

NOTICE

■

To avoid serious damage to your vehicle
Do not tow your vehicle with the four wheels on the ground.

159

4-2. Driving procedures

iving

Power (ignition) switch

Check that the parking brake is set.
Firmly depress the brake pedal.

Check that the power switch indicator turns green. If the indicator does not turn

green, the hybrid system cannot be started.
When the shift position is N, the hybrid system cannot start. Shift the shift position to P

when starting the hybrid system. (

P. 166)

Press the power switch shortly and
firmly.

When operating the power switch, one

short, firm press is enough. It is not nec-

essary to press and hold the switch.
Continue depressing the brake pedal

until the hybrid system is completely

started.
The hybrid system can be started from

any power switch mode.

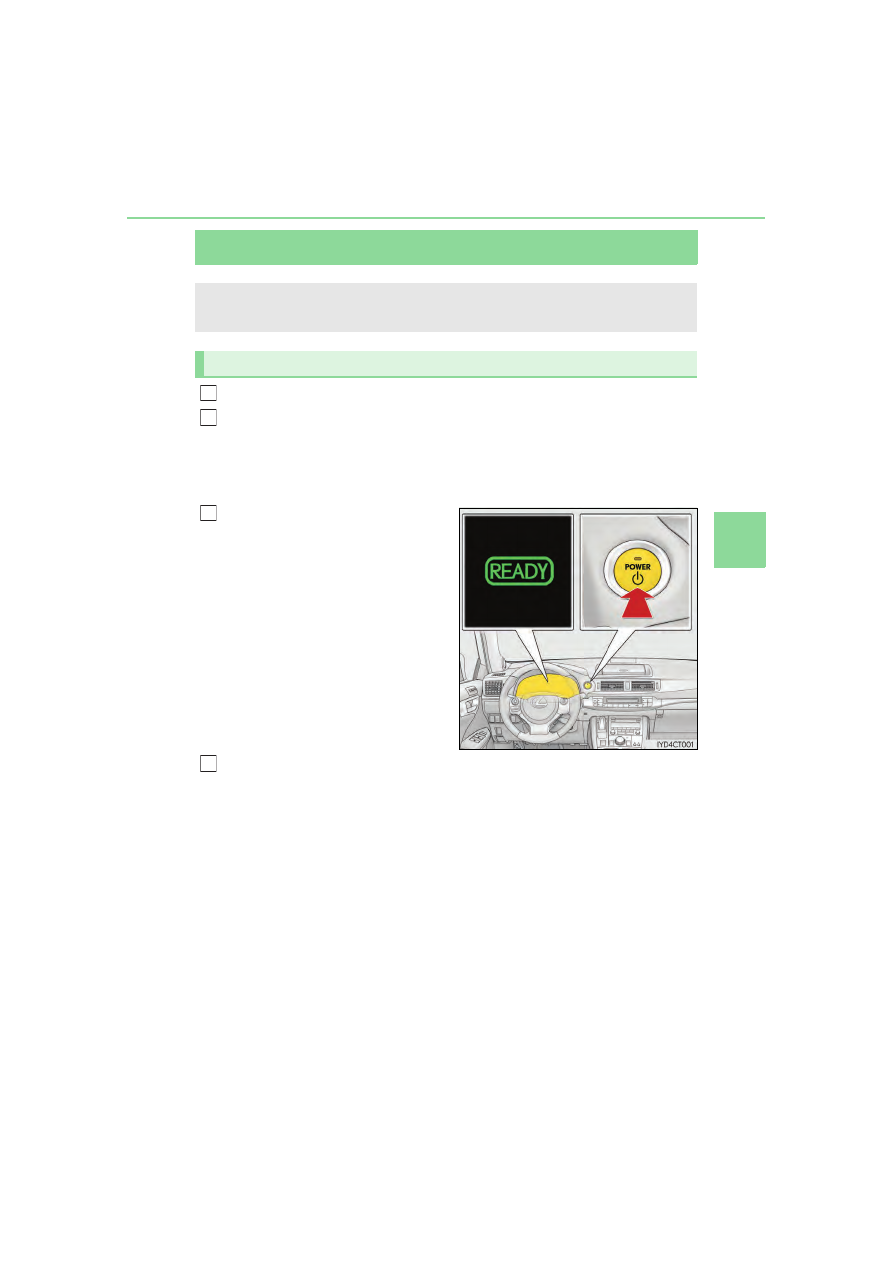

Check that the “READY” indicator is illuminated.

If the “READY” indicator changes from a flashing light to a solid light and the buzzer

sounds, the hybrid system is starting normally.
The vehicle will not move when the “READY” indicator is off.
The vehicle can move when the “READY” indicator is on even if the engine is stopped.

(The gasoline engine starts or stops automatically in accordance with the state of the

vehicle.)

Performing the following operations when carrying the electronic key on your
person starts the hybrid system or changes power switch modes.

Starting the hybrid system

160

4-2. Driving procedures

Stop the vehicle completely.
Set the parking brake. (

P. 171)

Shift the shift position to P.
(

P. 166)

Check that the shift position indicator

shows P. (

P. 165)

Press the power switch.

The hybrid system will stop, and the meter display will be extinguished (the shift posi-

tion indicator will be extinguished a few seconds after the meter display).

Slowly release the brake pedal and check that the indicator on the power
switch is off.

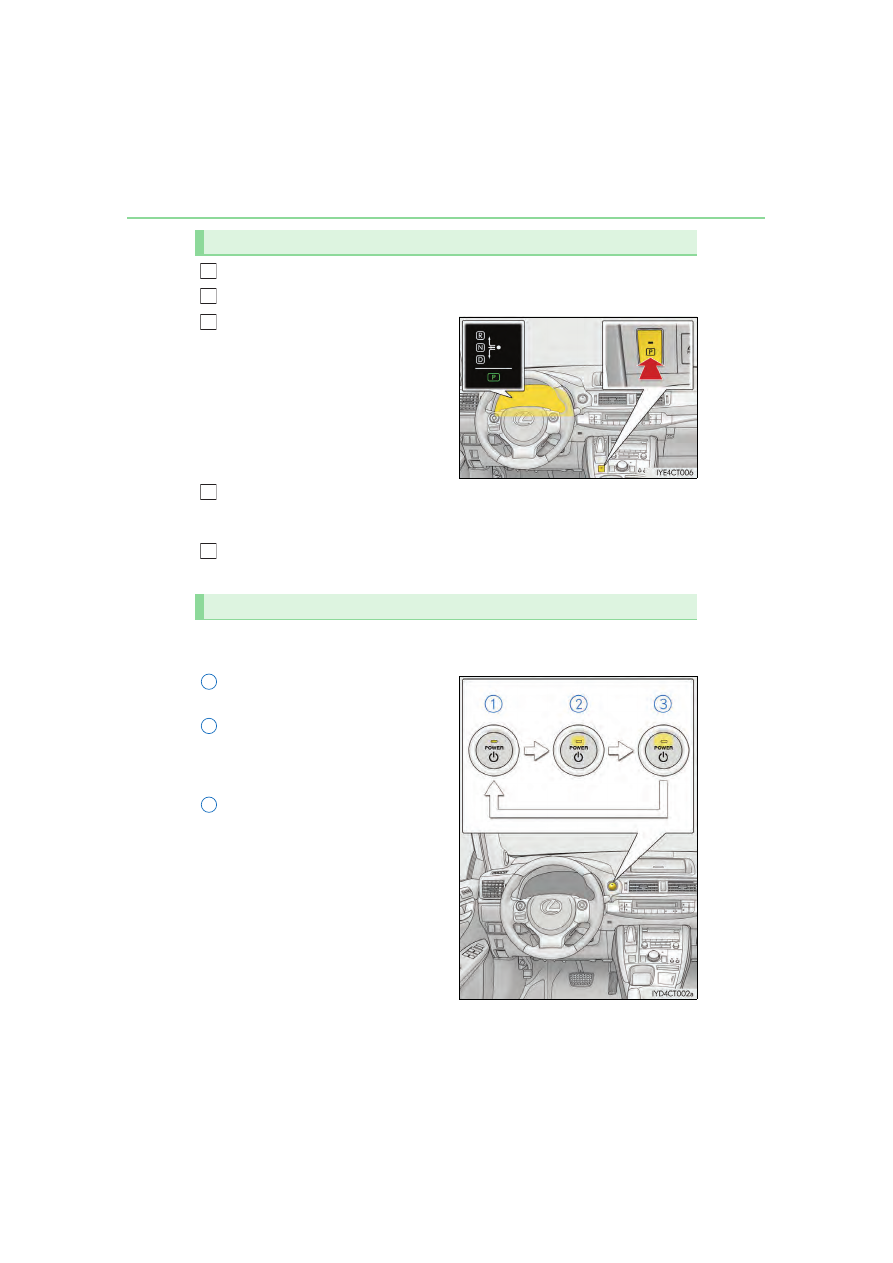

Modes can be changed by pressing the power switch with the brake pedal
released. (The mode changes each time the switch is pressed.)

Off

The emergency flashers can be used.

ACCESSORY mode

Some electrical components such as the

audio system can be used.
The power switch indicator turns amber.

ON mode

All electrical components can be used.
The power switch indicator turns amber.

Stopping the hybrid system

Changing power switch modes

161

4-2. Driving procedures

iving

■

Auto power off function
If the vehicle is left in ACCESSORY mode for more than 20 minutes or ON mode (the

hybrid system is not operating) for more than an hour with the shift position in P, the

power switch will automatically turn off. However, this function cannot entirely prevent

the 12-volt battery discharge. Do not leave the vehicle with the power switch in ACCES-

SORY or ON mode for long periods of time when the hybrid system is not operating.

■

Sounds and vibrations specific to a hybrid vehicle
P. 70

■

Electronic key battery depletion
P. 105

■

When the ambient temperature is low, such as during winter driving conditions
When starting the hybrid system, the flashing time of the “READY” indicator may be

long. Leave the vehicle as it is until the “READY” indicator is steady on, as steady means

the vehicle is able to move.

■

Conditions affecting operation
P. 117

■

Note for the entry function
P. 118

■

If the hybrid system does not start
The immobilizer system may not have been deactivated. (

P. 76)

Contact your Lexus dealer.

■

When the power switch indicator flashes in amber
The system may be malfunctioning. Have the vehicle inspected by your Lexus dealer

immediately.

■

If the “READY” indicator does not come on
In the event that the “READY” indicator does not come on even after performing the

proper procedures for starting the vehicle, contact your Lexus dealer immediately.

■

If the hybrid system is malfunctioning
P. 545

■

If the electronic key battery is depleted
P. 509

■

Operation of the power switch

●

If the switch is not pressed shortly and firmly, the power switch mode may not change or

the hybrid system may not start.

●

If attempting to restart the hybrid system immediately after turning the power switch off,

the hybrid system may not start in some cases. After turning the power switch off,

please wait a few seconds before restarting the hybrid system.

■

Automatically P position selection function
P. 168

■

When the shift control system malfunctions
The power switch will not be able to be turned off. In such a case, the switch can be

turned off after applying the parking brake.

Have the vehicle inspected by your Lexus dealer immediately.

162

4-2. Driving procedures

WARNING

■

When starting the hybrid system
Always start the hybrid system while sitting in the driver’s seat. Do not depress the

accelerator pedal while starting the hybrid system under any circumstances.

Doing so may cause an accident resulting in death or serious injury.

■

Stopping the hybrid system in an emergency
If you want to stop the hybrid system in an emergency while driving the vehicle, press

and hold the power switch for more than 2 seconds, or press it briefly 3 times or more

in succession. (

P. 529)

However, do not touch the power switch while driving except in an emergency. Turning

the hybrid system off while driving will not cause loss of steering or braking control,

however, power assist to the steering will be lost. This will make it more difficult to steer

smoothly, so you should pull over and stop the vehicle as soon as it is safe to do so.

NOTICE

■

To prevent 12-volt battery discharge

●

Do not leave the power switch in ACCESSORY or ON mode for long periods of

time without the hybrid system on.

●

If the hybrid system is off, but the indicator on the power switch is illuminated, this indi-

cates that the power switch is still turned on. When exiting the vehicle, always check

that the power switch is off.

■

When starting the hybrid system
If the hybrid system becomes difficult to start, have your vehicle checked by your Lexus

dealer immediately.

■

Symptoms indicating a malfunction with the power switch
If the power switch seems to be operating somewhat differently than usual, such as the

switch sticking slightly, there may be a malfunction. Contact your Lexus dealer immedi-

ately.

163

4-2. Driving procedures

iving

EV drive mode

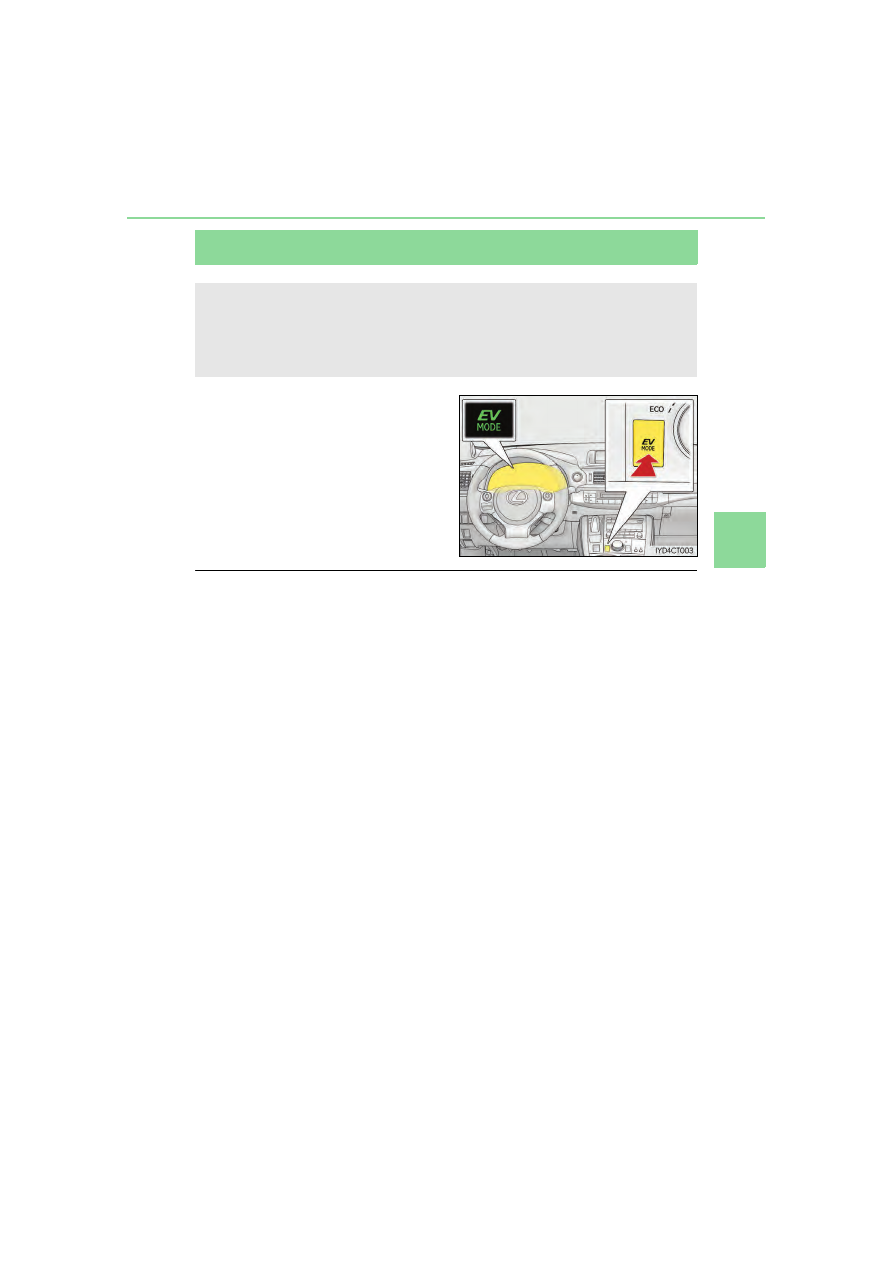

Turns EV drive mode on/off

When EV drive mode is turned on, the

EV drive mode indicator will come on.

Pressing the switch when in EV drive

mode will return the vehicle to normal

driving (using the gasoline engine and

electric motor [traction motor]).

■

Situations in which EV drive mode cannot be turned on
It may not be possible to turn EV drive mode on in the following situations. If it cannot be

turned on, a buzzer will sound and a message will be shown on the multi-information dis-

play.

●

The temperature of the hybrid system is high.

The vehicle has been left in the sun, driven on a hill, driven at high speeds, etc.

●

The temperature of the hybrid system is low.

The vehicle has been left in temperatures lower than about 68

F (20 C) for a long

period of time etc.

●

The gasoline engine is warming up.

●

The hybrid battery (traction battery) is low.

The remaining battery level indicated in the “Energy Monitor” display is low. (

P. 94)

●

Vehicle speed is high.

●

The accelerator pedal is depressed firmly or the vehicle is on a hill etc.

●

The windshield defogger is in use.

In EV drive mode, the electric motor (traction motor), powered by the hybrid
battery (traction battery), is used to drive the vehicle.
This mode allows you to drive in residential areas late at night, or in indoor
parking lots etc. without concern for noises and exhaust gas emissions.

164

4-2. Driving procedures

■

Switching to EV drive mode when the gasoline engine is cold
If the hybrid system is started while the gasoline engine is cold, the gasoline engine will

start automatically after a short period of time in order to warm up. In this case, you will

become unable to switch to EV drive mode.

After the hybrid system has started and the “READY” indicator has illuminated, press the

EV drive mode switch before the gasoline engine starts to switch to EV drive mode.

■

Automatic cancellation of EV drive mode
When driving in EV drive mode, the gasoline engine may automatically restart in the fol-

lowing situations. When EV drive mode is canceled, a buzzer will sound and the EV drive

mode indicator will flash and go off.

●

The hybrid battery (traction battery) becomes low.

The remaining battery level indicated in the “Energy Monitor” display is low. (

P. 94)

●

Vehicle speed becomes high.

●

The accelerator pedal is depressed firmly or the vehicle is on a hill etc.

When it is possible to inform the driver of automatic cancelation in advance, a prior

notice screen will appear on the multi-information display.

■

Possible driving distance when driving in EV drive mode
EV drive mode’s possible driving distance ranges from a few hundred meters to approxi-

mately 0.6 mile (1 km). However, depending on vehicle conditions, there are situations

when EV drive mode cannot be used. (The distance that is possible depends on the

hybrid battery [traction battery] level and driving conditions.)

■

Fuel economy
Your Lexus is designed to achieve the best possible fuel economy during normal driving

(using the gasoline engine and electric motor [traction motor]). Driving in EV drive

mode more than necessary may lower fuel economy.

WARNING

■

Caution while driving
When driving in EV drive mode, pay special attention to the area around the vehicle.

Because there is no engine noise, pedestrians, people riding bicycles or other people

and vehicles in the area may not be aware of the vehicle starting off or approaching

them, so take extra care while driving.

165

4-2. Driving procedures

iving

Hybrid transmission

Shift lever

Operate the shift lever gently and ensure correct shifting operation.
Release the shift lever after each shifting operation to allow it to return to the posi-

tion.

When shifting from P to N, D or R, from D to R, or from R to D, ensure that the brake

pedal is being depressed and the vehicle is stationary.

Shift position indicator

The current shift position is illuminated.
When any shift position other than D or B is selected, the arrow toward B and B posi-

tion indicator disappear from the shift position indicator.

When selecting the shift position, make sure that the shift position has been
changed to the desired position by checking the shift position indicator provided
on the instrument cluster.

Shifting the shift lever

When shifting to the D or R, move the shift lever along the shift gate.

To shift to the N, slide the shift lever to the left and hold it. The shift position

will change to N.

To shift to the B, pull the shift lever down.

Shifting to B is only possible when shift position D is selected.

166

4-2. Driving procedures

: For good fuel economy and noise reduction, the D position should usually be used.

P. 237

■

When shifting the shift position to P
Fully stop the vehicle and set the
parking brake, and then press the P
position switch.

When the shift position is changed to

P, the switch indicator comes on.
Check that the P position is illumi-

nated on the shift position indicator.

■

Shifting the shift position from P to other positions

●

While depressing the brake pedal firmly, operate the shift lever. If the shift
lever is operated without depressing the brake pedal, the buzzer will sound
and the shifting operation will be disabled.

●

When selecting the shift position, make sure that the shift position has been
changed to the desired position by checking the shift position indicator
provided on the instrument cluster.

●

The shift position cannot be changed from P to B directly.

Shift position purpose

Shift position

Objective or function

Parking the vehicle/starting the hybrid system

Reversing

Neutral

(Condition in which the power is not transmitted)

Normal driving

Applying engine braking or strong braking when the accelera-

tor pedal has been released on steep downward slopes etc.

Selecting a driving mode

P position switch

167

4-2. Driving procedures

iving

■

For the shift positions

●

When the power switch is off, the shift position cannot be changed.

●

When the power switch is in ON mode (the hybrid system is not operating), the shift

position can only be changed to N. The shift position will be changed to N even if the

shift lever is shifted to D or R and held in that position.

●

When the “READY” indicator is on, the shift position can be changed from P to D, N or

●

When the “READY” indicator is flashing, the shift position cannot be changed from P to

another position even if the shift lever is operated. Wait until the “READY” indicator

changes from a flashing to a solid light, and then operate the shift lever again.

●

The shift position can only be changed to B directly from D.

In addition, if an attempt is made to change the shift position by moving the shift lever or

by pressing the P position switch in any of the following situations, the buzzer will sound

and the shifting operation will be disabled or the shift position will automatically change

to N. When this happens, select an appropriate shift position.

●

Situations where the shifting operation will be disabled:
• When an attempt is made to change the shift position from P to another position by

moving the shift lever without depressing the brake pedal.

• When an attempt is made to change the shift position from P or N to B by moving

the shift lever.

●

Situations where the shift position will automatically change to N:
• When the P position switch is pressed while the vehicle is running.

• When an attempt is made to select the R position by moving the shift lever when the

vehicle is moving forward.

• When an attempt is made to select the D position by moving the shift lever when the

vehicle is moving in reverse.

• When an attempt is made to change the shift position from R to B by moving the shift

lever.

: Shift position may be changed to P when driving at extremely low speeds.

: Shift position may be changed to R when driving at low speeds.

: Shift position may be changed to D when driving at low speeds.

■

Reverse warning buzzer
When shifting into R, a buzzer will sound to inform the driver that the shift position is in R.

168

4-2. Driving procedures

■

About engine braking
When shift position B is selected, releasing the accelerator pedal will apply engine brak-

ing.
• When the vehicle is driven at high speeds, compared to ordinary gasoline-fueled vehi-

cles, the engine braking deceleration is felt less than that of other vehicles.

• The vehicle can be accelerated even when shift position B is selected.

If the vehicle is driven continuously in the B position, fuel efficiency will become low. Usu-

ally, select the D position.

■

When driving with cruise control or dynamic radar cruise control activated
Even if switching the driving mode to sport mode with the intent of enabling engine brak-

ing, engine braking will not activate because cruise control or dynamic radar cruise con-

trol will not be canceled.

■

Automatically P position selection function
When the shift position is in a position other than P, pressing the power switch with the

vehicle stopped completely will cause the shift position to change to P automatically, and

then the power switch will turn off.

■

If the shift position cannot be shifted from P
There is a possibility that the 12-volt battery is discharged. Check the 12-volt battery in

this situation. (

P. 568)

■

After recharging/reconnecting the 12-volt battery
P. 493

■

Customization
Settings (e.g. Reverse warning buzzer) can be changed.

(Customizable features:

P. 598)

WARNING

■

When driving on slippery road surfaces
Do not accelerate or shift the shift position suddenly.

Sudden changes in engine braking may cause the vehicle to spin or skid, resulting in an

accident.

■

For the shift lever
Do not remove the shift lever knob or use anything but a genuine Lexus shift lever

knob. Also, do not hang anything on the shift lever.

Doing so could prevent the shift lever from returning to position, causing unexpected

accidents to occur when the vehicle is in motion.

■

P position switch
Do not press the P position switch while the vehicle is moving.

If the P position switch is pressed when driving at very low speeds (for example, directly

before stopping the vehicle), the vehicle may stop suddenly when the shift position

switches to P, which could lead to an accident.

169

4-2. Driving procedures

iving

NOTICE

■

Hybrid battery (traction battery) charge
If the shift position is in N, the hybrid battery (traction battery) will not be charged. To

help prevent the battery from discharging, avoid leaving the N position selected for an

extended period of time.

■

Situations where shift control system malfunctions are possible
If any of the following situations occurs, shift control system malfunctions are possible.

Immediately stop the vehicle in a safe place on level ground, apply the parking brake,

and then contact your Lexus dealer.

●

When the warning message indicating the shift control system appears on the multi-

information display. (

P. 545)

●

When the shift position indicator remains off.

■

Notes regarding shift lever and P position switch operation
Avoid repeatedly operating the shift lever and P position switch in quick succession.

The system protection function may activate and it will not be temporarily possible to

shift the shift position other than P. If this happens, please wait for a while before

attempting to change the shift position again.

170

4-2. Driving procedures

Turn signal lever

Right turn
Lane change to the right (move the
lever partway and release it)

The right hand signals will flash 3 times.

Lane change to the left (move the
lever partway and release it)

The left hand signals will flash 3 times.

Left turn

■

Turn signals can be operated when
The power switch is in ON mode.

■

If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.

■

If the turn signals stop flashing before a lane change has been performed
Operate the lever again.

■

Customization
The number of times the turn signals flash during a lane change can be changed.

(Customizable features:

P. 598)

Operating instructions

Content .. 8 9 10 11 ..
