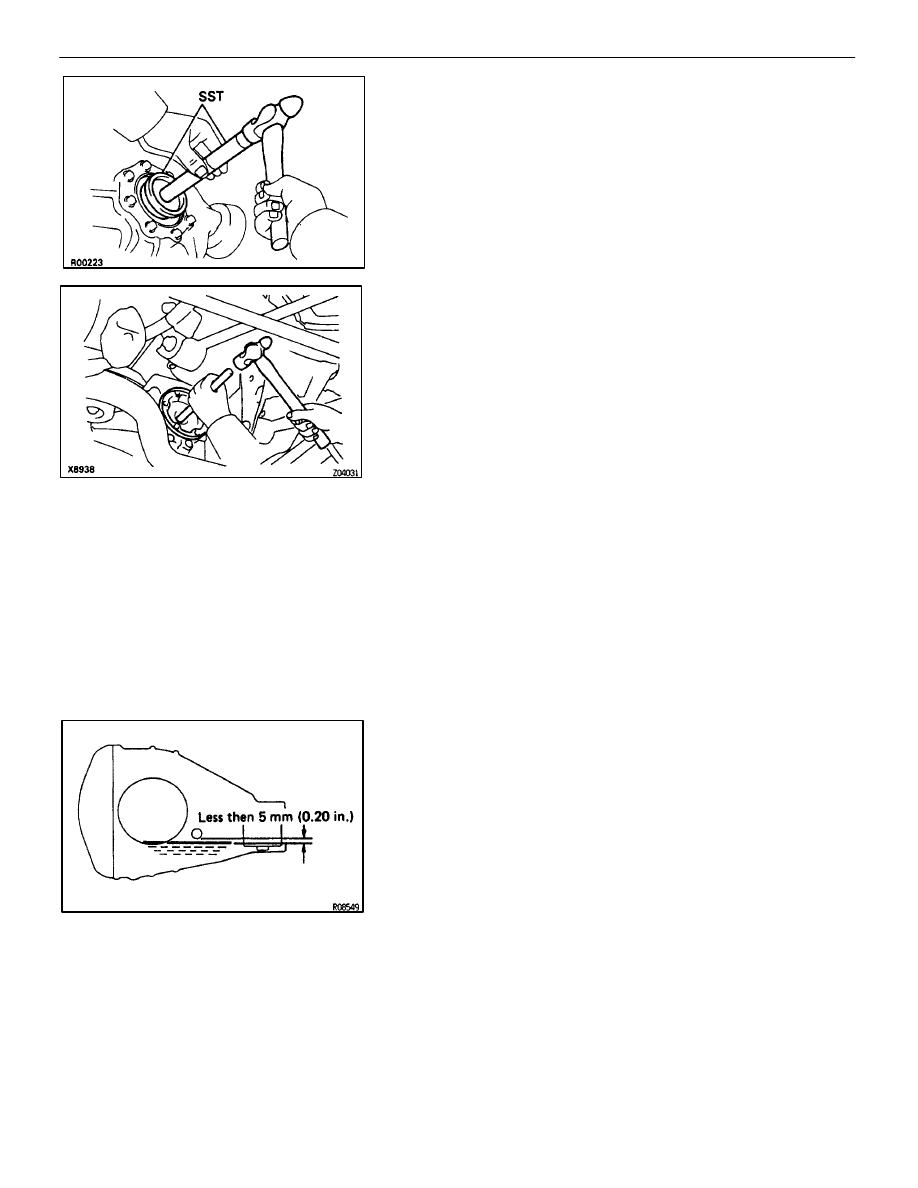

INSTALL SIDE GEAR SHAFT OIL SEAL

(a)  Using SST and a hammer, drive in a new oil seal.

SST 09608–32010, 09608–35014 (09608–06020)

(b)  Apply MP grease to the oil seal lip.

6.

INSTALL SIDE GEAR SHAFT

(a)  Install a new snap ring to the side gear shaft.
(b)  Using a hammer and brass bar, tap in the side gear shaft to

the differential.

NOTICE: Be careful not damage the side gear shaft and oil

seal.

7.

CHECK INSTALLATION OF SIDE GEAR SHAFT

(a)  Check that there is 2–3 mm (0.08–0.12 in.) of play in axial

direction.

(b)  Check that the side gear shaft will not come out by trying to

pull it out by hand.

8.

INSTALL REAR DRIVE SHAFT
(See page

SA–65

)

9.

CHECK DIFFERENTIAL OIL LEVEL
Fill with hypoid gear oil if necessary.

Oil grade:

API GL–5 Hypoid Gear Oil

Viscosity:

Above–18

C (0

F) SAE 90

Below–18

C (0

F) SAE 80W–90 or 80W

Capacity:

1.35 liters (1.43 US qts, 1.19 lmp. qts)

SA–80

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL

ECU Power Source Circuit

CIRCUIT DESCRIPTION

When the ignition switch is turned on, battery voltage
is applied to the terminal IG SW of the ECU, and the
main relay control circuit in the ECU sends a signal to
the terminal M–REL of the ECU, switching on the
main relay. This signal causes current to flow to the
coil, closing the contacts of the main relay and supply-
ing power to the terminals +B and +B1 of the ECU.
If the ignition switch is turned off, the ECU continues
to switch on the main relay for a maximum of 2 se-
conds for the initial setting of the ISC valve.

DIAGNOSTIC CHART

DIAGNOSTIC CHART

See next page for the DIAGNOSTIC CHART.

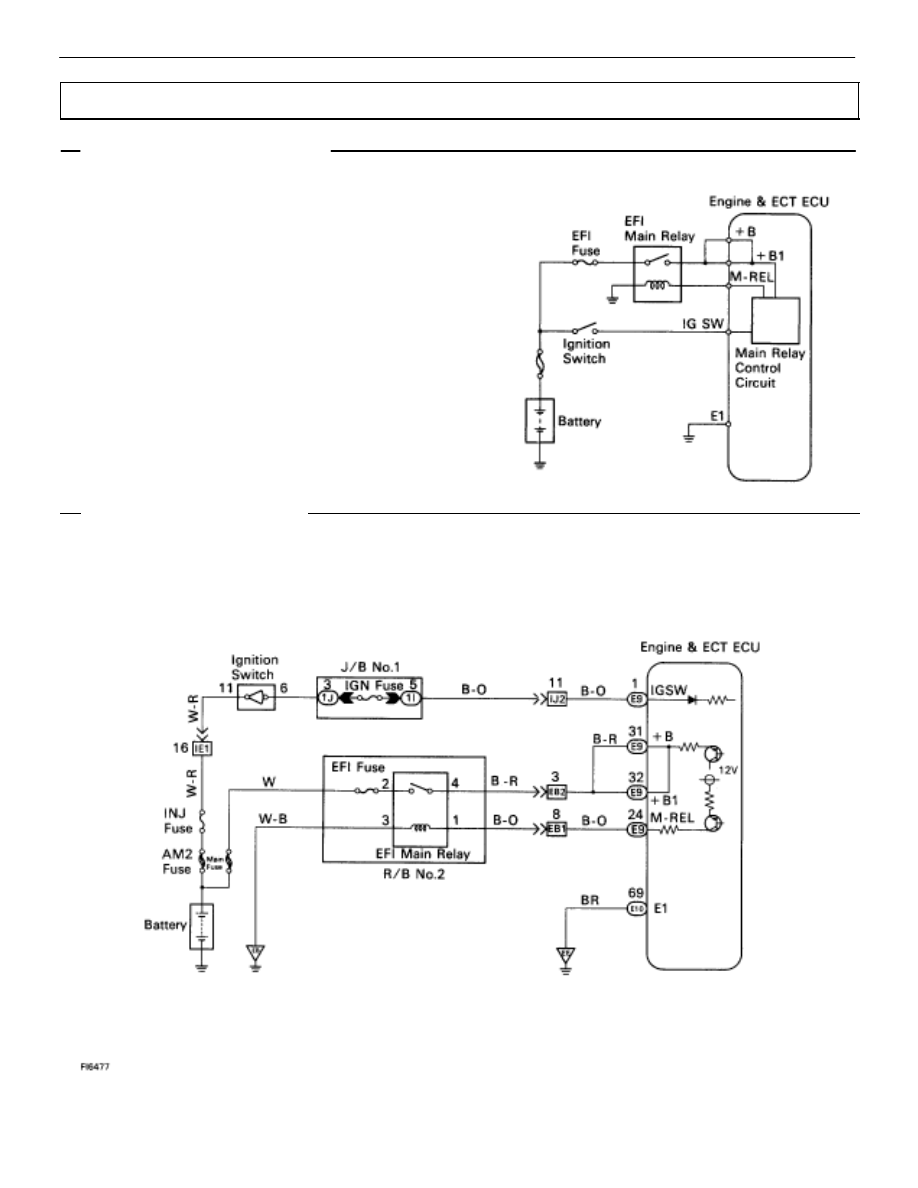

WIRING DIAGRAM

TR–124

–

ENGINE TROUBLESHOOTING

Circuit Inspection

DIAGNOSTIC CHART

DIAGNOSTIC CHART

Check for short in all the harness and
components connected to IGN fuse.

Check voltage of terminal M–REL.

Check for open in harness and connector
between battery and ECU.

Check and replace ECU.

Replace ignition switch.

Repair or replace harness or
connector.

Repair or replace harness or
connector.

Check for open and short in harness and
connector between terminal M REL and body
ground.

Replace EFT main relay.

Check voltage of terminal IGSW.

Check IGN fuse.

Check continuity between terminals E1 and
body ground.

Check voltage of ECU power source.

Proceed to next circuit inspection
shown on matrix chart (See page

TR–35

).

Check ignition switch.

Check EFT fuse.

Check EFT main relay.

Check and repair or harness or connector
between EFI fuse and battery.

Check for short in all the harness and
components connected to EFI fuse.

–

ENGINE TROUBLESHOOTING

Circuit Inspection

TR–125

NG

OK

OK

NG

NG

OK

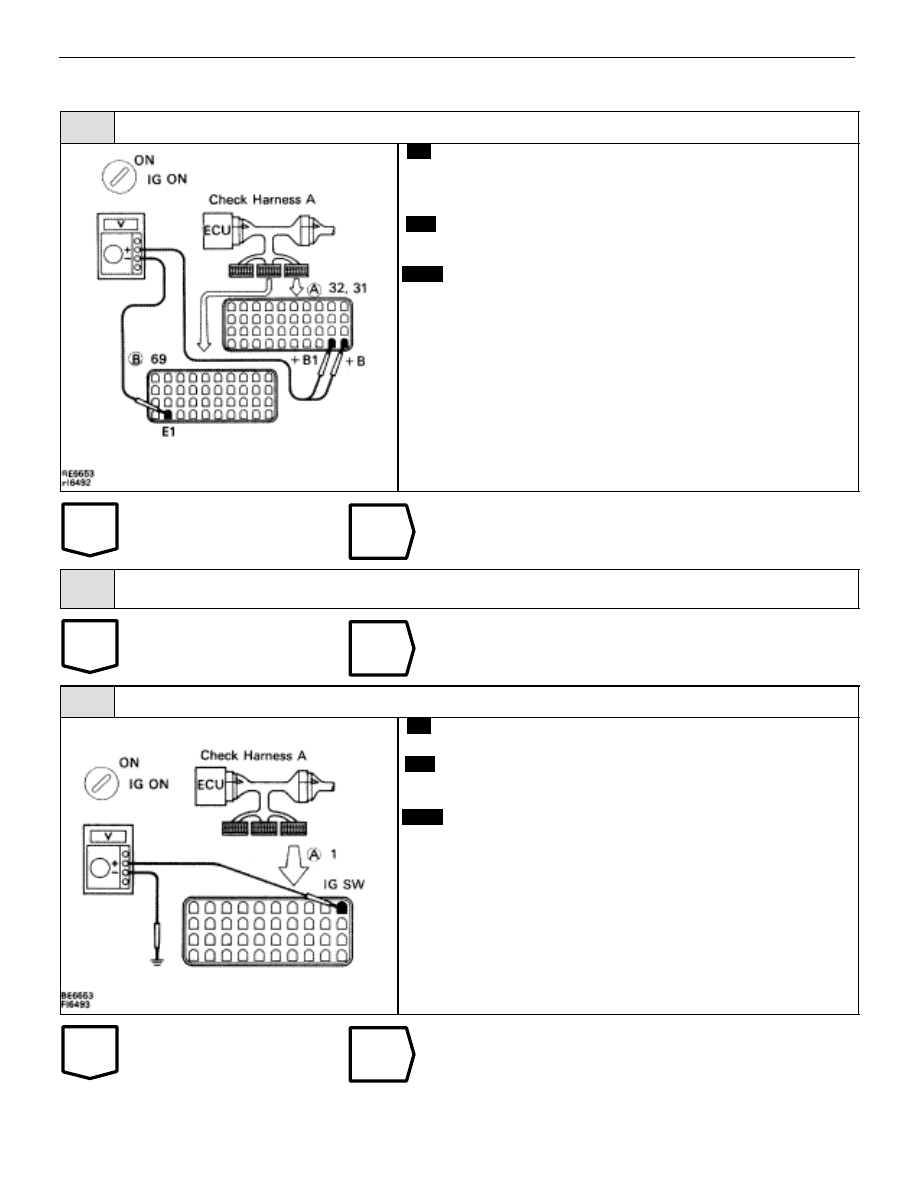

INSPECTION PROCEDURE

1

Check voltage between terminals + B, + B1 and E1 of engine & ECT ECU connector.

C

OK

P

(2) Connect the Check Harness A.

(See page

TR–30

)

(2) Turn ignition switch on.

Measure voltage between terminals + B, + B1 and E1
of engine & ECT ECU connector.

Voltage:

10 – 14 V

Proceed to next circuit inspection shown on matrix chart

2

Check for open in harness and connector between terminals E1 of engine & ECT ECU and body
ground (See page

IN–27

).

Repair or replace harness or connector.

3

Check voltage between terminal IG SW of engine & ECT ECU connector and body ground.

C

OK

P

Turn ignition switch on.

Measure voltage between terminal IG SW of engine &
ECT ECU connector and body ground.

Voltage:

10 – 14 V

Go to step 6.

TR–126

–

ENGINE TROUBLESHOOTING

Circuit Inspection
