SA–76

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL

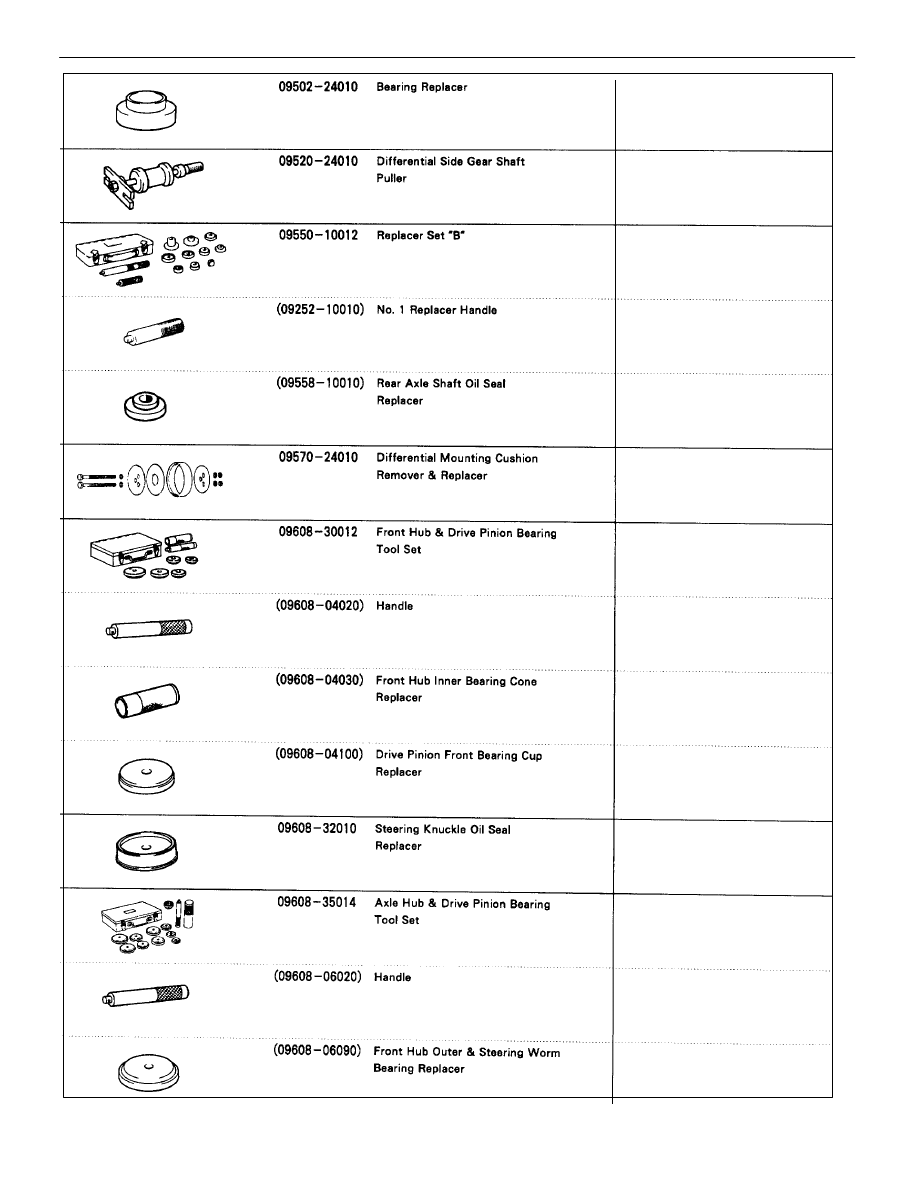

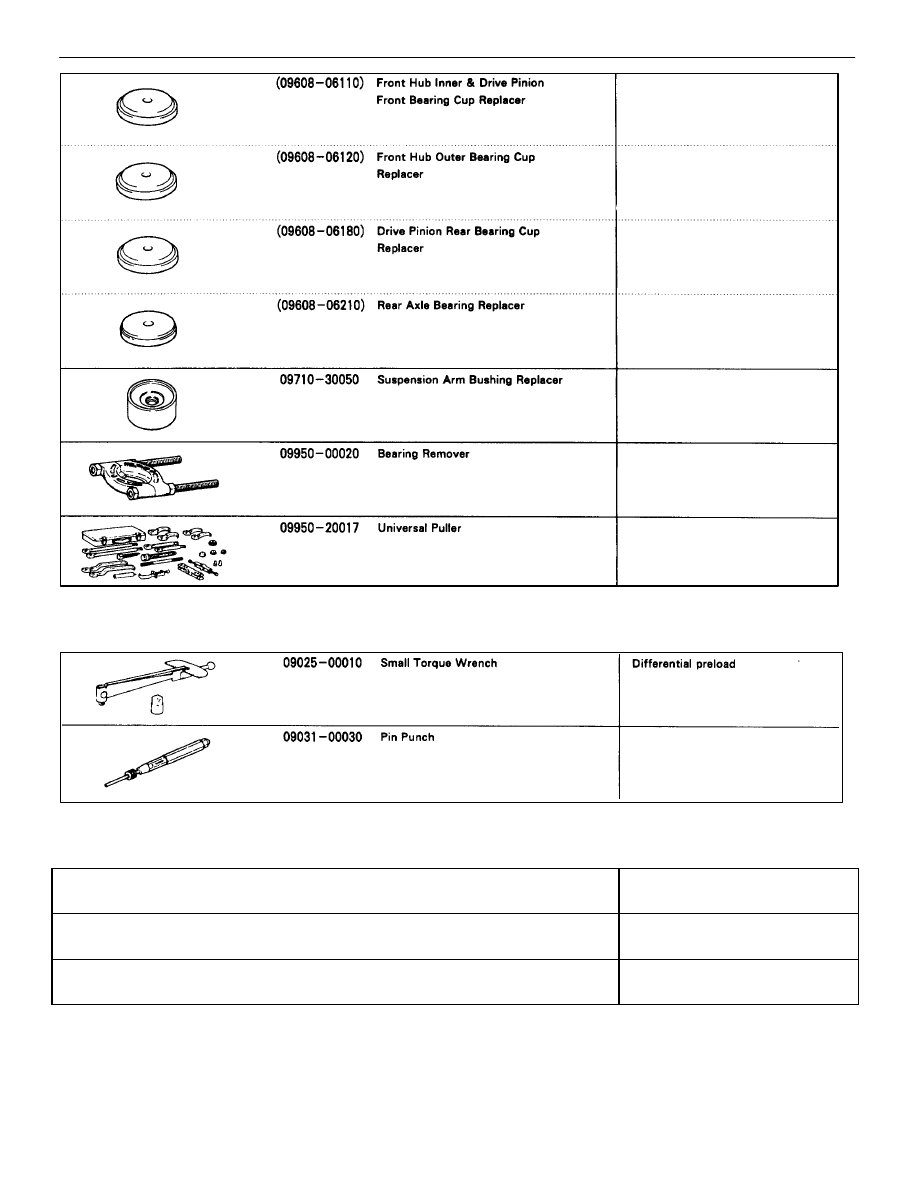

RECOMMENDED TOOLS

SA093–02

EQUIPMENT

SA094–01

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Dial indicator with magnetic base

ÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Micrometer

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Torque wrench

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL

SA–77

SSM (SPECIAL SERVICE MATERIALS)

SA095–04

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

08826–00110 Seal packing 1389,

THREE BOND 1389 or equivalent

ÑÑÑÑÑÑÑÑÑÑÑÑ

Differential Carrier x Cover

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

08833–00100 THREE BOND 1360K or equivalent

Differential Case x Ring Gear

LUBRICANT

SA096–02

ÑÑÑÑÑÑÑÑÑÑÑÑ

Item

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

Capacity

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

Classification

ÑÑÑÑÑÑÑÑÑÑÑÑ

Differential oil

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

1.35 liters (1.43 US qts, 1.19 lmp. qts)

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

API GL–5 Hypoid Gear Oil
[Above–18

C (0

F)]

SAE 90
[Below–18

C (0

F)]

SAE 80W or 80W–90

SA–78

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL

ON–VEHICLE REPAIR

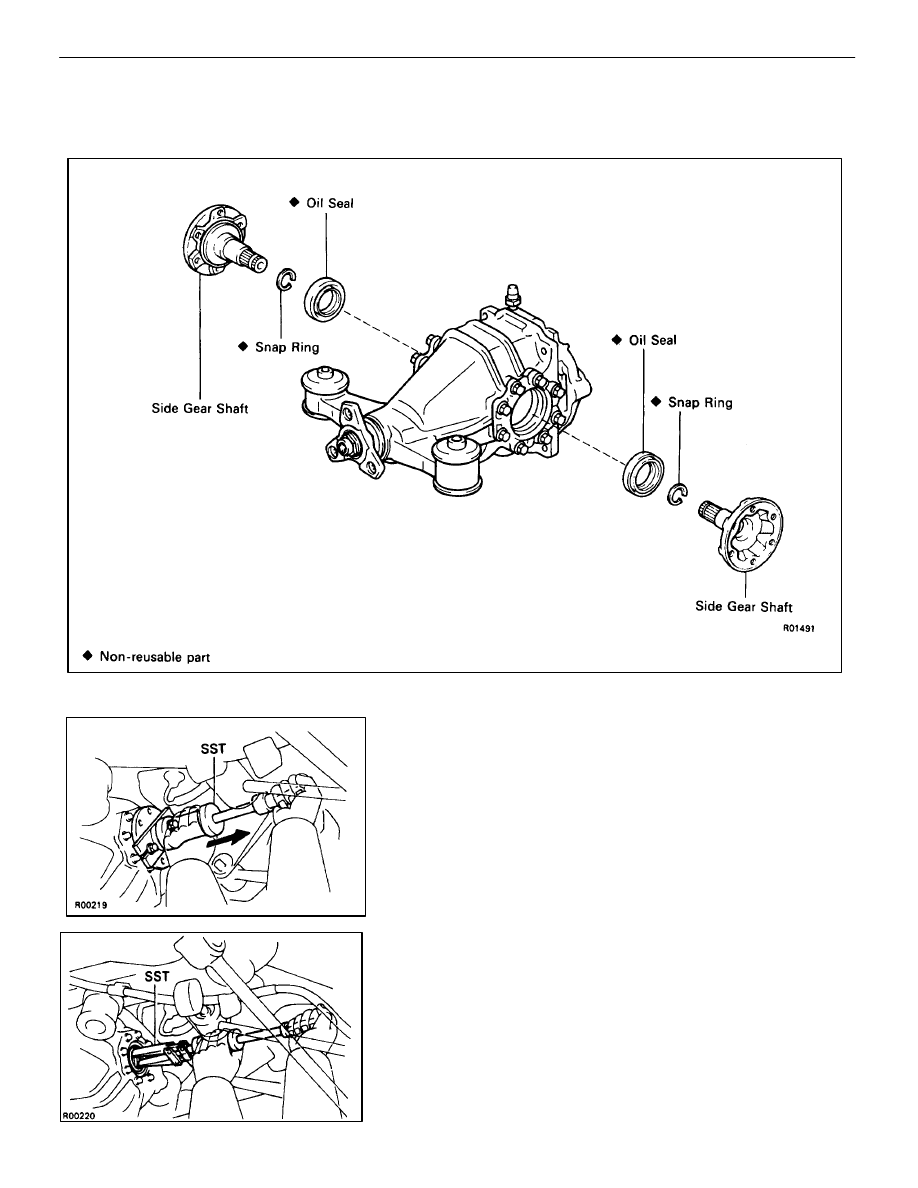

COMPONENTS

SA097–02

SIDE GEAR SHAFT OIL SEAL
REPLACEMENT

SA0V1–04

DRAIN DIFFERENTIAL OIL

REMOVE REAR DRIVE SHAFT
(See page

SA–65

)

REMOVE SIDE GEAR SHAFT

(a) Using SST and 2 bolts, remove the side gear shaft.

SST 09520–22010

(b) Remove the snap ring from the side gear shaft.
4.

REMOVE SIDE GEAR SHAFT OIL SEAL
Using SST, remove the oil seal.
SST 09308–00010

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL

SA–79
