Front Turn Signal

1. Open the hood.
2. Turn the turn signal bulb one–quarter turn counter-
clockwise to remove from housing.

3. Disconnect the electrical connector and replace the
bulb.

CAUTION!

Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.

Front Fog Light

1. Reach behind the front fascia from under the vehicle.

2. Turn the front fog light bulb one–quarter turn coun-
terclockwise to remove from housing.

3. Disconnect the electrical connector and replace bulb.

1 — High Beam Bulb

3 — Turn Signal Bulb

2 — Low Beam Bulb

384

MAINTAINING YOUR VEHICLE

CAUTION!

Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.

Rear Tail, Stop, Turn Signal, And Backup Lights

1. Raise the liftgate.

2. Remove the two Torx fasteners.

MAINTAINING YOUR VEHICLE

385

3. Squeeze the socket assembly tabs to remove it from the
housing.

4. Pull the bulb to remove it from the socket.
5. Replace the bulb, reinstall the socket, and reattach the
light assembly.

Center High-Mounted Stop Light (CHMSL)

1. Remove the two screws securing the CHMSL.

2. Twist the bulb socket to remove from the CHMSL
housing.

3. Pull the bulb out of the socket.

4. Replace the bulb, reinstall the socket and reattach the
CHMSL.

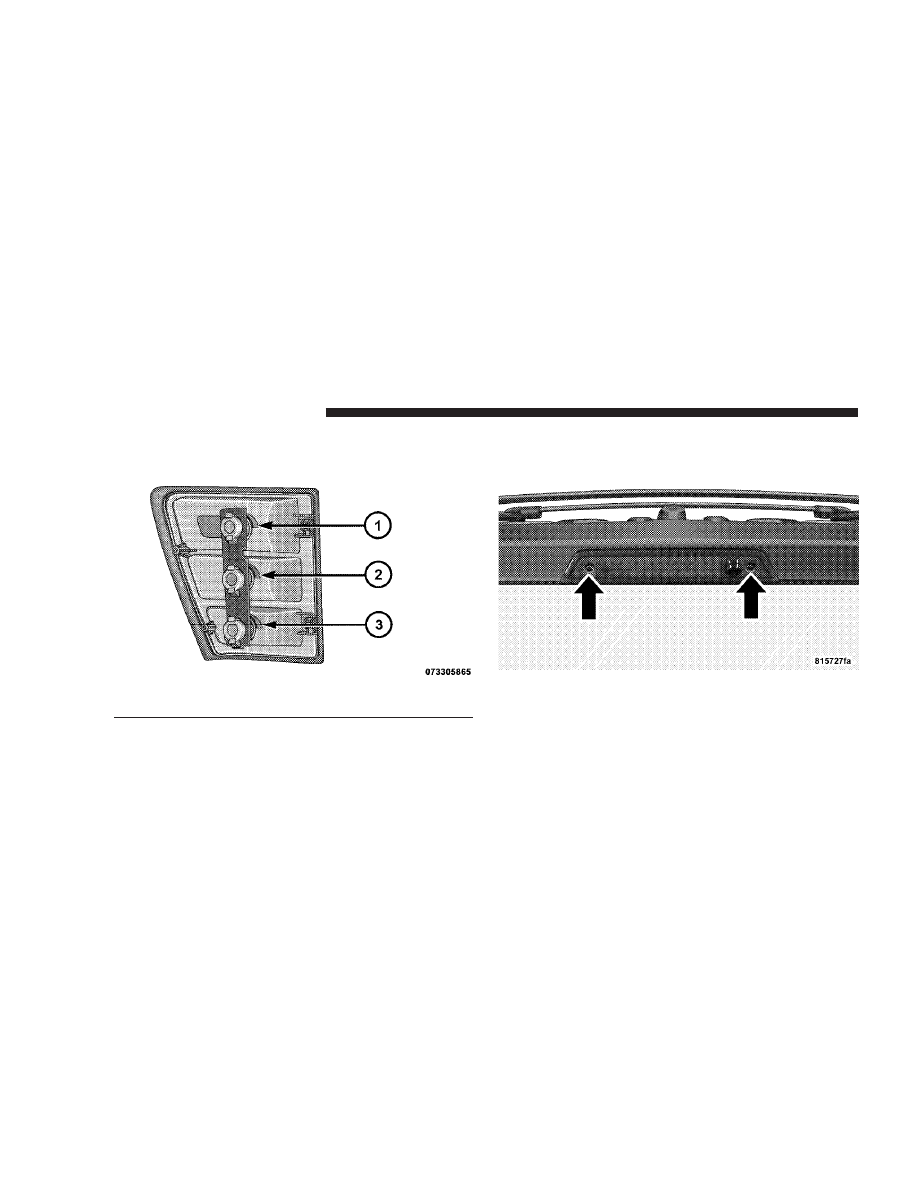

1 — Tail/Stop Light Bulb

3 — Back-Up Light Bulb

2 — Tail/Turn Signal Bulb

386

MAINTAINING YOUR VEHICLE

FLUID CAPACITIES

U.S.

Metric

Fuel (Approximate)

21 Gallons

79 Liters

Engine Oil with Filter
6.1 Liter Engine (SAE 0W-40, API Certified)

7 Quarts

6.6 Liters

Cooling System *
6.1 Liter Engine (MOPAR

威 Engine Coolant/Antifreeze 5

Year/100,000 Mile Formula)

14.8 Quarts

14 Liters

* Includes heater and coolant recovery bottle filled to MAX level.

MAINTAINING YOUR VEHICLE

387

FLUIDS, LUBRICANTS, AND GENUINE PARTS

Engine

Component

Fluid, Lubricant, or Genuine Part

Engine Coolant

MOPAR

威 Antifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid

Organic Additive Technology)

Engine Oil (6.1L Engine)

For best performance and maximum protection under all types of operating
conditions, the manufacturer only recommends full synthetic engine oils that
meet the American Petroleum Institute (API) categories of SM or SM/CF, and
meet the requirements of Chrysler Material Standard MS-10725. The manu-
facturer recommends the use of a full synthetic engine oil, such as Mobil 1
SAE 0W-40 or equivalent.

Oil Filter (6.1L Engine)

MOPAR

威 Engine Oil Filter (P/N 04884899AB) or equivalent.

Spark Plugs

PLZTR5A—13 (Gap 0.050 in [1.27 mm])

Fuel Selection (6.1L Engine)

Premium Unleaded 91 Octane Only or Higher.

388

MAINTAINING YOUR VEHICLE

Chassis

Component

Fluid, Lubricant, or Genuine Part

Automatic Transmission

MOPAR

威 ATF+4 Automatic Transmission Fluid

Transfer Case

MOPAR

威 NV146 Transfer Case Fluid or equivalent. Usage of other fluid/

lubricants is NOT recommended.

Axle Differential (Front-Rear)

MOPAR

威 Synthetic Gear & Axle Lubricant SAE 75W-140 (API-GL5) or

equivalent.

Brake Master Cylinder

MOPAR

威 DOT 3 Brake Fluid, SAE J1703 should be used. If DOT 3, SAE

J1703 brake fluid is not available, then DOT 4 is acceptable. Use only rec-
ommended brake fluids.

Power Steering Reservoir

This system requires the use of MOPAR

威 Hydraulic System Power Steer-

ing Fluid (P/N 05142893AA) or equivalent, which meets Chrysler Material
Standard MS-10838.

MAINTAINING YOUR VEHICLE

389

MAINTENANCE SCHEDULES

CONTENTS

䡵 Emissions Control System Maintenance . . . . . . 392
䡵 Maintenance Schedules . . . . . . . . . . . . . . . . . 392

▫ Required Maintenance Intervals . . . . . . . . . . 394

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

EMISSIONS CONTROL SYSTEM MAINTENANCE

The Scheduled Maintenance services listed in bold type
must be done at the times or mileages specified to ensure
the continued proper functioning of the emissions control
system. These and all other maintenance services in-
cluded in this manual, should be done to provide best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving.

Inspection and service should also be done anytime a
malfunction is suspected.

NOTE:

Maintenance, replacement or repair of the emis-

sions control devices and systems on your vehicle may be
performed by any automotive repair establishment or
individual using any automotive part that has been
certified pursuant to U.S. EPA or in the State of Califor-
nia, California Air Resources Board regulations.

MAINTENANCE SCHEDULES

The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.

On Electronic Vehicle Information Center (EVIC)
equipped vehicles “Oil Change Required” will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.

Based on engine operation conditions the oil change
indicator message will illuminate, this means that service
is required for your vehicle. Have your vehicle serviced
as soon as possible, within the next 500 miles (805 km).

NOTE:

• The oil change indicator message will not monitor the

time since the last oil change. Change your vehicle’s
oil if it has been 6 months since your last oil change
even if the oil change indicator message is NOT
illuminated.

392

MAINTENANCE SCHEDULES

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

• Change your engine oil more often if you drive your

vehicle off-road for an extended period of time.

• Under no circumstances should oil change intervals

exceed 6,000 miles (10,000 km) or 6 months, whichever
comes first.

Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If this
scheduled oil change is performed by someone other
than your authorized dealer the message can be reset by
referring to the steps described under ”Electronic Vehicle
Information Center” in Section 4 of this manual.

At Each Stop for Fuel

• Check the engine oil level about 5 minutes after a fully

warmed engine is shut off. Checking the oil level while
the vehicle is on level ground will improve the accu-
racy of the oil level reading. Add oil only when the
level is at or below the ADD or MIN mark.

• Check the windshield washer solvent and add if

required.

Once a Month

• Check tire pressure and look for unusual wear or

damage.

• Inspect the battery and clean and tighten the terminals

as required.

• Check the fluid levels of coolant reservoir, brake

master cylinder, power steering and transmission and
add as needed.

• Check all lights and other electrical items for correct

operation.

At Each Oil Change

• Change the engine oil filter.
• Inspect the brake hoses and lines.

MAINTENANCE SCHEDULES

393

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

CAUTION!

Failure to perform the required maintenance items
may result in damage to the vehicle.

Required Maintenance Intervals

Refer to the Maintenance Schedules on the following
pages for the required maintenance intervals.

394

MAINTENANCE SCHEDULES

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

6,000 Miles (10,000 km) or
6 Months Maintenance Service
Schedule

❏ Change the engine oil and engine oil

filter.

Odometer Reading

Date

Repair Order #

Dealer Code

Signature Authorized Chrysler Dealer

12,000 Miles (20,000 km) or 12 Months Maintenance Service
Schedule

❏ Change the engine oil and engine oil filter.
❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the

engine air cleaner filter; replace if necessary.

❏ Inspect the brake linings, replace if necessary.
❏ Inspect the CV joints. Perform the first inspection at 12,000 miles (20 000 km) or

12 months.

❏ Inspect exhaust system. Perform the first inspection at 12,000 miles (20 000 km) or

12 months.

Odometer Reading

Date

Repair Order #

Dealer Code

Signature Authorized Chrysler Dealer

MAINTENANCE SCHEDULES

395

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

18,000 Miles (30,000 km) or
18 Months Maintenance
Service Schedule

❏ Change the engine oil and engine oil

filter.

Odometer Reading

Date

Repair Order #

Dealer Code

Signature Authorized Chrysler Dealer

24,000 Miles (40,000 km) or
24 Months Maintenance
Service Schedule

❏ Change the engine oil and engine oil

filter.

❏ If using your vehicle for any of the

following: Dusty or off-road conditions.
Inspect the engine air cleaner filter;
replace if necessary.

❏ Inspect the brake linings, replace if

necessary.

❏ Inspect the CV joints.
❏ Inspect exhaust system.
❏ Inspect the front suspension, tie rod ends

and boot seals; replace if necessary.

Odometer Reading

Date

Repair Order #

Dealer Code

Signature Authorized Chrysler Dealer

30,000 Miles (50,000 km) or
30 Months Maintenance
Service Schedule

❏ Change the engine oil and engine oil

filter.

❏ Replace the engine air cleaner filter.
❏ Drain the transfer case and refill.
❏ Adjust parking brake on vehicles

equipped with four-wheel disc brakes.

Odometer Reading

Date

Repair Order #

Dealer Code

Signature Authorized Chrysler Dealer

396

MAINTENANCE SCHEDULES

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

36,000 Miles (60,000 km) or
36 Months Maintenance
Service Schedule

❏ Change the engine oil and engine oil

filter.

❏ If using your vehicle for any of the

following: Dusty or off-road conditions.
Inspect the engine air cleaner filter;
replace if necessary.

❏ Inspect the brake linings, replace if

necessary.

Odometer Reading

Date

Repair Order #

Dealer Code

Signature Authorized Chrysler Dealer

42,000 Miles (70,000 km) or
42 Months Maintenance
Service Schedule

❏ Change the engine oil and engine oil

filter.

Odometer Reading

Date

Repair Order #

Dealer Code

Signature Authorized Chrysler Dealer

48,000 Miles (80,000 km) or
48 Months Maintenance
Service Schedule

❏ Change the engine oil and engine oil

filter.

❏ If using your vehicle for any of the

following: Dusty or off-road conditions.
Inspect the engine air cleaner filter;
replace if necessary.

❏ Inspect the brake linings; replace if

necessary.

❏ Inspect the CV joints.
❏ Inspect exhaust system.
❏ Inspect the front suspension, tie rod ends

and boot seals; replace if necessary.

Odometer Reading

Date

Repair Order #

Dealer Code

Signature Authorized Chrysler Dealer

MAINTENANCE SCHEDULES

397

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

54,000 Miles (90,000 km) or
54 Months Maintenance
Service Schedule

❏ Change the engine oil and engine oil

filter.

Odometer Reading

Date

Repair Order #

Dealer Code

Signature Authorized Chrysler Dealer

60,000 Miles (100,000 km) or 60 Months Maintenance Service
Schedule

❏ Change the engine oil and engine oil filter.
❏ Replace the engine air cleaner filter.
❏ Inspect the brake linings; replace if necessary.
❏ Adjust parking brake on vehicles equipped with four-wheel disc brakes.
❏ Change the automatic transmission fluid and filter(s) if using your vehicle for any of the

following: police, taxi, fleet, or frequent trailer towing.

❏ Drain the transfer case and refill.
❏ Inspect the accessory drive belt(s), replace if necessary.

Odometer Reading

Date

Repair Order #

Dealer Code

Signature Authorized Chrysler Dealer

398

MAINTENANCE SCHEDULES

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

66,000 Miles (110,000 km) or
66 Months Maintenance
Service Schedule

❏ Change the engine oil and engine oil

filter.

Odometer Reading

Date

Repair Order #

Dealer Code

Signature Authorized Chrysler Dealer

72,000 Miles (120,000 km) or
72 Months Maintenance
Service Schedule

❏ Change the engine oil and engine oil

filter.

❏ If using your vehicle for any of the

following: Dusty or off-road conditions.
Inspect the engine air cleaner filter;
replace if necessary.

❏ Inspect the brake linings; replace if

necessary.

❏ Inspect the CV joints.
❏ Inspect exhaust system.
❏ Inspect the front suspension, tie rod ends

and boot seals; replace if necessary.

Odometer Reading

Date

Repair Order #

Dealer Code

Signature Authorized Chrysler Dealer

78,000 Miles (130,000 km) or
78 Months Maintenance
Service Schedule

❏ Change the engine oil and engine oil

filter.

Odometer Reading

Date

Repair Order #

Dealer Code

Signature Authorized Chrysler Dealer

MAINTENANCE SCHEDULES

399

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

Jeep Grand Cherokee SRT8 (2009 year). Instruction - part 25
