UNDERSTANDING YOUR INSTRUMENT PANEL

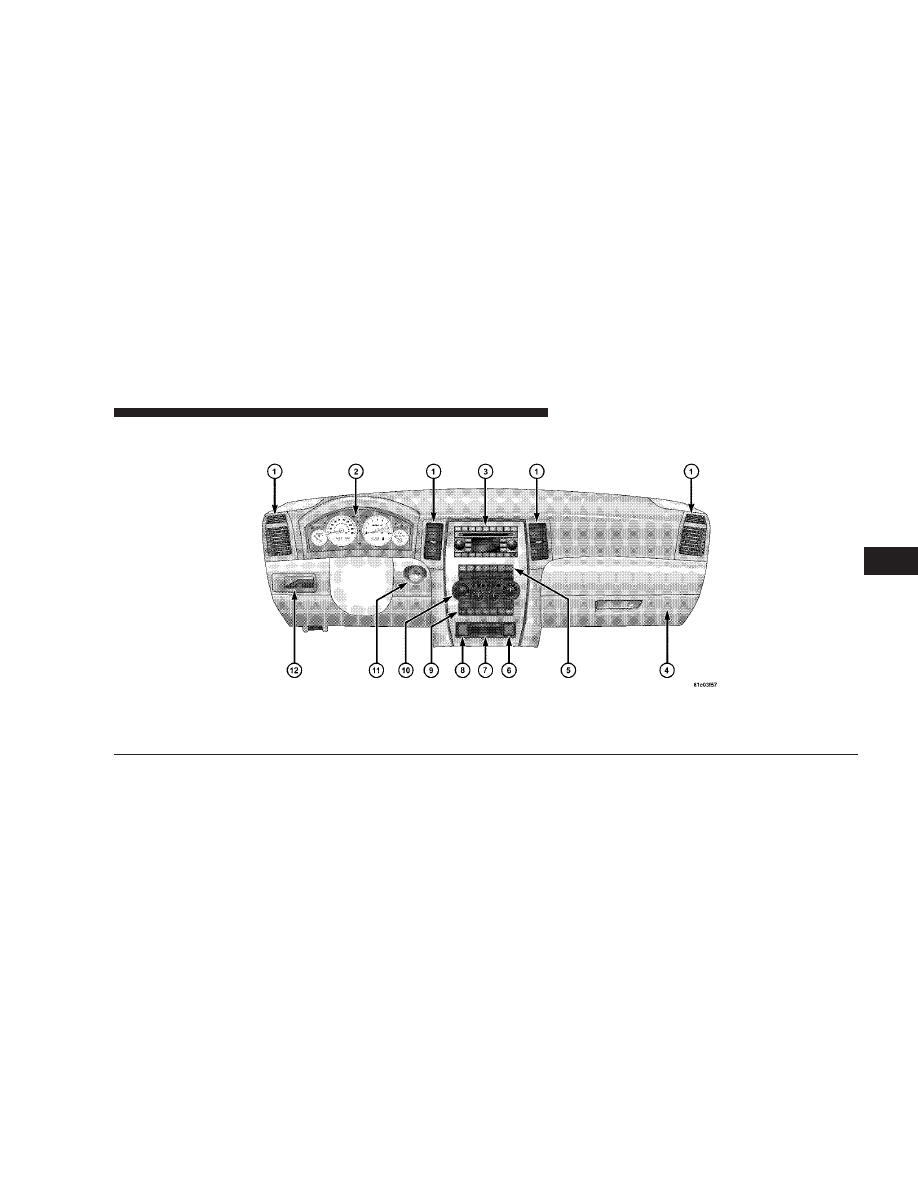

INSTRUMENT PANEL FEATURES

1 - Air Outlet

5 - Upper Switch Bank

9 - Lower Switch Bank

2 - Instrument Cluster

6 - Power Outlet/Cigar Lighter

10 - Climate Controls

3 - Radio

7 - Storage Bin

11 - Ignition Switch

4 - Glove Compartment

8 - Power Outlet

12 - Storage Bin

UNDERSTANDING YOUR INSTRUMENT PANEL

177

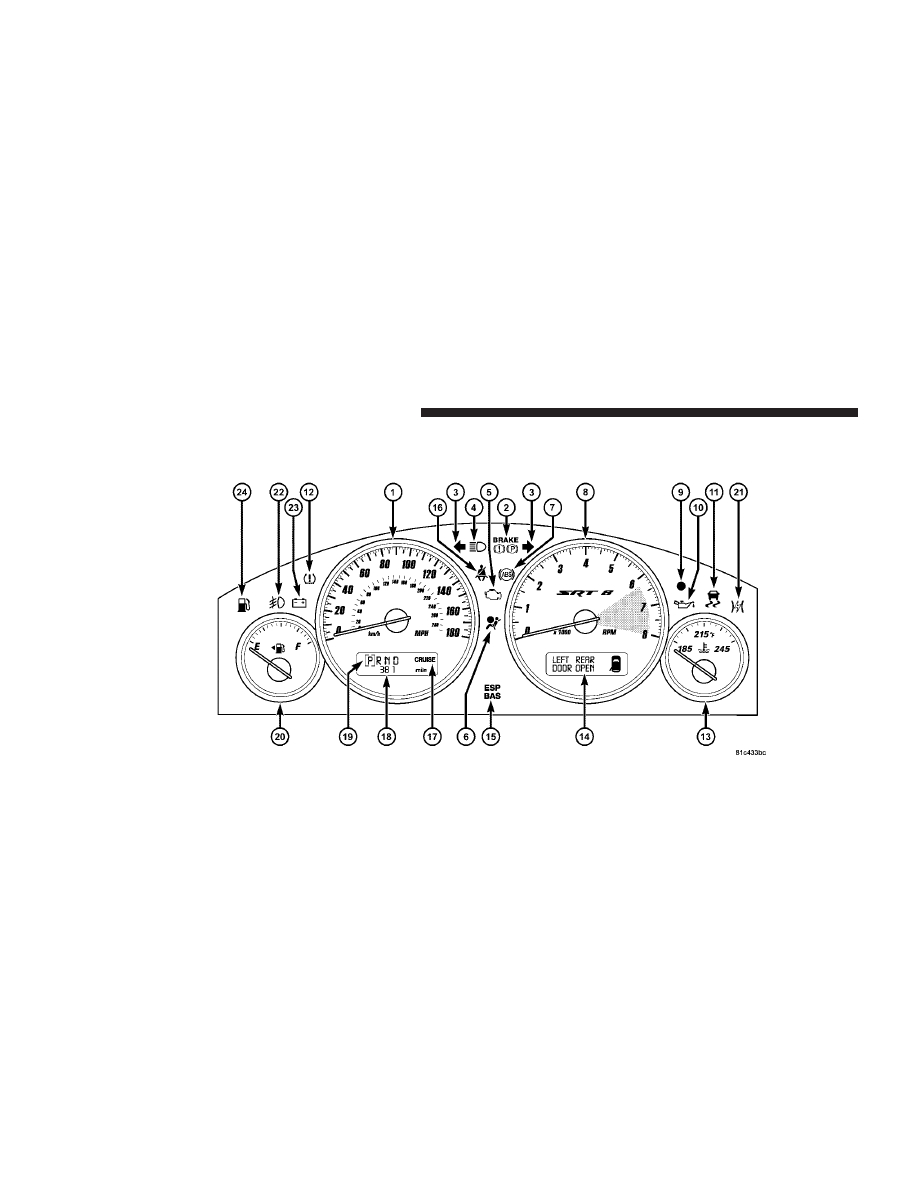

INSTRUMENT CLUSTER DESCRIPTION

1. Speedometer
Indicates vehicle speed.

2. Brake Warning Light

The Brake Warning Light will come on when
the ignition is first turned on, and stay on
briefly as a bulb check. If the bulb does not
come on during starting, have the bulb re-

paired promptly. If the light stays on longer, it may be an
indication that the parking brake has not been released.

If the light remains on when the parking brake is off, it
indicates a possible brake hydraulic system malfunction
or low fluid level. In this case, the Brake Warning Light
will remain on until the cause is corrected. If a brake
malfunction is indicated, immediate repair is necessary
and continued operation of the vehicle in this condition is
dangerous.

3. Turn Signal Indicators

The arrow will flash with the exterior turn signal
when the turn signal lever is operated.

If the vehicle electronics sense that the vehicle has
traveled about one mile with the turn signals on, a chime
will sound to alert you to turn the signals off. If either
indicator flashes at a rapid rate, check for a defective
outside light bulb.

4. High Beam Indicator

Indicates that headlights are on high beam.

UNDERSTANDING YOUR INSTRUMENT PANEL

179

5. Malfunction Indicator Light (MIL)

The Malfunction Indicator Light (MIL) is part of
an onboard diagnostic system called OBD II that
monitors engine and automatic transmission con-

trol systems. The light will illuminate when the key is in
the ON position before engine start. If the bulb does not
come on when turning the key from OFF to ON, have the
condition checked promptly.

Certain conditions such as a loose or missing gas cap,
poor fuel quality, etc. may illuminate the light after
engine start. The vehicle should be serviced if the light
stays on through several of your typical driving cycles. In
most situations the vehicle will drive normally and will
not require towing.

The Malfunction Indicator Light flashes to alert you to
serious conditions that could lead to immediate loss of
power or severe catalytic converter damage. The vehicle
should be serviced as soon as possible if this occurs.

6. Airbag Warning Light

This light turns on and remains on for six to
eight seconds as a bulb check when the ignition
switch is first turned ON. If the light is not on
during starting, stays on, or turns on while

driving, have the system inspected by an authorized
dealer as soon as possible.

7. Anti-Lock Brake (ABS) Warning Light

This light monitors the Anti-Lock Brake System.
The light will turn on when the ignition switch is

turned to the ON position and may stay on for as long as
four seconds.

If the ABS Warning Light remains on or turns on while
driving, it indicates that the Anti-Lock portion of the
brake system is not functioning and that service is
required. However, the conventional brake system will
continue to operate normally if the Brake Warning Light
is not on.

180

UNDERSTANDING YOUR INSTRUMENT PANEL

If the ABS Warning Light is on, the brake system should
be serviced as soon as possible to restore the benefits of
anti-lock brakes. If the ABS Warning Light does not turn
on when the ignition switch is turned to the ON position,
have the light inspected by an authorized dealer.

8. Tachometer
Indicates the engine speed in revolutions per minute
(RPM).

9. Vehicle Security Light

This light will flash rapidly for approximately
15 seconds when the vehicle theft alarm is
arming. The light will flash at a slower speed
continuously after the alarm is set. The security

light will also come on for about three seconds when the
ignition is first turned on.

10. Oil Pressure Warning Light

This light indicates low engine oil pressure. The
light should turn on momentarily when the engine

is started. If the light turns on while driving, stop the
vehicle, and shut off the engine as soon as possible. A
continuous chime will sound when this light turns on.

Do not operate the vehicle until the cause is corrected.
This light does not show how much oil is in the engine.
The engine oil level must be checked under the hood.

11. Electronic Stability Program (ESP) Indicator
Light/Traction Control System (TCS) Indicator Light

If this indicator light flashes during accelera-
tion, apply as little throttle as possible. While
driving, ease up on the accelerator. Adapt your
speed and driving to the prevailing road con-

ditions, and do not switch off the Electronic Stability
Program (ESP), or Traction Control System (TCS).

UNDERSTANDING YOUR INSTRUMENT PANEL

181

12. Tire Pressure Monitoring Telltale Light

Each tire, including the spare (if provided),
should be checked monthly, when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle

placard or tire inflation pressure label. (If your vehicle
has tires of a different size than the size indicated on the
vehicle placard or tire inflation pressure label, you should
determine the proper tire inflation pressure for those
tires.)

As an added safety feature, your vehicle has been
equipped with a Tire Pressure Monitoring System
(TPMS) that illuminates a low tire pressure telltale when
one or more of your tires is significantly under-inflated.
Accordingly, when the low tire pressure telltale illumi-
nates, you should stop and check your tires as soon as
possible, and inflate them to the proper pressure. Driving
on a significantly under-inflated tire causes the tire to
overheat and can lead to tire failure. Under-inflation also

reduces fuel efficiency and tire tread life, and may affect
the vehicle’s handling and stopping ability.

Please note that the TPMS is not a substitute for proper
tire maintenance, and it is the driver’s responsibility to
maintain correct tire pressure, even if under-inflation has
not reached the level to trigger illumination of the TPMS
low tire pressure telltale.

Your vehicle has also been equipped with a TPMS
malfunction indicator to indicate when the system is not
operating properly. The TPMS malfunction indicator is
combined with the low tire pressure telltale. When the
system detects a malfunction, the telltale will flash for
approximately one minute and then remain continuously
illuminated. This sequence will continue upon subse-
quent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the sys-
tem may not be able to detect or signal low tire pressure
as intended. TPMS malfunctions may occur for a variety

182

UNDERSTANDING YOUR INSTRUMENT PANEL

of reasons, including the installation of replacement or
alternate tires or wheels on the vehicle that prevent the
TPMS from functioning properly. Always check the
TPMS malfunction telltale after replacing one or more
tires or wheels on your vehicle, to ensure that the
replacement or alternate tires and wheels allow the TPMS
to continue to function properly.

CAUTION!

The TPMS has been optimized for the original
equipment tires and wheels. TPMS pressures and
warning have been established for the tire size
equipped on your vehicle. Undesirable system opera-
tion or sensor damage may result when using re-
placement equipment that is not of the same size,
type, and/or style. Aftermarket wheels can cause
sensor damage. Do not use tire sealant from a can, or
balance beads if your vehicle is equipped with a
TPMS, as damage to the sensors may result.

13. Temperature Gauge
The temperature gauge shows engine coolant tempera-
ture. Any reading within the normal range indicates that
the engine cooling system is operating satisfactorily.

UNDERSTANDING YOUR INSTRUMENT PANEL

183

The gauge pointer will likely indicate a higher tempera-
ture when driving in hot weather, up mountain grades,
or when towing a trailer. It should not be allowed to
exceed the upper limits of the normal operating range.

CAUTION!

Driving with a hot engine cooling system could
damage your vehicle. If temperature gauge reads “H”
pull over and stop the vehicle. Idle the vehicle with
the air conditioner turned off until the pointer drops
back into the normal range. If the pointer remains on
the “H” and you hear continuous chimes, turn the
engine off immediately, and call an authorized deal-
ership for service.

WARNING!

A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized dealer-
ship for service if your vehicle overheats. If you
decide to look under the hood yourself, see Section 7
of this manual. Follow the warnings under the Cool-
ing System Pressure Cap paragraph.

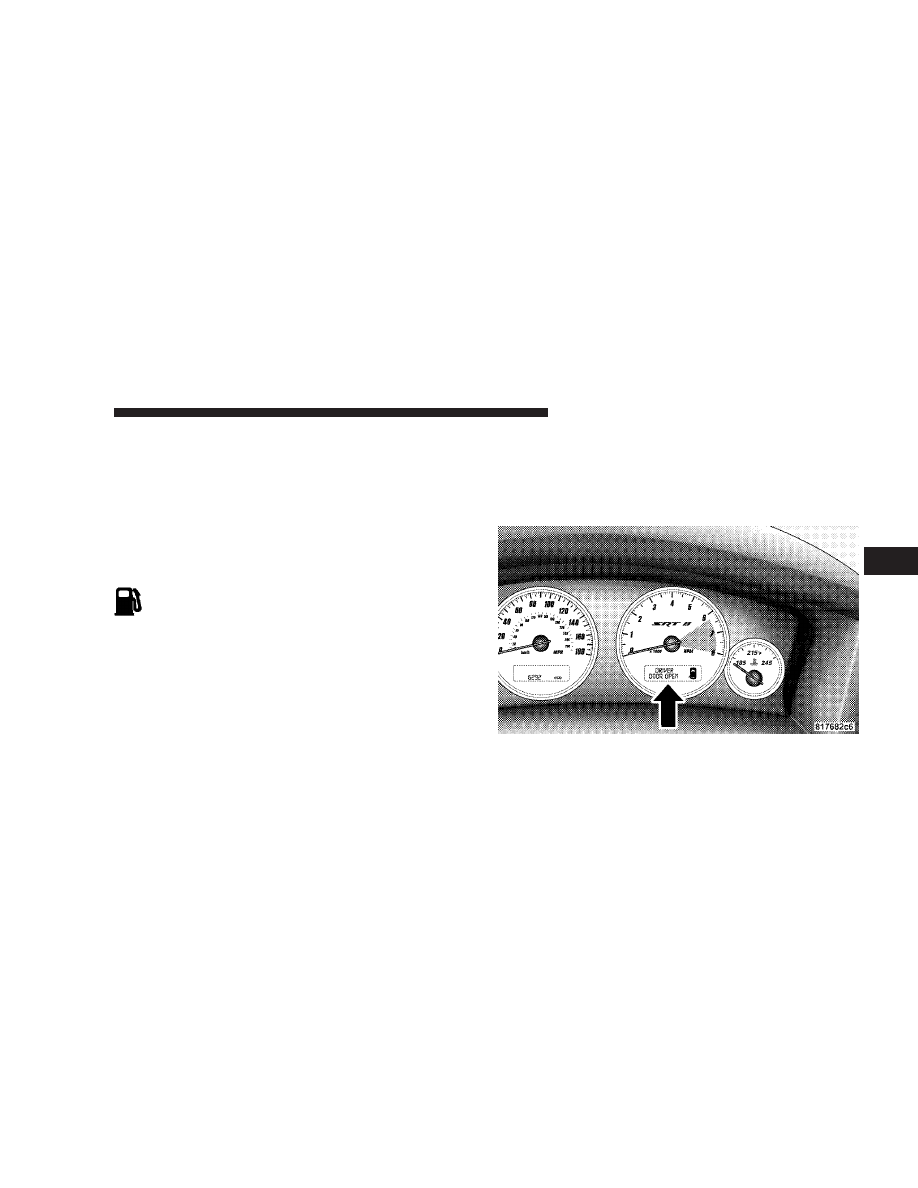

14. Electronic Vehicle Information Center (EVIC)
Display
When the appropriate conditions exist, this display
shows the Electronic Vehicle Information Center (EVIC)
messages. Refer to “Electronic Vehicle Information Cen-
ter” later in this section.

184

UNDERSTANDING YOUR INSTRUMENT PANEL

15. Electronic Stability Program (ESP) Warning
Light/Brake Assist System (BAS) Warning Light — If
Equipped

The malfunction lamp for the Electronic Stabil-
ity Program (ESP) is combined with Brake
Assist System (BAS). The yellow “ESP/BAS
Warning Lamp” comes on when the ignition

switch is turned to the “ON” position. They should go
out with the engine running. If the “ESP/BAS Warning
Lamp” comes on continuously with the engine running,
a malfunction has been detected in either the ESP or the
BAS system. If this light remains on after several ignition
cycles, and the vehicle has been driven several miles at
speeds greater than 30 mph (48 km/h), see an authorized
dealer as soon as possible.

16. Seat Belt Reminder Light

When the ignition switch is first turned ON, this
light will turn on for five to eight seconds as a bulb
check. During the bulb check, if the driver’s seat

belt is unbuckled, a chime will sound. After the bulb
check or when driving, if the driver or front passenger
seat belt remains unbuckled, the Seat Belt Warning Light
will flash or remain on continuously. Refer to

⬙Occupant

Restraints — Enhanced Driver Seat Belt Reminder Sys-
tem (BeltAlert)

⬙ in Section 2 for more information.

17. Cruise Indicator

This indicator lights when the speed control
system is turned ON.

18. Odometer
The odometer shows the total distance the vehicle has
been driven.

U.S. federal regulations require that upon transfer of
vehicle ownership, the seller certify to the purchaser the
correct mileage that the vehicle has been driven. There-
fore, if the odometer reading is changed during repair or

UNDERSTANDING YOUR INSTRUMENT PANEL

185

replacement, be sure to keep a record of the reading
before and after the service so that the correct mileage can
be determined.

19. Shift Lever Indicator
This display indicator shows the automatic transmission
shift lever selection.

NOTE:

You must apply the brakes before shifting from

PARK.

20. Fuel Gauge
The pointer shows the level of fuel in the fuel tank when
the ignition switch is in the ON position.

21. Electronic Throttle Control (ETC) Warning Light

This light informs you of a problem with the
Electronic Throttle Control (ETC) system. If a
problem is detected the light will come on
while the engine is running. Cycle the ignition

key when the vehicle has completely stopped and the

shift lever is placed in the PARK position. The light
should turn off. If the light remains lit with the engine
running your vehicle will usually be drivable, however,
see your dealer for service as soon as possible. If the light
is flashing when the engine is running, immediate service
is required and you may experience reduced perfor-
mance, an elevated/rough idle or engine stall and your
vehicle may require towing. The light will come on when
the ignition is first turned on and remain on briefly as a
bulb check. If the light does not come on during starting,
have the system checked by an authorized dealer.

22. Front Fog Light Indicator — If Equipped

This light shows the front fog lights are ON.

23. Charging System Light

This light shows the status of the electrical charg-
ing system. The light should come on when the

ignition switch is first turned ON and remain on briefly

186

UNDERSTANDING YOUR INSTRUMENT PANEL

as a bulb check. If the light stays on or comes on while
driving, turn off some of the vehicle’s non-essential
electrical devices or increase engine speed (if at idle). If
the charging system light remains on, it means that the
vehicle is experiencing a problem with the charging
system. Obtain SERVICE IMMEDIATELY. See an autho-
rized dealer.

24. Low Fuel Warning Light

When the fuel level reaches approximately 2.3 U.S.
Gallons (8.7 Liters) this light will come on and
remain on until fuel is added. The Low Fuel

Warning Light may turn on and off again, especially
during and after hard braking, accelerations, or turns.
This occurs due to the shifting of the fuel in the tank.

ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC)

The Electronic Vehicle Information Center (EVIC) fea-
tures a driver-interactive display that is located in the
instrument cluster.

Electronic Vehicle Information Center

UNDERSTANDING YOUR INSTRUMENT PANEL

187

The EVIC consists of the following:

• System Status
• Vehicle Information Warning Message Displays
• Personal Settings (Customer Programmable Features)
• Compass Display
• Outside Temperature Display
• Trip Computer Functions
• Surround Sound Modes (If Equipped with Driver-

Selectable Surround [DSS])

• Performance Pages (if equipped)

The system allows the driver to select information by
pressing the following buttons mounted on the steering
wheel:

MENU Button

Press and release the MENU button and the
mode displayed will change between Trip
Functions, Personal Settings, and System Sta-
tus.

FUNCTION SELECT Button

Press the FUNCTION SELECT button to select
the displayed function (YES (Y) or NO (N).

SCROLL Button

Press the SCROLL button to scroll through Trip
Functions, Personal Settings (Customer Pro-
grammable Features), and System Status Mes-
sages.

188

UNDERSTANDING YOUR INSTRUMENT PANEL

COMPASS/TEMPERATURE Button

Press

and

release

the

COMPASS/

TEMPERATURE button to display one of eight
compass readings and the outside temperature.

Electronic Vehicle Information Center (EVIC)
Displays

When the appropriate conditions exist, the Electronic
Vehicle Information Center (EVIC) displays the following
messages:

• TURN SIGNAL ON
• PERFORM SERVICE
• DAMAGED KEY — KEY DOES NOT COMMUNI-

CATE

• KEY NOT PROGRAMMED — KEY NOT PRO-

GRAMMED

• WRONG KEY — KEY DOES NOT BELONG TO

VEHICLE

• KEY NOT PROGRAMMED — EXCEEDED KEY PRO-

GRAM LIMIT

• PROGRAMMING ACTIVE — NEW KEY PRO-

GRAMMED

• SERVICE SECURITY KEY
• DRIVER/PASSENGER DOOR OPEN (with graphic)
• LEFT/RIGHT REAR DOOR OPEN (with graphic)
• X DOORS OPEN (with graphic)
• LIFTGATE OPEN (with graphic)
• LIFTGATE/DOOR OPEN (with graphic)
• LIFTGATE/DOORS OPEN (with graphic)
• LIFTGLASS OPEN (with graphic)

UNDERSTANDING YOUR INSTRUMENT PANEL

189

• HOOD OPEN (with graphic)
• HOOD/DOOR OPEN (with graphic)
• HOOD/DOORS OPEN (with graphic)
• LIFTGATE/HOOD OPEN (with graphic)
• HOOD/GLASS/DOOR OPEN (with graphic)
• HOOD/GLASS/DOORS OPEN (with graphic)
• HOOD/GATE/DOOR OPEN (with graphic)
• HOOD/GATE/DOORS OPEN (with graphic)
• LIFTGLASS/DOOR OPEN (with graphic)
• LIFTGLASS/DOORS OPEN (with graphic)
• LIFTGLASS/HOOD OPEN (with graphic)
• WASHER FLUID LOW (with graphic)
• COOLANT LOW (with graphic)

• UPSHIFT (with graphic)
• CHECK GAUGES
• AUTO HIGH BEAMS ON
• AUTO HIGH BEAMS OFF
• PARK ASSIST DISABLED
• SERVICE SUSPENSION
• SERVICE PARK ASSIST SYSTEM
• TRANSMISSION OVER TEMP
• LOW BRAKE FLUID LEVEL
• WARNING! LIMIT SPEED
• CHECK GASCAP
• ESP OFF
• IOD FUSE OUT

190

UNDERSTANDING YOUR INSTRUMENT PANEL

• MEMORY #1 POSITIONS SET
• MEMORY #2 POSITIONS SET
• MEMORY SYSTEM DISABLED — SEATBELT BUCK-

LED (with graphic)

• MEMORY SYSTEM DISABLED — VEHICLE NOT IN

PARK

• DRIVER 1 MEMORY
• DRIVER 2 MEMORY
• ADJ. PEDALS DISABLED — CRUISE CONTROL SET
• ADJ. PEDALS DISABLED — SHIFTER IN REVERSE
• TIRE LOW PRESSURE
• CHECK TPM SYSTEM
• LEFT FRONT LOW PRESSURE (Premium TPM Sys-

tem Only)

• RIGHT FRONT LOW PRESSURE (Premium TPM Sys-

tem Only)

• LEFT REAR LOW PRESSURE (Premium TPM System

Only)

• RIGHT REAR LOW PRESSURE (Premium TPM Sys-

tem Only)

• Stereo (if equipped with Driver-Selectable Surround

Sound [DSS])

• Video Surround (if equipped with Driver-Selectable

Surround Sound [DSS])

• Audio Surround (if equipped with Driver-Selectable

Surround Sound [DSS])

• 0-60 mph (0-100 km/h) (if equipped with Performance

Pages)

• Braking Distance (if equipped with Performance

Pages)

UNDERSTANDING YOUR INSTRUMENT PANEL

191

Jeep Grand Cherokee SRT8 (2009 year). Instruction - part 12
