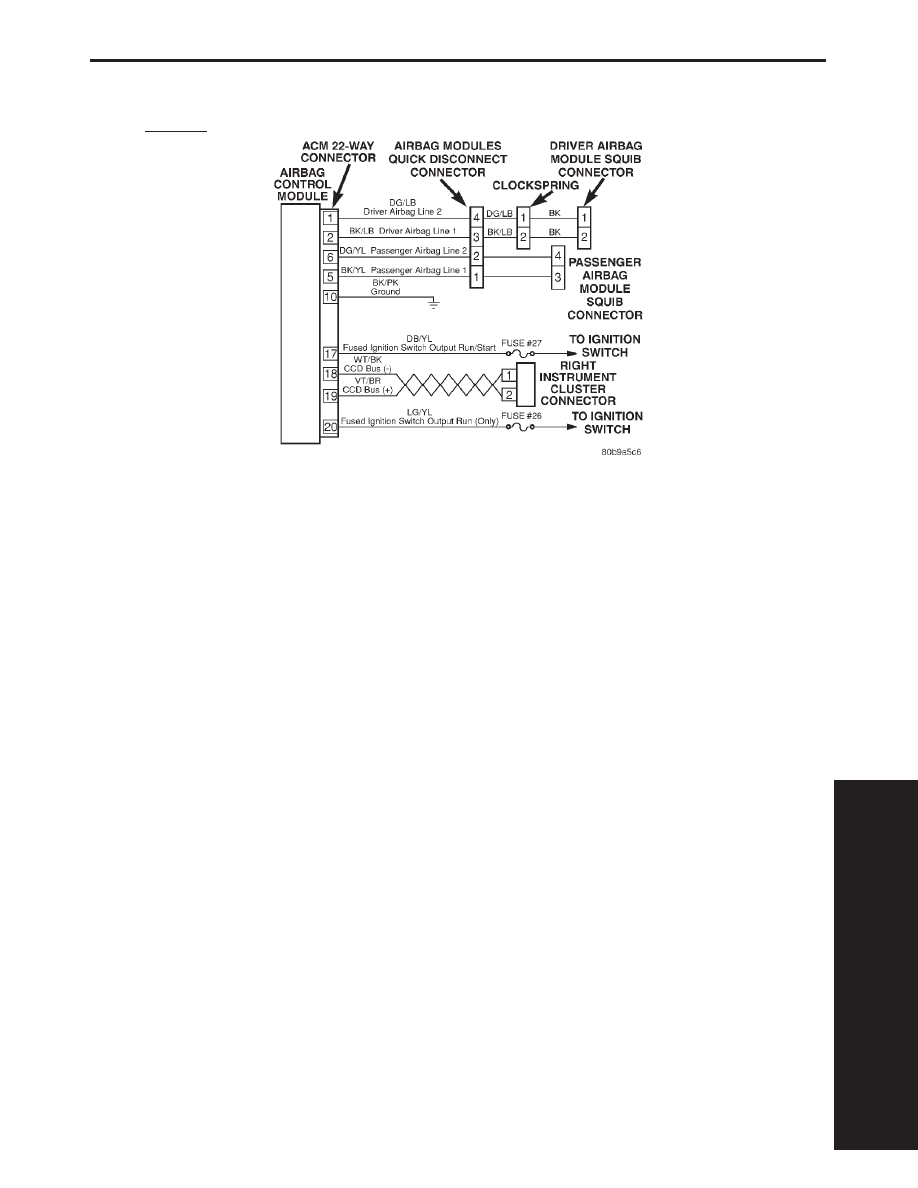

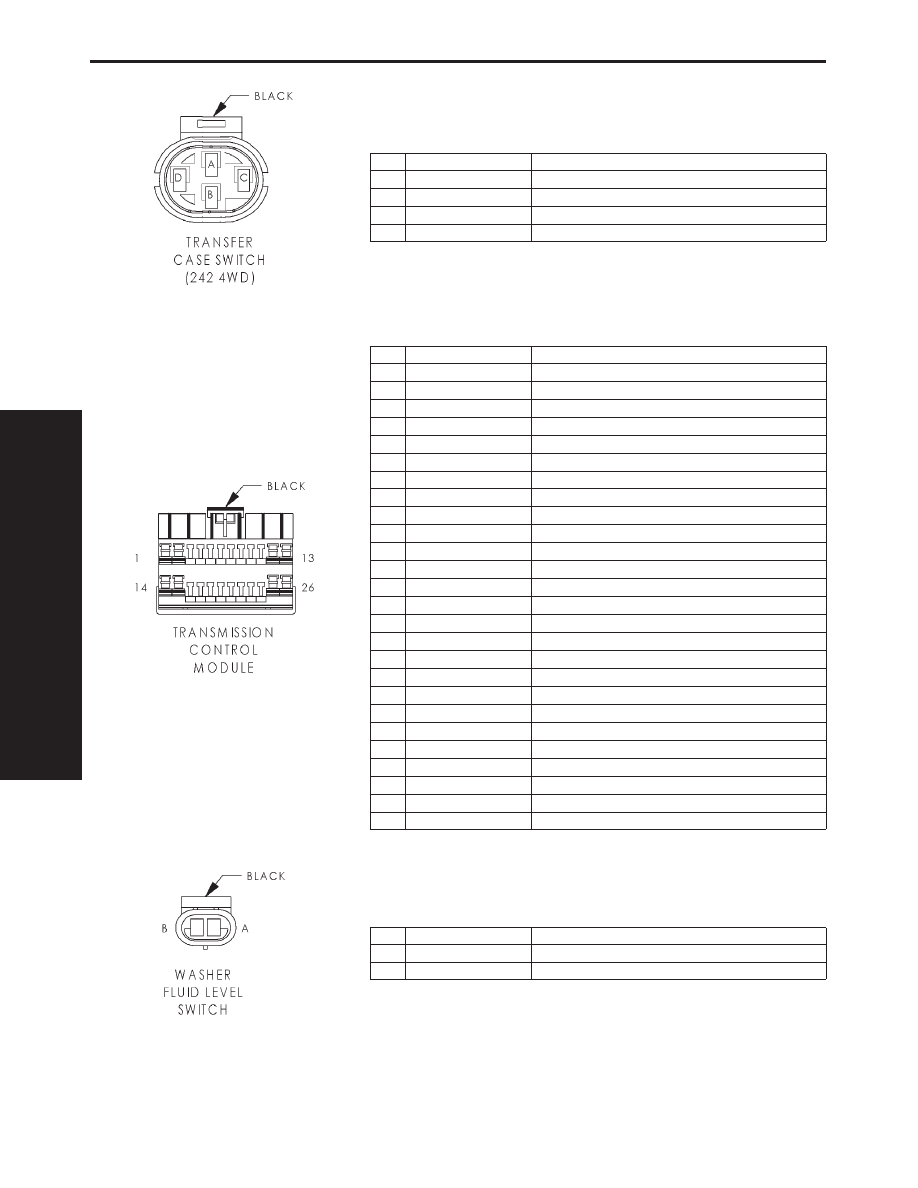

TRANSFER CASE SWITCH (242 4WD) - BLACK 4 WAY
CAV
CIRCUIT
FUNCTION
A
Z1 20BK
GROUND
B
G106 20BK/WT
4WD SWITCH SENSE (FULL-TIME)
C
-
-
D
G107 20BK/RD
4WD SWITCH SENSE (PART-TIME)
TRANSMISSION CONTROL MODULE - BLACK 26 WAY
CAV
CIRCUIT
FUNCTION
1
T31 20VT/LG
INPUT SPEED SENSOR GROUND
2
T52 20RD/BK
INPUT SPEED SENSOR SIGNAL
3
T13 20DB/BK
OUTPUT SPEED SENSOR GROUND
4
T14 20LG/WT
OUTPUT SPEED SENSOR SIGNAL
5
-
-
6
D2 20WT/BK
CCD BUS(-)

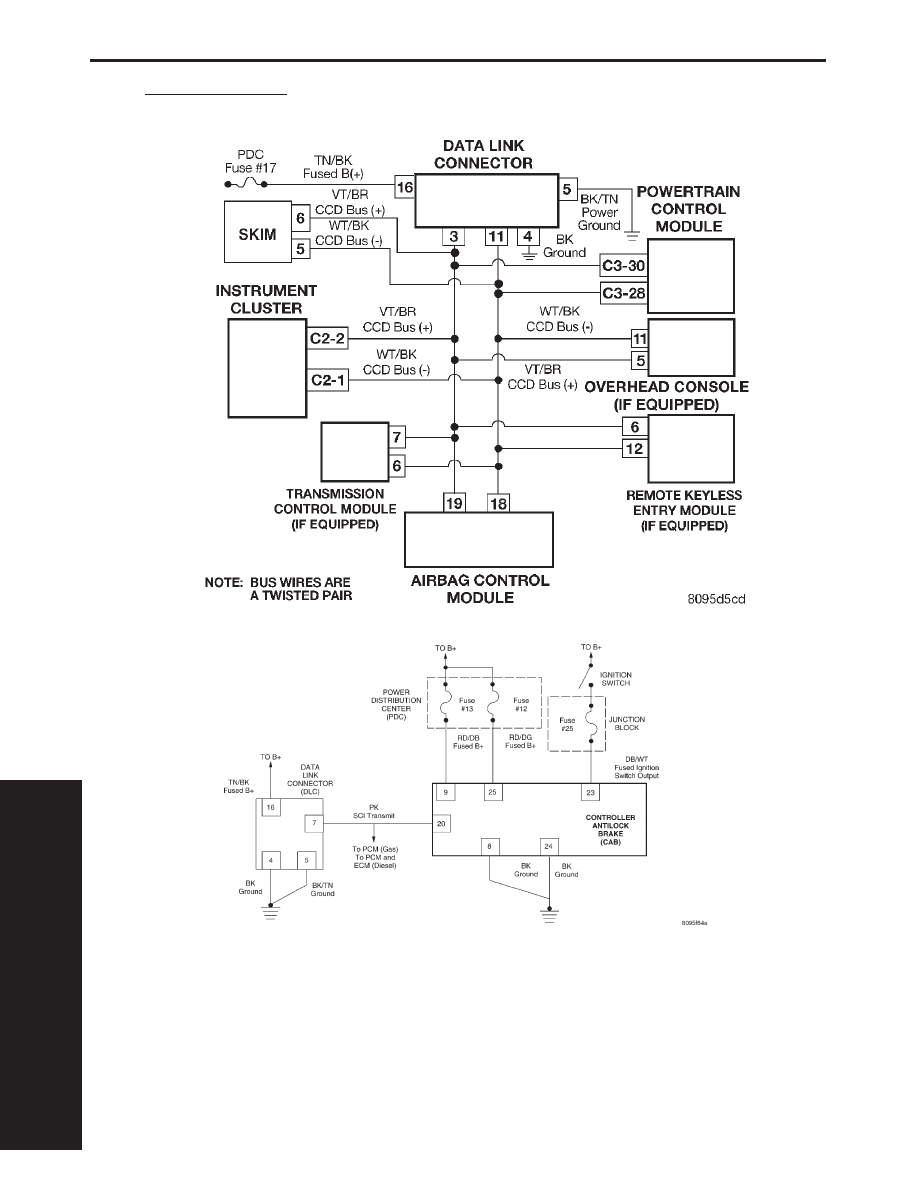

7
D1 20VT/BR
CCD BUS(+)
8
-
-
9
T3 18VT
TRS 3 SENSE
10
-
-
11
T22 20DB/WT
SOLENOID C CONTROL
12
T19 20WT
SOLENOID A CONTROL
13
T60 20OR/WT
SOLENOID B CONTROL

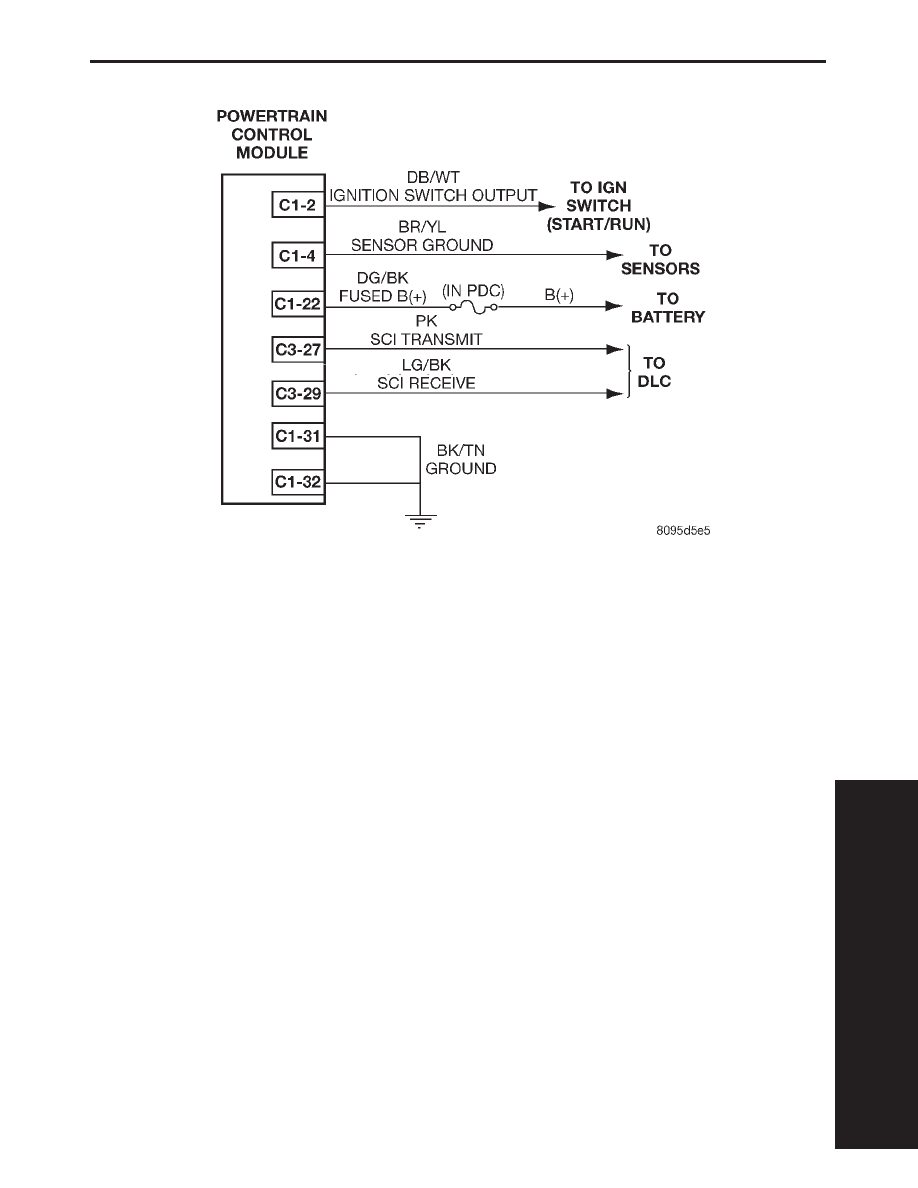

14
D21 20PK
SCI TRANSMIT
15
-
-
16
K167 20BR/YL
SENSOR GROUND
17
K22 20OR/DB
THROTTLE POSITION SENSOR SIGNAL
18
L10 18BR/LG
TRS REVERSE SENSE
19
-
-
20
-
-
21
T42 18VT/WT
TRS 1-2 SENSE
22
T1 18LG/BK
TRS OVERDRIVE SENSE
23
K29 20WT/PK
BRAKE LAMP SWITCH SENSE
24
Z12 18BK/TN
GROUND
25
M1 20PK
FUSED B(+)
26
F12 18DB/WT
FUSED IGNITION SWITCH OUTPUT (RUN-START)
WASHER FLUID LEVEL SWITCH - BLACK 2 WAY
CAV
CIRCUIT
FUNCTION
A
Z1 20BK
GROUND
B
G29 20BK/LB
LOW WASHER FLUID SENSE
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
