(4) Remove bearing retainer bolts and remove rear

bearing retainer and rear bearing (Fig. 43). Use ham-
mer handle to push or tap bearing out of housing if
needed.

(5) Examine condition of bearing bore, counter-

shaft rear bearing race and idler shaft notch in rear
housing. Replace housing if race, bore or notch are
worn or damaged.

GEARTRAIN DISASSEMBLY FROM FIXTURE

(1) Remove

reverse

idler

gear

assembly

from

assembly fixture cup.

(2) Remove 1-2 and fifth-reverse forks from syn-

chro sleeves.

(3) Slide countershaft out of fixture tool.
(4) Remove output shaft bearing retainer from

rear surface of fifth gear (retainer will drop onto gear
after bolts are removed).

(5) Lift and remove output shaft and gears off

input shaft.

(6) Lift and remove input shaft, pilot bearing and

fourth gear synchro ring from assembly fixture tool.

Fig. 41 Rear Bearing Snap Ring Removal—4WD

1 – HEAVY DUTY SNAP RING PLIERS
2 – REAR BEARING SNAP RING
3 – OUTPUT SHAFT

Fig. 42 Rear Adapter Housing Removal

1 – REAR ADAPTER HOUSING
2 – OUTPUT SHAFT

Fig. 43 Rear Adapter Housing Components

1 – BEARING RETAINER
2 – RETAINER BOLTS (3)
3 – IDLER SHAFT NOTCH
4 – COUNTERSHAFT REAR BEARING RACE
5 – REAR BEARING

21 - 56

NV3550 MANUAL TRANSMISSION

XJ

DISASSEMBLY AND ASSEMBLY (Continued)

OUTPUT SHAFT

NOTE: The synchronizer hubs and sleeves are dif-
ferent and must not be intermixed. It is recom-
mended that each synchronizer unit be removed as
an assembly to avoid intermixing parts. It is also
recommended that each synchro hub and sleeve be
marked with a scriber or paint for correct assembly
reference.

(1) Remove snap ring that secures 3-4 synchro hub

on output shaft.

(2) Remove 3-4 synchro assembly, third gear syn-

chro ring, and third gear with shop press and
Remover Tool 1130. Position Tool 1130 between sec-
ond and third gears.

(3) Remove third gear needle bearing (Fig. 44).

(4) Remove retaining ring that secures two-piece

thrust washer on shaft (Fig. 45). Use small pry tool
to remove retaining ring.

(5) Remove two-piece thrust washer (Fig. 46). Note

position of washer locating lugs in shaft notches for
installation reference.

(6) Remove second gear and needle bearing (Fig.

47).

(7) Remove second gear synchro ring, synchro fric-

tion cone, and synchro cone (Fig. 48).

(8) Remove interm ring.
(9) Remove 1-2 synchro hub snap ring.
(10) Remove 1-2 synchro hub and sleeve and first

gear from output shaft with shop press and Remover
Tool 1130 (Fig. 49). Position Tool 1130 between first
and reverse gears.

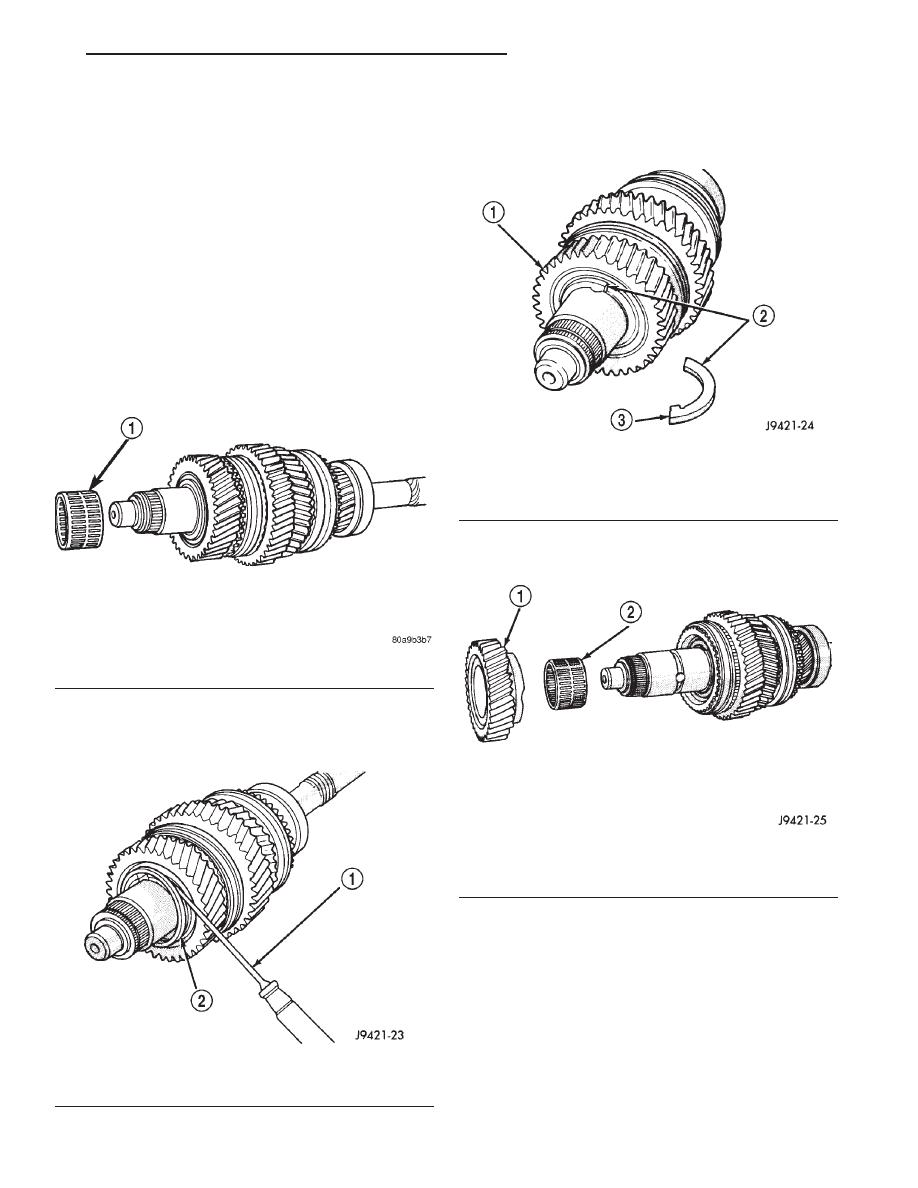

Fig. 44 Third Gear Needle Bearing Removal

1 – THIRD GEAR NEEDLE BEARING

Fig. 45 Thrust Washer Retaining Ring Removal

1 – PRY TOOL
2 – THRUST WASHER RETAINING RING

Fig. 46 Two-Piece Thrust Washer Removal

1 – SECOND GEAR
2 – THRUST WASHER (2–PIECE)
3 – WASHER LOCATING LUG

Fig. 47 Second Gear And Needle Bearing Removal

1 – SECOND GEAR
2 – SECOND GEAR NEEDLE BEARING

XJ

NV3550 MANUAL TRANSMISSION

21 - 57

DISASSEMBLY AND ASSEMBLY (Continued)

(11) Remove first gear needle bearing (Fig. 50).
(12) Remove output shaft bearing snap ring (Fig.

51).

(13) On 2-wheel drive models, remove output shaft

bearing.

(14) Remove fifth gear (Fig. 52).

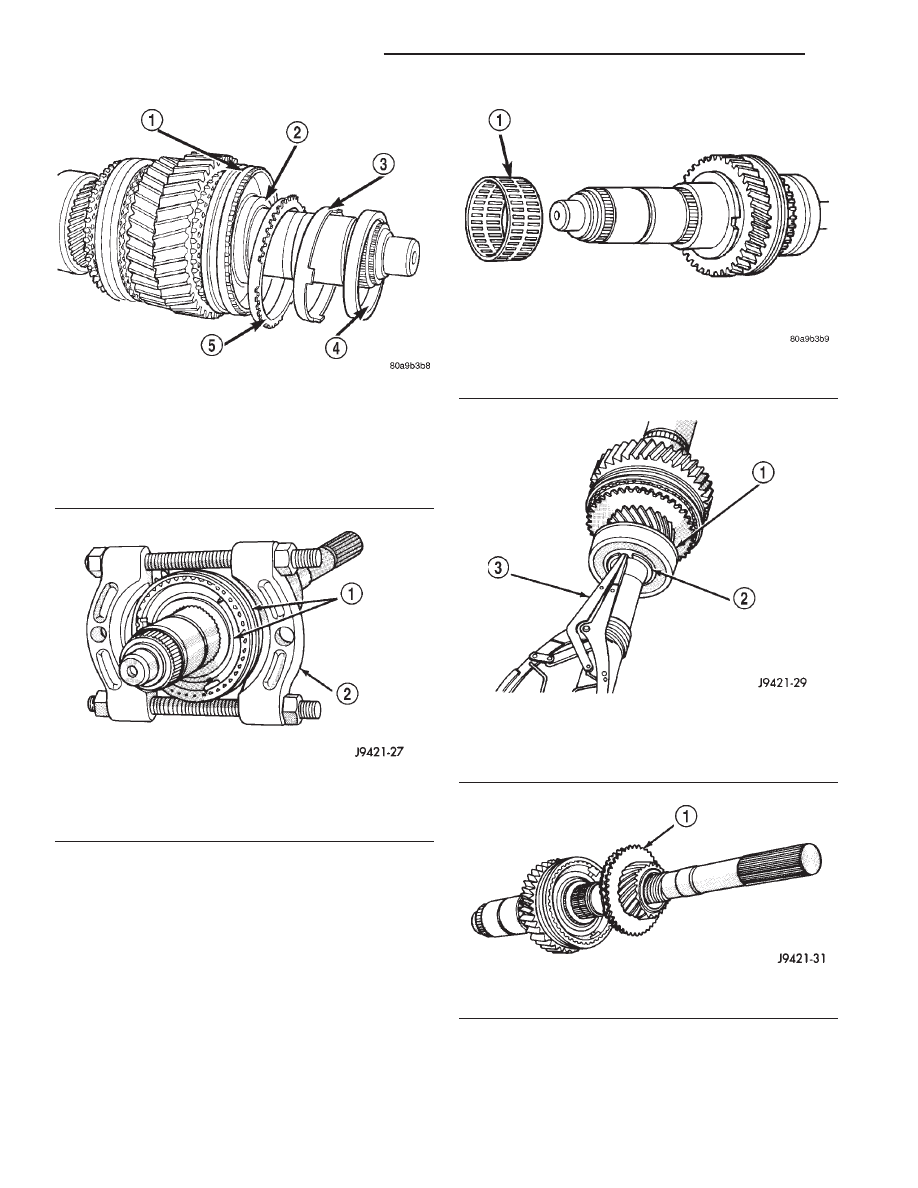

Fig. 48 Second Gear Synchro Ring And Cones

Removal

1 – 1–2 SYNCHRO HUB AND SLEEVE
2 – INTERM RING
3 – SYNCHRO FRICTION CONE
4 – SYNCHRO CONE
5 – SYNCHRO RING

Fig. 49 Hub And Sleeve Removal—1-2 Synchro

1 – 1–2 SYNCHRO HUB AND SLEEVE
2 – SPECIAL TOOL

1130

Fig. 50 First Gear Needle Bearing Removal

1 – FIRST GEAR NEEDLE BEARING

Fig. 51 Output Shaft Bearing Snap Ring Removal

1 – OUTPUT SHAFT BEARING
2 – BEARING SNAP RING
3 – SNAP RING PLIERS

Fig. 52 Fifth Gear Removal

1 – FIFTH GEAR AND SYNCHRO RING

21 - 58

NV3550 MANUAL TRANSMISSION

XJ

DISASSEMBLY AND ASSEMBLY (Continued)

(15) Remove fifth gear needle bearing. Spread

bearing apart just enough to clear shoulder on output
shaft (Fig. 53).

(16) Remove fifth-reverse synchro hub snap ring

(Fig. 54).

(17) Remove fifth-reverse synchro hub and sleeve

with shop press (Fig. 55).

(18) Remove reverse gear and needle bearing (Fig.

56).

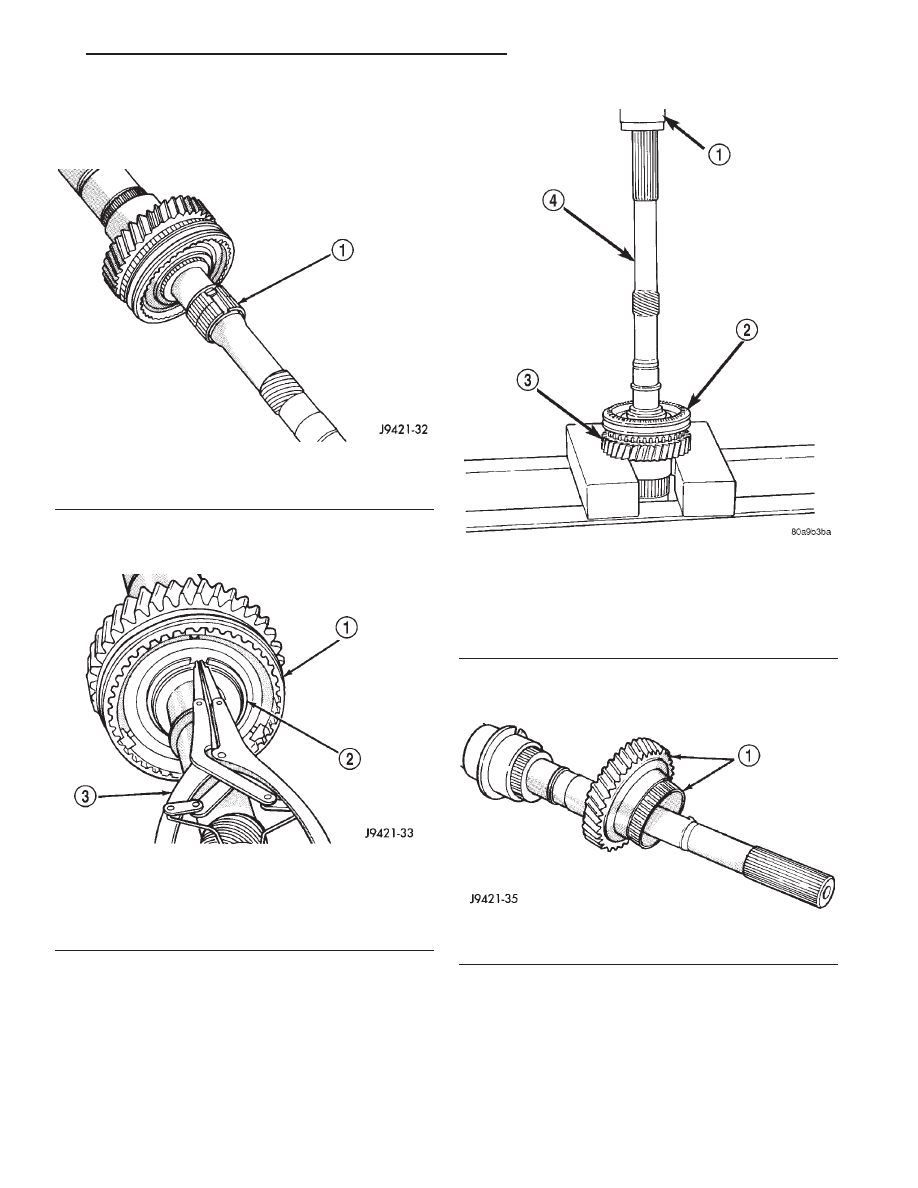

Fig. 53 Fifth Gear Needle Bearing Removal

1 – FIFTH GEAR NEEDLE BEARING (SPREAD BEARING TO

CLEAR SHOULDER ON SHAFT)

Fig. 54 Fifth-Reverse Synchro Hub Snap Ring

Removal

1 – FIFTH-REVERSE SYNCHRO HUB AND SLEEVE
2 – SYNCHRO HUB SNAP RING
3 – SNAP RING PLIERS

Fig. 55 Fifth-Reverse Synchro Hub And Sleeve

Removal

1 – PRESS
2 – FIFTH-REVERSE SYNCHRO HUB AND SLEEVE
3 – REVERSE GEAR
4 – OUTPUT SHAFT

Fig. 56 Reverse Gear And Needle Bearing Removal

1 – REVERSE GEAR AND NEEDLE BEARING

XJ

NV3550 MANUAL TRANSMISSION

21 - 59

DISASSEMBLY AND ASSEMBLY (Continued)
