between the terminals of the power window motor.
The passenger side front door and, on four-door mod-
els, both rear door power window switches receive
their battery feed through the power window lockout
switch or through the master switches in the DDM.
Also, each of the individual power window switches
receives its ground through the DDM. When the lock-
out switch is placed in the Lock position, the individ-
ual

power

window

switches

become

inoperative

because they have no battery current available to
them. However, the master switches are unaffected
by the lockout switch position.

Each power window switch, except the lockout

switch, is illuminated by a Light-Emitting Diode
(LED) when the ignition switch is turned to the On
position. However, when the power window lockout
switch is placed in the Lock position, the LED for the
locked-out passenger side front and, on four-door
models, the rear passenger door power window
switches is turned off.

The front door power window switches and their

lamps cannot be repaired and, if faulty or damaged,
the entire door module must be replaced. The rear
door power window switches and their lamps cannot
be repaired but, if faulty or damaged, only the
affected switch unit must be replaced.

DOOR MODULE

A Driver Door Module (DDM) and a Passenger

Door Module (PDM) are used on all models equipped
with power locks and power windows. Each door
module houses both the front door power lock and
power window switches. In addition to the switches
for its own door, the DDM houses individual switches
for each passenger door power window, a power win-
dow lockout switch, the power mirror switch, and cir-
cuitry to support the one-touch down feature of the
driver side front door power window. The PDM also
houses the control circuitry and the power lock and
unlock relays for the power lock system.

The DDM and the PDM are mounted to their

respective front door trim panels. The DDM and
PDM

are

serviced

individually

and

cannot

be

repaired. If the DDM or PDM, or any of the switches
and circuitry that they contain are faulty or dam-
aged, the complete DDM or PDM unit must be
replaced.

POWER WINDOW MOTOR

A permanent magnet reversible motor moves the

window regulator through an integral gearbox mech-
anism. A positive and negative battery connection to
the two motor terminals will cause the motor to
rotate

in

one

direction.

Reversing

the

current

through these same two connections will cause the
motor to rotate in the opposite direction.

In addition, each power window motor is equipped

with an integral self-resetting circuit breaker to pro-
tect the motor from overloads. The power window
motor and gearbox assembly cannot be repaired and,
if faulty or damaged, the entire power window regu-
lator assembly must be replaced.

CIRCUIT BREAKER

An automatic resetting circuit breaker in the junc-

tion block is used to protect the power window sys-
tem circuit. The circuit breaker can protect the
system from a short circuit, or from an overload con-
dition caused by an obstructed or stuck window glass
or regulator.

The circuit breaker cannot be repaired and, if

faulty, it must be replaced.

DIAGNOSIS AND TESTING

POWER WINDOW SYSTEM

For circuit descriptions and diagrams, refer to

8W-60 - Power Windows in Group 8W - Wiring Dia-
grams.

ALL WINDOWS INOPERATIVE

(1) Check the circuit breaker in the junction block,

as described in this group. If OK, go to Step 2. If not
OK, replace the faulty circuit breaker.

(2) Disconnect and isolate the battery negative

cable. Remove the driver side front door trim panel
and unplug the Driver Door Module (DDM) wire har-
ness connectors from the DDM. Check for continuity
between the ground circuit cavity of the 8-way DDM
wire harness connector and a good ground. If OK, go
to Step 3. If not OK, repair the circuit to ground as
required.

(3) Connect the battery negative cable. Turn the

ignition switch to the On position. Check for battery
voltage at the master switch power feed (run/acc) cir-
cuit cavity of the 12-way DDM wire harness connec-
tor. If OK, see the diagnosis for the Door Module in
this group. If not OK, repair the open circuit to the
circuit breaker in the junction block as required.

ONE WINDOW INOPERATIVE

The window glass must be free to slide up and

down for the power window motor to function prop-
erly. If the glass is not free to move up and down, the
motor will overload and trip the integral circuit
breaker. To determine if the glass is free, disconnect
the regulator plate from the glass. Then slide the
window up and down by hand.

There is an alternate method to check if the glass

is free. Position the glass between the up and down
stops. Then, shake the glass in the door. Check that

8S - 2

POWER WINDOW SYSTEMS

XJ

DESCRIPTION AND OPERATION (Continued)

the glass can be moved slightly from side to side,
front to rear, and up and down. Then check that the
glass is not bound tight in the tracks. If the glass is
free, proceed with the diagnosis that follows. If the
glass is not free, refer to Group 23 - Body for the
door window glass and hardware service and adjust-
ment procedures.

(1) Check the power window switch continuity as

described in the diagnosis for the Door Module (front
doors) or Power Window Switch (rear doors) in this
group. If OK and the driver side front window is
inoperative, see the Power Window Motor diagnosis
in this group. If OK and the inoperative window is
other than the driver side front, go to Step 2. If not
OK, replace the faulty door module or switch.

(2) Refer to the circuit diagrams in 8W-60 - Power

Windows in Group 8W - Wiring Diagrams. Check the
continuity in each circuit between the inoperative
Passenger Door Module (PDM) or power window
switch wire harness connector cavities and the corre-
sponding Driver Door Module (DDM) wire harness
connector cavities. If OK, see the diagnosis for the
Power Window Motor in this group. If not OK, repair
the open circuit(s) as required.

NOTE: All

individual

power

window

switches

receive their battery and ground feeds through the
Driver Door Module (DDM) and wire harness con-
nectors.

CIRCUIT BREAKER

For circuit descriptions and diagrams, refer to

8W-60 - Power Windows in Group 8W - Wiring Dia-
grams.

(1) Locate the circuit breaker in the junction block.

Pull out the circuit breaker slightly, but be certain
that the circuit breaker terminals still contact the
terminals in the junction block cavities.

(2) Connect the negative lead of a 12-volt DC volt-

meter to a good ground.

(3) With the voltmeter positive lead, check both

terminals of the circuit breaker for battery voltage.

If only one terminal has battery voltage, the circuit

breaker is faulty and must be replaced. If neither ter-
minal has battery voltage, repair the open circuit
from

the

Power

Distribution

Center

(PDC)

as

required. If the circuit breaker checks OK, but no
power windows operate, see Power Window System
in the Diagnosis and Testing section of this group.

DOOR MODULE

The Driver Door Module (DDM) contains the mas-

ter switches and the lockout switch in the power win-
dow system. The DDM also contains an integrated
circuit to support the one-touch down feature of the
driver side front door power window. Remember that

the passenger side front door power window switch
and, on four-door models, the rear door power win-
dow switches get their battery current through the
power window lockout switch in the Driver Door
Module (DDM). In addition, each individual power
window switch gets its ground through the master
switch in the DDM.

The one-touch down feature circuitry within the

DDM will not operate the power window motor if the
door glass, window regulator, or gearbox mechanism
are stuck, obstructed, or binding. If the driver side
front door power window operates as designed, but
the one-touch down feature is inoperative, replace
the faulty DDM.

If the problem being diagnosed is an inoperative

power window switch illumination lamp, but the
power window switch operates as designed, replace
the faulty door module. For circuit descriptions and
diagrams, refer to 8W-60 - Power Windows in Group
8W - Wiring Diagrams.

(1) Disconnect and isolate the battery negative

cable. Remove the front door trim panel and unplug
the door module wire harness connectors from the
door module.

(2) Check the door module power window switch

and/or power window lockout switch continuity in
each position, as shown in the proper chart (Fig. 1)
or (Fig. 2). If OK, see the Power Window Motor diag-
nosis in this group. If not OK, replace the faulty door
module.

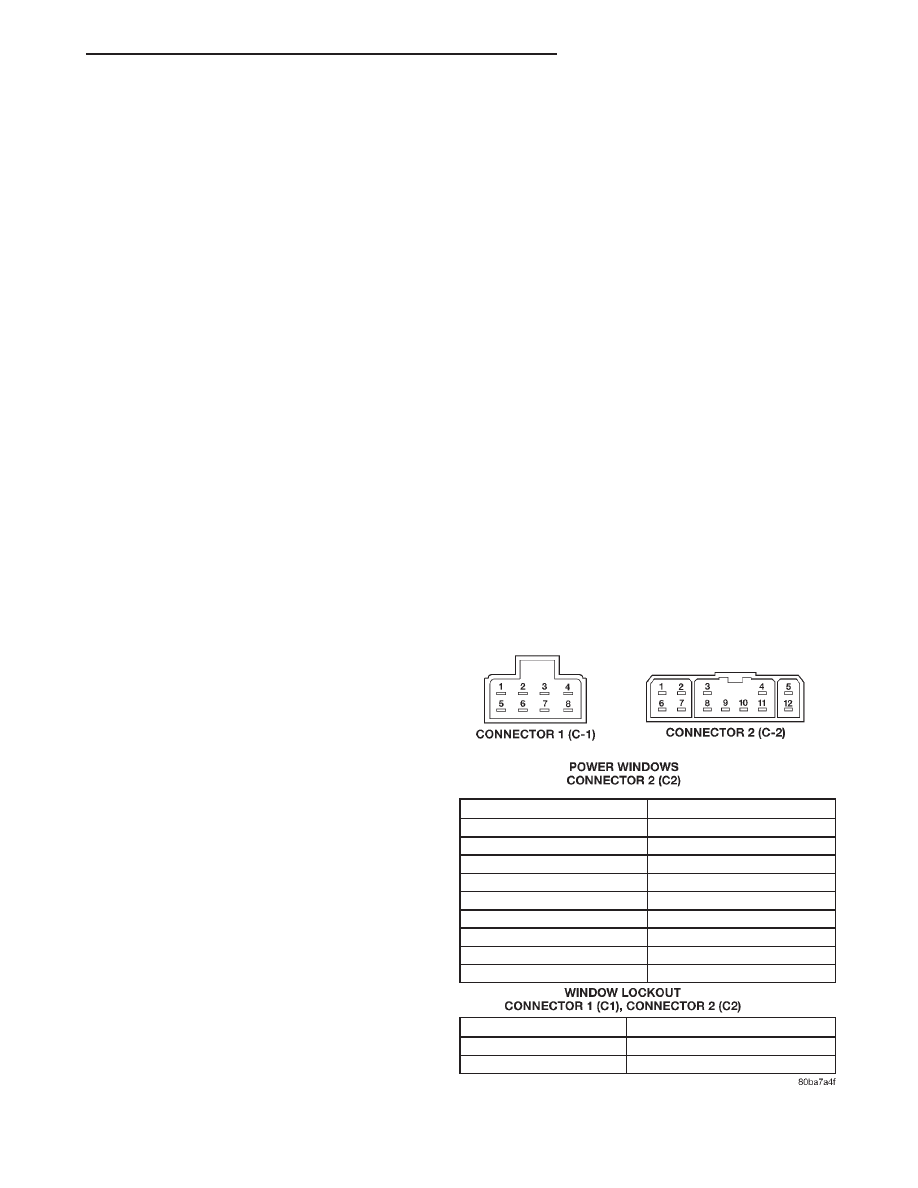

Fig. 1 DDM Power Window Switch Continuity

SWITCH POSITION

CONTINUITY BETWEEN

OFF (NORMAL)

1&8,2&8,3&8,4&8,5&8,6&8,10&8,12&8

RIGHT REAR DOWN

1&9,2&8

RIGHT REAR UP

2&9,1&8

RIGHT FRONT UP

3&9,6&8

LEFT REAR UP

4&9,10&8

LEFT FRONT UP

5&9,12&8

RIGHT FRONT DOWN

6&9,3&8

LEFT REAR DOWN

10&9,4&8

LEFT FRONT DOWN

12&9,5&8

SWITCH POSITION

CONTINUITY BETWEEN

LOCKOUT OFF (UP)

C1 PIN 8 & C2 PIN 9

LOCKOUT ON (DOWN)

NO CONTINUITY BETWEEN C1 PIN 8 & C2 PIN 9

XJ

POWER WINDOW SYSTEMS

8S - 3

DIAGNOSIS AND TESTING (Continued)

POWER WINDOW SWITCH

The diagnosis found here applies only to the rear

door power window switches. For diagnosis of the
front door power window switches, see Door Module
in this group. If the problem being diagnosed is an
inoperative power window switch illumination lamp,
but the power window switch operates as designed,
replace the faulty switch. For circuit descriptions and
diagrams, refer to 8W-60 - Power Windows in Group
8W - Wiring Diagrams.

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the power window switch from the

rear door trim panel.

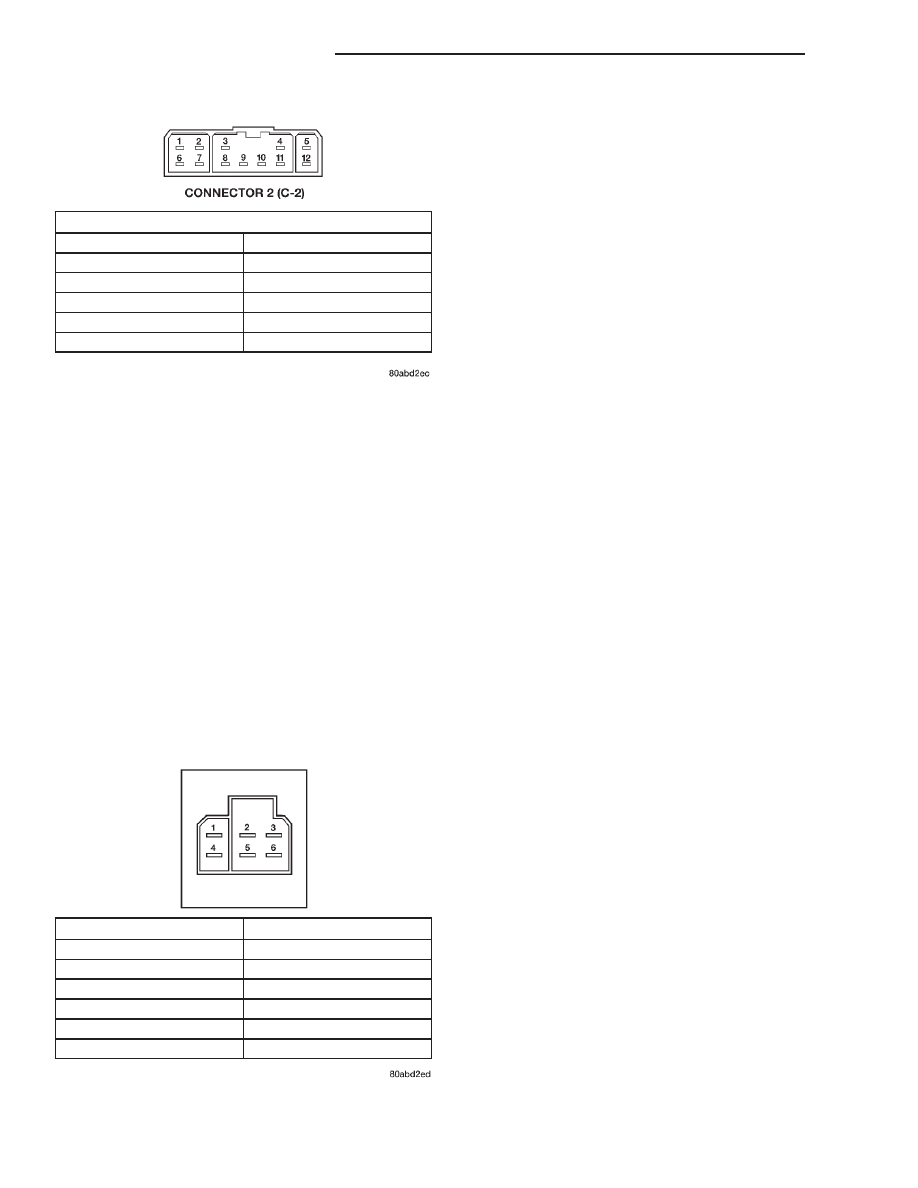

(3) Check the power window switch continuity in

each position as shown in the Rear Door Power Win-
dow Switch Continuity chart (Fig. 3). If OK, see the
Power Window Motor diagnosis in this group. If not
OK, replace the faulty switch.

POWER WINDOW MOTOR

For circuit descriptions and diagrams, refer to

8W-60 - Power Windows in Group 8W - Wiring Dia-
grams. Before you proceed with this diagnosis, con-
firm proper switch operation. See the Door Module
and/or Power Window Switch diagnosis in this group.

(1) Disconnect and isolate the battery negative

cable. Remove the trim panel from the door with the
inoperative power window.

(2) Unplug the power window motor wire harness

connector. Apply 12 volts across the motor terminals
to check its operation in one direction. Reverse the
connections across the motor terminals to check the
operation in the other direction. Remember, if the
window is in the full up or full down position, the
motor will not operate in that direction by design. If
OK, repair the circuits from the power window motor
to the door module or the power window switch as
required. If not OK, replace the faulty motor.

(3) If the motor operates in both directions, check

the operation of the window glass and lift mechanism
through its complete up and down travel. There
should be no binding or sticking of the window glass
or lift mechanism through the entire travel range. If
not OK, refer to Group 23 - Body to check the win-
dow glass, tracks, and regulator for sticking, binding,
or improper adjustment.

REMOVAL AND INSTALLATION

DOOR MODULE

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the screws that secure the front door

trim panel to the inner door panel (Fig. 4).

(3) Using a trim stick or another suitable wide

flat-bladed tool, gently pry the front door trim panel
away from the door around the perimeter to release
the trim panel retainers.

NOTE: To aid in the removal of the trim panel, start
at the bottom of the panel.

(4) Lift the front door trim panel upwards and

away from the inner door panel far enough to disen-
gage the top of the panel from the inner belt weath-
erstrip.

(5) Pull the front door trim panel away from the

inner door panel far enough to access the inside door
latch release and lock linkage rods near the back of
the inside door remote controls.

(6) Unsnap the plastic retainer clips from the

inside door remote control ends of the latch release
and lock linkage rods, and remove the rod ends from
the inside door remote controls.

POWER WINDOWS

OFF (NORMAL)

C2 PIN 2 & C2 PIN 3

C2 PIN 4 & C2 PIN 9

UP

C2 PIN 2 & C2 PIN 3

C2 PIN 9 & C2 PIN 10

DOWN

C2 PIN 2 & C2 PIN 10

C2 PIN 4 & C2 PIN 9

Fig. 2 PDM Power Window Switch Continuity

SWITCH POSITION

CONTINUITY BETWEEN

OFF (NORMAL)

1&4

2&5

UP

1&6

2&5

DOWN

1&4

5&6

Fig. 3 Rear Door Power Window Switch Continuity

8S - 4

POWER WINDOW SYSTEMS

XJ

DIAGNOSIS AND TESTING (Continued)

(7) Unplug the wire harness connectors from the

door module.

(8) Remove the trim panel from the front door.
(9) Remove the three screws that secure the door

module to the front door trim panel (Fig. 5).

(10) Remove the door module from the front door

trim panel.

(11) Reverse the removal procedures to install.

Tighten the mounting screws to 2.2 N·m (20 in. lbs.).

POWER WINDOW SWITCH

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the screws that secure the door trim

panel to the inner door panel (Fig. 6).

(3) Using a trim stick or another suitable wide

flat-bladed tool, gently pry the rear door trim panel
away from the door around the perimeter to release
the trim panel retainers.

NOTE: To aid in the removal of the trim panel, start
at the bottom of the panel.

(4) Lift the rear door trim panel upwards and

away from the inner door panel far enough to disen-
gage the top of the panel from the inner belt weath-
erstrip.

(5) Pull the rear door trim panel away from the

inner door panel far enough to access the inside door
latch release and lock linkage rods near the back of
the inside door remote controls.

(6) Unsnap the plastic retainer clips from the

inside door remote control ends of the latch release
and lock linkage rods, and remove the rod ends from
the inside door remote controls.

(7) Unplug the wire harness connector from the

rear door power window switch.

(8) Remove the trim panel from the rear door.
(9) With a small thin-bladed screwdriver, gently

pry the snap clips at the sides of the power window
switch receptacle on the back of the rear door trim
panel and pull the switch out of the receptacle (Fig.
7).

(10) Reverse the removal procedures to install. Be

certain that both of the switch snap retainers in the
receptacle on the back of the trim panel are fully
engaged.

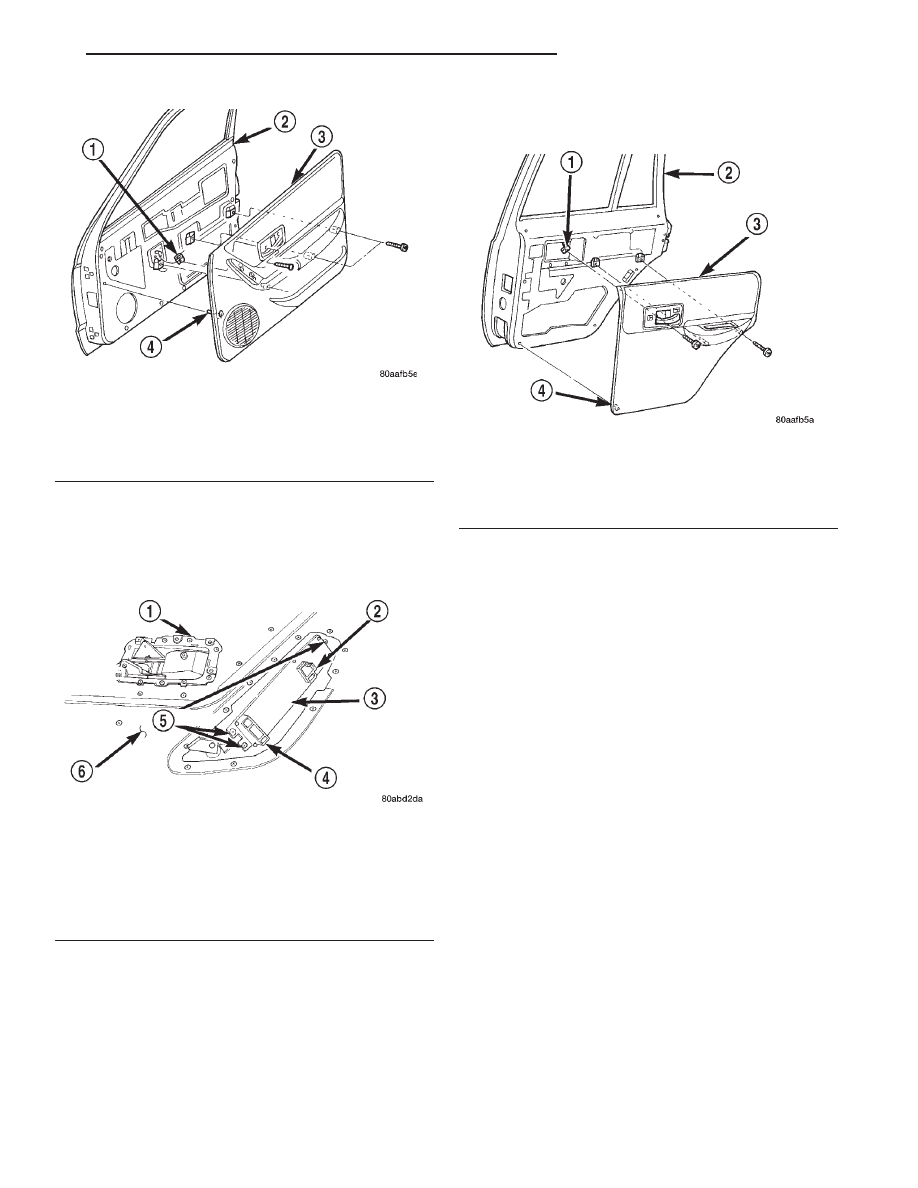

Fig. 4 Front Door Trim Panel Remove/Install

1 – U-NUT
2 – DOOR
3 – TRIM PANEL
4 – PUSH-IN FASTENER

Fig. 5 Door Module Remove/Install

1 – INSIDE DOOR LATCH AND LOCK REMOTE CONTROLS
2 – CONNECTOR 1 RECEPTACLE
3 – DOOR MODULE
4 – CONNECTOR 2 RECEPTACLE
5 – SCREWS
6 – DOOR TRIM PANEL

Fig. 6 Rear Door Trim Panel Remove/Install

1 – U-NUT
2 – REAR DOOR
3 – TRIM PANEL
4 – PUSH-IN FASTENER

XJ

POWER WINDOW SYSTEMS

8S - 5

REMOVAL AND INSTALLATION (Continued)















Content   ..  146  147  148  149   ..
