Jeep XJ. Manual - part 139





POWER DISTRIBUTION CENTER

DESCRIPTION

All of the electrical current distributed throughout

this vehicle is directed through the standard equip-
ment Power Distribution Center (PDC) (Fig. 1). The
molded plastic PDC housing is located on the right
side of the engine compartment, just behind the bat-
tery. The PDC houses up to fourteen blade-type maxi
fuses, which replace all in-line fusible links. The PDC
also houses up to twelve blade-type mini fuses, and
up to eight International Standards Organization
(ISO) relays (four standard-type and four micro-type).

The PDC housing is secured to a stamped sheet

metal bracket in the engine compartment by mount-
ing slots and tabs that are integral to the PDC hous-
ing. The PDC mounting bracket is secured with two
screws to the right front inner fender shield above
the right front wheel house. The PDC housing has a
molded plastic cover that includes two integral hinge
tabs on the inboard side, and an integral latch on the
outboard side. The PDC cover is easily opened or
removed for service access and has a convenient fuse
and relay layout map integral to the inside surface of
the cover to ensure proper component identification.
A separate molded plastic B(+) terminal stud cover is
secured by two integral tabs and a latch to one end
of the PDC housing.

The PDC cover, the PDC housing lower cover, the

PDC B(+) terminal stud cover, the PDC relay wedges
and the PDC relay cassettes are available for service

replacement. The PDC main housing unit, the fuse
wedges, the fuse cassette and the bus bars cannot be
repaired and are only serviced as a unit with the
headlamp and dash wire harness. If the PDC main
housing unit, fuse wedges, fuse cassette or the bus
bars are faulty or damaged, the headlamp and dash
wire harness unit must be replaced.

OPERATION

All of the current from the battery and the gener-

ator output enters the PDC through two cables and
eyelets that are secured with a nut to the PDC B(+)
terminal stud located on one end of the PDC housing.
The PDC B(+) terminal stud cover is unlatched and
removed to access the battery and generator output
connection B(+) terminal stud. The PDC cover is
unlatched and opened or removed to access the fuses
or relays. Internal connection of all of the PDC cir-
cuits is accomplished by an intricate combination of
hard wiring and bus bars. Refer to Power Distribu-
tion
in the index of this service manual for the loca-
tion of complete PDC circuit diagrams.

IGNITION-OFF DRAW FUSE

DESCRIPTION

All vehicles are equipped with an Ignition-Off

Draw (IOD) fuse (Fig. 2) that is removed from its
cavity in the Power Distribution Center (PDC) when
the vehicle is shipped from the factory. Dealer per-

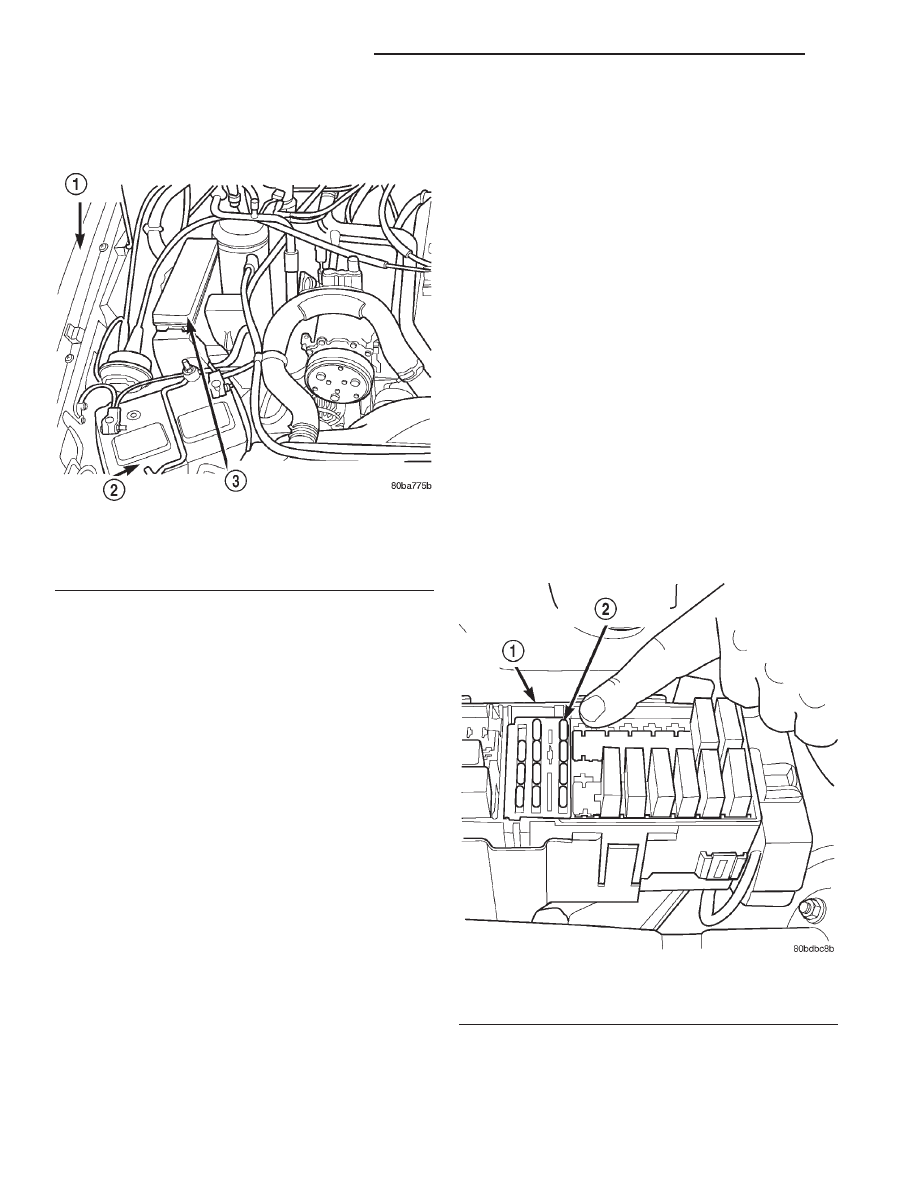

Fig. 1 Power Distribution Center Location

1 – LEFT FENDER
2 – BATTERY
3 – POWER DISTRIBUTION CENTER

Fig. 2 Ignition-Off Draw Fuse

1 – POWER DISTRIBUTION CENTER
2 – IGNITION-OFF DRAW FUSE

8O - 2

POWER DISTRIBUTION SYSTEMS

XJ

DESCRIPTION AND OPERATION (Continued)

sonnel are to remove the IOD fuse from the storage
location and install it into PDC fuse cavity 16 as part
of the preparation procedures performed just prior to
new vehicle delivery.

The PDC has a molded plastic cover that can be

removed to provide service access to all of the fuses
and relays in the PDC. An integral latch and hinge
tabs are molded into the PDC cover for easy removal.
A fuse layout map is integral to the underside of the
PDC cover to ensure proper fuse and relay identifica-
tion. The IOD fuse is a 15 ampere mini blade-type
fuse and, when removed, it is stored in a plastic fuse
holder formation that is molded into the underside of
the PDC cover.

OPERATION

The term ignition-off draw identifies a normal con-

dition where power is being drained from the battery
with the ignition switch in the Off position. The IOD
fuse feeds the memory and sleep mode functions for
many of the electronic modules in the vehicle as well
as various other accessories that require battery cur-
rent when the ignition switch is in the Off position,
including the clock. The only reason the IOD fuse is
removed is to reduce the normal IOD of the vehicle
electrical system during new vehicle transportation
and pre-delivery storage to reduce battery depletion,
while still allowing vehicle operation so that the
vehicle can be loaded, unloaded and moved as needed
by both vehicle transportation company and dealer
personnel.

The IOD fuse is removed from PDC fuse cavity 16

when the vehicle is shipped from the assembly plant.
Dealer personnel must install the IOD fuse when the
vehicle is being prepared for delivery in order to
restore full electrical system operation. Once the
vehicle is prepared for delivery, the IOD function of
this fuse becomes transparent and the fuse that has
been assigned the IOD designation becomes only
another Fused B(+) circuit fuse. The IOD fuse serves
no useful purpose to the dealer technician in the ser-
vice or diagnosis of any vehicle system or condition,
other than the same purpose as that of any other
standard circuit protection device.

The IOD fuse can be used by the vehicle owner as

a convenient means of reducing battery depletion
when a vehicle is to be stored for periods not to
exceed about thirty days. However, it must be
remembered that removing the IOD fuse will not
eliminate IOD, but only reduce this normal condition.
If a vehicle will be stored for more than about thirty
days, the battery negative cable should be discon-
nected to eliminate normal IOD; and, the battery
should be tested and recharged at regular intervals
during the vehicle storage period to prevent the bat-
tery from becoming discharged or damaged. Refer to

Battery in the index of this service manual for the
location of additional service information covering
the battery.

JUNCTION BLOCK

DESCRIPTION

An electrical Junction Block (JB) is concealed

behind the right cowl side inner trim panel in the
passenger compartment of the vehicle (Fig. 3). The
JB combines the functions previously provided by a
separate fuseblock module and relay center. The JB
serves to simplify and centralize numerous electrical
components, as well as to distribute electrical current
to many of the accessory systems in the vehicle. It
also eliminates the need for numerous splice connec-
tions and serves in place of a bulkhead connector
between many of the engine compartment, instru-
ment panel, and body wire harnesses. The JB houses
up to twenty-seven blade-type fuses (three standard-
type and twenty-four mini-type), up to three blade-
type automatic resetting circuit breakers, and four
International Standards Organization (ISO) relays
(three standard-type and one micro-type).

The molded plastic JB housing has integral mount-

ing brackets that are secured with three nuts to
studs on the right cowl side inner panel below the
instrument panel. The right cowl side inner trim
panel is secured to a stud on the JB with a push nut.
A snap-fit fuse access panel can be removed for ser-
vice of the JB fuses and also conceals the push nut. A
finger recess is molded into the front of the fuse

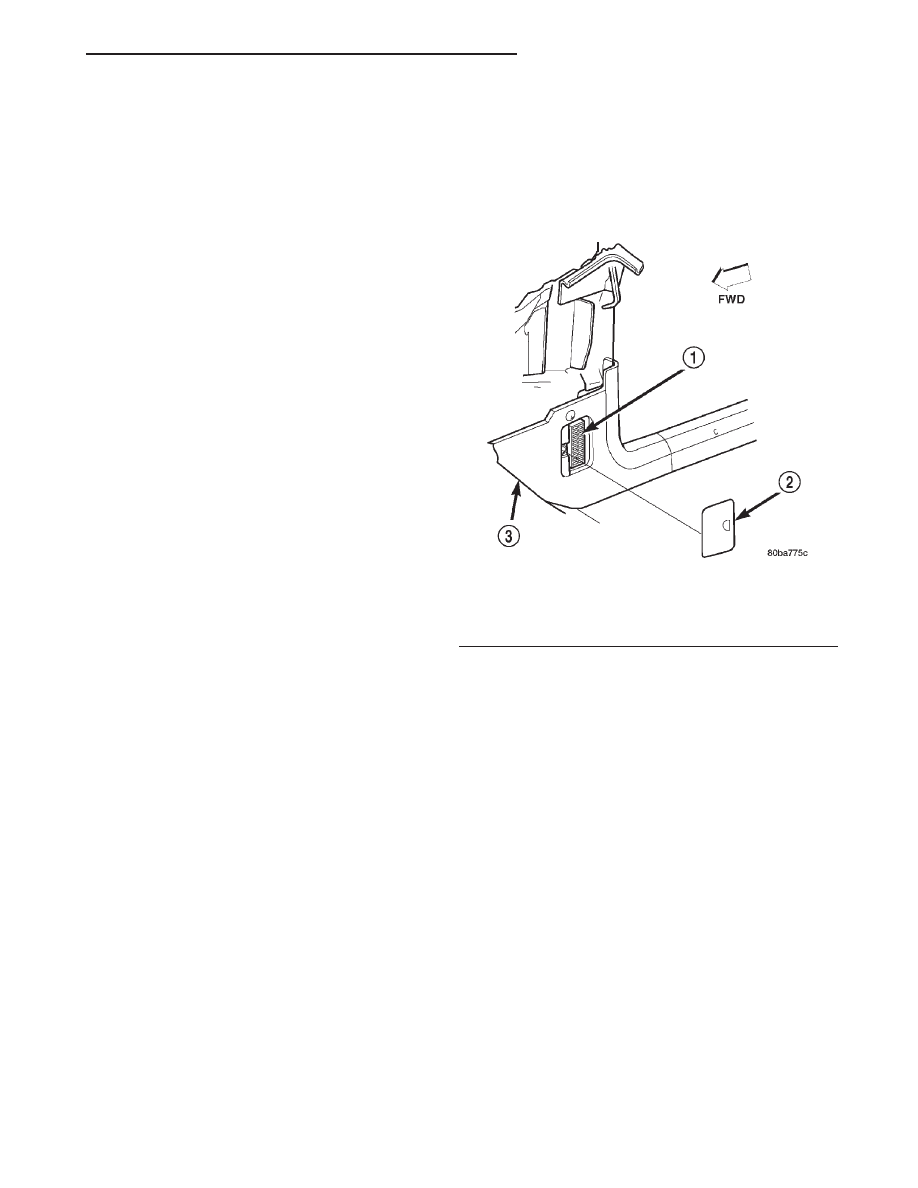

Fig. 3 Junction Block Location

1 – JUNCTION BLOCK
2 – FUSE ACCESS PANEL
3 – RIGHT COWL SIDE INNER TRIM PANEL

XJ

POWER DISTRIBUTION SYSTEMS

8O - 3

DESCRIPTION AND OPERATION (Continued)

access panel for easy removal, and a fuse puller and
spare fuse holders are located on the back of the fuse
access panel.

The JB unit cannot be repaired and is only ser-

viced as an assembly. If any internal circuit or the JB
housing is faulty or damaged, the entire JB unit
must be replaced.

OPERATION

All of the circuits entering and leaving the JB do

so through up to ten wire harness connectors, which
are connected to the JB through integral connector
receptacles molded into the JB housing. Internal con-
nection of all of the JB circuits is accomplished by an
intricate combination of hard wiring and bus bars.
Refer to Junction Block in the index of this service
manual for the location of complete JB circuit dia-
grams.

REMOVAL AND INSTALLATION

POWER DISTRIBUTION CENTER

The Power Distribution Center (PDC) main hous-

ing unit, the PDC fuse wedges, the PDC fuse cassette
and the PDC bus bars cannot be repaired and are
only serviced as a unit with the headlamp and dash
wire harness. If the PDC main housing unit, the fuse
wedge, the fuse cassette or the bus bars are faulty or
damaged, the entire PDC and headlamp and dash
wire harness unit must be replaced.

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Disconnect each of the headlamp and dash wire

harness connectors. Refer to Connector Locations
in the index of this service manual for the location of
more information on the headlamp and dash wire
harness connector locations.

(3) Remove all of the fasteners that secure each of

the headlamp and dash wire harness ground eyelets
to the vehicle body and chassis components. Refer to
Connector Locations in the index of this service
manual for the location of more information on the
ground eyelet locations.

(4) Disengage each of the retainers that secure the

headlamp and dash wire harness to the vehicle body
and chassis components. Refer to Connector Loca-
tions
in the index of this service manual for the loca-
tion of more information on the headlamp and dash
wire harness retainer locations.

(5) Unlatch and remove the B(+) terminal stud

cover from the end of the PDC (Fig. 4).

(6) Remove the nut that secures the eyelets of the

battery wire harness PDC take outs to the PDC B(+)
terminal stud.

(7) Remove the battery wire harness PDC take out

eyelets from the B(+) terminal stud.

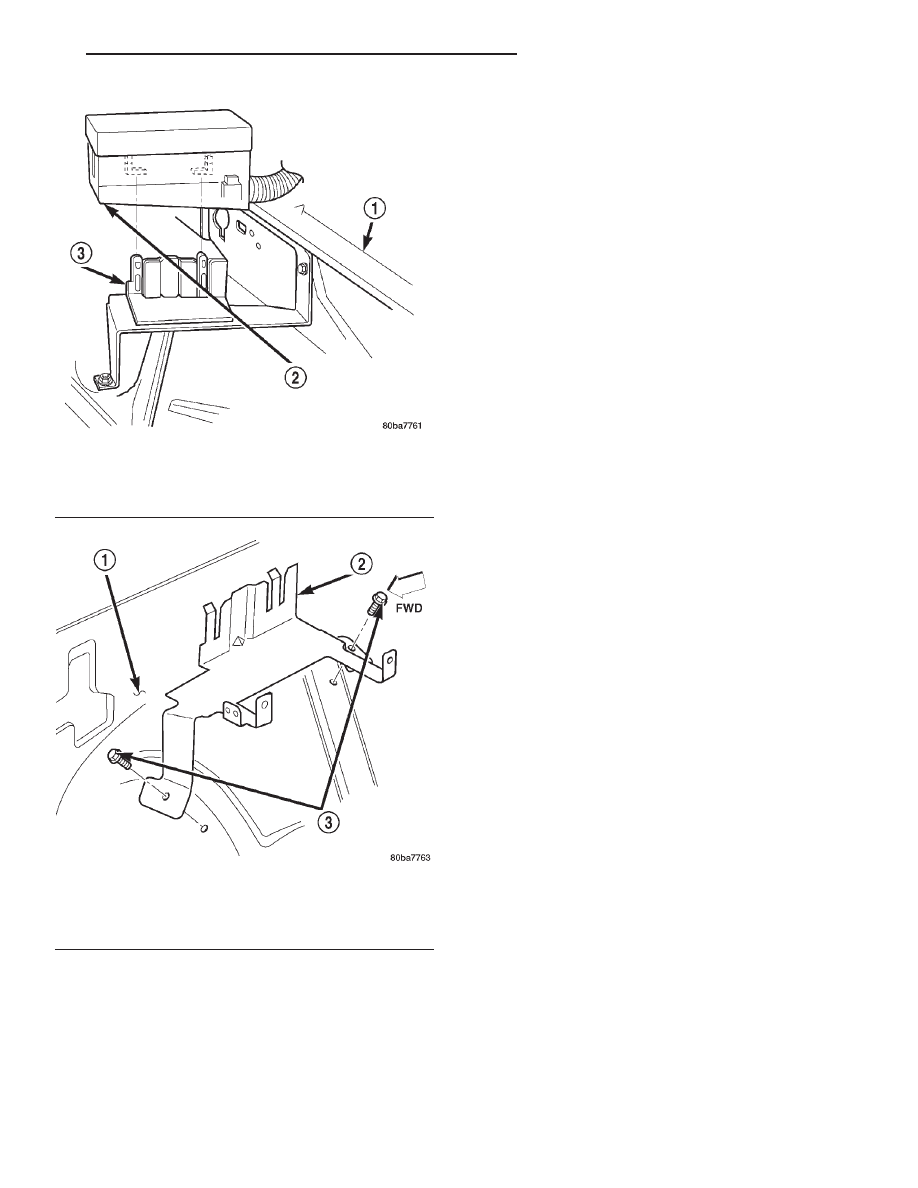

(8) Disengage the latches on the PDC mounting

bracket from the tabs on the PDC housing, and pull
the PDC housing upward to disengage the mounting
slots from the stanchions of the mounting bracket
(Fig. 5).

(9) Remove the PDC and the headlamp and dash

wire harness from the engine compartment as a unit.

(10) Remove the two screws that secure the PDC

mounting bracket to the right front inner fender (Fig.
6).

(11) Remove the PDC mounting bracket from the

right front inner fender.

INSTALLATION

NOTE: If the PDC is being replaced with a new unit,
be certain to transfer each of the fuses and relays
from the faulty PDC to the proper cavities of the
replacement PDC. Refer to Power Distribution in the
index of this service manual for the location of
complete PDC circuit diagrams and cavity assign-
ments.

(1) Position the PDC mounting bracket onto the

right front inner fender.

(2) Install and tighten the two screws that secure

the PDC mounting bracket to the right front inner
fender. Tighten the screws to 8.1 N·m (72 in. lbs.).

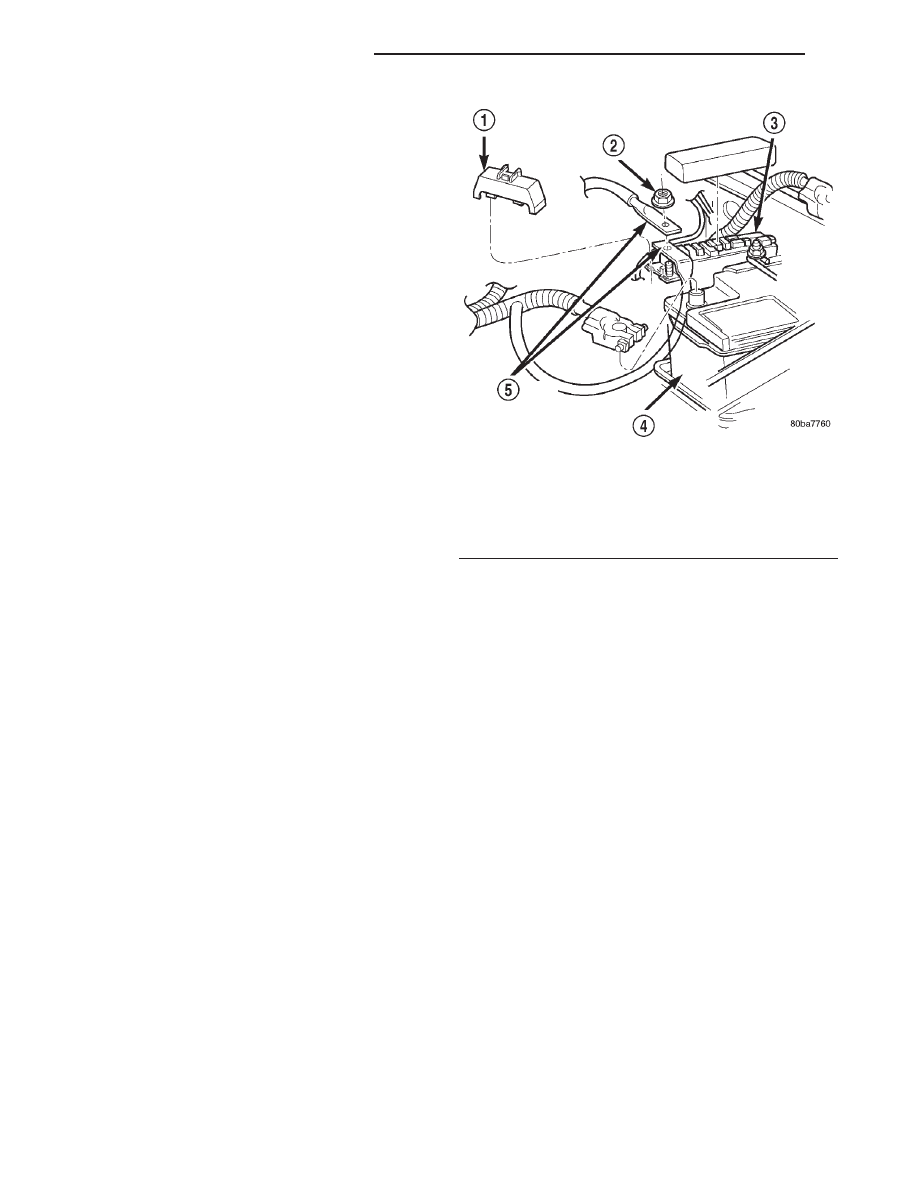

Fig. 4 Power Distribution Center Connections

1 – COVER
2 – NUT
3 – POWER DISTRIBUTION CENTER
4 – BATTERY
5 – BATTERY WIRE HARNESS PDC TAKE-OUTS

8O - 4

POWER DISTRIBUTION SYSTEMS

XJ

DESCRIPTION AND OPERATION (Continued)

(3) Position the PDC and the headlamp and dash

wire harness unit in the engine compartment.

(4) Engage the mounting slots on the PDC housing

with the stanchions of the PDC mounting bracket
and push the unit downward until the mounting
bracket latches engage the mounting tabs on the
PDC housing.

(5) Install the eyelets of the battery wire harness

PDC take outs onto the PDC B(+) terminal stud.

(6) Install and tighten the nut that secures the

eyelet of the battery wire harness PDC take outs to
the B(+) terminal stud. Tighten the nut to 10.8 N·m
(95 in. lbs.).

(7) Engage the tabs on the lower edge of the B(+)

terminal stud cover in the slots on the PDC housing,
then engage the latch on the top of the cover with
the latch receptacle on the PDC housing.

(8) Engage each of the retainers that secure the

headlamp and dash wire harness to the vehicle body
and chassis components. Refer to Connector Loca-
tions
in the index of this service manual for the loca-
tion of more information on the headlamp and dash
wire harness retainer locations.

(9) Install all of the fasteners that secure each of

the headlamp and dash wire harness ground eyelets
to the vehicle body and chassis components. Refer to
Connector Locations in the index of this service
manual for the location of more information on the
ground eyelet locations.

(10) Reconnect each of the headlamp and dash

wire harness connectors. Refer to Connector Loca-
tions
in the index of this service manual for the loca-
tion of more information on the headlamp and dash
wire harness connector locations.

(11) Reconnect the battery negative cable.

IGNITION-OFF DRAW FUSE

The Ignition-Off Draw (IOD) fuse is removed from

Power Distribution Center (PDC) fuse cavity 16 (Fig.
7) when the vehicle is shipped from the assembly
plant. Dealer personnel must install the IOD fuse
when the vehicle is being prepared for delivery in
order to restore full electrical system operation.

NOTE: When removing or installing the IOD fuse, it
is important that the ignition switch be in the Off
position. Failure to place the ignition switch in the
Off position can cause the radio display to become
scrambled when the IOD fuse is installed. Remov-
ing and installing the IOD fuse again with the igni-
tion switch in the Off position will usually correct
the scrambled radio display condition.

REMOVAL

(1) Turn the ignition switch to the Off position.
(2) Unlatch and remove the cover from the PDC.
(3) Remove the IOD fuse from fuse cavity 16 of the

PDC.

(4) Store the removed IOD fuse by inserting the

terminal blades of the fuse into the plastic fuse
holder formation that is molded into the underside of
the PDC cover.

(5) Install and latch the cover onto the PDC.

Fig. 5 Power Distribution Center Remove/Install

1 – RIGHT FENDER
2 – POWER DISTRIBUTION CENTER
3 – BRACKET

Fig. 6 PDC Mounting Bracket Remove/Install

1 – RIGHT FRONT INNER FENDER
2 – PDC MOUNTING BRACKET
3 – SCREW

XJ

POWER DISTRIBUTION SYSTEMS

8O - 5

REMOVAL AND INSTALLATION (Continued)















Content   ..  137  138  139  140   ..
