(4) Pull the accessory switch bezel away from the

instrument panel far enough to access the instru-
ment panel wire harness connectors.

(5) Disconnect the instrument panel wire harness

connectors from the connector receptacles for the
accessory switches and the cigar lighter/power outlet
on the back of the accessory switch bezel.

(6) Remove the accessory switch bezel from the

instrument panel.

INSTALLATION

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS, DISABLE THE AIRBAG SYSTEM BEFORE
ATTEMPTING ANY STEERING WHEEL, STEERING
COLUMN, OR INSTRUMENT PANEL COMPONENT
DIAGNOSIS OR SERVICE. DISCONNECT AND ISO-
LATE THE BATTERY NEGATIVE (GROUND) CABLE,
THEN WAIT TWO MINUTES FOR THE AIRBAG SYS-
TEM CAPACITOR TO DISCHARGE BEFORE PER-
FORMING FURTHER DIAGNOSIS OR SERVICE. THIS
IS THE ONLY SURE WAY TO DISABLE THE AIRBAG
SYSTEM. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT AND POSSIBLE PERSONAL
INJURY.

(1) Position the accessory switch bezel to the

instrument panel.

(2) Reconnect the instrument panel wire harness

connectors to the connector receptacles for the acces-
sory switches and the cigar lighter/power outlet on
the back of the accessory switch bezel.

(3) Position the accessory switch bezel onto the

instrument panel.

(4) Install and tighten the four screws that secure

the accessory switch bezel to the instrument panel.
Tighten the screws to 2 N·m (20 in. lbs.).

(5) Reinstall the center bezel onto the instrument

panel. (Refer to 23 - BODY/INSTRUMENT PANEL/
CENTER BEZEL - INSTALLATION).

(6) Reconnect the battery negative cable.

AXLE LOCK SWITCH

DESCRIPTION

If equipped, the Axle Lock switch is located in the

Accessory Switch Bezel, below the HVAC controls.
The switch will activate the Rear Axle locker and
Rear/Front Axle locker. The switch is a double-action
momentary rocker type. The Axle Lock Switch is
secured by a snap fit within the bezel. The axle Lock
Switch cannot be repaired and, if faulty or damaged,
the entire switch must be replaced.

OPERATION

The Axle Lock switch receives battery current on a

fused B(+) circuit from a fuse in the Power Distribu-
tion Center (PDC). The switch is grounded at all
times. The Axle Lock switch is only operational when
the instrument cluster sends an activation signal to
the switch logic.

With the transfer case in the 4WD Low Range and

the vehicle speed below 10 MPH (16kph), a momen-
tary push to the lower portion of the rocker switch to
Lock:

• 1st Push: Rear Axle Locked

• 2nd Push: Rear and Front Axle Locked
Momentary pushes, will toggle between Rear Axle

Locked or Rear/Front Axle Locked. A momentary
push to the upper portion of the rocker switch to
“OFF”, (both axles unlocked).

DIAGNOSIS AND TESTING - AXLE LOCK
SWITCH

(1) Check the fused B(+) fuse in the Power Distri-

bution Center (PDC). If OK, go to step 2. If not,
repair the shorted circuit or component required and
replace the fuse.

(2) Check for battery voltage at the fused B(+) fuse

in the PDC. If OK, go to step 3. If not, repair the
open B(+) circuit to the fuse.

(3) Turn the ignition to the off position. Disconnect

and isolate the negative battery cable. Remove the
Axle Lock switch. Disconnect the switch harness con-
nector. Check for continuity between the fuse cavity
in the PDC and the Fused B(+) circuit in the switch
harness connector. If OK got to step 4. If not OK,
repair the open Fused B(+) circuit.

(4) Turn the ignition to the off position. Disconnect

and isolate the negative battery cable. Remove the
Axle Lock switch. disconnect the switch harness con-
nector. check for continuity between the switch
ground and a known good ground. If OK got to step
5. If not OK, repair open ground circuit.

23 - 38

INSTRUMENT PANEL

ACCESSORY SWITCH BEZEL (Continued)

(5) Turn the ignition to the OFF position. Discon-

nect and isolate the negative battery cable. Remove
the Instrument Cluster. Disconnect the cluster har-
ness connectors C1 and C2. Check for continuity
between each of the Enable circuits and each of the
request circuits between the switch harness connec-
tor and the cluster harness connectors. If OK go to
step 6. If not OK, repair the circuits as required.

(6) Turn the ignition to the OFF position. Discon-

nect and isolate the negative battery cable. Remove
the axle Lock switch. Disconnect the switch harness
connector. Check for continuity between each of the
Request circuits, between the switch harness connec-
tor and each of the Locker relays in the PDC. If OK,
refer to Axle Lock Indicator Problems in the Instru-
ment Cluster section of the appropriate Body Manual
or the Chassis Diagnostic Manual and perform the
appropriate symptom. If not OK, repair the circuit(s)
as required.

REMOVAL

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS, DISABLE THE SUPPLEMENTAL RESTRAINT
SYSTEM BEFORE ATTEMPTING ANY STEERING
WHEEL, STEERING COLUMN, DRIVER AIRBAG,
PASSENGER AIRBAG, OR INSTRUMENT PANEL
COMPONENT DIAGNOSIS OR SERVICE. DISCON-
NECT AND ISOLATE THE BATTERY NEGATIVE
(GROUND) CABLE, THEN WAIT TWO MINUTES FOR
THE SYSTEM CAPACITOR TO DISCHARGE BEFORE
PERFORMING FURTHER DIAGNOSIS OR SERVICE.
THIS IS THE ONLY SURE WAY TO DISABLE THE
SUPPLEMENTAL RESTRAINT SYSTEM. FAILURE TO
TAKE

THE

PROPER

PRECAUTIONS

COULD

RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND POSSIBLE PERSONAL INJURY.

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the accessory switch bezel from the

instrument panel center bezel from the instrument
panel (Refer to 23 - BODY/INSTRUMENT PANEL/
ACCESSORY SWITCH BEZEL - REMOVAL)

(3) Using a trim stick or another suitable wide

flat-bladed tool, gently pry the latch tabs at the top
and bottom of the axle lock switch on the back of the
accessory switch bezel far enough to disengage the
snap features on the switch housing then pull the
switch out of the receptacle (Fig. 2).

INSTALLATION

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS, DISABLE THE SUPPLEMENTAL RESTRAINT
SYSTEM BEFORE ATTEMPTING ANY STEERING
WHEEL, STEERING COLUMN, DRIVER AIRBAG,

PASSENGER AIRBAG, OR INSTRUMENT PANEL
COMPONENT DIAGNOSIS OR SERVICE. DISCON-
NECT AND ISOLATE THE BATTERY NEGATIVE
(GROUND) CABLE, THEN WAIT TWO MINUTES FOR
THE SYSTEM CAPACITOR TO DISCHARGE BEFORE
PERFORMING FURTHER DIAGNOSIS OR SERVICE.
THIS IS THE ONLY SURE WAY TO DISABLE THE
SUPPLEMENTAL RESTRAINT SYSTEM. FAILURE TO
TAKE

THE

PROPER

PRECAUTIONS

COULD

RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND POSSIBLE PERSONAL INJURY.

(1) Position the axle lock switch over the proper

receptacle on the back of the accessory switch bezel
(Fig. 2).

(2) Evenly push the axle lock switch into the

receptacle until the snap features on the top and bot-
tom of the switch housing are fully engaged to the
receptacle.

(3) Reinstall the accessory switch bezel onto the

instrument panel (Refer to 23 - BODY/INSTRU-
MENT

PANEL/ACCESSORY

SWITCH

BEZEL

INSTALLATION).

(4) Reconnect the battery negative cable.

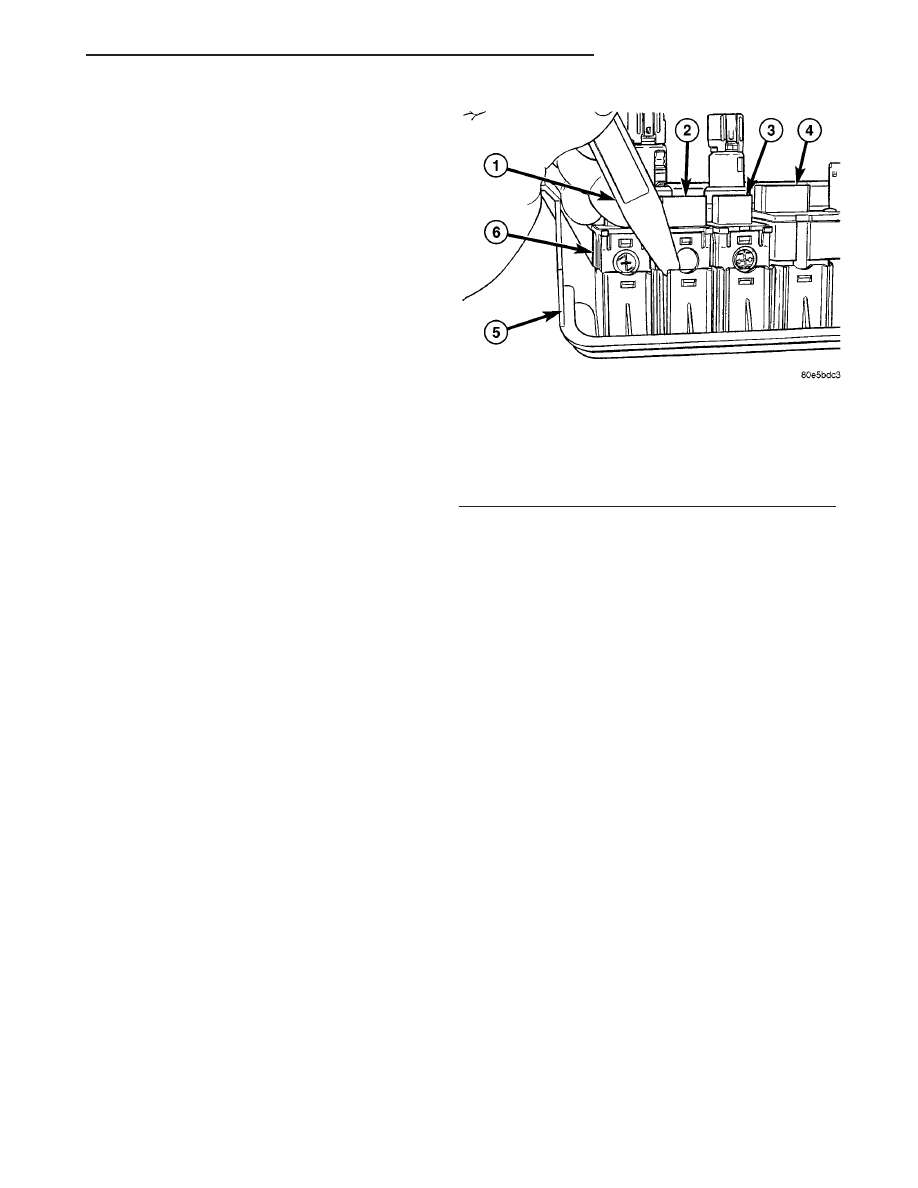

Fig. 2 ACCESSORY SWITCH REMOVE

1 - TRIM STICK
2 - REAR WIPER/WASHER SWITCH
3 - OVERDRIVE-OFF SWITCH
4 - AXLE LOCKER SWITCH
5 - ACCESSORY SWITCH BEZEL
6 - REAR WINDOW DEFOGGER SWITCH

INSTRUMENT PANEL

23 - 39

AXLE LOCK SWITCH (Continued)

BASE TRIM

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the instrument cluster from the instru-

ment panel. (Refer to 8 - ELECTRICAL/INSTRU-
MENT CLUSTER - REMOVAL).

(3) Remove the accessory switch bezel from the

instrument panel. (Refer to 23 - BODY/INSTRU-
MENT

PANEL/ACCESSORY

SWITCH

BEZEL

REMOVAL).

(4) Remove the grab handle bezel from the instru-

ment panel. (Refer to 23 - BODY/INSTRUMENT
PANEL/GRAB HANDLE BEZEL - REMOVAL).

(5) Remove the speakers from the instrument

panel. (Refer to 8 - ELECTRICAL/AUDIO/SPEAKER
- REMOVAL).

(6) Remove the radio from the instrument panel.

(Refer

ELECTRICAL/AUDIO/RADIO

REMOVAL).

(7) Remove the heater-A/C control from the instru-

ment panel. (Refer to 24 - HEATING & AIR CONDI-
TIONING/CONTROLS/A/C-HEATER

CONTROL

REMOVAL).

(8) Remove the outboard heater-A/C panel outlet

barrels from the instrument panel. (Refer to 24 -
HEATING & AIR CONDITIONING/DISTRIBUTION/
PANEL OUTLET BARRELS - REMOVAL).

(9) Remove the instrument panel from the vehicle.

(Refer

BODY/INSTRUMENT

PANEL -

REMOVAL).

(10) Place the instrument panel on a suitable work

surface. Be certain to take the proper precautions to
protect the instrument panel from any possible cos-
metic damage.

(11) Remove the passenger airbag door from the

instrument panel. (Refer to 8 - ELECTRICAL/RE-
STRAINTS/PASSENGER

AIRBAG

DOOR

REMOVAL).

(12) Remove the two screws that secure the

16-way data link connector to the instrument panel.

(13) Remove all of the screws around the perime-

ter of the instrument panel that secure the base trim
to the structural support.

(14) Remove the base trim from the instrument

panel structural support.

INSTALLATION

(1) Position the base trim onto the instrument

panel structural support.

(2) Install and tighten all of the screws around the

perimeter of the instrument panel that secure the
base trim to the structural support. Tighten the
screws to 2 N·m (20 in. lbs.).

(3) Install and tighten the two screws that secure

the 16-way data link connector to the instrument
panel. Tighten the screws to 2 N·m (20 in. lbs.).

(4) Reinstall the passenger airbag door into the

instrument panel. (Refer to 8 - ELECTRICAL/RE-
STRAINTS/PASSENGER AIRBAG DOOR - INSTAL-
LATION).

(5) Reinstall the instrument panel into the vehicle.

(Refer

BODY/INSTRUMENT

PANEL -

INSTALLATION).

(6) Reinstall the outboard heater-A/C panel outlet

barrels into the instrument panel. (Refer to 24 -
HEATING & AIR CONDITIONING/DISTRIBUTION/
PANEL OUTLET BARRELS - INSTALLATION).

(7) Reinstall the heater-A/C control into the instru-

ment panel. (Refer to 24 - HEATING & AIR CONDI-
TIONING/CONTROLS/A/C-HEATER

CONTROL

INSTALLATION).

(8) Reinstall the radio into the instrument panel.

(Refer

ELECTRICAL/AUDIO/RADIO

INSTALLATION).

(9) Reinstall the speakers into the instrument

panel. (Refer to 8 - ELECTRICAL/AUDIO/SPEAKER
- INSTALLATION).

(10) Reinstall the grab handle bezel onto the

instrument panel. (Refer to 23 - BODY/INSTRU-

23 - 40

INSTRUMENT PANEL

MENT PANEL/GRAB HANDLE BEZEL - INSTAL-
LATION).

(11) Reinstall the accessory switch bezel onto the

instrument panel. (Refer to 23 - BODY/INSTRU-
MENT

PANEL/ACCESSORY

SWITCH

BEZEL

INSTALLATION).

(12) Reinstall the instrument cluster into the

instrument panel. (Refer to 8 - ELECTRICAL/IN-
STRUMENT CLUSTER - INSTALLATION).

(13) Reconnect the battery negative cable.

CENTER BEZEL

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the top cover from the instrument

panel. (Refer to 23 - BODY/INSTRUMENT PANEL/
TOP COVER - REMOVAL).

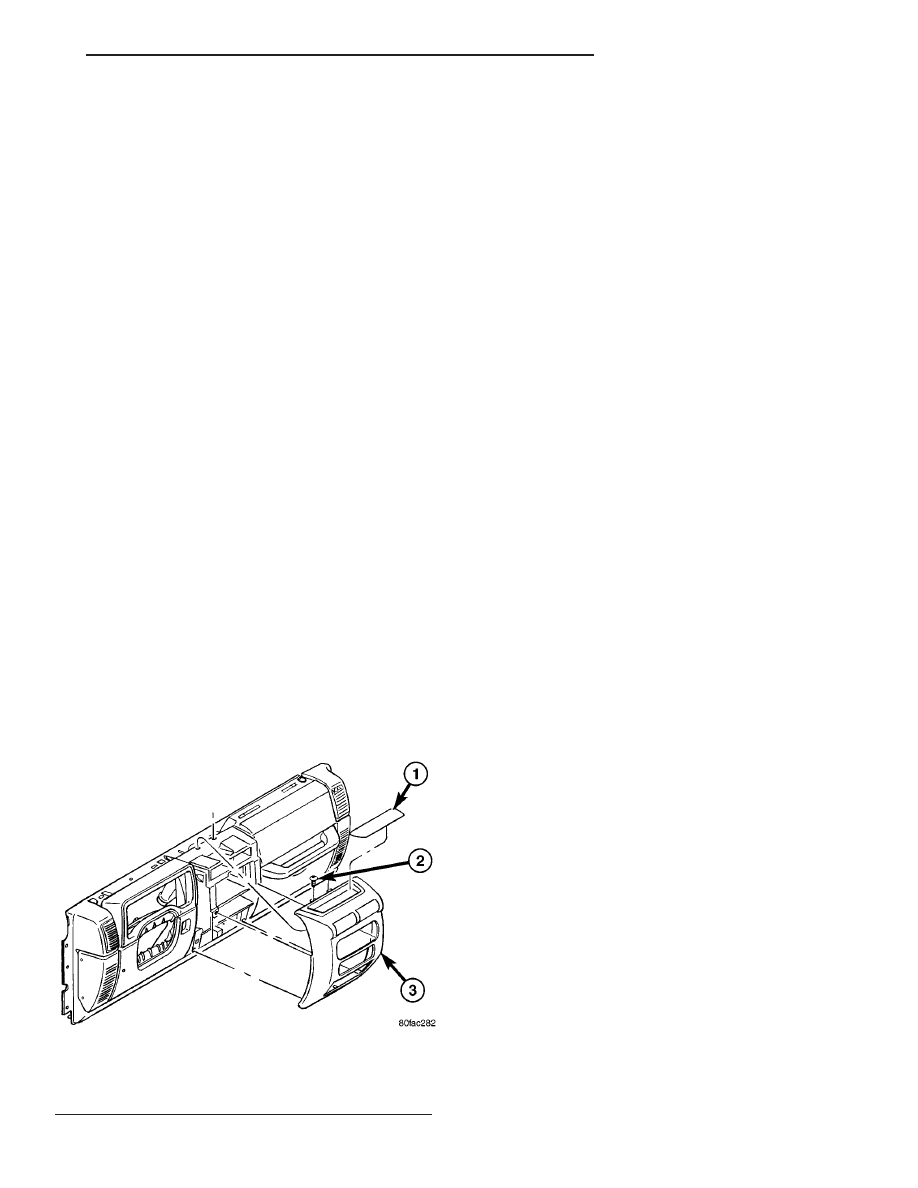

(3) Remove the two screws that secure the top of

the center bezel to the top of the instrument panel
structural support. (Fig. 3)

(4) Using a trim stick or another suitable wide

flat-bladed tool, gently pry the lower edge of the cen-
ter bezel away from the instrument panel.

(5) Pull the lower edge of the center bezel away

from the instrument panel far enough to disengage
the four snap clip retainers that secure it to the
receptacles in the instrument panel base trim.

(6) Remove the center bezel from the instrument

panel.

INSTALLATION

(1) Position the center bezel onto the instrument

panel.

(2) Align the snap clips on the center bezel with

the receptacles in the instrument panel base trim.

(3) Using hand pressure, press firmly on the cen-

ter bezel over each of the snap clip locations until
each of the snap clips is fully engaged in its recepta-
cle in the instrument panel base trim.

(4) Install and tighten the two screws that secure

the top of the center bezel to the top of the instru-
ment panel structural support. Tighten the screws to
2 N·m (20 in. lbs.).

(5) Reinstall the top cover onto the instrument

panel. (Refer to 23 - BODY/INSTRUMENT PANEL/
TOP COVER - INSTALLATION).

(6) Reconnect the battery negative cable.

Fig. 3 CENTER BEZEL

1 - BEZEL MAT
2 - TOP SCREWS (2)
3 - CENTER BEZEL

INSTRUMENT PANEL

23 - 41

BASE TRIM (Continued)

Content .. 547 548 549 550 ..
