Jeep Wrangler TJ. Manual - part 548





SIDE STEP

REMOVAL

(1) Remove the bolts that attach the side step to

the frame (Fig. 11).

(2) Tilt the step down and disengage the tabs from

the frame slots.

INSTALLATION

(1) Position the side step on the frame and engage

the mounting tabs into the frame slots.

(2) Install the bolts that attach the side step to the

frame and tighten to 21 N·m (15 ft. lbs.).

LICENSE PLATE BRACKET

REMOVAL

(1) If installed, remove the license plate.
(2) Remove the four screws attaching the license

plate bracket to the body (Fig. 12).

(3) On export models remove the bolts and nuts.

(Fig. 13)

(4) Separate the bracket from the body.
(5) Disconnect

the

electrical

connectors,

if

equipped.

INSTALLATION

(1) Connect the electrical connectors, if equipped.
(2) Position the bracket on the body.
(3) Install the four screws attaching the license

plate bracket to the body.

(4) On export models, install the six bolts and four

nuts.

(5) If removed, install the license plate.

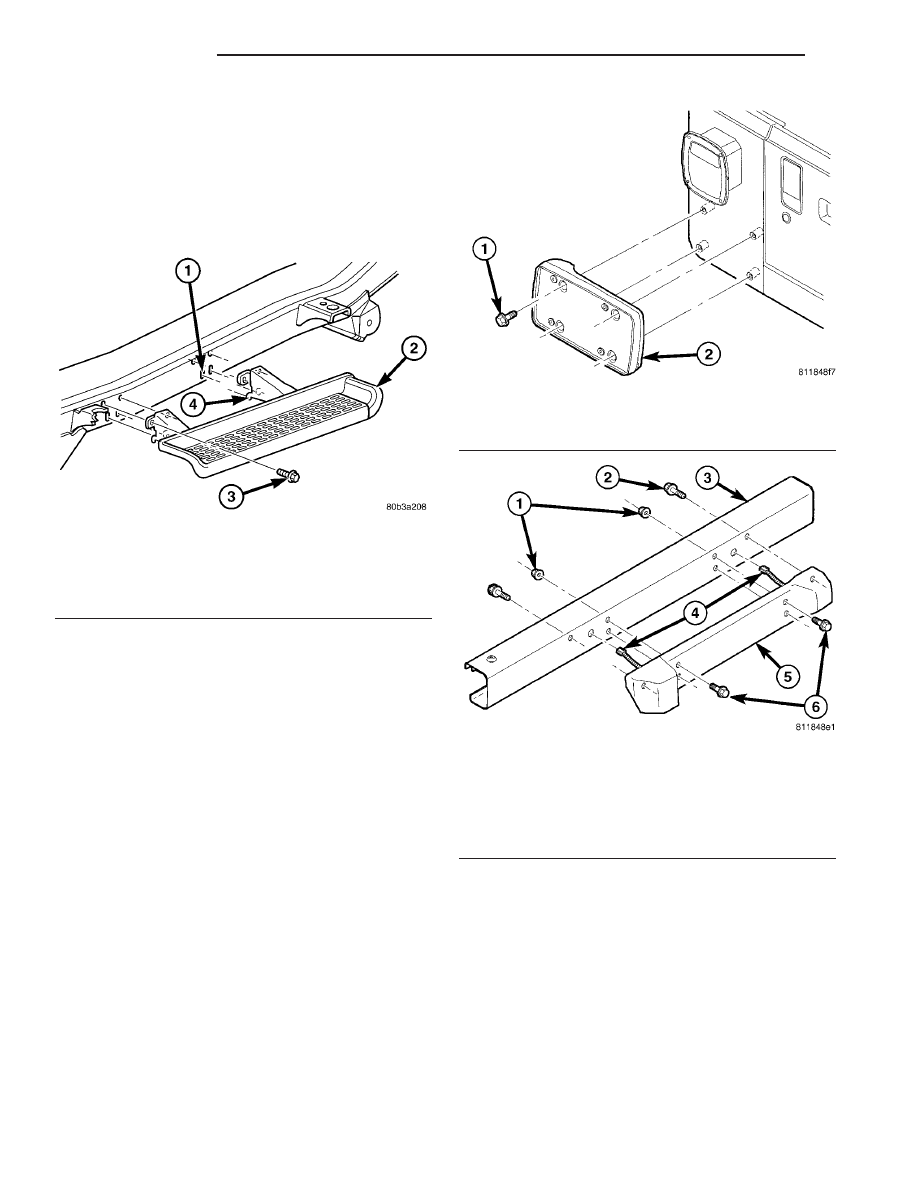

Fig. 11 SIDE STEP

1 - FRAME SLOTS
2 - SIDE STEP
3 - BOLTS
4 - STEP MOUNTING TABS

Fig. 12 LICENSE PLATE BRACKET

1 - BOLTS (4)
2 - BRACKET

Fig. 13 LICENSE PLATE BRACKET - EXPORT

1 - NUTS (4)
2 - BOLTS (2)
3 - BUMPER
4 - ELECTRICAL CONNECTORS
5 - LICENSE PLATE BRACKET
6 - BOLTS (4)

23 - 34

EXTERIOR

TJ

HOOD

TABLE OF CONTENTS

page

page

HINGE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 35

HOOD

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 36

ADJUSTMENTS

ADJUSTMENT

. . . . . . . . . . . . . . . . . . . . . . . . 36

HOOD SAFETY LATCH

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 36

HINGE

REMOVAL

(1) Remove the wiper arms. (Refer to 8 - ELEC-

TRICAL/WIPERS/WASHERS/WIPER

ARMS

-

REMOVAL)

(2) Remove the cowl panel and screen. (Refer to 23

- BODY/EXTERIOR/COWL GRILLE AND SCREEN -
REMOVAL)

(3) Remove the bolts attaching the hinge to the cowl.
(4) Using a wax pencil, mark the position of the

hinge on the hood for installation alignment reference.

(5) Remove the screws attaching the hinge to the

hood (Fig. 1).

(6) Separate the hinge from the hood.

INSTALLATION

(1) Prepare and paint the replacement hinge to

match the body paint color.

(2) Align the hinge with the installation reference

marks on the hood

(3) Install the screws attaching the hinge to the

hood and cowl and tighten the to 24 N·m (18 ft. lbs.).

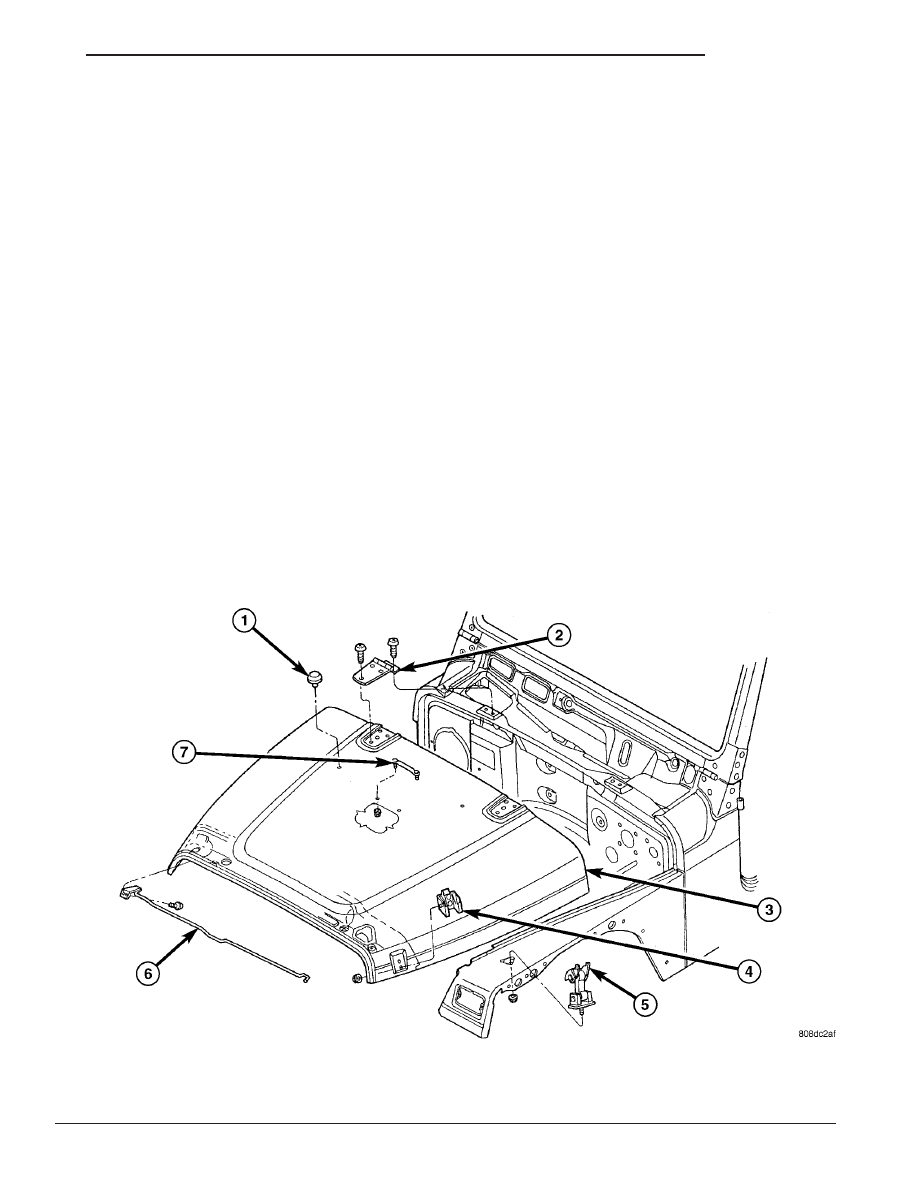

Fig. 1 HOOD COMPONENTS

1 - WINDSHIELD REST BUMPER
2 - HOOD HINGE
3 - HOOD
4 - HOOD CATCH BRACKET

5 - HOOD CATCH
6 - PROP ROD
7 - WINDSHIELD HOOD DOWN LOOP

TJ

HOOD

23 - 35

(4) Install the bolts attaching the hinge to the

cowl.

(5) Install the cowl panel and screen. (Refer to 23 -

BODY/EXTERIOR/COWL GRILLE AND SCREEN -
INSTALLATION)

(6) Install the wiper arms. (Refer to 8 - ELECTRI-

CAL/WIPERS/WASHERS/WIPER ARMS - INSTAL-
LATION)

HOOD

REMOVAL

(1) Raise and support the hood.
(2) Disconnect the underhood lamp wire harness

connector.

(3) Disconnect the windshield washer nozzles.
(4) Disconnect the ground strap.
(5) Mark the position of the hinges on the hood for

installation alignment reference.

(6) Remove the screws attaching the hood to the

hinge and remove the hood (Fig. 1).

(7) If the hood must be replaced, remove and

transfer

the

insulator

panel,

hinges,

latches,

bumpers, brackets, footman loop, hood lamp, support
rod, and safety latch to the replacement hood (Fig.
1).

INSTALLATION

(1) Position the hood on the vehicle and install the

screws attaching the hinge to the hood.

(2) Align the hinges with the installation reference

marks on the hood and tighten the hinge screws to
24 N·m (18 ft. lbs.).

(3) Connect the underhood lamp wire harness con-

nector.

(4) Connect the windshield washer nozzles.
(5) Connect the ground strap.

ADJUSTMENTS

ADJUSTMENT

The hood hinge screw holes are oversized to facili-

tate hood adjustment movement.

(1) Loosen the screws.
(2) Move the hood in the direction(s) required for

correct alignment.

(3) Tighten the screws.

HOOD SAFETY LATCH

REMOVAL

(1) Raise and support the hood.
(2) Remove the bolt attaching the safety latch to

the hood (Fig. 2).

(3) Remove the latch from the hood.

INSTALLATION

(1) Position the latch on the hood.
(2) Install the bolt attaching the safety latch to the

hood and tighten to 9 N·m (80 in. lbs.).

(3) Remove the support rod and close the hood.

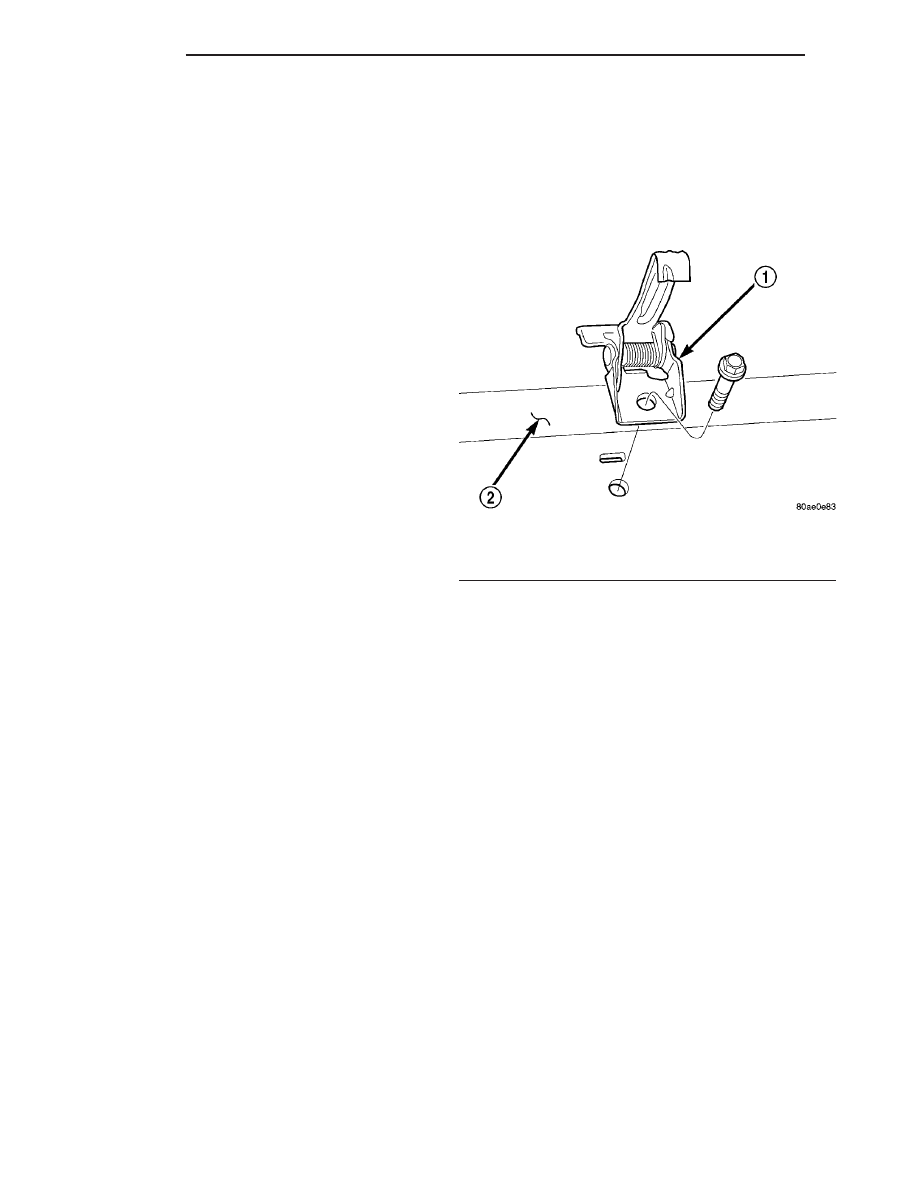

Fig. 2 HOOD SAFETY LATCH

1 - SAFETY LATCH
2 - HOOD

23 - 36

HOOD

TJ

HINGE (Continued)

INSTRUMENT PANEL

TABLE OF CONTENTS

page

page

ACCESSORY SWITCH BEZEL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 38

AXLE LOCK SWITCH

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 38

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 38

DIAGNOSIS AND TESTING - AXLE LOCK

SWITCH

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 39

BASE TRIM

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 40

CENTER BEZEL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 41

CLUSTER BEZEL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 42

GLOVE BOX

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

DISASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . . 43

ASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 44

GLOVE BOX CHECK STRAP

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 45

GLOVE BOX LATCH STRIKER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 46

GRAB HANDLE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 46

GRAB HANDLE BEZEL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 47

INSTRUMENT PANEL ASSEMBLY

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 49

STEERING COLUMN OPENING COVER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 50

TOP COVER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 51

ACCESSORY SWITCH BEZEL

REMOVAL

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS, DISABLE THE AIRBAG SYSTEM BEFORE
ATTEMPTING ANY STEERING WHEEL, STEERING
COLUMN, OR INSTRUMENT PANEL COMPONENT
DIAGNOSIS OR SERVICE. DISCONNECT AND ISO-
LATE THE BATTERY NEGATIVE (GROUND) CABLE,
THEN WAIT TWO MINUTES FOR THE AIRBAG SYS-
TEM CAPACITOR TO DISCHARGE BEFORE PER-
FORMING FURTHER DIAGNOSIS OR SERVICE. THIS
IS THE ONLY SURE WAY TO DISABLE THE AIRBAG
SYSTEM. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT AND POSSIBLE PERSONAL
INJURY.

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the center bezel from the instrument

panel. (Refer to 23 - BODY/INSTRUMENT PANEL/
CENTER BEZEL - REMOVAL).

(3) Remove the four screws that secure the acces-

sory switch bezel to the instrument panel (Fig. 1).

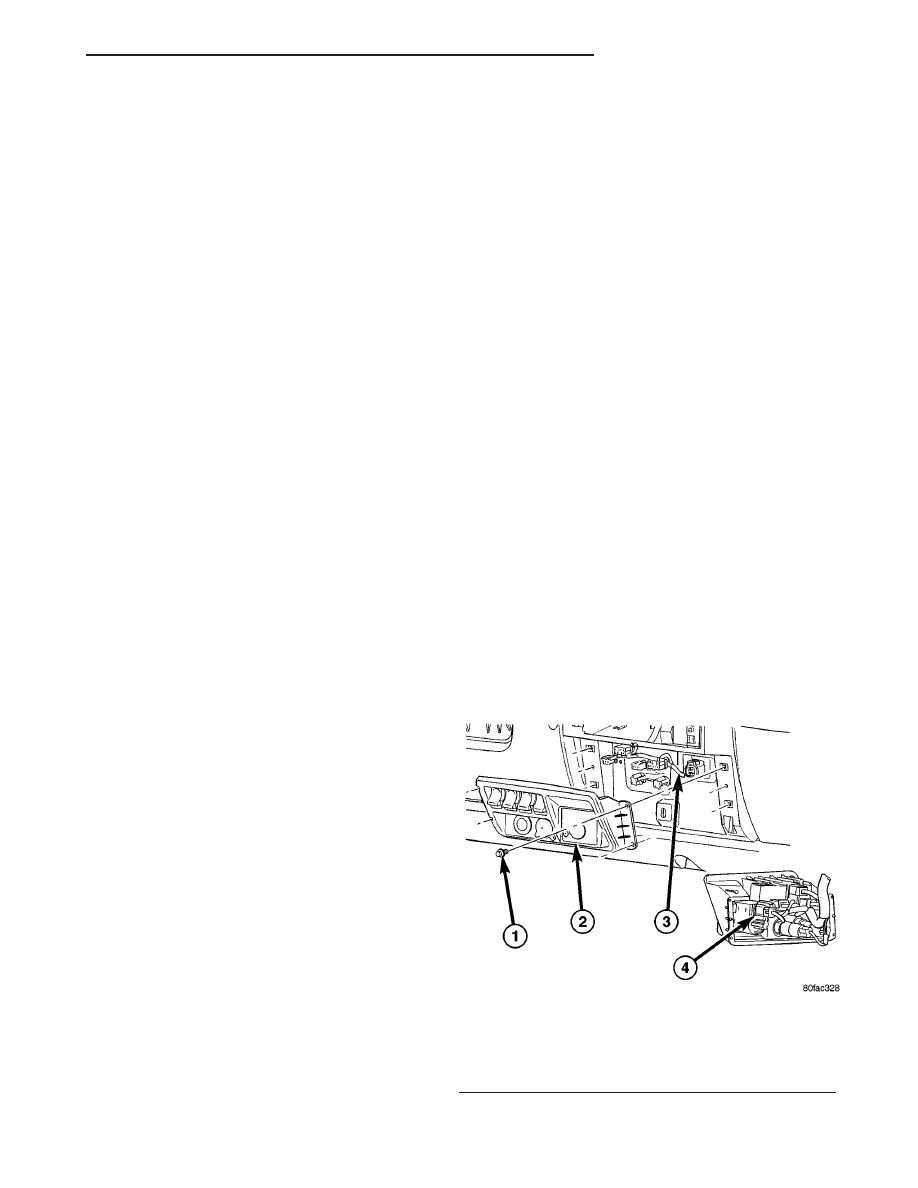

Fig. 1 ACCESSORY SWITCH BEZEL

1 - BEZEL SCREWS (4)
2 - BEZEL
3 - WIRE HARNESS
4 - ELECTRICAL CONNECTORS (7)

TJ

INSTRUMENT PANEL

23 - 37
