(3) Position the front end lighting wire harness

into the retainers on the fender. Engage the retainers
to secure.

(4) Install the bolts attaching the fender to the

HCU tray reinforcement bracket.

(5) Install the bolts attaching the fender to the

cowl.

(6) If equipped, install the body side molding.
(7) Route the fog lamp (if equipped), park lamp

and side marker wire harness through the access
hole in the fender well. Seat the grommet.

(8) Engage the headlamp wire connector.
(9) Install the HCU tray.
(10) Position the HCU on the support tray and

install the bolts.

(11) Install EVAP canister.
(12) Install horns. (Refer to 8 - ELECTRICAL/

HORN/HORN - INSTALLATION)

(13) Engage horn wire connectors.
(14) Install the windshield washer reservoir.
(15) Connect the negative terminal on the battery.

(Refer to 8 - ELECTRICAL/BATTERY SYSTEM/CA-
BLES - INSTALLATION)

RADIATOR GRILLE PANEL

REMOVAL

(1) Remove the front crossmember cover.
(2) Remove the crossmember valence cover.
(3) Remove the radiator overflow bottle.
(4) Remove the bolts that attach the radiator and

shroud from the grille panel.

(5) If A/C equipped:

(a) Evacuate the system.
(b) Disconnect the high and low pressure lines

at the quick disconnect couplings.

(c) Cover (cap) the lines to prevent contamina-

tion.
(6) Remove the bolts attaching the radiator sup-

port rods to the grille panel.

(7) Disconnect the head lamp, turn signal, marker

lamp and horn wire harness connectors.

(8) Remove the bolts attaching the fenders to the

grille panel.

(9) Remove the bolt attaching the grille to the

frame mount.

(10) Separate the grille from the vehicle.

Fig. 3 FRONT FENDER

1 - REINFORCEMENT
2 - BATTERY TRAY
3 - BODY
4 - REINFORCEMENT

5 - FENDER
6 - TRAY
7 - RADIATOR GRILLE PANEL

23 - 30

EXTERIOR

TJ

LEFT FRONT FENDER (Continued)

INSTALLATION

Transfer all related components.
(1) Position the grille panel on the vehicle. Ensure

the rubber support bumpers are aligned (Fig. 4).

(2) Install the bolt attaching the grille to the frame

mount.

(3) Install the bolts attaching the fenders to the

grille panel.

(4) Connect the head lamp, turn signal, marker

lamp and horn wire harness connectors.

(5) Install the bolts attaching the radiator support

rods to the grille panel.

(6) If A/C equipped:

(a) Connect the high and low pressure lines at

the quick disconnect couplings.

(b) Evacuate and charge the system.

(7) Install the radiator and shroud to the grille

panel.

(8) Install the radiator overflow bottle.
(9) Install the crossmember valence cover.
(10) Install the front crossmember cover.

WHEELHOUSE SPLASH
SHIELD

REMOVAL

(1) Remove the plastic push pins that attach the

splash shield to the wheelhouse (Fig. 5).

(2) Remove the push-in fasteners attaching the

splash shield to the wheelhouse. (The push-in fasten-
ers are molded into the splash shield.)

(3) Remove the splash shield from the wheelhouse.

INSTALLATION

(1) Position the splash shield in the wheelhouse.
(2) Press the splash shield push-in fasteners into

place.

(3) Attach the splash shield to the wheelhouse

with push pins.

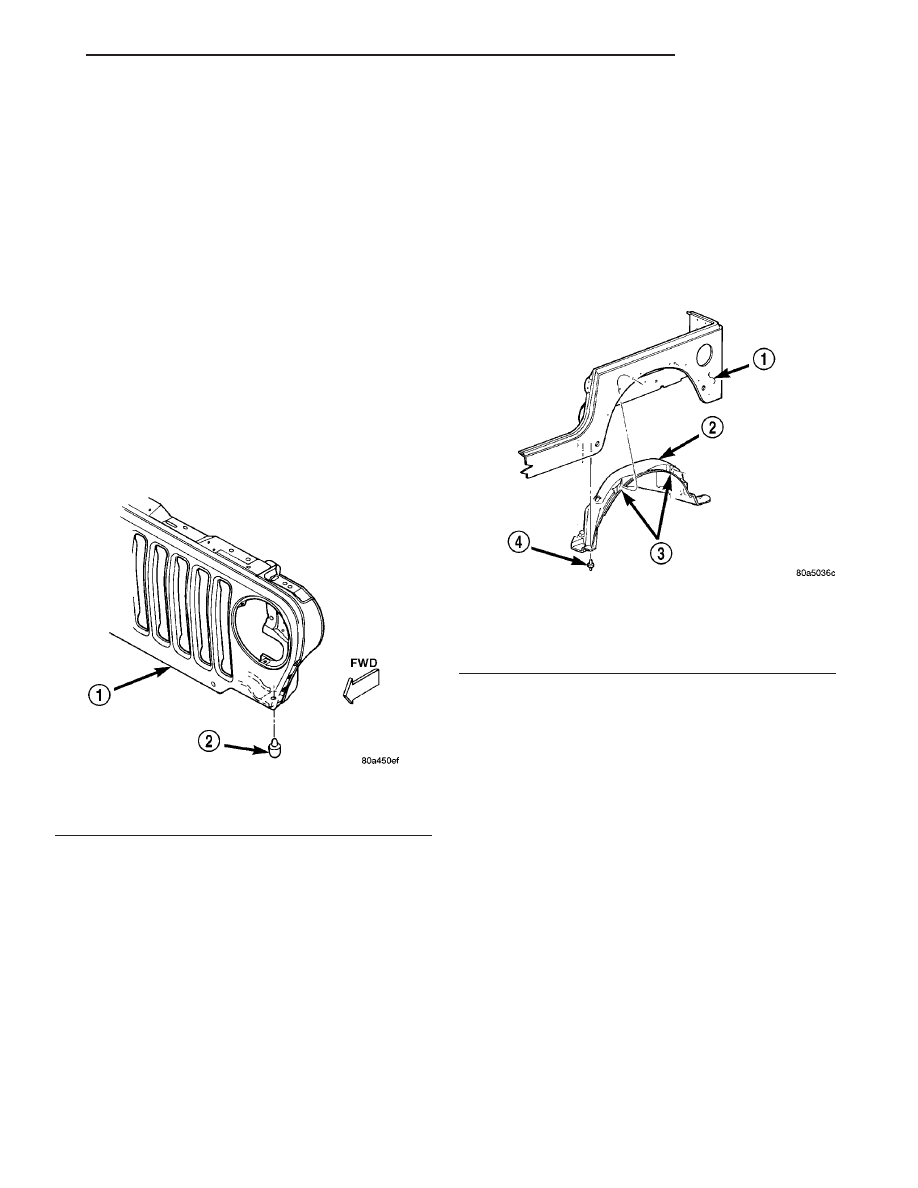

Fig. 4 GRILLE BUMPERS

1 - GRILLE PANEL
2 - BUMPER

Fig. 5 Wheelhouse Splash Shield

1 - BODY
2 - WHEELHOUSE SPLASH SHIELD
3 - PUSH-IN FASTENERS
4 - RIVET

TJ

EXTERIOR

23 - 31

RADIATOR GRILLE PANEL (Continued)

SIDE VIEW MIRROR

REMOVAL

(1) Remove the screws attaching the mirror to the

door hinge (Fig. 6).

(2) Remove the mirror from the door hinge.
(3) Disconnect the electrical connector, if equipped.

INSTALLATION

(1) Clean the door hinge-mirror base contact sur-

face.

(2) Position the mirror base at the door hinge.
(3) Install the three screws attaching the mirror

base to the door hinge.

WHEEL OPENING FLARE
MOLDING

REMOVAL

(1) Remove the side marker lamp. (Refer to 8 -

ELECTRICAL/LAMPS/LIGHTING

-

EXTERIOR/

MARKER LAMP UNIT - REMOVAL)

(2) Remove the screws that attach the flare to the

front fender or rear wheelhouse (Fig. 7).

(3) Separate the flare from the body.

INSTALLATION

(1) Clean the contact surface on the body.

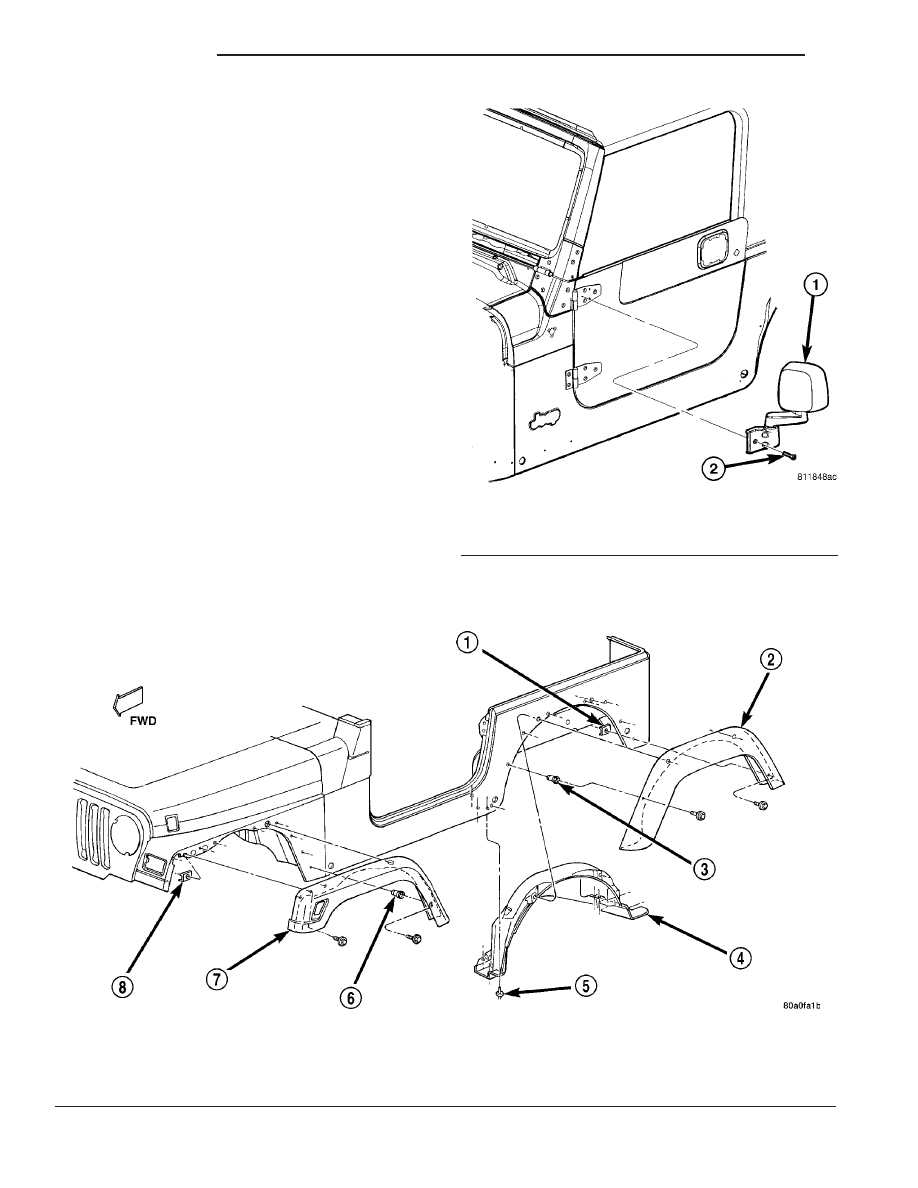

Fig. 6 SIDE VIEW MIRROR

1 - MIRROR ASSEMBLY
2 - SCREWS (3)

Fig. 7 FENDER FLARES

1 - U-NUT
2 - FENDER FLARE
3 - NUTSERT
4 - SPLASH SHIELD

5 - RIVET
6 - NUTSERT
7 - FENDER FLARE
8 - U-NUT

23 - 32

EXTERIOR

TJ

(2) Clean the contact surface on the flare and posi-

tion it on the front fender or wheelhouse.

(3) Install the screws attaching the flares to the

front fender or wheelhouse.

(4) If removed, install the side marker lamp.

EXHAUSTER

REMOVAL

(1) Remove the spare tire carrier. (Refer to 22 -

TIRES/WHEELS/TIRES/SPARE TIRE CARRIER -
REMOVAL)

(2) Using a trim stick C-4755 or equivalent, sepa-

rate the exhauster from the tailgate. (Fig. 8)

INSTALLATION

(1) Install the exhauster and seat fully.
(2) Install the spare tire carrier. (Refer to 22 -

TIRES/WHEELS/TIRES/SPARE TIRE CARRIER -
INSTALLATION)

BODY SIDE GUARD

REMOVAL

(1) Remove the bolts from the lower support tabs.

(Fig. 9)

(2) Remove the side bolts and remove the side

guard. (Fig. 10)

INSTALLATION

(1) Install the body side guard and install the side

bolts.

(2) Tighten the bolts to 5 N·m (45 in. lbs.).
(3) Install the support tab bolts and tighten to 11

N·m (8 ft. lbs.).

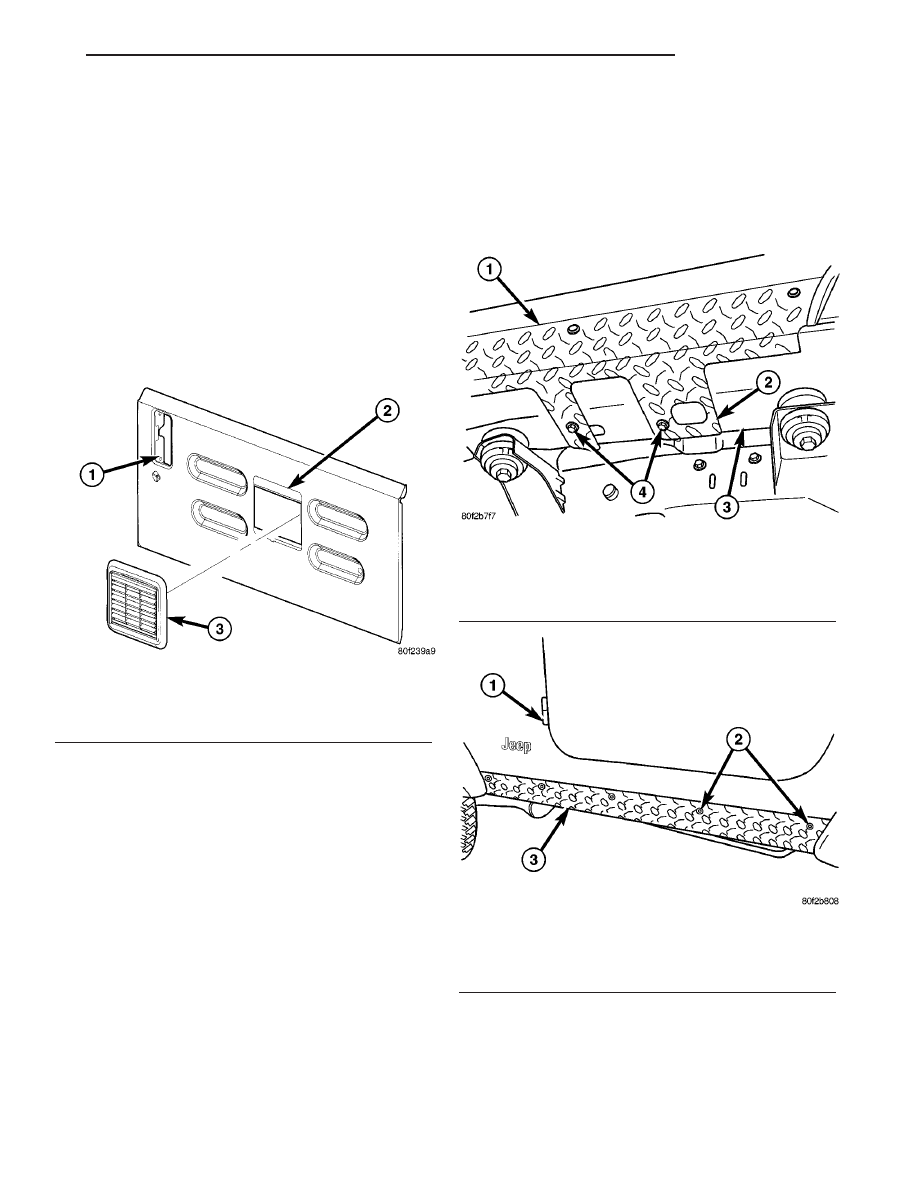

Fig. 8 BODY EXHAUSTER

1 - TAILGATE HANDLE
2 - EXHAUSTER OPENING
3 - EXHAUSTER

Fig. 9 SIDE GUARD - LOWER

1 - BODY SIDE GUARD
2 - SUPPORT TABS (5)
3 - BODY FLOOR SILL
4 - BOLTS (5)

Fig. 10 SIDE GUARD - UPPER

1 - DOOR
2 - SIDE GUARD BOLTS (5)
3 - BODY SIDE GUARD
