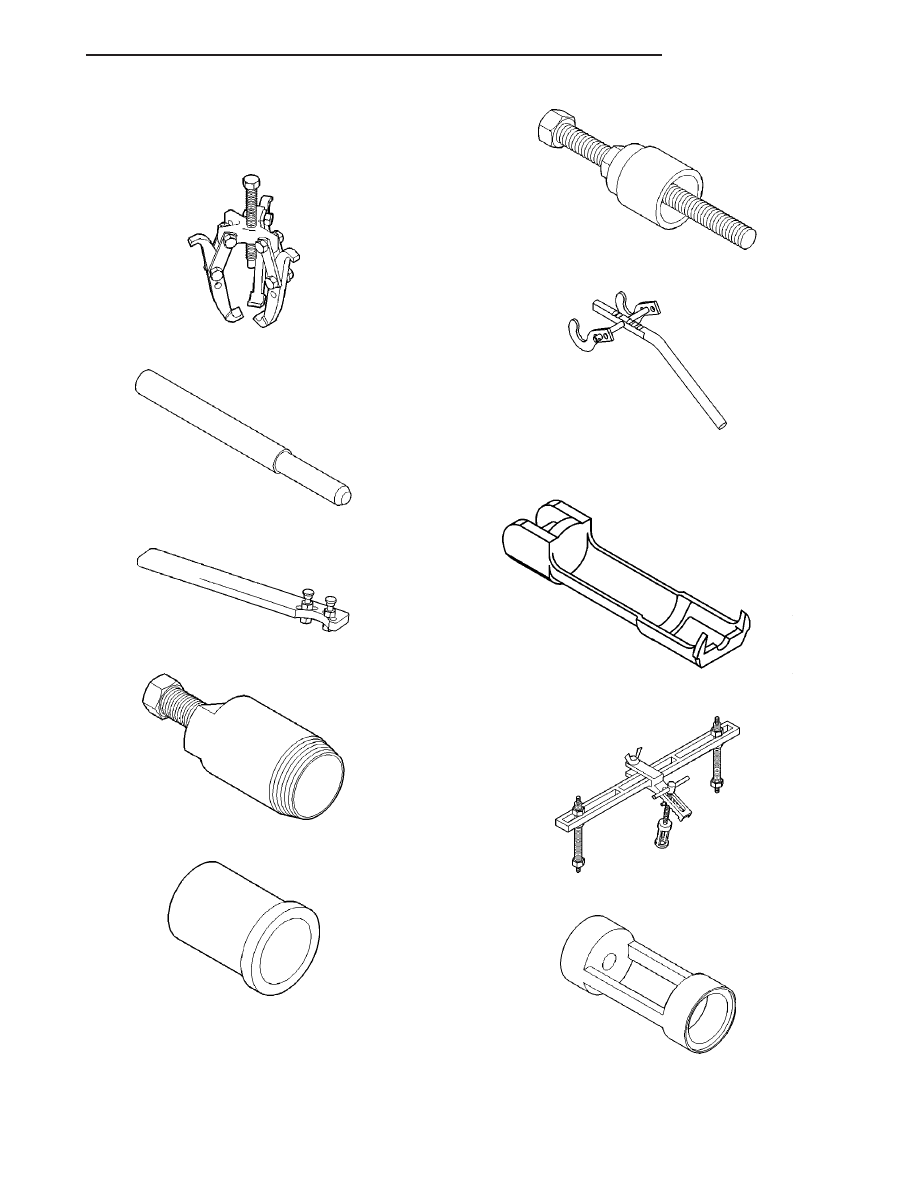

SPECIAL TOOLS

2.4L ENGINE

Puller 1026

Crankshaft Damper Removal Insert 6827-A

Camshaft Sprocket Holder 6847

Camshaft Seal Remover C-4679-A

Camshaft Seal Installer MD-998306

Crankshaft Damper Installer 6792

Valve Spring Compressor 8215

Adaptor 8436

Valve Spring Compressor MD998772A

Valve Spring Compressor Adapter 6779

TJ

ENGINE 2.4L

9 - 19

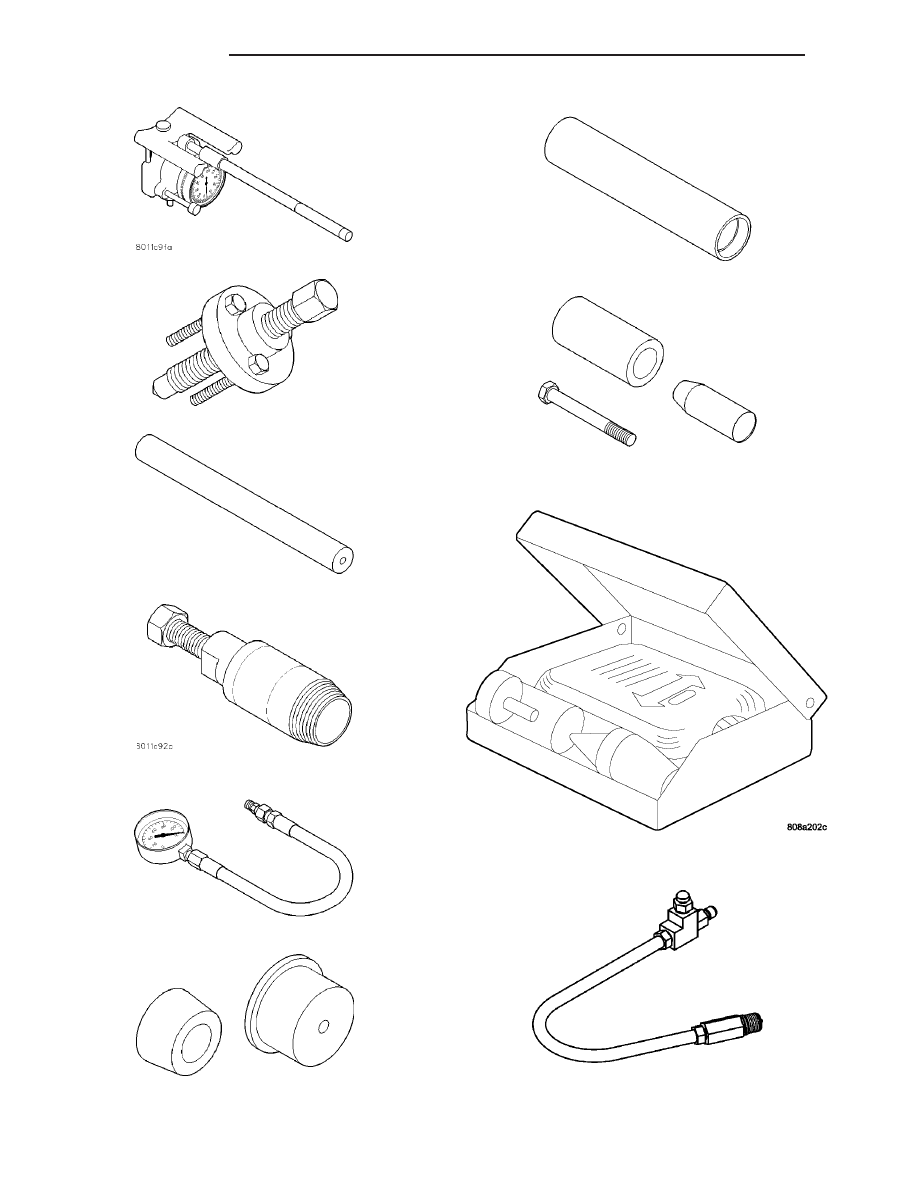

ENGINE 2.4L (Continued)

Cylinder Bore Gage C-119

Crankshaft Sprocket Remover 6793

Crankshaft Sprocket Remover Insert C-4685-C2

Crankshaft Seal Remover 6771

Oil Pressure Gauge C-3292

Rear Crankshaft Seal Guide and Installer 6926-1 and

6926-2

Balance Shaft Sprocket Installer 6052

Front Crankshaft Oil Seal Installer 6780

Combustion Leak Tester C-3685-A

Cylinder Compression Pressure Adaptor 8116

9 - 20

ENGINE 2.4L

TJ

ENGINE 2.4L (Continued)

AIR CLEANER ELEMENT - 2.4L

REMOVAL - 2.4L

Housing removal is not necessary for element (fil-

ter) replacement.

(1) Disconnect air intake duct at front of element

cover.

(2) Pry up spring clips (Fig. 5) from housing cover

(spring clips retain cover to housing).

(3) Release

housing

cover

from

locating

tabs

located on housing, and remove cover.

(4) Remove air cleaner element (filter) from hous-

ing.

(5) Clean inside of housing before replacing ele-

ment.

INSTALLATION - 2.4L

(1) Install element into housing.
(2) Position housing cover into housing locating

tabs.

(3) Pry up spring clips and lock cover to housing.
(4) Connect air intake duct.

If any air filter, air resonator, air intake tubes or

air filter housing clamps had been loosened or
removed, tighten them to 5 N·m (40 in. lbs.) torque.

AIR CLEANER HOUSING

REMOVAL

(1)
(2) Disconnect air intake duct at front of element

cover.

(3) Pry up spring clips from housing cover (spring

clips retain cover to housing).

(4) Release

housing

cover

from

locating

tabs

located on housing, and remove cover. (Fig. 6)

(5) Remove air cleaner element (filter) from hous-

ing.

(6) Remove vent hose.
(7) Remove the housing mounting nut.
(8) Remove the air cleaner housing.

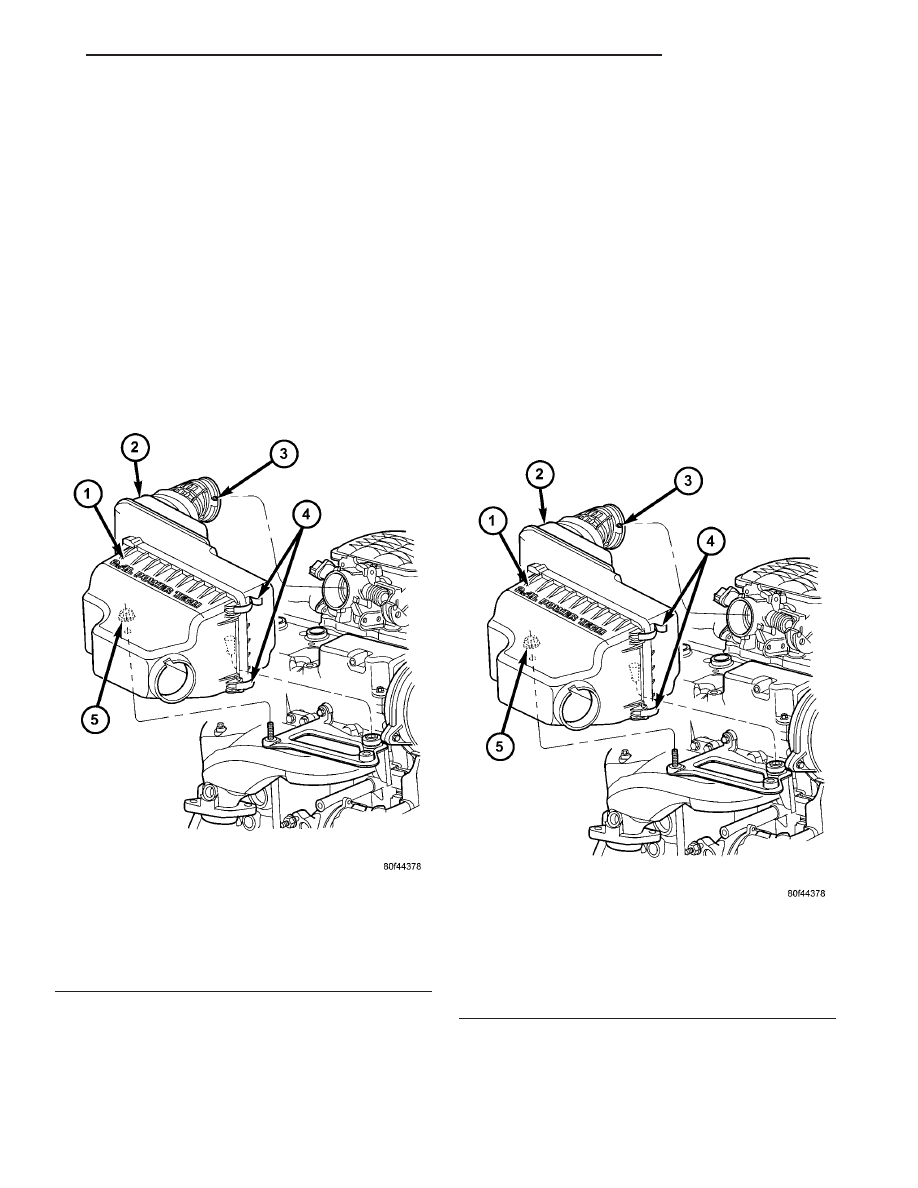

Fig. 5 AIR CLEANER ELEMENT - 2.4L

1 - COVER
2 - HOUSING
3 - CLAMP
4 - SPRING CLIPS
5 - HOUSING MOUNTING NUT

Fig. 6 AIR CLEANER ELEMENT - 2.4L

1 - COVER
2 - HOUSING
3 - CLAMP
4 - SPRING CLIPS
5 - HOUSING MOUNTING NUT

TJ

ENGINE 2.4L

9 - 21

INSTALLATION

(1) Install

the

air

cleaner

housing

mounting

bracket.

(2) Install the air cleaner housing and mounting

nut. Tighten nut to 4.5 N·m ( 40 in. lbs.).

(3) Install vent hose.
(4) Install air cleaner element into the housing.
(5) Position the housing cover into the locating

tabs on the housing and install the cover.

(6) Pry up the spring clips and lock the cover in

place.

(7) Install the air intake duct. (Fig. 6)
(8) Install the air outlet duct.

CYLINDER HEAD

DESCRIPTION

The cross flow designed, aluminum cylinder head

contains dual over-head camshafts with four valves
per cylinder (Fig. 7). The valves are arrange in two
in-line banks. The intake valves face toward the left
side of the vehicle. The exhaust valves face the right
side. The cylinder head incorporates powdered metal
valve guides and seats. The cylinder head is sealed to
the block using a multi-layer steel head gasket and
retaining bolts.

Integral oil galleries providing lubrication passages

to the hydraulic lash adjusters, camshafts, and valve
mechanisms.

OPERATION

The cylinder head closes the combustion chamber,

allowing the pistons to compress the fuel/air mixture
for ignition. The valves are actuated by the lobe pro-
files on the camshaft to open and close at specified
duration to either allow clean air in the combustion
chamber or the exhaust gases out; depending on the
stroke of the engine.

DIAGNOSIS AND TESTING

CYLINDER HEAD GASKET

A cylinder head gasket leak can be located between

adjacent cylinders or between a cylinder and the
adjacent water jacket.

Possible indications of the cylinder head gasket

leaking between adjacent cylinders are:

• Loss of engine power

• Engine misfiring

• Poor fuel economy
Possible indications of the cylinder head gasket

leaking between a cylinder and an adjacent water
jacket are:

• Engine overheating

• Loss of coolant

• Excessive steam (white smoke) emitting from

exhaust

• Coolant foaming

CYLINDER-TO-CYLINDER LEAKAGE TEST

To determine if an engine cylinder head gasket is

leaking between adjacent cylinders, follow the proce-
dures in Cylinder Compression Pressure Test (Refer
to 9 - ENGINE - DIAGNOSIS AND TESTING). An
engine cylinder head gasket leaking between adja-
cent cylinders will result in approximately a 50 - 70%
reduction in compression pressure.

CYLINDER-TO-WATER JACKET LEAKAGE TEST

WARNING: USE EXTREME CAUTION WHEN THE
ENGINE IS OPERATING WITH COOLANT PRES-
SURE CAP REMOVED.

VISUAL TEST METHOD

With the engine cool, remove the coolant pressure

cap. Start the engine and allow it to warm up until
thermostat opens.

If a large combustion/compression pressure leak

exists, bubbles will be visible in the coolant.

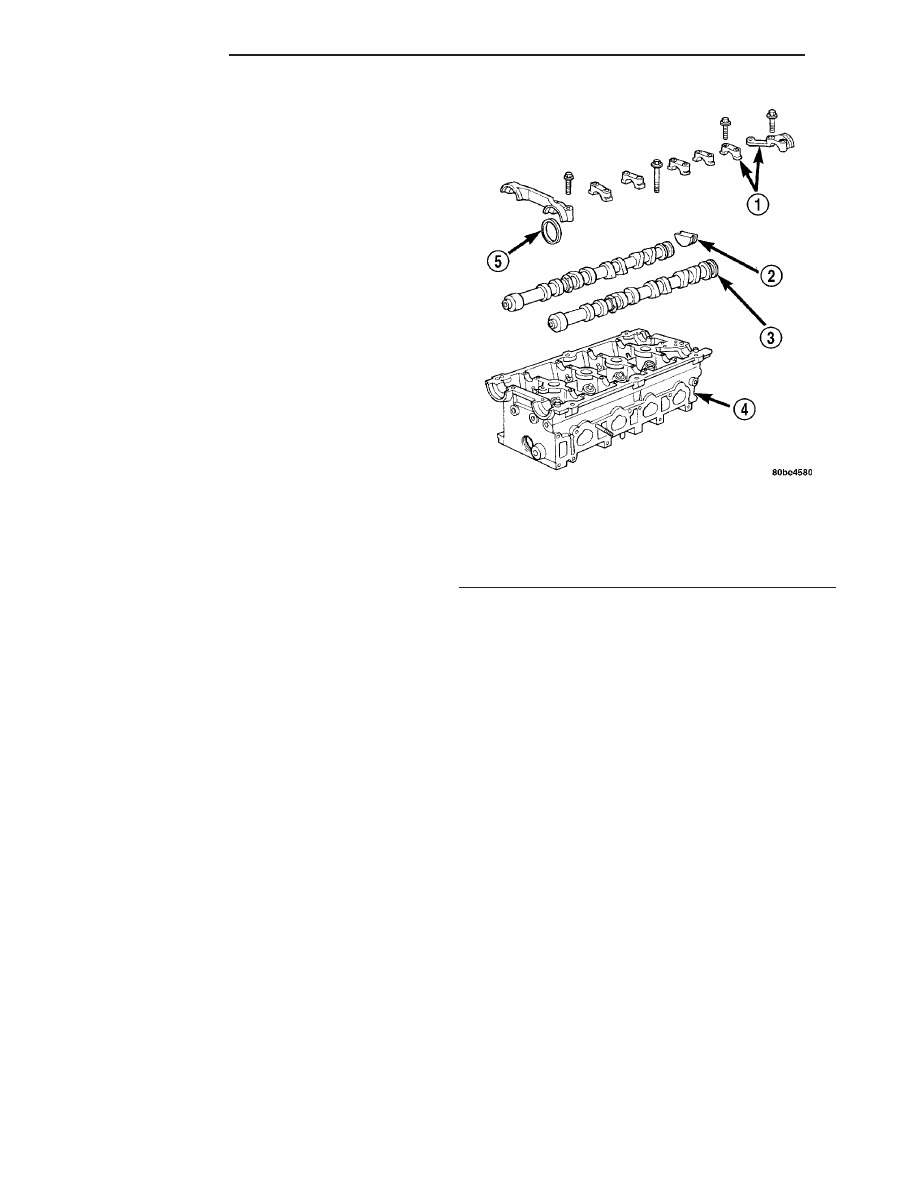

Fig. 7 Cylinder Head and Camshafts

1 - CAMSHAFT BEARING CAPS
2 - PLUG
3 - CAMSHAFT
4 - CYLINDER HEAD
5 - CAMSHAFT OIL SEAL

9 - 22

ENGINE 2.4L

TJ

AIR CLEANER HOUSING (Continued)
