Jeep Wrangler TJ. Manual - part 416

Fig.

37

-2.4

L

MANUAL

TRANSMISSION

TJ

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 43

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig.

38

-BODY

CONNECT

ORS

(LHD)

8W - 91 - 44

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

TJ

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

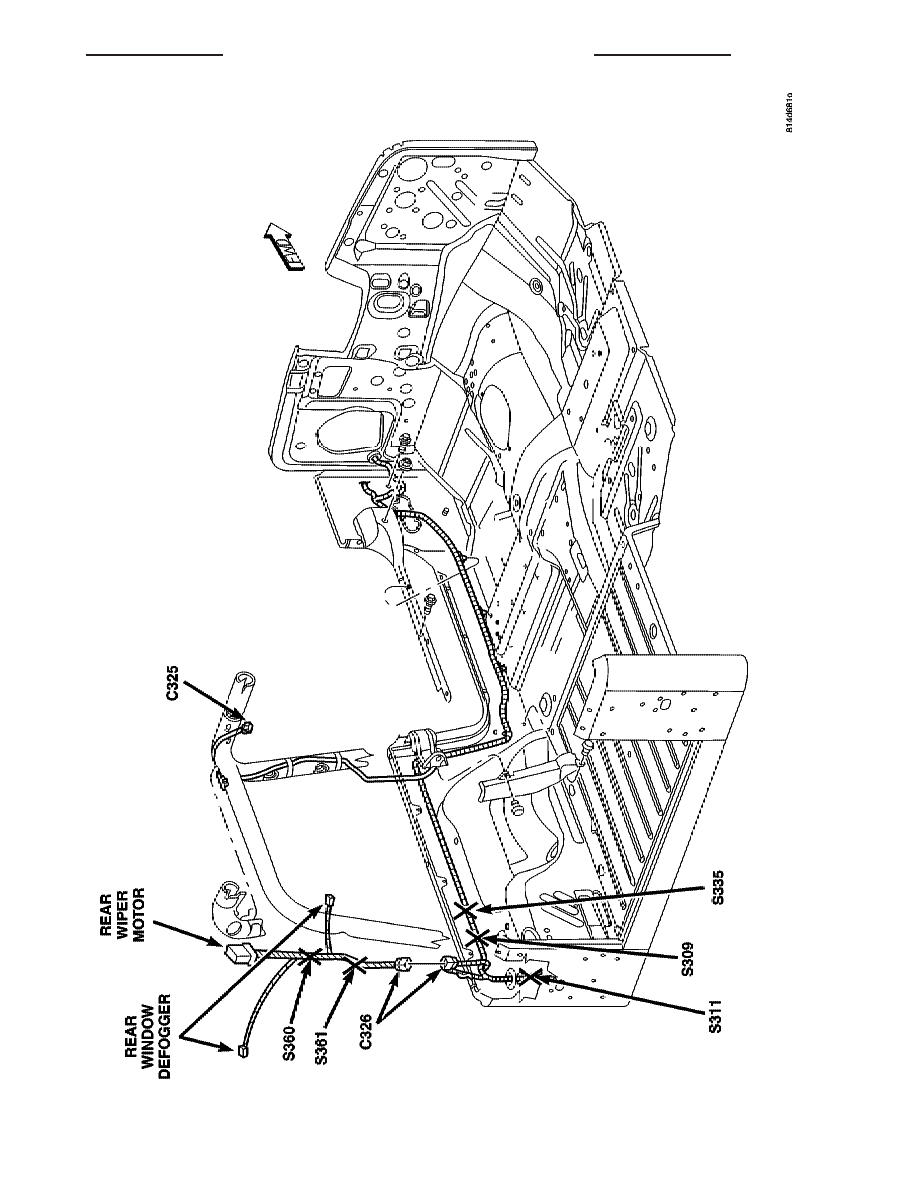

Fig.

39

-BODY

CONNECT

ORS

(RHD)

TJ

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 45

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

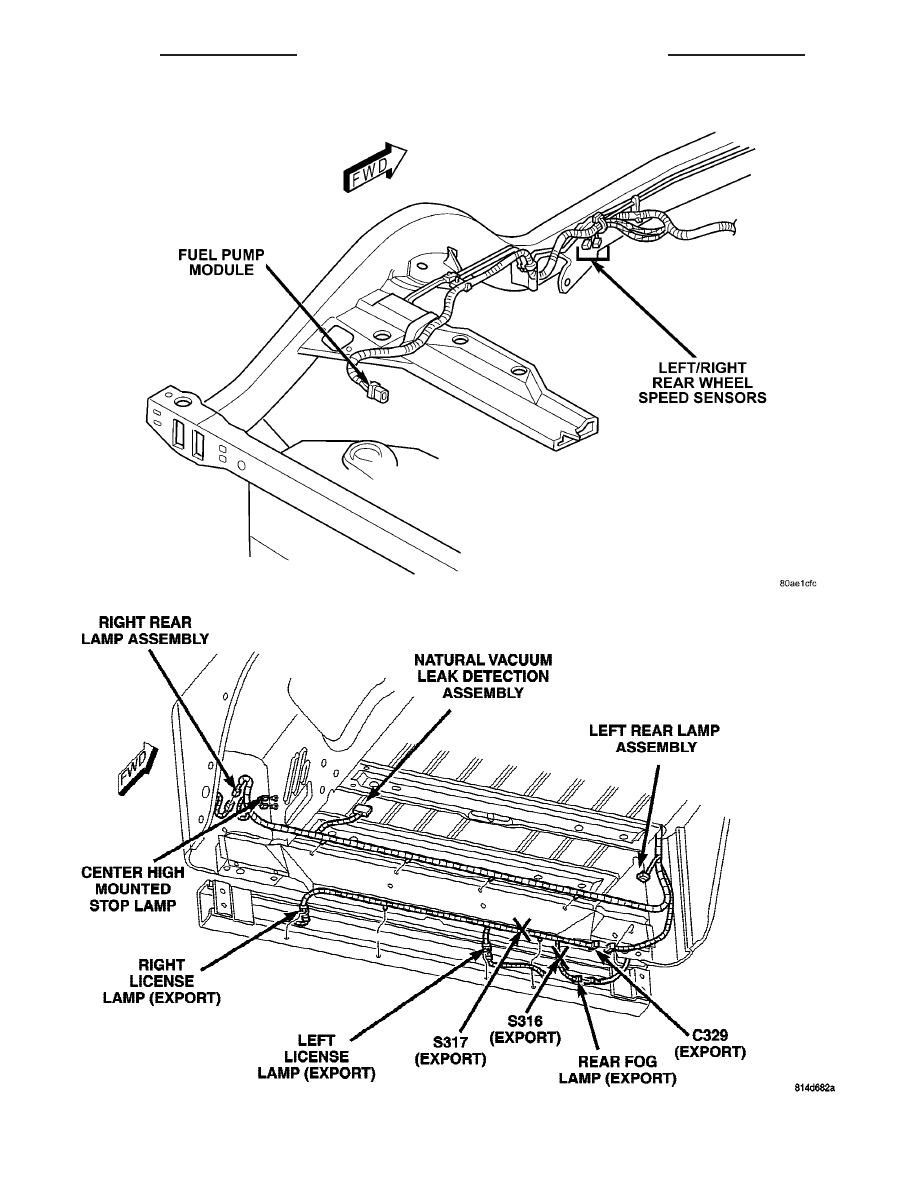

Fig. 40 -FUEL PUMP

Fig. 41 -REAR LAMPS (LHD)

8W - 91 - 46

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

TJ

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
