8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 39

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

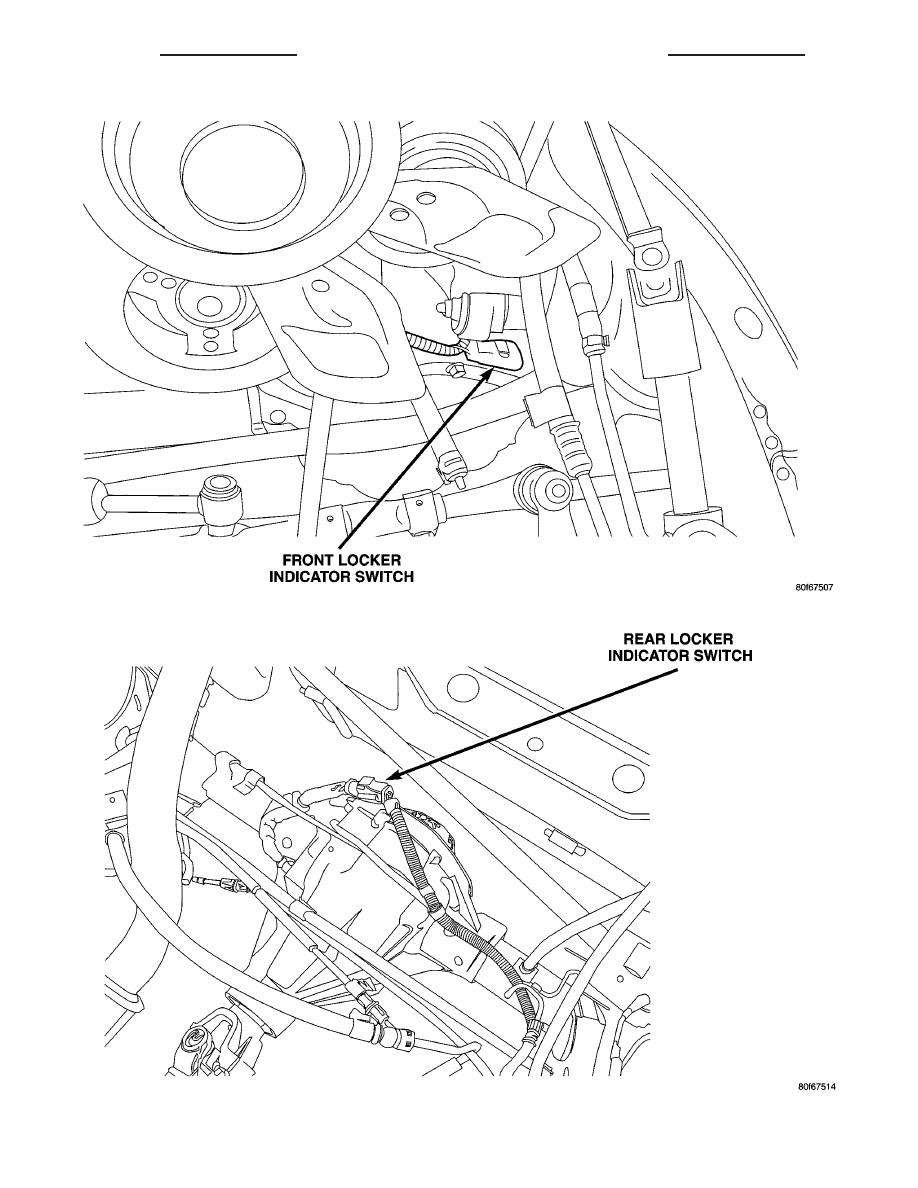

Fig. 33 -FRONT LOCKER INDICATOR SWITCH

Fig. 34 -REAR LOCKER INDICATOR SWITCH

8W - 91 - 40

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

TJ

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

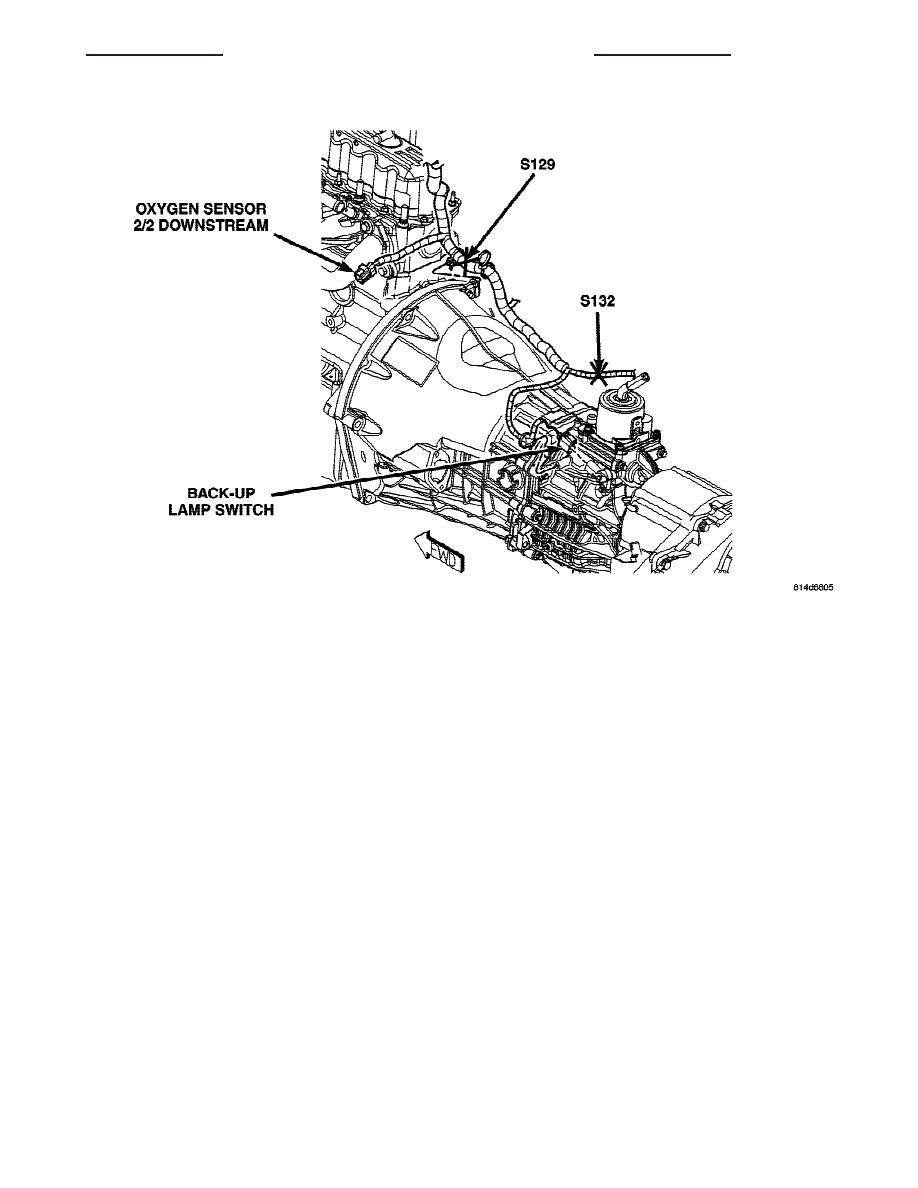

Fig. 35 -4.0 L MANUAL TRANSMISSION

TJ

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 41

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

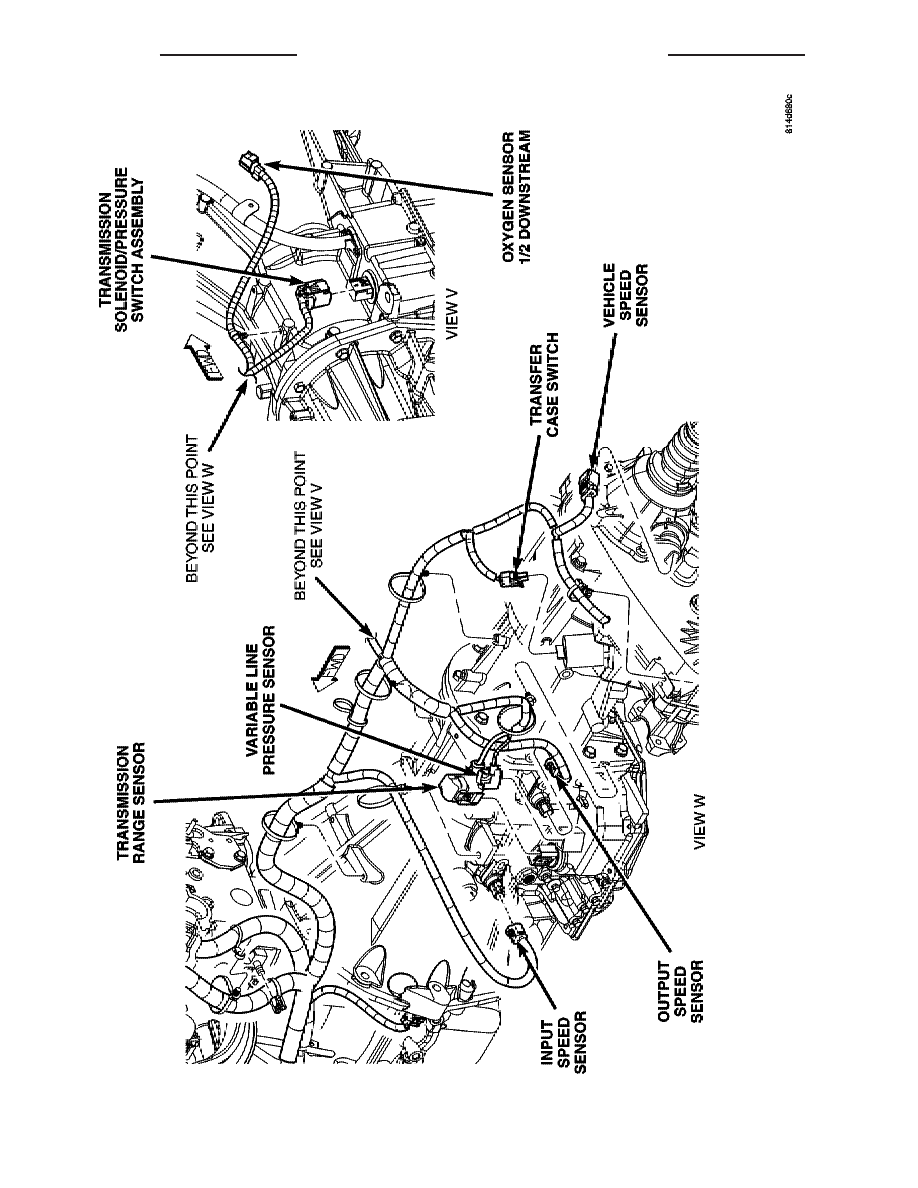

Fig.

36

-2.4

L

AUT

OMA

TIC

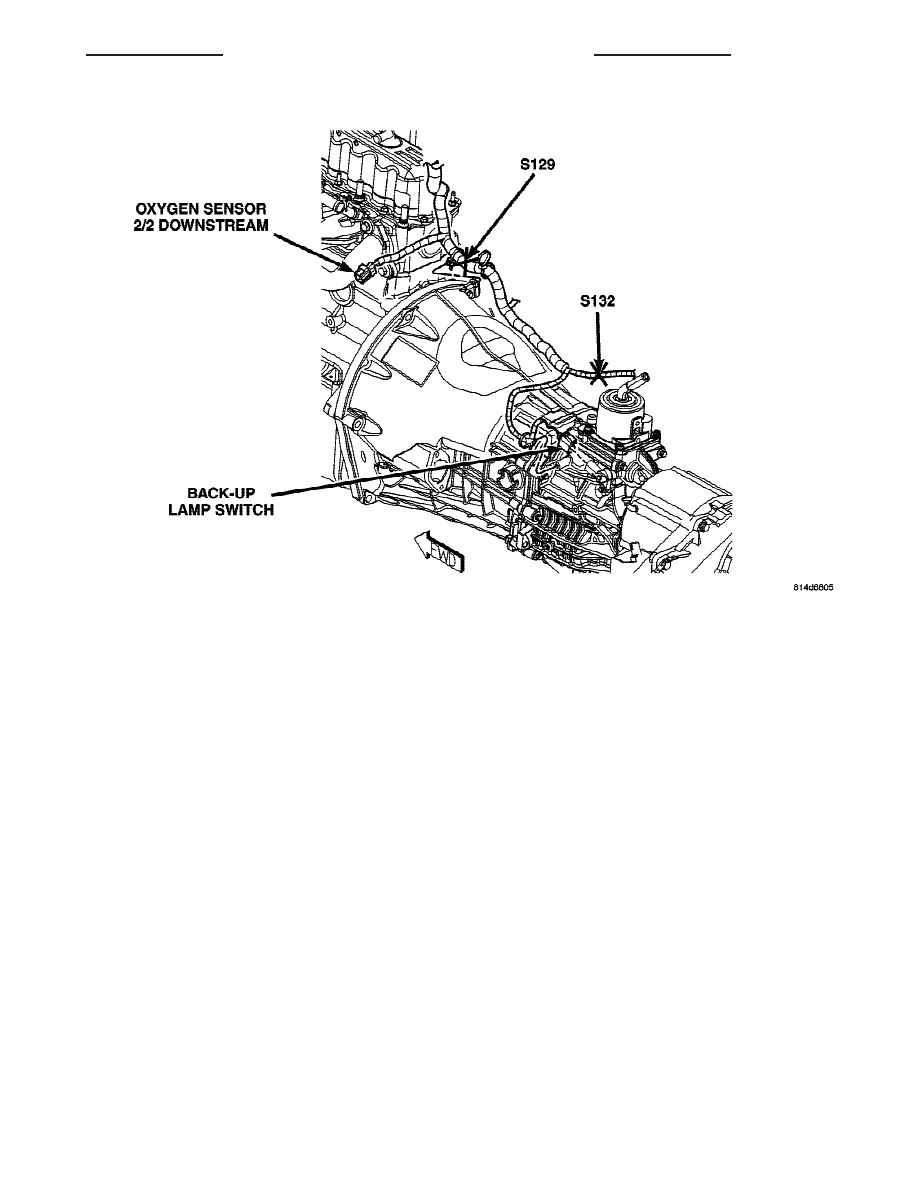

TRANSMISSION

8W - 91 - 42

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

TJ

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
