Jeep Wrangler TJ. Manual - part 214





INSTALLATION

(1) Clean axle shaft and apply a thin film of

Mopar Wheel Bearing Grease or equivalent to the
shaft splines, seal contact surface and hub bore.

(2) Install brake rotor shield on knuckle.
(3) Install axle shaft into differential side gears.
(4) Install hub bearing and tighten bolts to 102

N·m (75 ft. lbs.).

(5) Install axle washer and nut. Tighten nut to 237

N·m (175 ft. lbs.) and install nut retainer and cotter
pin (Fig. 30).

(6) Install brake components.

AXLE SHAFT SEALS

REMOVAL

(1) With vehicle in neutral, position vehicle on

hoist.

(2) Remove axle shafts (Fig. 31).

(3) Remove differential assembly (Fig. 32).
(4) Remove inner axle shaft seals with a pry bar.

INSTALLATION

(1) Remove any sealer remaining from original

seals.

(2) Install oil seals with Discs 8110 and Turn-

buckle 6797 (Fig. 33). Tighten tool until disc bottoms
in housing.

(3) Install differential and axle shafts.

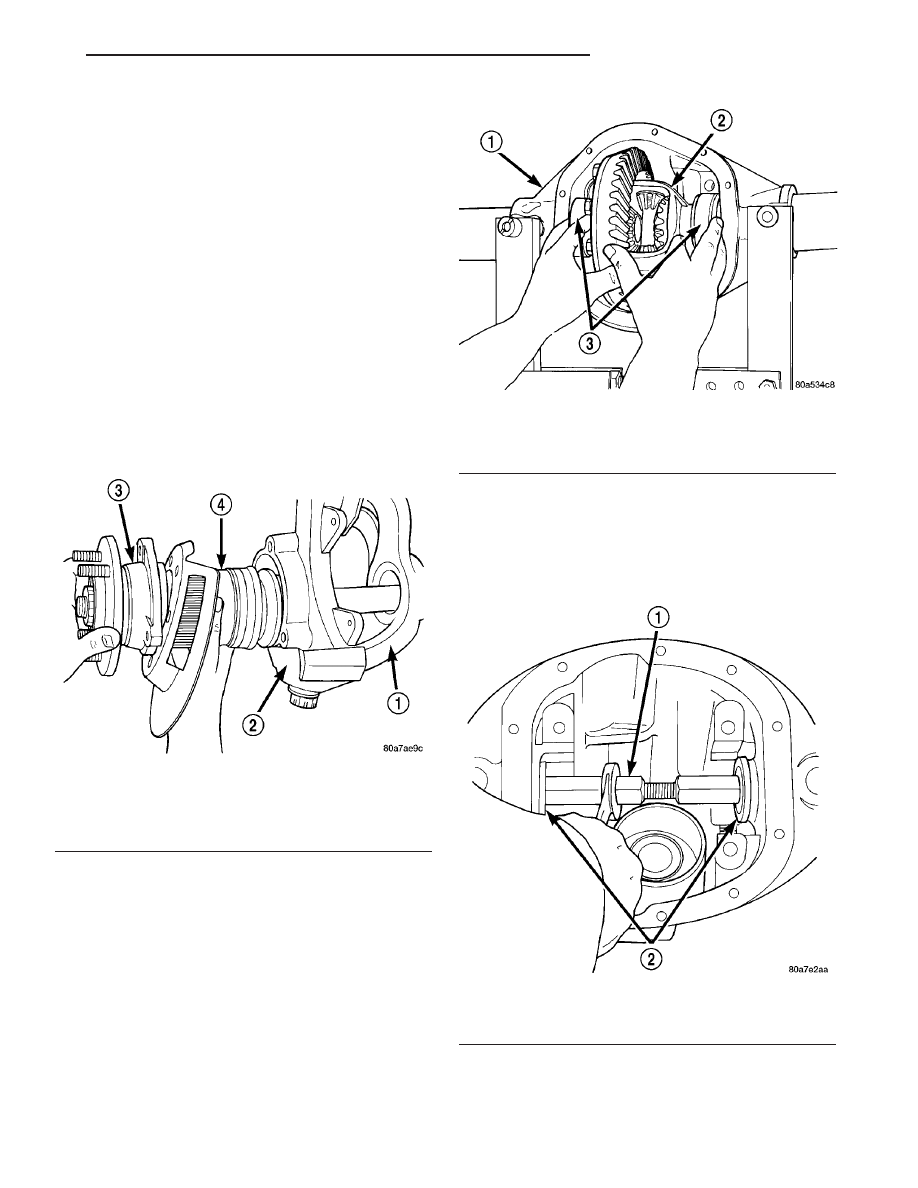

Fig. 31 HUB BEARING AND AXLE ASSEMBLY

1 - AXLE
2 - KNUCKLE
3 - HUB BEARING
4 - AXLE SHAFT

Fig. 32 DIFFERENTIAL CASE

1 - AXLE HOUSING
2 - DIFFERENTIAL CASE
3 - BEARING CUPS

Fig. 33 AXLE SEAL INSTALLATION

1 - TURNBUCKLE
2 - DISCS

TJ

FRONT AXLE - 181FBI

3 - 33

AXLE SHAFTS (Continued)

SINGLE CARDAN UNIVERSAL
JOINT

REMOVAL

CAUTION: Clamp only the narrow forged portion of
the yoke in the vise. Failure to heed caution may
result in damage.

(1) Remove axle shaft.
(2) Remove bearing cap retaining snap rings (Fig.

34).

NOTE: Saturate the bearing caps with penetrating
oil prior to removal.

(3) Place a socket (receiver) with an inside diame-

ter larger than the bearing cap against the yoke and
the perimeter of the bearing cap to be removed.

(4) Place a socket (driver) with an outside diame-

ter smaller than the bearing cap against the opposite
bearing cap.

(5) Position yoke with the sockets in a vise (Fig.

35).

(6) Tighten vise jaws, to force bearing cap into the

socket (receiver).

(7) Release vise jaws. Remove sockets and bearing

cap forced out of the yoke.

(8) Repeat above procedure for the remaining bear-

ing cap and remove cross from propeller shaft yoke.

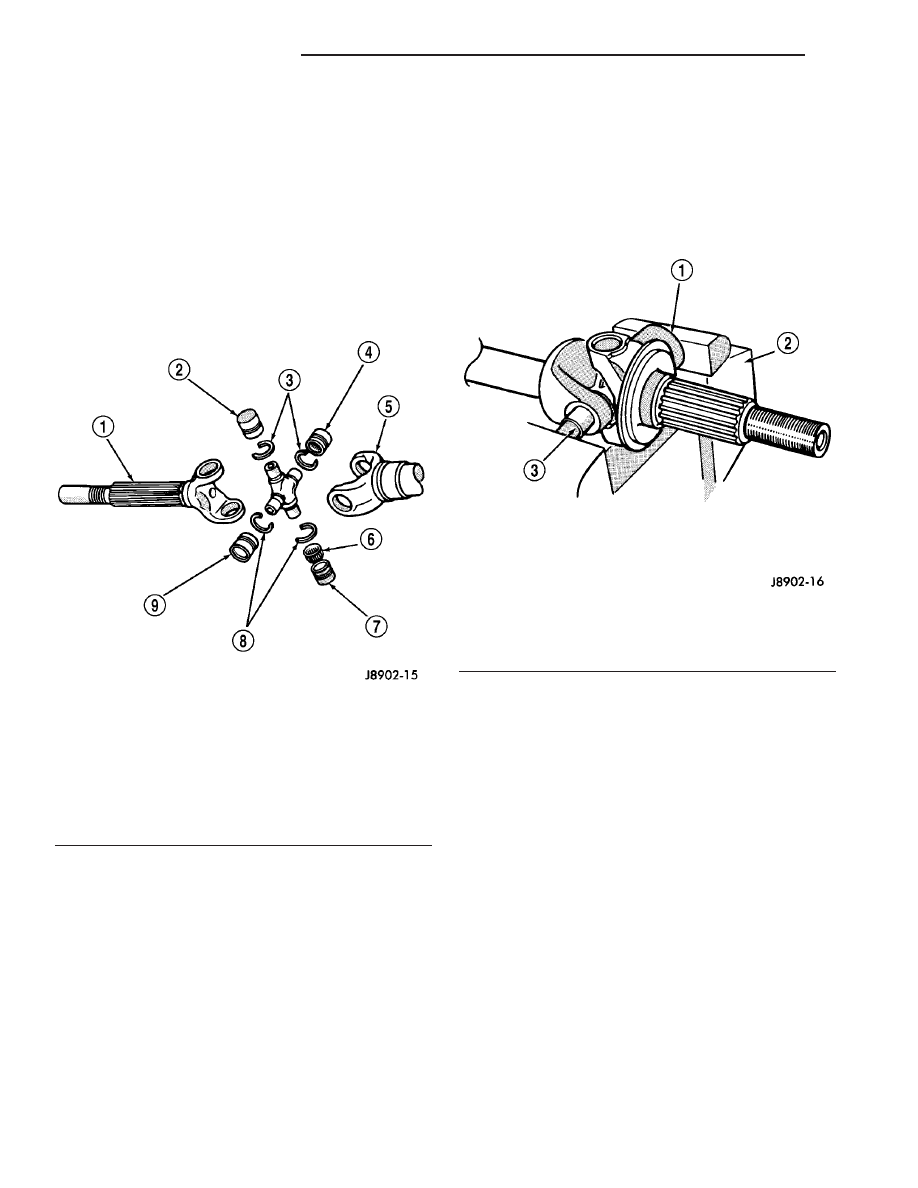

Fig. 34 AXLE SHAFT OUTER U-JOINT

1 - SHAFT YOKE
2 - BEARING CAP
3 - SNAP RINGS
4 - BEARING CAP
5 - SPINDLE YOKE
6 - BEARING
7 - BEARING CAP
8 - SNAP RINGS
9 - BEARING CAP

Fig. 35 YOKE BEARING CAP REMOVAL

1 - LARGE-DIAMETER SOCKET
2 - VISE
3 - SMALL-DIAMETER SOCKET

3 - 34

FRONT AXLE - 181FBI

TJ

INSTALLATION

CAUTION: Keep cross and bearing cap straight dur-
ing installation. Failure to heed caution may result
in damage.

(1) Pack bearing caps 1/3 full of wheel bearing

lubricant (Fig. 36). Apply extreme pressure (EP), lith-
ium-base lubricant to aid in installation.

(2) Position cross in the yoke. Insert seals and

bearings, then tap bearing caps into the yoke bores
far enough to hold spider in position.

(3) Place socket (driver) against one bearing cap.

Position yoke with the socket in a vise.

(4) Tighten vise to force bearing caps into the

yoke. Force the caps enough to install retaining clips.

(5) Install bearing cap retaining clips.
(6) Install axle shaft.

PINION SEAL

REMOVAL

(1) With vehicle in neutral, position vehicle on

hoist.

(2) Remove brake rotors and calipers.
(3) Remove propeller shaft from the yoke.

(4) Rotate pinion gear three or four times.
(5) Record rotating torque of the pinion gear with

an inch pound torque wrench, for installation refer-
ence.

(6) Hold pinion yoke with Wrench 6958 and

remove pinion nut and washer.

(7) Remove pinion yoke with Remover C-452 and

Wrench C-3281 (Fig. 37).

(8) Remove seal with a pry tool or a slide hammer

mounted screw.

INSTALLATION

(1) Apply a light coating of gear lubricant on the

lip of pinion seal. Install seal with an appropriate
installer (Fig. 38).

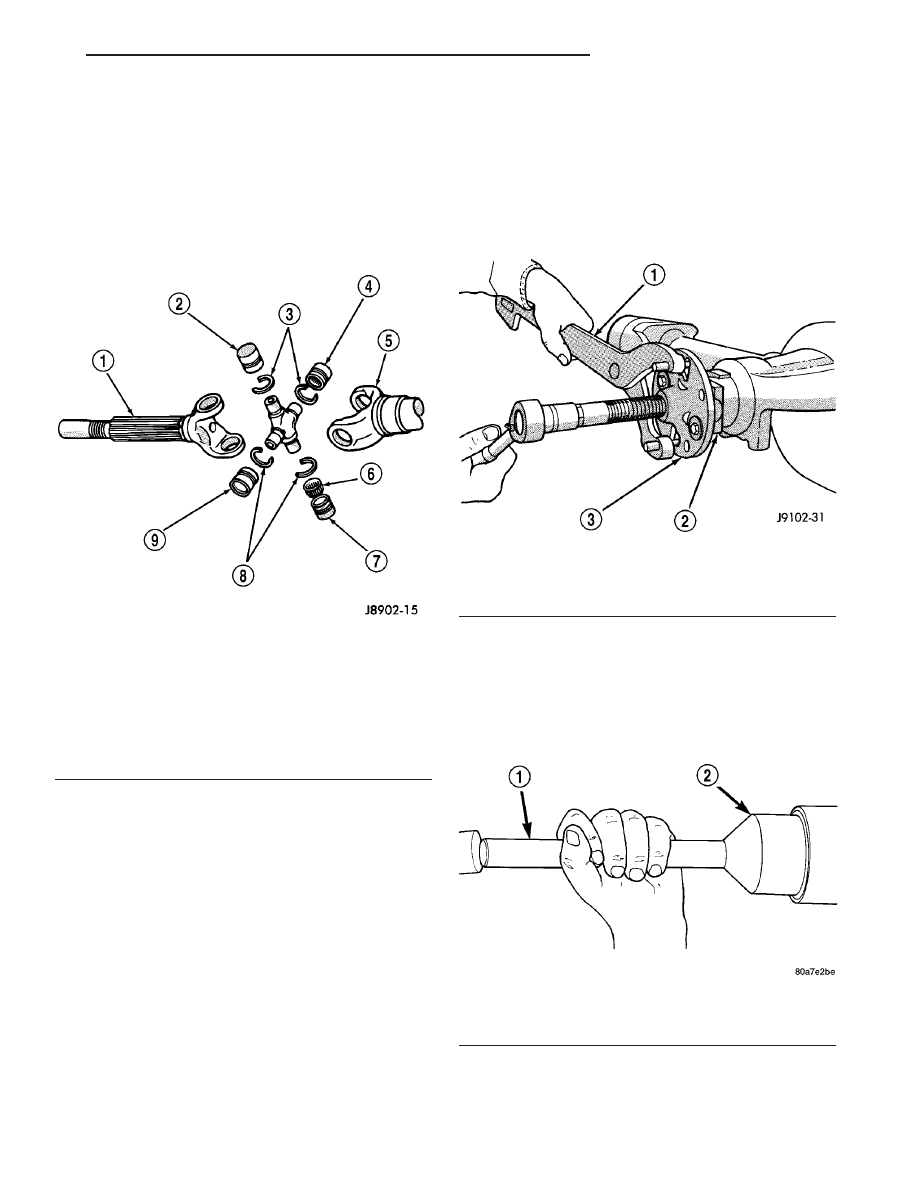

Fig. 36 AXLE SHAFT OUTER U-JOINT

1 - SHAFT YOKE
2 - BEARING CAP
3 - SNAP RINGS
4 - BEARING CAP
5 - SPINDLE YOKE
6 - BEARING
7 - BEARING CAP
8 - SNAP RINGS
9 - BEARING CAP

Fig. 37 PINION YOKE REMOVER

1 - WRENCH
2 - PINION YOKE
3 - REMOVER

Fig. 38 PINION SEAL INSTALLER

1 - HANDLE
2 - INSTALLER

TJ

FRONT AXLE - 181FBI

3 - 35

SINGLE CARDAN UNIVERSAL JOINT (Continued)

(2) Install yoke on pinion gear with Installer

W-162-D, Cup 8109 and Holder 6958 (Fig. 39).

CAUTION: Do not exceed the minimum tightening
torque when installing the pinion yoke retaining nut
at this point. Failure to heed caution may result in
damage

(3) Install pinion washer and a new nut on the

pinion gear shaft.

NOTE: Tighten nut only enough to remove the shaft
end play.

(4) Tighten pinion nut to 217 N·m (160 ft. lbs.).
(5) Rotate pinion shaft using an inch pound torque

wrench. Rotating torque should be equal to the read-
ing recorded during removal, plus an additional 0.56
N·m (5 in. lbs.) (Fig. 40).

(6) If rotating torque is low, use Spanner 6958

(Fig. 41) to hold the pinion yoke and tighten pinion
shaft nut in 6.8 N·m (5 ft. lbs.) increments until
proper rotating torque is achieved.

(7) Install propeller shaft with reference marks

aligned.

(8) Install brake rotors and calipers.

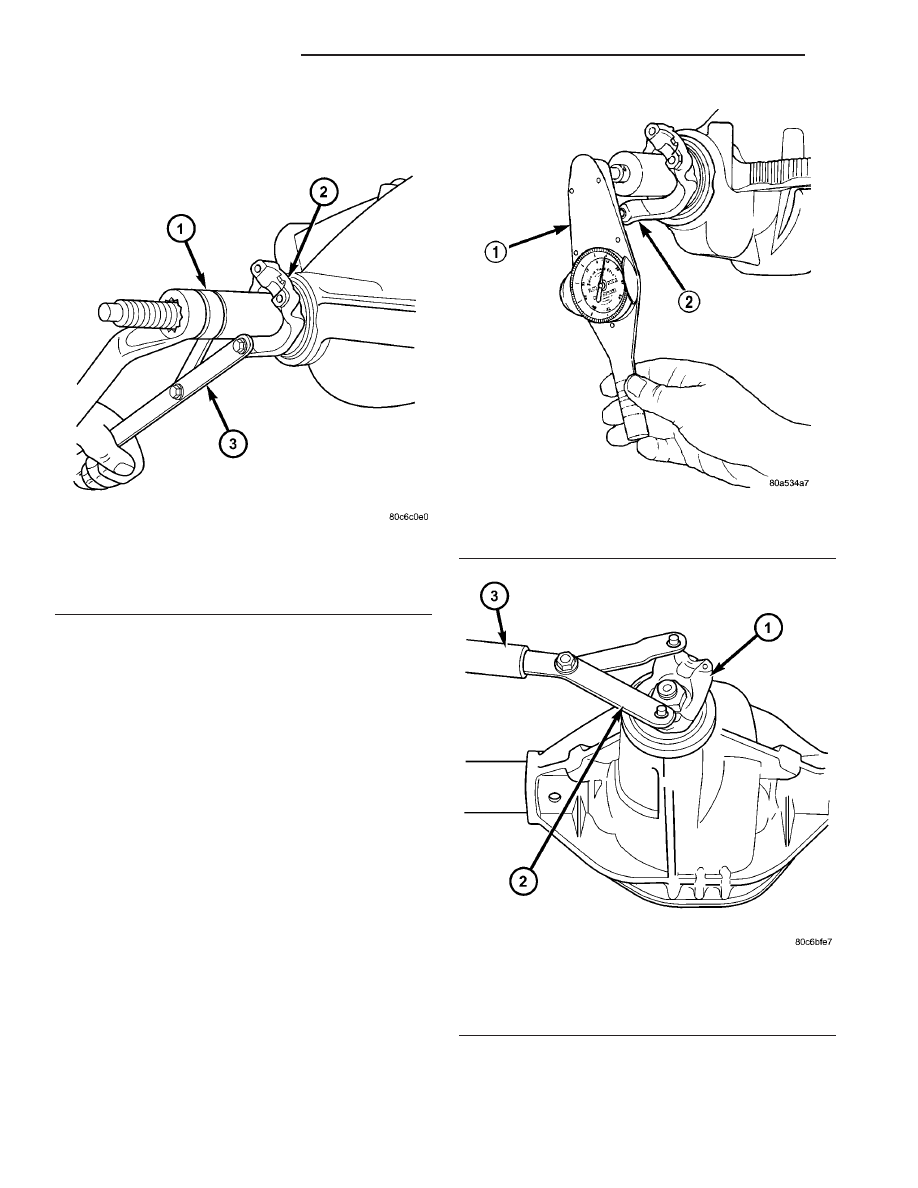

Fig. 39 PINION YOKE INSTALLER

1 - INSTALLER
2 - PINION YOKE
3 - SPANNER WRENCH

Fig. 40 PINION ROTATING TORQUE

1 - TORQUE WRENCH
2 - PINION YOKE

Fig. 41 YOKE HOLDER

1 - PINION YOKE
2 - SPANNER WRENCH
3 - PIPE

3 - 36

FRONT AXLE - 181FBI

TJ

PINION SEAL (Continued)
