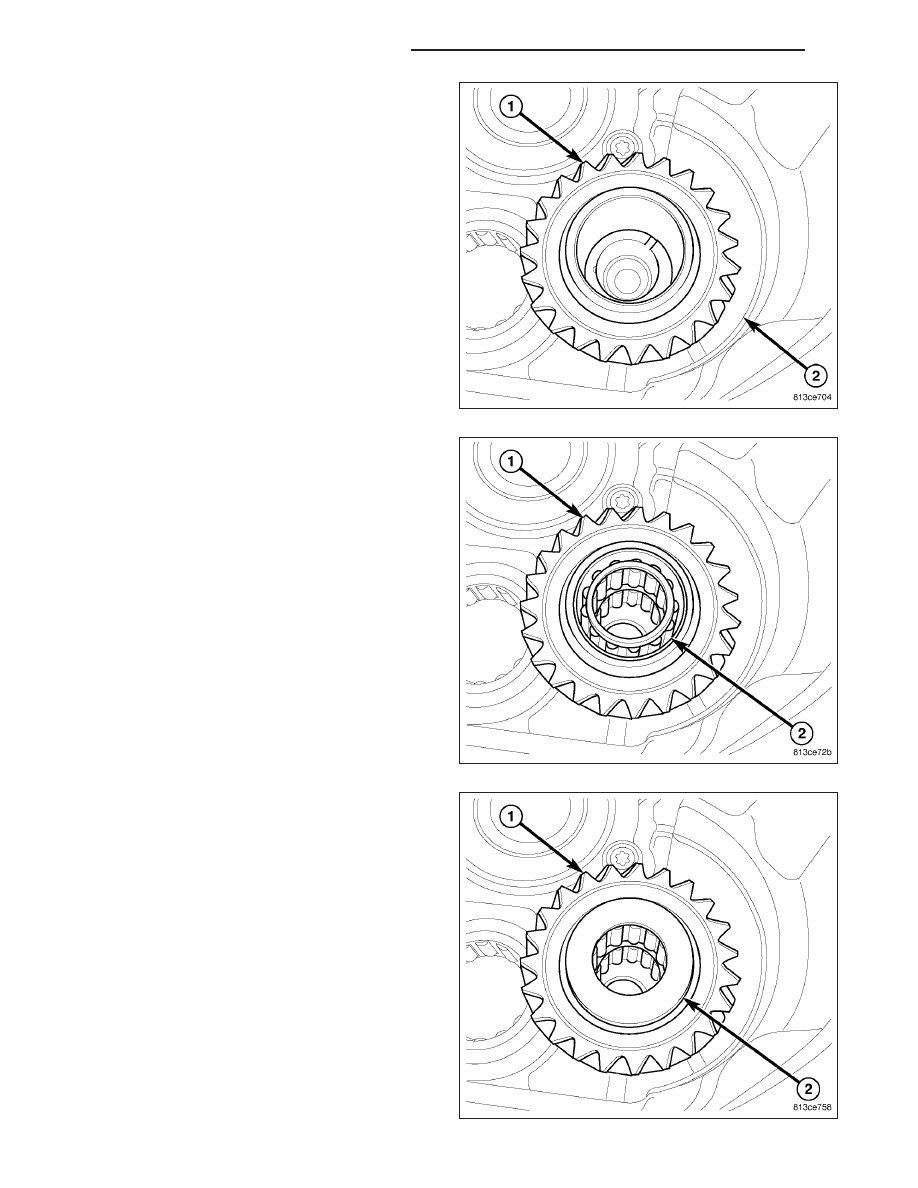

4. Install reverse idler gear (1) into housing (2).

5. Install idler gear (1) bearing (2) into gear.

6. Install idler gear (1) thrust washer (2) on idler gear.

21 - 36

MANUAL TRANSMISSION - NSG370

KJ

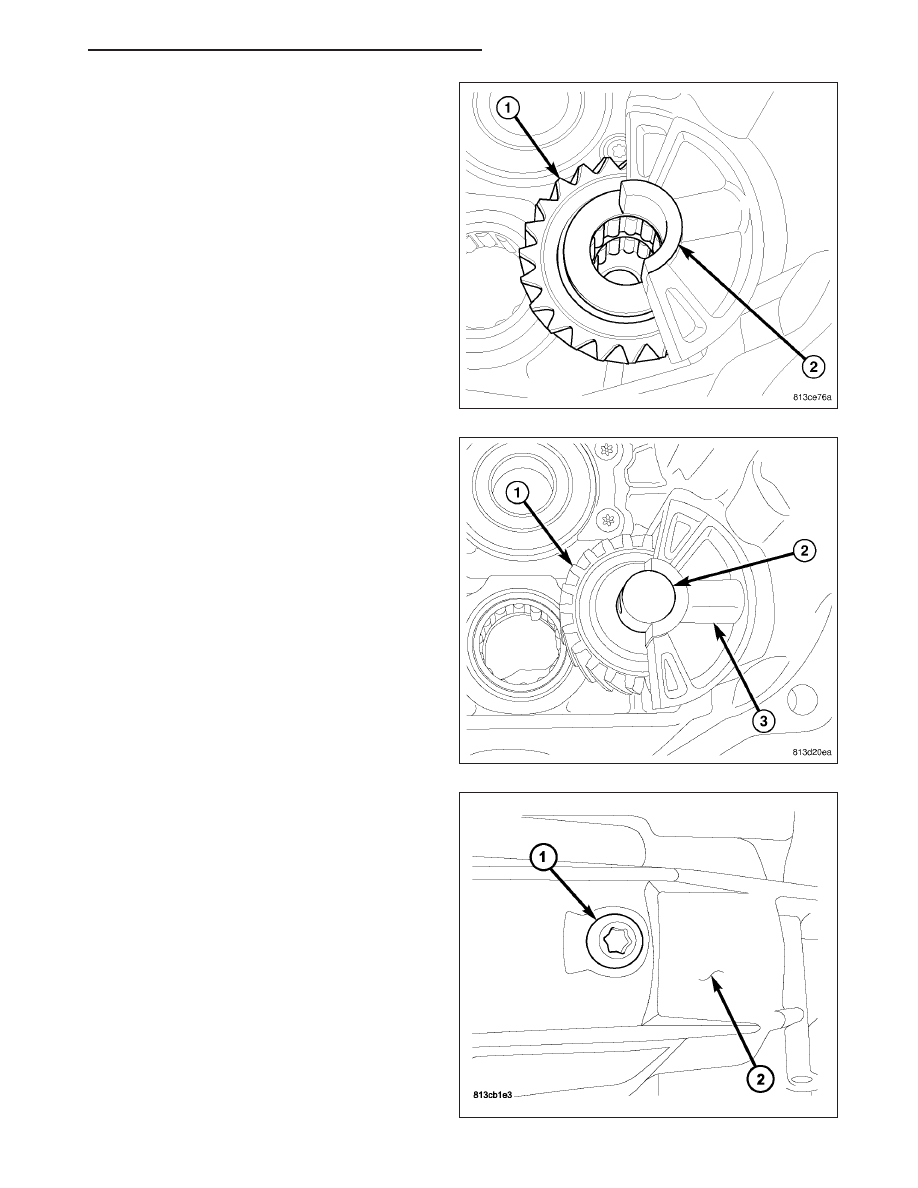

7. Install idler gear (1) shaft support (2) into housing.

8. Install idler gear (1) shaft (2) with shaft bolt hole

aliened with shaft support hole (3).

9. Install idler gear shaft bolt (1) into the housing (2)

and tighten to 20 N.m (15 ft. lbs.).

KJ

MANUAL TRANSMISSION - NSG370

21 - 37

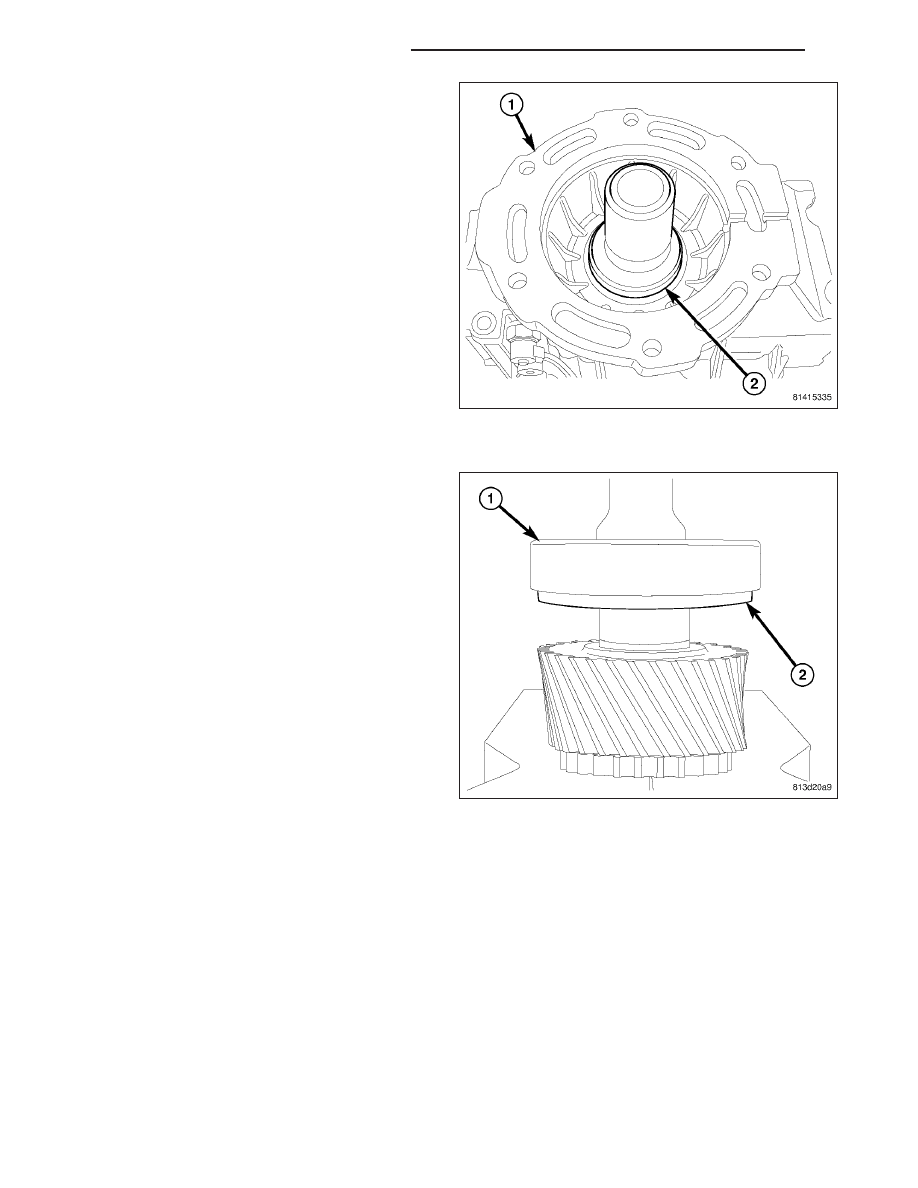

10. Install 4x4 output shaft seal into rear housing (1)

with Installer 9638 (2). Install 4x2 output shaft
seal into rear housing with Installer 9635 and
Installer 6448A.

INPUT SHAFT

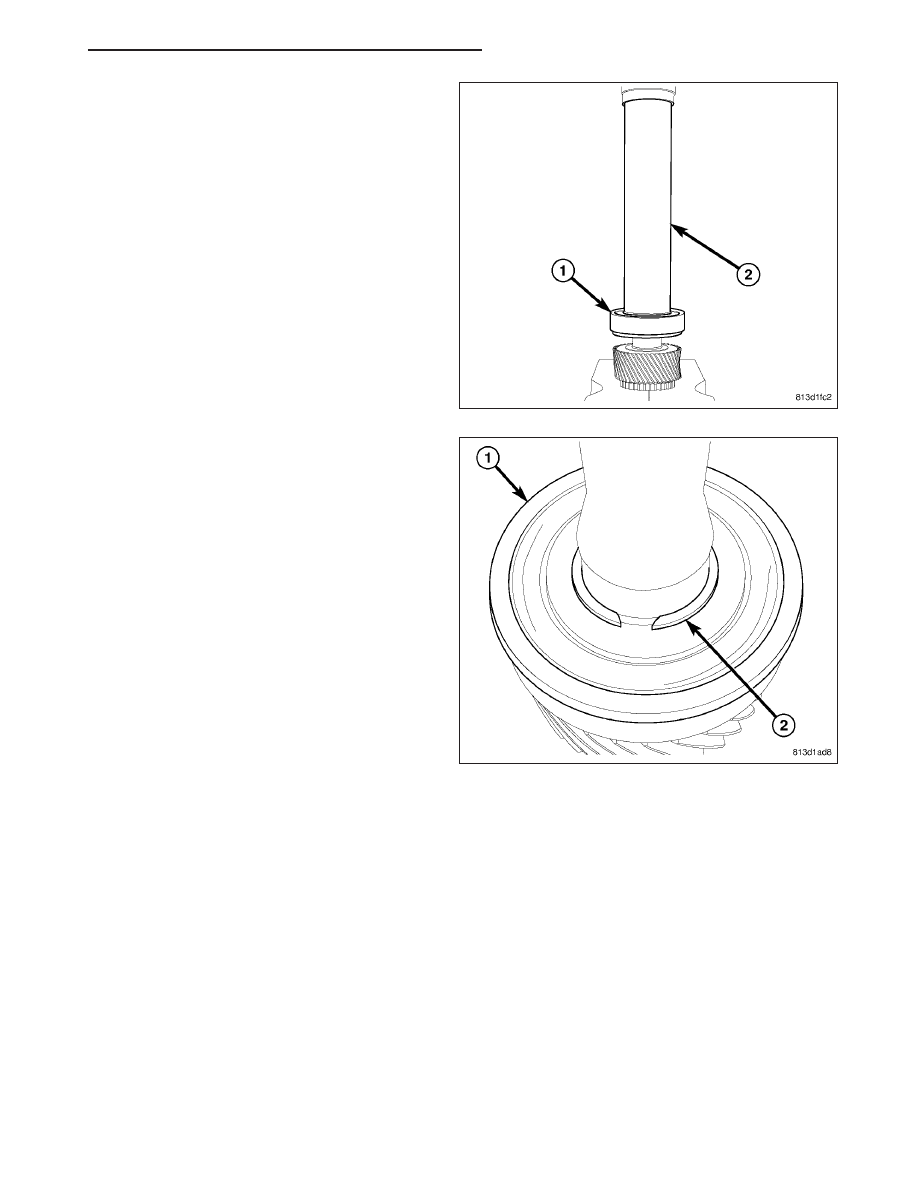

1. Install input shaft bearing (1) on input shaft with the

bearing retainer lip (2) facing fifth gear.

21 - 38

MANUAL TRANSMISSION - NSG370

KJ

2. Install input shaft bearing (1) with Installer 6448A

(2) and a press.

3. Install input shaft bearing (1) snap ring (2).

NOTE: Reuse original snap ring or thickest ring
that will fit.

KJ

MANUAL TRANSMISSION - NSG370

21 - 39
