FITTING-QUICK CONNECT

DESCRIPTION

Different types of quick-connect fittings are used to attach the various fuel system components, lines and tubes.
These are: a single-button type, a two-button type, a pinch type, a single-tab type, a two-tab type or a plastic
retainer ring type. Some are equipped with safety latch clips. Some may require the use of a special tool for dis-
connection and removal. (Refer to 14 - FUEL SYSTEM/FUEL DELIVERY/QUICK CONNECT FITTING - STANDARD
PROCEDURE)

CAUTION: Before separating a quick-connect fitting, pay attention to what type of fitting is being used by
referring to Quick-Connect Fitting Removal. This will prevent unnecessary fitting or fitting latch breakage.

CAUTION: The interior components (O-rings, clips) of quick-connect fittings are not serviced separately, but
new plastic spacers and latches are available for some types. If service parts are not available, do not
attempt to repair the damaged fitting or fuel line (tube). If repair is necessary, replace the complete fuel line
(tube) assembly.

STANDARD PROCEDURE - QUICK-CONNECT FITTINGS

Different types of quick-connect fittings are used to attach the various fuel system components, lines and tubes.
These are: a single-button type, a two-button type, a pinch type, a single-tab type, a two-tab type or a plastic
retainer ring type. Some are equipped with safety latch clips. Some may require the use of a special tool for dis-
connection and removal.

DISCONNECTING

WARNING: The fuel system is under a constant pressure (even with engine off). Before servicing any fuel
system hose, fitting or line, fuel system pressure must be released. Refer to fuel system pressure release
procedure.

CAUTION: Before separating a quick-connect fitting, pay attention to what type of fitting is being used by
referring to Quick-Connect Fitting Removal. This will prevent unnecessary fitting or fitting latch breakage.

CAUTION: The interior components (O-rings, clips) of quick-connect fittings are not serviced separately, but
new plastic spacers and latches are available for some types. If service parts are not available, do not
attempt to repair the damaged fitting or fuel line (tube). If repair is necessary, replace the complete fuel line
(tube) assembly.

1. Perform fuel pressure release procedure. (Refer to 14 - FUEL SYSTEM/FUEL DELIVERY - STANDARD PRO-

CEDURE)

2. Disconnect negative battery cable from battery.

3. Clean fitting of any foreign material before disassembly.

14 - 12

FUEL DELIVERY - 3.7L GAS

KJ

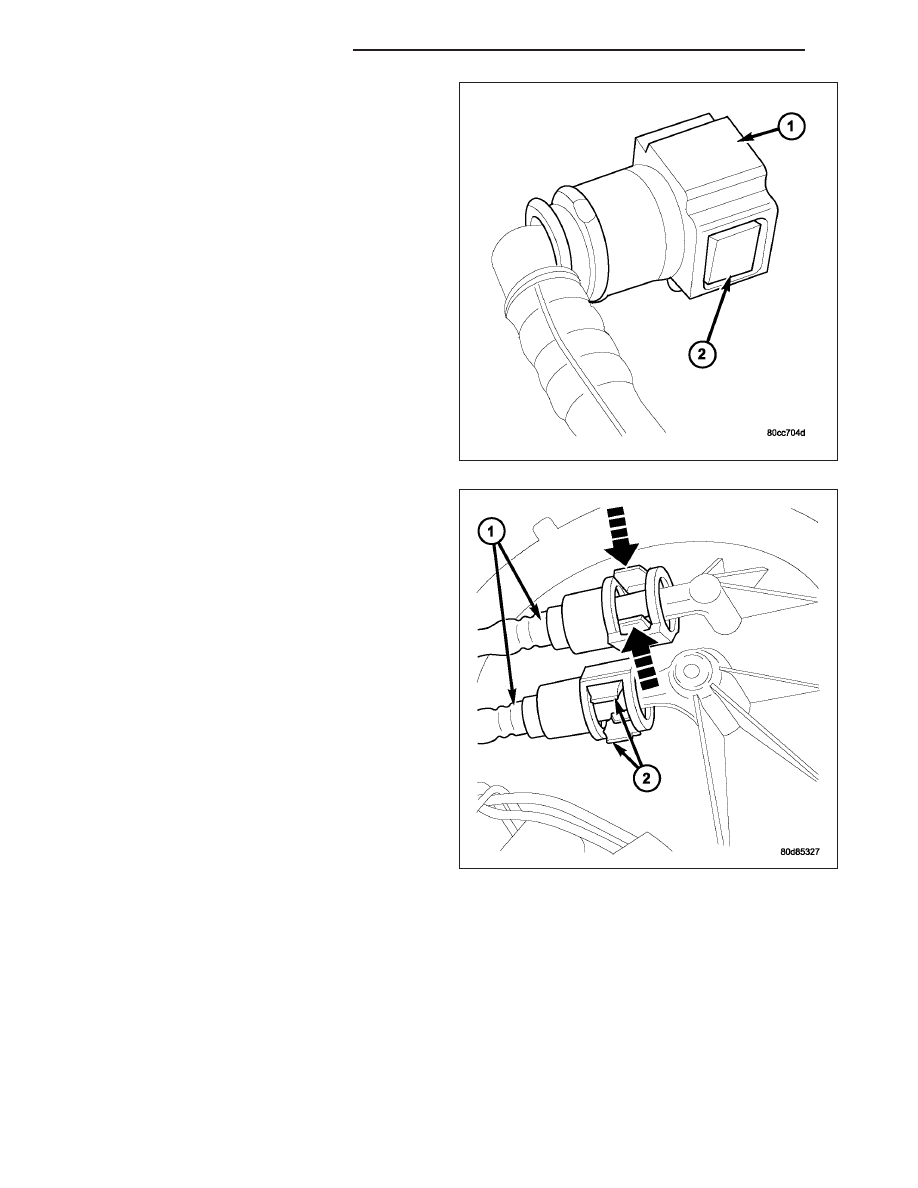

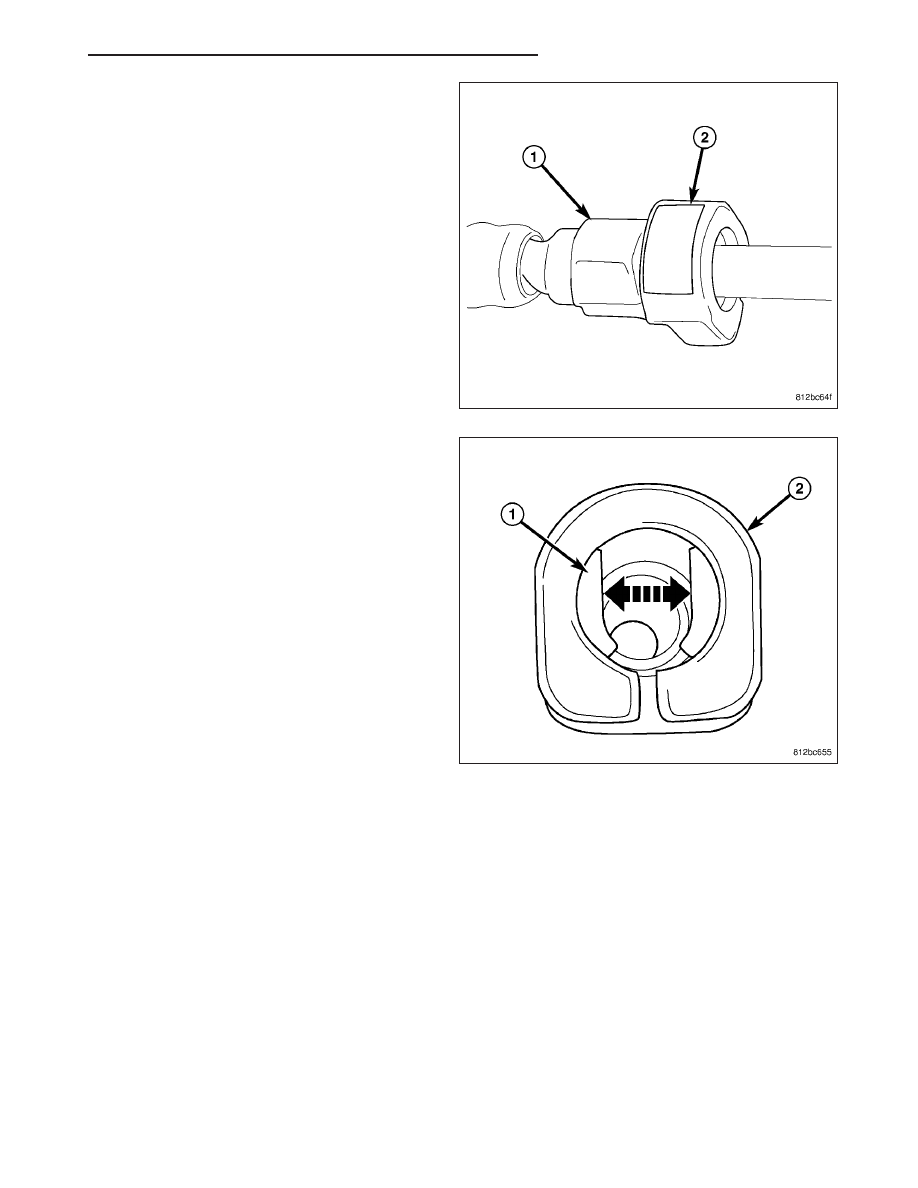

4. Single–Button Type Fitting: This type of fitting is

equipped with a single push-button (2) located on
the quick-connect fitting.

5. The push-button is attached to two internal latches

(1). To disconnect, press on push-button with your
thumb and unlatch fitting from fuel line. Tools are
not required for disconnection. DO NOT ATTEMPT
TO PRY OR PULL UP ON PUSH-BUTTON.
LATCHES WILL BE BROKEN.

KJ

FUEL DELIVERY - 3.7L GAS

14 - 13

6. Perform fuel pressure release procedure. (Refer to

14 - FUEL SYSTEM/FUEL DELIVERY - STAN-
DARD PROCEDURE)

7. Disconnect negative battery cable from battery.

8. Clean fitting of any foreign material before disas-

sembly.

9. 2–Button Type Fitting: This type of fitting (1) is

equipped with a push-button located on each side
of quick-connect fitting (2). Press on both buttons
simultaneously for removal. Tools are not required
for disconnection.

10. Pinch-Type Fitting: This fitting (1) is equipped

with two finger tabs (2). Pinch both tabs together
while removing fitting. Tools are not required for
disconnection.

14 - 14

FUEL DELIVERY - 3.7L GAS

KJ

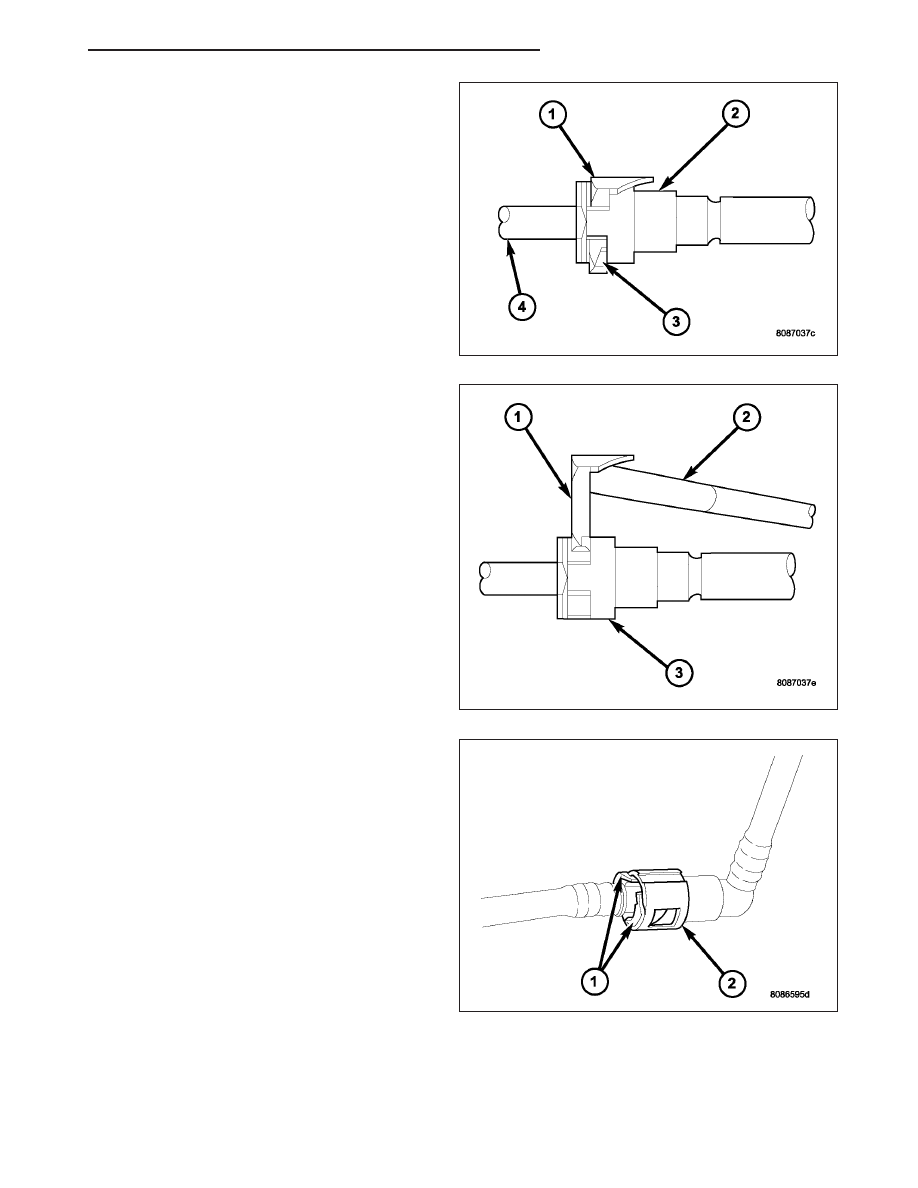

11. Single-Tab Type Fitting: This type of fitting (3) is

equipped with a single pull tab (1). The tab is
removable. After tab is removed, quick-connect fit-
ting can be separated from fuel system compo-
nent. Tools are not required for disconnection.

12. Press release tab on side of fitting to release pull

tab (1). If release tab is not pressed prior to
releasing pull tab, pull tab will be damaged.

13. While pressing release tab on side of fitting, use

screwdriver (2) to pry up pull tab.

14. Raise pull tab until it separates from quick-con-

nect fitting.

15. Two-Tab Type Fitting: This type of fitting (2) is

equipped with tabs located on both sides of fitting
(1). The tabs are supplied for disconnecting quick-
connect fitting from component being serviced.

a. To disconnect quick-connect fitting, squeeze

plastic retainer tabs (1) against sides of quick-
connect fitting with your fingers. Tool use is not
required for removal and may damage plastic
retainer.

b. Pull fitting from fuel system component being

serviced.

c. The plastic retainer will remain on component

being serviced after fitting is disconnected. The
O-rings and spacer will remain in quick-connect
fitting connector body.

KJ

FUEL DELIVERY - 3.7L GAS

14 - 15
