Jeep Liberty KJ. Manual - part 940





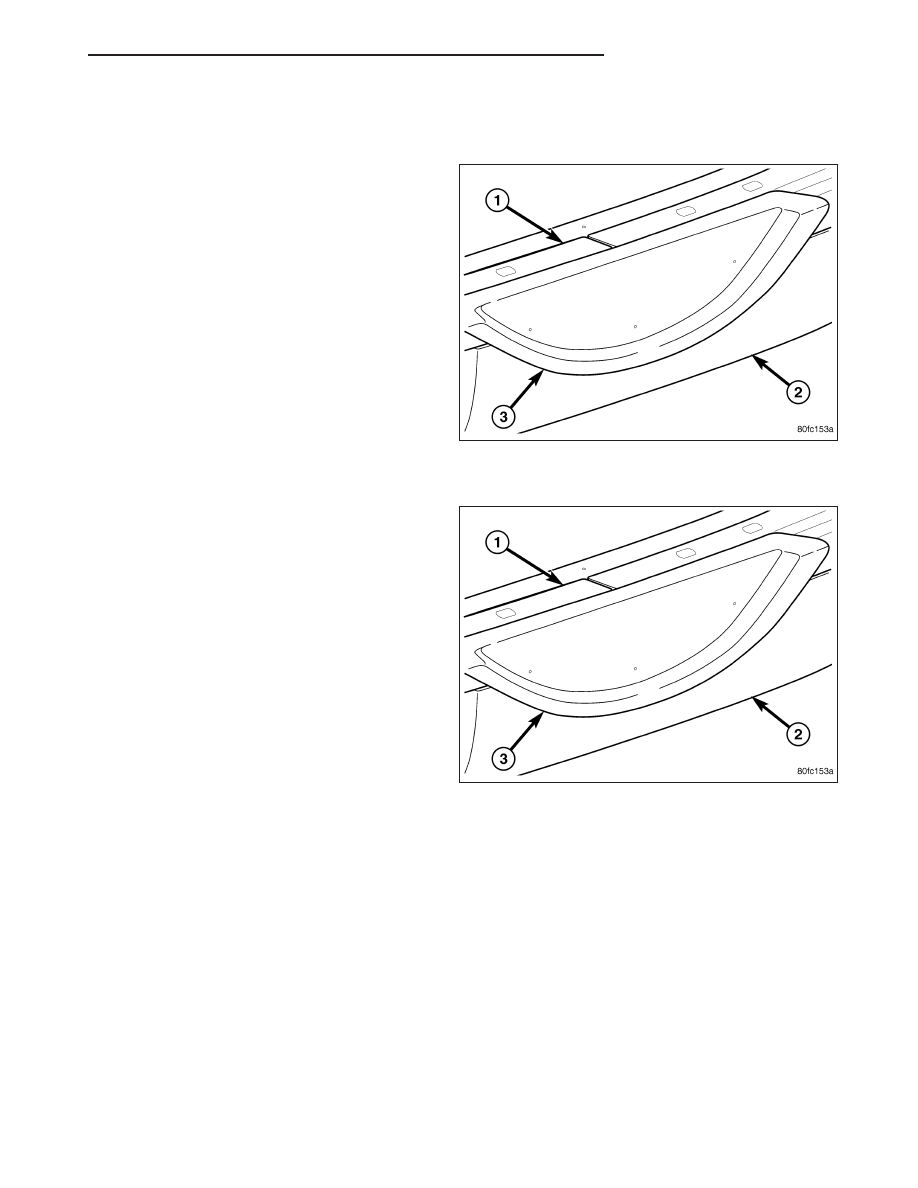

REAR FASCIA - STEP PAD

REMOVAL

1. Remove the rear fascia (Refer to 13 - FRAME & BUMPERS/BUMPERS/REAR FASCIA - REMOVAL).

2. Remove the rain diverter (Refer to 13 - FRAME & BUMPERS/BUMPERS/REAR FASCIA - RAIN DIVERTER -

REMOVAL).

3. Remove the retaining clips and remove the step pads.

INSTALLATION

1. Install the step pads and new retainer clips.

2. Install the rain diverter (Refer to 13 - FRAME & BUMPERS/BUMPERS/REAR FASCIA - RAIN DIVERTER -

INSTALLATION).

3. Install the rear fascia (Refer to 13 - FRAME & BUMPERS/BUMPERS/REAR FASCIA - INSTALLATION).

13 - 8

FRAME & BUMPERS

KJ

REAR FASCIA - RAIN DIVERTER

REMOVAL

1. Open the swing gate.

2. Remove the three rivets from the diverter and

remove the diverter.

INSTALLATION

1. Install the diverter and install new rivets.

KJ

FRAME & BUMPERS

13 - 9

FRAME

SPECIFICATIONS

SPECIFICATIONS - FRAME DIMENSIONS

Frame dimensions are listed in metric scale. All dimensions are from center to center of Principal Locating Point
(PLP), or from center to center of PLP and fastener location.

VEHICLE PREPARATION

Position the vehicle on a level work surface. Using screw or bottle jacks, adjust the vehicle PLP heights to the
specified dimension above a level work surface. Vertical dimensions can be taken from the work surface to the
locations indicated were applicable.

NOTE: All measurements are in MM.

DIMENSION ILLUSTRATIONS

DESCRIPTION

FIGURE

TOP VIEW

( 1 )

SIDE VIEW

( 2 )

13 - 10

FRAME & BUMPERS

KJ

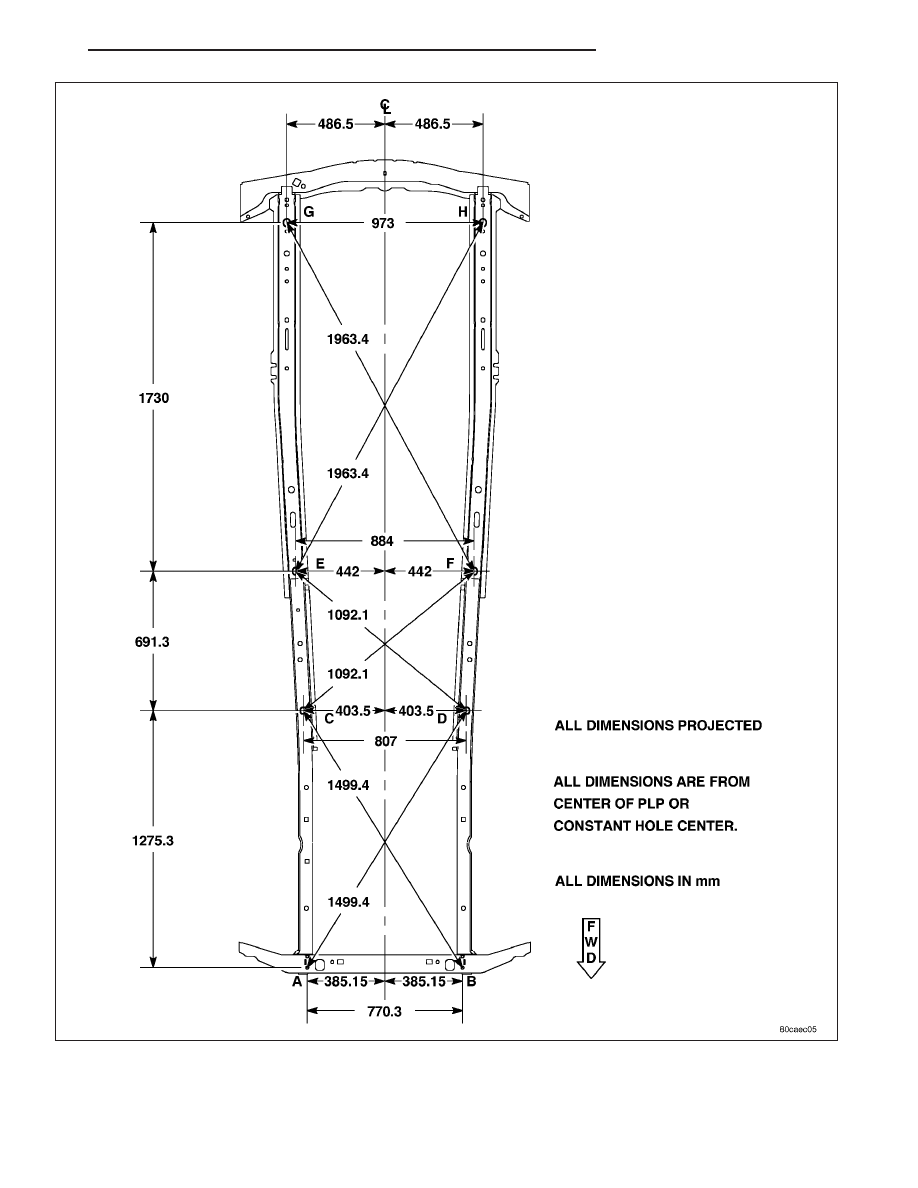

Fig. 1 BOTTOM VIEW

KJ

FRAME & BUMPERS

13 - 11
