Jeep Liberty KJ. Manual - part 491





When Monitored:
Engine running for less than 30 seconds and the O2 Sensor Heater Temperature is less than 251°C (484°F)
with battery voltage greater 10.4 volts.

Set Condition:
The oxygen sensor signal voltage is below 2.5196 volts for 6 seconds after starting engine. One Trip Fault.
Three good trips to turn off the MIL.

Possible Causes

(K902) O2 RETURN UPSTREAM CIRCUIT SHORTED TO GROUND

(K41) O2 1/1 SIGNAL CIRCUIT SHORTED TO GROUND

(K41) O2 1/1 SIGNAL CIRCUIT SHORTED TO THE (K902) O2 RETURN UPSTREAM CIRCUIT

(K41) O2 1/1 SIGNAL CIRCUIT SHORTED TO THE (Z42) O2 1/1 HEATER GROUND CIRCUIT

O2 SENSOR

PCM

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).

Diagnostic Test

1.

O2 SENSOR BELOW 2.52 VOLTS

Start the engine.

Allow the engine to reach normal operating temperature.

With a scan tool, read the 1/1 O2 Sensor voltage.

Is the voltage below 2.52 volts?

Yes

>> Go To 2

No

>> Refer to the INTERMITTENT CONDITION Diagnostic Procedure.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

2.

(K41) O2 SENSOR 1/1 SIGNAL CIRCUIT

Turn the ignition off.

Disconnect the 1/1 O2 Sensor harness connector.

Ignition on, engine not running.

With a scan tool, monitor the O2 Sensor voltage.

Is the 1/1 O2 Sensor voltage above 4.8 volts?

Yes

>> Go To 3

No

>> Go To 5

9 - 122

ENGINE ELECTRICAL DIAGNOSTICS

KJ

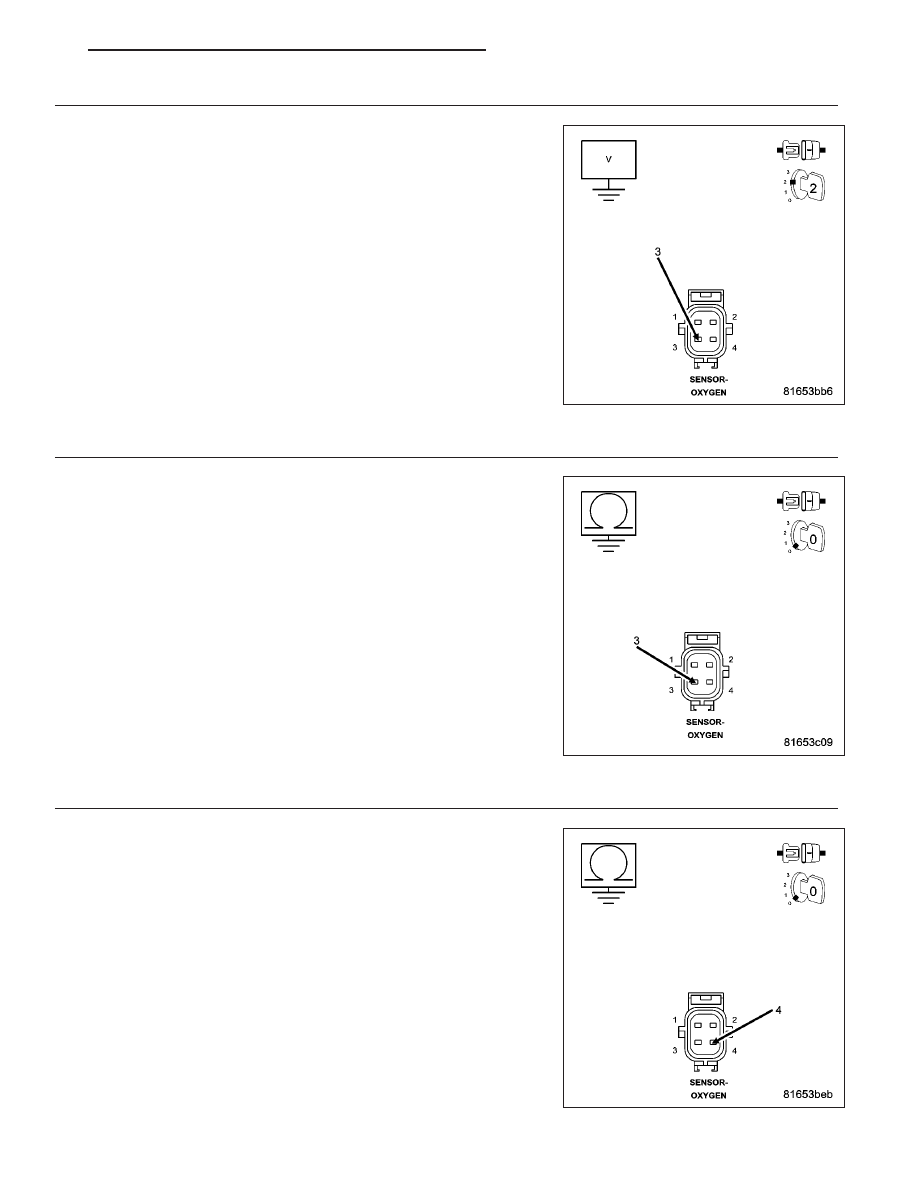

3.

O2 SENSOR

Measure the voltage on the (K902) O2 Return Upstream circuit in the
O2 Sensor harness connector.

Is the voltage at 2.5 volts?

Yes

>> Replace the O2 Sensor.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 4

4.

(K902) O2 RETURN UPSTREAM CIRCUIT SHORTED TO GROUND

Turn the ignition off.

Disconnect the C1 PCM harness connector.

Measure the resistance between ground and the (K902) O2 Upstream
Return circuit in the O2 Sensor harness connector.

Is the resistance below 100 ohms?

Yes

>> Repair the short to ground in the (K902) O2 Return

Upstream circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 8

5.

(K41) O2 SENSOR 1/1 SIGNAL CIRCUIT SHORTED TO GROUND

Turn the ignition off.

Disconnect the C1 and C2 PCM harness connectors.

Measure the resistance between ground and the (K41) O2 Sensor 1/1
Signal circuit in the O2 Sensor harness connector.

Is the resistance below 100 ohms?

Yes

>> Repair the short to ground in the (K41) O2 Sensor 1/1 Sig-

nal circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 6

KJ

ENGINE ELECTRICAL DIAGNOSTICS

9 - 123

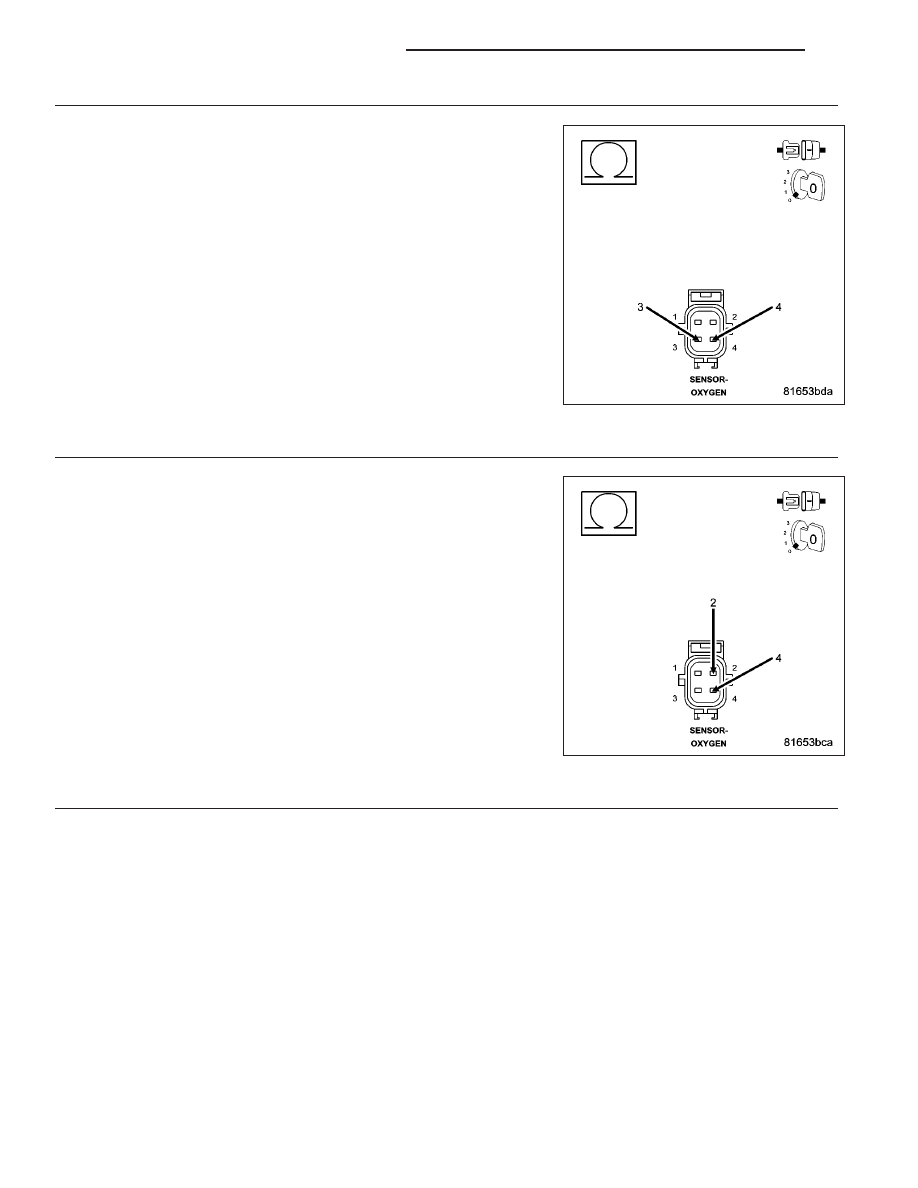

6.

(K41) O2 SENSOR 1/1 SIGNAL CIRCUIT SHORTED TO THE (K902) O2 RETURN UPSTREAM CIRCUIT

Measure the resistance between the (K41) O2 Sensor 1/1 Signal circuit
and the (K902) O2 Return Upstream circuit in the O2 Sensor harness
connector.

Is the resistance below 100 ohms?

Yes

>> Repair the short between the (K902) O2 Return Upstream

circuit and the (K41) O2 Sensor 1/1 Signal circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 7

7.

(K41) O2 SENSOR 1/1 SIGNAL CIRCUIT SHORTED TO THE (Z42) O2 1/1 HEATER GROUND CIRCUIT

Measure the resistance between the (K41) O2 Sensor 1/1 Signal circuit
and the (Z42) O2 1/1 Heater ground circuit in the O2 Sensor harness
connector.

Is the resistance below 100 ohms?

Yes

>> Repair the short between the (Z42) O2 1/1 Heater ground

circuit and the (K41) O2 Sensor 1/1 Signal circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 8

8.

PCM

NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal
push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and
Ground circuits.

Were there any problems found?

Yes

>> Repair as necessary.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Replace and program the Powertrain Control Module per Service Information.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

9 - 124

ENGINE ELECTRICAL DIAGNOSTICS

KJ

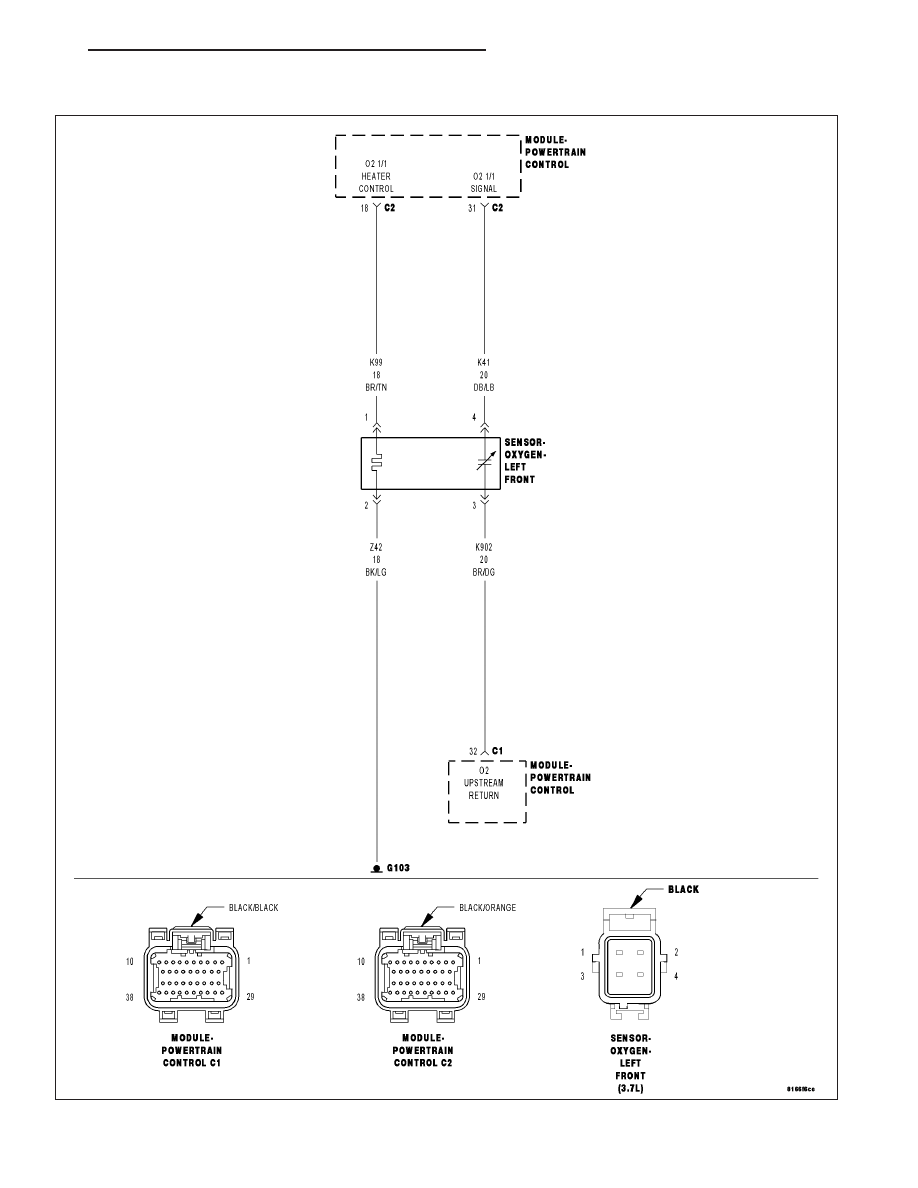

P0132-O2 SENSOR 1/1 CIRCUIT HIGH

For a complete wiring diagram Refer to Section 8W.
