Jeep Liberty KJ. Manual - part 1414





WARNING: On vehicles equipped with airbags, disable the airbag system before attempting any steering
wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the
negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before
performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to
take the proper precautions could result in accidental airbag deployment and possible personal injury or
death.

NOTE: The air inlet housing must be removed from HVAC housing and disassembled for service of the
recirculation-air door.

1. Disconnect and isolate the negative battery cable.

2. Remove the HVAC housing (7) and place it on a

workbench (Refer to 24 - HEATING & AIR CONDI-
TIONING/DISTRIBUTION/HOUSING-HVAC

-

REMOVAL).

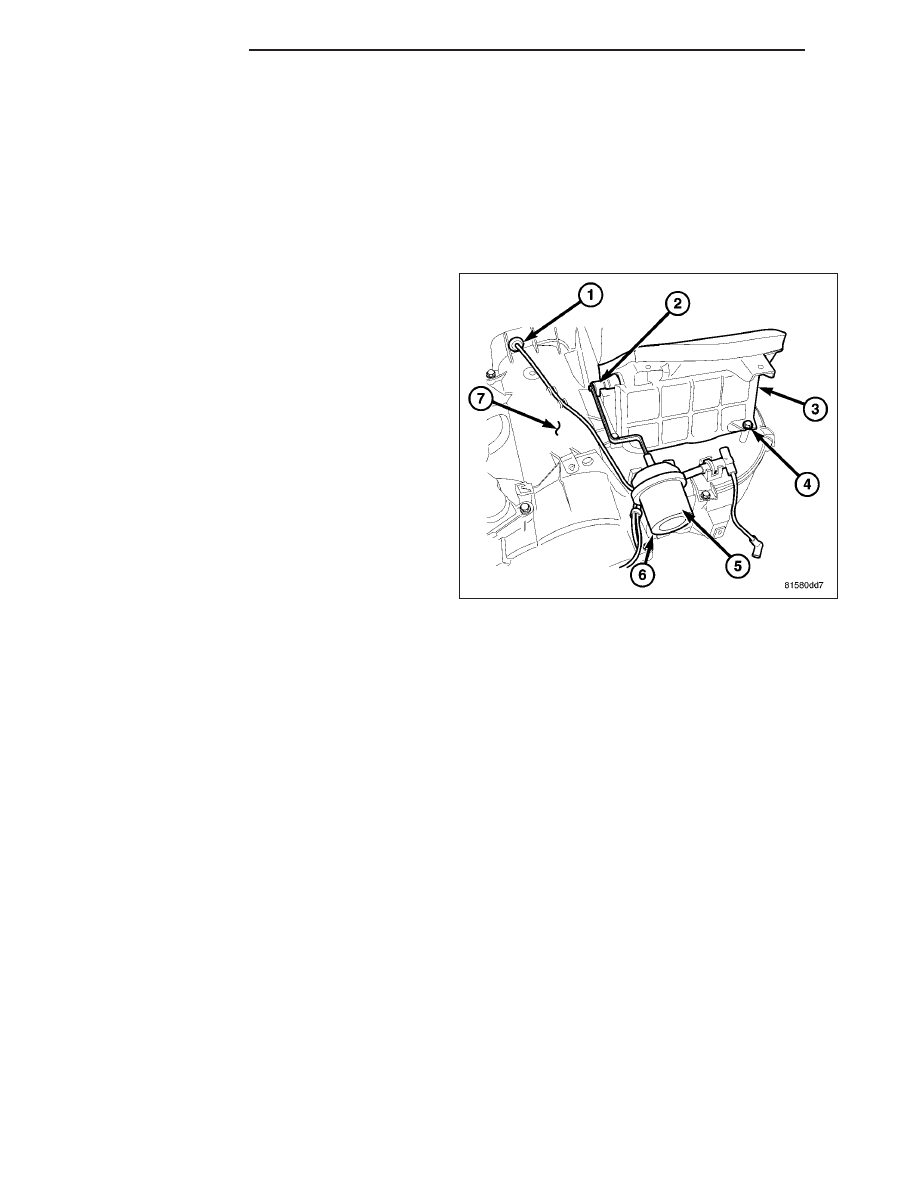

3. Disconnect the HVAC vacuum harness connector

(6) from the recirculation door actuator (5) and if
required, position the vacuum harness (1) out of
the way.

4. Carefully disconnect the recirculation door actuator

from the recirculation door lever (2) and if required,
remove the actuator from the HVAC housing (Refer
to 24 - HEATING & AIR CONDITIONING/CON-
TROLS/ACTUATOR-RECIRCULATION

DOOR

-

REMOVAL).

5. Remove the four screws (4) that secure the air inlet

housing (3) to the top of the HVAC housing and
remove the air inlet housing.

NOTE: If the foam seal on the air inlet housing is deformed or damaged, it must be replaced.

6. If required, disassemble the air inlet housing (Refer to 24 - HEATING & AIR CONDITIONING/DISTRIBUTION/

HOUSING-HVAC - HOUSING-AIR INLET - DISASSEMBLY).

DISASSEMBLY

HVAC HOUSING

NOTE: The HVAC housing must be removed from the vehicle and disassembled for service of the A/C evap-
orator and the mode-air and blend-air doors.

NOTE: LHD model shown in illustrations. RHD model similar.

24 - 58

DISTRIBUTION

KJ

1. Remove the HVAC housing from the vehicle and

place it on a workbench (Refer to 24 - HEATING &
AIR

CONDITIONING/DISTRIBUTION/HOUSING-

HVAC - REMOVAL).

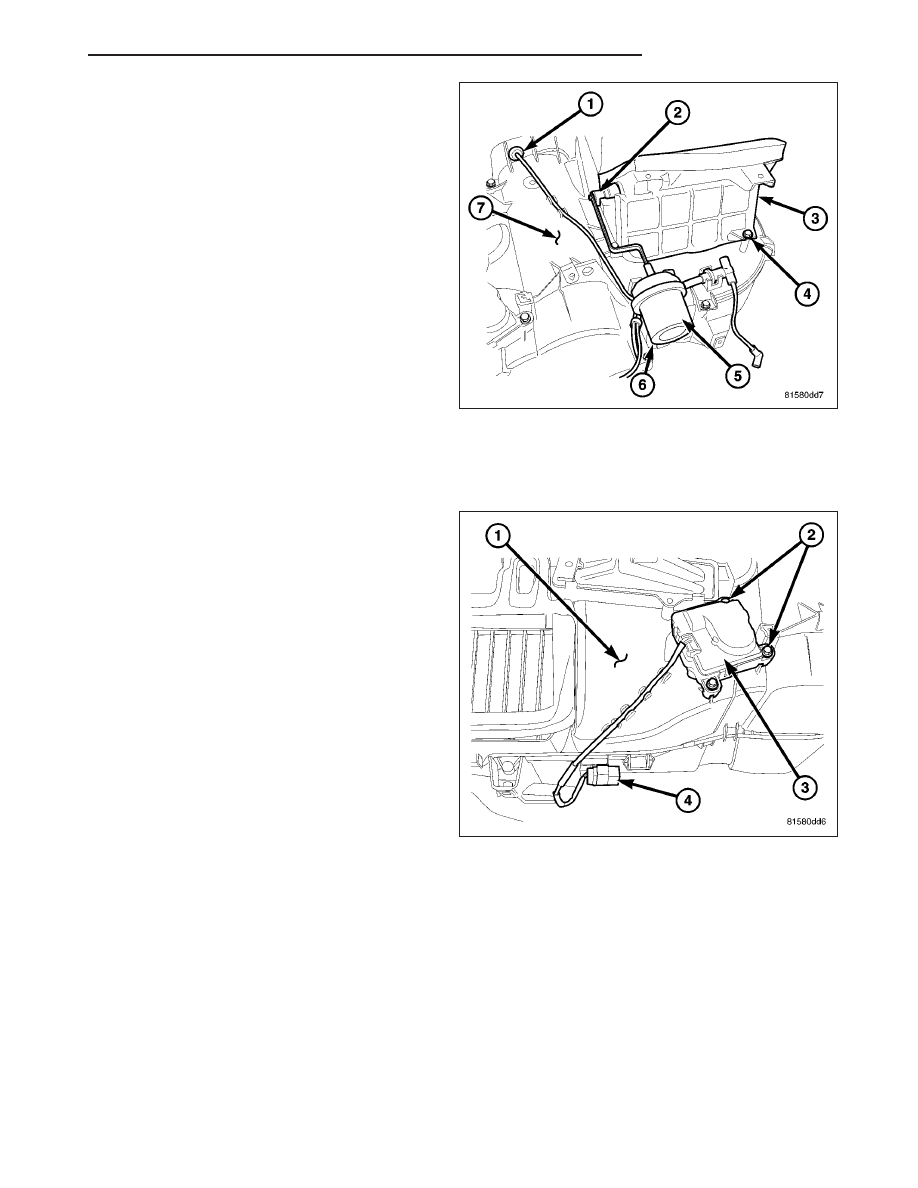

2. Remove the vacuum harness and grommet (1)

from the top of the HVAC housing (7).

3. Disconnect the vacuum harness connector (6) from

the recirculation door actuator (5).

4. Carefully disconnect the recirculation door actuator

from the recirculation door lever (2) and remove
the actuator from the HVAC housing (Refer to 24 -
HEATING & AIR CONDITIONING/CONTROLS/AC-
TUATOR-RECIRCULATION DOOR - REMOVAL).

5. Remove the four screws (4) that secure the air inlet

housing (3) to the top of the HVAC housing and
remove the air inlet housing.

NOTE: If the foam seal on the air inlet housing is
deformed or damaged, the seal must be replaced.

6. If required, disassemble the air inlet housing (Refer to 24 - HEATING & AIR CONDITIONING/DISTRIBUTION/

HOUSING-HVAC - HOUSING-AIR INLET - DISASSEMBLY).

7. Disengage the wire harness lead and connector (4)

for the blend door actuator (3) from the retainers
located on the top and on the rear of the HVAC
housing (1).

8. Remove the three screws (2) that secure the blend

door actuator to the top of the HVAC housing and
remove the actuator and wire harness lead and
connector from the housing.

KJ

DISTRIBUTION

24 - 59

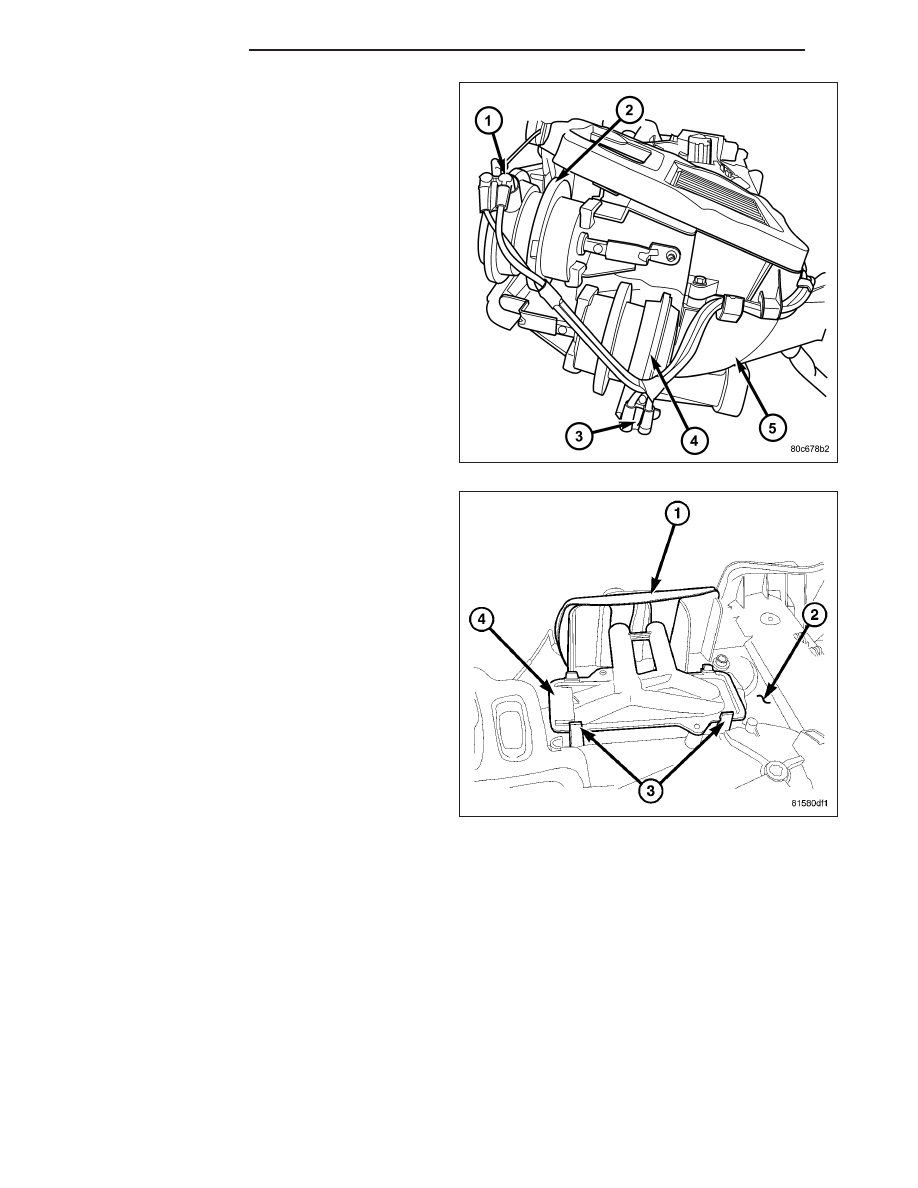

9. Disconnect the vacuum harness connectors (1 and

3) from the two mode door actuators (2 and 4)
located on the driver side end of the HVAC housing
(5).

10. Carefully disconnect the mode door actuators

from the mode-air door levers and remove the
actuators from the HVAC housing (Refer to 24 -
HEATING & AIR CONDITIONING/CONTROLS/
ACTUATOR-MODE DOOR - REMOVAL).

11. Disengage the HVAC vacuum harness from the

routing clips located on the HVAC housing and
remove the vacuum harness from the housing.

NOTE: If the foam seal around the heater core
tubes is deformed or damaged, the seal must be
replaced.

12. Carefully remove the foam seal (1) from the

heater core (4) and the front of the HVAC housing
(2). If the seal is deformed or damaged, it must
be replaced.

NOTE: If the foam insulator around the heater core
is deformed or damaged, the insulator must be
replaced.

13. Disengage the four retaining tabs (3) that secure

the heater core to the top of the HVAC housing
and carefully remove the heater core from the
housing.

24 - 60

DISTRIBUTION

KJ

NOTE: If any foam or rubber seal is deformed or
damaged, the seal must be replaced.

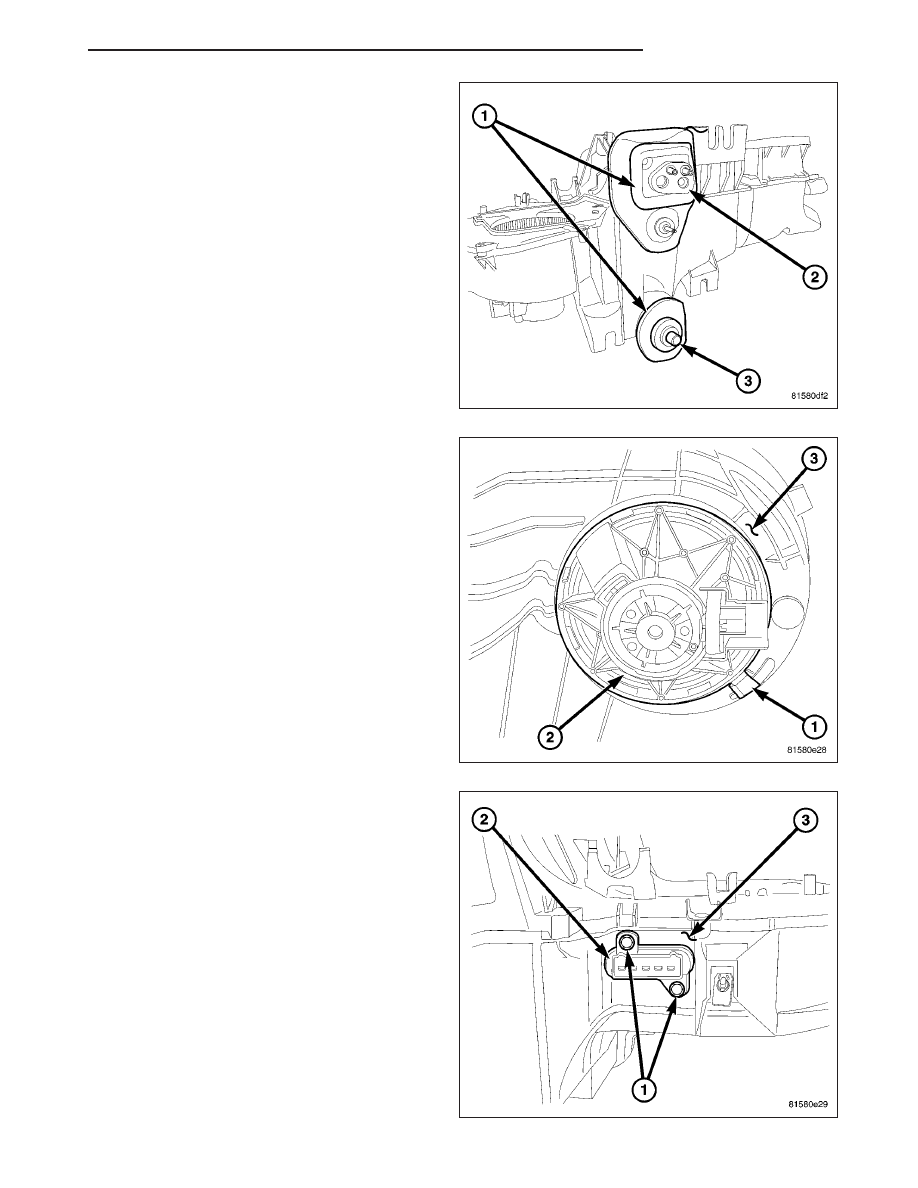

14. Carefully remove the foam and rubber seals (1)

from around the evaporator tapping block (2) and
the condensate drain (3). If any seal is deformed
or damaged, it must be replaced.

15. Release the locking tab (1) that secures the

blower motor (2) to the HVAC housing (3) and
rotate blower motor counterclockwise.

16. Rotate the blower motor counterclockwise as

needed to remove the blower motor and wheel
from the HVAC housing.

17. Remove the two screws (1) that secure the

blower motor resistor (2) to the rear of the HVAC
housing (3) and remove the resistor.

KJ

DISTRIBUTION

24 - 61
