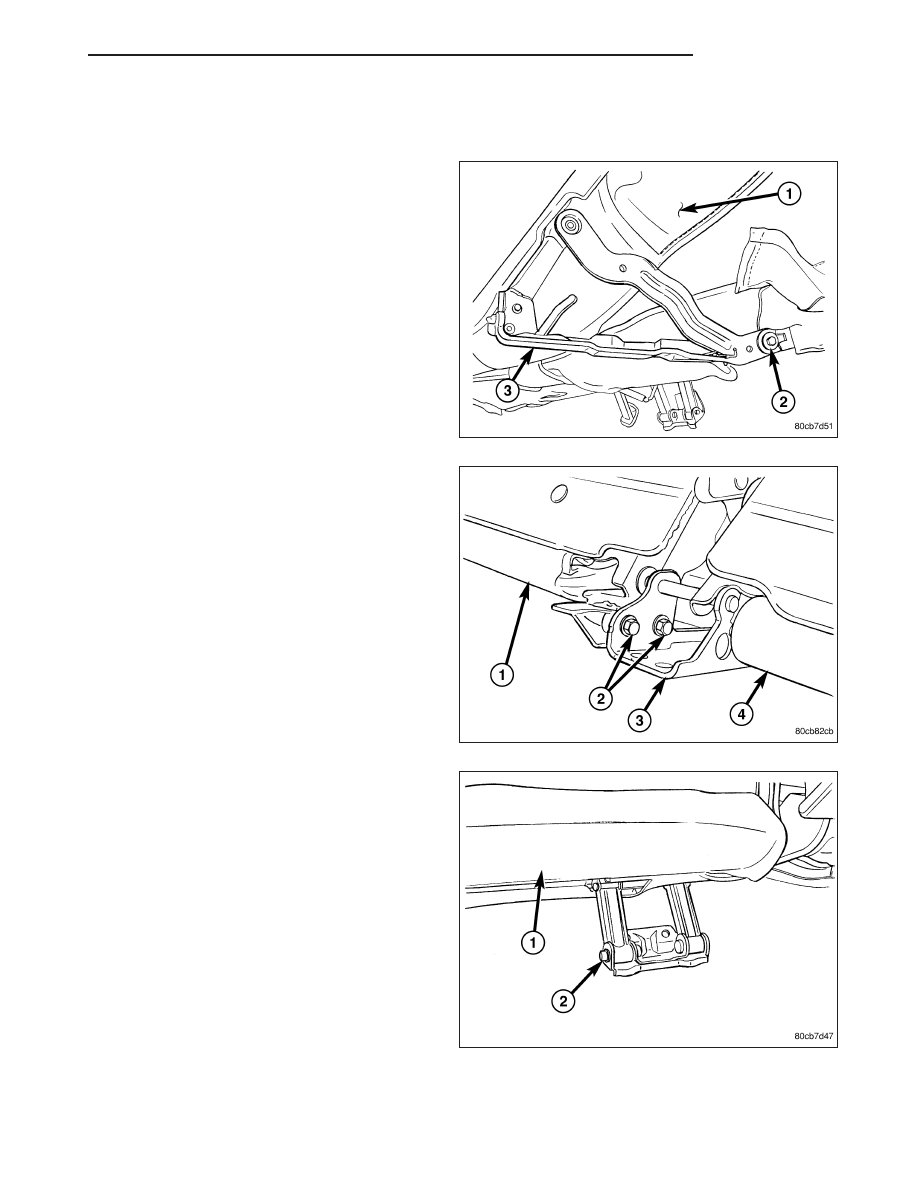

5. Remove the center seat back hinge bolts and sep-

arate the rear seat assembly.

6. Remove the center seat belt anchor. (Refer to 8 -

ELECTRICAL/RESTRAINTS/SEAT

BELT

&

RETRACTOR - REMOVAL)

7. Remove the remaining outer and inner seat anchor

bolts.

8. Release the clips and remove the seat back hinge

covers.

9. Lift the seat cushion cover and remove the hinge

bolts.

10. Remove the seat back.

23 - 232

SEATS

KJ

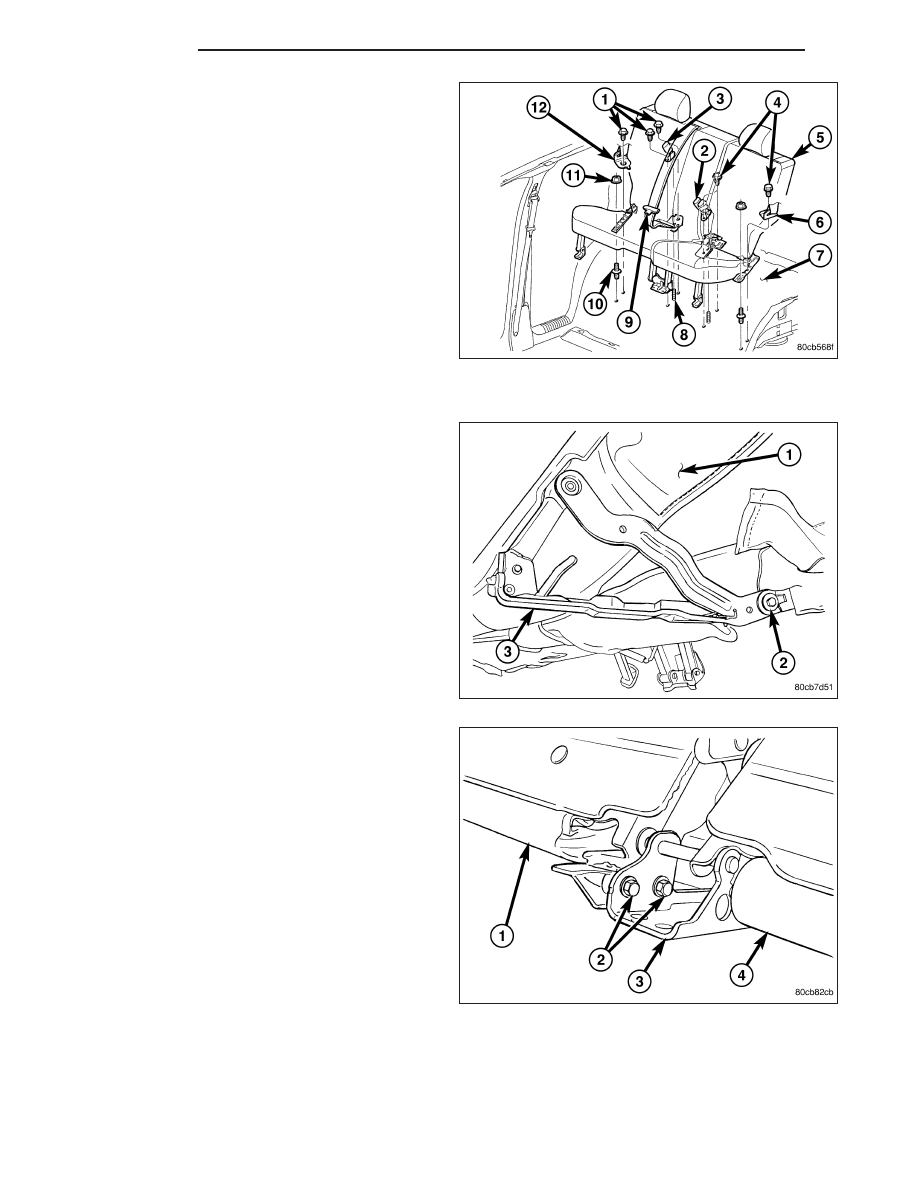

INSTALLATION

60/40 Split Seat - Left

1. Install the seat back.

2. Install the seat back hinge bolt and tighten to 8

N·m (71 in. lbs.).

3. Position the seat back hinge covers and fully seat

the clips.

4. Connect the seat halves and install the center seat

back hinge bolts.

5. Tighten the bolts to 28 N·m (21 ft. lbs.).

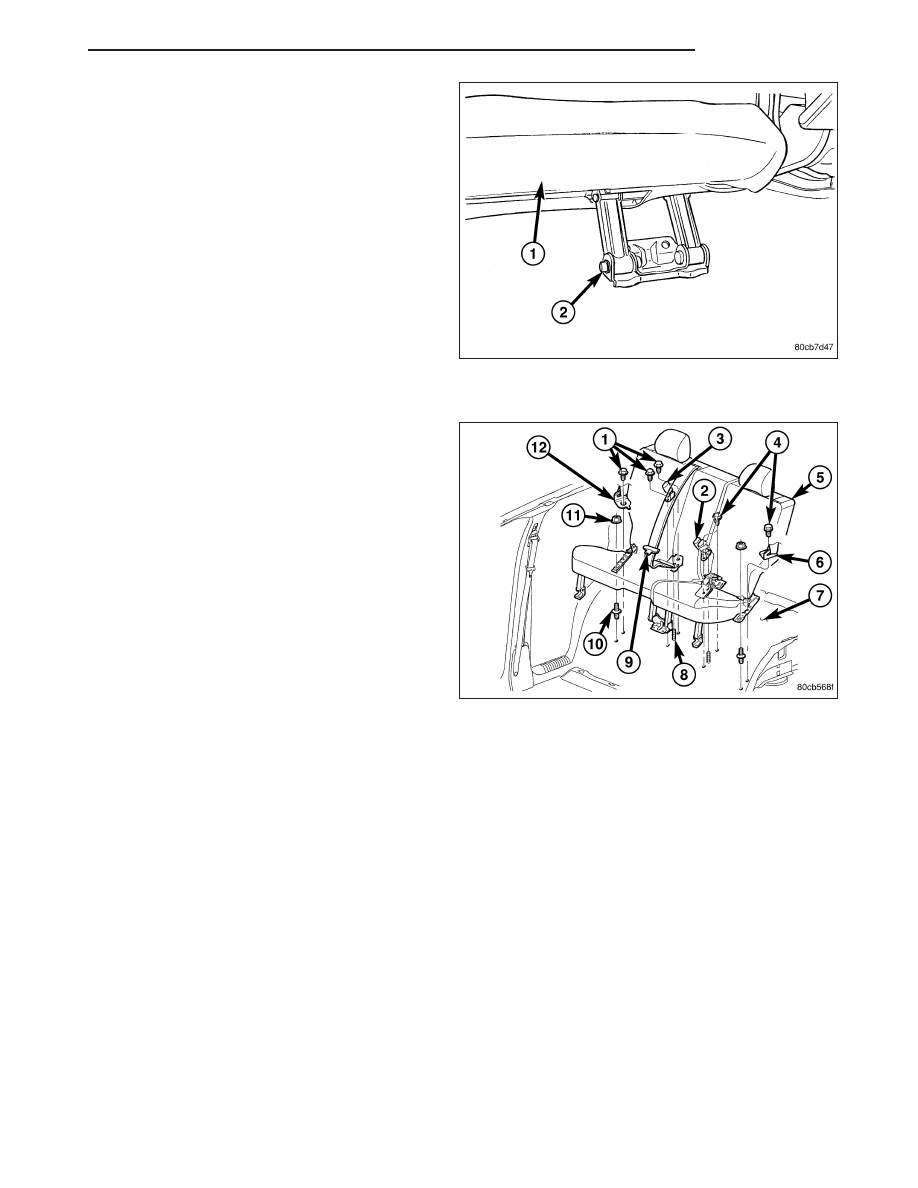

6. Install the front seat cushion hinge bolt and tighten

to 28 N·m (21 ft. lbs.).

KJ

SEATS

23 - 233

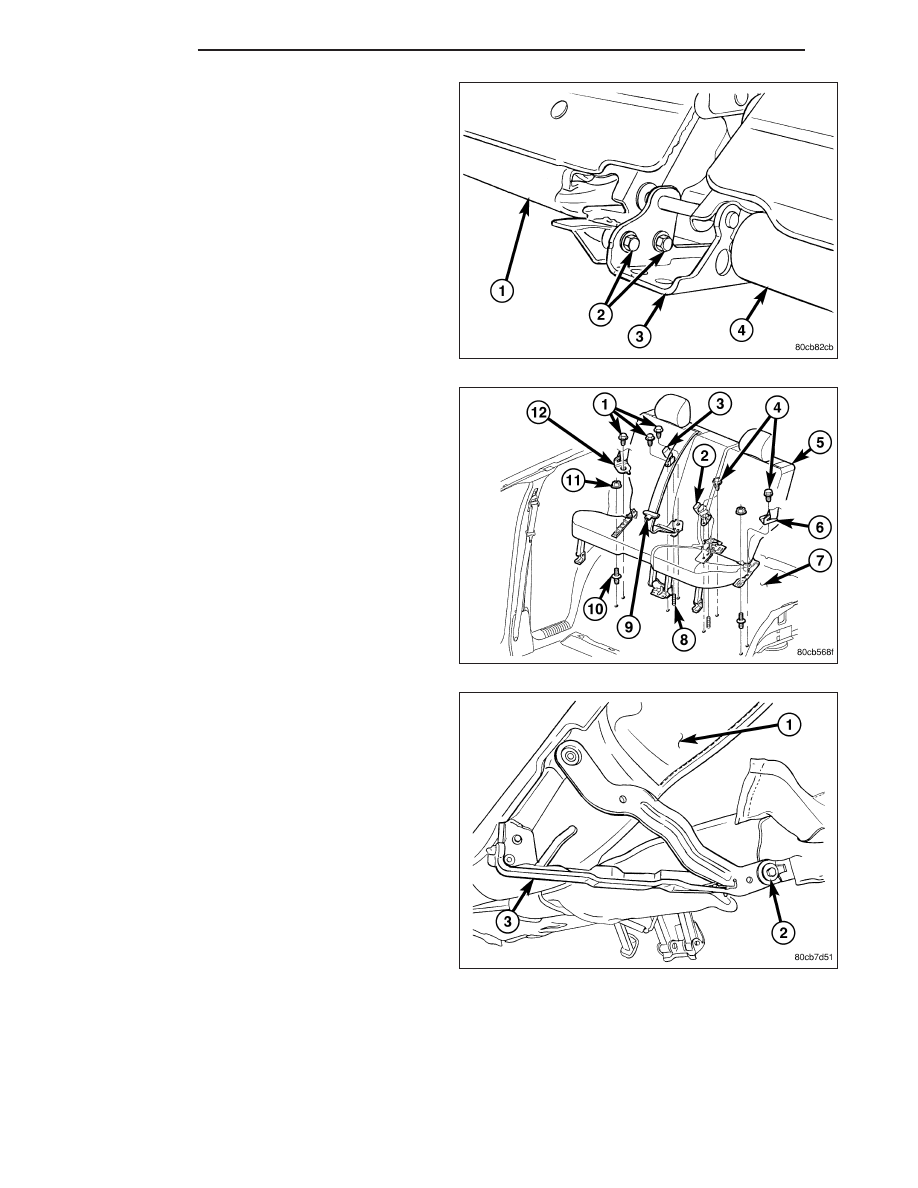

7. Install the outer seat anchor nut and tighten to 35

N·m (26 ft. lbs.).

8. Install the outer seat belt anchors. (Refer to 8 -

ELECTRICAL/RESTRAINTS/SEAT

BELT

&

RETRACTOR - INSTALLATION)

60/40 Split Seat - Right

1. Install the seat back.

2. Install the seat back hinge bolt and tighten to 8

N·m (71 in. lbs.).

3. Position the seat back hinge covers and fully seat

the clips.

4. Connect the seat halves and install the center seat

back hinge bolts.

5. Tighten the bolts to 28 N·m (21 ft. lbs.).

23 - 234

SEATS

KJ

6. Install the front seat cushion hinge bolt and tighten

to 28 N·m (21 ft. lbs.).

Seat Installation

1. Install the outer and inner seat anchor nuts and

tighten to 62.5 N·m (46 ft. lbs.).

2. Install the inner seat belt buckles. (Refer to 8 -

ELECTRICAL/RESTRAINTS/SEAT BELT BUCKLE
- INSTALLATION)

3. Install the center seat belt anchor. (Refer to 8 -

ELECTRICAL/RESTRAINTS/SEAT

BELT

&

RETRACTOR - INSTALLATION)

4. Install the outer seat belt anchors. (Refer to 8 -

ELECTRICAL/RESTRAINTS/SEAT

BELT

&

RETRACTOR - INSTALLATION)

KJ

SEATS

23 - 235
