Jeep Liberty KJ. Manual - part 1305





NOTE: With the spare tire removed add 3 mm on the right side to compensate for sag after the spare tire is
installed.

1. Remove the latch striker. (Refer to 23 - BODY/SWING GATE/LATCH STRIKER - REMOVAL)

2. Remove the stabilizer wedge/striker. (Refer to 23 - BODY/SWING GATE/STABILIZER WEDGE - REMOVAL)

3. For hinge side adjustments, loosen the hinge bolts and leave one upper hinge bolt hand tight. (Refer to 23 -

BODY/SWING GATE/HINGE - REMOVAL)

4. Adjust the swing gate to the correct position. (Refer to 23 - BODY/BODY STRUCTURE/GAP AND FLUSH -

SPECIFICATIONS)

5. Tighten the fasteners. (Refer to 23 - BODY/SWING GATE/HINGE - INSTALLATION)

6. Install the latch striker. (Refer to 23 - BODY/SWING GATE/LATCH STRIKER - INSTALLATION)

7. Install the spare tire. (Refer to 22 - TIRES/WHEELS/TIRES/SPARE TIRE - INSTALLATION)

UP/DOWN

NOTE: Up/down swing gate adjustment is done by loosening the hinge to gate fasteners or the hinge to
body fasteners, one hinge at a time and moving the door to the correct position.

NOTE: With the spare tire removed add 3 mm on the right side to compensate for sag after the spare tire is
installed.

1. Remove the latch striker. (Refer to 23 - BODY/SWING GATE/LATCH STRIKER - REMOVAL)

2. Remove the stabilizer wedge/striker. (Refer to 23 - BODY/SWING GATE/STABILIZER WEDGE - REMOVAL)

3. For hinge side adjustments, loosen the hinge bolts and leave one upper hinge bolt hand tight. (Refer to 23 -

BODY/SWING GATE/HINGE - REMOVAL)

4. Adjust the swing gate to the correct position. (Refer to 23 - BODY/BODY STRUCTURE/GAP AND FLUSH -

SPECIFICATIONS)

5. Tighten the fasteners. (Refer to 23 - BODY/SWING GATE/HINGE - INSTALLATION)

6. Install the latch striker. (Refer to 23 - BODY/SWING GATE/LATCH STRIKER - INSTALLATION)

7. Install the spare tire. (Refer to 22 - TIRES/WHEELS/TIRES/SPARE TIRE - INSTALLATION)

LEFT/RIGHT

NOTE: Left/right swing gate adjustment is done by loosening the hinge to body fasteners one hinge at a
time and moving the door to the correct position.

NOTE: With the spare tire removed add 3 mm on the right side to compensate for sag after the spare tire is
installed.

1. Remove the latch striker. (Refer to 23 - BODY/SWING GATE/LATCH STRIKER - REMOVAL)

2. Remove the stabilizer wedge/striker. (Refer to 23 - BODY/SWING GATE/STABILIZER WEDGE - REMOVAL)

3. Loosen the hinge to body bolts and leave one upper hinge bolt hand tight. (Refer to 23 - BODY/SWING GATE/

HINGE - REMOVAL)

4. Adjust the swing gate to the correct position. (Refer to 23 - BODY/BODY STRUCTURE/GAP AND FLUSH -

SPECIFICATIONS)

5. Tighten the fasteners. (Refer to 23 - BODY/SWING GATE/HINGE - INSTALLATION)

6. Install the latch striker. (Refer to 23 - BODY/SWING GATE/LATCH STRIKER - INSTALLATION)

7. Install the spare tire. (Refer to 22 - TIRES/WHEELS/TIRES/SPARE TIRE - INSTALLATION)

23 - 120

SWING GATE

KJ

EXTERIOR

TABLE OF CONTENTS

page

page

BODY SIDE MOLDINGS

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

COWL GRILLE

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

EXTERIOR NAME PLATES

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

FRONT FENDER

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

FUEL FILL DOOR/HOUSING

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

GRILLE

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

GRILLE OPENING REINFORCEMENT

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

FRONT WHEELHOUSE SPLASH SHIELD

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

LUGGAGE RACK

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

REAR WHEELHOUSE SPLASH SHIELD

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

FRONT WHEEL OPENING FLARE MOLDINGS

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

REAR WHEEL OPENING FLARE MOLDINGS

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

RADIATOR CROSSMEMBER

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

SIDE VIEW MIRROR

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

GLASS-OUTSIDE REARVIEW MIRROR

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

SIDE STEP

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

ROCK RAIL

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

MOLDING - SILL

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

KJ

EXTERIOR

23 - 121

BODY SIDE MOLDINGS

REMOVAL

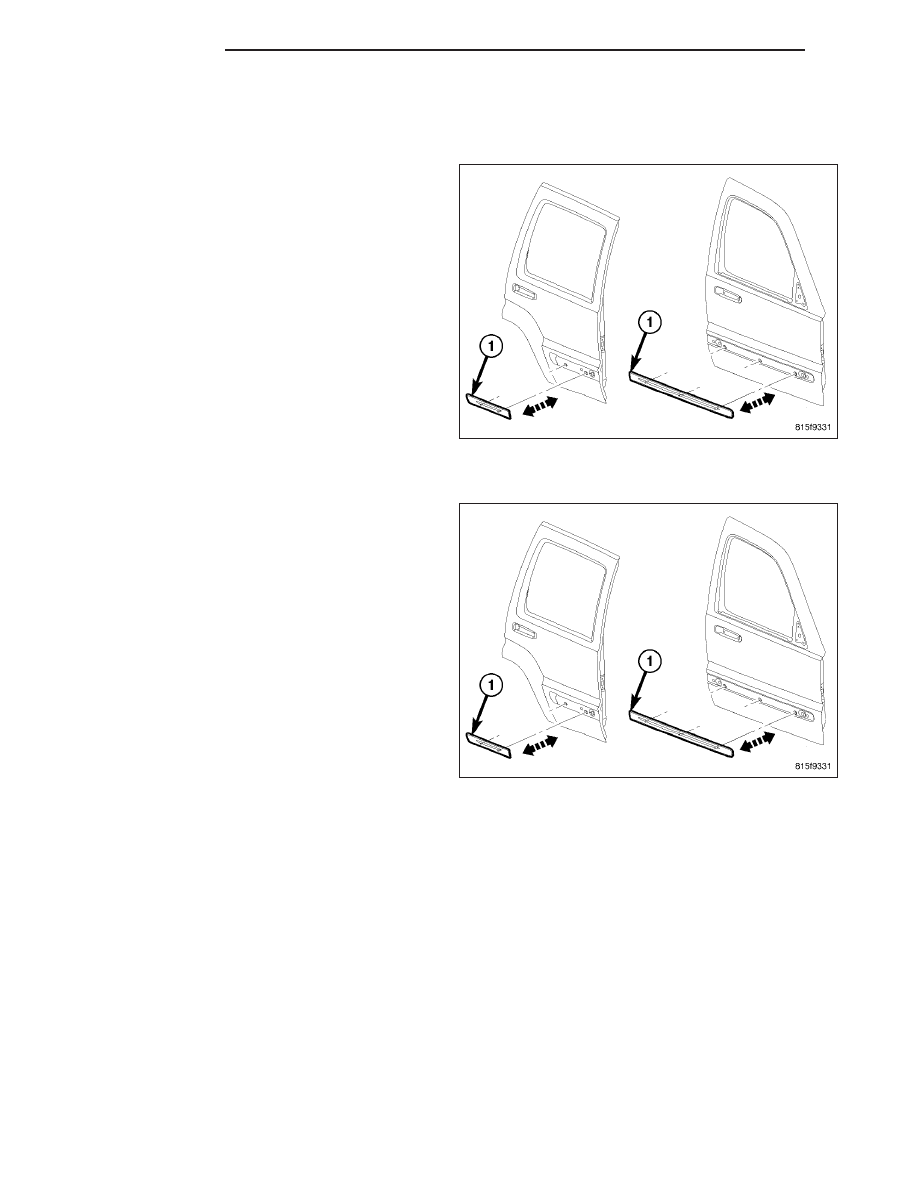

1. Using a trim stick C-4755 or equivalent, remove

and discard the molding (1) from the outside of the
door.

INSTALLATION

1. Thoroughly clean all residue from the body side

molding attachment area of the door.

2. Wipe area clean with a 50% solution of water and

alcohol and wipe dry.

3. Apply new body side molding using the locators in

the door and apply pressure of approximately 40
p.s.i. over the entire surface of the molding.

23 - 122

EXTERIOR

KJ

COWL GRILLE

REMOVAL

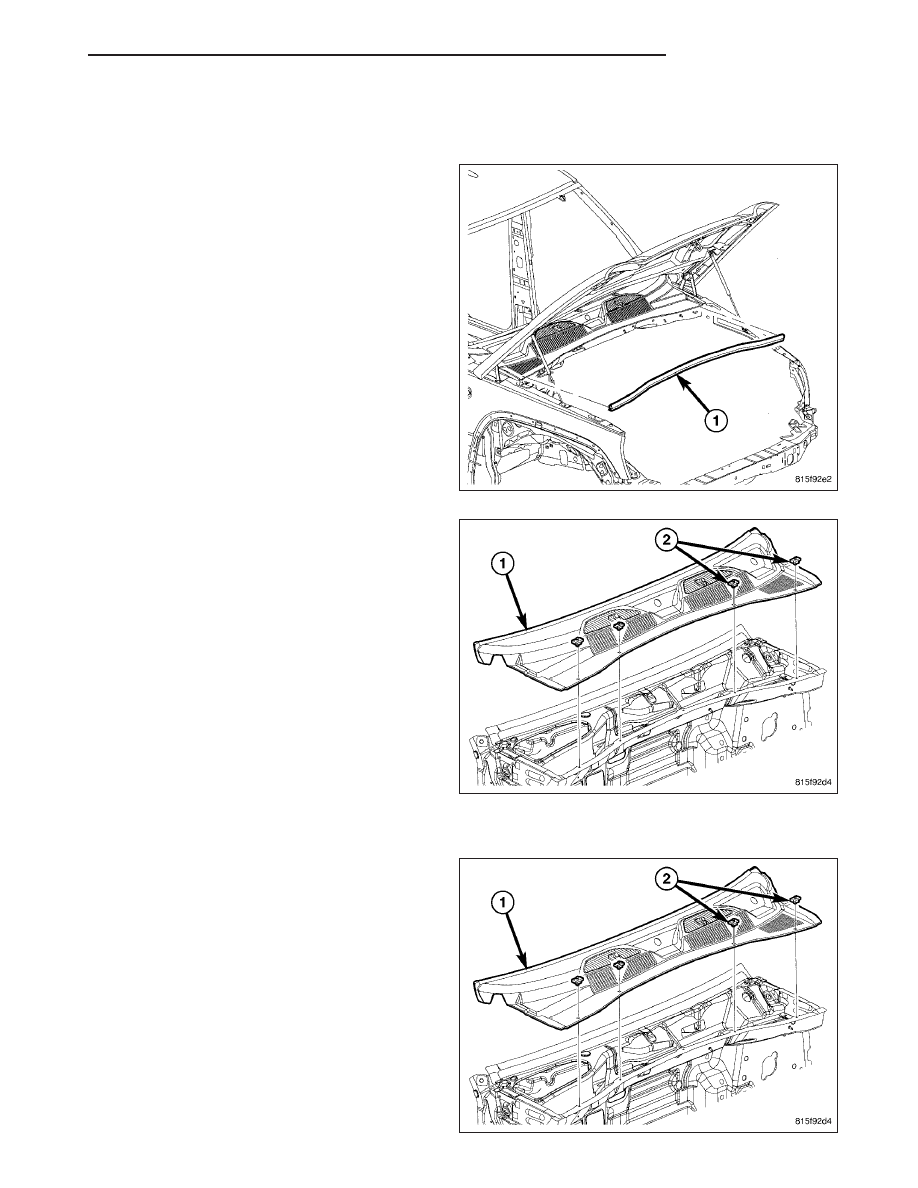

1. Remove the hood seal (1).

2. Remove the wiper arms. (Refer to 8 - ELECTRI-

CAL/WIPERS/WASHERS/WIPER

ARMS

-

REMOVAL)

3. Remove the four plastic retainers (2) and remove

the cowl grille (1).

INSTALLATION

1. Position the cowl grille (1) and engage the nine

clips to the bottom of the windshield.

2. Install the four plastic retainers (2).

3. Install the wiper arms. (Refer to 8 - ELECTRICAL/

WIPERS/WASHERS/WIPER ARMS - INSTALLA-
TION)

KJ

EXTERIOR

23 - 123
