INSTALLATION

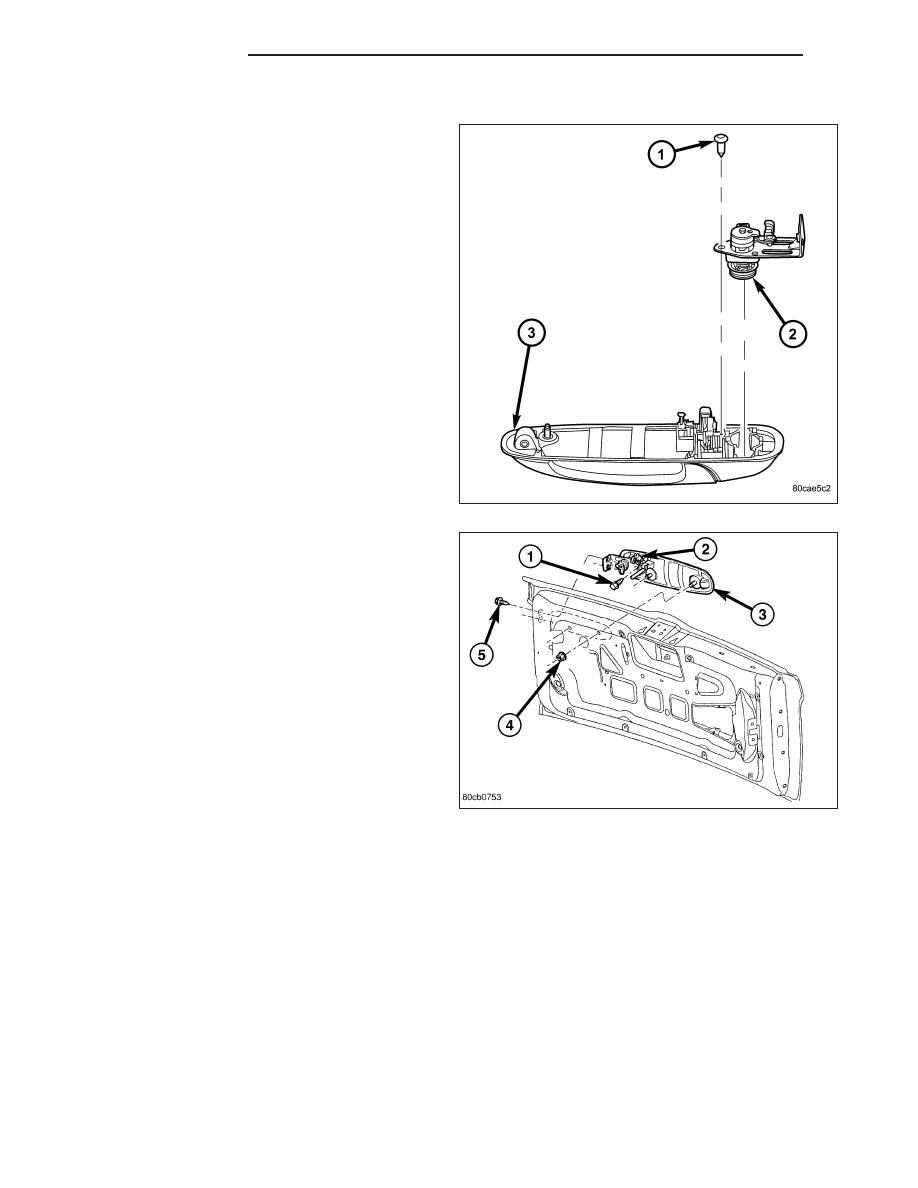

1. Install the lock cylinder.

2. Install the screw (1) and tighten to 6 N·m (50 in.

lbs.).

3. Install the lock cylinder switch and retaining clip.

4. Install the exterior handle (3). (Refer to 23 - BODY/

SWING GATE/EXTERIOR HANDLE - INSTALLA-
TION)

23 - 112

SWING GATE

KJ

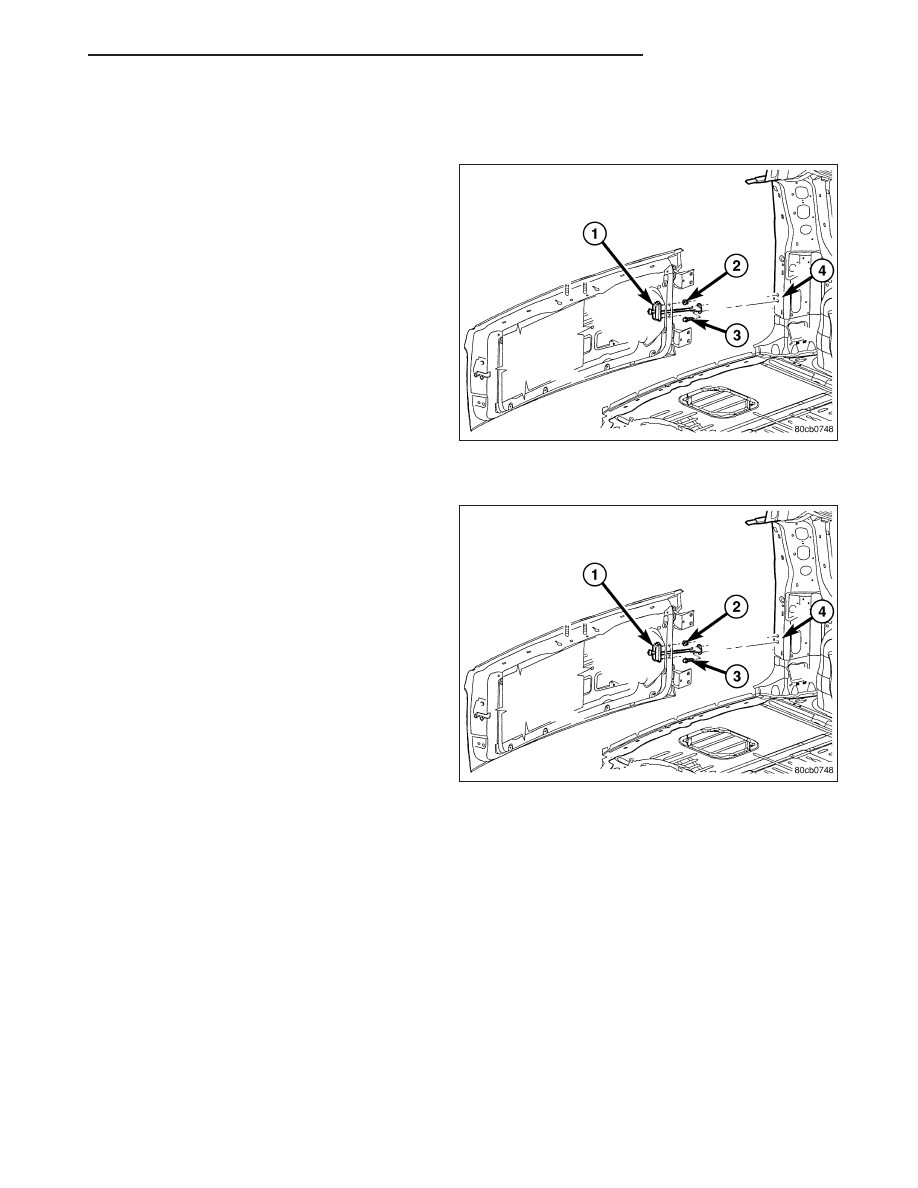

CHECK STRAP

REMOVAL

1. Remove the swing gate trim panel. (Refer to 23 -

BODY/SWING GATE/TRIM PANEL - REMOVAL)

2. Remove the quarter trim panel. (Refer to 23 -

BODY/INTERIOR/QUARTER

TRIM

PANEL

-

REMOVAL)

3. Remove the bolts (3) attaching the check strap (1)

to the D-pillar (4).

4. Peel back the waterdam.

5. Remove the nuts and remove the check strap (2)

from the swing gate.

INSTALLATION

1. Install the check strap.

2. Install the nuts and tighten to 10 N·m (85 in. lbs.).

3. Reposition the waterdam.

4. Install the trim panel. (Refer to 23 - BODY/SWING

GATE/TRIM PANEL - INSTALLATION)

5. Install the bolts attaching the check strap to the

D-pillar and tighten to 11 N·m (8 ft. lbs.).

6. Install the quarter trim panel. (Refer to 23 - BODY/

INTERIOR/QUARTER TRIM PANEL - INSTALLA-
TION)

KJ

SWING GATE

23 - 113

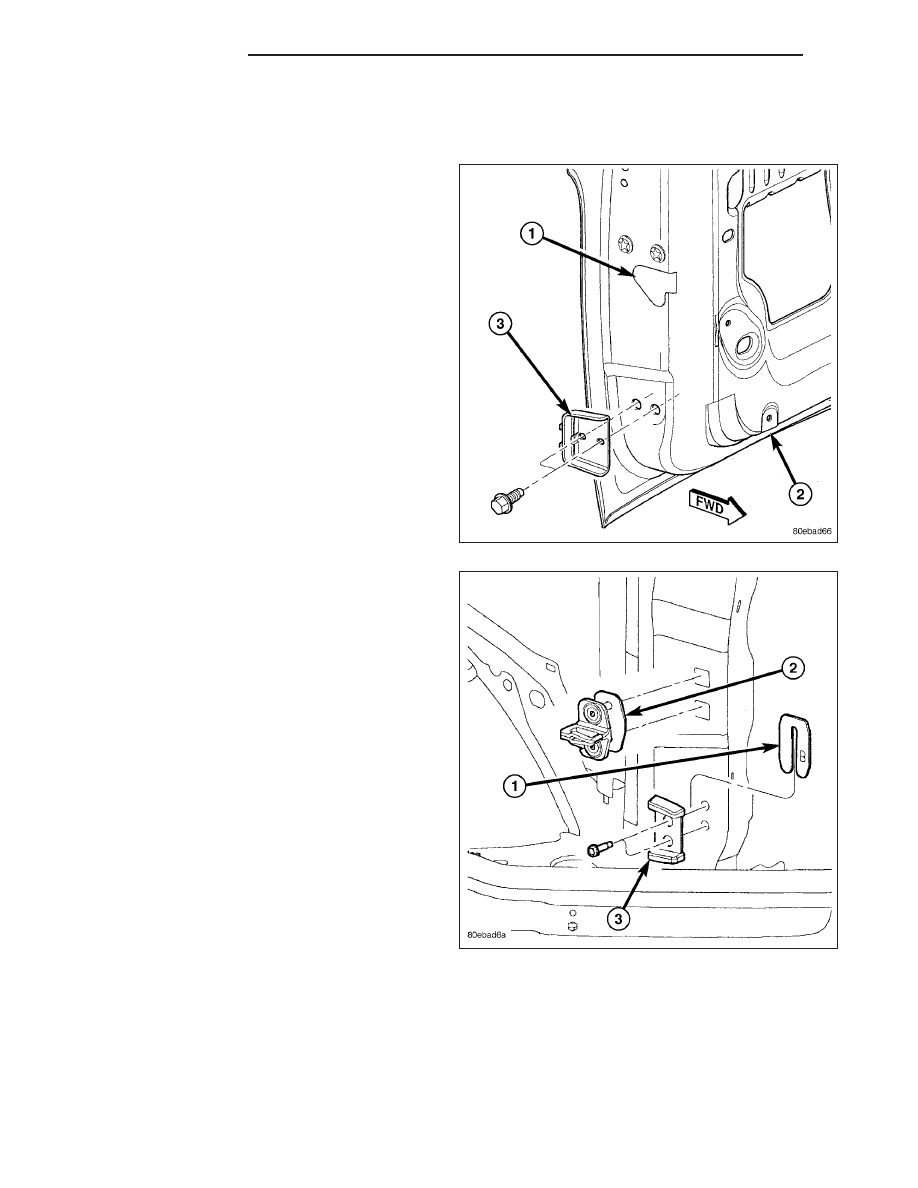

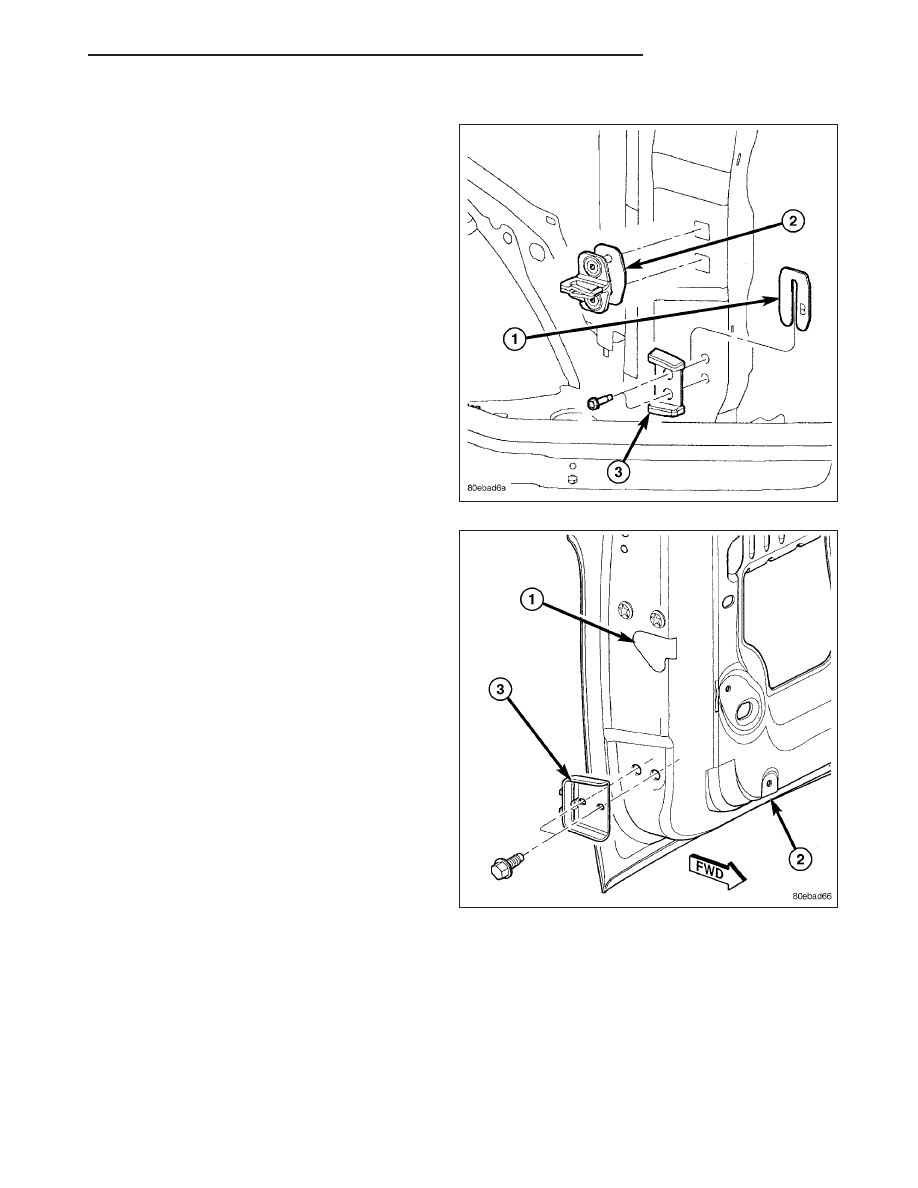

STABILIZER WEDGE/INSERT

REMOVAL

1. Open the swing gate.

2. Using a grease pencil or equivalent, mark the loca-

tion of the stabilizer cup (3) and insert to aid instal-
lation.

3. Remove the bolts for the stabilizer cup and remove

the cup.

4. Remove the bolts for the insert and remove the

insert (3) and shim (1), if equipped.

23 - 114

SWING GATE

KJ

INSTALLATION

1. Install the stabilizer insert (3) with the narrow end

toward the rear of the vehicle and install the bolts.

2. Tighten the bolts to 9 N·m (80 in. lbs.).

3. Install the stabilizer cup (3) and loosely install the

bolts.

4. Adjust the stabilizer and tighten the bolts to 9 N·m

(80 in. lbs.). (Refer to 23 - BODY/SWING GATE/
STABILIZER WEDGE/INSERT - ADJUSTMENTS)

ADJUSTMENTS

ADJUSTMENT

1. Adjust the insert up/down so that it is centered within the stabilizer cup.

2. Adjust the insert for/aft so the swing gate is 1.0 mm over flush to the D-pillar when the insert contacts the rubber

bumper in the stabilizer cup.

3. Open the swing gate and tighten the bolts to 9 N·m (80 in. lbs.).

NOTE: Make sure the stabilizer cup and insert are parallel to each other and not twisted.

KJ

SWING GATE

23 - 115
